Product Type	Smoke Detector
Brand	Vivanco
Model	SD 3N SET
Power Supply	9V block battery (carbon or alkaline)
Recommended Battery Types	Gold Peak GP1604S, GP1604P, G6F22, Pairdeer 6F22, Duracell MN1604
Low Battery Alarm	Audible signal (85 dBA) every minute
Protection Class	IP20
Ambient Temperature	0 °C to 40 °C, non-condensing
Operation LED	Yes (indicator light)
Weight (without battery)	90 g
Dimensions	Diameter 106 mm, height 32 mm
Main Functions	Smoke detection, function test, audible alarm, low battery indicator
Maintenance and Cleaning	Dust with a soft cloth, clean with a damp cloth once a year, weekly test
Safety	Device preventing base locking without battery or if battery is incorrectly inserted
Spare Parts and Repairability	User-replaceable battery; if defective, replace the device
General Information	Legal warranty, batteries excluded; separate disposal of device and batteries

Frequently Asked Questions - SD 3N SET VIVANCO

Where to install the SD 3N SET smoke detector?

Install it on the ceiling, in the middle of the room, at least 50 cm from walls and 60 cm from corners. Avoid kitchens, bathrooms, garages, and rooms with high humidity or extreme temperatures.

How to test the smoke detector?

Press the 'Push to Test' button on the bottom until the alarm sounds. If no sound, replace the battery.

What to do if the detector beeps every minute?

That is the low battery alarm. Replace the battery immediately with a new recommended 9V type.

How to change the battery of the Vivanco SD 3N SET detector?

Open the housing by turning the cover counterclockwise. Remove the old battery, connect a new 9V battery, replace the cover and perform a test.

Which battery types are compatible?

9V carbon or alkaline block batteries. Recommended models: Gold Peak GP1604S, GP1604P, G6F22, Pairdeer 6F22, Duracell MN1604.

How to clean the smoke detector?

Dust with a soft cloth. For dirt, use a damp cloth without cleaning products. Perform this operation at least once a year.

What to do in case of false alarm?

Check for steam, dust, or cooking smoke. Remove the source. If the problem persists, clean the detector and test it.

The detector does not lock onto the base, what to do?

Make sure the battery is correctly inserted. The detector is equipped with a safety device preventing locking without a battery or with a poorly positioned battery.

What is the lifespan of the smoke detector?

The detector itself has no specified lifespan, but replace it if it fails the test after cleaning and battery replacement. Batteries should be changed as soon as the low voltage alarm sounds.

How to dispose of the detector and batteries?

Do not dispose of the device with household waste. Drop it off at a collection center for electrical appliances. Used batteries must be deposited at an appropriate collection point.

USER MANUAL SD 3N SET VIVANCO

Before using this product, please read the safety and operating instructions carefully. Keep these instructions safely and give it to any subsequent owner.

Specifications

Power supply: 9V block battery, CaBn or alkali

Recommended types: Gold Peak GP1604S, GP1604P, G6F22, Pairdeer 6F22

Duracell MN1604

Battery alarm: beep (85dBA) for low battery

Type of protection: IP20

Ambient temperature: 0^ - 40^ , non-condensing

LED function

Weight (without battery): 90g

Dimensions: 106mm height 32mm

Intended use

The smoke alarm is intended solely for the detection of smoke (fire) in households according to these instructions. It must not be used for commercial purposes. Any other use is deemed to be misuse and can lead to personal injury or property damage for which the manufacturer is not liable.

Safety instructions

WARNING!

Risk of suffocation or burns from flue gases or fire

Risk of death and/or serious damage to property resulting from incorrect installation not in permitted positions and/or lack of regular monitoring

• Please operate the smoke alarm ONLY with a properly installed and charged battery of the recommended battery type.
• Please ONLY install the smoke alarms recommended dry places in your home.
• Please do NOT PAINT or PAPER over the smoke alarm.
• Please regularly perform the SELFTEST (Press test key) and CLEANING according to these instructions.
• Please REPLACE THE BATTERY IMMEDIATELY if the self test is unsuccessful or the battery alarm sounds.
• Please REPLACE the smoke alarm IMMEDIATELY if the self-test is unsuccessful even after cleaning and/or changing the batteries. In such circumstances, the device provides no protection.

WARNING!

Electric shock, explosion, fire and flood risk

Risk of injury or suffocation and property damage due to electric shock, gas or water leaks from drilling into utility lines.

CAUTION! Risk of fire and/or chemical burn from the battery

Fire and burn risks, possible property damage from short-circuit and or leaking battery.

• Please do not short-circuit the external battery contacts, e.g. through storage together with metal objects.
• Please do not expose batteries for lengthy periods to direct sunlight or heat;

• Please do not throw batteries into a fire; and never open them.

• Please replace the battery only with the same or a recommended comparable type.

• Never remove the charge from batteries.

Mounting

Before you install the smoke alarm, select a suitable location for mounting. These are set out on a mandatory basis in the applicable regulation for Germany DIN EN 14676. The following "recommended sites" represent only a sample from the standard.

Especially recommended mounting locations

are: Bedrooms and children's rooms and staircases.

Follow the instructions below to deploy smoke alarms as effectively as possible:

• Install at least one smoke alarm on each floor.
• Place a smoke alarm in rooms containing electrical equipment.
• Install smoke alarms on the ceiling in the middle of the room, as smoke rises upward to the ceiling and there spreads horizontally.
• Avoid mounting locations that are less than 50cm from a side wall and less than 60cm from a corner.

Note

Even in recommended mounting places the function of smoke alarms may be severely affected, e.g.- By smoking in bed.- By cleaning with flammable liquids (e.g. gasoline).

Unsuitable mounting places

are: in particular kitchens, bathrooms, garages, work rooms, boiler rooms and other rooms with high pollution or air containing waste gas, high humidity, too high (in excess of

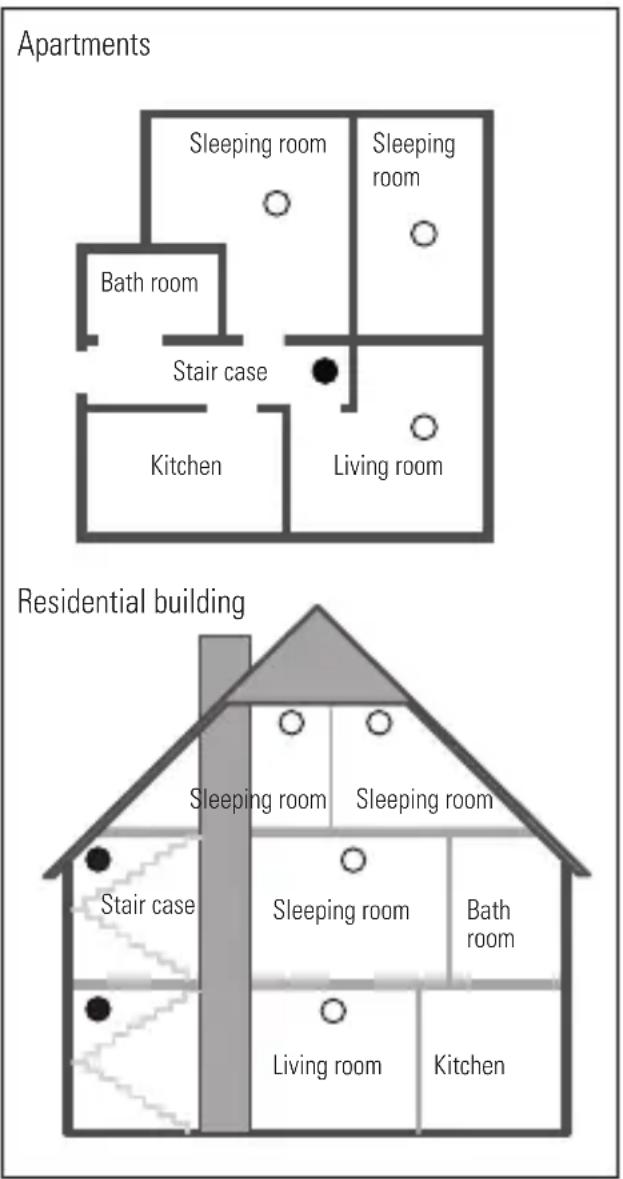

Minimum and optimum protection of apartment and houses from smoke

= optimum protection
= minimum protection

40^) or too low (below 0^) temperatures, because, for example, dust and water vapour particles can trigger a false alarm sooner or later. The highest point under pitched roofs is also not suitable.

Installation and attachment

NOTE: The enclosed attachment material is only suitable for concrete or wooden ceilings. For attachment to other substrates please purchase commercially suitable attachment material.

1. Open the smoke alarm by gently turning the housing base anticlockwise.
2. Now use the housing base with its two holes as a template for ceiling mounting. Mark the positions of the two holes with a pencil.
3. Check the borehole positions with the pipe and cable tester to see whether they etc free of electricity, gas and other pipes. If pipes or cables are detected, select a different location.
4. For drilling in concrete or masonry please use a 5.5mm diameter drill. Drill ca. 25 – 30mm deep. Make sure that the dowels stay in the drill holes, if not, find another position for the smoke alarm or use a stronger fastening material which you can buy in

specialist stores. On wood panels or beams please drill ca. 20mm deep with a 2.5mm diameter drill.

5.Screw in the housing base with the enclosed screws.
6clip the enclosed 9-volt block battery firmly to the battery clip and insert the battery into the battery compartment.
7. Reconnect the device with its housing base, by plugging the holding clips of the housing base into the appropriate slots on the device and turning it clockwise.

Attention!

The smoke alarm is provided with a safety feature that prevents locking of the housing if there is no battery inserted or a battery is inserted incorrectly. Please, if necessary, check the correct location of the battery.

Operation

Please check the function of the smoke alarm, by performing the function test weekly and whenever in doubt about it, and clean the device once a year or as often as needed with a damp cloth.

Function test

Press the test button (push-to-test) on the bottom of the unit until the beep sounds. It stops when you release the test button. If NO there is no beep, the device can NOT alert, and the first step is to replace the battery (see Changing the battery below).

Battery warning system

Once the battery loses charge, it beeps every minute. Just before the battery runs out, there is a long beep every minute. Please replace the battery as soon as you hear a beep (see Changing the battery below).

Changing the battery

1. Open the case by turning the lid anticlockwise.
   2.Lift the old battery from the battery compartment and carefully pull out the battery clip of the battery contacts.
   3clip a new 9V battery firmly to the battery clip and insert the battery into the battery compartment.
2. Reconnect the device with its housing base by plugging the holding clips of the housing base into the appropriate slots on the device and turning it clockwise.
   5.Perform a functional test, press the test button and listen for the beep to ensure the functioning of the device.

Producing an escape plan

Please work with all occupants of the property to produce an escape plan with escape routes. Be sure to consider whether, in the event of a fire, potential escape routes could be obstructed by obstacles. In addition, the escape routes should be the fastest and safest way into the open air.

Emergency measures when the alarm sounds

Leave the house or apartment immediately following the escape plan you have produced. Every secondcounts, so do not waste time by getting dressedor collecting valuables. When leaving a room, do not open any doorwithout first touching the surface. If itis hot or if you see smoke flow in under the door,do not open the door! Insteaduse the alternative escape route. If thesurface of the door is cool, press yourshoulder against it, open the door slightly and beready to slam it shut if heat andsmoke start coming in.

Spot maintenance

To ensure the functional safety of the smoke alarm maintenance must be carried out at least once a year in accordance with DIN EN 14676. To do this, follow these steps:

• Remove dust from the the smoke alarm with a soft cloth.
• If necessary, remove dirt with a damp cloth. Do not use any cleaning agents.
• Perform the function test (see Function test).
• If you do not get any feedback, thesmoke alarm must be replaced.

Warranty

We are liable to our contractual partner for faults as defined by law. A claim for warranty for defects in material and workmanship is only possible if the product has not been opened without supervision and the receipt is attached. The warranty does not cover batteries and wear parts.

Disposal of the device

The device may not be disposed of in the household waste. Please take it for recycling to a collection point for electrical appliances in your community.

Battery disposal

Batteries may not be disposed of in the household waste.

Please take old batteries in a discharged state to a battery collection point in your community or your dealer.

Disposal of packaging

The packaging must be made available for reuse. Please do not throw it in the household waste and treat it according to local disposal regulations.

Declaration of Conformity

In accordance with the following European Guidelines, the CE marking has been granted: EU 305/2011 + 2004/108/EC.

For the declaration of conformity and performance, see

www.vivanco.de specifically to download Article 33510. DOWNLOAD
