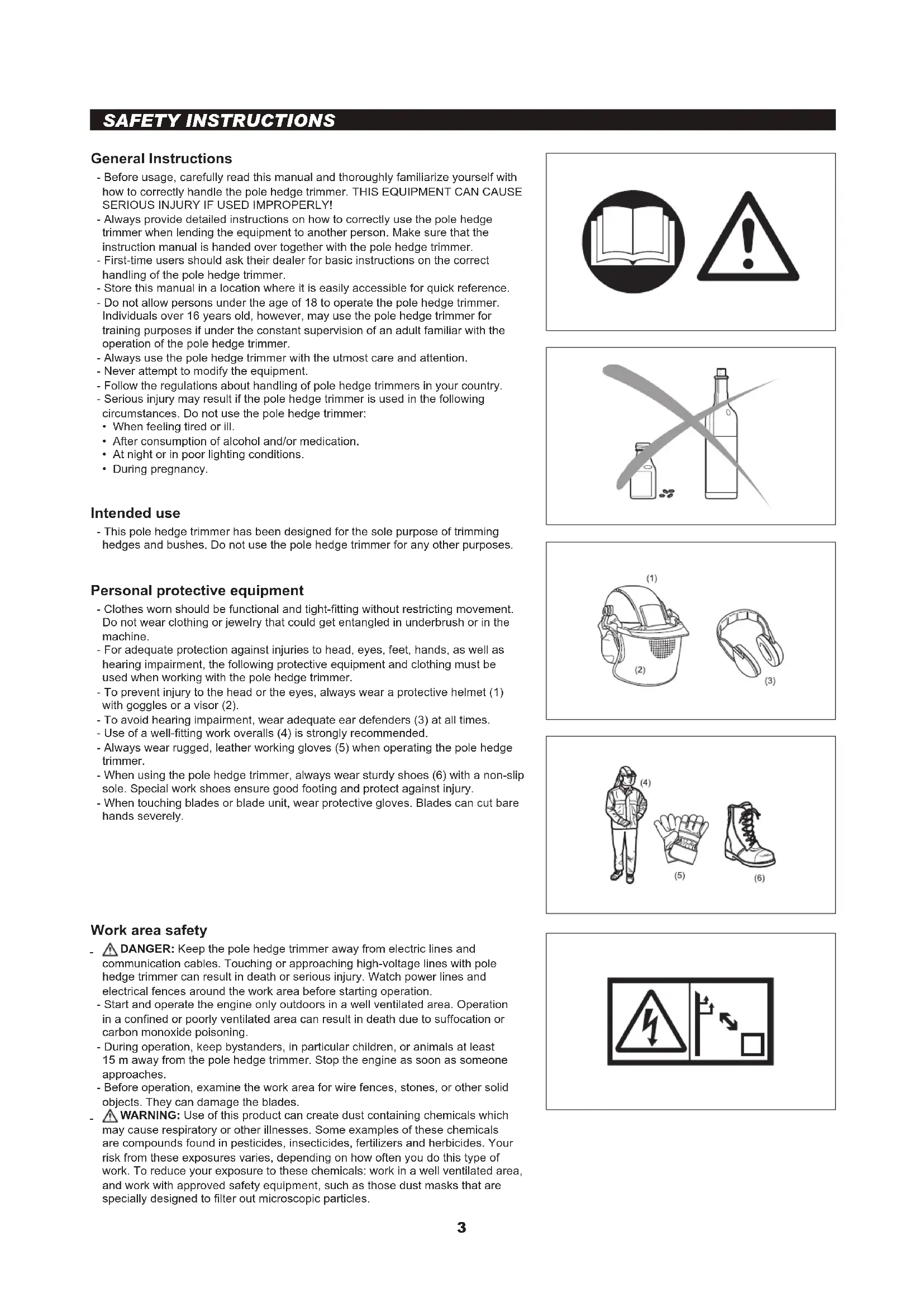

• When feeling tired or ill.

• After consumption of alcohol and/or medication.

• At night or in poor lighting conditions.

• During pregnancy. Intended use - This pole hedge trimmer has been designed for the sole purpose of trimming hedges and bushes. Do not use the pole hedge trimmer for any other purposes. Personal protective equipment - Clothes worn should be functional and tight-tting without restricting movement. Do not wear clothing or jewelry that could get entangled in underbrush or in the machine. - For adequate protection against injuries to head, eyes, feet, hands, as well as hearing impairment, the following protective equipment and clothing must be used when working with the pole hedge trimmer. - To prevent injury to the head or the eyes, always wear a protective helmet (1) with goggles or a visor (2). - To avoid hearing impairment, wear adequate ear defenders (3) at all times. - Use of a well-tting work overalls (4) is strongly recommended. - Always wear rugged, leather working gloves (5) when operating the pole hedge trimmer. - When using the pole hedge trimmer, always wear sturdy shoes (6) with a non-slip sole. Special work shoes ensure good footing and protect against injury. - When touching blades or blade unit, wear protective gloves. Blades can cut bare hands severely. Work area safety

DANGER: Keep the pole hedge trimmer away from electric lines and

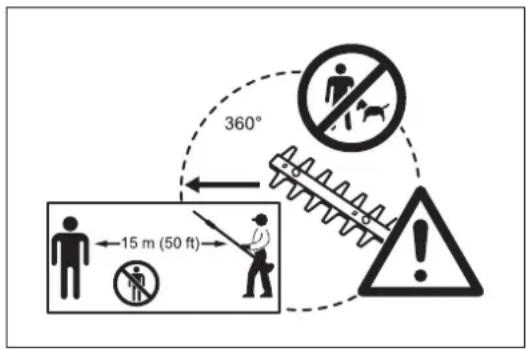

communication cables. Touching or approaching high-voltage lines with pole hedge trimmer can result in death or serious injury. Watch power lines and electrical fences around the work area before starting operation. - Start and operate the engine only outdoors in a well ventilated area. Operation in a conned or poorly ventilated area can result in death due to suffocation or carbon monoxide poisoning. - During operation, keep bystanders, in particular children, or animals at least 15 m away from the pole hedge trimmer. Stop the engine as soon as someone approaches. - Before operation, examine the work area for wire fences, stones, or other solid objects. They can damage the blades.

WARNING: Use of this product can create dust containing chemicals which

may cause respiratory or other illnesses. Some examples of these chemicals are compounds found in pesticides, insecticides, fertilizers and herbicides. Your risk from these exposures varies, depending on how often you do this type of work. To reduce your exposure to these chemicals: work in a well ventilated area, and work with approved safety equipment, such as those dust masks that are specially designed to lter out microscopic particles. SAFETY INSTRUCTIONS4 Starting the pole hedge trimmer - Before assembling or adjusting the equipment, switch off the engine and remove the spark plug cap. - Before starting the pole hedge trimmer, always make sure that the machine is in safe operational condition. - Never attempt to start the engine if the equipment is damaged. - Check the operation of the throttle lever safety mechanism. The lock-off lever should have a smooth and easy action. Make sure that the lock-off lever functions properly. Check that the handles are clean and dry and test the STOP switch to ensure that it is functioning properly. Always start the pole hedge trimmer in accordance with the directions provided in this instruction manual. Follow the instructions below to start the pole hedge trimmer - Start the pole hedge trimmer only after the machine has been completely assembled and all accessory parts have been attached. - When starting the engine, keep the blades clear of your body and other object, including the ground. The blades may move when starting and may cause serious injury or damage to the blades and/or property. - Before starting the engine, make sure that cutter blades are not obstructed by any foreign objects such as stones, branches, etc. - Stop the engine immediately if engine problems occur. - When pulling the starter knob, hold the equipment rmly against the ground by your left hand. Never step on the drive shaft. - If the blades move at idle, stop the engine and adjust the idle speed down. - When operating the pole hedge trimmer, always maintain a rm grip on both handles. Wrap your ngers tightly around each handle, cradling the handle between thumb and forenger. To keep the pole hedge trimmer under control at all times, avoid changing your grip during operation. Make sure that the control handles are in good condition and free of moisture, mud, oil or grease. Always ensure secure and well-balanced footing - Always stop the engine immediately and discontinue operation if engine trouble occurs or if the machine starts making unusual noise. - Exhaust fumes are poisonous. Never operate the machine in an enclosed room or tunnel without ventilation (risk of suffocation and gas poisoning). Note that carbon monoxide is an odorless gas. Always make sure that areas where the engine is operated are adequately ventilated. - Stop the engine when resting, or when the pole hedge trimmer is left unattended. Place the machine in a safe location and make sure that no combustible material is nearby. - Never place a hot pole hedge trimmer onto dry grass or combustible material. - To reduce the risk of re, keep the engine and mufer free of debris, leaves or excessive lubricant. - Never operate the engine if the mufer is malfunctioning. - Turn off the engine before transportation. - Always stop the engine when:

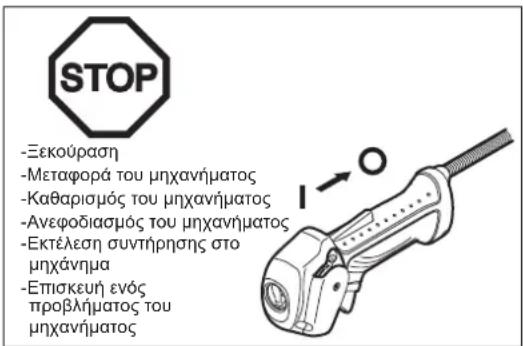

• Transporting the machine

• Cleaning the machine

• Refuelling the machine

• Performing maintenance on the machine

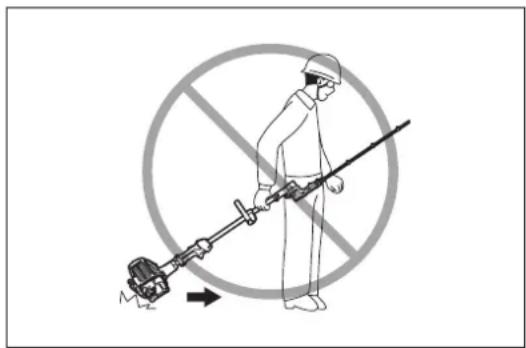

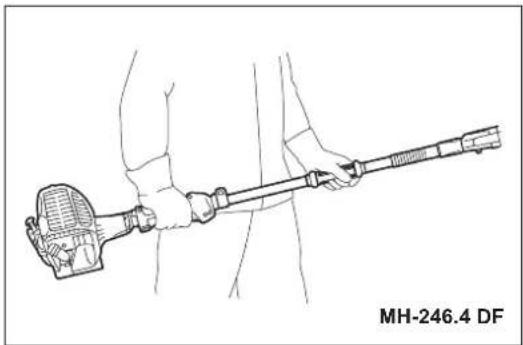

• Fixing a problem with the machine - When carrying the equipment, carry it in a horizontal position by holding the shaft. Keep the hot mufer away from your body. - When transporting the machine in a vehicle, always securely attach the pole hedge trimmer to avoid leakage of residual fuel. - Always empty the fuel tank before transporting the pole hedge trimmer in a vehicle. - When unloading the machine from a vehicle, take extra care not to drop the pole hedge trimmer to the ground, as this may seriously damage the fuel tank. - Except in an emergency, never drop the pole hedge trimmer as this may seriously damage the machine. - When transporting the pole hedge trimmer, always lift the machine completely off of the ground. Never drag the engine across the ground as this may damage the fuel tank and possibly cause a re. - Always use the cutter cover provided to protect and secure the cutting section of the pole hedge trimmer during transportation and storage. - If the equipment gets heavy impact or fall, check the condition before continuing work. Check the fuel system for fuel leakage and the controls and safety devices for malfunction. If there is any damage or doubt, ask our authorized service center for the inspection and repair. - Resting - Transporting the machine - Cleaning the machine - Refuelling the machine - Performing maintenance on the machine - Fixing a problem with the machine5 Refuelling - Before refuelling, stop the engine. - Never refuel near naked ames. - Do not smoke when refuelling. - Always allow sufcient time for the engine to cool down before refuelling. - Take care not to let your skin come into contact with petroleum products. Do not inhale gasoline fumes and always wear protective gloves when refuelling. Change and clean protective wear at regular intervals. - Take extra care to avoid spilling gasoline and oil in order to avoid contamination of the ground (environmental protection). If gasoline or oil has been spilled onto the pole hedge trimmer, immediately wipe the surface of the pole hedge trimmer with a rag. To avoid spontaneous combustion, allow wet rags to dry sufciently before discarding them into an appropriate, covered container. - Make sure that no fuel comes in contact with your clothing. Change fuel- contaminated clothing immediately (re hazard). - Close the fuel tank and tighten the fuel tank cap securely. To restart the engine, transfer the pole hedge trimmer to a location at least 3 meters away from the place of refuelling. - Check the fuel tank cap at regular intervals to make sure that the cap is securely fastened. - Never refuel the machine in an enclosed room. Fuel vapors accumulate at ground level (risk of explosion). - Store fuel in appropriate containers only, and make sure that stored fuel is out of the reach of children. Operation - In the event of an emergency, turn off the engine immediately. - If you feel any unusual condition (e.g. noise, vibration) during operation, switch off the engine. Do not use the pole hedge trimmer until the cause is recognized and solved. - The blades continue to move for a short period after releasing the throttle trigger or switch off the engine. Don’t rush to contact the blades. - Never attempt to operate the equipment with one hand. Loss of control may result in serious or fatal injury. To reduce the risk of cut injuries, keep your hands and feet away from the blades. - Keep your right hand under the shoulder height during operation. Otherwise you may lose control and result in injury. - During operation, never hit the blades against hard obstacles such stones and metals. Take particular care when cutting hedges next to or against wire fences. When working close to the ground, make sure that no sand, grit or stones get between the blades. - If the blades come into contact with stones or other solid objects, stop the engine immediately and check the blades for damage after removing the spark plug cap. Replace the blades if damaged. - Never touch or approach the blades while they are moving. Blades can cut your nger easily. When handling or approaching the blade, stop the engine and remove the spark plug cap. - If thick branches get jammed in the blades, immediately stop the engine, put the pole hedge trimmer down and then remove the obstruction after removing the spark plug cap. Check the blades for damage before using the equipment again. - Accelerating the engine with the blades blocked increases the load and may damage the engine and/or clutch. - Check the cutting blades frequently during operation for cracks or blunt edges. Before the inspection, switch off the engine and wait until the blades stop completely. Replace damaged or dull blades immediately, even if they have only supercial cracks. - Do not touch the gear case. The gear case becomes hot during operation. - Take a rest to prevent loss of control caused by fatigue. We recommend to take a 10 to 20-minute rest every hour. - Before cutting, pull the throttle lever fully to achieve the maximum speed. - During operation, hold the pole hedge trimmer with both hands at all times. - Only use the pole hedge trimmer in good light and visibility conditions. Beware of slippery and wet areas (ice and snow) during the cold season (danger of slipping), and always ensure secure footing. - Never use the pole hedge trimmer while standing on an unstable surface or a steep slope. - Never use the pole hedge trimmer while standing on a ladder. - Never climb a tree to use the pole hedge trimmer from the tree. - To avoid stumbling or falling over objects, never walk backwards when working with the pole hedge trimmer. - Always stop the engine before cleaning or servicing the machine. Also, refrain from replacing parts before the engine has been stopped. - Do not operate the pole hedge trimmer if the cutting unit is damaged or worn. 3 m6 Maintenance work that can be performed by the user is limited to the activities described in this instruction manual. Any other procedures are to be executed by an authorized service agent. Request DOLMAR authorized service center to inspect and maintain the pole hedge trimmer at regular interval. Use only genuine spare parts and accessories supplied by DOLMAR via authorized service centers. Use of unauthorized accessories and tools may increase the risk of accident and injury. DOLMAR accepts no liability whatsoever for accidents or damage resulting from the use of unauthorized accessories and parts. Storage - Before storing the equipment, perform full cleaning and maintenance. Fit the blade cover. - Empty the fuel tank before storage, and always store the pole hedge trimmer in a well-ventilated locked room. Make sure the pole hedge trimmer is out of children’s reach at all times. - Do not prop the equipment against something, such as a wall. Otherwise the pole hedge trimmer may fall suddenly and cause an injury. First aid As a precaution for the occurrence of an accident, make sure that a fully stocked rst aid kit is ready at hand. Replace any items taken from the rst aid kit as soon as possible. When asking for help in the case of an emergency, give the following information:

• Number of injured people

• Your name Maintenance instructions - Have your equipment serviced by our authorized service center, always using only genuine replacement parts. Incorrect repair and poor maintenance can shorten the life of the equipment and increase the risk of accidents. - Always do your utmost to keep pollution and noise emissions as low as possible when operating the pole hedge trimmer. Pay special attention to correct adjustment of the carburetor. - Clean the pole hedge trimmer at regular intervals and periodically check whether all nuts and bolts are securely tightened. - Never service or store the pole hedge trimmer in the vicinity of naked ames, sparks, etc. - Never repair bent or broken blades by straightening or welding. It may cause parts of the blades to come off and result in serious injury. Contact DOLMAR authorized service center for DOLMAR genuine blades to replace them. - To prevent further damage and/or personal injury, refrain from repairing a malfunctioning pole hedge trimmer if not qualied to do so. For repairs always contact your dealer or an authorized service agent. Do not attempt to modify or remodel the pole hedge trimmer as this may affect operation safety. Vibration - People with poor circulation who are exposed to excessive vibration may experience injury to blood vessels or the nervous system. Vibration may cause the following symptoms to occur in the ngers, hands or wrists: “Falling asleep” (numbness), tingling, pain, stabbing sensation, alteration of skin color or of the skin. If any of these symptoms occur, see a physician! - To reduce the risk of “white nger disease”, keep your hands warm during operation and well maintain the equipment and accessories.7 For European countries only EC Declaration of Conformity The EC declaration of conformity is included as Annex A to this instruction manual.8 Model MH-246.4 D MH-246.4 DF Loop handle Straight handle Dimensions (L x W x H) 2,550 mm x 242 mm x 241 mm 2,050 mm x 221 mm x 241 mm Net weight 6.9 kg 6.6 kg Volume (fuel tank) 0.6 L Cutting length 490 mm Maximum branch diameter 7 mm Cutting strokes 4,200 min

Engine type Air cooled, 4-stroke, single cylinder Engine displacement 25.4 cm

Maximum engine performance 0.77 kW at 7,000 min

Engine speed at recommended max, spindle speed 10,000 min

Fuel consumption 0.33 kg/h Specic fuel consumption 408 g/kWh Idling speed 3,000 min

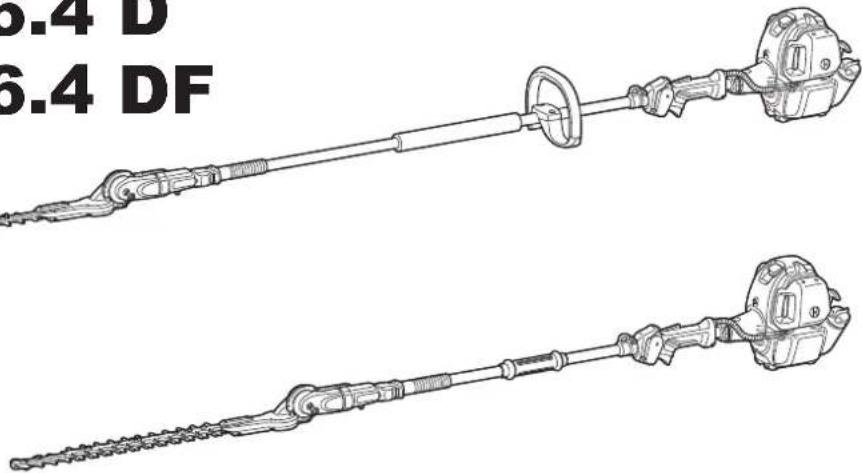

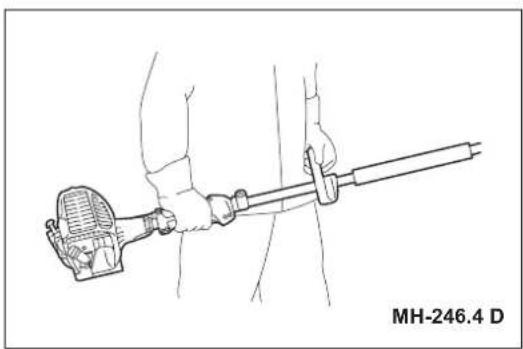

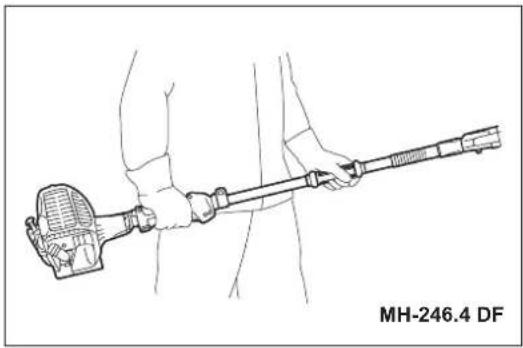

MH-246.4 D MH-246.4 DF

• Make sure that the engine is turned off, and remove the spark plug cap before assembling the pole hedge trimmer.

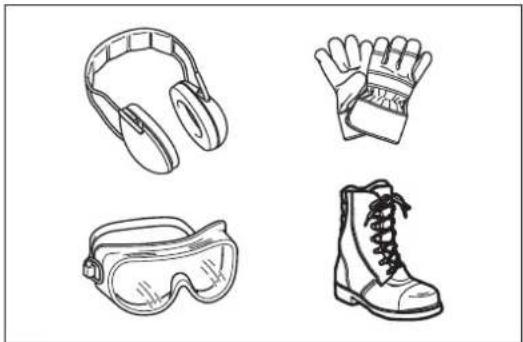

• Wear protective gloves!

• Secure cutting blades with the blade cover provided when connecting the trimmer unit to the pole.

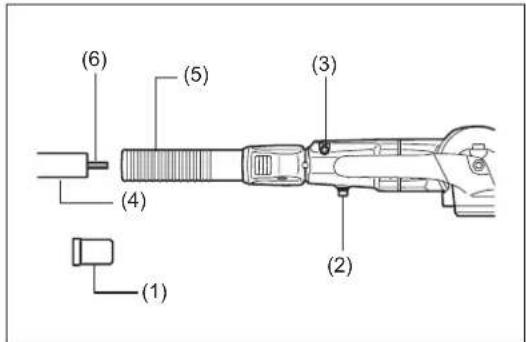

1. Remove the cap (1) from the shaft.

2. Loosen the M5 x 16 bolt (2) and M5 x 25 bolt (3).

3. Insert shaft (4) into the cover (5).

NOTE: Make sure that the shaft is completely inserted into the cover (approx. 237 mm/ 9-3/8”). If you are having trouble inserting the shaft, manually rotate the drive axle (6) a little and try again.

4. Make sure that the shaft is properly inserted and then tighten the M5 x 16 bolt

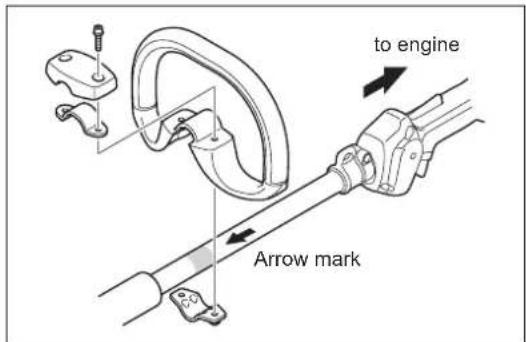

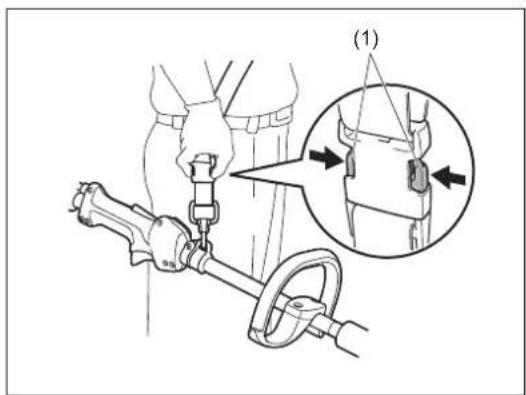

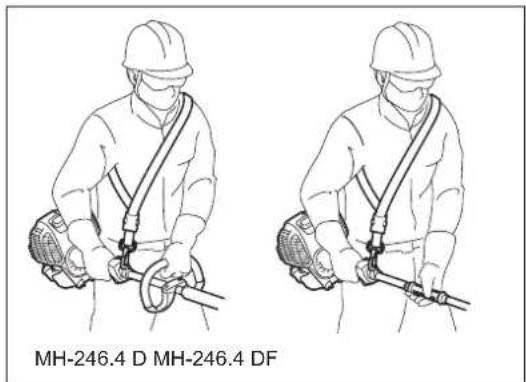

and the M5 x 25 bolt. (2) (1) (4) (6) (5) (3) MH-246.4 D MH-246.4 DF (1) ASSEMBLY to engine Arrow mark ATTACHING THE HANDLE (for MH-246.4 D) - Fix the loop handle on the shaft as shown. - To keep a proper distance between the grips, set the loop handle ahead of the arrows. How to wear the shoulder strap - Wear the shoulder strap over the left shoulder. - Keep the pole hedge trimmer unit on the right hand side of the body. - Attach the strap to the hanger provided on the pole hedge trimmer and adjust the length of the strap to attain a comfortable working position. Detachment - In an emergency, push the notches (1) at both sides, and you can detach the machine from you. Be extremely careful to maintain control of the machine at this time. Do not allow the machine to be deected toward you or anyone in the work vicinity.

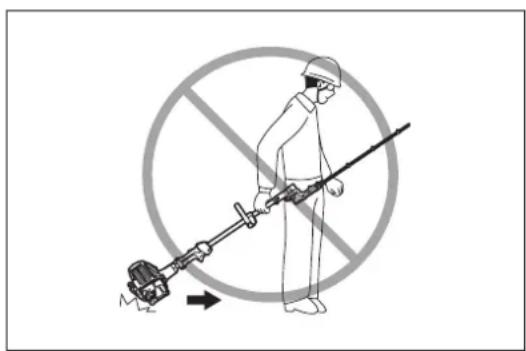

WARNING: Failure to maintain complete control of the machine at all could result in

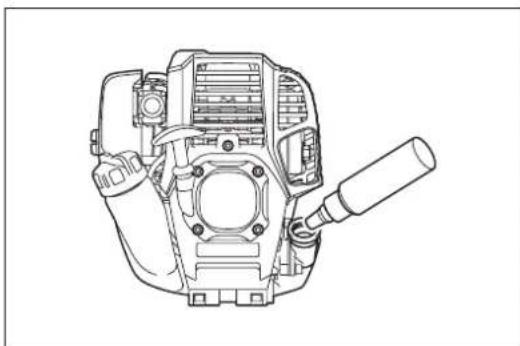

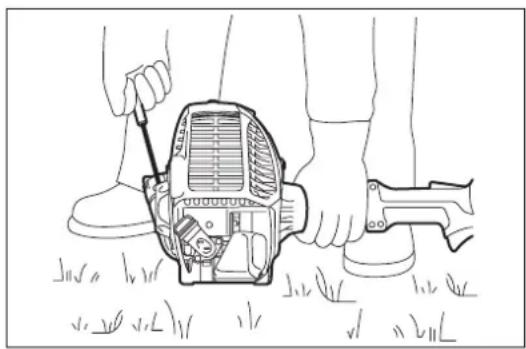

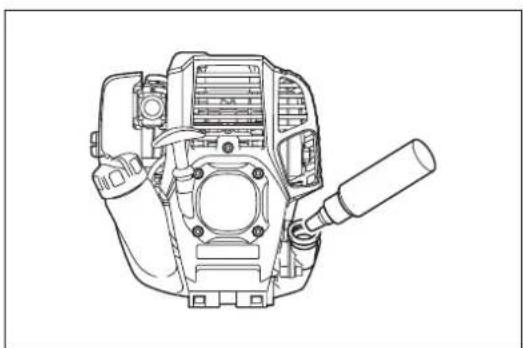

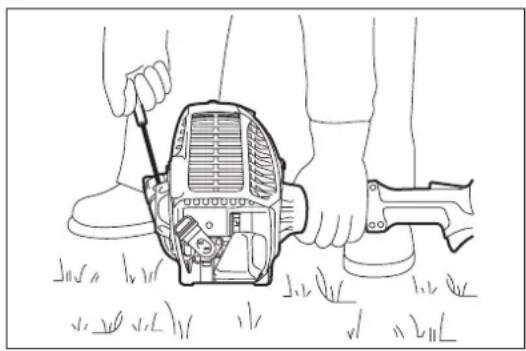

Inspection and rell of engine oil - Perform the following procedure, with the engine cooled down. - Set the engine level, remove oil cap (Fig. 1), and check to see whether or not there is oil in the range between the upper limit and lower limit marks of the oil pipe (Fig. 2). - Top up with oil to upper limit mark if oil is insufcient (oil level is close to lower limit mark) (Fig. 3). - The area surrounding the external marks is transparent, so the amount of oil inside can be checked without having to remove the oil cap. However, if oil pipe becomes extremely dirty, visibility may be lost, and oil level will have to be checked against stepped section on inside of oil pipe. - For reference, the oil rell time is about 10 h (every 10 refuelling). If the oil changes in color or mixes with dirt, replace it with new one. (For the interval and method of replacement, refer to P20) Recommended oil: SAE 10W-30 oil of API Classication, Class SF or higher (4-stroke engine for automobile) Oil volume: Approx. 0.08 L NOTE: If the engine is not kept upright, oil may go into around the engine, and may be relled excessively. If the oil is lled above the limit, the oil may be contaminated or may catch re with white smoke. Point 1 in Replacement of oil: “Oil cap” - Remove dust or dirt near the oil rell port, and detach the oil cap. - Keep the detached oil cap free of sand or dust. Otherwise, any sand or dust adhering to the oil cap may cause irregular oil circulation or wear on the engine parts, which will result in troubles. (2) Fill with oil to upper limit mark. (see Fig. 3) Use oil bottle when lling. (3) Securely tighten the oil cap. Insufcient tightening may cause oil leakage. Oil cap Oil pipe Fig. 1 Fig. 2 Oil pipe Fig. 3 Internal stepped section (upper limit) External mark (upper limit) External mark (lower limit) Internal stepped section (lower limit) Top up with oil until oil level reaches internal stepped section (upper limit). The area between the external upper and lower limits is transparent, so oil level can be checked extternally against these marks. (1) Keep the engine level, and detach the oil cap. FUEL/REFUELLING12 Note

• Do not replace oil with the engine in a tilted position.

• Filling with oil while engine is tilted leads to overlling which causes oil contamination and/or white smoke. Point 2 in Replacement of oil: “If oil spills out” - If oil spills out between the fuel tank and engine main unit, the oil is sucked into through the cooling air intake port, which will contaminate the engine. Be sure to wipe out spilled oil before start of operation. REFUELLING Handling of fuel It is necessary to handle fuel with utmost care. Fuel may contain substances similar to solvents. Refuelling must be performed in a sufciently ventilated room or in the open air. Never inhale fuel vapors, and keep fuel away from you. If you touch fuel repeatedly or for a long time, the skin becomes dry, which may cause skin disease or allergy. If fuel comes into the eye, clean the eye with fresh water. If your eye remains still irritated, consult your doctor. Storage period of fuel Fuel should be used within a period of 4 weeks, even if it is kept in a special container in a well-ventilated and shaded area. Otherwise, fuel may deteriorate in one day.

STORAGE OF MACHINE AND REFILL TANK

- Keep the machine and tank at a cool place free from direct sunshine. - Never keep the fuel in a car. Fuel The engine is a four-stroke engine. Be sure to use an unleaded automobile gasoline 87 or higher octane ((R+M)/2). It may contain no more than 10% alcohol (E-10). Points for fuel - Never use a gasoline mixture which contains engine oil. Otherwise, it will cause excessive carbon accumulation or mechanical troubles. - Use of deteriorated oil will cause irregular start-up. Refuelling

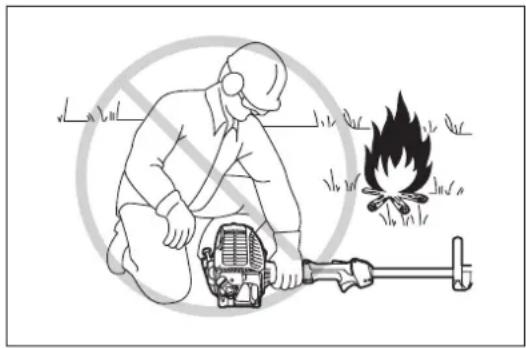

WARNING: INFLAMMABLES STRICTLY PROHIBITED

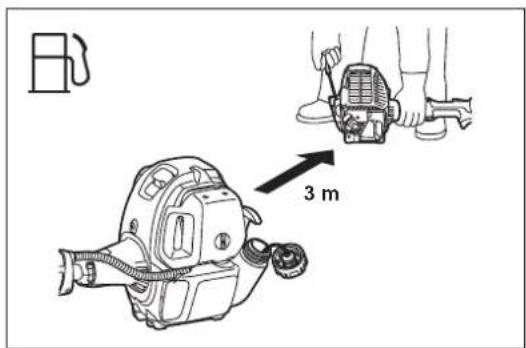

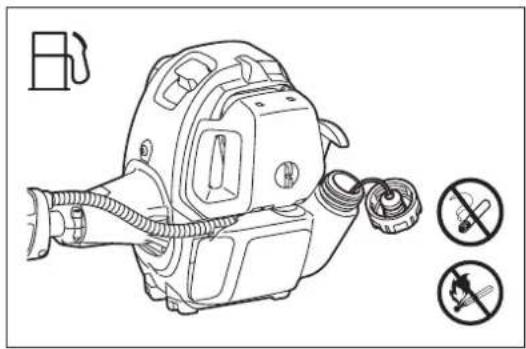

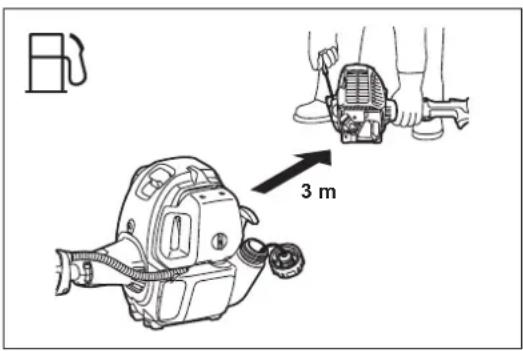

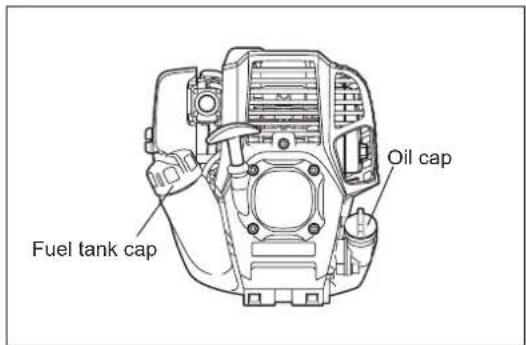

- Loosen the tank cap a little to release the tank pressure. - Detach the tank cap, and refuel, discharging air by tilting the fuel tank so that the refuel port will be oriented upward. (DO NOT ll fuel up to the top of the tank.) - Wipe well the periphery of the tank cap to prevent foreign matter from entering the fuel tank. - After refuelling, securely tighten the tank cap.

• If there is any aw or damage on the tank cap, replace it.

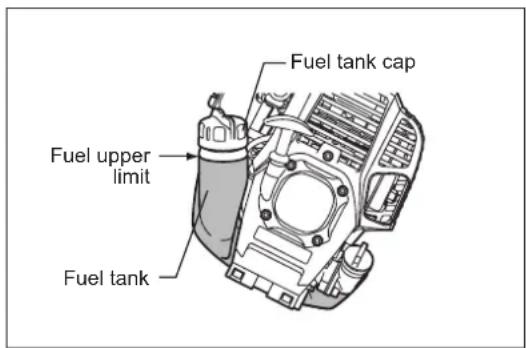

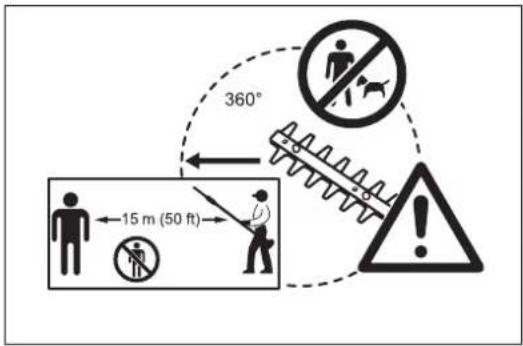

• The tank cap wears out in course of time. Replace it every two to three years. Fuel tank Fuel upper limit Fuel tank cap13 (2) - At all times allow a 15-meter diameter safety zone around the working area. Make sure that all persons (in particular children) and/or animals remain outside this zone. - Before using the pole hedge trimmer, make sure that the machine is in safe operational condition. Make sure that the cutting blades are not damaged, and check the throttle lever for easy action. Make sure that the cutting blades are not in motion when the engine is idling. If the machine is not operating normally, contact your dealer to have the machine adjusted. Make sure that the handles are clean and dry, and test whether the I-O switch is functioning properly. Start the engine only in accordance with the instructions given in this manual. Do not use any other methods to start the pole hedge trimmer. - Start the engine of the pole hedge trimmer only after having read and fully understood the instructions. Never attempt to start a pole hedge trimmer that has not been fully assembled. Serious injury may result otherwise. - Before starting the engine, always make sure that the cutting blades are not obstructed by stones, branches or any other solid objects. - Check the working area for wires, cord, glass or other foreign objects that could get caught in the cutting blades. - Electrical shock: Be aware of all electrical lines in the vicinity. Check the entire work area for the presence of power lines and electrical fences before starting to work. POINTS IN OPERATION AND HOW TO STOP Observe the applicable accident prevention regulations! STARTING Move at least 3 m away from the place of refuelling. Put the pole hedge trimmer on a clean piece of ground taking care that the cutting blades do not come into contact with the ground or any other objects. A: Cold start

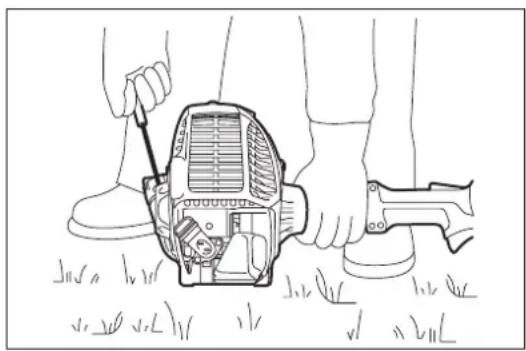

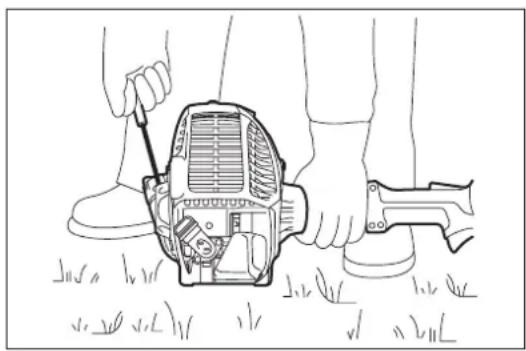

1) Set this machine on a at space.

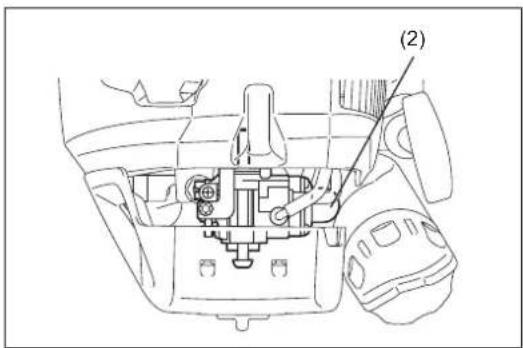

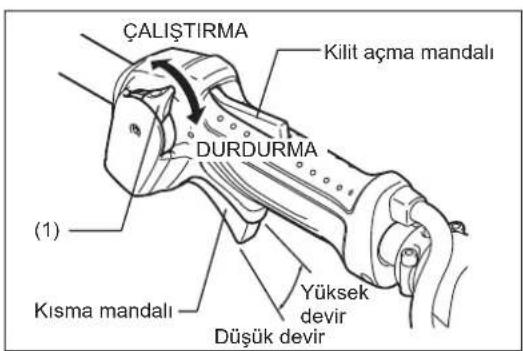

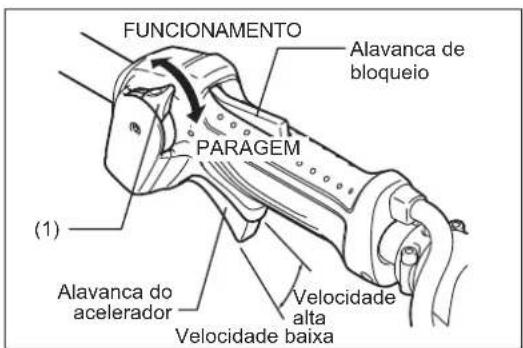

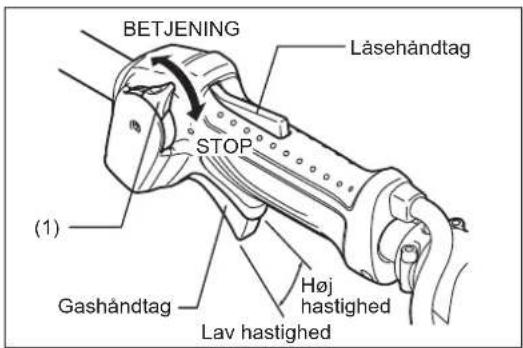

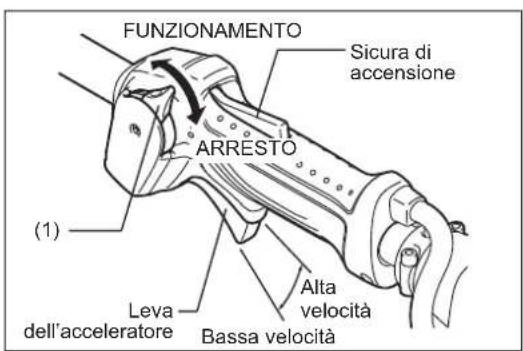

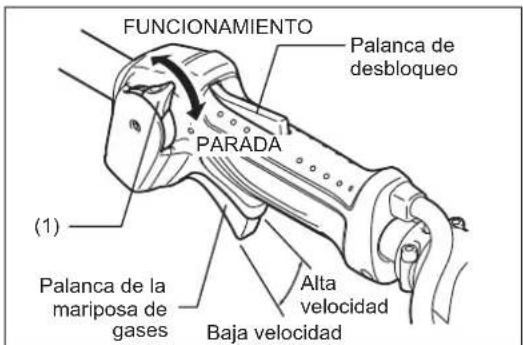

Continue to push the primer pump (2) until the fuel comes into the primer pump. (In general, fuel comes into the primer pump by 7 to 10 pushes.) If the primer pump is pushed excessively, an excess of gasoline returns to the fuel tank. OPERATION Lock-off lever Low speed High speed (1) STOP Throttle lever

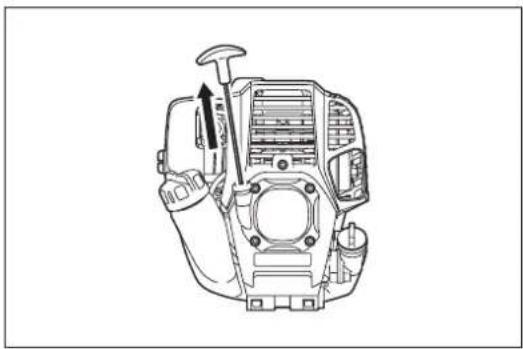

Pull the start knob gently until it is hard to pull (compression point). Then, return the start knob, and pull it strongly. Never pull the rope to the full extension. Once the start knob is pulled, never release your hand immediately. Hold the start knob until it returns to its original point.

5) Warm-up operation

Continue warm-up operation for 2 to 3 minutes. NOTE: In case of excessive fuel intake, remove the spark plug and pull the starter handle slowly to remove excess fuel. Also, dry the electrode section of the spark plug. B: Startup after warm-up operation

1) Repeat pushing the primer pump gently.

2) Keep the throttle lever at the idling position.

3) Pull the recoil starter strongly.

4) If it is difcult to start the engine, open the throttle by about 1/3.

Pay attention to the cutting blades which may move. At times, such as winter, when starting the engine is difcult, operate choke lever with the following procedure when starting engine.

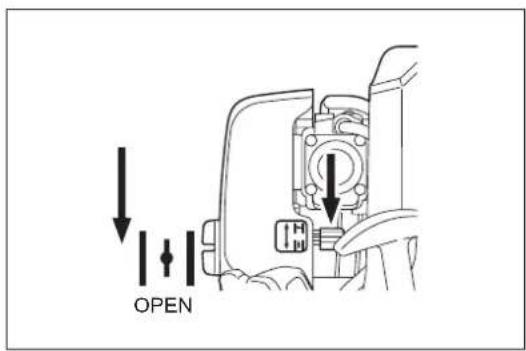

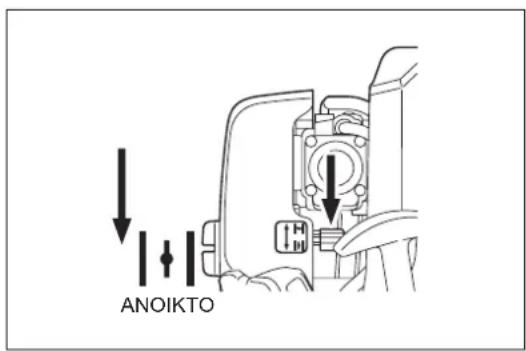

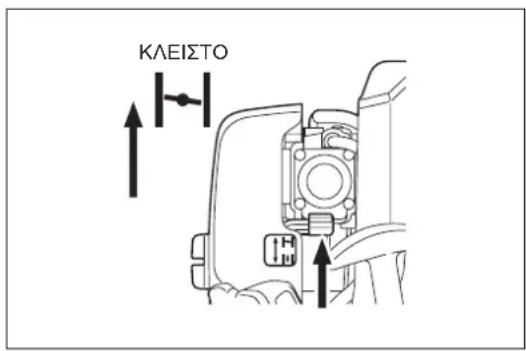

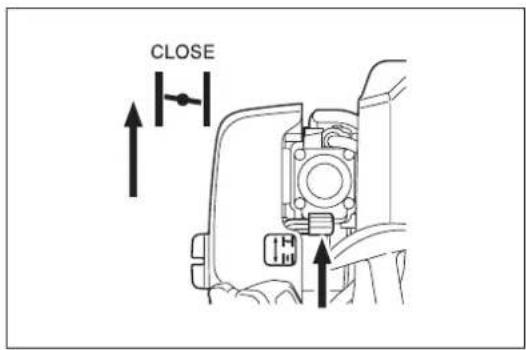

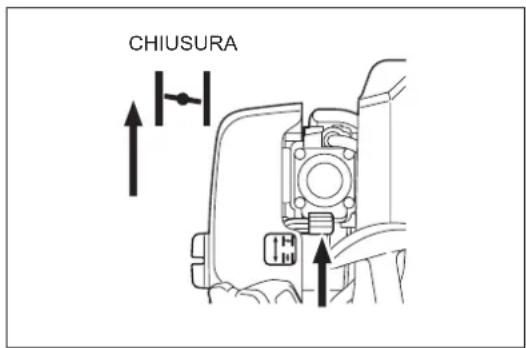

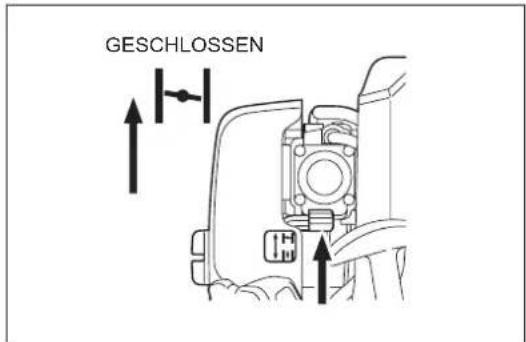

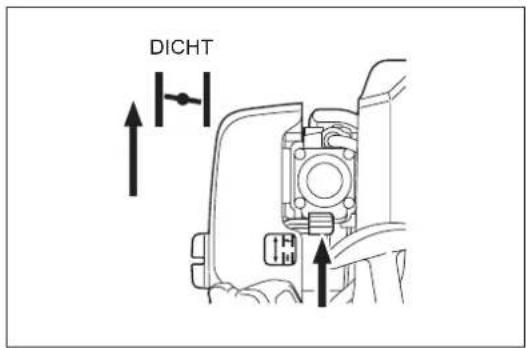

• After implementing startup steps 1) to 3), set choke lever to the CLOSE position.

• Implement startup step 4) and start engine.

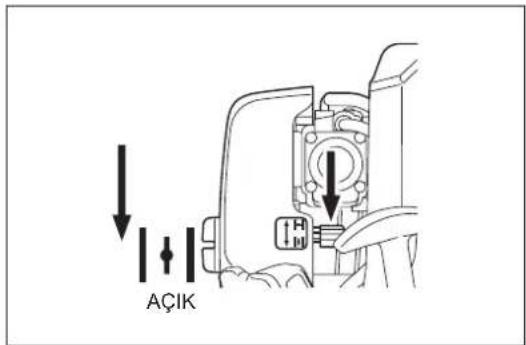

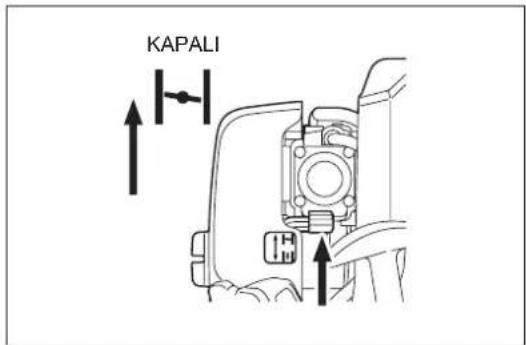

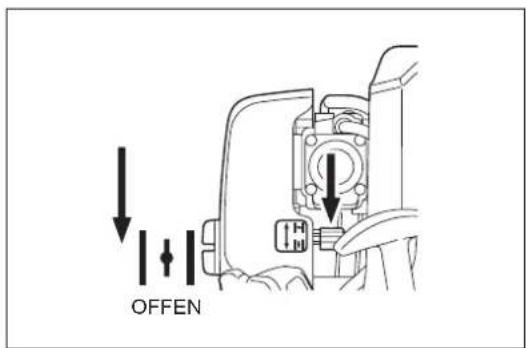

• Once engine starts, set choke lever to the OPEN position.

• Implement startup step 5) and complete warm up. CAUTION: If a bang (explosive sound) is heard and the engine stops, or the just-started engine stalls before the choke lever is operated, return the choke lever to the OPEN position, and pull the starter knob a few times again to start the engine. CAUTION: If the choke lever is left in the CLOSE position, and the starter knob merely pulled repeatedly, to much fuel will be sucked in, and the engine will become difcult to start.15 (1) STOPPING

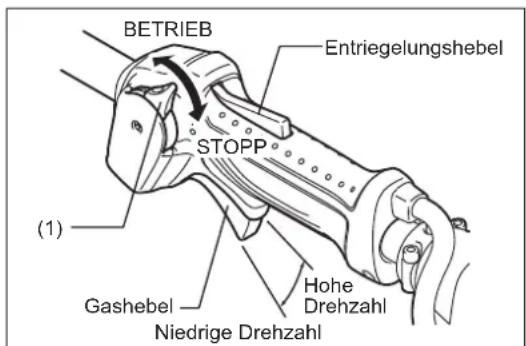

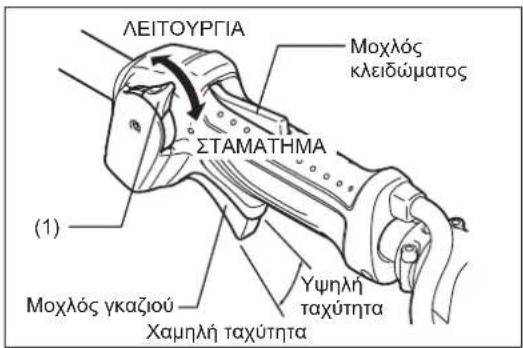

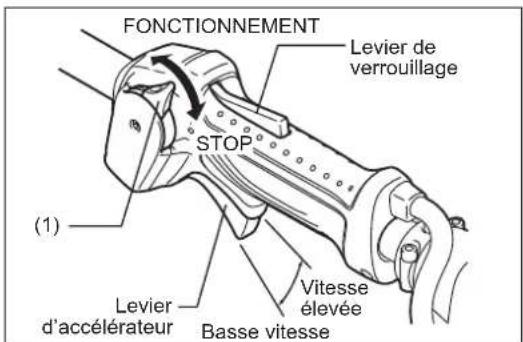

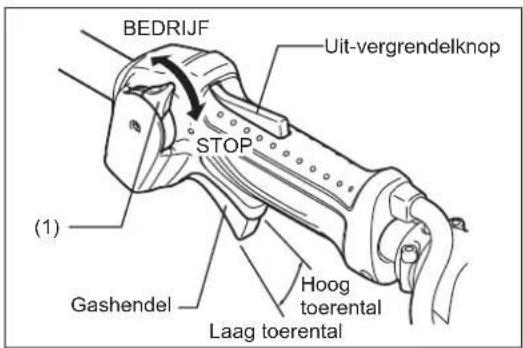

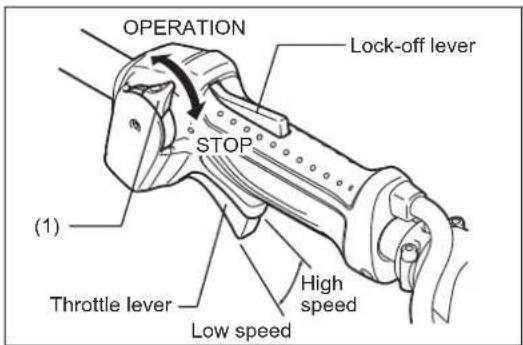

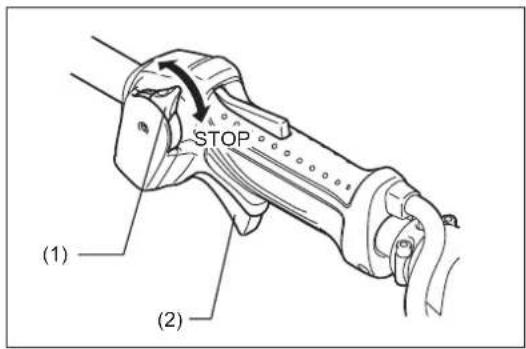

1) Release the throttle lever (2) fully, and when the engine speed has lowered, set

the I-O switch (1) to STOP the engine will now stop.

2) Be aware that the cutting head may not stop immediately and allow it to slow

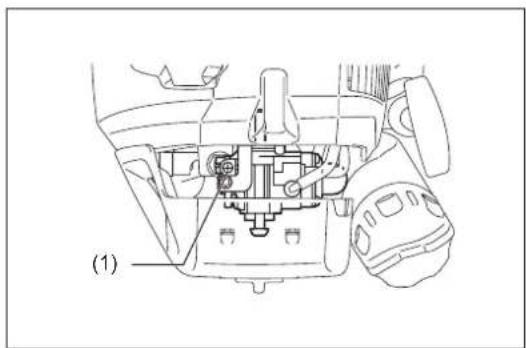

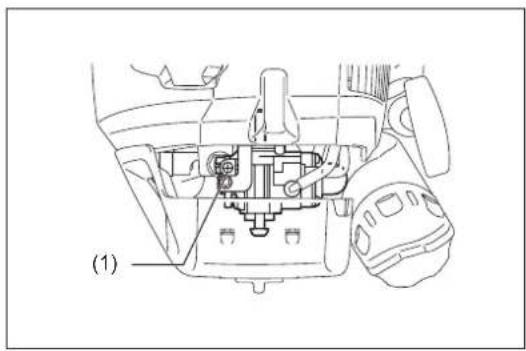

down fully. ADJUSTMENT OF LOW-SPEED ROTATION (IDLING) When it is necessary to adjust the low-speed rotation (idling), perform it by the carburetor adjusting screw (1).

CHECKUP OF LOW-SPEED ROTATION

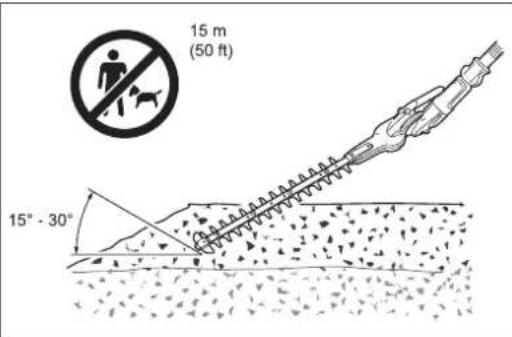

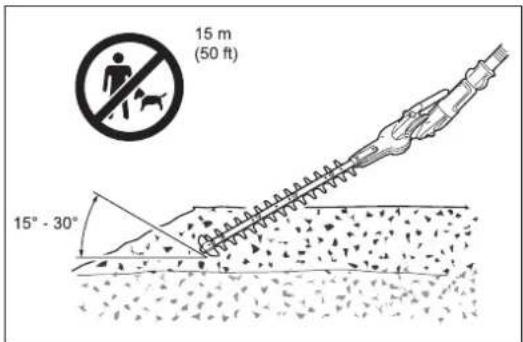

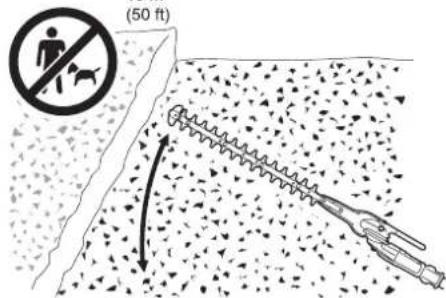

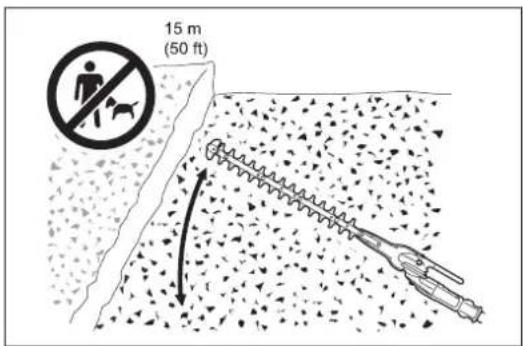

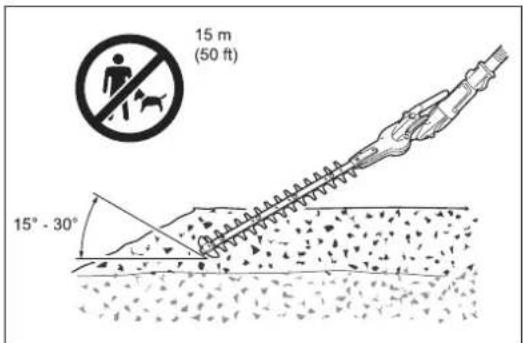

- Set the low-speed rotation to 3,000 rpm (/min). If it is necessary to change the rotation speed, regulate the adjusting screw (1) with Phillips screwdriver. - Turn the adjusting screw to the right, and the engine speed will increase. Turn the adjusting screw to the left, and the engine speed will drop. - The carburetor is generally adjusted before shipment. If it is necessary to readjust it, please contact Authorized Service Center. STOP (1) (2)16 - Do not touch the cutting blade portion of the pole hedge trimmer during operation, or when the engine is running. - Take extra care not to inhale exhaust gases when working with the pole hedge trimmer. Never operate the pole hedge trimmer in an enclosed room or an area with insufcient ventilation (risk of suffocation and gas poisoning). Note that carbon monoxide is an odorless gas that is, it cannot be detected by the sense of smell. - Always wear adequate protective wear before starting to work with the pole hedge trimmer. - Stop the engine immediately if the mufer is not functioning properly. - Only use the pole hedge trimmer in good light and visibility conditions. - Do not operate the pole hedge trimmer in darkness or fog. Beware of slippery and wet areas (ice and snow) during the cold season (danger of slipping), and always ensure secure footing. - Never use the pole hedge trimmer while standing on an unstable surface or a steep slope. - Never use the pole hedge trimmer while standing on a ladder. - Never climb a tree to use the pole hedge trimmer from the tree. - Continuously check the working area for wires, cord, glass or other foreign objects that could get caught in the cutting blades. - Make sure that the cutting blades are in rapid motion before starting to cut. - Always grip the pole hedge trimmer with both hands and maintain a rm grip when working with the machine. - To assure optimal control over the pole hedge trimmer, always completely wrap your hands around the handles (use your thumb for counter pressure) and apply a rm grip on the handles. - Note that the cutting blades will remain in motion for up to two seconds after the throttle lever has been released. - Do not cut with the pole hedge trimmer at low engine speed. - The speed of the cutting blades cannot be adjusted properly with the throttle lever when the engine is running at low speed. - To trim the top surface of a hedge, rst align the cutting blades at an angle of 15° - 30° in the cutting direction and keep the pole hedge trimmer in a horizontal position. Then start trimming the hedge using a swinging movement, much like drawing circle segments with the hedge trimmer shaft. - To trim the sides of a hedge, align the blades parallel to the surface to be cut and start trimming with semi-circular upward (down-up) movements. - Pay attention when trimming a hedge close to or against wire fences. - Do not touch hard objects such as wire fence, stone or ground with the cutting blades. It may cause blades to crack, chip or break. - Do not use the pole hedge trimmer over an extended period of time. As a general rule, for every 50 minutes of operation take a 10-20 minutes rest. - If the cutting blades come into contact with stones or other solid objects, stop the engine immediately and check the blades for damage. Replace the blades if damaged. - If the pole hedge trimmer develops a problem during operation (strange noises, vibration, etc.), immediately stop the engine. Do not use the machine again until the problem has been recognized and solved. - Always do your utmost to keep pollution and noise emissions as low as possible when operating the pole hedge trimmer. Pay special attention to correct carburetor adjustment. - If thick branches get jammed in the cutting blades, immediately stop the engine, lay the equipment on the ground and remove the obstruction. Check the blades for damage before using the machine again.

- Do not operate the tool with the loose and unstable cutter unit. You can adjust the cutting angle upwards to 45°and downwards to 90°.

1. Stop the pole hedge trimmer engine and lay the machine on the ground.

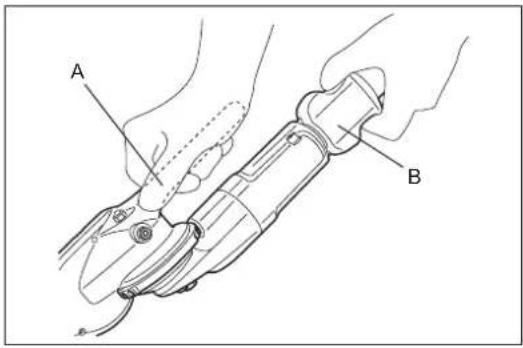

2. To adjust the angle of the cutter unit, hold the handle (A) on the cutter unit with

one hand, and hold the angle lock (B) as illustrated with the other hand.

3. Pull the angle lock gently, and change the angle of the cutter unit. After

adjusting the angle, return the angle lock gently. Note: - The cutter unit is fasten only with certain angles alongside the groove on the unit. Make sure the cutter unit sits properly. If the angle is not appropriate, the clutch is cut and the tool does not operate. - Do not adjust the cutter unit while the pole hedge trimmer is in an upright position. - Move the I-O switch to the “O” position and lay the pole hedge trimmer at on the ground to adjust the cutting angle. - Always secure the blades with the blade cover provided before adjusting cutting angle. In case the cutter unit is loose, the bolt (the axis of angle adjustment) needs to be tightened.

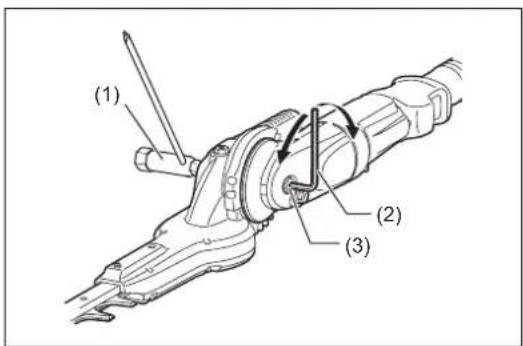

1. Set the socket wrench (1) and the hex wrench (2) on the bolt (3).

2. Adjust the tightness of the cutter unit by turning hex wrench, and then fasten

the bolt by turning the socket wrench. Note: - Do not fasten the cutter unit too tight. The angle of the cutter unit can not be changed if it is too tight.

(2) (3) (1)18 - Before performing any maintenance work on the pole hedge trimmer (blade cleaning, etc.), always stop the engine and wait until the engine has cooled down. As an additional safety precaution, also remove the spark plug cap. - Do not try to straighten or weld bent or broken cutting blades. Always replace damaged blades. - Stop the engine at regular intervals to check the cutting blades for possible damage (perform a tapping-resonance test to detect hard-to-see hairline cracks). Always make sure that the teeth of the blades are sharp. - Clean the pole hedge trimmer regularly. During cleaning also check all screws, nuts and bolts are well tightened. - To reduce the risk of re, never service or store the pole hedge trimmer in the vicinity of open res. - Always wear rugged protective gloves when handling the cutting blades. - Contact your dealer for replacement cutting blades. - Never use gasoline, benzine, thinner, alcohol or the like for cleaning. Discoloration, deformation or cracks may result. Sharpening the blade If the cutting blades have become blunt and cutting performance is poor, have the blades sharpened by an authorized service agent. Adjusting blade clearance The upper/lower blades wear out gradually after operations. If you cannot get a clean cut though the blades are sharp enough, adjust the clearance as follows. The tightness of the hex bolt decides the clearance of the blades. The nut holds the hex bolt with certain tightness. Too loose clearance causes blunt cut, but too tight clearance causes unnecessary heat and sooner worn-out of the blades.

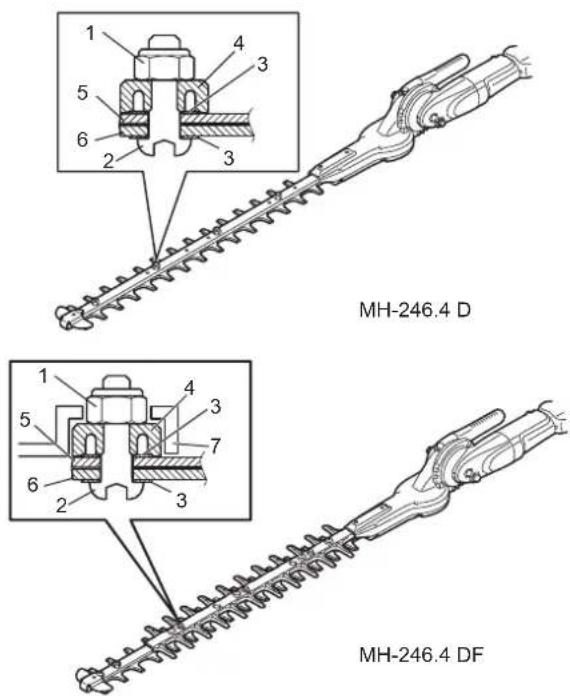

1. Loosen the nut (1) with a box or open-ended wrench.

2. Tighten the hex bolt (2) with a hex wrench lightly till it stops. And then, screw it back between a quarter turn and a half turn to gain necessary clearance.

3. Tighten the nut (1), holding the hex bolt (2).

4. Apply light oil on the friction surface of the blades.

5. Start the engine, operate the throttle on and off for a minute.

6. Stop the engine and touch the surface. If they are not too hot to touch, you have made a proper adjustment. If they are too hot to touch, turn the hex bolt (2) back a little and repeat the step 5 to 6. NOTE: Before making the adjustment, stop the engine and wait for the blades to stop. The blades have a slot around the hex bolt (2). In case you nd dust in the end of any of the slots, clean it.

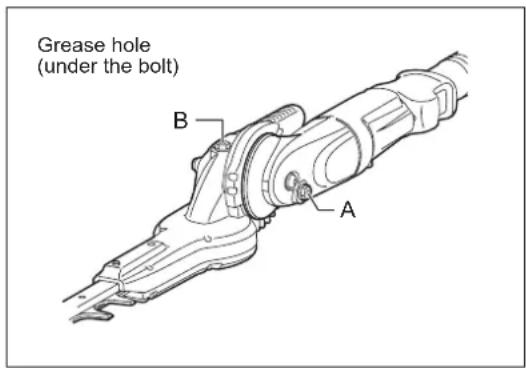

Adding grease and lubricant Important: Make sure that the surface of gear box is completely cold before lubricating. - The gearbox of the pole hedge trimmer should be greased every 25 working hours. The grease hole locates under the bolt. Remove the bolt to lubricate. Add approx. 3 g (4 cc) of lubricant to the point A of the gearbox and 5 g (7 cc) of the lubricant to the point B respectively via the grease hole. Return the bolt after lubrication. After lling correct amount of grease, grease will come out a bit from the base of the blade during the rst operation. CAUTION: Observe greasing intervals and the amount of grease to be supplied. Mechanical parts of the pole hedge trimmer may be damaged if grease is not supplied at the prescribed intervals or if an insufcient amount of grease is added. Daily inspection and maintenance To ensure a long service life of your pole hedge trimmer, perform the following inspections and maintenance on a daily basis. - Before use;

• Always check for loose or missing parts before starting operation. Pay special attention to the cutting unit and make sure that the cutting blade lock screws are well tightened.

• Check for clogging of the cooling air passages and the cooling ns of the cylinder before starting operation. Clean if necessary. - After use;

• Clean the pole hedge trimmer externally and inspect for damage.

• Clean the air lter. Clean the lter several times a day if working in extremely dusty conditions.

• Check the cutting blades for damage. Make sure that the blades are securely mounted.

• If the cutting blades still continue to run at idle after the adjustment, consult your nearest authorized service agent. Grease hole (under the bolt)20 In replacement, perform the following procedure.

1) Make sure that the fuel tank cap is tightened securely.

2) Put large container (pan, etc.) under drain hole.

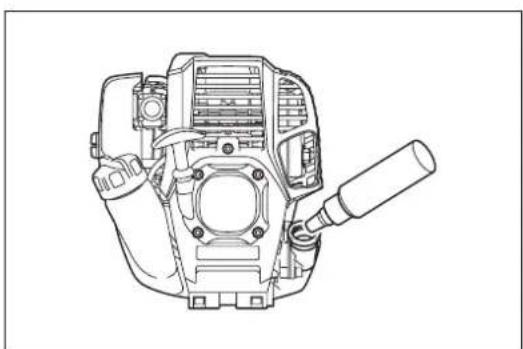

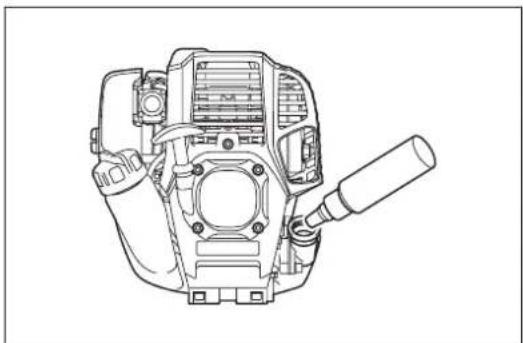

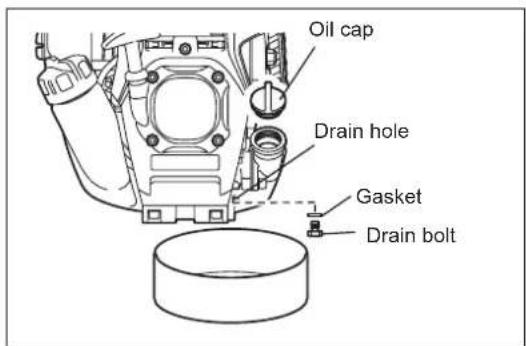

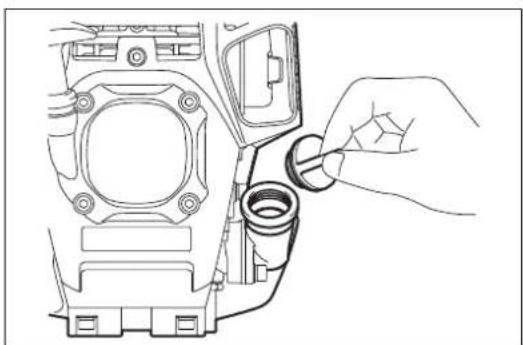

3) Remove drain bolt and then remove oil cap to drain out oil from drain hole. At

this time, be sure not to mislay drain bolt’s gasket, or to dirty any of the removed components.

4) Once all the oil has been drained, combine gasket and drain bolt, and tightly

secure drain bolt, so that it will not loosen and cause leaks.

• Use cloth to fully wipe off any oil attached to bolt and equipment. Alternative draining method Remove oil cap, tilt pole hedge trimmer toward oil ller hole, and drain out oil. Collect oil in container.

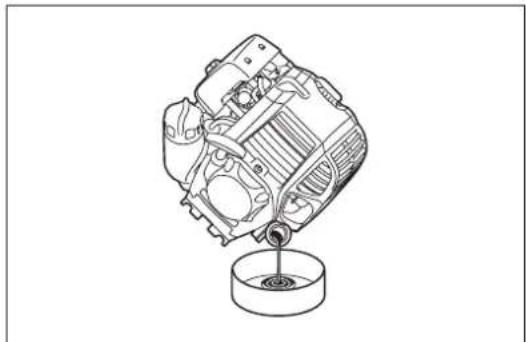

REPLACEMENT OF ENGINE OIL

Deteriorated engine oil will shorten the life of the sliding and rotating parts to a great extent. Be sure to check the period and quantity of replacement. DANGER: In general, the engine main unit and engine oil still remain hot just after the engine is stopped. In replacement of oil, make sure that the engine main unit and engine oil are sufciently cooled down. Otherwise, there may remain a risk of scald. Allow sufcient time after stopping engine for the engine oil to return to the oil tank to ensure accurate reading of the oil level indicator. NOTE: If the oil lled above the limit, it may become dirty or may catch re with white smoke. Interval of replacement: After rst 20 operating hours, followed by every 50 operating hours Recommended oil: SAE10W-30 oil of API Classication SF Class or higher (4-stroke engine oil for automobile) Fuel tank cap Oil cap Oil cap Drain hole Gasket Drain bolt21 (6)

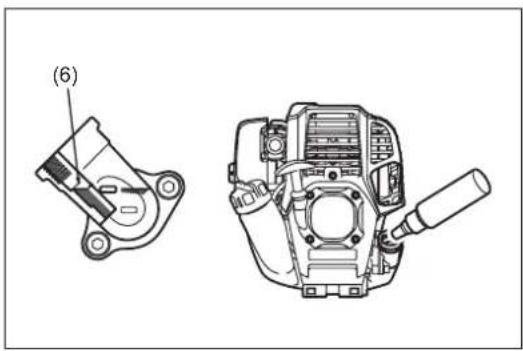

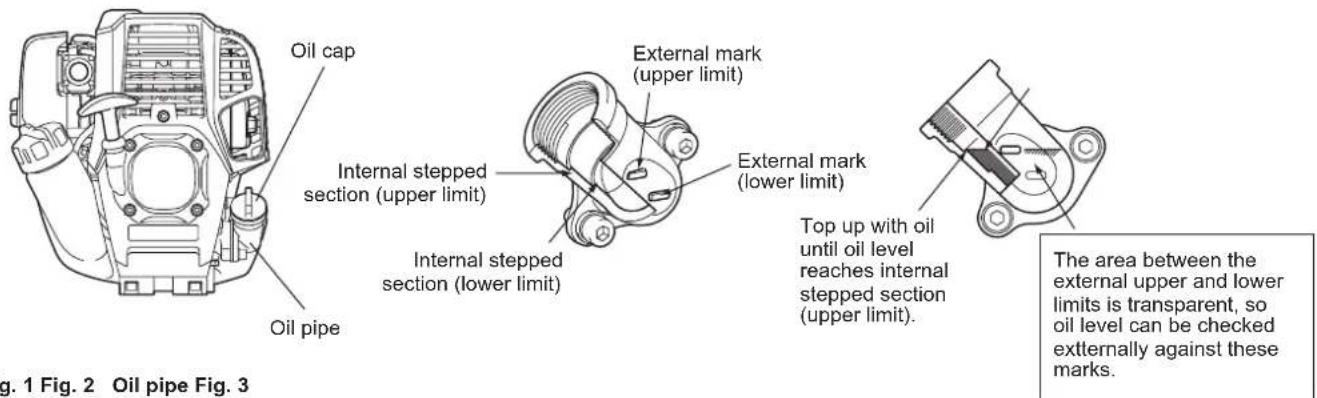

5) Set the engine level, and gradually ll up to upper limit mark (6) with new oil.

6) After lling, tightly secure oil cap, so that it will not loosen and cause leaks. If oil

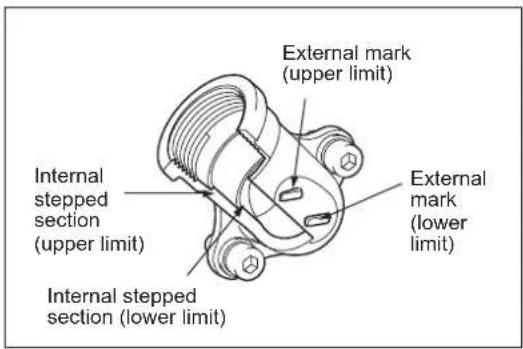

cap is not tightly secured, it may leak. External mark (upper limit) Internal stepped section (upper limit) Internal stepped section (lower limit) External mark (lower limit)

- Never discard replaced engine oil in garbage, earth or sewage ditch. Disposal of oil is regulated by law. In disposal, always follow the relevant laws and regulations. For any points remaining unknown, contact Authorized Service Agent. - Oil will deteriorate even when it is kept unused. Perform inspection and replacement at regular intervals (replace with new oil every 6 months). Cleaning the air cleaner

DANGER: Inammables strictly prohibited

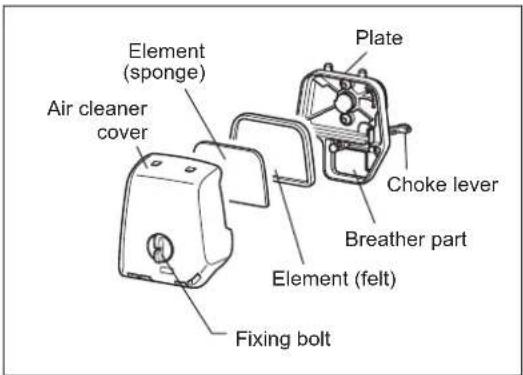

Check and clean the air cleaner daily or every 10 operating hours. - Turn the choke lever fully to the close side, and keep the carburetor free from dust or dirt. - Loosen the xing bolt. - Remove the air cleaner cover by pulling its bottom side. - Remove the elements and tap them to remove dirt. - If the elements are heavily contaminated: Remove the elements, immerse them in warm water or in water-diluted neutral detergent, and dry them completely. Do not squeeze or rub them when washing. - Before attaching the elements, be sure to dry them completely. Insufcient drying of the elements may lead to difcult startup. - Wipe out oil adhering around the air cleaner cover and the breather part with waste cloth. - Fit the element (sponge) into the element (felt). Fit the elements into the plate so that the sponge faces the air cleaner cover. - Immediately attach the cleaner cover and tighten it with xing bolts. (In remounting, rst place the upper claw, and then the lower claw.) NOTICE: - Clean the elements several times a day, if excessive dust adheres to it. Dirty elements reduce engine power and make starting engine difcult. - Remove oil on the elements. If operation continues with the elements remaining not cleared of oil, oil in the air cleaner may fall outside, resulting in contamination of the environment. - Do not put the elements on the ground or dirty place. Otherwise they pick up dirt or debris and it may damage the engine. - Never use fuel for cleaning the elements. Fuel may damage them. Air cleaner cover Element (sponge) Plate Choke lever Breather part Element (felt) Fixing bolt22

CHECKING THE SPARK PLUG

- Only use the supplied universal wrench to remove or to install the spark plug. - The gap between the two electrodes of the spark plug should be 0.7 - 0.8 mm (0.028” - 0.032”). If the gap is too wide or too narrow, adjust it. If the spark plug is clogged or contaminated, clean it thoroughly or replace it. CAUTION: Never touch the spark plug connector while the engine is running (danger of high voltage electric shock). Cleaning the fuel lter (suction head in the fuel tank)

WARNING: INFLAMMABLES STRICTLY PROHIBITED

Check and clean the fuel lter monthly or every 50 operating hours. Check the fuel lter periodically. To check the fuel lter, follow the steps below. (1) Remove the fuel tank cap, drain the fuel to empty the tank. Check the tank inside for any foreign materials. If any, remove them. (2) Pull out the suction head by using a wire hook through the tank opening. (3) If the fuel lter clogged slightly, clean it. To clean it, gently shake and tap it in fuel. To avoid damage, do not squeeze or rub it. The fuel used for the cleaning must be disposed in accordance with the method specied by regulations in your country. If the fuel lter became hard or heavily clogged up, replace it. (4) After checking, cleaning or replacing, push the fuel lter in all the way to the bottom of the fuel tank. Clogged or damaged fuel lter can cause insufcient fuel supply and reduce engine power. Replace the fuel lter at least quarterly to ensure satisfactory fuel supply to the carburetor.

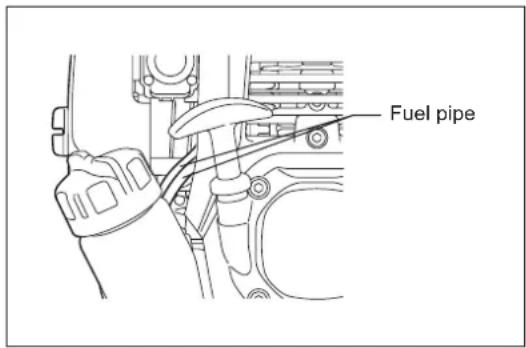

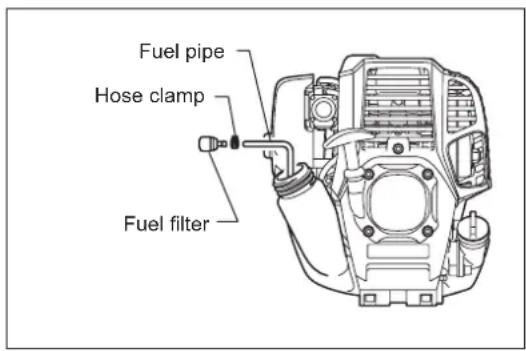

(0.028” - 0.032”) Fuel pipe Hose clamp Fuel lter Replacing the fuel pipe CAUTION: Inammables strictly prohibited Check and clean the fuel pipe daily or every 10 operating hours. Replace the fuel pipe every 200 operating hours or every year regardless of operating frequency. Otherwise fuel leakage may lead to re. If you nd any leakage during inspection, replace the fuel pipe immediately.

INSPECTION OF BOLTS, NUTS AND SCREWS

- Retighten loose bolts, nuts, etc. - Check for fuel and oil leakage. - Replace damaged parts with new ones for safety operation.

- Keep engine clean by wiping down with a cloth rag. - Keep the cylinder ns free of dust or dirt. Dust or dirt adhering to the ns will cause piston seizure.

REPLACEMENT OF GASKETS AND PACKINGS

Replace gaskets and packings if the engine is disassembled. For any maintenance or adjustment not described in this manual, ask your local DOLMAR authorized service center. Fuel pipe23 - Drain fuel from the fuel tank and carburetor according to the following procedure:

1) Remove the fuel tank cap, and drain fuel completely.

If there is any foreign materials remaining in the fuel tank, remove it completely.

2) Pull out the fuel lter from the rell port using a wire.

3) Push the primer pump until fuel is drained from there, and drain fuel coming into

4) Reset the lter to the fuel tank, and securely tighten the fuel tank cap.

5) Then, continue to operate the engine until it stops.

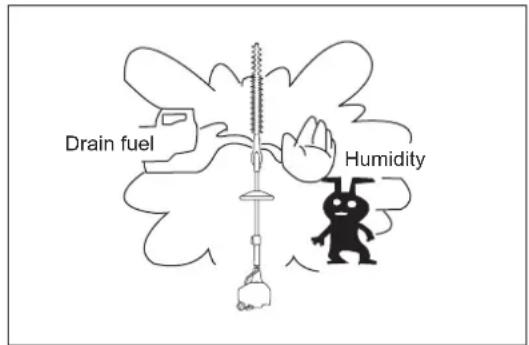

- Remove the spark plug, and drip several drops of engine oil through the spark plug hole. - Gently pull the starter handle so that engine oil will spread over the engine, and attach the spark plug. - Attach the cover to the cutting blades. - In general, store the machine in horizontal position. If it is not possible, place the machine as the motor unit comes below the cutting tool. Otherwise engine oil may leak from inside. - Always pay attention to storing the machine in a safe place to prevent machine damage and personal injury. - Keep the drained fuel in a special container in a well-ventilated shade.

WARNING: When draining the fuel, stop the engine and wait for the engine

to cool down. Failure to do so may cause burns or re. ATTENTION: When you store the machine for a long time, drain all fuel from the fuel tank and carburetor, and keep it at a dry and clean place. STORAGE Drain fuel Humidity24 Attention after long-time storage - Before startup after long-time shutdown, be sure to replace oil (refer to P20). Oil will deteriorate while the machine is kept out of operation. Operating time Item Before operation Daily (10h) 25h 50h 200h Shutdown/ rest Corresponding

Tightening parts (bolt, nut) Inspect

Fuel tank Clean/inspect

Ignition plug Inspect

Cooling air duct Clean/inspect

Fuel lter Clean/replace

Clearance between air intake valve and air discharge valve Adjust

Carburetor Drain fuel

*1 Perform initial replacement after 20h operation. *2 For the 200 operating hour inspection, request Authorized Service Agent or a machine shop. *3 After emptying the fuel tank, continue to run the engine and drain fuel in the carburetor.25 Before making a request for repairs, check a trouble for yourself. If any abnormality is found, control your machine according to the description of this manual. Never tamper or dismount any part contrary to the description. For repairs, contact Authorized Service Agent or local dealership. State of abnormality Probable cause (malfunction) Remedy Engine does not start Failure to operate primer pump Push 7 to 10 times Low pulling speed of starter rope Pull strongly Lack of fuel Feed fuel Clogged fuel lter Clean Broken fuel tube Straighten fuel tube Deteriorated fuel Deteriorated fuel makes starting more difcult. Replace with new one. (Recommended replacement: 1 month) Excessive suction of fuel Set throttle lever from medium speed to high speed, and pull starter handle until engine starts. Once engine starts, cutting blades start moving. Pay full attention to cutting blades. If engine will not start still, remove spark plug, make electrode dry, and reassemble them as they originally are. Then, start as specied. Detached plug cap Attach securely Contaminated spark plug Clean Abnormal clearance of spark plug Adjust clearance Other abnormality of spark plug Replace Abnormal carburetor Make request for inspection and maintenance. Starter rope cannot be pulled Make request for inspection and maintenance. Abnormal drive system Make request for inspection and maintenance. Engine stops soon Engine speed does not increase Insufcient warm-up Perform warm-up operation Choke lever is set to “ ” although engine is warmed up. Set to “ ” Clogged fuel lter Clean or replace Contaminated or clogged air cleaner Clean Abnormal carburetor Make request for inspection and maintenance. Abnormal drive system Make request for inspection and maintenance. Cutting blade does not move Inappropriate angle of cutter unit Make sure the angle lock engages properly. Loosened cutting blades-tightening nut Tighten securely Twigs caught by cutting blades. Remove foreign matter Abnormal drive system Make request for inspection and maintenance. Main unit vibrates abnormally Stop engine immediately Broken, bent or worn cutting blades Replace cutting blades Loosened cutting blades-tightening nut Tighten securely Abnormal drive system Make request for inspection and maintenance. Cutting blades do not stop immediately Stop engine immediately High idling rotation Adjust Detached throttle wire Attach securely Abnormal drive system Make request for inspection and maintenance. Engine does not stop Run engine at idling, and set choke lever to “
