| Product type | Car audio amplifier (2, 4 or 6 channel models) |
| Output power | 90 W per channel (depending on variant: 2, 4 or 6 channels) |
| Frequency range | 20 Hz - 20 kHz at ±1 dB |
| Input sensitivity | High: 1.0-2.0 V (100 Ω) / Low: 0.1-1.0 V (10 kΩ) |
| Signal-to-noise ratio | Greater than 95 dB |
| Speaker impedance | 4-16 Ω |
| Subwoofer frequency | Adjustable from 30 Hz to 250 Hz |
| Power supply | DC 14.4 V |
| Maximum current draw | 7.5 A (2 channels) / 15 A (4 channels) / 20 A (6 channels) |
| Protection fuse | Included (spare fuse provided) |
| Audio inputs | High-level (speaker) and low-level (RCA) inputs |
| Remote turn-on | Yes (orange wire) |
| AUX input | Yes (RCA jack) |
| Mounting | Using provided screws, allow space for ventilation |
| Maintenance and cleaning | Dry microfiber cloth, no detergents |
| Safety | Do not open the device, professional installation, protect from moisture and heat |
| Warranty | 2 years against manufacturing defects |
| Country of manufacture | Not specified |
Frequently Asked Questions - Dark Star 4000 Auna
User questions about Dark Star 4000 Auna
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Car stereo in PDF format for free! Find your manual Dark Star 4000 - Auna and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. Dark Star 4000 by Auna.
USER MANUAL Dark Star 4000 Auna
www.auna.multimedia.com
Berlin Brands Group UK Ltd
PO Box 1145
Oxford, OX1 9UW
United Kingdom
Congratulations on your purchase. Please read the following instructions carefully and follow them to prevent potential damage. We accept no liability for damage caused by disregarding the instructions or improper use. Please scan the QR code to access the latest operating instructions and for further information about the product.
TECHNICAL DATA
| Output power | 90W x 2-channel amplifier (10012071) 90W x 4-channel amplifier (10012072) 90W x 6-channel amplifier (10012073) |
| Frequency response 20 Hz - 20 kHz at 1 dB | |
| Input sensitivity | High: 1.0 V - 2.0 V impedance 100 Ω Low: 0.1 V - 1.0 V impedance 10 kΩ |
| SR > 95 dB | |
| Speaker impedance 4-16 Ω | |
| Subwoofer frequency Adjustable 30 Hz - 250 Hz | |
| Power supply DC 14.4 V | |
| Accessories Screws and spare fuse | |
SAFETY INSTRUCTIONS
- These operating instructions are intended to familiarise you with the operation of this product. Therefore, always keep these instructions in a safe place so that you can access them at any time.
- When you purchase this product, you receive a two-year warranty against defects when used properly.
- Please use the product only in its intended manner. Any other use may lead to damage to the product or in the vicinity of the product.
- Modifying or changing the product will compromise product safety.
Attention: risk of injury! - Never open the unit without authorisation and never carry out repairs yourself!
- Handle the product carefully. It can be damaged by bumps, blows or falls from a small height.
- Keep the product away from moisture and extreme heat.
Special warnings
- Repairs to the device should only be carried out by an authorised specialist workshop.
- Do not open the device under any circumstances.
- Incorrect assembly may lead to malfunctions or total failure.
- The device should be protected from any moisture and direct sunlight.
- Do not clean the appliance with detergents.
- Only use a dry (microfibre) cloth for cleaning.
- Only connect the appliance to the designated power supply.
- Never connect the appliance to voltages other than those intended.
- The warranty is void if the unit is tampered with by third parties.
- As this is a high-current unit, the connection of the power cable is very important.
- Connect the red cable to the (+) terminal of your battery using the cable with the fuse holder.
- Connect the black cable firmly to a screw or another part of the bodywork of your car after you have removed the paint. This is necessary for proper earthing.
- Proper wiring leads to clear sound.
CONNECTION OF THE REMOTE POWER-ON CABLE AND REMOTE POWER-OFF CABLE
- Connect the orange cable to a switched power cable of the car radio. This controls the switching on and off of the amplifier.
- The switched power cable can act as the antenna of the radio.
AMPLIFIER INPUT CONNECTION
- This unit can be used with all car radios that have high power outputs.
- Separate basic car radio connection: Connect the car radio speaker output cables to the high-power inputs +/- right and left.
- General-ground car radio connection: Connect the negative car radio speaker output wire with the two remaining wires +/- right and left.
AUX CONNECTION
- Connect the AUX input cable to the RCA connector as described:
- "White" to the left preamp output of the car radio. "Red" to the right preamp output of the car radio.
- Before connecting the preamplifier output of the car radio or other equipment, make sure that the impedance and sensitivity match this AUX connection.
INPUT SENSITIVITY CONTROL
Control the input sensitivity to the car radio.

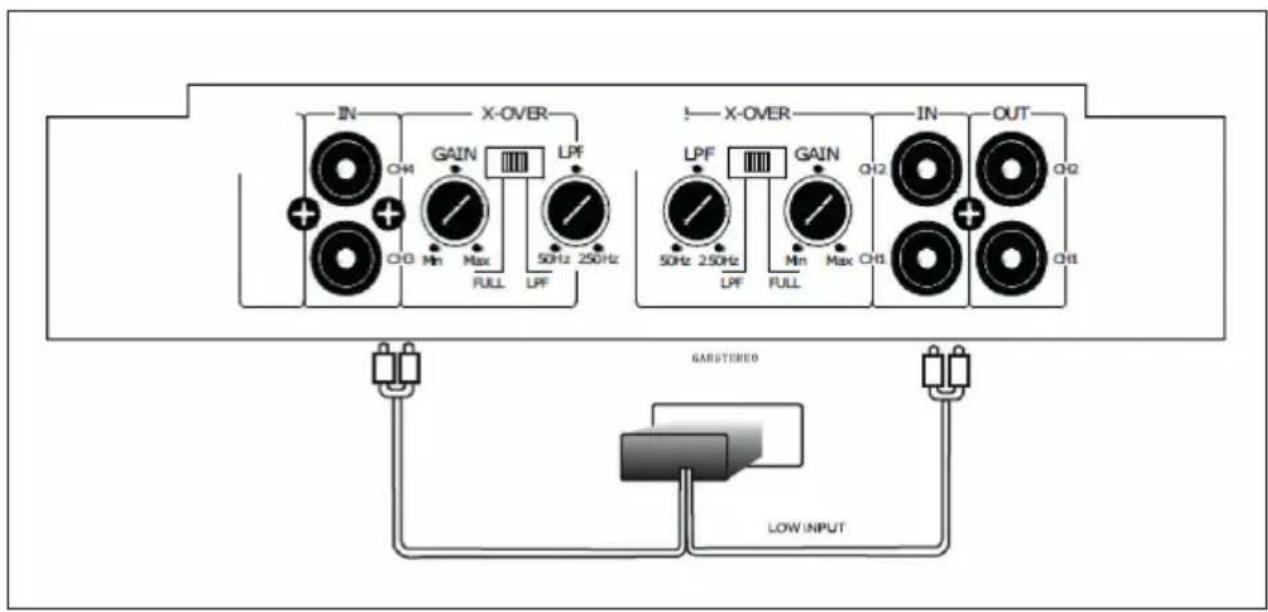

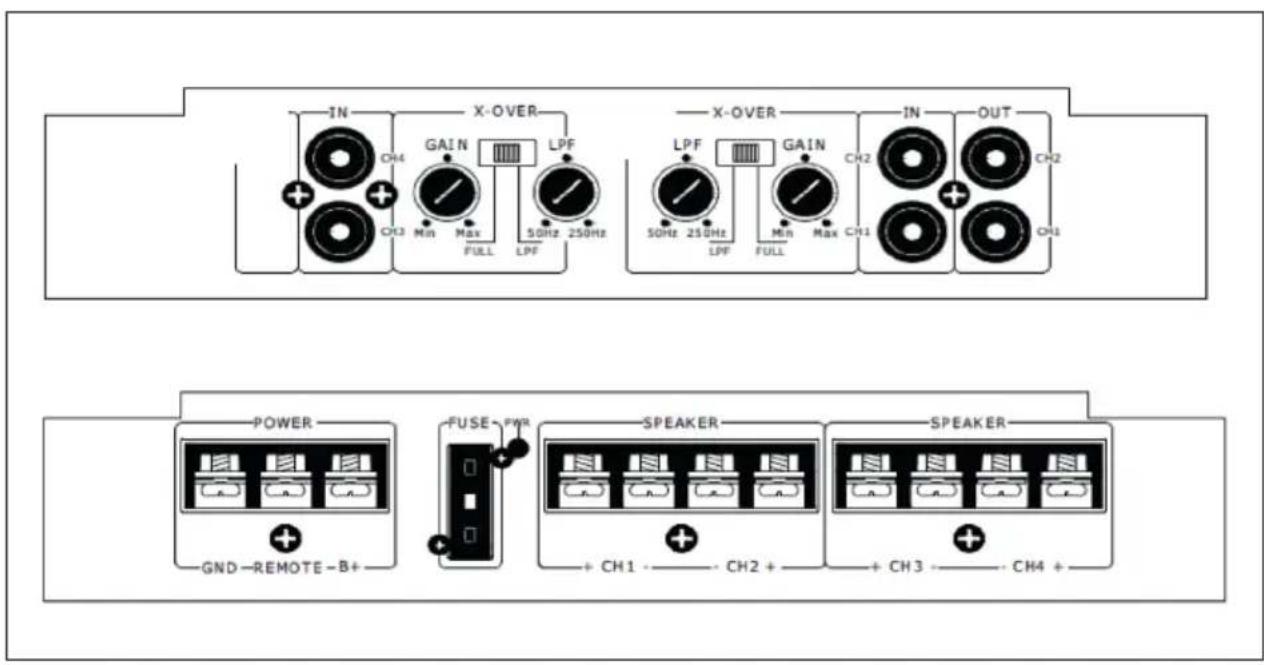

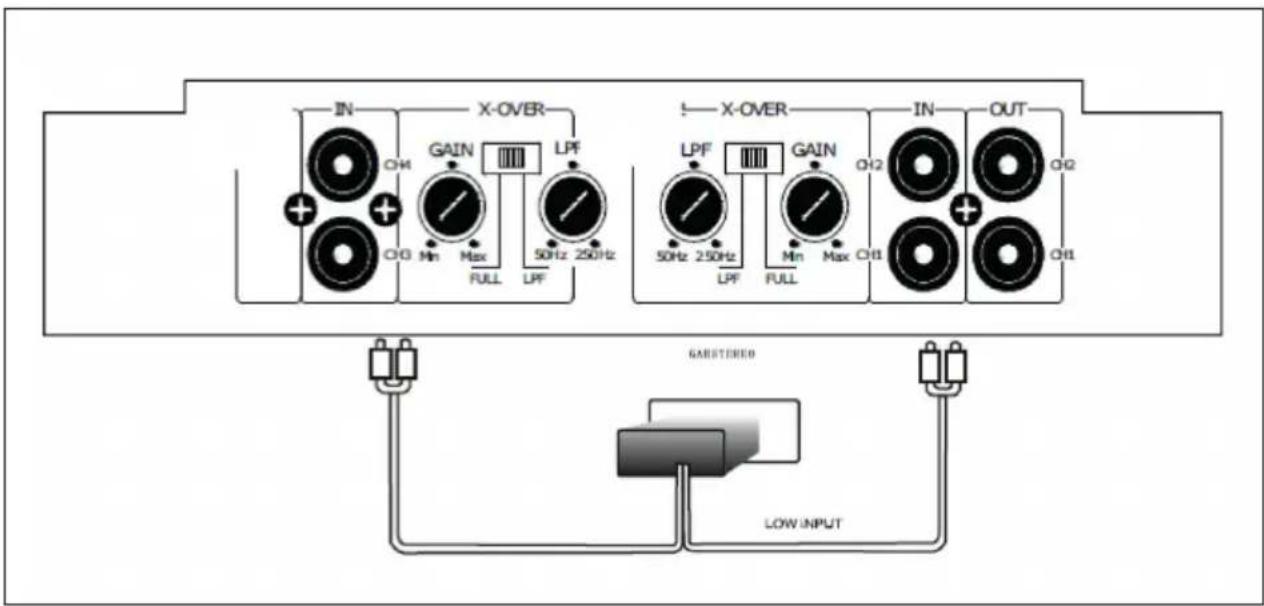

CONNECTING THE SPEAKERS (STEREO/MONO)
2-channel amplifier
4-channel amplifier
6-channel amplifier
Please note:
- The amplifier requires 7.5A / 15A / 20A at maximum power. Using the amplifier while the motor is off may drain the battery. Please always switch on the motor before using the amplifier.
- Only use power cables with a suitable cross-section.
- This device is suitable for speakers with an impedance of 2 - 16 . The speakers must have enough capacity to absorb more of the unit's power.

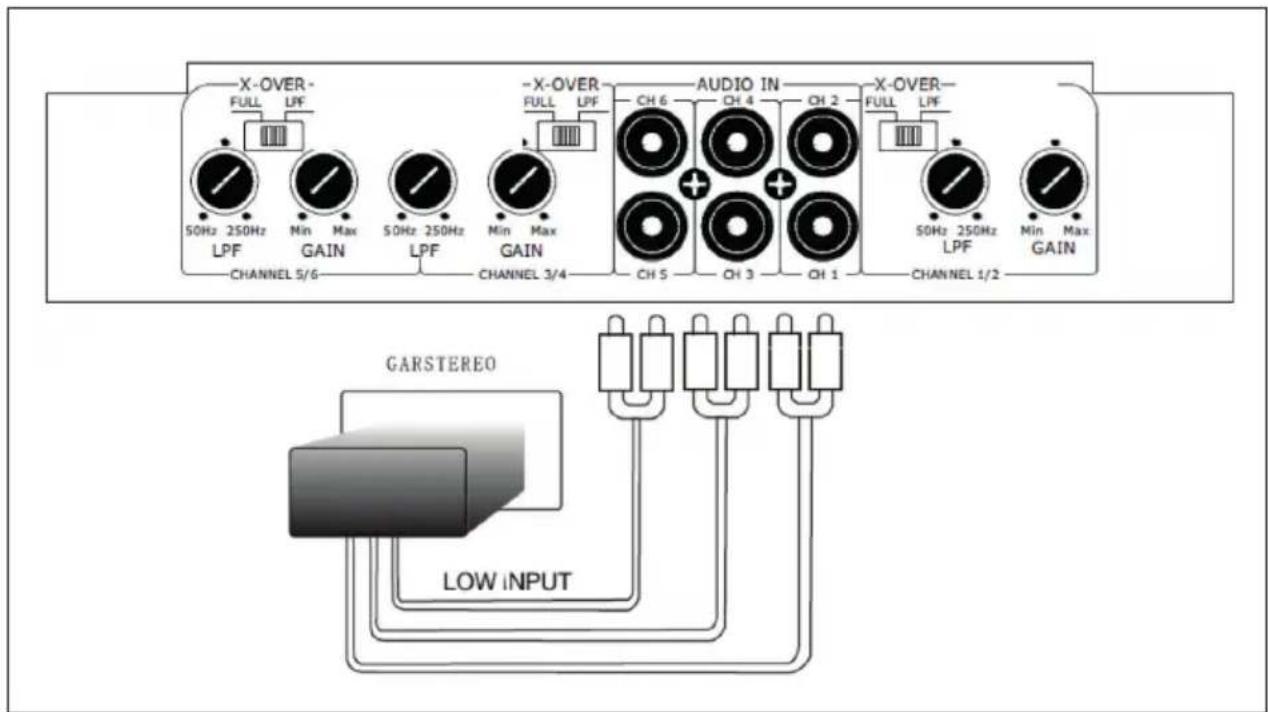

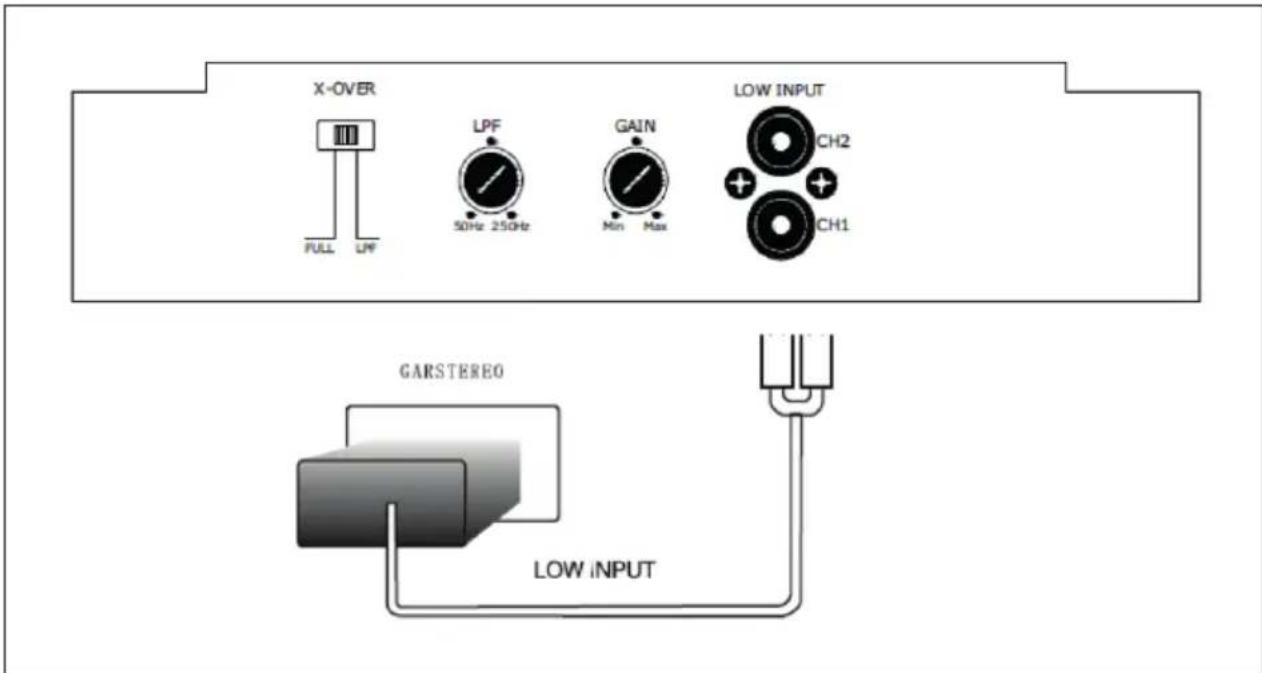

CONNECTION TO THE CAR RADIO
2-channel amplifier
4-channel amplifier
6-channel amplifier

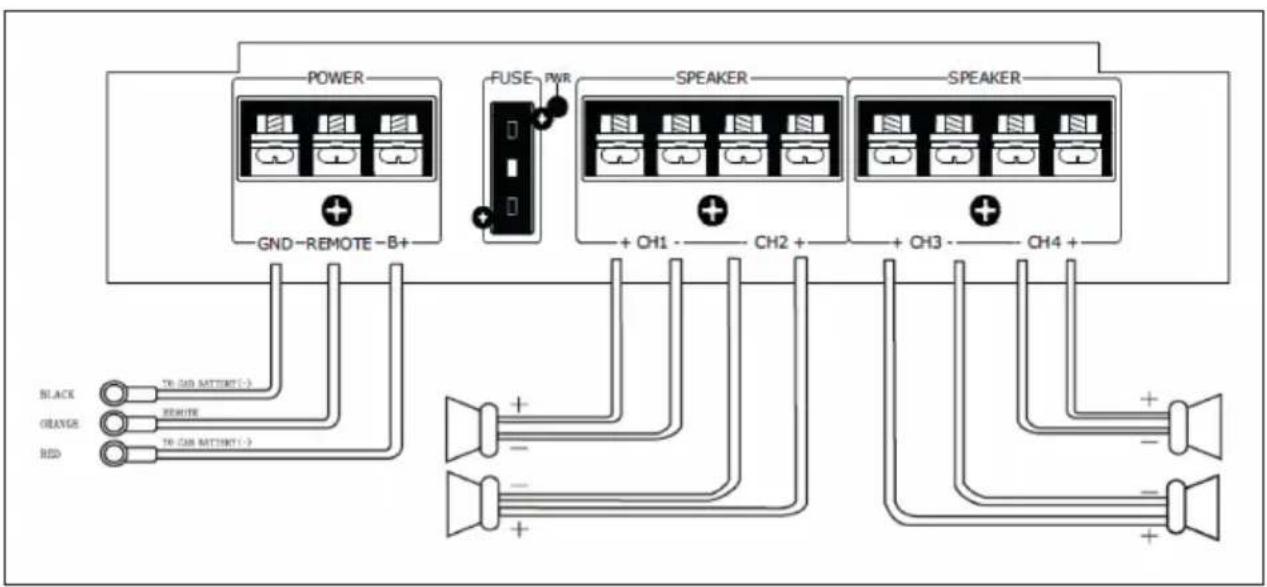

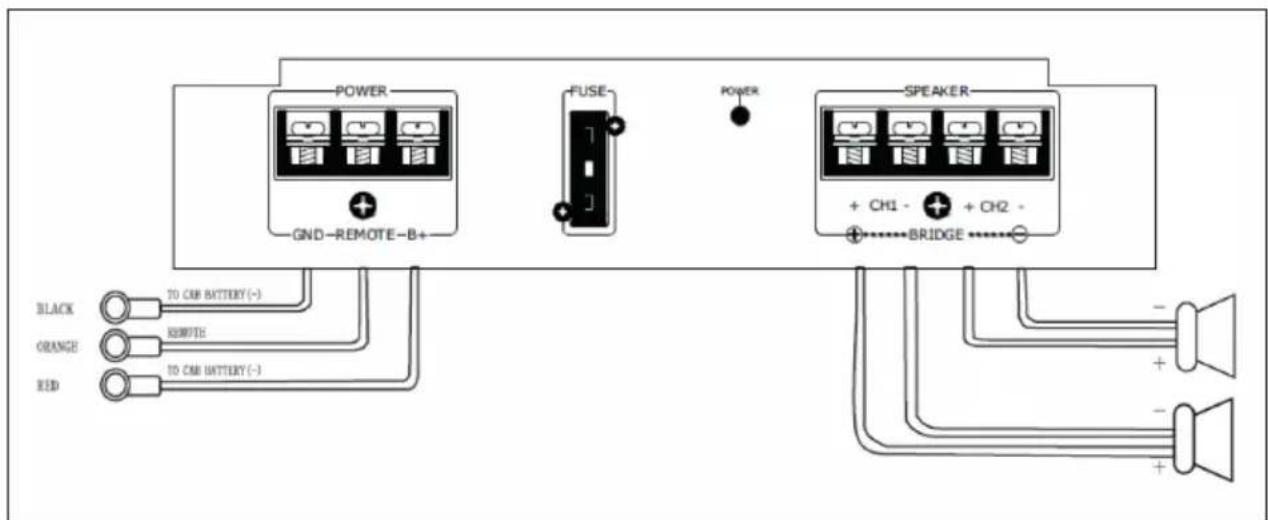

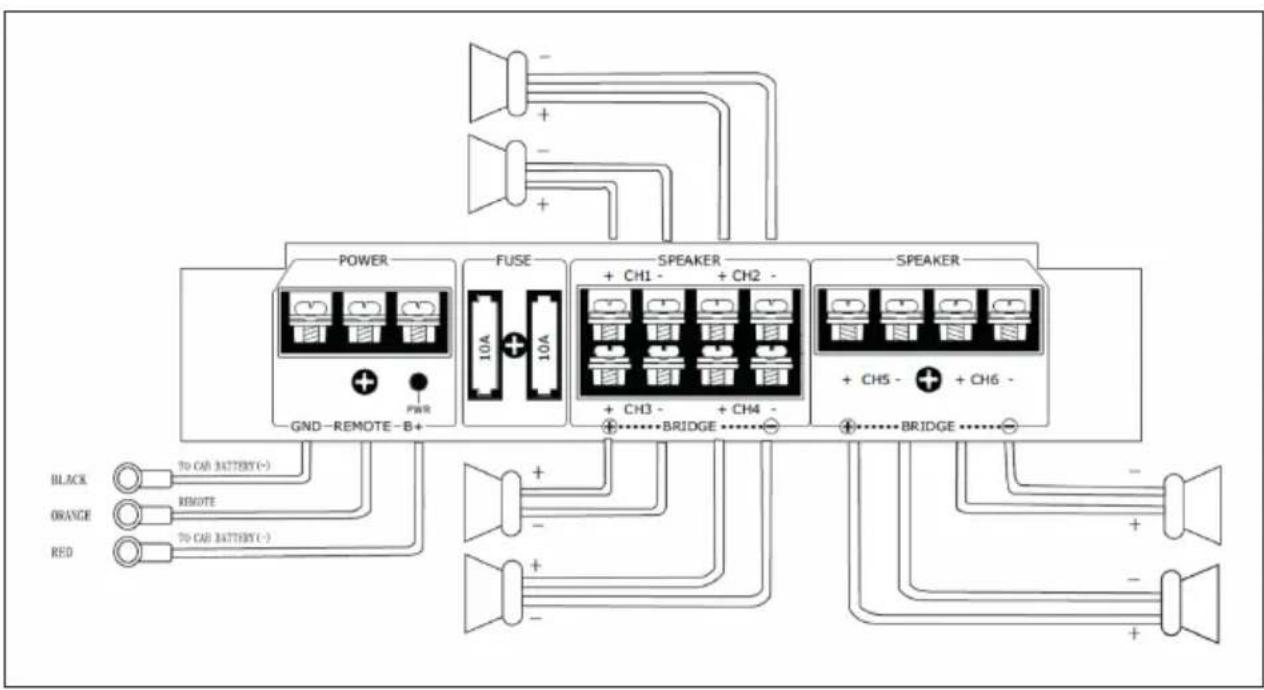

CONNECTION TO THE SPEAKERS
2-channel amplifier
4-channel amplifier
6-channel amplifier
ASSEMBLY
Mount the amplifier in an appropriate place using the enclosed screws.
Note: The unit heats up a lot, so leave space around the amplifier when setting it up.
DISPOSAL CONSIDERATIONS
If there is a legal regulation in your country regarding the disposal of electrical and electronic equipment, this symbol on the product or on the packaging indicates that this product must not be disposed of with household waste. Instead, it must be taken to a collection point for the recycling of electrical and electronic equipment. By disposing of this product in accordance with the regulations, you protect the environment and the health of those around you from negative consequences. For information on recycling and disposal of this product, contact your local government or household waste disposal service.
DECLARATION OF CONFORMITY
CE UK CA
Manufacturer:
Chal-Tec GmbH, Wallstrasse 16, 10179 Berlin,
Germany.
Importer for Great Britain:
Berlin Brands Group UK Ltd
PO Box 1145
Oxford, OX1 9UW
United Kingdom
Chal-Tec GmbH hereby declares that the radio equipment type Dark Star complies with Directive
2014/53/EU. The full text of the EU declaration of conformity is available at the following internet
address: use.berlin/10012071
For Great Britain: Hereby, Chal-Tec GmbH declares that the radio equipment type Dark Star is in compliance with the relevant statutory requirements. The full text of the declaration of conformity is available at the following
internet address: use.berlin/10012071
