USER MANUAL BTANGLE EXACT 30 Professional BOSCH

BT-ANGLEEXACT | BT-EXACT

BT-ANGLEEXACT 2|3|6|7|8|15|17|23|30

BT-EXACT 2|4|6|7|8|9|12

Robert Bosch Power Tools GmbH

70538 Stuttgart

GERMANY

www.bosch-pt.com

1609 92A 5P3 (2020.04) O / 451

1609 92A 5P3

Two grayscale industrial welding torches shown from different angles (no text or symbols visible)

Exploded view diagram of a Bosch electric shaver with numbered parts for identification

4

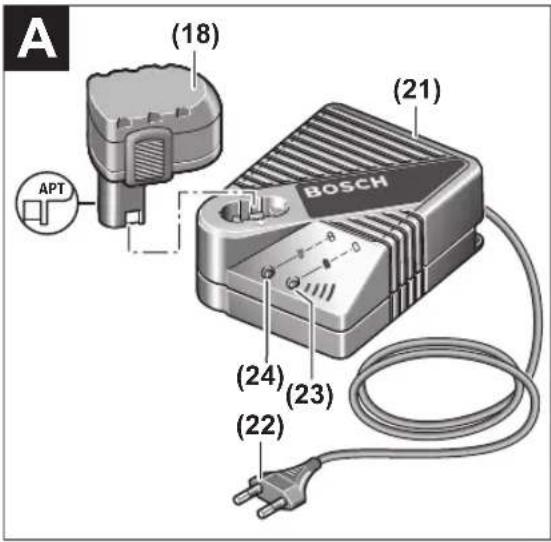

A (18) APT (21) BOSCH (24) (23) (22)

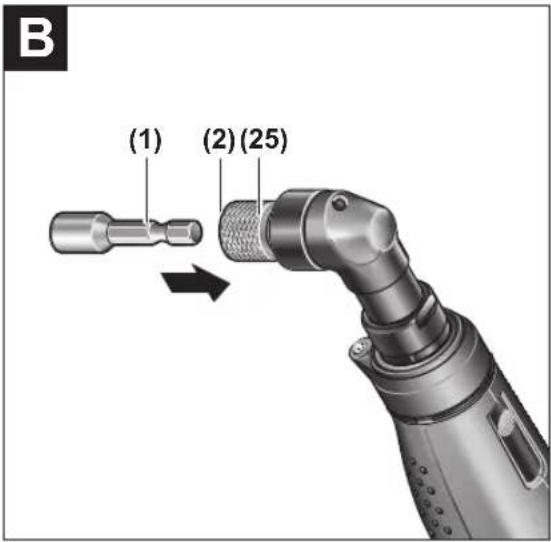

B (1) (2) (25)

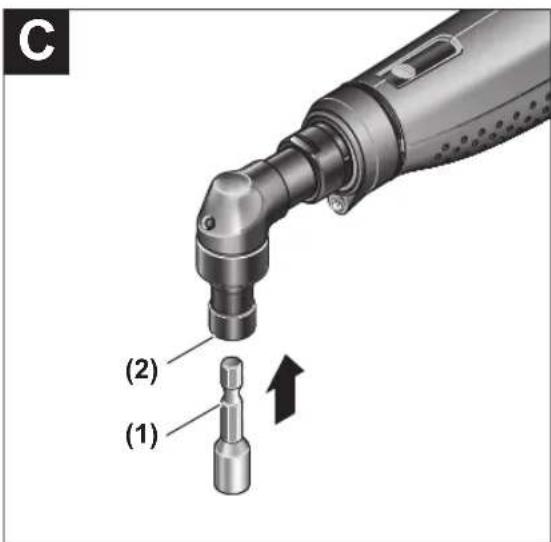

C (2) (1)

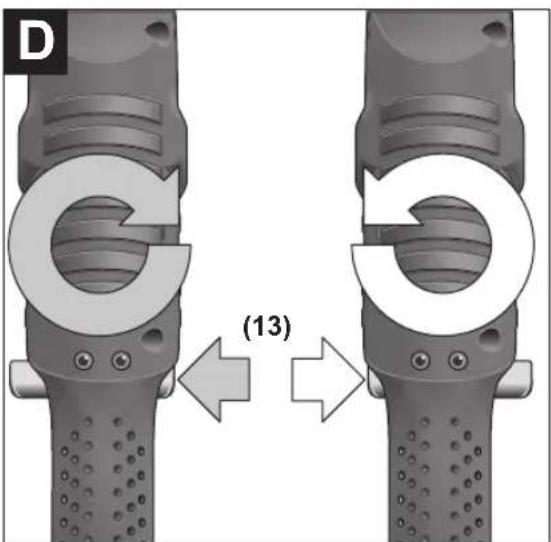

D (13)

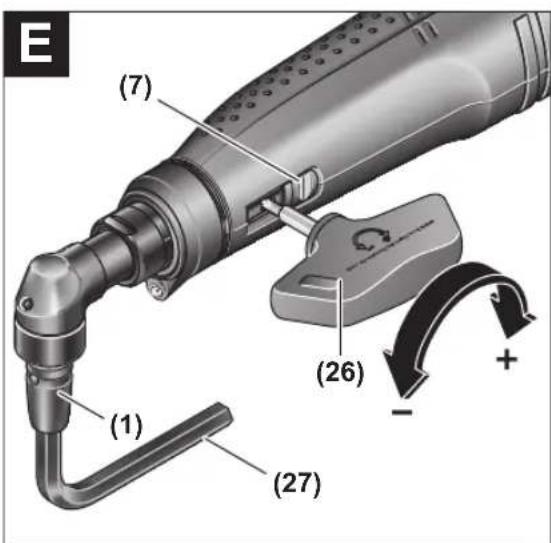

(7) (1) (27) (26) - +

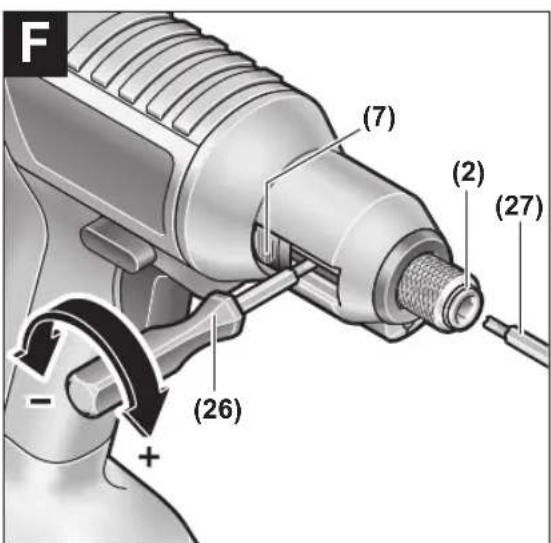

F (7) (2) (27) (26) +

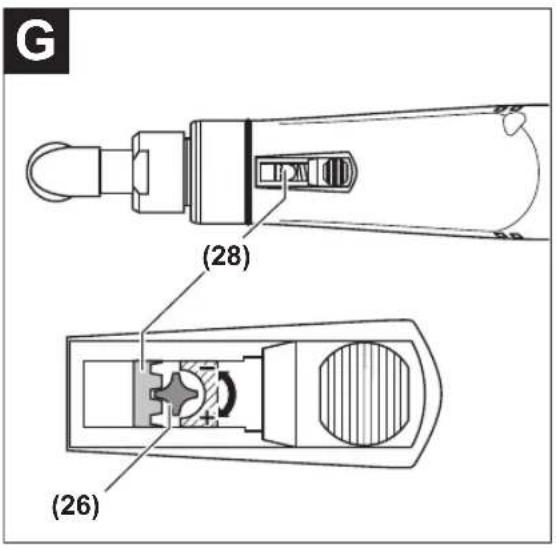

G (28) (26)

H (15) (19) (29) (30) (20) (15)

Deutsch

Sicherheitshinweise

General Power Tool Safety Warnings

WARNING

Read all safety warnings, instructions, illustrations and specifica-

tions provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

Work area safety

▶ Keep work area clean and well lit. Cluttered or dark areas invite accidents.
▶ Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
▶ Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

Electrical safety

▶ Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
▶ Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
▶ Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
▶ Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.
When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
▶ If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.

Personal safety

▶ Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inatten-

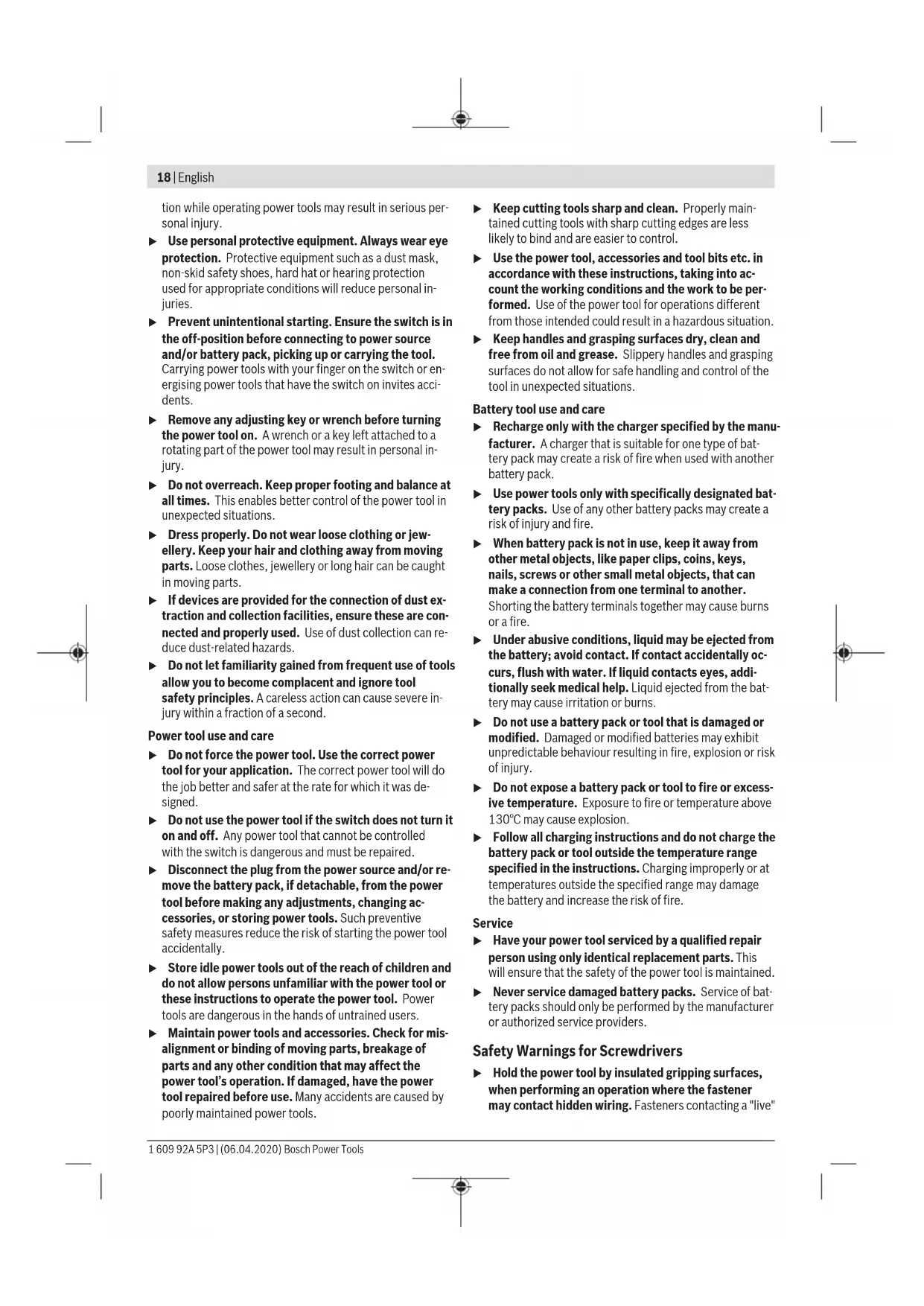

18 | English

tion while operating power tools may result in serious personal injury.

▶ Use personal protective equipment. Always wear eye protection. Protective equipment such as a dust mask, non-skid safety shoes, hard hat or hearing protection used for appropriate conditions will reduce personal injuries.
▶ Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.
Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
▶ Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
▶ Dress properly. Do not wear loose clothing or jewellery. Keep your hair and clothing away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.
▶ Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles. A careless action can cause severe injury within a fraction of a second.

Power tool use and care

▶ Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
▶ Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
▶ Disconnect the plug from the power source and/or remove the battery pack, if detachable, from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.
▶ Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
- Maintain power tools and accessories. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.

▶ Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
▶ Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.
▶ Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpected situations.

Battery tool use and care

▶ Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.
▶ Use power tools only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire.
When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.
▶ Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.
▶ Do not use a battery pack or tool that is damaged or modified. Damaged or modified batteries may exhibit unpredictable behaviour resulting in fire, explosion or risk of injury.
▶ Do not expose a battery pack or tool to fire or excessive temperature. Exposure to fire or temperature above 130^ C may cause explosion.
▶ Follow all charging instructions and do not charge the battery pack or tool outside the temperature range specified in the instructions. Charging improperly or at temperatures outside the specified range may damage the battery and increase the risk of fire.

Service

▶ Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.
▶ Never service damaged battery packs. Service of battery packs should only be performed by the manufacturer or authorized service providers.

Safety Warnings for Screwdrivers

▶ Hold the power tool by insulated gripping surfaces, when performing an operation where the fastener may contact hidden wiring. Fasteners contacting a "live"

wire may make exposed metal parts of the power tool "live" and could give the operator an electric shock.

▶ Use suitable detectors to determine if there are hidden supply lines or contact the local utility company for assistance. Contact with electric cables can cause fire and electric shock. Damaging gas lines can lead to explosion. Breaking water pipes causes property damage.
▶ Hold the power tool securely. When tightening and loosening screws be prepared for temporarily high torque reactions.
▶ Secure the workpiece. A workpiece clamped with clamping devices or in a vice is held more secure than by hand.
▶ Always wait until the power tool has come to a complete stop before placing it down. The application tool can jam and cause you to lose control of the power tool.
In case of damage and improper use of the battery, vapours may be emitted. The battery can set alight or explode. Ensure the area is well ventilated and seek medical attention should you experience any adverse effects. The vapours may irritate the respiratory system.
▶ Do not open the battery. There is a risk of short-circuiting.
The battery can be damaged by pointed objects such as nails or screwdrivers or by force applied externally. An internal short circuit may occur, causing the battery to burn, smoke, explode or overheat.
▶ Only use the battery with products from the manufacturer. This is the only way in which you can protect the battery against dangerous overload.

Protect the battery against heat, e.g. against continuous intense sunlight, fire, dirt, water and moisture. There is a risk of explosion and short-circuiting.

▶ Switch the power tool off immediately if the application tool becomes blocked. Be prepared for high torque reactions which cause kickback. The application tool becomes blocked when it becomes jammed in the workpiece or when the power tool becomes overloaded.

WARNING

The dust produced by sanding, sawing, grinding, drilling and

other similar activities may cause cancer, congenital defects or genetic mutations. Some of these dusts contain substances such as:

Lead in lead-based paint and varnish; crystalline silica in bricks, cement and other building materials; arsenic and chromate in chemically treated wood. The risk of becoming ill depends on how frequently you are exposed to these substances. To reduce the potential danger, you should always wear adequate personal protective equipment (e.g. specially made breathing apparatus that can filter out even the smallest of dust particles) and work only in well-ventilated areas.

▶ Avoid switching on the tool accidentally. Make sure that the on/off switch is set to the off position before inserting a battery. Accidents can occur as a result of

carrying the power tool with your finger on the on/off switch or inserting the battery while the power tool is switched on.

▶ Do not use application tools that are worn or in otherwise less than perfect condition. Defective application tools can break, for example, causing material damage and personal injury.
When fitting an application tool, make sure that it is held securely in the tool holder. If the application tool is not held securely in the tool holder, it may become loose and consequently uncontrollable.
▶ Be careful when screwing in long screws – there is a risk of slipping when using particular screws and application tools. Long screws are often difficult to control and there is a danger that you will slip and hurt yourself when screwing them in.
▶ Check which rotational direction is set before switching on the power tool. If you want to loosen a screw but the rotational direction is set to tighten the screw, for example, the power tool may move violently and uncontrollably.
▶ Do not use the power tool as a drill. Power tools with a shut-off clutch are not suitable for drilling. The clutch can shut off automatically and without warning.
Caution! When using the power tool with Bluetooth, a fault may occur in other devices and systems, aeroplanes and medical devices (e.g. pacemakers, hearing aids). Also, damage to people and animals in the immediate vicinity cannot be completely excluded. Do not use the power tool with Bluetooth ^® in the vicinity of medical devices, petrol stations, chemical plants, areas with a potentially explosive atmosphere or in blasting areas. Do not use the power tool with Bluetooth ^® in aircraft. Avoid using the product near your body for extended periods.

The Bluetooth ^* word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Robert Bosch Power Tools GmbH is under license.

Product Description and Specifications

Read all the safety and general instructions. Failure to observe the safety and general instructions may result in electric shock, fire and/or serious injury.

Please observe the illustrations at the beginning of this operating manual.

Intended Use

The BT-EXACT/BT-ANGLE EXACT and EXAConnect screw-driving system is intended for driving and loosening screws and tightening and loosening nuts in the specified dimension and performance range. It is not intended for documenting the torque or rotation angle of a screw connection.

20 | English

The screwdriving system enables screwdriving signals to be transmitted wirelessly using Bluetooth® technology. OK and NOK signals (screw connection OK/not OK) from the industrial cordless screwdrivers in the BT-EXACT and BT-ANGLE EXACT series are transmitted to the EXAConnecT access point. Without the EXAConnecT access point, screwdrivers in the BT-EXACT and BT-ANGLE EXACT series cannot be put into operation – the screwdrivers are locked when they are delivered and can only be unlocked using the EXAConnecT access point.

Read and observe the operating instructions for the EXAConnecT access point. First put the EXAConnecT access point into operation.

Product Features

The numbering of the product features refers to the diagram of the power tool on the graphics page.

(1) Application tool (e. g. nut driver bit)
(2) Tool holder
(3) Angled screw head
(4) Open-ended spanner with width across flats of 27 mm
(5) Spanner flat on angled head flange
(6) Open-ended spanner with width across flats of 22 mm
(7) Slider for preselecting the torque
(8) Hanging hook
(9) LED indicator for screwdriving applications

(10) Bluetooth® LED indicator
(11) Battery charge LED indicator
(12) On/off switch
(13) Rotational direction switch
(14) Attachment slots for hanging hook
(15) LED holder
(16) Spanner flat on the cap nut
(17) Battery release button
(18) Battery with contact APT
(19) Marking ring
(20) Worklight
(21) Battery Charger
(22) Mains plug
(23) Green LED indicator on the battery charger
(24) Red LED indicator on the battery charger
(25) Quick-change chuck
(26) Adjustment tool
(27) Hex key
(28) Setting disc
(29) Spring ring
(30) Cavity in the housing shell
(31) Handle (insulated gripping surface)
Accessories shown or described are not included with the product as standard. You can find the complete selection of accessories in our accessories range.

Technical data

BT-EXACT industrial cordless screwdriver		2467
Article number		0 602 491 433 0 602 491 437 0		602 491 431 0 602 491 439
Torque adjustment range Nm 0.5-2 1-4 1-6 1.5-7
No-load speed n_0	min^-1	600^A)	900^A)	600^A)	150^A)
Rated voltage V 9.6 9.6 9.6 9.6
Direction of rotation		ΩΩ	ΩΩ	ΩΩ	ΩΩ
Tool holder QC 1/4" QC 1/4" QC 1/4" QC 1/4"		○	○	○	○
Data interface (wireless) Bluetooth® wireless technology class 2 (specification 1.2)
Maximum transmission range m 10 10 10 10
Weight according to EPTA-Procedure 01:2014	kg 0.80 0.80 0.80 0.80
Recommended ambient temperature during charging	°C 0 to +35 0 to +35 0 to +35 0 to +35
Permitted ambient temperature during operation ^B) and during storage	°C -20 to +50 -20 to +50 -20 to +50 -20 to +50
Operating frequency range	MHz 2402-2480		2402-2480	2402-2480	2402-2480
Max. transmission power	mW 0.5 0.5 0.5 0.5
Protection rating		IP 20	IP 20	IP 20	IP 20

A) measured at 20 - 25 °C with battery 2 607 335 681.
B) Limited performance at temperatures < 0^

English | 21

BT-EXACT industrial cordless screwdriver		8912
Article number		0602491443	0602491435	0602491441
Torque adjustment range Nm 1.5–8 1.5–9 1.5–12
No-load speed n_0	min^1	650^A)	350^B)	400^A)
Rated voltage V 12 9.6 12
Direction of rotation		ΩΩ	ΩΩ	ΩΩ
Tool holder QC 1/4" QC 1/4" QC 1/4"		○	○	○
Data interface (wireless) Bluetooth® wireless technology class 2 (specification 1.2)
Maximum transmission range m 10 10 10
Weight according to EPTA-Procedure 01:2014 kg 0.90 0.80 0.90
Recommended ambient temperature during charging	°C 0 to +35 0 to +35 0 to +35
Permitted ambient temperature during operationC) and during storage	°C	-20 to +50	-20 to +50	-20 to +50
Operating frequency range	MHz	2402–2480	2402–2480	2402–2480
Max. transmission power	mW 0.5 0.5 0.5
Protection rating IP 20	IP 20	IP 20

A) measured at 20–25 °C with battery 2 607 335 683.

B) measured at 20 - 25 °C with battery 2 607 335 681.

C) Limited performance at temperatures <0 °C

BT-ANGLE EXACT industrial cordless angle wrench		236
Article number		0 602 491 647	0 602 491 656	0 602 491 652
Torque adjustment range Nm 0.7–2 0.7–3 1.5–6
No-load speed n_0	min^1	110^A)	420^A)	650^A)
Rated voltage V 9.6 9.6 9.6
Direction of rotation		ΩΩ	ΩΩ	ΩΩ
Tool holder		QC Ω/4"	QC Ω/4"	QC Ω/4"
Angled screw head (order separately)		■1/4"	■1/4"	■1/4"
		■3/8"	■3/8"	■3/8"
		○1/4"	○1/4"	○1/4"
Screw head (order separately)		QC Ω/4" QC	1/4" QC	1/4"
Data interface (wireless) Bluetooth® wireless technology class 2 (specification 1.2)
Maximum transmission range m 10 10 10
Weight according to EPTA-Procedure 01:2014 kg 1.0 1.0 1.0
Recommended ambient temperature during charging	°C 0 to +35 0 to +35 0 to +35
Permitted ambient temperature during operation® and during storage	°C	-20 to +50	-20 to +50	-20 to +50
Operating frequency range	MHz	2402–2480	2402–2480	2402–2480
Max. transmission power	mW 0.5 0.5 0.5
Protection rating IP 20	IP 20	IP 20

A) measured at 20 - 25 °C with battery 2 607 335 681.

B) Limited performance at temperatures <0 °C

22 | English

BT-ANGLE EXACT industrial cordless angle wrench		7 8 15
Article number		0 602 491 669	0 602 491 651	0 602 491 650
Torque adjustment range Nm 2-7 1.5-8 2-15
No-load speed n_0	min^1	110^A)	420^A)	250^A)
Rated voltage V 9.6 9.6 9.6
Direction of rotation		ΩΩ	ΩΩ	ΩΩ
Tool holder		QC Q/4"	QC Q/4"	QC Q/4"
Angled screw head (order separately)		■1/4"	■1/4"	■1/4"
		■3/8"	■3/8"	■3/8"
		○1/4"	○1/4"	○1/4"
Data interface (wireless) Bluetooth® wireless technology class 2 (specification 1.2)
Maximum transmission range m 10 10 10
Weight according to EPTA-Procedure 01:2014 kg 1.0 1.0 1.0
Recommended ambient temperature during charging	°C 0 to +35 0 to +35 0 to +35
Permitted ambient temperature during operation ^B) and during storage	°C -20 to +50 -20 to +50 -20 to +50
Operating frequency range MHz 2402-2480 2402-2480 2402-2480
Max. transmission power	mW 0.5 0.5 0.5
Protection rating		IP 20	IP 20	IP 20

A) measured at 20 - 25 °C with battery 2 607 335 681.

B) Limited performance at temperatures <0 °C

BT-ANGLE EXACT industrial cordless angle wrench		17 23 30
Article number		0 602 491 675 0 602 491 673 0 602 491 671
Torque adjustment range Nm 6–17		hard screwdriving application5–13soft screwdriving application	7–23 8–30
No-load speed n_0	min^1	560^A)	320^A)	220^A)
Rated voltage V	14.4	14.4
Direction of rotation		ΩΩ	ΩΩ	ΩΩ
Tool holder Angled screw head (order separately)		■3/8"	■3/8"	■3/8"
Data interface (wireless) Bluetooth® wireless technology class 2 (specification 1.2)
Maximum transmission range m 10 10 10
Weight according to EPTA-Procedure 01:2014 kg 1.5 1.5 1.5
Recommended ambient temperature during charging	°C 0 to +35 0 to +35 0 to +35
Permitted ambient temperature during operation ^B and during storage	°C -20 to +50 -20 to +50 -20 to +50
Operating frequency range MHz 2402–2480 2402–2480 2402–2480
Max. transmission power	mW 0.5 0.5 0.5

English | 23

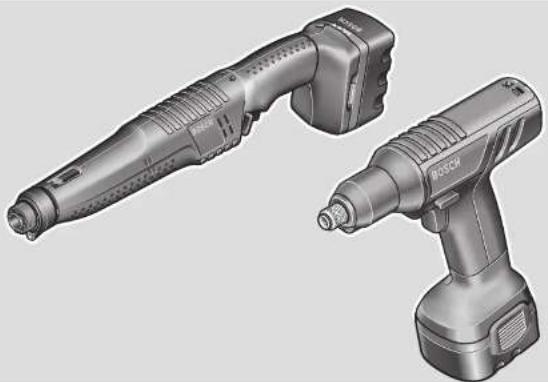

BT-ANGLE EXACT industrial cordless angle wrench
Protection rating IP 20 IP 20 IP 20

A) measured at 20–25 °C with battery 2 607 335 685.

B) Limited performance at temperatures <0 °C

NiMH battery pack 9.6 12.0 14.4

Article number	2 607 335 681 2 607 335 683 2 607 335 685
Number of cells 8 10 12
Battery voltage V 9.6 12.0 14.4
Capacity Ah 2.6 2.6 2.6
Weight according to EPTA-Procedure 01:2014 kg 0.55 0.70 0.80
Recommended chargers AL 2450 DV AL 2450 DV AL 2450 DV

Angled screw head		1/4"	3/8"	3/8"	1/4"	QC 1/4"
Article number		0 607 453 617	0 607 453 620	0 607 451 618	0 607 453 618	0 607 453 630
Weight according to EPTA-Procedure 01:2014	kg	0.20	0.20	0.20	0.20	0.20

Straight screw head		QC ● 1/4"
Article number		0 607 453 631
Weight according to EPTA-Procedure 01:2014	kg	0.20

Noise/Vibration Information

Noise emission values determined according to EN 62841-2-2.

Typically, the A-weighted sound pressure level of the power tool is 70 dB(A). Uncertainty K = 3 dB. The noise level when working can exceed 80 dB(A).

Wear hearing protection

Total vibration values a_h (triax vector sum) and uncertainty K determined according to EN 62841-2-2: Screwdriving: a_h < 2.5 m/s^2 , K = 1.5 m/s^2 .

The vibration level and noise emission value given in these instructions have been measured in accordance with a standardised measuring procedure and may be used to compare power tools. They may also be used for a preliminary estimation of vibration and noise emissions.

The stated vibration level and noise emission value represent the main applications of the power tool. However, if the power tool is used for other applications, with different application tools or is poorly maintained, the vibration level and noise emission value may differ. This may significantly increase the vibration and noise emissions over the total working period.

To estimate vibration and noise emissions accurately, the times when the tool is switched off or when it is running but not actually being used should also be taken into account. This may significantly reduce vibration and noise emissions over the total working period.

Implement additional safety measures to protect the operator from the effects of vibration, such as servicing the power tool and application tools, keeping their hands warm, and organising workflows correctly.

Assembly

Items included

The industrial cordless screwdrivers are supplied without battery pack. The industrial cordless angle wrenches are supplied without an angled screw head or battery pack. When selecting suitable accessories, please contact your specialist dealer for Bosch industrial tools.

Operating and storage conditions

The power tool is suitable only for operation at enclosed work sites.

To ensure smooth operation, the permitted ambient temperature should be between -5 °C and +50 °C (23 °F and 122 °F), at a permitted relative humidity of between 20% and 95%, free of condensation.

The battery should be stored at a temperature of between 0 °C (32 °F) and 45 °C (113 °F) in order to avoid damaging the battery cells.

Fitting the angled screw head

BT-ANGLE EXACT 2|3|6|7|8|15|17|23|30

These cordless angle wrenches must be fitted with a compatible angled screw head (see "Technical data", page 20) first.

▶ Make sure that the rotational direction switch is in the middle position (lock-off function) or that the battery has been removed from the power tool before you fit, adjust or remove a screw head.

24 | English

Hold the power tool with the open-ended spanner (6) against the spanner flat (5) of the angled head flange.

▶ Never clamp the power tool to the housing shells.

Place the angled screw head (3) in the required position on the flange and tighten the cap nut with the open-ended spanner (4) against the spanner flat (16).

While doing this, place the open-ended spanner (6) against the angled head flange to hold it in place.

BT-ANGLE EXACT 23 | 30

These industrial cordless angle wrenches can only be operated with the angled screw head 0 607 451 618.

Suspension device

You can use the hanging hook (8) to attach the power tool to a suspension device.

Fit the hanging hook (8) onto the power tool and make sure it engages in the slots (14).

▶ Regularly check the condition of the hanging hook and the catch in the suspension device.

Charging process

Note: Batteries and chargers not included.

The mains plug pictured here may differ from that on your power tool.

▶ Make sure that the charger and battery are suitable for your country's mains voltage.

Charger AL 2450 DV (see figure A)

Connect the charger (21) to the power supply with the mains plug (22) and insert the battery (18) correctly into the charging slot on the charger.

▶ Do not use force to insert/remove the battery. Batteries with APT contact (Akku Pack Top, English: battery pack top) are designed such that they can only be inserted into the power tool or charger in the correct position.

The green LED indicator (23) will start to flash. This indicates that charging current is flowing. The charging process will stop automatically once the battery is fully charged. When the charging process is complete, the green LED indicator will stop flashing and will be continuously lit. An sound is emitted for approximately two seconds, indicating that the battery is fully charged.

If the red LED indicator (24) is continuously lit, this indicates that charging is being carried out with a reduced charging current. If the red LED indicator is flashing, charging is not possible.

Errors - causes and corrective measures

Cause Corrective measures
LED indicators do not light up

Mains plug of the charger is not (correctly) plugged in	Insert the mains plug (fully) into the plug socket
Plug socket, mains cable or charger defective	Check the mains voltage, have the charger checked if necessary by an authorised

Cause Corrective measures

	after-sales service centre for Bosch power tools
Charging not possible
Battery temperature outside the permitted range	Lower or raise the battery temperature until it is in the permitted temperature range of 0 °C (32 °F) to 45 °C (113 °F)
Battery contacts are dirty Clean the battery contacts; e.g. by connecting and disconnecting the battery several times. Replace battery if necessary
Battery defective Replace the battery
Battery is not inserted (cor-rectly)	Insert the battery (fully) into the battery charging slot

Connecting to the power supply

Note: Please ensure that there is no battery in the power tool when it is delivered.

▶ Never store batteries inside a battery-powered tool. Batteries will remain functional for longer and can be charged more easily if they are stored separately. Please remember to fully charge the battery prior to use after longer periods of storage.

Battery Charging

Charge the battery using a suitable charger before inserting it in the power tool. The charging process in described in detail in the charger's operating manual and the instructions of this manual (see (see "Charging process", page 24)).

The battery features NTC temperature monitoring, which only permits charging in a temperature range between 0 °C (+32 °F) and 45 °C (+113 °F). This achieves a long battery life. If used correctly, the battery can withstand up to 3000 charging cycles.

A new battery or one that has not been used for a long time will only operate at full capacity after approximately five charge and discharge cycles. Batteries should only be charged if the battery charge LED indicator on the power tool lights up red.

Inserting and Removing the Battery

Push the rotational direction switch (13) into the middle position. This locks the on/off switch (12) in the "Off" position and prevents the power tool from being switched on unintentionally.

Push a charged battery (18) into the handle of the power tool.

Make sure that you insert the battery correctly and that you can feel the release buttons (17) engage in the handle of the power tool.

Do not use force to insert/remove the battery. Batteries with APT contact (Akku Pack Top, English: battery pack top) are designed such that they can only be inserted into the power tool or charger in the correct position.

To remove the battery (18), press the release buttons (17) on both sides and pull the battery down and out of the handle.

Changing the tool - screw head with quick-change chuck (see figure B)

When fitting an application tool, make sure that it is held securely in the tool holder. If the application tool is not held securely in the tool holder, it may become loose and consequently uncontrollable.

BT-EXACT 2|4|6|7|8|9|12

The BT-EXACT series is supplied with a 1/4" quick-change chuck (QC Q/4").

BT-ANGLE EXACT 2 | 3 | 6

An angled screw head with a 1/4" quick-change chuck is available for these industrial cordless angle wrenches (article number 0 607 453 631).

BT-ANGLE EXACT 2 | 3 | 6 | 7 | 8 | 15

An angled screw head with a 1/4" quick-change chuck is available for these industrial cordless angle wrenches (article number 0 607 453 630).

Inserting the application tool

Pull the quick-change chuck (25) forwards. Insert the application tool (1) into the tool holder (2) and release the quick-change chuck again.

Only use application tools with a matching shank (1/4" hexagon).

Do not attempt to insert drill bits into this quick-change chuck.

Industrial cordless angle wrenches and industrial cordless screwdrivers with a shut-off clutch are not suitable for drilling. The clutch can shut off automatically and without warning. If you continue drilling after the clutch has shut off, the power tool may be wrenched out of your grip until the shut-off clutch engages again.

Removing the application tool

Pull the quick-change chuck (25) forwards. Take the application tool (1) out of the tool holder (2) and release the quick-change chuck again.

Changing the tool – screw head with external square

When fitting an application tool, make sure that it is held securely in the tool holder. If the application tool is not held securely in the tool holder, it may become loose and consequently uncontrollable.

BT-ANGLE EXACT 2|3|6|7|8|15

An angled screw head with a 1/4" square (article number 0 607 453 617) and an angled screw head with a 3/8" square (article number 0 607 453 620) are available for these industrial cordless angle wrenches.

BT-ANGLE EXACT 2 | 7 | 17 | 23 | 30

An angled screw head with a 3/8" square is available for these industrial cordless angle wrenches (article number 0 607 451 618).

Inserting the application tool

Press the pin on the square of the tool holder (2) inwards, e.g. using a narrow screwdriver, and slide the application tool (1) over the square. Ensure that the pin engages in the recess of the application tool.

Removing the application tool

Press the pin in the recess of the application tool (1) inwards and pull the application tool off the tool holder (2).

Changing the tool - screw head with internal hexagon (see figure C)

When fitting an application tool, make sure that it is held securely in the tool holder. If the application tool is not held securely in the tool holder, it may become loose and consequently uncontrollable.

BT-ANGLE EXACT 2|3|6|7|8|15

An angled screw head with a 1/4" internal hexagon is available for these industrial cordless angle wrenches (article number 0 607 453 618).

Inserting the application tool

Push the application tool (1) into the internal hexagon of the tool holder (2) until you hear it engage.

Removing the application tool

Pull the application tool (1) off the tool holder (2), using pliers if necessary.

Operation

Use personal protective equipment. Always wear eye protection. Protective equipment such as a dust mask, non-skid safety shoes, hard hat or hearing protection used for appropriate conditions will reduce personal injuries.

Starting Operation

Always set the rotational direction using the rotational direction switch (13) before starting the power tool:

The power tool will not start if the rotational direction switch (13) is in the centre (lock-off button).

Setting the rotational direction (see figure D)

▶ Only push the rotational direction switch (13) when the power tool is not in use.

Clockwise: To drive in screws, press the rotational direction switch (13) all the way to the left.

Anti-clockwise: To loosen or unscrew screws, press the rotational direction switch (13) all the way to the right.

Switching on the worklight

The worklight (20) illuminates the work area in poor lighting conditions. Switch on the worklight (20) by lightly pressing the on/off switch (12). If you press down harder on the on/

26 | English

off switch, the power tool will switch on and the worklight will remain illuminated.

▶ Do not look directly into the worklight; it can blind you.

Switching on/off

The screwdrivers have a torque-dependent shut-off clutch that can be set to a value in the specified range. It activates when the set torque is reached.

Note: If you are operating the screwdriver with a voltage adapter, you will need to put the constant voltage regulator into operation first.

To switch on the power tool, press the on/off switch (12) down fully.

The power tool will switch off automatically when the set torque is reached.

▶ If the on/off switch (12) is released too early, the pre-set torque will not be reached.

Practical advice

The power tool is equipped with a wireless interface. Local operating restrictions, e.g. in aeroplanes or hospitals, must be observed.
▶ Disconnect the power supply before adjusting the tool settings, changing accessories or storing the power tool. This safety measure prevents the power tool from being started accidentally.
▶ Only apply the power tool to the screw/nut when the tool is switched off. Rotating tool inserts can slip off.
Remove the battery from the power tool before carrying out work on the power tool (e.g. maintenance, changing tool, etc.). The battery should also be removed for transport and storage. There is risk of injury from unintentionally pressing the on/off switch.

Setting the torque (see figures E-G)

The torque depends on the spring preload of the shut-off clutch. The shut-off clutch is triggered upon reaching the set torque, both in clockwise and anti-clockwise rotation.

Only use the supplied adjustment tool (26) to set the individual torque.

Slide the slider (7) on the power tool back completely.

BT-ANGLE EXACT 2 | 3 | 6 | 7 | 8 | 15 | 17 | 23 | 30

Insert a hex key (27) into the application tool (26) and turn it slowly.

Once a small protrusion (setting disc (28)) in the clutch can be seen through the opening of the housing, insert the adjustment tool (26) into this protrusion and turn it.

BT-EXACT 2|4|6|7|8|9|12

Insert a hex key (27) into the tool holder (2) and slowly turn it.

Once a small protrusion (setting disc (28)) in the clutch can be seen through the opening of the housing, insert the adjustment tool (26) into this protrusion and turn it.

Turning clockwise will result in a higher torque; turning anticlockwise will result in a lower torque.

Remove the adjustment tool (26). Slide the slider (7) to the front again to protect the clutch from contamination.

Note: The required setting is dependent on the type of threaded connector and can be best determined by practical trials. Check a trial screw application with a torque spanner.

▶ If you set the torque to a value outside the specified power range, the shut-off clutch will not be triggered.

LED indicator

Battery charge indicator

If the battery (18) needs to be charged, the LED indicator (11) flashes green and a sound is emitted. You can only drive in six to eight

more screws.

If the LED indicator lights up red, there is not enough capacity left to drive in another screw or the power tool has overloaded. The power tool can no longer be switched on. The lock-off function remains active until the drained battery has been removed from the power tool and a charged battery inserted.

If you are working with a voltage adapter, the red LED (11) indicates overloading.

If the LED indicator (11) flashes red, the power tool has overheated and switched itself off. Wait a short while for the light to stop flashing before switching the power tool on again.

A significantly reduced operating time of the power tool after charging indicates that the battery must be replaced soon.

Dispose of depleted batteries in accordance with legal/coun-try-specific provisions.

Note: If you are using a voltage adapter and the 4EXACT constant voltage regulator instead of the battery (18), the LED indicator (11) has no function.

Indicator for screwdriving applications

The shut-off clutch is triggered upon reaching the preset torque. The LED indicator (9) lights up green.

If the preset torque has not been reached, the LED indicator (9) lights up red and the tool emits a sound. The screw must be driven in again.

Bluetooth ^® connection indicator

Press the on/off switch (12) to activate the Bluetooth® connection. The red LED indicator (10) will flash while the screwdriver is searching for a connection.

If the red LED indicator (10) is lit continuously, this indicates that a Bluetooth ^® connection has been made. However, the screwdriver remains locked.

If the screwdriver is released by the EXAConnecT access point, the LED indicator (10) will switch off.

If the LED indicator (10) only flashes for a short time after the on/off switch has been pressed, this indicates that the screwdriver no longer has sufficient power to make a connection.

Repeat protection

If the shut-off clutch is triggered while driving a screw, the motor will switch off. You will need to wait 0.7 seconds be-

fore you can switch the tool on again. This prevents you from accidentally retightening screws that are already firmly in place.

Adjusting the angled screw head

BT-ANGLE EXACT 2 | 3 | 6 | 7 | 8 | 15 | 17 | 23 | 30

You can adjust the angled screw head (3) to a total of eight different positions.

Hold the power tool with the open-ended spanner (6) against the spanner flat (5) of the angled head flange.

▶ Never clamp the power tool to the housing shells.

Loosen the cap nut with the open-ended spanner (4) against the spanner flat (16). Move the angled screw head (3) in 45° degree increments into the required position and tighten the cap nut again with the open-ended spanner (4) against the spanner flat (16).

While doing this, place the open-ended spanner (6) against the angled head flange to hold it in place.

Adjusting the LED worklight (see figure H)

BT-ANGLE EXACT 2 | 3 | 6 | 7 | 8 | 15 | 17 | 23 | 30

Press the marking ring (19) with a thin screwdriver blade, a spatula or similar implement. Slide the spring ring(29) back onto the housing shell using a pair of spring ring pliers.

The two shell halves of the LED holder (15) that encase the LED worklight (20) can now be brought into the required position. Taking care not to damage the cable on the LED worklight, slide the cable into the cavity provided for it (30) in the housing shell without allowing it to bend. Encase the LED worklight (20) in the two housing shells of the LED holder (15) once again.

Press the spring ring (29) and the marking ring (19) back into their original position.

Maintenance and Service

Maintenance and Cleaning

Remove the battery from the power tool before carrying out work on the power tool (e.g. maintenance, changing tool, etc.). The battery should also be removed for transport and storage. There is risk of injury from unintentionally pressing the on/off switch.

▶ To ensure safe and efficient operation, always keep the power tool and the ventilation slots clean.

Lubricating the power tool

Lubricant:

Special gearbox grease (225 ml)

Article number 3 605 430 009

Molykote grease

Motor oil SAE 10/SAE 20

- Clean the gearbox with a mild solvent after the first 150 operating hours. Follow the solvent manufacturer's instructions on use and disposal. Then lubricate the gearbox with Bosch special gearbox grease. Repeat the cleaning process once every 300 operating hours after cleaning has been carried out for the first time.

• After driving 100,000 screws, oil the moving parts of the shut-off clutch with a couple of drops of SAE 10/SAE 20 motor oil. Lubricate the sliding and rolling parts with Molykote grease. Use this occasion to check the clutch for wear to ensure that accuracy and reproducibility have not been affected. You will need to reset the clutch torque once you have done this.
  ▶ Have maintenance and repair work performed exclusively by a qualified specialist. This will ensure that the safety of the power tool is maintained.
  An authorised Bosch after-sales service point will handle this work quickly and reliably.
  ▶ Dispose of lubricants and cleaning products in an environmentally friendly manner, taking legal regulations into account.

After-Sales Service and Application Service

Our after-sales service responds to your questions concerning maintenance and repair of your product as well as spare parts. You can find explosion drawings and information on spare parts at: www.bosch-pt.com

The Bosch product use advice team will be happy to help you with any questions about our products and their accessories.

In all correspondence and spare parts orders, please always include the 10-digit article number given on the nameplate of the product.

Cambodia

Robert Bosch (Cambodia) Co., Ltd

Unit 8BC, GT Tower, 08th Floor, Street 169,

Czechoslovakia Blvd, Sangkat Veal Vong

Khan 7 Makara, Phnom Penh

VATTIN: 100 169 511

Tel.: [phone]

Tel.: [phone]

www.bosch.com.kh

People's Republic of China

China Mainland

Bosch Power Tool (China) Co. Ltd.

Bosch Service Center

567, Bin Kang Road

Bin Kang District

Hangzhou, Zhejiang Province

China 310052

Tel.: [phone] / 5588

Fax: [phone] x 5566# / 5588#

E-Mail: [e-mail]

www.bosch-pt.com.cn

HK and Macau Special Administrative Regions

Robert Bosch Co. Ltd.

21st Floor, 625 King's Road

North Point, Hong Kong

Customer Service Hotline: [phone]

Fax: [phone]

E-Mail: [e-mail]

www.bosch-pt.com.hk

28 | English

India

Bosch Service Center

69, Habibullah Road, (Next to PSBB School), T. Nagar

Chennai - 600077

Phone: [phone]

Bosch Service Center

18, Community Center

Phase 1, Mayapuri

New Delhi - 110064

Phone: [phone]

Bosch Service Center

Shop no 7&8, Aspen garden

Walbhat road, Goregaon (E)

Near to Ram Mandir Railway Station

Mumbai - 400063

Mobile: [phone]

Indonesia

PT Robert Bosch

Palma Tower 10th Floor

Jalan RA Kartini II-S Kaveling 6

Pondok Pinang, Kebayoran Lama

Robert Bosch Middle East FZE – Pakistan Liaison Office

2nd Floor Plaza # 10, CCA Block, DHA Phase 5

Lahore, 54810

Phone: [phone]

Email: [e-mail]

Philippines

Robert Bosch, Inc.

11th Floor Ten West Campus

20 LeGrand Ave., McKinley West

Fort Bonifacio, Taguig City 1634

Tel.: [phone]

www.bosch-pt.com.ph

Singapore

Powerwell Service Centre Ptd Ltd

Bosch Authorised Service Centre (Power Tools)

4012 Ang Mo Kio Ave 10, #01-02 TECHplace

Singapore 569628

Tel.: [phone]

Fax: [phone]

E-Mail: [e-mail]

www.powerwellsc.com

www.bosch-pt.com.sg

Thailand

Robert Bosch Ltd.

FYI Center Tower 1, 5th Floor,

2525 Rama IV Road, Klongtoei,

Bangkok 10110

Tel.: [phone]

Fax: [phone]

www.bosch.co.th

Bosch Service – Training Centre

La Salle Tower Ground Floor Unit No.2

10/11 La Salle Moo 16

Srinakharin Road

Bangkaew, Bang Plee

Samutprakarn 10540

Tel.: [phone]

Fax: [phone]

Vietnam

Branch of Bosch Vietnam Co., Ltd in HCMC

14th floor, Deutsches Haus, 33 Le Duan

Ben Nghe Ward, District 1, Ho Chi Minh City

Tel.: [phone]

Fax: [phone]

Hotline: [phone]

Email: [e-mail]

www.bosch-pt.com.vn

Bahrain

EA Juffali and Brothers for Technical Equipment Company.

Kingdom of Bahrain, Al Aker - Block 0624 - Road 2403 -

Building 0055D

Phone: [phone]

Fax: [phone]

Email: [e-mail]

Egypt

RBEG-LLC

22 Kamal Eldin Hussein

Sheraton Heliopolis

11799 Cairo

E-mail: [e-mail]

Iran

Robert Bosch Iran

3rd Floor, No 3, Maadiran Building

Aftab St., Khodami St., Vanak Sq.

Tehran 1994834571

Phone: [phone]

Iraq

Sahba Technology Group

Al Muthana airport road

Baghdad

Phone Bagdad: [phone]

Phone Dubai: [phone]

Email: [e-mail]

Jordan

Roots Arabia - Jordan

Al-Hurriyah Street, Al-Muqabalein

Amman 11623, Jordan

P.O. Box: 110068

Tel.: [phone]

E-mail: [e-mail]

Kuwait

Shuwaikh Industrial Area, Block 1, Plot 16, Street 3rd

P.O. Box 164 - Safat 13002

Phone: +965 - 2496 88 88

Fax: +965 - 2481 08 79

E-mail: [e-mail]

Lebanon

Tehini Hana & Co. S.A.R.L.

P.O. Box 90-449

Jdeideh 1202 2040

Dora-Beirut

Phone: [phone]

Email: [e-mail]

Libya

El Naser for Workshop Tools

Swanee Road, Alfalah Area

Tripoli

Phone: [phone]

Oman

Malatan Trading & Contracting LLC

P.O. Box 131, Ruwi, Muscat

Postal Code: 112, Sultanate of Oman

Phone: [phone]/4901

Mob: [phone]

Fax: [phone]

E-Mail: [e-mail]

Qatar

International Construction Solutions W L L

P. O. Box 51, Doha

Phone: [phone]

Fax: [phone]

Email: [e-mail]

Saudi Arabia

Juffali Technical Equipment Co. (JTECO)

P.O.Box: 1049 - Jeddah 21431 - KSA

Jeddah: 00966 (0) 12 692 0770 - Ext 433

Riyadh: 00966 (0) 11 409 3976 - Ext-30/34/39

Dammam: 00966 (0) 13 833 9565

E-mail: [e-mail]

Syria

Dallal Establishment for Power Tools

Damascus. Baramkeh street - Ibn Amer street,

Phone: [phone] or 009631122414009

Mobile: [phone]

Email: [e-mail]

United Arab Emirates

Central Motors & Equipment,

P.O. Box 26255, Dubai

Dubai: 00971 (0) 4 3090920/3090930

Abu Dhabi: 00971 (0) 2 4017745

Sharjah: 00971 (0) 6 5932777

Al Ain: 00971 (0) 3 7157419

E-Mail: [e-mail]

Yemen

Abu Alrejal Trading Corporation

P.O. Box: 17024, Zubeiry St.

Sana'a, Yemen

Tel: [phone]

Fax: [phone]

E-mail: [e-mail]/[e-mail]

Ethiopia

Forever plc

Kebele 2,754, BP 4806,

Addis Ababa

Phone: [phone]

Email: [e-mail]

Ghana

Robert Bosch Ghana Limited

21 Kofi Annan Road Airport Residential Area Accra

Tel. [phone]

Kenya

Robert Bosch East Africa Ltd

Mpaka Road P.O. Box 856

00606 Nairobi

Nigeria

Robert Bosch Nigeria Ltd.

52-54 Isaac John Street P.O. Box

GRA Ikeja - Lagos

Tanzania

Diesel & Autoelectric Service Ltd.

117 Nyerere Rd., P.O. Box 70839

Vingunguti 12109, Dar Es Salaam

Phone: [phone]

Australia, New Zealand and Pacific Islands

Robert Bosch Australia Pty. Ltd.

Power Tools

Locked Bag 66

Clayton South VIC 3169

Customer Contact Center

Inside Australia:

Phone: [phone]

Fax: [phone]

Inside New Zealand:

Phone: [phone]

Fax: [phone]

Outside AU and NZ:

Phone: [phone]

www.bosch-pt.com.au

www.bosch-pt.co.nz

Myanmar

Asia Era Company Limited

No.(40/44), Parami Road, 4th Quarter, South Okkalapa Tsp,

Yangon, Myanmar

Great Britain

Robert Bosch Ltd. (B.S.C.)

P.O. Box 98

Broadwater Park

North Orbital Road

30 | Français

Denham Uxbridge

UB 9 5HJ

At www.bosch-pt.co.uk you can order spare parts or arrange

the collection of a product in need of servicing or repair.

Tel. Service: [phone]

E-Mail: [e-mail]

Ireland

Origo Ltd.

Unit 23 Magna Drive

Magna Business Park

City West

Dublin 24

Tel. Service: [phone]

Fax: [phone]

Republic of South Africa

Customer service

Hotline: [phone]

Gauteng - BSC Service Centre

35 Roper Street, New Centre

Johannesburg

Tel.: [phone]

Fax: [phone]

E-Mail: [e-mail]

KZN - BSC Service Centre

Unit E, Almar Centre

143 Crompton Street

Pinetown

Tel.: [phone]

Fax: [phone]

E-Mail: [e-mail]

Western Cape - BSC Service Centre

Democracy Way, Prosperity Park

Milnerton

Tel.: [phone]

Fax: [phone]

E-Mail: [e-mail]

Bosch Headquarters

Midrand, Gauteng

Tel.: [phone]

Fax: [phone]

E-Mail: [e-mail]

Armenia, Azerbaijan, Georgia

Robert Bosch Ltd.

David Agmashenebeli ave. 61

0102 Tbilisi, Georgia

Tel.[phone]

www.bosch.com

Kyrgyzstan, Mongolia, Tajikistan, Turkmenistan, Uzbekistan

TOO "Robert Bosch" Power Tools, After Sales Service

Muratbaev Ave., 180

050012, Almaty, Kazakhstan

Service Email: [e-mail]

Official Website: www.bosch.com, www.bosch-pt.com

Disposal

The machine, rechargeable batteries, accessories and packaging should be sorted for environmental-friendly recycling.

Do not dispose of power tools and batteries/rechargeable batteries into household waste!

Only for EU countries:

According to the Directive 2012/19/EU, power tools that are no longer usable, and according to the Directive 2006/66/EC, defective or used battery packs/batteries, must be collected separately and disposed of in an environmentally correct manner.

Battery packs/batteries:

Ni-MH: Nickel metal hydride

Français

Robert Bosch Morocco SARL

53, Rue Lieutenant Mahroud Mohamed

20300 Casablanca

Tel.: [phone]

E-Mail : [e-mail]

42 | Español

Tunisie

Robert Bosch Tunisie SARL

Robert Bosch (France) S.A.S.

Robert Bosch Argentina Industrial S.A.

Calle Blanco Encalada 250 - San Isidro

B1642AMQ

Calle Robert Bosch No. 405

NOM PRODUCED CERTIFIED ANCE CERTIFIED PRODUCT

Bosch Service Center

Telegrafvej 3

2750 Ballerup

På www.bosch-pt.dk kan der online bestilles reservedele eller oprettes en reparations ordre.

Tlf. Service Center: 44898855

Fax: [phone]

E-Mail: [e-mail]

Bortskaffelse

Bosch Service Center

Telegrafvej 3

2750 Ballerup

Danmark

Tel.: [phone] (inom Sverige)

Fax: [phone]

Avfallshantering

Robert Bosch Sp. z o.o.

Bosch Service Center PT

K Vápence 1621/16

692 01 Mikulov

Service scule electrice

Strada Horia Măcelariu Nr. 30-34, sector 1

013937 Bucureşti

Service scule electrice

Strada Horia Măcelariu Nr. 30-34, sector 1

013937 Bucureşti, România

www.bosch-pt.com/bg/bg/

Бракуване

Palma Tower 10th Floor

Jalan RA Kartini II-S Kaveling 6

Pondok Pinang, Kebayoran Lama

ال Ratings Impact: What is the correct.

.EXAConnectAlwided Alasasiya

11(Charla Shmin Marketing)

[phone]: م forecasts

Robert Bosch Morocco SARL

53.شارع الملازم محمد محرود

20300 الدار البضاء

Sahba Technology Group

شارع مطار المثنى

بقداد

Illustration of a Bosch electric shock absorber with cooling fins and indicator lights (no text or symbols on body)

AL 2450 DV

2 607 225 027 (EU)

2 607 225 029 (UK)

9,6 V

Ni-MH: 2,6 Ah 0 602 490 025

12V

Ni-MH: 2,6 Ah 0 602 490 026

14,4 V

Ni-MH: 2,6 Ah 0 602 490 027

CE

1

de	EU-Konformitätserklärung		Wir erklären in alleiniger Verantwortung, dass die genannten Produkte allen einschlägigen Bestimmungen der nachfolgend aufgeführten Richtlinien und Verordnungen entsprechen und mit folgenden Normen übereinstimmen. Technische Unterlagen bei:*
	Industrie-Ak-kuschrauber BT-EXACT	Sachnummer
	Industrie-Akku-Winkelschrauber BT-ANGLEEXACT
en	EU Declaration of Conformity		We declare under our sole responsibility that the stated products comply with all applicable provisions of the directives and regulations listed below and are in conformity with the following standards.Technical file at:*
	BT-EXACT industriial cordless screwdriver	Article number
	BT-ANGLE EXACT industrial cord-less angle wrench
fr	Déclaration de conformité UE		Nous déclarons sous notre propre responsabilité que les produits décrits sont en conformité avec les directives, règlements normatifs et normes énumérés ci-dessous.Dossier technique auprès de:*
	Visseuse industrielle sans fil BT-EXACT	N° d'article
	Visseuse d'angle industrielle sans fil BT-ANGLE-EXACT
es	Declaración de conformidad UE		Declaramos bajo nuestra exclusiva responsabilidad, que los productos nom-brados cumplen con todas las disposiciones correspondientes de las Directi-vas y los Reglamentos mencionados a continuación y están en conformidad con las siguientes normas.Documentos técnicos de:*
	Atornilladora industrial acciona-da por acumula-dor BT-EXACT	N° de artículo
	Atornilladora an-gular industrial accionada por acumulador BT-ANGLEEXACT
pt	Declaração de Conformidade UE		Declaramos sob nossa exclusiva responsabilidade que os produtos mencio-nados cumprem todas as disposições e os regulamentos indicados e estão em conformidade com as seguintes normas.Documentação técnica pertencente à:*
	Aparafusadora in-dustrial BT-EX-ACT	N.° do produto
	Aparafusadora angular sem fio industrial BT-ANGLEEXACT
it	Dichiarazione di conformità UE		Dichiariamo sotto la nostra piena responsabilità che i prodotti indicati sono conformi a tutte le disposizioni pertinenti delle Direttive e dei Regolamenti elencati di seguito, nonché alle seguenti Normative.Documentazione Tecnica presso:*
	Avvitatore industriale a batteria BT-EXACT	Codice prodotto
	Avvitatore industriale angolare a batteria BT-ANGLEEXACT
nl	EU-conformiteitsverklaring		Wij verklaren op eigen verantwoordelijkheid dat de genoemde producten voldoen aan alle desbetreffende bepalingen van de hierna genoemde richtlij-

||

CE

	Industriële accuschroeven-draaier BT-EXACT	Productnummer nen en verordeningen en overeenstemmen met de volgende normen.Technisch dossier bij:*
	Industriële haak-se accuschroe-vendraaier BT-ANGLEEXACT
da	EU-overensstemmelseserklæring
	Industriel akku-skruemaskine BT-EXACT	Typenummer
	Industriel akku-vinkelskruemas-kine BT-ANGLE-EXACT	Tekniske bilag ved:*
sv	EU-konformitetsförklaring
	Industriskruvdra-gare BT-EXACT	Produktnummer
	Sladdlös industri-vinkelskruvdra-gare BT-ANGLE-EXACT	Sladdlös industri-vinkelskruvdra-gare BT-ANGLE-EXACT
no	EU-samsvarserklæring
	Batteridrevet skrumaskin forindustribruk BT-EXACT	Produktnummer
	Batteridrevet vinkelskrumaskinfor industribrukBT-ANGLEEXACT	Teknisik dokumentasjon hos:*
fi	EU-vaatimustenmukaisuusvakuutus
	Teollisuusakkuru- tuotenumero uvinväännin BT-EXACT	Tuotenumero
	Teollisuusakku-kulmaruuvinvään-nin BT-ANGLE-EXACT	Teknisik dokumentasjon hos:*
el	Δήλωση πιστότητας EE
	Βιομηχανικό Αριθμός ευρετηρίου κατσαβίδι μπαταρίας BT-EX-ACT	Αριθμός ευρετηρίου σε όλες τις σχετικές διατάξεις των πιο κάτω αναφερόμενων οδηγιών και κανονισμών και ταυτίζονται με τα ακόλουθα πρότυπα.Τεχνικά έγγραφα στη:*
	Βιομηχανικό γωνιακό κατσαβίδι μπαταρίας BT-ANGLEEXACT
tr	AB Uygunluk beyanı

CE

III
