| Product Type | Cordless angle drill/driver (screwdriver) |
| Model | GPB 12V-10 Professional (also known as GWI 12 V-LI) |
| Brand | Bosch |
| Rated Voltage | 12 V |
| No-load Speed | 0 - 585 min⁻¹ |
| Max Torque (hard/soft screwdriving) | 13 Nm / 5 Nm (according to ISO 5393) |
| Torque Adjustment Range | 2.6 - 5.2 Nm (8 steps + drill mode) |
| Max Screw Diameter | 5 mm |
| Max Drilling Diameter (steel) | 8 mm |
| Max Drilling Diameter (wood) | 10 mm |
| Weight (according to EPTA 01:2014) | 1.1 kg |
| Battery Type | Lithium-ion, recommended GBA 12V...O-.. series |
| Recommended Charger | GAL 12.. CV |
| Operating Temperature (operation & storage) | -20 °C to +50 °C |
| Charging Temperature | 0 °C to +45 °C |
| Tool Holder | Hexagon shank (locking sleeve type) |
| Features | Rotational direction switch, variable speed trigger, torque presetting, angle-adjustable drill head (5 positions), auto-lock spindle, utility clip, Electronic Cell Protection (ECP), overload protection |
| Intended Use | Driving/loosening screws and drilling in wood, metal, ceramic, plastic, especially in tight spaces |
| Included Accessories | Screwdriver bit (not standard, see accessories program) |
| Maintenance | Keep machine and ventilation slots clean; remove battery before cleaning; service only by qualified personnel using identical replacement parts |
| Safety Features | Insulated gripping surface, safety clutch (except in drill mode and left rotation), automatic shut-off on overload/temperature |
Frequently Asked Questions - GPB 12V-10 Professional BOSCH
User questions about GPB 12V-10 Professional BOSCH
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Screwdriver in PDF format for free! Find your manual GPB 12V-10 Professional - BOSCH and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. GPB 12V-10 Professional by BOSCH.
USER MANUAL GPB 12V-10 Professional BOSCH
OBJ_BUCH-2619-002.book Page 1 Wednesday, June 15, 2016 10:24 AM
70538 Stuttgart
GERMANY
www.bosch-pt.com
1 609 92A 36T (2015.10) O/37 ASIA
GWI 12 V-LI Professional
BOSCH
en Original instructions
cn 正本使用说明书
tw原始使用能明書
ko시응 설명서 원본
th ทั้งหลักมิถการใช้งานอยู่บดันแนบ
id Petunjuk-Petunjuk untuk Penggunaan Orisinal
vi Bàn gǒc huáng dǎn sǔ dụng
OBJ_BUCH-2619-002.book Page 2 Wednesday, June 15, 2016 10:19 AM
2
English.... Page 6
中文 页 11
中文 页 15
한국어 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
ภาษาไทย.... ทัน 23
∅ 2 mm 2 608 595 511
∅ 3 mm 2 608 595 512
∅ 4 mm 2 608 595 513
∅ 5 mm 2 608 595 514
∅6mm 2608595515
∅ 8 mm 2 608 595 516
∅ 2,3,4,5,6 mm 2 608 595 517
∅ 2 mm 2 608 595 518
∅ 3 mm 2 608 595 519
∅ 4 mm 2 608 595 520
∅ 5 mm 2 608 595 521
∅ 6 mm 2 608 595 522
∅ 8 mm 2 608 595 523
∅ 10 mm 2 608 595 524
∅ 2,3,4,5,6 mm 2 608 595 525
6 | English
English
Safety Notes
General Power Tool Safety Warnings
WARNING Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.
Save all warnings and instructions for future reference.
The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.
Work area safety
- Keep work area clean and well lit. Cluttered or dark areas invite accidents.
▶ Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
▶ Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.
Electrical safety
▶ Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
▶ Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
▶ Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
▶ Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges and moving parts. Damaged or entangled cords increase the risk of electric shock.
- When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
▶ If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.
Personal safety
▶ Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.
▶ Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.
▶ Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool.
Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.
Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
▶ Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
▶ Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
▶ If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.
Power tool use and care
Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
▶ Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
▶ Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.
▶ Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
- Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use.
Many accidents are caused by poorly maintained power tools.
▶ Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
▶ Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.
Battery tool use and care
▶ Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.
English | 7
▶ Use power tools only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire.
When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.
▶ Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.
Service
▶ Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.
Safety Warnings for Drills and Screwdrivers
Hold power tool by insulated gripping surfaces when performing an operation where the cutting accessory or fastener may contact hidden wiring. Cutting accessory and fasteners contacting a "live" wire may make exposed metal parts of the power tool "live" and could give the operator an electric shock.
▶ Use auxiliary handle(s), if supplied with the tool. Loss of control can cause personal injury.
▶ Use appropriate detectors to determine if utility lines are hidden in the work area or call the local utility company for assistance. Contact with electric lines can lead to fire and electric shock. Damaging a gas line can lead to explosion. Penetrating a water line causes property damage.
▶ Switch off the power tool immediately when the tool insert jams. Be prepared for high reaction torque that can cause kickback. The tool insert jams when:
— the power tool is subject to overload or
— it becomes wedged in the workpiece.
▶ Hold the machine with a firm grip. High reaction torque can briefly occur while driving in and loosening screws.
▶ Secure the workpiece. A workpiece clamped with clamping devices or in a vice is held more secure than by hand.
▶ Always wait until the machine has come to a complete stop before placing it down. The tool insert can jam and lead to loss of control over the power tool.
▶ Do not open the battery. Danger of short-circuiting.
Protect the battery against heat, e. g., against continuous intense sunlight, fire, water, and moisture. Danger of explosion.
In case of damage and improper use of the battery, vapours may be emitted. Ventilate the area and seek medical help in case of complaints. The vapours can irritate the respiratory system.
▶ Use the battery only in conjunction with your Bosch product. This measure alone protects the battery against dangerous overload.
The battery pack can be damaged by pointed objects such as nails or screwdrivers or by force applied externally. An internal short circuit can occur and the battery pack can burn, smoke, explode or overheat.
Product Description and Specifications
Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.
Intended Use
The machine is intended for driving in and loosening screws as well as for drilling in wood, metal, ceramic and plastic, especially at hard to reach locations.

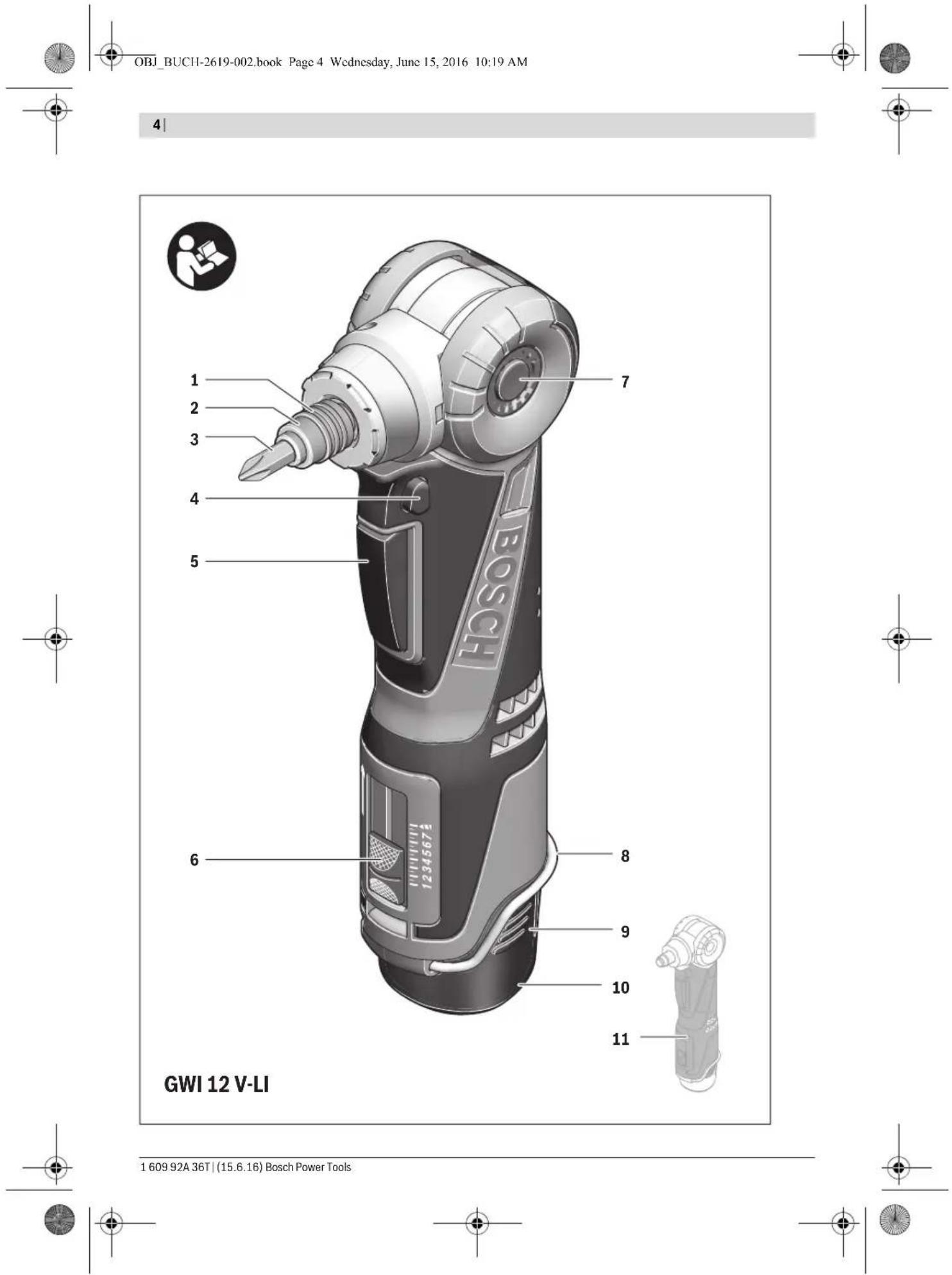

Product Features
The numbering of the product features refers to the illustration of the machine on the graphics page.
1 Locking sleeve
2 Tool holder
3 Screwdriver bit*
4 Rotational direction switch
5 On/Off switch
6 Torque selector switch
8 Utility clip
9 Battery unlocking button
7 Release button for angle selection of drill head
10 Battery pack
11 Handle (insulated gripping surface)
12 Drill bit with hexagon shank*
*Accessories shown or described are not part of the standard delivery scope of the product. A complete overview of accessories can be found in our accessories program.
Technical Data
| Cordless angle drill/driver GWI 12 V-LI | ||
| Article number | 3 601 C60 U.. | |
| Rated voltage | V= 12 | |
| No-load speed | min ^-1 | 0 - 5 8 5 |
| Max. torque for hard/soft screw-driving application according to ISO 5393 | Nm 13/5 | |
| Torque adjustment range | Nm 2.6 - 5.2 | |
| Max. screw dia. | mm | 5 |
| Max. drilling dia. | ||
| - Steel | mm | 8 |
| - Wood | mm | 10 |
| * Limited performance at temperatures <0 °C | ||
| Technical data determined with battery from delivery scope. | ||
8 | English
Cordless angle drill/driver GWI 12 V-LI
| Weight according to EPTA-Procedure 01:2014 | kg 1.1 | |
| Permitted ambient temperature– during charging– during operation* and during storage | °C | 0...+45 |
| °C | -20...+50 | |
| Recommended batteries GBA 12V...O-.. | |
| Recommended chargers | GAL 12.. CV |
* Limited performance at temperatures <0 °C
Technical data determined with battery from delivery scope.
Assembly

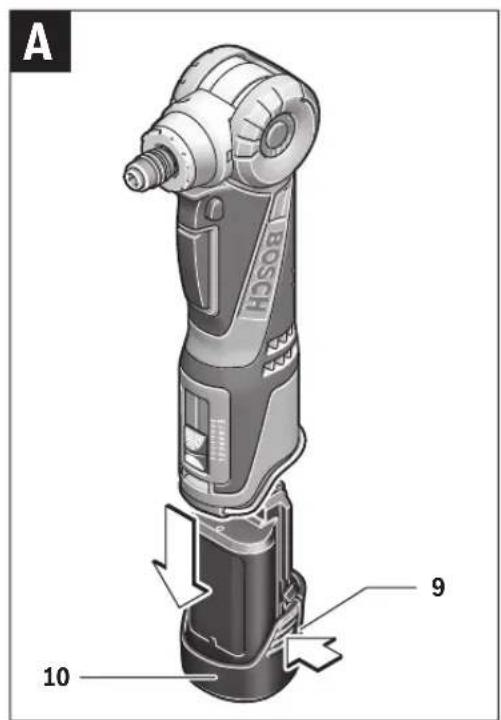

Battery Charging (see figure A)
▶ Use only the battery chargers listed on the accessories page. Only these battery chargers are matched to the lithium-ion battery of your power tool.
Note: The battery supplied is partially charged. To ensure full capacity of the battery, completely charge the battery in the battery charger before using your power tool for the first time.
The lithium-ion battery can be charged at any time without reducing its service life. Interrupting the charging procedure does not damage the battery.
The lithium-ion battery is protected against deep discharging by the "Electronic Cell Protection (ECP)". When the battery is empty, the machine is switched off by means of a protective circuit: The inserted tool no longer rotates.
▶ Do not continue to press the On/Off switch after the machine has been automatically switched off. The battery can be damaged.
To remove the battery 10 press the unlocking buttons 9 and pull out the battery downwards. Do not exert any force.
Observe the notes for disposal.

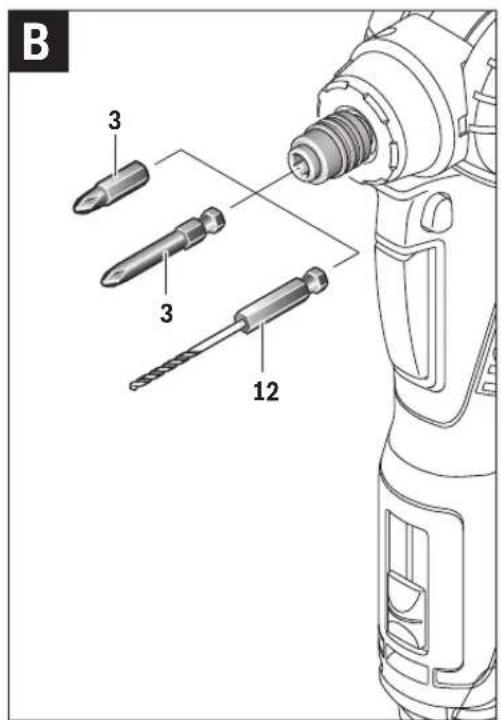

Changing the Tool (see figure B)
▶ Before any work on the power tool, remove the battery.
Inserting
Pull the locking sleeve 1 toward the front and then push the insert tool to the stop into the tool holder 2. The insert tool is automatically locked.
Removing
Pull the locking sleeve 1 forward and remove the insert tool.
Dust/Chip Extraction
▶ Dust from materials such as lead-containing coatings, some wood types, minerals and metal can be harmful to one's health. Touching or breathing-in the dust can cause allergic reactions and/or lead to respiratory infections of the user or bystanders.
Certain dust, such as oak or beech dust, is considered carcinogenic, especially in connection with wood-treatment additives (chromate, wood preservative). Materials containing asbestos may only be worked by specialists.
- Provide for good ventilation of the working place.
- It is recommended to wear a P2 filter-class respirator. Observe the relevant regulations in your country for the materials to be worked.
▶ Prevent dust accumulation at the workplace. Dust can easily ignite.
Operation
Starting Operation
Inserting the battery
▶ Use only original Bosch lithium-ion batteries with the voltage listed on the nameplate of your power tool. Using other batteries can lead to injuries and pose a fire hazard.
Note: Use of batteries not suitable for the machine can lead to malfunctions of or cause damage to the power tool.

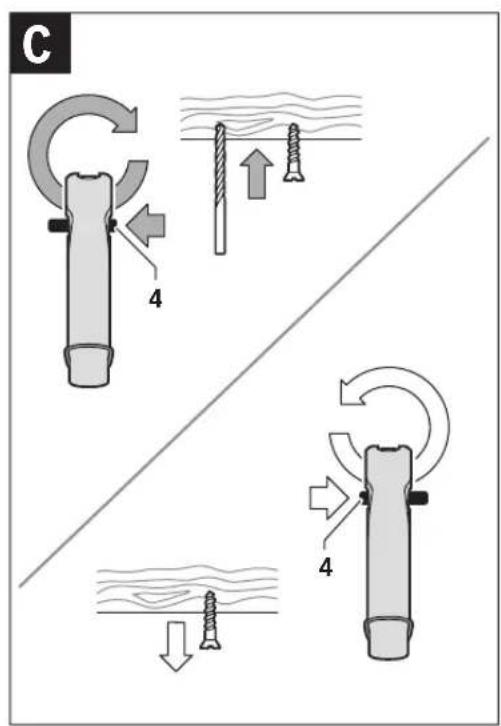

Reversing the rotational direction (see figure C)
The rotational direction switch 4 is used to reverse the rotational direction of the machine. However, this is not possible with the On/Off switch 5 actuated.
Right Rotation: For drilling and driving in screws, push the rotational direction switch 4 left to the stop.
Left Rotation: For loosening or unscrewing screws, push the rotational direction switch 4 right to the stop.
Setting the torque
With the torque selector switch 6, you can preselect the required torque in 8 steps. When the torque setting is adjusted correctly, the insert tool is stopped as soon as the screw is driven flush into the material or when the set torque is reached. In the “*” position, the safety clutch is deactivated; e.g., for drilling.
In left rotation the safety clutch is deactivated.
Switching On and Off
To start the machine, press the On/Off switch 5 and keep it pressed.
To switch off the machine, release the On/Off switch 5.
To save energy, only switch the power tool on when using it.
Adjusting the Speed
The speed of the switched-on power tool can be variably adjusted, depending on how far the On/Off switch 5 is pressed. Light pressure on the On/Off switch 5 results in a low rotational speed. Further pressure on the switch results in an increase in speed.
Fully automatic spindle locking (Auto-lock)
When the On/Off switch 5 is not pressed, the drill spindle and thus the tool holder are locked.
This enables screws to be screwed in, even when the battery is empty and allows for the machine to be used as a screwdriver.
Temperature Dependent Overload Protection
When using as intended for, the power tool cannot be subject to overload. When the load is too high or the allowable battery
English | 9
temperature is exceeded, the electronic control switches off the power tool until the temperature is in the optimum temperature range again.
Protection Against Deep Discharging
The lithium-ion battery is protected against deep discharging by the "Electronic Cell Protection (ECP)". When the battery is empty, the machine is switched off by means of a protective circuit: The inserted tool no longer rotates.

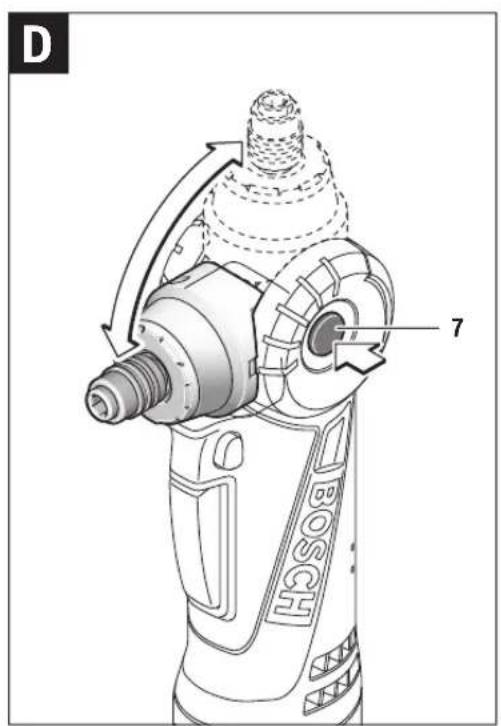

Angle Selection of Drill Head (see figure D)
The drill head can be locked in 5 different angle positions. Push the release button 7 and swivel the tool head to the required position. Then, let go of the release button 7 again.
▶ Before starting operation, check if the drill head is locked in the respective angle position. Danger of injury.
Working Advice
▶ Apply the power tool to the screw only when it is switched off. Rotating tool inserts can slip off.
Utility Clip
The swivelling utility clip 8 can be used to hang the power tool onto a hook. In this manner, both hands are free and the power tool is ready to hand.
Maintenance and Service
Maintenance and Cleaning
▶ Before any work on the power tool, remove the battery.
▶ For safe and proper working, always keep the machine and ventilation slots clean.
When the battery is no longer operative, please refer to an authorised after-sales service agent for Bosch power tools.
After-sales Service and Application Service
Our after-sales service responds to your questions concerning maintenance and repair of your product as well as spare parts. Exploded views and information on spare parts can also be found under:
www.bosch-pt.com
Bosch's application service team will gladly answer questions concerning our products and their accessories.
In all correspondence and spare parts orders, please always include the 10-digit article number given on the nameplate of the product.
People's Republic of China
China Mainland
Bosch Power Tools (China) Co., Ltd.
567, Bin Kang Road
Bin Jiang District 310052
Hangzhou, P.R.China
Service Hotline: 4008268484
Fax: (0571) 87774502
E-Mail: contact.ptcn@cn.bosch.com
www.bosch-pt.com.cn
HK and Macau Special Administrative Regions
Robert Bosch Hong Kong Co. Ltd.
21st Floor, 625 King's Road
North Point, Hong Kong
Customer Service Hotline: +852 2101 0235
Fax: +852 2590 9762
E-Mail: info@hk.bosch.com
www.bosch-pt.com.hk
Indonesia
PT Robert Bosch
Palma Tower 10 ^th Floor
JI. RA Kartini II-S Kaveling 6 Sek II
Pondok Pinang, Kebayoran Lama
28th Floor Fort Legend Towers,
3rd Avenue corner 31st Street,
Fort Bonifacio Global City,
1634 Taguig City, Philippines
Tel.: (02) 8703871
Fax: (02) 8703870
matheus.contiero@ph.bosch.com
www.bosch-pt.com.ph
Bosch Service Center:
9725-27 Kamagong Street
San Antonio Village
Makati City, Philippines
Tel.: (02) 8999091
Fax: (02) 8976432
E-Mail:rosalie.dagdagan@ph.bosch.com
Malaysia
Robert Bosch Sdn. Bhd.
No. 8A, Jalan 13/6
G.P.O. Box 10818
46200 Petaling Jaya
Selangor, Malaysia
Tel.: (03) 79663194
Fax: (03) 79583838
E-Mail: cheehoe.on@my.bosch.com
Toll-Free: 1800 880188
www.bosch-pt.com.my
Thailand
Robert Bosch Ltd.
Liberty Square Building
No. 287, 11 Floor
Silom Road, Bangrak
Bangkok 10500
Tel.:026393111
Fax: 02 2384783
Robert Bosch Ltd., P. O. Box 2054
Bangkok 10501, Thailand
www.bosch.co.th
10 | English
Bosch Service – Training Centre
La Salle Tower Ground Floor Unit No.2
10/11 La Salle Moo 16
Srinakharin Road
Bangkaew, Bang Plee
Samutprakarn 10540
Thailand
Tel.:027587555
Fax: 02 7587525
Singapore
Powerwell Service Centre Ptd Ltd
65 Ubi Crescent, #06-03 Hola Centre
Singapore 408559
Tel.: 6746 9770/71
Fax: 6746 9760
E-Mail: powerwellsc@gmail.com
Toll-Free: 1800 3338333
www.bosch-pt.com.sg
Vietnam
Robert Bosch Vietnam Co. Ltd
13th Floor, 194 Golden Building
473 Dien Bien Phu Street
Ward 25, Binh Thanh District
84 Ho Chi Minh City
Vietnam
Tel.: (08) 6258 3690
Fax: (08) 6258 3692
Hotline: (08) 6250 8555
E-Mail: tuvankhachhang-pt@vn.bosch.com
www.bosch-pt.com.vn
www.baohanhbosch-pt.com.vn
Australia, New Zealand and Pacific Islands
Robert Bosch Australia Pty. Ltd.
Power Tools
Locked Bag 66
Clayton South VIC 3169
Customer Contact Center
Inside Australia:
Phone: (01300) 307044
Fax: (01300) 307045
Inside New Zealand:
Phone: (0800) 543353
Fax: (0800) 428570
Outside AU and NZ:
Phone: +61 3 95415555
www.bosch-pt.com.au
www.bosch-pt.co.nz
Egypt
Unimar
20 Markaz kadmat
El tagmoa EL Aoul - New Cairo
Tel: +2 02 224 76091 - 95 / +2 02 224 78072 - 73
Fax:+2 02 224 78075
E-Mail: adelzaki@unimaregypt.com
Ethiopia
Forever plc
Kebele 2,754, BP 4806,
Addis Ababa, Ethiopia
Tel: +251 111 560 600, +251 111 560 600
E-Mail: foreverplc@ethionet.et
Nigeria
C. Woermann Ltd.
P.O. Box 318
6, Badejo Kalesanwo Street
Matori Industrial Estate
Lagos, Nigeria
Tel: +234 17 736 498, +234 17 730 904
E-Mail: d.kornemann@woermann-nigeria.com
Republic of South Africa
Customer service
Hotline: (011) 6519600
Gauteng - BSC Service Centre
35 Roper Street, New Centre
Johannesburg
Tel.: (011) 4939375
Fax: (011) 4930126
E-Mail: bsctools@icon.co.za
KZN - BSC Service Centre
Unit E, Almar Centre
143 Crompton Street
Pinetown
Tel.: (031) 7012120
Fax: (031) 7012446
E-Mail: bsc.dur@za.bosch.com
Western Cape – BSC Service Centre
Democracy Way, Prosperity Park
Milnerton
Tel.: (021) 5512577
Fax:(021)5513223
E-Mail: bsc@zsd.co.za
Bosch Headquarters
Midrand, Gauteng
Tel.: (011) 6519600
Fax: (011) 6519880
E-Mail: rbsa-hq.pts@za.bosch.com
Transport
The contained lithium-ion batteries are subject to the Dangerous Goods Legislation requirements. The user can transport the batteries by road without further requirements.
When being transported by third parties (e. g.: air transport or forwarding agency), special requirements on packaging and labelling must be observed. For preparation of the item being shipped, consulting an expert for hazardous material is required.
Dispatch batteries only when the housing is undamaged.
Tape or mask off open contacts and pack up the battery in such a manner that it cannot move around in the packaging. Please also observe possibly more detailed national regulations.
中文|11
Disposal
The machine, rechargeable batteries, accessories and packaging should be sorted for environmental-friendly recycling.
Do not dispose of power tools and batteries/rechargeable batteries into household waste!
Batteries no longer suitable for use can be directly returned at:
Great Britain
Robert Bosch Ltd. (B.S.C.)
P.O. Box 98
Broadwater Park
North Orbital Road
Denham
Uxbridge
UB 9 5HJ
At www.bosch-pt.co.uk you can order spare parts or arrange the collection of a product in need of servicing or repair.
Tel. Service: (0344) 7360109
E-Mail: boschservicecentre@bosch.com
Battery packs/batteries:
Li-ion:
Please observe the instructions in section "Transport", page 10.
Subject to change without notice.
中文
安全规章
电动工具通用安全警告
Mechanics and Electronics Ltd. PT/SAX-ASA
298 Bojeong-dong Giheung-gu Yongin-si, Gyeonggi-do, 446-913
Republic of Korea 080-955-0909
운반
Tâng 10,194 Golden Building
473 Điện Biên Phú
