USER MANUAL Eyeview Duramaxx

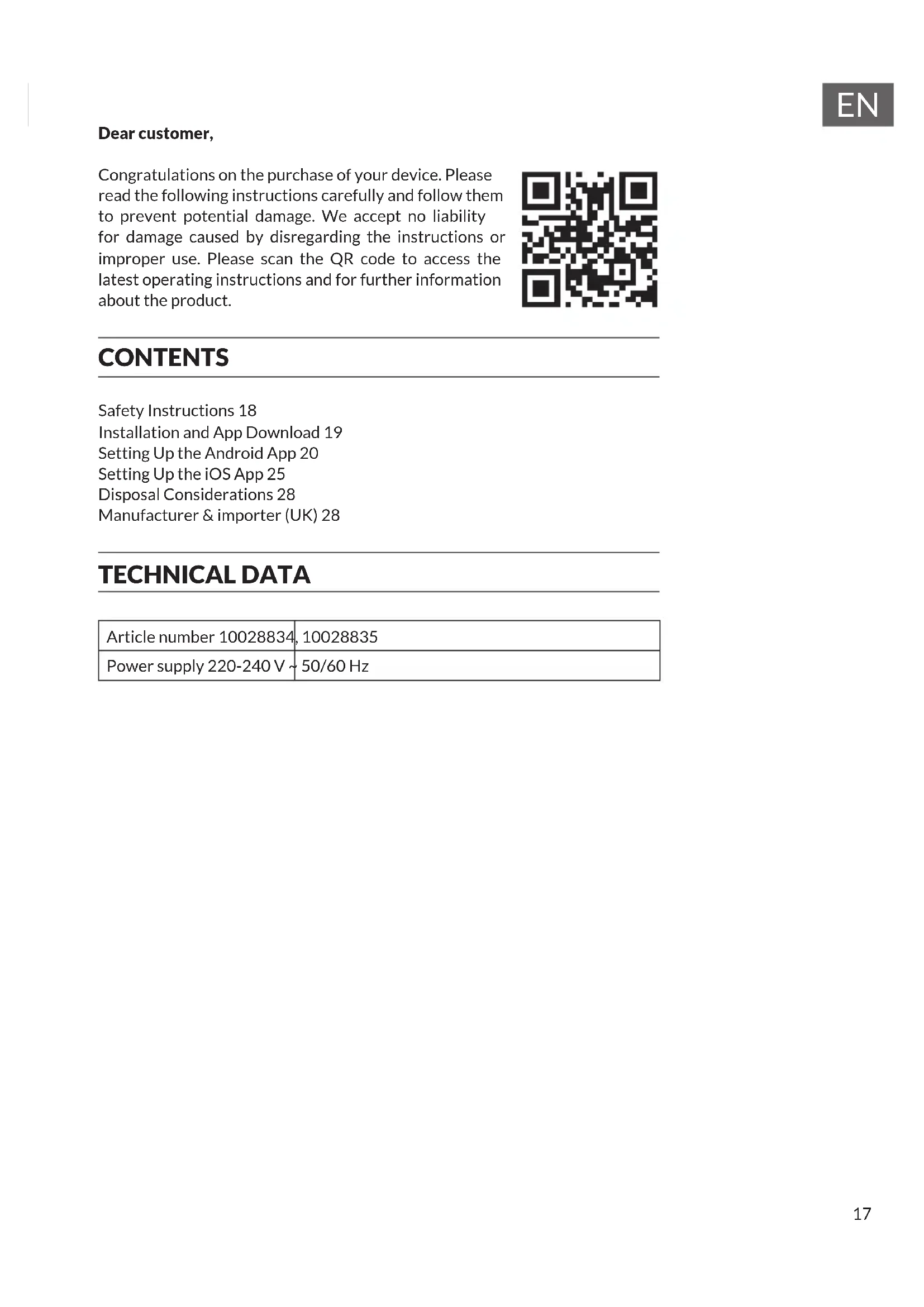

Dear customer, Congratulations on the purchase of your device. Please read the following instructions carefully and follow them to prevent potential damage. We accept no liability for damage caused by disregarding the instructions or improper use. Please scan the QR code to access the latest operating instructions and for further information about the product. CONTENTS Safety Instructions 18 Installation and App Download 19 Setting Up the Android App 20 Setting Up the iOS App 25 Disposal Considerations 28 Manufacturer & importer (UK) 28 TECHNICAL DATA Article number 10028834, 10028835 Power supply 220-240 V ~ 50/60 Hz18

• Do not remove any covers. This device contains parts that are not accessible to the user. Repairs may only be carried out by qualied specialists.

• Do not drop metal objects on this device.

• Only use accessories and add-on parts that have been approved by the manufacturer.

• Have repairs carried out by qualied specialists only. Repair is required if the device has been damaged in any way, i.e. if objects have fallen on it, if it is not working properly or if it has been dropped. Do not try to repair the device yourself. In the case of damage caused by unqualied maintenance or repairs, the manufacturer is not liable and the warranty will be void.

• Make sure that no children play with the unit.

• Plug the power plug completely into the wall socket.

• Do not pull, bend or place heavy objects on the cord.

• Do not touch the plug with wet hands. Grasp the plug by its body when pulling it out.

• Do not use a damaged mains plug or socket.

• Install this unit so that the mains cable can be unplugged from the socket immediately if faults occur.

• Do not place sources of naked ames, e.g. burning candles, on the device.

• Keep the device away from water and moisture.

• The mains adapter can be operated from a standard 220-240 V socket. Transporting the Unit Please keep the original packaging. To achieve sufcient protection when transporting the unit, pack the unit in the original packaging. Cleaning the Outer Surface Do not use volatile liquids such as bug sprays. Excessive pressure when wiping the surface can cause damage. Rubber or plastic parts should not be in contact with the appliance for a long period of time.19

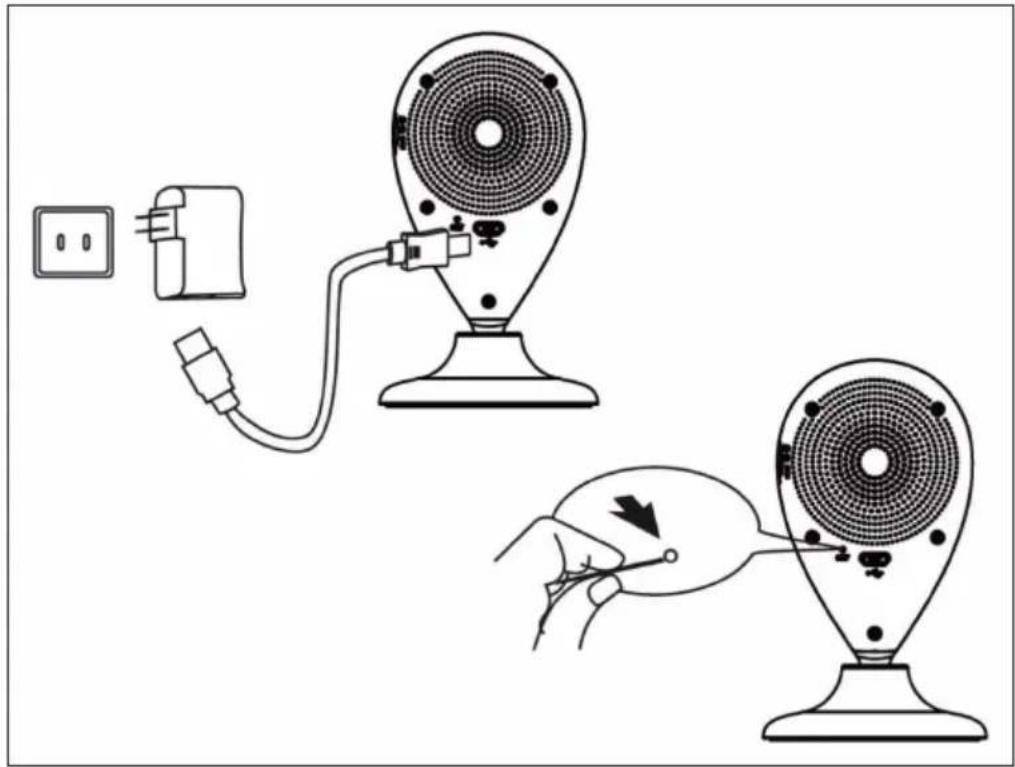

Connect the device to an adequate power source using the supplied USB cable: Use a computer USB port or a 5 V USB power adapter available at electronics retailers. It takes about a minute for the blue LED to start ashing. Then the camera is ready and you can proceed with the IP connection. If the camera does not start up, press and hold the reset button on the back with a thin object (e.g. a paper clip) for 5 seconds to restart the device (see image): Scan the QR code below to download the associated app. iOS Android20

Step 1 Activate WiFi on your Android device. Scan for the available networks and connect to MyAPxxxx. Launch the app and follow these steps.21

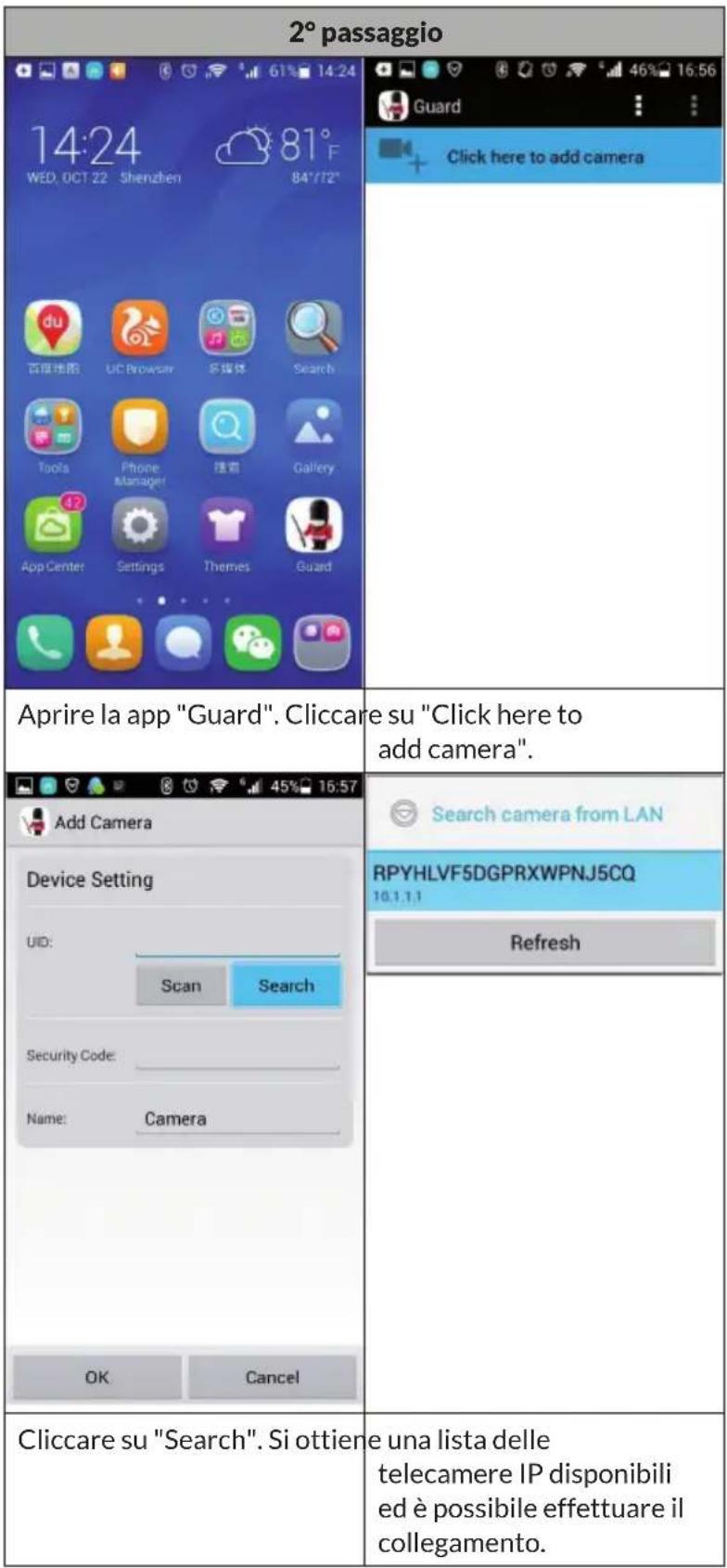

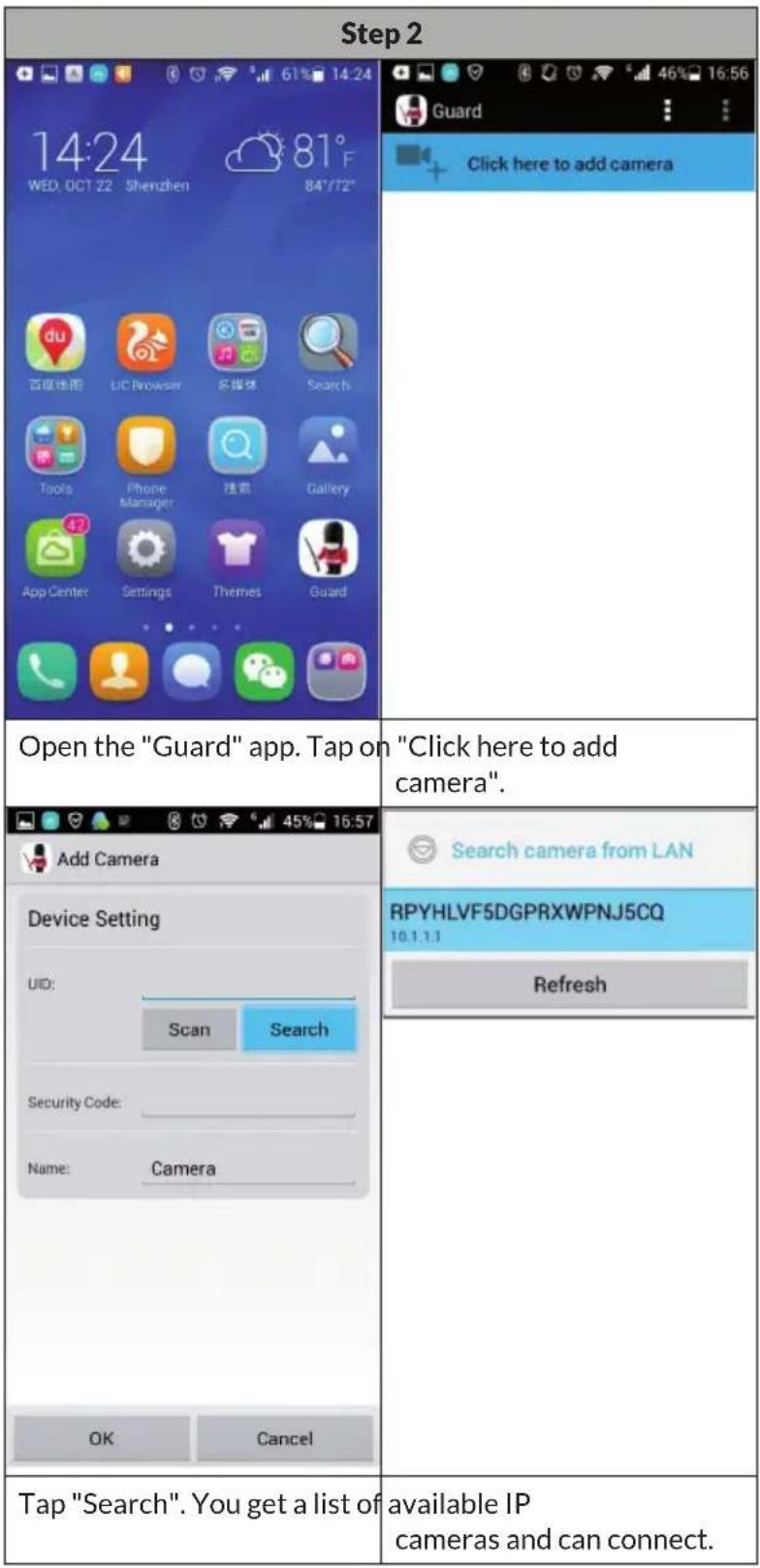

Step 2 Open the "Guard" app. Tap on "Click here to add camera". Tap "Search". You get a list of available IP cameras and can connect.22

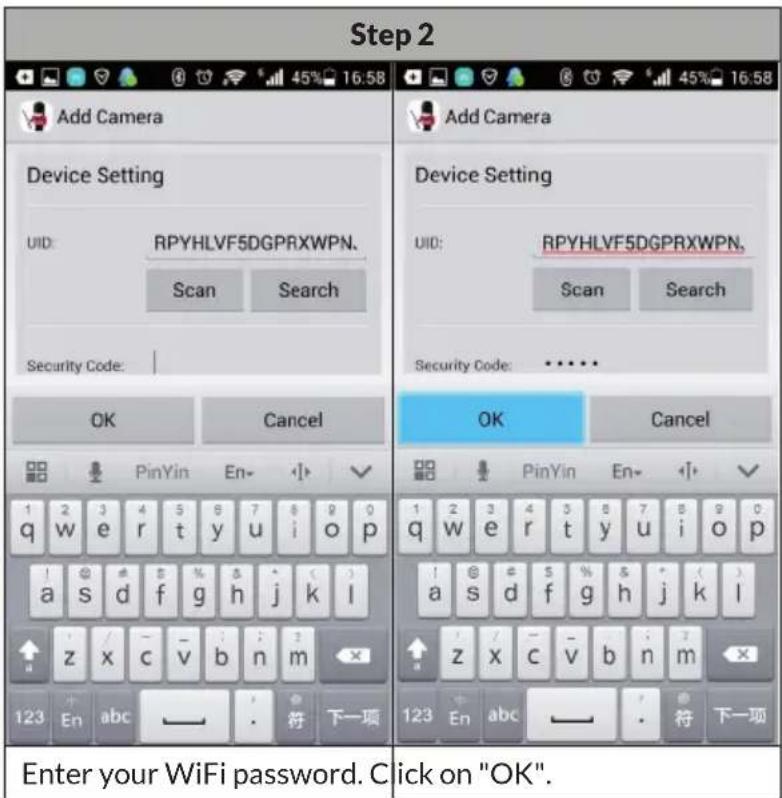

Step 2 Enter your WiFi password. Click on "OK". After connecting the IP camera to the app, you will see a list of available IP cameras with their names, IDs and status. To connect the IP camera to your WiFi router:23

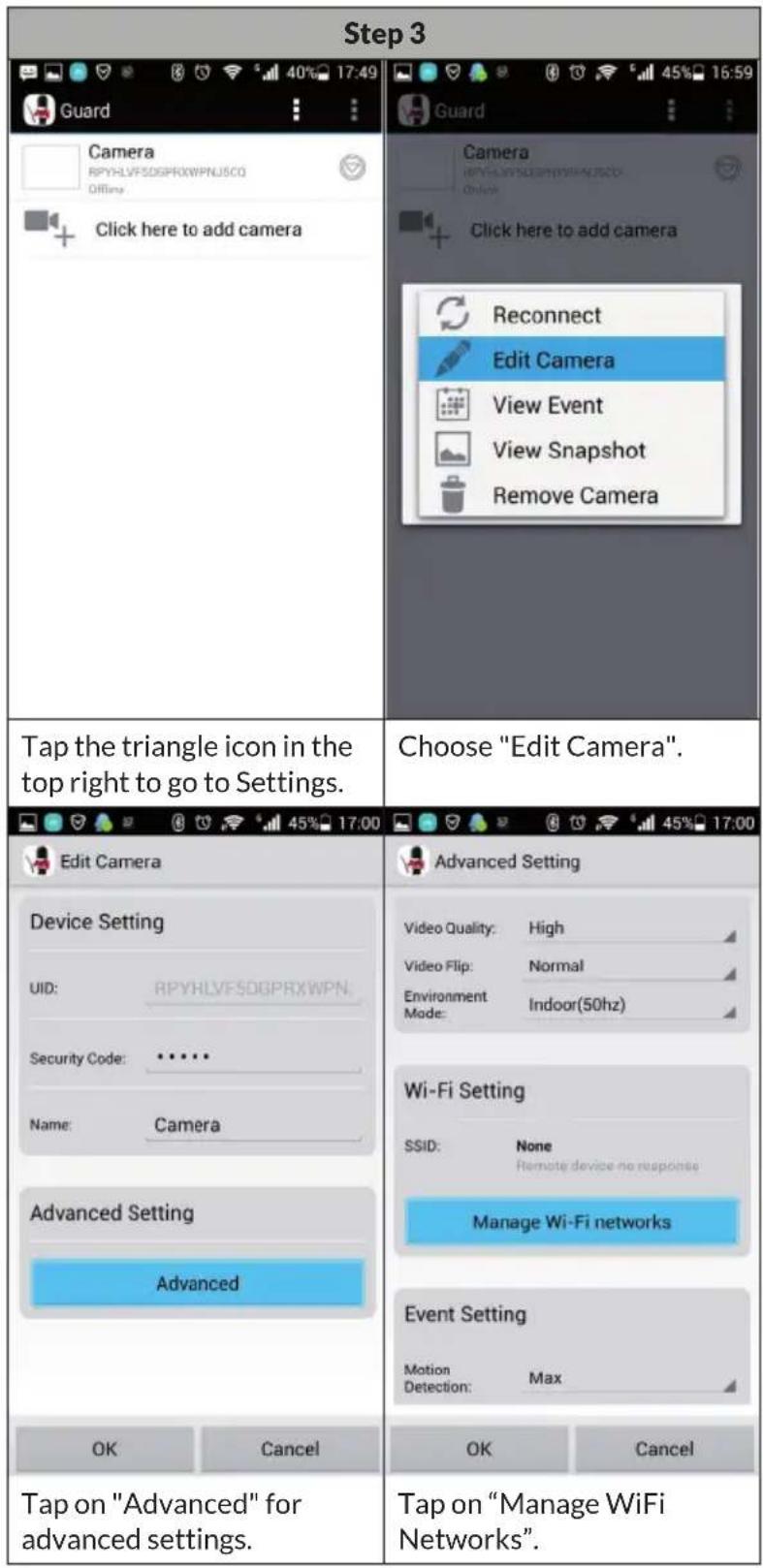

Step 3 Tap the triangle icon in the top right to go to Settings. Choose "Edit Camera". Tap on "Advanced" for advanced settings. Tap on “Manage WiFi Networks”.24

Step 3 Connect to your WiFi router. Enter your router's password and tap "OK" to save and nish the settings.25

Step 1 Activate WiFi on your iOS device. Scan for the available networks and connect to MyAPxxxx. Step 2 Step 3 Launch the app and tap “+” then tap “WIFI Setup New Device”. Tap "Start Scanning WLAN on Camera" to search for the IP camera.26

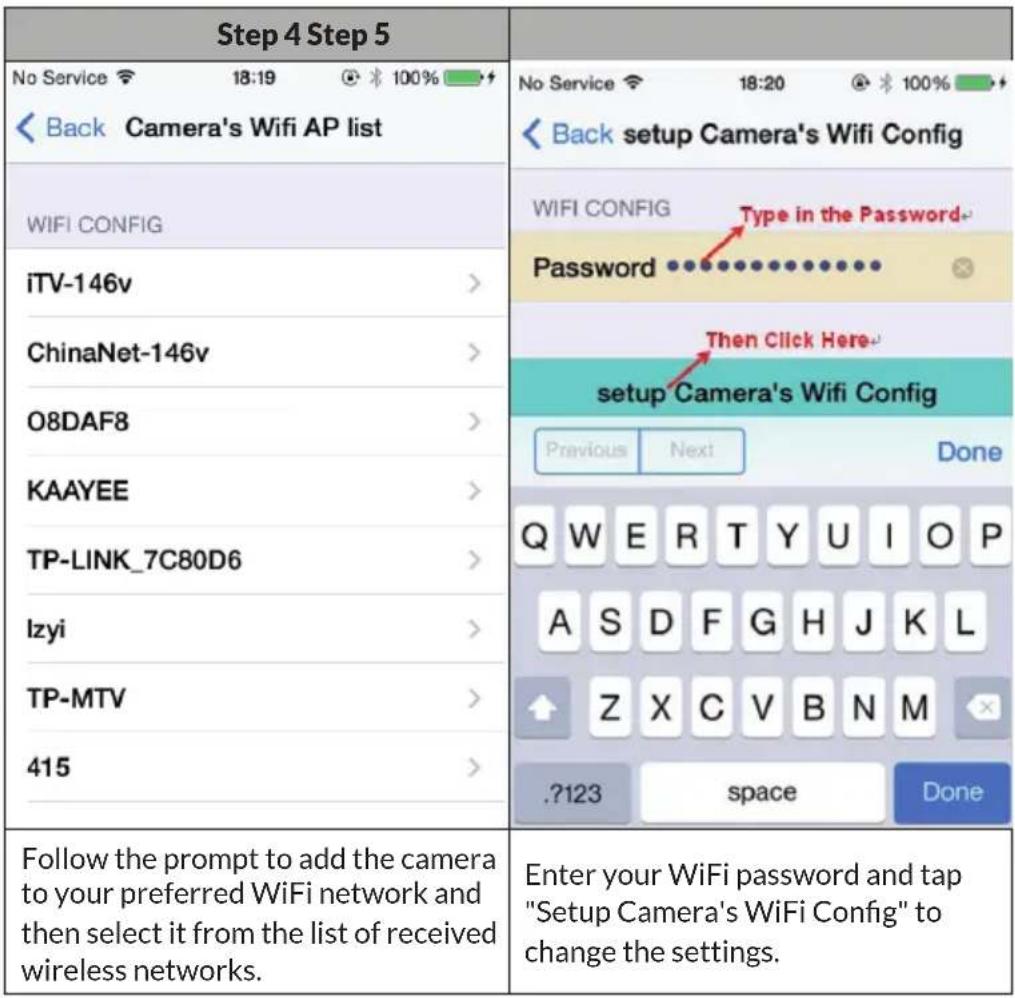

Step 4 Step 5 Follow the prompt to add the camera to your preferred WiFi network and then select it from the list of received wireless networks. Enter your WiFi password and tap "Setup Camera's WiFi Cong" to change the settings.27

Step 6 Tap on "Apply". The camera will restart and then automatically connect to your local WiFi. The connection setup is complete as soon as the blue LED lights up continuously. This process can take about a minute. Step 7 Close and restart the app to complete the connection. The process can take a few seconds. The icon will show "active" once the connection is successful. Tap the play icon to start live streaming. Note: If you experience any problems or connection errors, go back to step 3 or press and hold Reset for 5 seconds to start connecting again.28

DISPOSAL CONSIDERATIONS If there is a legal regulation in your country regarding the disposal of electrical and electronic equipment, this symbol on the product or on the packaging indicates that this product must not be disposed of with household waste. Instead, it must be taken to a collection point for the recycling of electrical and electronic equipment. By disposing of this product in accordance with the regulations, you protect the environment and the health of those around you from negative consequences. For information on recycling and disposal of this product, contact your local government or household waste disposal service. This product contains batteries. If there is a legal regulation in your country regarding the disposal of batteries, the batteries must not be disposed of in household waste. Consult your local regulations for the disposal of batteries. By disposing of this product in accordance with the regulations, you protect the environment and the health of those around you from negative consequences. MANUFACTURER & IMPORTER (UK) Manufacturer: Chal-Tec GmbH, Wallstrasse 16, 10179 Berlin, Germany. Importer for Great Britain: Berlin Brands Group UK Limited PO Box 42 272 Kensington High Street London, W8 6ND United Kingdom29
