USER MANUAL Integra 90 G5 Flex Induction Airforce

INSTRUCTIONS ON MOUNTING AND USE

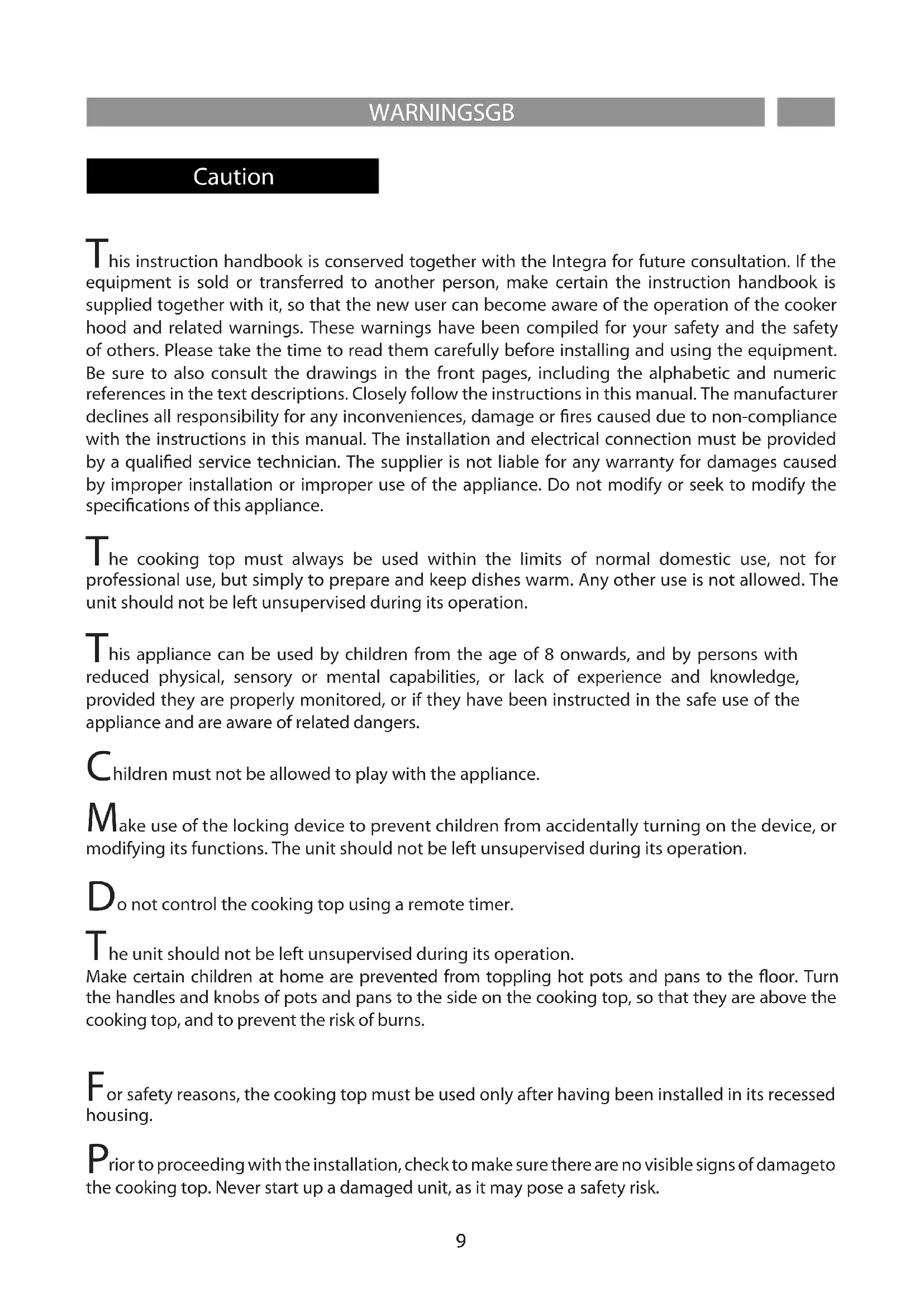

his instruction handbook is conserved together with the Integra for future consultation. If the equipment is sold or transferred to another person, make certain the instruction handbook is supplied together with it, so that the new user can become aware of the operation of the cooker hood and related warnings. These warnings have been compiled for your safety and the safety of others. Please take the time to read them carefully before installing and using the equipment. Be sure to also consult the drawings in the front pages, including the alphabetic and numeric references in the text descriptions. Closely follow the instructions in this manual. The manufacturer declines all responsibility for any inconveniences, damage or res caused due to non-compliance with the instructions in this manual. The installation and electrical connection must be provided by a qualied service technician. The supplier is not liable for any warranty for damages caused by improper installation or improper use of the appliance. Do not modify or seek to modify the specications of this appliance.

he cooking top must always be used within the limits of normal domestic use, not for professional use, but simply to prepare and keep dishes warm. Any other use is not allowed. The unit should not be left unsupervised during its operation.

his appliance can be used by children from the age of 8 onwards, and by persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, provided they are properly monitored, or if they have been instructed in the safe use of the appliance and are aware of related dangers.

hildren must not be allowed to play with the appliance.

ake use of the locking device to prevent children from accidentally turning on the device, or modifying its functions. The unit should not be left unsupervised during its operation.

he unit should not be left unsupervised during its operation. Make certain children at home are prevented from toppling hot pots and pans to the oor. Turn the handles and knobs of pots and pans to the side on the cooking top, so that they are above the cooking top, and to prevent the risk of burns.

or safety reasons, the cooking top must be used only after having been installed in its recessed housing.

rior to proceeding with the installation, check to make sure there are no visible signs of damageto the cooking top. Never start up a damaged unit, as it may pose a safety risk. CautionANWEISUNGEND

Cleaning and maintenance must not be carried out by children without proper supervision. If the power cord is damaged, it must be replaced by a qualied service centre or technician only. The electrical installation must have a breaker upstream from the appliance which ensures that all poles are disconnected with a contact gap of at least 3mm. CAUTION: The hob protection devices must be only those designed by the appliance manufacturer or those indicated as suitable in the manufacturers instructions or the hob protection devices incorporated in the appliance. The use of inappropriate protection devices may provoke accidents. During the installation the equipment must be connected to a power source whose system impedance is matched to a value of 0.005+j0.005[Ohm]. Do not seal the area between the glass and the worktop with silicone because should the cooktop need to be replaced, the glass could break during removal. The unit’s installation and electrical connection to the power grid must be carried out by qualied service technicians only. The device’s electrical safety can be guaranteed solely if a regular ground connection is provided for the cooking top. If in doubt, have the electrical system checked by a qualied electrician. Do not connect the cooking top to the mains using extension cords or multiple sockets, since they will not guarantee the required safety (e.g. risk of overheating). Prior to connecting the cooktop, compare the connection specications (voltage and fre quency) indicated on the unit’s identication nameplate with those of the mains electricity supply. These specications must absolutely correspond, otherwise the unit may be subject to damage. Contact an electrician if in doubt.

isconnect the unit from the mains when carrying out installation work, maintenance or repairs. Comply with all air discharge regulations. CAUTION: If the surface is cracked, switch o the appliance to avoid the possibility of electric shock. Never open unit’s outer casing. Any contact with live parts or the modication of electrical or mechanical parts can cause operating abnormalities.ANWEISUNGEN

The induction hob should not be used as a work surface. The rough underside of food containers can scratch the surface of the cooktop. Always keep the cooking areas and underside of food containers perfectly dry. Oil and grease that are too hot will catch re quickly. Do not leave overheated oil or grease unsupervised. If oil or grease should catch re, do not attempt to put out the ames with water. Extinguish the ames with a lid or plate, or with a reproof blanket. Turn o the cooking zone. Never place ammable items on the hob.

WARNING: Fire hazard: do not leave objects on the cooking surface.

CAUTION: This appliance and its accessible parts become very hot during use. Pay attention to avoid touching the heating elements. Keep children under 8 years of age away from the appliance, unless they are continually monitored.

o not place objects such as knives, forks, spoons or lids on the induction top, as they may overheat.

o not heat closed containers, such as tin receptacles, on the cooking top. The excess pressure generated could blow up the container.

nly ferromagnetic containers are suitable for induction cooking; the following receptacles, in particular, are suitable: enamelled steel, cast iron, special dishes for induction cooking in stainless steel. Use only pots and pans with a smooth bottom. Do not introduce any objects between the bottom of the pot and the glass ceramic surface, such as adapters. Cooking zone Minimum diameter Maximum recommended diameter OCTA (single) 90mm 115 mmOCTA (bridged mode)220 mm 245 mm

o nd whether receptacles are suitable, check whether they are attracted by a magnet.

nother type of special receptacle exists for induction cooking, with a bottom that is not entirely ferromagnetic. Burn hazard Suitable food containersANWEISUNGEN

ever use recipients made of: normal negrained steel, glass, pottery, copper and aluminium. Do not place empty containers on the cooking zone, as they may cause damage.

o not place hot recipients on the control panel, in the area of the pilot lights or on the edge of the cooking top, as they may cause damage.

ots from which liquids have completely evaporated can cause damage to the glass ceramic top, for which the manufacturer does not assume any responsibility. WARNINGS

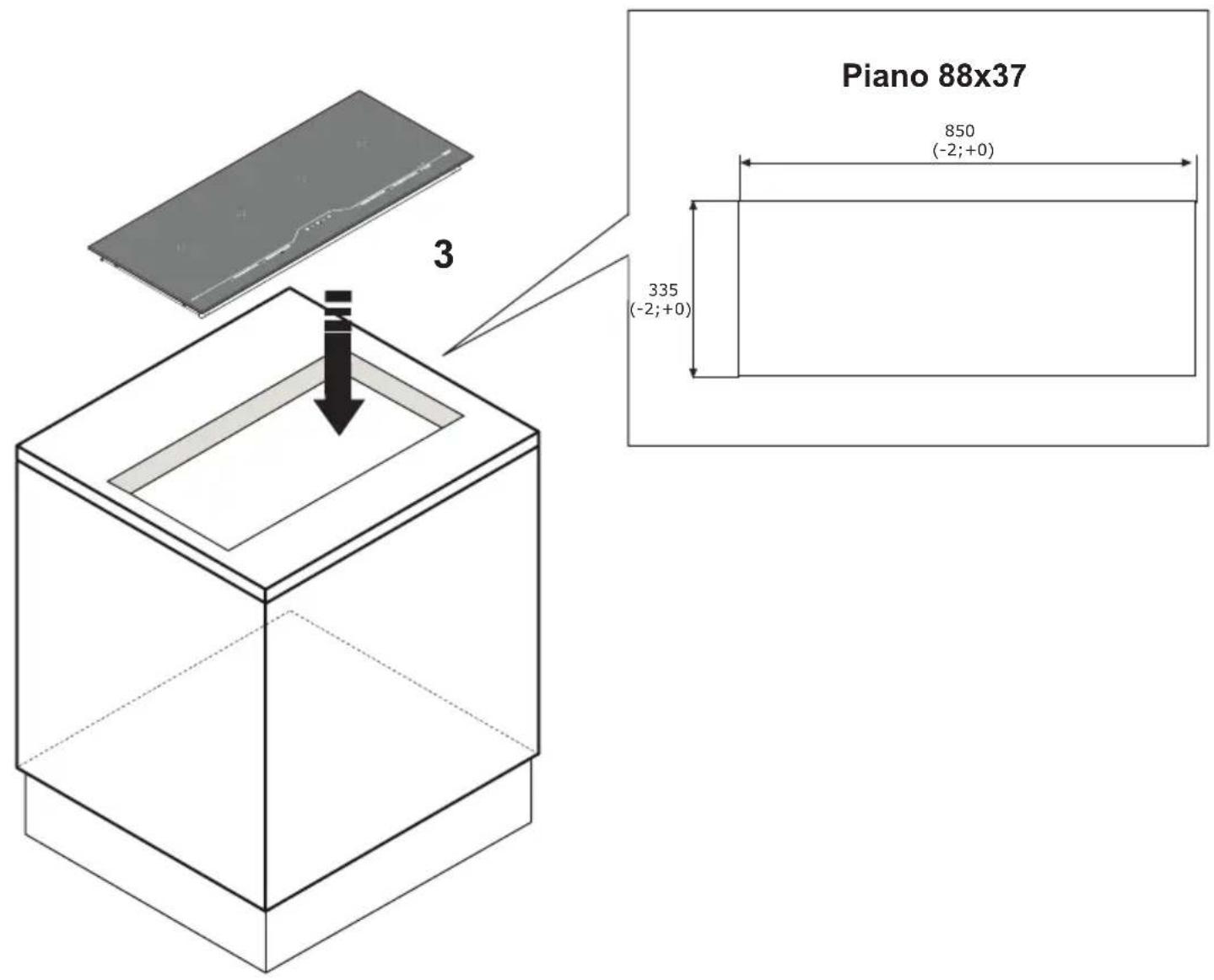

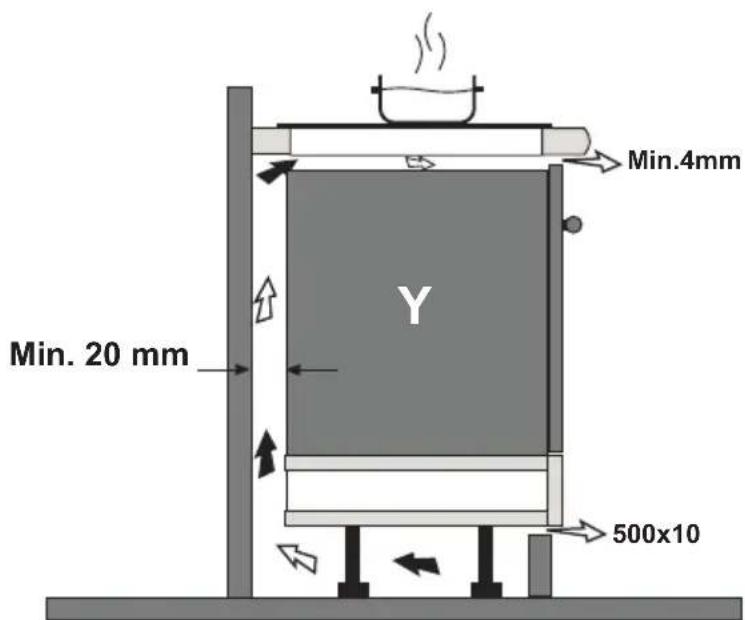

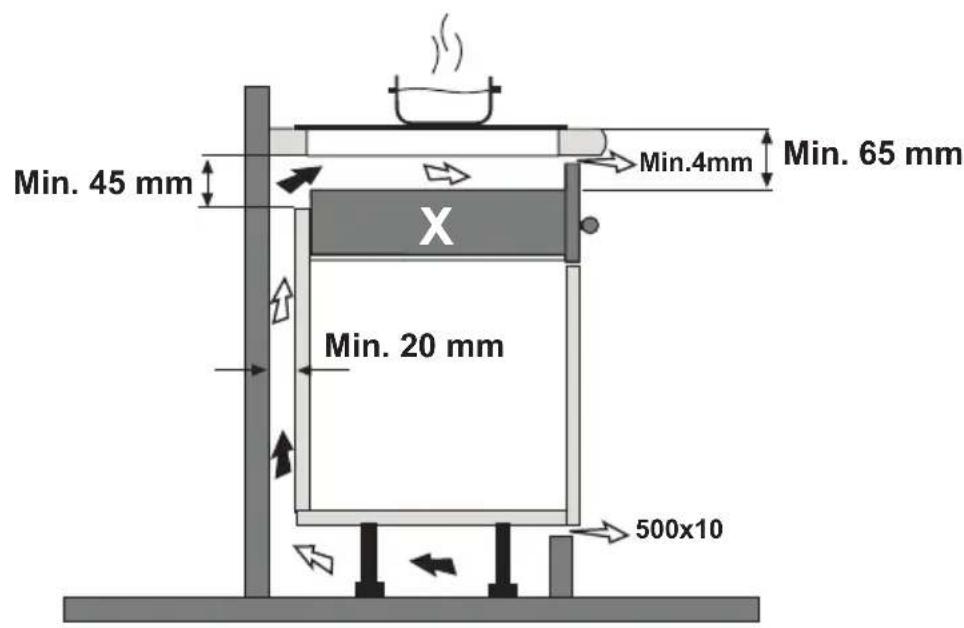

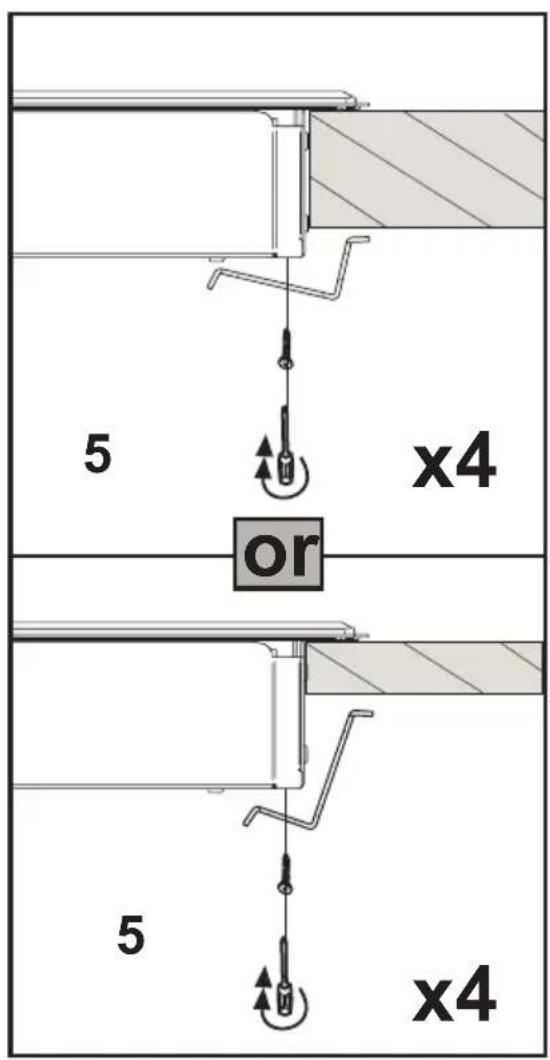

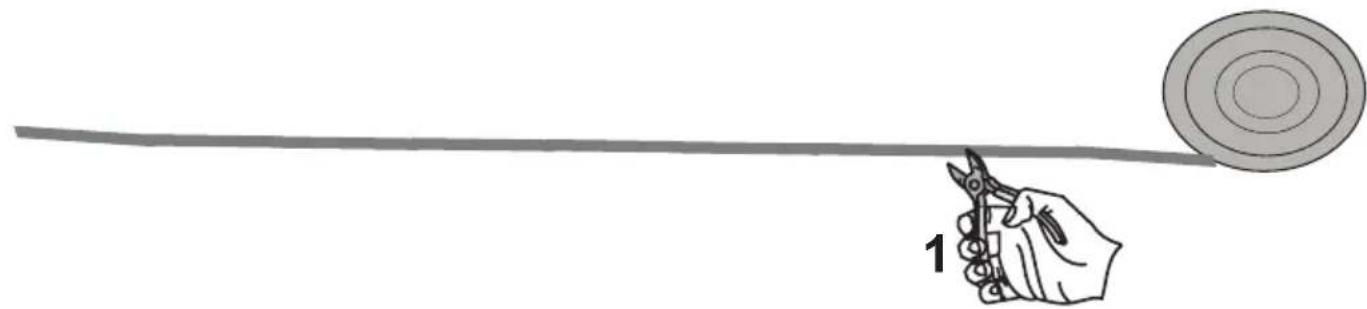

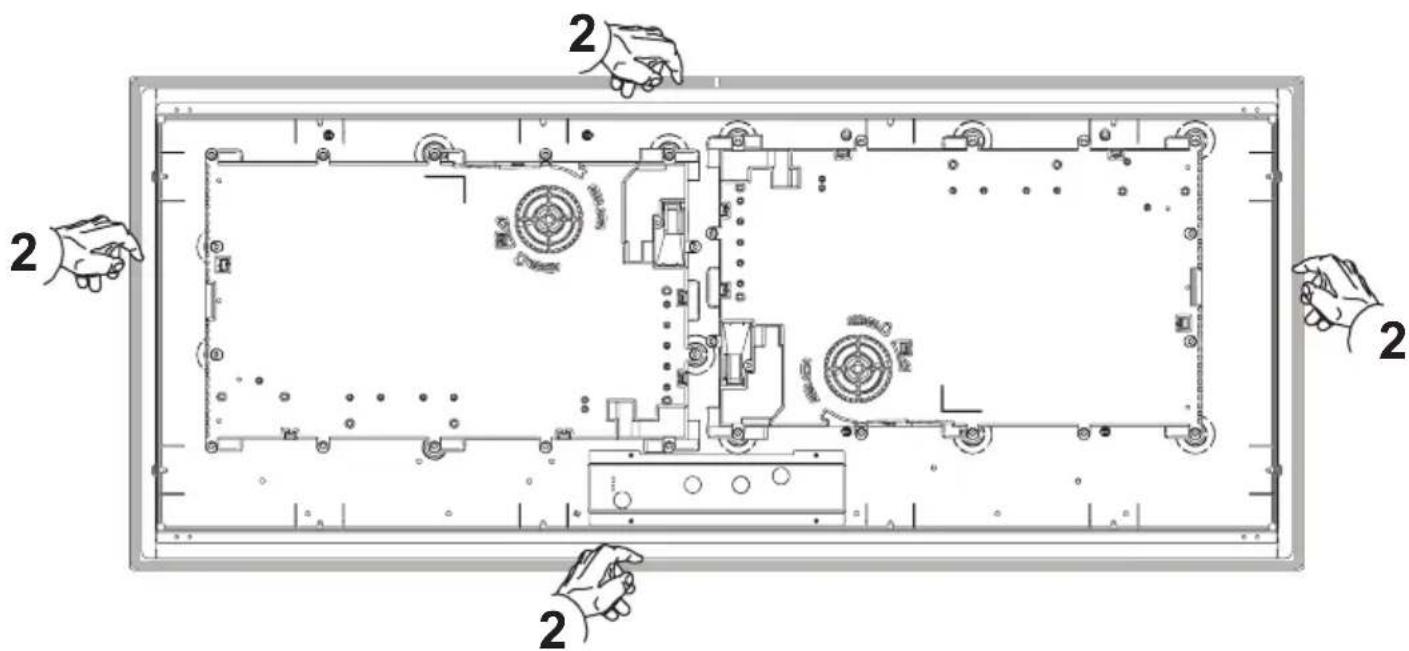

he appliance is equipped with a cooling fan. If a drawer is set under the recessed hob, a suitable distance must be ensured between the contents of the drawer and the lower part of the unit, in order to avoid compromising ventilation. The worktop should be at and horizontal. The furniture should be cut to measure before installing the appliance. Remove any chips to avoid compromising the operation of electrical components. Considering the ventilation of the cooktop, the following must be provided: -a 20 mm space between the rear side of the furniture and kitchen’s wall (g.1-2). -if the cooktop is installed above a drawer, leave a 65 mm space between the drawer and the top of the cooktop (g.1). Do not store small objects or sheets of paper in the drawer under the cooking hob, since such objects may be aspirated and could break the fan, thus hindering the unit’s cooling; likewise, do not store metal or inammable objects, which could become very hot or catch re.

f the cooking hob is assembled behind a cabinet door, power it on only with the door left open. Close the cabinet door only if the appliance and residual heat indicator lights are o.

f the unit is assembled above an oven or an electric pyrolytic stovetop, it should not be operated while the pyrolytic process is ongoing, as it can trigger the cooktop’s overheating protection. The cooktop should not be installed above dishwashers because the steam released by the latter may lead to faulty operation of the electronic circuit of the cooktop.

o not make use of any steam devices, as steam can reach the appliance’s live parts and cause a short circuit. Non-suitable food containers Danger of mishapsANWEISUNGEND

ny interventions or repairs on the unit during the warranty period must be carried out solely by the manufacturer’s authorised service centre; conversely, the warranty will be is invalidated and terminated immediately. The manufacturer will not recognise any warranties under any circumstances for any problems subsequently encountered. Replace any defective or damaged parts with original spare parts: only original spare parts can ensure compliance with safety standards.

otice to persons with pacemakers: keep in mind that an electromagnetic eld is generated in the immediate vicinity of the unit while it is in operation. The possibility that the pacemaker’s operation may be aected is very remote. If in doubt, contact the pacemaker manufacturer or your doctor.

nduction can generate slight noise emissions, which can vary depending on the material, type of pot and power setting selected. When the cooktop is used frequently, the cooling fan turns itself on to protect the electronics, generating a buzzing sound: this is perfectly normal. Noise emissions First usage Use a damp cloth to clean and dry the cooktop before using it for the rst time. It is recommended to dry the appliance after having cleaned it with a damp cloth, in order to prevent the build-up of limescale.

hen the unit is powered on for the rst time, odours or fumes may be generated. The odour will diminish with each subsequent use, until it disappears altogether. Odours and any fumes are not caused by a faulty connection or damage to the appliance, and are not hazardous to health.ANWEISUNGEN

Aspira is equipped with touch sensitive electronic sensor keys. Press the power button If no other control is enabled, the hob turns o automatically for safety reasons. Every cooking zone is equipped with its own dedicated slider. The hob automatically detects which cooking zone to activate, based on the position of the pot. When you place the pot on the desired zone, the dedicated control is immediately enabled. On display appears 0; operate the slider to select the desired power level that ranges from 1 to P P: indicates the Booster function and is present on every cooking zone. To activate it, operate the slider to enable power P. Such function remains active for 10 minutes, after which the system switches to power 9. Note: if the cooking zone has already reached the maximum temperature, the booster function cannot be enabled; the value P ashes for 1 to three seconds and the function will be disabled automatically. We recommend you use this function to boil water faster. Note: the booster function can be enabled on all cooking zones up to maximum two at a time. Touch the power button. The main indicator light and cooking zone lights will switch o. The cooktop is now powered o. The residual heat indicator, displayed as a H on each cooking zone, will remain lit until these zones have not suciently cooled down.

Warning: risk of burns

Do not touch a cooking zone for which the indication (H) appears. If a cooking zone remains lit for too long at the same power level, the appliance will automatically switch it o, and the residual heat indicator H will appear. Switch it back on to reset the cooking zone’s operation. The table below lists the maximum uninterrupted operating time for each power level: Switching on the cooktop Activating the desired cooking zones Switching o the cooktop and residual heat indicationFUNZIONAMENTO

Power Operating limit in minutes

Bridged mode Toggle Function If the pot used is large enough to cover two adjacent cooking zones, the slider of each zone turns on; at this point, touch both sliders simultaneously to activate the Bridge function, indicated by the symbols [ and ], that allows you to control both cooking zones simultaneously, as a single larger zone. The two zones will be controlled by the slider of the leftmost zone. To disable the Bridge function, touch again both sliders simultaneously. CAUTION: the Bridge function can be activated only on the two left zones and/or two right zones, while it cannot be activated on the two middle zones. If the bridge function is active, only one booster can be activated, only on the cooking zones that are not set to Bridge mode. Every cooking zone is equipped with three temperature levels that can be selected and set: 1-approxim. 40°: ideal for melting products like chocolate and butter 2-approxim. 70°: ideal as food warmer 3-approxim. 98°: ideal for boiling Touch the key once, twice or for three times to select the desired level, indicated by the ignition of the relative symbol; upon the fourth pressure, the function will be disabled.FUNZIONAMENTO

Place on the cooking zones a pot, of suitable material and diameter, as shown in the section on suitable cookware. The zones will activate. If the pots used are not suitable, hence not recognized by the various cooking zones, the potdetection function will indicate this problem with the symbol “u” The cooking zone turns o automatically after 10 minutes if no pot is recognized. The timer function can be set from 1 minute to 9 hours 59 minutes on each cooking zone. To activate the timer: select the cooking zone and set the desired power level, then press the keys + and - simultaneously, and use the keys + or – to set the desired time. The timer symbol will turn on the dedicated control of the selected cooking zone. A 2-minute beep will indicate when the time set elapses. The cooking zone turns o automatically. The countdown function can be activated only with the hob turned on, from 1 minute to 9 hours 59 minutes but, opposite to timer function, this function does not shut down the cooking zones and remains active even after the hob is turned o. To activate it, press the keys + and - simultaneously, and use the keys + or – to set the desired countdown time. The timer symbol will turn on between the keys + and -. A beep warns the user when the time elapses. To change the timer or the countdown time, press the keys + and – simultaneously with the function active and selected, then set the desired time with the keys + and –. NOTE: you can set up to 4 timers simultaneously (one for every cooking zone) and one countdown. The hob features a safety lock to prevent the hob from being turned on by children. To activate it: turn on the hob and touch the pause and cooking chef keys simultaneously and press the pause key immediately. Once you have activated the function, the symbol L will be displayed on all cooking zones and the symbol -L- appears on timer display. Once the childlock feature is set, it remains active each time the hob is turned on. To deactivate this function temporary, when the same is active: press the keys pause and cooking chef simultaneously. To disable the childlock feature permanently: turn on the hob with the childlock feature active and touch the pause and cooking chef keys simultaneously and press the cooking chef key immediately. By touching the cooking chef key, all four cooking zones are automatically activated on 4 dierent preset power levels. From left to right: 2nd level Togglefunction, level 3, level 6 and level 9. At this point, instead of changing the levels, you can move the pot from one cooking zone to another, depending on the type of cooking needed. Pod detection Timer Countdown Cooking chef Child-Lock safety functionFUNZIONAMENTO

CLEANING AND MAINTENANCEGB

By pressing this key with at least one cooking zone active, the pause function is activated; this function stops temporarily (for a maximum of 10 min.) any plane activity including any active timers. To disable this function press again the pause key and unlock by acting on the right slider. If the cooking plane is unintentionally extinguished (with at least one of the cooking zones active) it is possible to call up all the functions previously activated with the recall function. To activate it turn the cooking plane on again within 6 seconds after turning o and then press the pause key within a further 6 seconds.

The cooking top must be cleaned after each use. Allow the appliance to cool before cleaning it. Prior to cleaning the ceramic glass cooking hob, it is advisable to activate the Child Lock function, so that the cooking top is not switched on accidentally (see Child Lock function). Use only cleaning products specially formulated for ceramic glass cooking tops. Respect all indications on the product packaging. Do not use the following cleaning products, as they may cause damage to the surfaces of the ceramic glass cooking top: softeners or products for eliminating stains and/or rust; dishwashing and/or dishwasher detergents; detergents for glass; detergents containing soda, ammonium, acids or chlorides; any abrasive detergent, sponge or brush; solvents; dirt removing rubber erasers; pointed objects; oven or grill cleaning products; any steam device, as steam can reach the appliance’s live parts and cause a short circuit. To prevent damaging the cooking top frame, observe the following guidelines: Use hot water only, with little soap; Never use pointed utensils or abrasive products; Do use a window scraping tool. Any cooking or dirt residue should be removed with a window scraping tool. Be careful when using scraping tools to avoid injury. If sugar or food preparations containing sugar, plastic or aluminium foil end up on the hot cooking top, it is advisable to switch it o. Remove these substances immediately from the cooking zone, even if the cooking top is still hot, using a scraper; otherwise these substances can damage the ceramic glass top when cooling down. Cooking topFUNZIONAMENTO

OPERATION These errors appear on the cooking top display. Error code Description Possible causes Solution ashing Continuous activation of one or more keys. The control turns o after 10 seconds. Liquids or cookware on the control zones. Clean the control zone or remove the cookware. U 400 Input current > 300 V. The control unit shuts down after 1 second, emitting a continuous beep. Incorrect connection. Contact the authorized technical support centre and specify the error code. E2 Hob overheated. Hob overheated (cooking with empty pots) Output heat on sensors > safety level. Cool down the hob; the error disappears after cooling. If the error persists, contact the authorized technical support centre and specify the error code. Er20, Er22, Er31, Er36, Er47, E5, E6, E9 Problems due to hardware, software or power supply. Hardware errors detected Contact the authorized technical support centre and specify the error code.

TABLE OF COOKING TOP ERRORS

(Warning: burn hazard!!!) Lastly, clean the cooking zone when it has cooled. The symbols on the cooking top can wear out as a result of using abrasive or aggressive detergents, steel wool, and the scraping of pots and pans. Avoid using these cleaning products. In any case, this will not in any way compromise the unit’s correct operation. Note: all of the problem issues described in this section are solely of an aesthetic nature and do not in any way aect the appliance’s correct operation. They cannot be restored under the warranty.FUNZIONAMENTO
