POP 60-3 - Cooker Airforce - Free user manual and instructions
Find the device manual for free POP 60-3 Airforce in PDF.
| Product type | Built-in induction hob |
| Brand | Airforce |
| Model | POP 60-3 |
| Number of cooking zones | 3 |
| Front right zone | ∅ 145 mm, 1200 W (Boost 1600 W) |
| Left zone | ∅ 180 mm, 1500 W (Boost 2000 W) |
| Rear right zone | ∅ 280 mm, 2700 W (Boost 3600 W) |
| Maximum total power | 7200 W (adjustable to 2800/3500/6000 W or 1000/1600/2200/2800 W) |
| Power supply | 220-240 V ~ 50/60 Hz |
| Dimensions (W x D x H) | Approx. 590 x 520 x 55 mm |
| Net weight | Approx. 8 kg |
| Surface material | Ceramic glass |
| Control type | Touch controls |
| Booster function | Yes, on each zone (max 10 min) |
| Cooking timer | Yes, programmable from 1 to 99 min |
| Child safety | Yes, key lock |
| Residual heat indicator | Yes, displays 'H' |
| Pan detection | Yes, auto shut-off if no pan |
| Overheating protection | Yes, automatic shut-off and error code |
| Cleaning and maintenance | Clean with a damp cloth, wipe dry after |
| Spare parts and repairability | Use original spare parts, service by approved center |
| Warranty | Manufacturer's warranty subject to professional installation |
Frequently Asked Questions - POP 60-3 Airforce
User questions about POP 60-3 Airforce
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Cooker in PDF format for free! Find your manual POP 60-3 - Airforce and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. POP 60-3 by Airforce.
USER MANUAL POP 60-3 Airforce
POP 60-3
POP 60-4
POP 60-4 B
| D | MONTAGE- UND GEBRAUCHSANWEISUNG |
| GB | INSTRUCTIONS ON MOUNTING AND USE |
| F | PRESCRIPTIONS DE MONTAGE ET MODE D'EMPLOI |
| NL | MONTAGEVOORSCHRIFTEN EN GEBRUIKSAANWIIZING |
| ES | MONTAJE Y MODO DE EMPLEO |
| I | ISTRUZIONI DI MONTAGGIO E D'USO |
IT Per tutte le operazioni di installazione e manutenzione utilizzare guanti da lavoro
EN Always wear work gloves for all installation and maintenance operations
DE Bei allen Installations- und Instandhaltungsarbeiten immer Schutzhandschuhe tragen.
FR
NL Draag bij alle installatie- en onderhoudswerkzaamheden werkhandschoenen.
ES Todas las operaciones de instalación y mantenimiento se deben realizar utilizando guantes de trabajo.
PT Para todas as operações de instalação e manutenção, utilize luvas adequadas para este tipo de atividade
GR Πάντοτε να φοράτε γάντια εργασίας για όλες τις επεμβάσεις εγκατάστασης και συντήρησης.
SV Använd alltid skyddshandskar vid installation och underhåll.
FI Käytä asennus- ja huoltotöissä suojakäsineitä.
NO Ved alle installasjonsprosedyrer og alt vedlikehold av ventilatoren må man bruke arbeidshansker
DA Ved alle installations- og vedligeholdelsesindgreb skal der bæres arbejdshandsker.
PL Wszelkie czynności montażowe i konserwacyjne wykonywać w rękawicach ochronnych.
CZ Při všech instalačních a údržbových pracích používejte pracovní rukavice
SK Pri všetkých inštalačných a údržbárskych prácach používajte ochranné pracovné rukavice.
HU Valamennyi üzembe helyezési és karbantartási művelethez használjon védőkesztyűt
BG за всички операции по инсталиране и техническо обслужване използвайте работни ръкавици.
RO Pentru toate operațiile de instalare și întreținere utilizați mănuși de protecție.
RU Для выполнения всех операций по установке и уходу используйте рабочие перчатки.
ET Kasutage paigaldus- ja hooldustöödel kaitsekindaid.
or

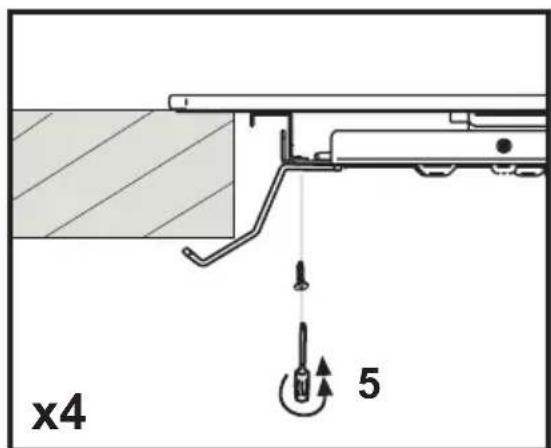

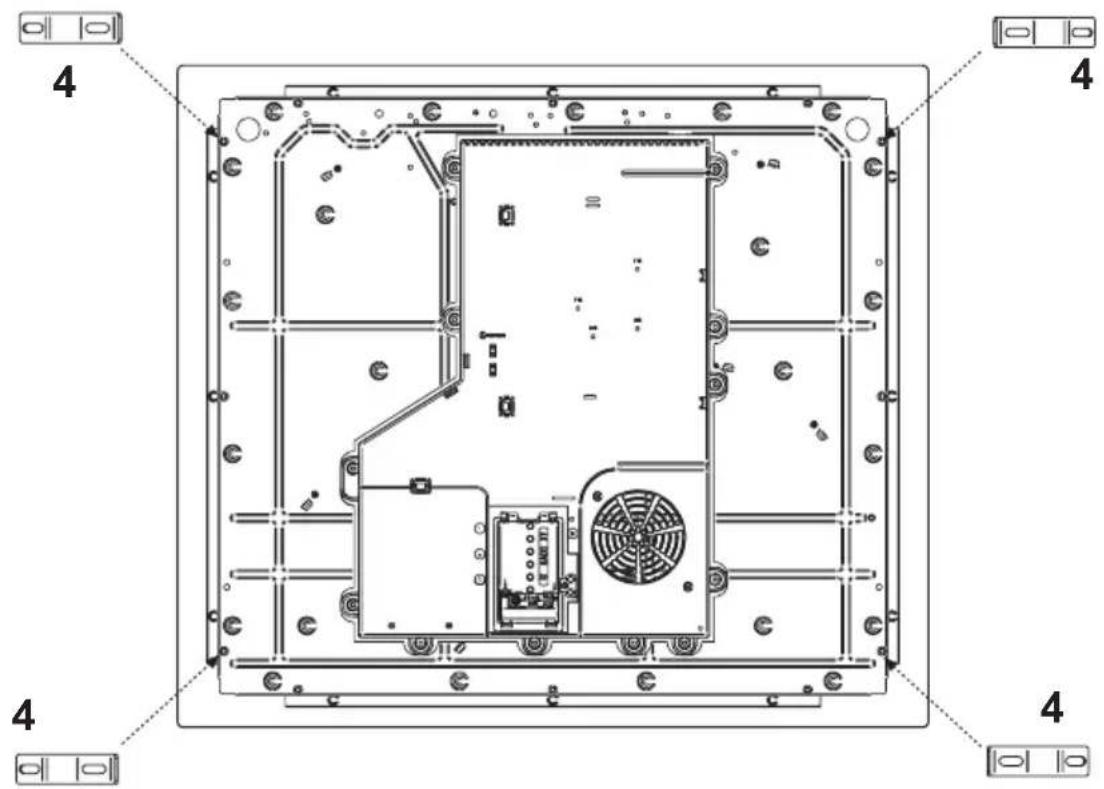

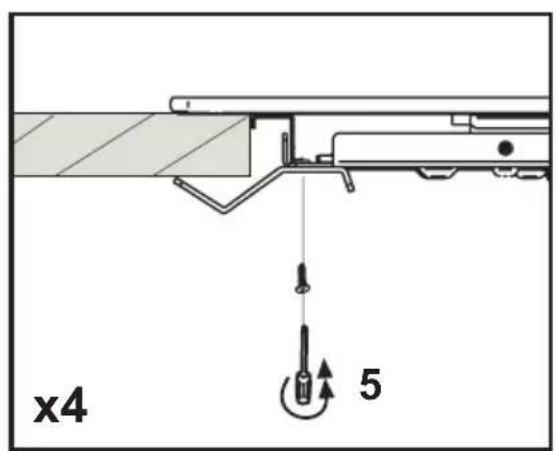

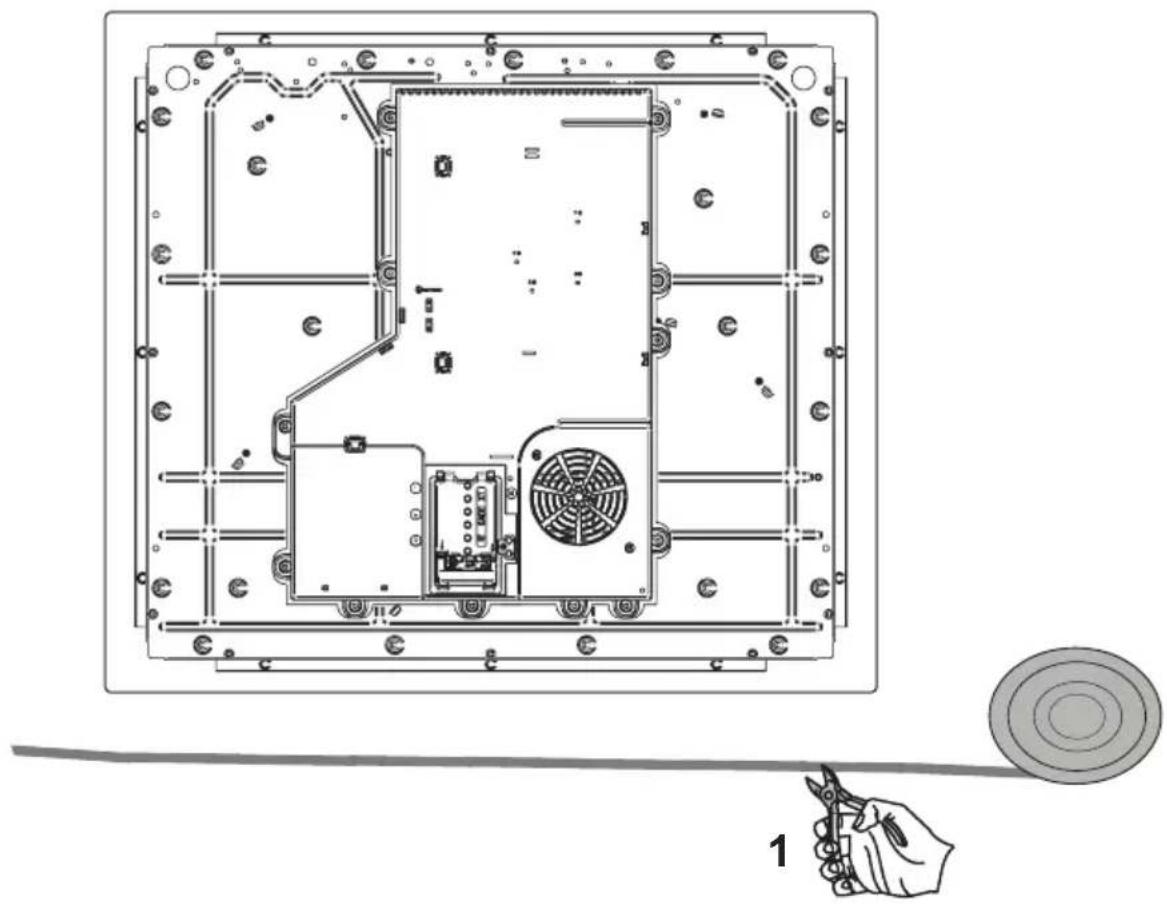

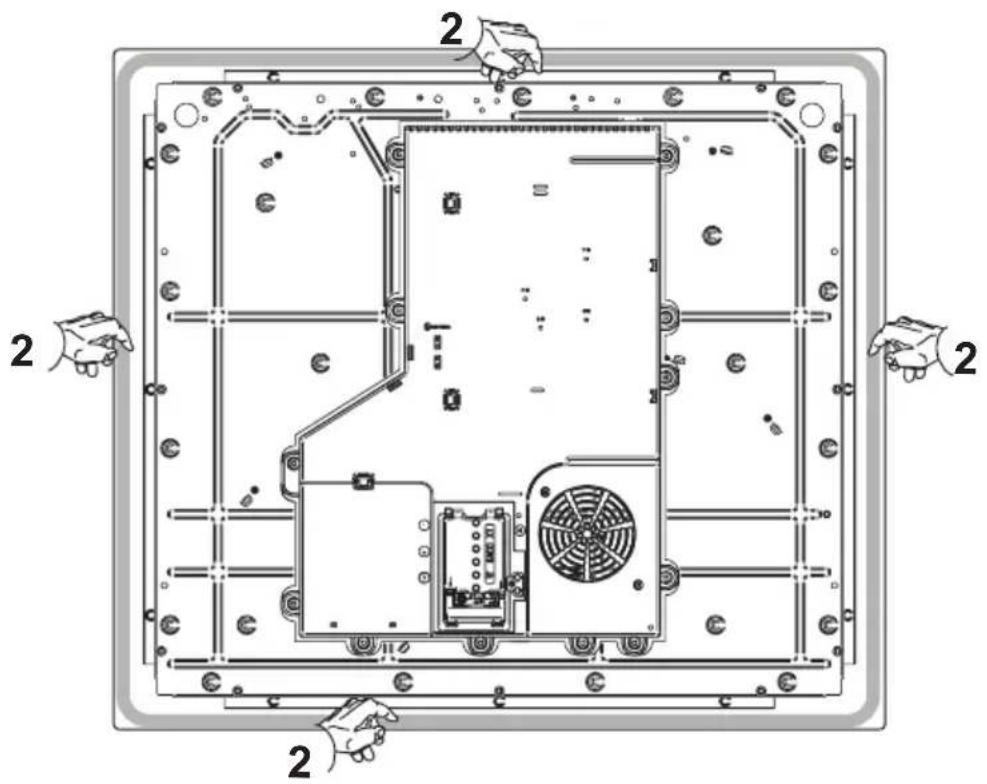

NOTES: Regardless of the selected hob fixing method, the screws indicated in point 5 must always be installed.
X : Schublade
X : Drawer
X : Tiroir
X: Schuif
X : Cajón
X : Cassetto
Fig.2
Y : Einbauküche / Einbauofen
Y : Built-in cooker / built-in oven
Y : Cuisine encastrable / four encastrable
Y : Inbouwformuis/ inbouwoven
Y : Cocina empotrada/ horno empotrado
Y : Cucina da incasso / forno da incasso

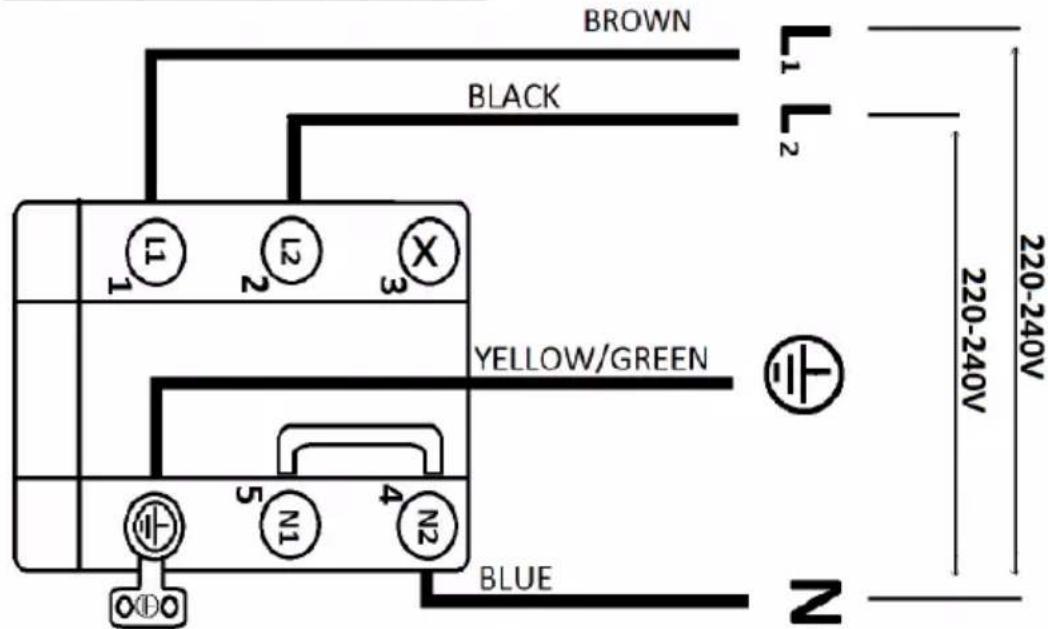

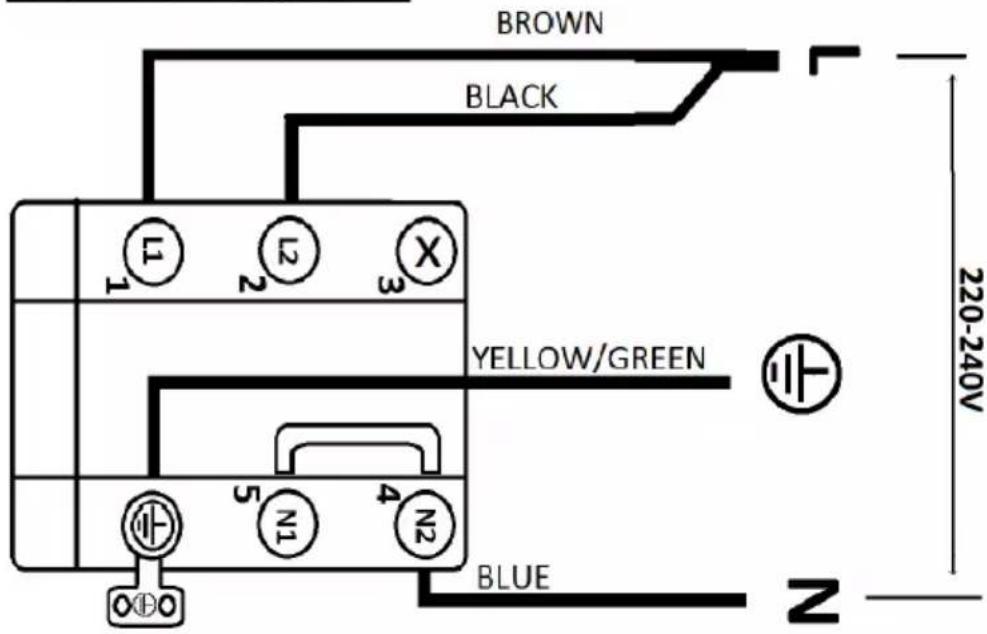

Electrical connection
220-240V 50/60Hz
380-415V 2N 50/60HZ
Attenzione
| ZONE Diametro min. pentola | |
| 1 90 mm | |
| 2 130 mm | |
DESCRIZIONE COMANDI "TOUCH-CONTROL"
| ZONE Diametro min. pentola |
| 1 90 mm |
| 2 130 mm |
| 3 110 mm |
DESCRIZIONE COMANDI "TOUCH-CONTROL"
DESCRIZIONE COMANDI "TOUCH-CONTROL"
It is very important that this instruction manual be kept together with POP 60-4, POP 60-4 B, POP 60-3 for any future reference. If the appliance is sold or transferred to another person, make sure that the booklet is supplied with it, so that the new user can be made aware of the operation of the hood and its warnings. These warnings have been drawn up for your safety and the safety of others, so please read them carefully before installing and using the device. Please also refer to the drawings on the first pages with alphabetical and numerical references in the explanatory text. Strictly follow the instructions in this manual. No liability is accepted for any inconvenience, damage or fire caused to the appliance as a result of failure to observe the instructions in this manual. Installation and electrical connection must be carried out by a specialised technician. The supplier will not be liable for any warranty for damage resulting from incorrect installation or incorrect use of the device. Never modify or attempt to modify the characteristics of this device.
The hob must always be used within the limits of normal household use, not for professional use, to prepare and keep food warm. Any other use is not permitted. During operation, the device must not be left unattended.
This appliance may be used by children from the age of 8 years and by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they are under appropriate supervision or if they have been instructed in the use of the device in a safe manner and if they realise the dangers involved.
Children must not play with the device. Cleaning and maintenance must not be carried out by children without supervision.
Use the control lock to prevent children from inadvertently switching on the device or changing its functions. During operation, the device must never be left unattended.
Do not control the hob via an external timer.
During operation, the device must not be left unattended.
Make sure that any children in the house do not have the possibility of spilling hot pots and pans on the floor. Turn the handles of pots and pans sideways on the work surface so that they are above the work surface to prevent the risk of burns.
For safety issues, the hob should only be used after it has been built-in.
Before embedding, check the hob for visible damage. Never operate a damaged appliance, it can be a safety hazard.
The built-in and electrical connection of the appliance to the mains may only be carried out by trained personnel. Electrical safety is only guaranteed if the hob is connected to a regular earth connection. If in doubt, have the electrical system checked by a qualified electrician. If the power cable is damaged, it should only be replaced by a service centre or qualified personnel.
Do not connect the hob to the mains with extension cords or multiple sockets, as these do not guarantee the necessary safety (e.g. risk of overheating).
Before connecting the hob, the connection data (voltage and frequency) on the rating plate must be compared with those of the mains supply.
These data must absolutely match, otherwise the machine may be damaged. If in doubt, consult an electrician.
To carry out installation, maintenance and repair work, disconnect the appliance from the mains.
It is necessary to comply with all regulations for exhaust air
CAUTION: If the surface is cracked, switch off the appliance to avoid the possibility of electric shock.
Never open the casing of the device. Any contact with live parts or modification of electrical or mechanical structures may cause malfunctions.
The induction hob must not be used as a worktop. The rough bases of receptacles can scratch the cooking surface.
Always keep the cooking zones and the base of the receptacles perfectly dry.
Fire hazard
The oil and grease that are too hot ignite quickly. Do not leave overheated oil or grease unattended. Should the oil or grease ignite, do not attempt to extinguish the flames with water. Extinguish the flames with a lid or plate with a fireproof blanket. Switch off the cooking zone. Never place flammable objects on the hob.
CAUTION: Fire hazard: do not leave objects on the cooking surfaces.
Danger of burns
CAUTION: This appliance and its accessible parts become very hot during use. Care must be taken to avoid touching the heating elements. Keep children under 8 years of age away unless continuously supervised.
The device is equipped with a cooling fan. If there is a drawer under the built-in hob, an adequate distance between the contents of the drawer and the underside of the appliance must be ensured in order not to impair ventilation.
Do not store small objects or sheets of paper in the drawer under the hob, if any, which, if sucked in, could break the fan and impair the cooling of the appliance, nor flammable or metal objects, which could become incandescent or catch fire.

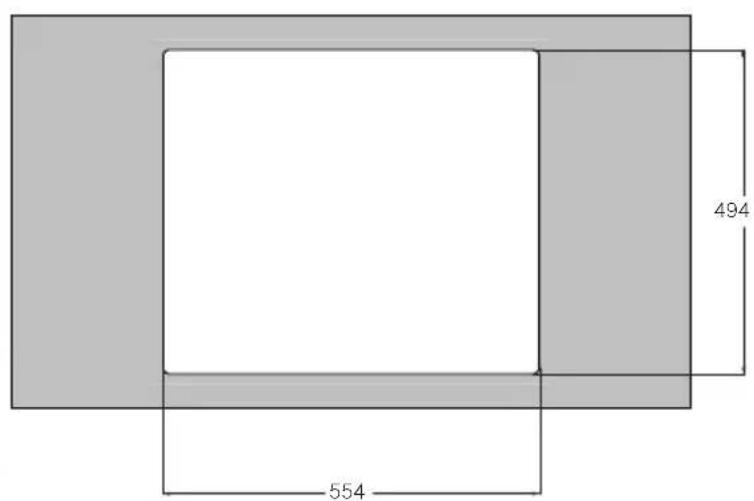

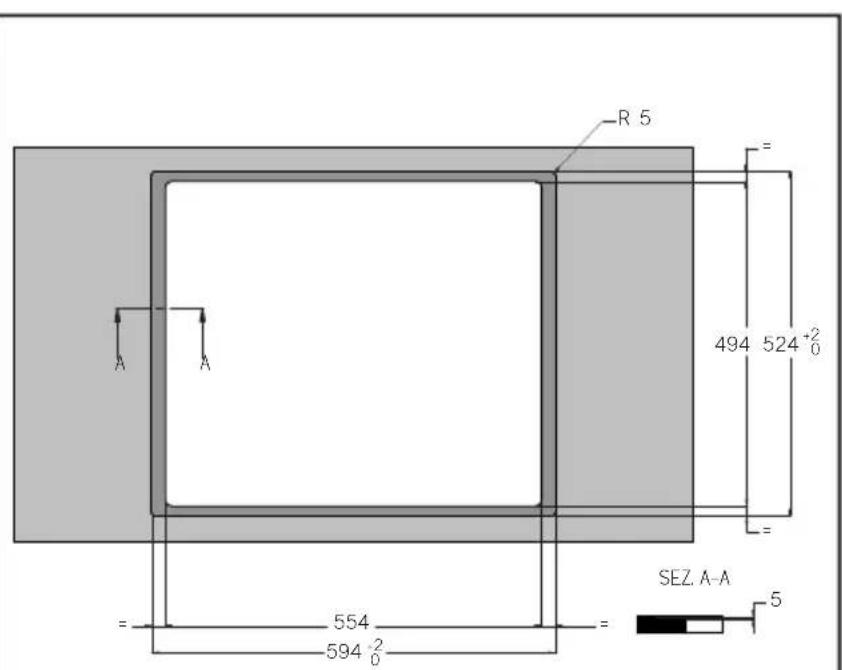

The work surface must be flat and horizontal. Cabinet cut-outs must be made before installing the unit. Remove swarf to avoid impairing the function of electrical components.

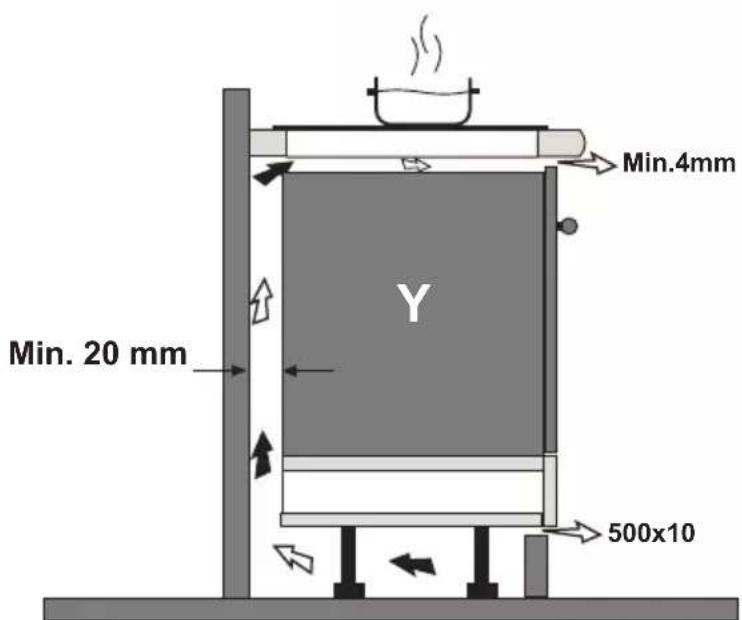

Considering the ventilation of the hob, the following is necessary:
- a distance of 20 mm between the rear of the cabinet and the kitchen wall (Fig. 1-2).
- if the worktop is installed on a drawer, leave 65 mm between the drawer and the top of the worktop (fig.1).
If the hob is mounted behind a cabinet door, operate it only when the door is open.
Only close the cabinet door when the appliance and residual heat indicators are switched off.
If the appliance is installed above an oven or an electric cooker equipped with a pyrolytic system, it should not be operated while the pyrolytic process is in progress, as the cooker overheating protection may be triggered.
The hob must not be installed above the dishwasher, as the steam emitted by the dishwasher could cause the hob's electronic circuit to malfunction.
Do not use any steam appliance, as steam could reach live parts and cause a short circuit.
Any work on or repairs to the appliance during the warranty period must only be carried out by the manufacturer's authorised service centre, otherwise the warranty will be invalidated and immediately void. Under no circumstances will the manufacturer's guarantee be acknowledged for any subsequent problems.
Replace any faulty or defective parts with original spare parts: only these guarantee compliance with safety standards.
Warning for persons with pacemakers: be aware that an electromagnetic field is generated in the immediate vicinity of the device in operation.
The possibility that the functioning of the pacemaker will be affected is very remote. If in doubt, contact the pacemaker manufacturer or your doctor.
Suitable receptacles
Only use pans bearing the symbol.
Important:
to avoid permanent damage to the surface of the table, do not use:
- receptacles with an imperfectly flat base;
- metal receptacles with enamelled bases;
- receptacles with a rough base to avoid scratching the surface of the hob;
- never place hot pots and pans on the surface of the hob control panel.
Not all cookware suitable for induction works efficiently due to bases partly made of ferromagnetic material! When purchasing pots or pans, check that:
- the base is completely made of ferromagnetic material. Otherwise, both heat transmission efficiency and heat uniformity are lowered, resulting in unsuitable pan/pot surface temperatures for cooking.
- The Base does not contain aluminium: it does not heat up and may not even be recognised by the inductors.
- Bases that are not flat or have a rough surface.
They subtract from the contact surface between inductor and dish, lowering its efficiency and worsening the firing experience.
Important: never place hot pots and pans on the surface of the hob control panel, drawn on the hob.
Never use receptacles made of: normal fine steel, glass, terracotta, copper and aluminium.
Do not place any empty receptacles on the cooking zone. It could cause damage.
Pans from which liquids completely evaporate can cause damage to the glass-ceramic hob, for which the manufacturer accepts no liability. Existing receptacles
You can check whether the pan material is magnetic with a simple magnet. Pans are not suitable if they are not magnetically detectable. The indications given in the previous paragraph also apply in this case
Do not place objects such as knives, forks, spoons or lids on the induction hob because they can overheat.
Do not heat closed containers, e.g. tinplate, on cooking zones. The overpressure generated could burst the container.
Inadequate receptacles
Never use receptacles made of: normal fine steel, glass, terracotta, copper and aluminium. Do not place any empty receptacles on the cooking zone. It could cause damage.
Do not place any hot receptacles on the control panel, in the indicator area or on the hob frame. It could cause damage
Danger of failure
P ans from which liquids completely evaporate can cause damage to the glass-ceramic top, for which the manufacturer accepts no liability.
Noise
Induction can generate a slight noise; this is variable depending on the material, the type of pan and the power selected.
When the hob is used frequently, the cooling fan turns on to safeguard the life of the electronics, generating a hum: this is perfectly normal.
First Use
Clean with a damp cloth and dry the hob before using it for the first time.
It is advisable to dry the appliance after cleaning it with a damp cloth to avoid lime residue.
When switching on the appliance for the first time, it is possible that odours or fumes may be generated. With each further use, the odour fades until it disappears completely. Odours and possible fumes are not indicative of incorrect connection or damage to the appliance and are not harmful to health.
Model: POP 60-4
| ZONES Min. pot diameter | |
| 1 90 mm | |
| 2 130 mm | |
DESCRIPTION OF COOKING ZONES
- Induction cooking zone ∅ 145 mm - 1200 W (1600 W in Booster function)
- Induction cooking zone ∅ 210 mm - 1500 W (2000 W in Booster function)
- Touch control
TOUCH-CONTROL DESCRIPTION
- Right front cooking zone (ON/OFF) button
- Key (ON/OFF) front left cooking zone
- Key (ON/OFF) rear left cooking zone
- Right rear cooking zone (ON/OFF) button
- Increment button (power or timer)
- Decrease button (power or timer)
- Child safety button (key lock)
- Cooking timer button
Model: POP 60-4B
| ZONE Min. | pot diameter |
| 1 90 mm | |
| 2 130 mm | |
| 3 110 mm |

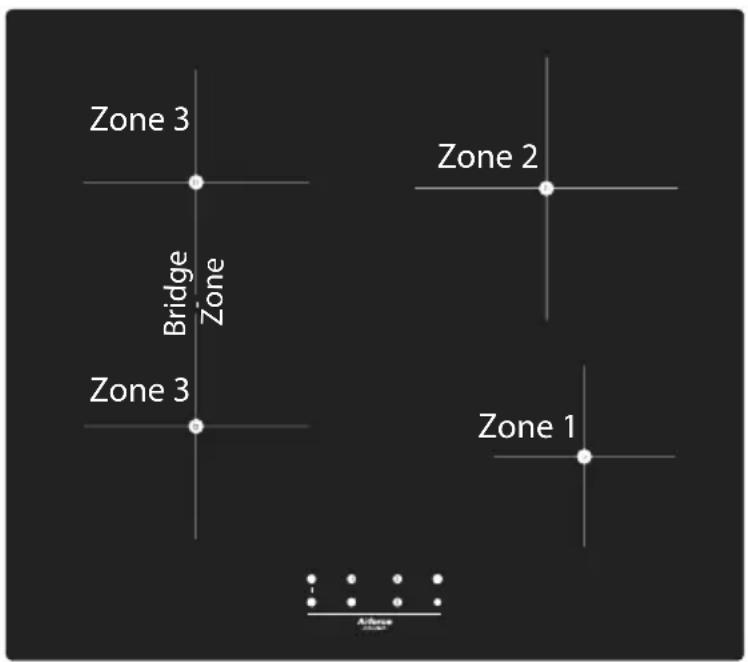

DESCRIPTION OF COOKING ZONES
- Induction cooking zone ∅ 145 mm - 1200 W (1600 W in Booster function)
- Induction cooking zone ∅ 210 mm - 1500 W (2000 W in Booster function)
- Induction cooking zone∅ 180 mm - 1500 W (2000 W in Booster function)
TOUCH-CONTROL DESCRIPTION
- Front right cooking zone (ON/OFF) button
- Front left cooking zone (ON/OFF) button
- Back left cooking zone (ON/OFF) button
- Rear right cooking zone (ON/OFF) button
- Key for increasing (power or timer)
- Key for decreasing (power or timer)
- Child lock button (key lock)
- (ON/OFF) button
OPERATIONEN
Model: POP 60-3

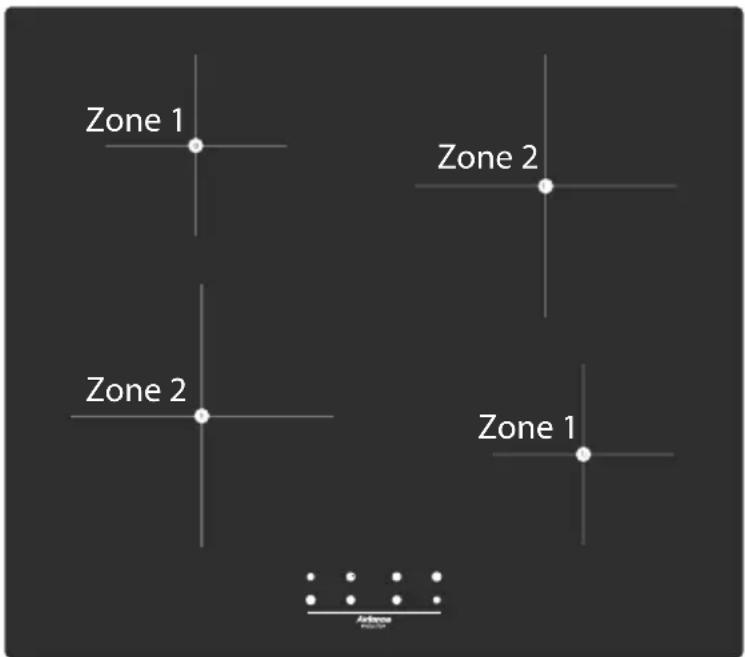

| ZONE Min. | pot diameter |
| 1 90 mm | |
| 2 130 mm | |
| 3 110 mm |

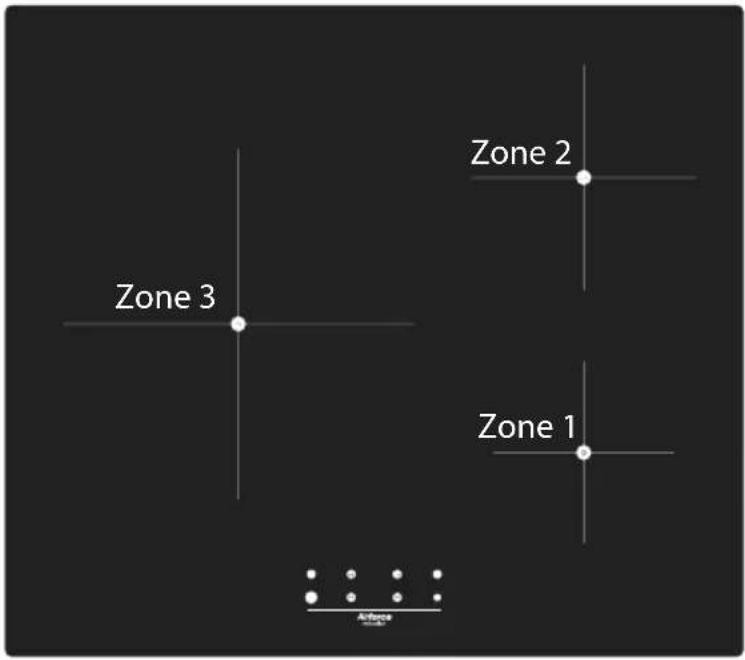

DESCRIPTION OF COOKING ZONES

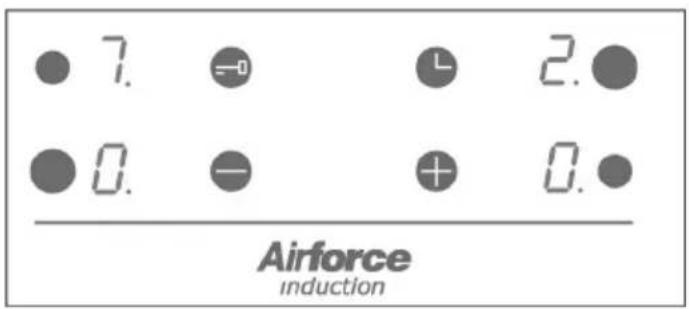

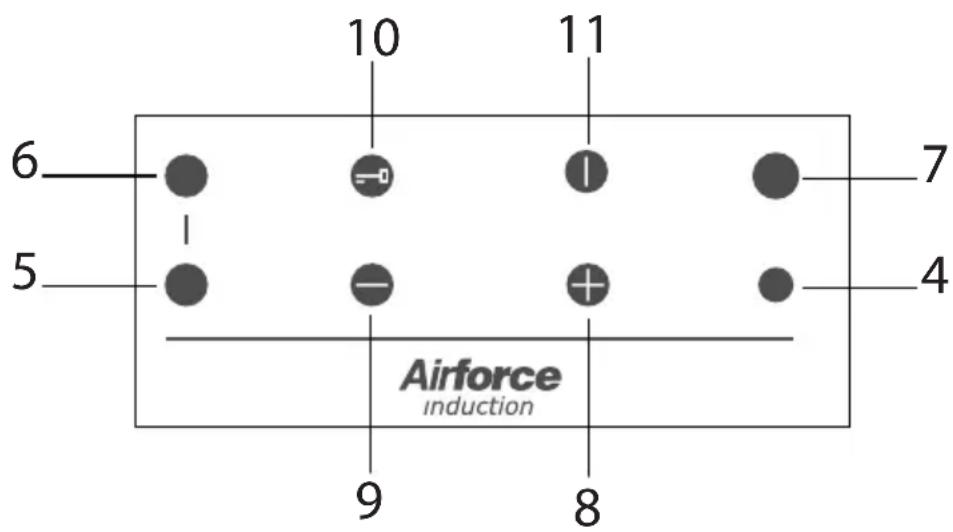

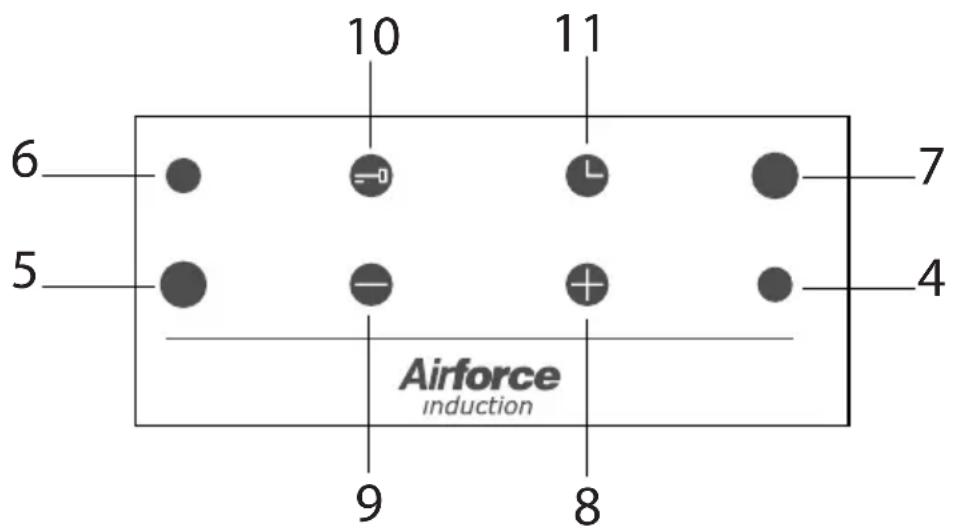

TOUCH-CONTROL DESCRIPTION
- Front right cooking zone (ON/OFF) button
- Left cooking zone (ON/OFF) key
- (ON/OFF) key
7 .Rear right cooking zone (ON/OFF) button - Key for increasing (power or timer)
- Key for decreasing (power or timer)
- Child lock button (key lock)
- Cooking timer button

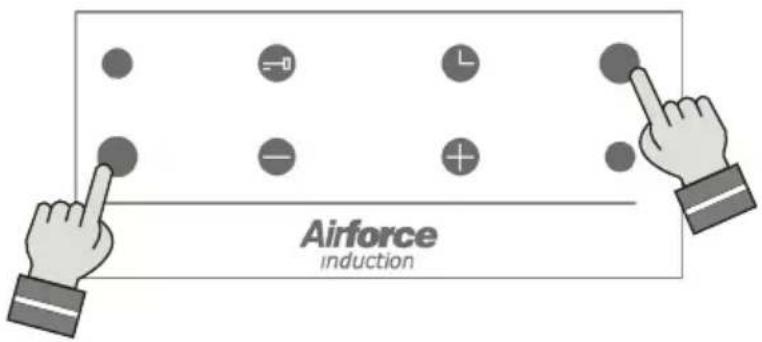

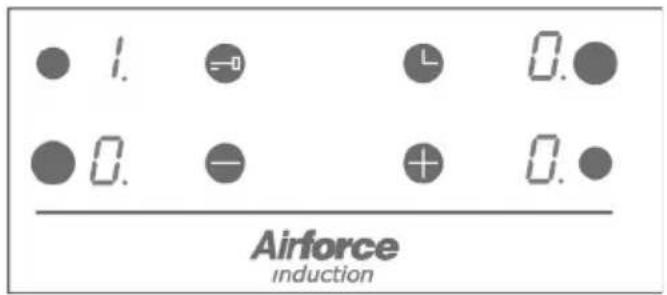

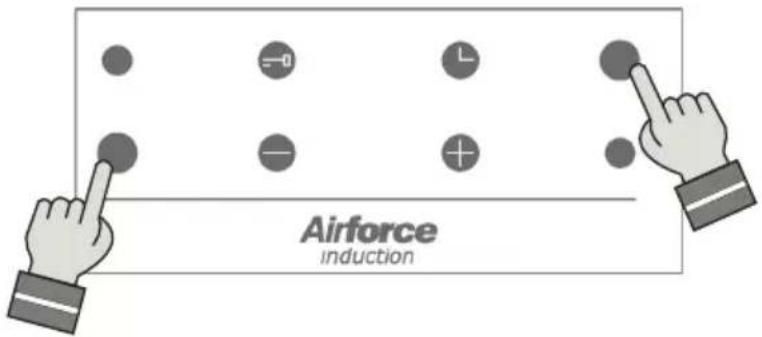

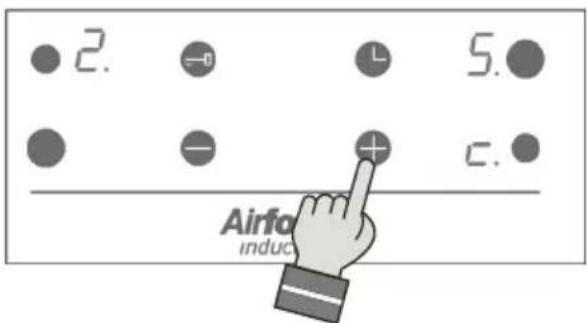

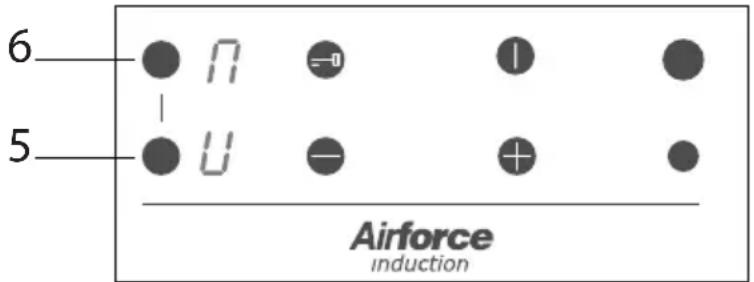

When switched on for the first time and every time the electrical system is switched off and on again, the hob performs a self-diagnosis test for a few seconds, then activates the child lock and
the hob remains locked.
To deactivate this security, press the
Notes:
• Each selection (by pressing one of the buttons) is indicated by a beep.
- Touch controls automatically switch off (and an acoustic signal sounds every 10 seconds):
- if one or more keys are touched continuously for more than 10 seconds;
- if an object is placed on the command area;
- in the event of liquid overflowing onto the control buttons.
POT DETECTION
If no suitable pans are placed or recognised on the various cooking zones, the pot detection function will indicate this lack with the symbol
Therefore, place a pot, suitable in diameter and material, on the cooking zones, as indicated in the section on suitable pots.
The cooking zone will automatically switch off after 1 minute if no pan is recognised.
SWITCHING ON AND ADJUSTING THE POWER OF A COOKING ZONE
To switch on a cooking zone, press the relevant button (button 4-5-6-7). The cooking zone displays "0". If the hob is equipped with a power on/off button, it must be switched on before selecting the desired cooking zone.
Press and hold the + button until the desired power level is reached, from "1" to "9".
Alternatively, press the - key. "P" (highest level) to "1" (lowest level).
The cooking zone can be switched off at any time using the power button of the respective zone (button 4-5-6-7) or press and hold the - button until the display is set to (0).
SIGNALLING OF RESIDUAL HEAT FROM COOKING ZONES
When the cooking zone is switched off (power level "0"), if the cooking zone temperature is too hot to be touched, the display shows "H" and "0" alternating. If the hob is switched off, the residual heat is indicated by a permanently lit 'H'.
Avoid touching the surface of the hob above the cooking zone. Please pay special attention to children.
It is always possible to start cooking again simply by setting the desired power.
"H" is switched off when the temperature of the cooking zone falls below a preset temperature.
BOOSTER FUNCTION (FAST HEATING)
This function allows the selected cooking zone to run at maximum 'Booster' power (above rated power) for up to 10 minutes; it can be used, for example, to quickly heat a large quantity of water.
To activate the booster function, switch on the hob, set power level "9" on the selected cooking zone, then simply press the +key until the display shows "P".
At the end of the 'Booster' programme (10 minutes) the cooking zone is automatically set to power level '9'.
CHILD LOCK
To activate the key lock, tap the button;
the warning light above the button itself will light up for a few seconds. Then, if any key is pressed, the indicator light will come on again for a few seconds to indicate that the key lock is active.
- Cooking zone(s) on (with power level already set): with the key lock active, it is only possible to switch the hob off.
- Hob off: with the key lock active, the hob cannot be used. To use it, the key lock must first be deactivated.
To deactivate the key lock, simply tap the button.
COOKING TIMER
This function allows you to programme the delayed switch-off of the selected cooking zone once a certain time interval (1 to 99 minutes) has elapsed, which can be customised by the user.
- Turn on the cooking zone and set the desired power level.
- Press the timer) button; a beep will sound and the timer display will show '00'. If the timer key is not present, to access this function, press the "+" key and the "-" key simultaneously The cooking zone display shows 't' (timer).
- Within 5 seconds, set the cooking time using the + or - keys to increase or decrease the value.
If the selected time is '00', the timer automatically switches off after 5 seconds, while the zone remains lit.
- The time can be changed at any time by following the same procedure as described above (by first selecting the cooking zone if there are several activated zones).
- To programme another cooking zone, repeat the above.
NOTE: The warning light of the zone closest to the end of the programme remains lit. In the case of only one programmed zone, the warning light is always on.
The automatic switch-off programme is now complete.
At the end of the countdown, the cooking zone will automatically switch off, an acoustic signal (beep) will sound (for one minute only), '00' will flash on the timer display and the cooking zone display shows 't' (timer).
Press the button to reset the timer.
Note: The COOKING TIMER can be cancelled at any time by resetting the timer to "00"
or by pressing the + and - buttons simultaneously (selecting the cooking zone first if there is more than one activated zone).
If no operation is performed, each cooking zone is automatically switched off after a predefined maximum time.
The default maximum time depends on the power level set, as illustrated in this table.
Each operation on the cooking zone using the +, - keys resets the maximum operating time to its initial value.
BRIDGE FUNCTION available only for the POP 60-4B model
Function that allows you to connect two adjacent cooking zones on the hob to each other, thus creating a single large cooking area. It is particularly useful when using large saucepans or saucepans.
To activate and deactivate it, press the connected cooking zones key 5, key 6,:
use the + and - keys to select the desired power level. Note: in BRIDGE mode the BOOSTER function is not available.
| Power | Operating time limit |
| 1 10 hours | |
| 2 10 hours | |
| 3 10 hours | |
| 4 10 hours | |
| 5 10 hours | |
| 6 10 hours | |
| 7 10 hours | |
| 8 10 hours | |
| 9 3 hours | |
| P 10 minutes |
| Power level of the cooking zone | Zone 1 Zone 2 |
| 1 75 W 1 | 00 W |
| 2 175 W | 200 W |
| 3 225 W | 300 W |
| 4 350 W | 500 W |
| 5 500 W | 700 W |
| 6 650 W | 900 W |
| 7 800 W | 1100 W |
| 8 1000 W | 1300 W |
| 9 1200 W | 1500 W |
| P 1600 W | 2000 W |
OPERATIONEN
Only Model: POP 60-4
MAXIMUM POWER MANAGEMENT
There are two options for depowering the product:
Option 1 'High range' (high maximum power)
The maximum hob power limit (7200 W) can be reduced to 2800 W, 3500 W, or 6000 W.
To change the maximum power limit (only within 30 seconds of connection):
- Connect the appliance to the power supply.
- With the key lock deactivated and all cooking zones switched off, press the power button of the front left cooking zone and the power button of the front right cooking zone simultaneously.
- An acoustic signal (beep) sounds and the current maximum power limit set can be read on the display of the rear cooking zones (e.g. rear left cooking zone = "7" and rear right cooking zone = "2": maximum power set = 7200 W).
- Press the + or - buttons to select a new maximum power limit. Then, to set the new maximum power limit (shown on the displays of the rear cooking zones), simultaneously press the power button of the left front cooking zone and the power button of the right front cooking zone. If this does not happen within 60 seconds, the system is automatically reset and the new power limit will not be set.
Option 2 'Low range' (maximum low power)
Caution: If one or more zones are used, cooking times can be extended due to the power management system coming into operation (see section "POWER MANAGEMENT WHEN USING THE HOB"). The maximum power limit of the hob (7200 W) can be reduced to 1000 W, 1600 W, 2200 W or 2800 W.
To change the maximum power limit (only within 30 seconds of connection):
- Connect the appliance to the power supply.
- With the key lock deactivated and all cooking zones switched off, simultaneously press the power button of the front left cooking zone and the power button of the rear right cooking zone.
- An acoustic signal (beep) sounds and the current maximum power setting can be read on the display of the front cooking zones (e.g. rear left cooking zone = "1" and rear right cooking zone = "0": maximum power setting = 1000 W).
- Press the + or - button to select a new maximum power limit. Then, to set the new maximum power limit (shown on the displays of the rear cooking zones), press the power button of the left front cooking zone and the power button of the right rear cooking zone simultaneously. If this does not happen within 60 seconds, the system is automatically reset and the new power limit will not be set.
POWER MANAGEMENT WHEN USING THE HOB
When using one or more cooking zones, if the total power set in the zones is higher than the maximum power limit, an acoustic signal (beep) will sound and the last cooking zone set will show " " for 3 seconds; then the power of that zone will be automatically reduced within the allowed limit.
THERMAL PROTECTION
The induction hob is equipped with safety devices to protect the electronic system and each cooking zone from overheating.
- When the touch controls exceed a preset temperature, the heating elements automatically switch off (the display shows 'F' and 'c' alternating - error message 'Fc'). In this case, allow the hob to cool down before using it again.
OVERHEATING OF THE COOKING ZONE
- Cooking zone off: the cooking zone display shows "H" and "C" alternating or only "C" flashing.
- Cooking zone on: the cooking zone display shows (alternating) the set power level and 'C'.
The cooking zone is not powered.
Let the cooking zone cool down before using it again.
OVERHEATING OF THE INDUCTION GENERATOR
- Cooking zone off: the cooking zone display shows "H" and 'c' alternating or only 'c' flashing.
- Cooking zone on: the cooking zone display shows (alternating) the set power level and "c". The cooking zone is not powered.
Let the cooking zone cool down before using it again.
ERROR CODES IN DISPLAYS
If an error message appears in the display(s) (the display(s) show(s) "F" alternating with another character - e.g. "F" and "A", "F" and "0", .....):
- Switch off the hob and disconnect it from the mains.
- Reconnect the hob and switch it on.
- Wait about two minutes and if the problem is no longer displayed, the hob can be used.
- If the problem does not disappear, repeat steps 1 to 3.
- If the problem persists, disconnect the hob from the mains and contact the Authorised Service Centre.
Important: In case of an error message, "F" and "C" or "F" and "c", see notes above.
DISPLAYS SWITCHED OFF OR NOT FUNCTIONING PROPERLY
If a display or displays are only partially switched on or off.
- Switch off the hob and disconnect it from the mains.
- Reconnect the hob and switch it on.
- Wait about two minutes and if the problem is no longer displayed, the hob can be used.
- If the problem does not disappear, repeat steps 1 to 3.
- If the problem persists, disconnect the hob from the mains and contact the Authorised Service Centre.
Attention :
BESCHRIJVING TOUCH-CONTROL BEDIENINGEN
| ZONE Min. | diameter pan |
| 1 90 mm | |
| 2 130 mm | |
| 3 110 mm |
BESCHRIJVING KOOKZONES
BESCHRIJVING TOUCH-CONTROL BEDIENINGEN
| ZONE Min. | diameter pan |
| 1 90 mm | |
| 2 130 mm | |
| 3 110 mm |
BESCHRIJVING KOOKZONES
BESCHRIJVING KOOKZONES
THERMISCHE BESCHERMING
DISPLAYS UITGESCHAKELD OF NIET GOED WERKEND
- Fondos no planos o superficies rugosas.

