Product type	Pond / fountain pump
Brand	Waldbeck
Model	Lagoon 4500
Power supply	220 V ~ 50 Hz
Power	30 W
Max head height	4 m
Max flow rate	4500 litres/hour
Recommended use	Freshwater ponds, waterfalls, fountains, aquarium filters
Installation depth	At least 20 cm, maximum 4.8 m below surface
Housing material	Not specified (estimated robust plastic)
Dry run protection	Never run without water
Filtration	Removable filter basket to protect the pump
Flow adjustment	Adjustable nozzle (blue button)
Regular maintenance	Clean filter basket and impeller
Winter storage	Remove from water, store frost-free in a water container to prevent O-ring drying
Safety	Do not open motor housing; risk of electric shock
Included accessories	Adjustable nozzle, filter basket, pump housing, rotor assembly, O-ring, bearing, fittings (3/4" to 1", adapter, 1 1/4")
Manufacturer	Chal-Tec GmbH, Wallstraße 16, 10179 Berlin, Germany

Frequently Asked Questions - Lagoon 4500 Waldbeck

How to install the Lagoon 4500 pump?

Attach a tow rope to the pump. Connect appropriate hoses. Install the pump at least 20 cm and maximum 4.8 m below water surface. Do not place it in mud. Protect the power cord. Connect to 220V power supply.

What is the maximum flow rate of the pump?

The maximum flow rate is 4500 liters per hour (4.5 m³/h).

What is the maximum head height?

The maximum head height is 4 meters.

Can I run the pump without water?

No, never run the pump dry. This could damage the motor. Ensure the pump is submerged or water is circulating.

How to clean the filter basket?

Turn the filter basket as indicated to remove it. Clean it thoroughly with clean water. Replace it by turning in the opposite direction. A clean filter basket ensures optimal flow.

What to do if the pump makes a loud or unpleasant noise?

Check that the filter housing is not blocked or the shaft is not damaged. Remove any blockage. If the ceramic shaft is worn, replace it or its support.

How to adjust the water flow?

Use the blue button on the adjustment nozzle to regulate the flow speed. Turn it to increase or decrease the flow.

How to store the pump in winter?

Remove the pump from water. Clean it thoroughly. Store it in a frost-free environment, ideally in a container filled with water to prevent the O-ring from drying out.

What are important safety precautions?

Do not remove any covers. Do not touch the plug with wet hands. Use only approved accessories. Have repairs done by a professional. Do not place heavy objects or liquids on the device.

What to do if the pumping power is insufficient?

Check that the valve is open and clean. Clean the filter basket if clogged. Replace the impeller if damaged. Ensure the power supply voltage is correct (220V).

USER MANUAL Lagoon 4500 Waldbeck

Member of Berlin Brands Group

Handwerkerstr. 11

15366 Dahlwitz-Hoppegarten

Deutschland

Berlin Brands Group UK Ltd

PO Box 1145

Oxford,OX1 9UW

United Kingdom

Dear Customer,

Congratulations on purchasing this equipment. Please read this manual carefully and take care of the following hints to avoid damages. Any failure caused by ignoring the items and cautions mentioned in the instruction manual is not covered by our warranty and any liability. Scan the QR code to get access to the latest user manual and other information about the product.

CONTENT

Safety Instructions 12
Product Overview 13
Initial Use / Maintenance 14
Troubleshooting 15
Disposal Considerations 16
Manufacturer & Importer (UK) 16

TECHNICAL DATA

Item Lagoon 3000 Lagoon	4500
Power supply 220 V ~ 50 Hz 220 V ~ 50 Hz
Power consumption 10 W	30 W
Maximum head 2 m 4 m
Flow rate 3000 Liter/hour	4500 Liter/hour

Item Lagoon 3600 Lagoon	5600
Power supply 220 V ~ 50 Hz 220 V ~ 50 Hz
Power consumption 20 W	40 W
Maximum head 2.8 m 4.8 m
Flow rate 3600 liter/hour	5200 liter/Hour

SAFETY INSTRUCTIONS

• Read all instructions before using.
• Do not let the cord hang over edge of table counter or touch hot surface.
• If liquid penetrates inside the battery housing, unplug the appliance and have it checked by a qualified technician before it is used again.
• Do not place the appliance close to heating equipment or any heat source, or in a location subjected to excessive dust or mechanical shocks.
• Do not expose the appliance to extreme temperatures. The appliance shall be used in moderate climates.
• The use of attachments that are not recommended by the appliance manufacturer may result in fire, electric shock or personal injury.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliances by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with the appliance.
• The appliance is not a toy. Do not let the children play it. Never let children insert foreign objects into the appliance.
• Do not use the appliance for other than intended use. This appliance has been designed solely for domestic use; the manufacturer's liability shall not be engaged in the event of any professional use, by any misuse or by any use not complying with the operating instructions.
• Any altering of the product itself or changing of the components is forbidden.
• Do not connect the pump to any AC voltage power, it is intended ONLY for DC Voltage power.
• Operate in freshwater only (never above 50^ ).
• Do not strike the solar panel.
• Do not let the pump run dry.

WARNING

Risk of injury! Never open the motor housing, otherwise there is a danger to life.

PRODUCT OVERVIEW

EN

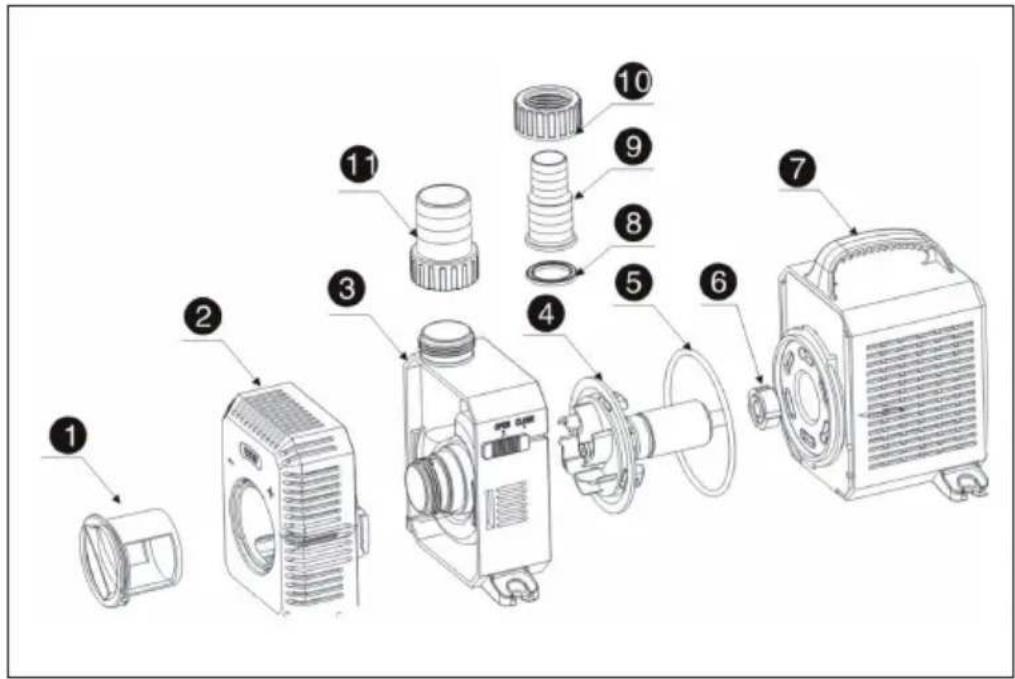

1 Adjuster 7 Motor body
2 Filter basket 8 Washer
3 Pump housing 9 3/4" - > 1" Outlet
4 Rotor subassembly 10 Outlet nut
5 O-Ring 11 1 1/4" Outlet
6 Bearing

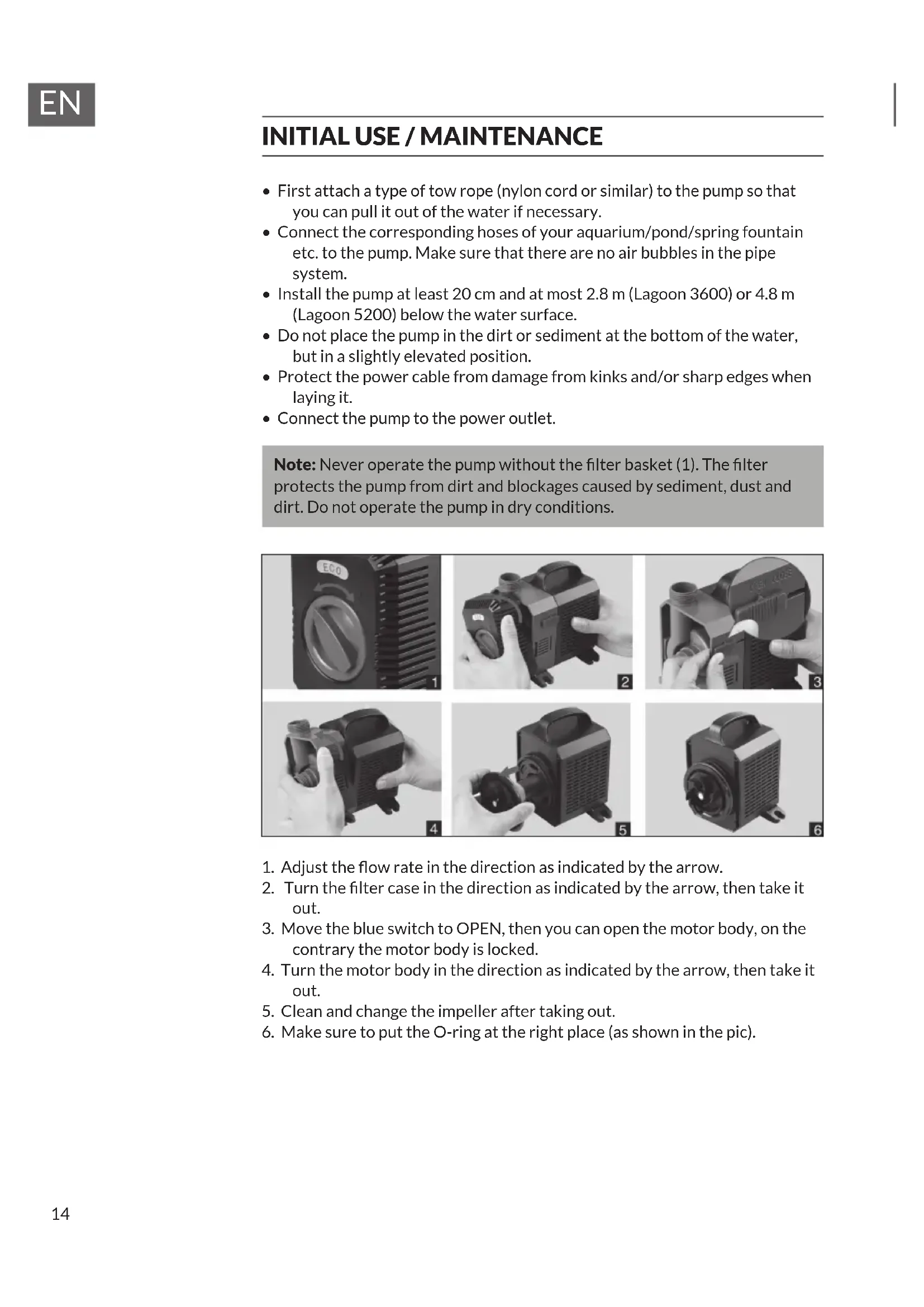

• First attach a type of tow rope (nylon cord or similar) to the pump so that you can pull it out of the water if necessary.
• Connect the corresponding hoses of your aquarium/pond/spring fountain etc. to the pump. Make sure that there are no air bubbles in the pipe system.
• Install the pump at least 20cm and at most 2.8m (Lagoon 3600) or 4.8m (Lagoon 5200) below the water surface.
• Do not place the pump in the dirt or sediment at the bottom of the water, but in a slightly elevated position.
• Protect the power cable from damage from kinks and/or sharp edges when laying it.
• Connect the pump to the power outlet.

Note: Never operate the pump without the filter basket (1). The filter protects the pump from dirt and blockages caused by sediment, dust and dirt. Do not operate the pump in dry conditions.

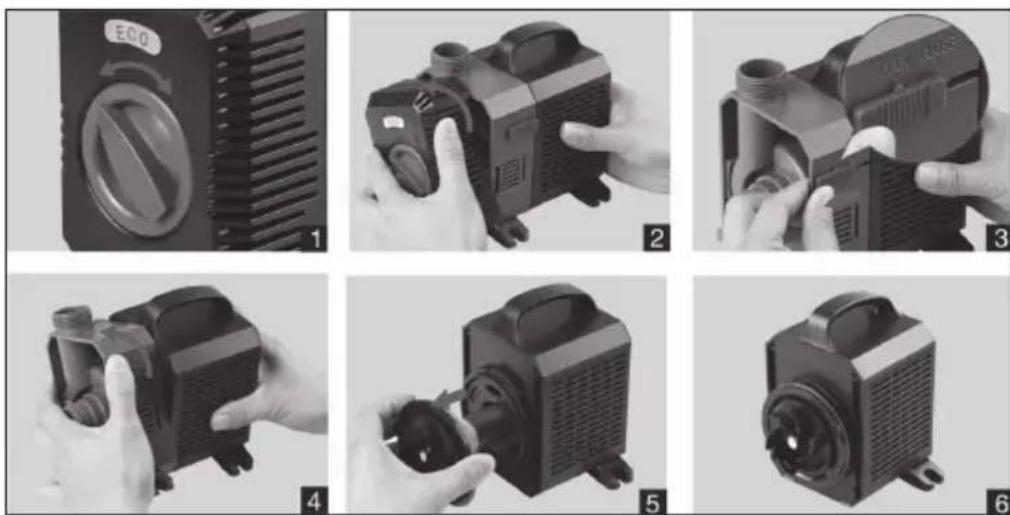

1. Adjust the flow rate in the direction as indicated by the arrow.
2. Turn the filter case in the direction as indicated by the arrow, then take it out.
3. Move the blue switch to OPEN, then you can open the motor body, on the contrary the motor body is locked.
4. Turn the motor body in the direction as indicated by the arrow, then take it out.
5. Clean and change the impeller after taking out.
6. Make sure to put the O-ring at the right place (as shown in the pic).

Note: In winter, take the pump out of the water and store it in a frost-free environment, if possible in a container filled with water, to prevent the O-ring from drying out and. Clean the pump carefully and check for any damage after reassembly.

TROUBLESHOOTING

Problem Possible cause S	Suggested solution
Pump does not work. No power.	er. Plug in.
	Burned. Allow device to cool	down.
	Rotor is blocked. Clear blockages.
	Running without water. Plug	in again and add water.
Noise. Filter housing is blocked	ed or shaft is broken.	Clean blockages after opening.
	Ceramic shaft or bearing: Wearing occurs.	Change the shaft or bearing.
Insufficient water displacement.	Impeller broken. Change impeller.
	Flow rate valve closed. Open	the flow rate valve.
	Filter housing is clogged. Clean blockages and plug in.
	Low voltage. Change to right	voltage.

DISPOSAL CONSIDERATIONS

If there is a legal regulation for the disposal of electrical and electronic devices in your country, this symbol on the product or on the packaging indicates that this product must not be disposed of with household waste. Instead, it must be taken to a collection point for the recycling of electrical and electronic equipment. By disposing of it in accordance with the rules, you are protecting the environment and the health of your fellow human beings from negative consequences. For information about the recycling and disposal of this product, please contact your local authority or your household waste disposal service.

MANUFACTURER & IMPORTER (UK)

Manufacturer:

Chal-Tec GmbH, Wallstrasse 16, 10179 Berlin, Germany.

Importer for Great Britain:

Berlin Brands Group UK Ltd

PO Box 1145

Oxford,OX1 9UW

United Kingdom
