Product type	Pond pump
Brand	Waldbeck
Model	Fontanica S65
Power supply	220 V ~ 50 Hz
Power	65 W
Max delivery height	3.5 m
Max flow rate	4500 liters/hour
Max immersion depth	2.5 m (according to nameplate)
Permissible water temperature	Below 50 °C
Intended use	Ponds, waterfalls, fountains, aquarium filters
Flow adjustment	Via blue regulating valve
Filtration	Removable filter basket and filter sponge
Housing material	Plastic (estimate)
Cable length	Approx. 5 m (estimate)
Weight	Approx. 2 kg (estimate)
Dimensions (L x W x H)	Approx. 20 x 15 x 15 cm (estimate)
Maintenance	Regular cleaning of rotor and filters
Winter storage	Remove from water, store frost-free in a water container
Safety	Do not open the housing, unplug during storms or when not in use
Spare parts	Rotor, O-ring, filter baskets, impeller (replaceable)
Warranty	Manufacturer's standard (subject to change)

Frequently Asked Questions - Fontanica S65 Waldbeck

How to install the Fontanica S65 pump in a pond?

Place the pump slightly above the bottom to avoid sediment. Connect suitable hoses to your pond. Make sure there are no air bubbles in the system. Then plug it into a 220 V outlet.

How to adjust the water flow of the pump?

The flow is adjusted via the blue regulating valve on the pump. Turn the valve to increase or decrease the flow as needed.

What to do if the pump does not start?

First check the power supply. If power is present, let the pump cool down if overheated. Also check that the rotor is not blocked and that there is enough water.

How to clean the filter of the Fontanica S65 pump?

Unscrew the cap nut, press the lock and remove the filter basket, filter sponge, and large basket. Clean them with clean water. Reassemble in reverse order.

Can I use the pump out of water?

No, never run the pump dry. It must always be submerged in water, otherwise the rotor and motor may be damaged.

How to store the pump in winter?

Remove the pump from the water and store it in a frost-free environment, ideally in a container filled with water to prevent the O-ring from drying out.

What to do if the water flow is insufficient?

Check that the regulating valve is open and not blocked. Clean the filter basket. If the problem persists, the impeller may be damaged and needs to be replaced.

The pump makes an abnormal noise, what to do?

This may be due to a blocked filter housing or a damaged shaft. Clean the filter and check the rotor condition. If the ceramic rod is worn, replace it.

What are the important safety instructions?

Never open the motor housing (risk of electric shock). Do not place heavy objects on the device. Unplug during storms or prolonged non-use. Only use parts approved by the manufacturer.

What is the difference between the Fontanica S45 and S65 models?

The S65 has a power of 65 W versus 45 W for the S45, a flow rate of 4500 L/h versus 2500 L/h, and a delivery height of 3.5 m versus 2.5 m.

USER MANUAL Fontanica S65 Waldbeck

Congratulations on purchasing this equipment. Please read this manual carefully and take care of the following hints to avoid damages. Any failure caused by ignoring the items and cautions mentioned in the instruction manual is not covered by our warranty and any liability. Scan the QR code to get access to the latest user manual and other information about the product.

CONTENT

Safety Instructions 10
Product Overview 11
Initial Use / Maintenance 12
Troubleshooting 13
Hints on Disposal 14

TECHNICAL DATA

Item Fontanica S45 Fontanica S65 Nemesis T45
Power supply 220 V ~ 50 Hz
Power consumption 45 W	65 W 45 W
Maximum head 2,5 m 3,5 m	m 2,5 m
Flow rate 2500 liter/hour	4500 liter/hour 2700 liter/hour

SAFETY INSTRUCTIONS

• Read all instructions before using.
• Do not let the cord hang over edge of table counter or touch hot surface.
• If liquid penetrates inside the battery housing, unplug the appliance and have it checked by a qualified technician before it is used again.
• Do not place the appliance close to heating equipment or any heat source, or in a location subjected to excessive dust or mechanical shocks.
• Do not expose the appliance to extreme temperatures. The appliance shall be used in moderate climates.
• The use of attachments that are not recommended by the appliance manufacturer may result in fire, electric shock or personal injury.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliances by a person responsible for their safety.
  Children should be supervised to ensure that they do not play with the appliance.
• The appliance is not a toy. Do not let the children play it. Never let children insert foreign objects into the appliance.
• Do not use the appliance for other than intended use. This appliance has been designed solely for domestic use; the manufacturer's liability shall not be engaged in the event of any professional use, by any misuse or by any use not complying with the operating instructions.
• Any altering of the product itself or changing of the components is forbidden.
• Do not connect the pump to any AC voltage power, it is intended ONLY for DC Voltage power.
• Operate in freshwater only (never above 50^ircC ).
• Do not strike the solar panel.
• Do not let the pump run dry.

WARNING

Risk of injury! Never open the motor housing, otherwise there is a danger to life.

Note: The device overview is only an example. The actual package contents of your product may differ.

1 Top part 1
2 Top part 2
3 Flexible pipe
4 Press nut
5 Connecting flange
6 Gasket
7 Outlet
8 Outletnut
9 Tee adjuster
10 Filter basket
11 Filter sponge
12 Big filter basket
13 Fastening nail
14 Adjuster
15 Pump housing
16 Bearing
17 Axle
18 Rotor subassembly
19 0-ring
20 Motor body
21 Bottom
22 Rubber feet

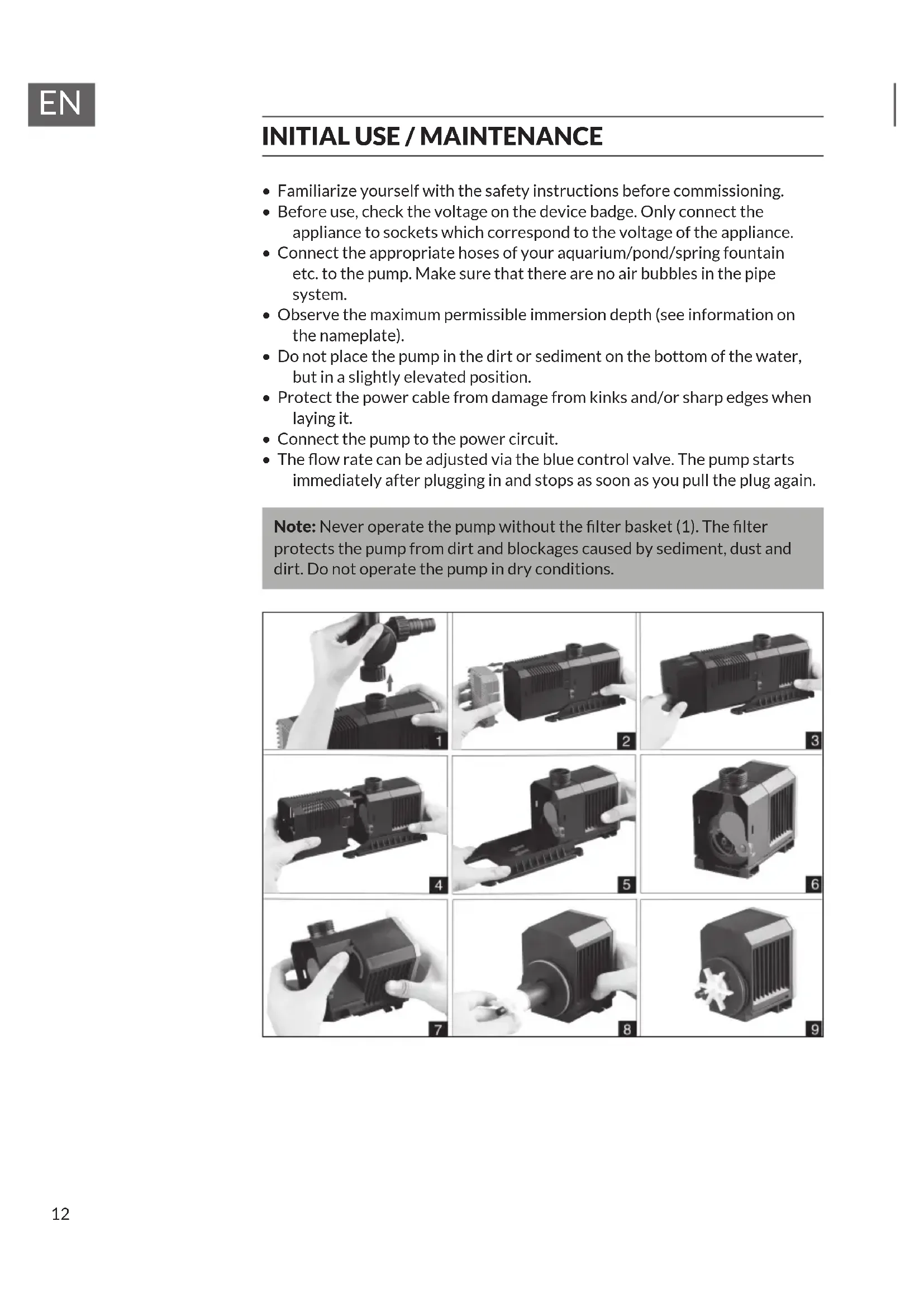

• Familiarize yourself with the safety instructions before commissioning.
• Before use, check the voltage on the device badge. Only connect the appliance to sockets which correspond to the voltage of the appliance.
• Connect the appropriate hoses of your aquarium/pond/spring fountain etc. to the pump. Make sure that there are no air bubbles in the pipe system.
• Observe the maximum permissible immersion depth (see information on the nameplate).
• Do not place the pump in the dirt or sediment on the bottom of the water, but in a slightly elevated position.
• Protect the power cable from damage from kinks and/or sharp edges when laying it.
• Connect the pump to the power circuit.
• The flow rate can be adjusted via the blue control valve. The pump starts immediately after plugging in and stops as soon as you pull the plug again.

Note: Never operate the pump without the filter basket (1). The filter protects the pump from dirt and blockages caused by sediment, dust and dirt. Do not operate the pump in dry conditions.

1. Unscrew the union nut.
2. Press the lock and remove the filter basket.
3. Press the lock and remove the filter sponge.
4. Press the lock and remove the large filter basket.
5. Remove the bottom.
6. The flow rate can now be adjusted via the blue control valve.
   7 Turn the motor housing and then remove it.
7. Remove the rotor and clean it.
8. Make sure that the o-ring is always in the correct position, as shown in figure 7.

Note: In winter, take the pump out of the water and store it in a frost-free environment, if possible in a container filled with water, to prevent the O-ring from drying out and. Clean the pump carefully and check for any damage after reassembly.

TROUBLESHOOTING

Problem Possible cause Suggested solution
Pump does not work. No power. Plug in.
		Burned. Allow device to cool down.
		Rotor is blocked. Clear blockages.
		Running without water. Plug in again and add water.
Noise. Filter housing is blocked or shaft is broken.		Clean blockages after opening.
		Ceramic shaft or bearing: Wearing occurs.
Insufficient water displacement.	Impeller broken. Change impeller.
	Flow rate valve closed. Open the flow rate valve.
	Filter housing is clogged. Clean blockages and plug in.
	Low voltage. Change to right voltage.

HINTS ON DISPOSAL

According to the European waste regulation 2012/19/EU this symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local council or your household waste disposal service.

DECLARATION OF CONFORMITY

Producer:

Chal-Tec GmbH, Wallstraße 16, 10179 Berlin, Germany.

This product is conform to the following European Directives:

2014/30/EU (EMC)

2014/35/EU (LVD)

2011/65/EU (RoHS)
