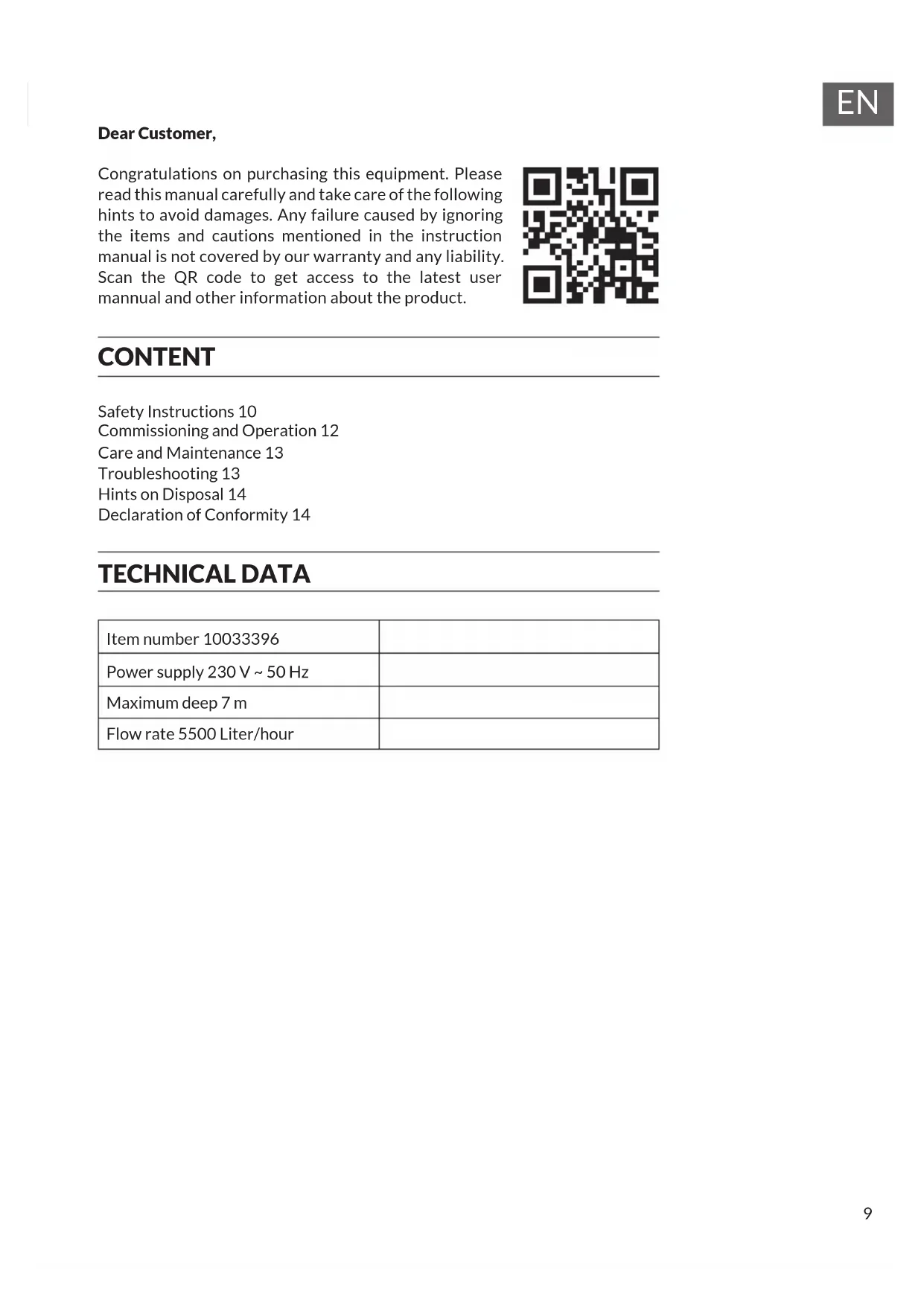

Congratulations on purchasing this equipment. Please read this manual carefully and take care of the following hints to avoid damages. Any failure caused by ignoring the items and cautions mentioned in the instruction manual is not covered by our warranty and any liability. Scan the QR code to get access to the latest user manual and other information about the product.

QR code image containing encoded data, no visible human-readable text

CONTENT

Safety Instructions 10

Commissioning and Operation 12

Care and Maintenance 13

Troubleshooting 13

Hints on Disposal 14

Declaration of Conformity 14

TECHNICAL DATA

Item number 10033396
Power supply 230 V ~ 50 Hz
Maximum deep 7 m
Flow rate 5500 Liter/hour

SAFETY INSTRUCTIONS

General information

- In order to avoid personal injury and damage to the device from the outset, we recommend that persons who are not familiar with the device read these instructions carefully before using it. There is no warranty or guarantee for damage caused by non-observance.

- As a user, you may be liable to third parties for damage caused by the use of the device or by the device.

- As the user, you are responsible for compliance with local safety and installation regulations.

- Only authorized workshops and their specialist personnel may repair the devices. Only original spare parts may be used. If you attempt to repair the unit yourself, there is no warranty or guarantee.

- If the pump is defective, remove the plug from the socket. If the pump is still connected to the mains, electric shocks may occur. There is an acute risk of personal injury and other damage to the unit.

- In case of prolonged standstill or danger of frost, the pump and the hoses must be dismantled. Carry out a cleaning. It is recommended that the pump be vented as necessary and rinsed with clear water. Ensure that the pump is stored dry and protected from frost.

- Never wrap the pump, especially the motor block, with a blanket or cloth during operation to prevent the water from freezing. Any resulting fire or damage is not covered by the warranty.

- Frost damage is not covered by the warranty.

- If persons or animals are in the water, the pump must not be operated.

- If the mains cable or the plug is damaged due to external influences, the cable must not be repaired! The cable must be replaced with a new one. This work must only be carried out by a qualified electrician.

Instructions for proper use

• This device has been designed for domestic use. This clear water pump is suitable for dirt particles up to 1 mm grain size. Under no circumstances may the device be used in commercial or industrial areas or for purposes other than those described.
• This device is used exclusively for water extraction, drainage and pumping out the garden pond or cellar. The temperature of the water must not exceed 35 °C.
• It is strictly forbidden to transport aggressive, corrosive, flammable (e.g. motor oil) or explosive liquids as well as salt water, cleaning agents or food with this pump. Any violation will immediately void the warranty and may result in serious injury or damage. The pump is not suitable for commercial use.
• The submersible pressure pump they use is intended for pumping water at a maximum temperature of 35^ C. This pump must not be used for other liquids, in particular motor fuels, cleaning agents and other chemical products.
• This pump is particularly suitable as a cistern pump. Installed in a shaft, this pump provides protection against flooding. But it can also be used wherever water has to be pumped around.

Installation instructions

• The submersible pressure pump is installed either stationary with a fixed pipe or stationary with a flexible hose.
• During installation, it must be ensured that the pump is never mounted freely suspended from the pressure line or power cable. The submersible pressure pump must be suspended from the handle provided for this purpose or rest on the floor of the shaft. To ensure that the pump functions properly, the shaft bottom must always be free of sludge or other impurities. If the water level is too low, the sludge in the shaft can dry up quickly and prevent the pump from starting. It is therefore necessary to check the submersible pressure pump regularly (carry out start-up attempts). The float switch is set in such a way that immediate commissioning is possible.
• The pump shaft should be at least 60x60x50 cm so that the float switch can move freely.

COMMISSIONING AND OPERATION

Note: Long enough and strong ropes should be attached to the handle before the first use. When the pump is immersed into the liquid, the rope along with a handle can be used to balance the pump.

After you have read these installation and operating instructions carefully, you can put your new pump into operation by observing the following points:

• Check that the pump rests on the ground.
• Check that the pressure line has been properly installed.
• Make sure that the electrical connection is 230 V \~ 50 Hz.
• Check the proper condition of the electrical outlet.
• Make sure that moisture or water never reaches the mains connection.

Note: The pump must not run dry! When setting the float switch, make sure that it does not touch the ground before switching off the pump.

Check the functionality of the float switch

The switch-on or switch-off point is determined by the height of the water level. The switching differential can be set universally by lengthening or shortening the float cable. The integrated float switch is already set so that the pump can be operated immediately. If you use the pump stationary, you must check the function of the float switch regularly, but at least every 3 months.

• You must position the float switch so that you can reach the switching point heights „On“ and „Off“ with relatively little effort. To check this, place the pump in a container filled with water and carefully lift the float switch by hand and lower it again. The pump must switch itself on or off.
• Always ensure that the distance between the head of the float switch and the float switch grid is not too small. If the distance is too small, proper operation cannot be guaranteed.
• When setting the float switch, also make sure that it does not touch the ground before switching off the pump.

CARE AND MAINTENANCE

The submersible pressure pump is a maintenance-free and proven quality product that is subjected to strict final inspections. However, for a long service life and perfect operation, we recommend regular inspection and maintenance.

• Disconnect the mains plug before maintenance and cleaning.
• If transportable, clean the pump with clear water after each use.
• For stationary installation it is recommended to check the function of the float switch every 3 months.
• Remove fluff and fibrous particles that may have settled in the pump housing with a water jet.
• At the latest every 3 months, remove sludge from the shaft floor and also clean the shaft walls. This depends on the degree of contamination.

- Clean the float switch of deposits with clear water.

- If the connecting cable is damaged, it must be replaced by the manufacturer or its customer service or a similar qualified person in order to avoid hazards!

Storage

• Clean the pump before storage.
• Store the pump in a dry and frost-free room out of the reach of children.
• If you wish to store the pump for a longer period of time, you must clean the unit thoroughly after the last operation and before using it again. Otherwise, residues or deposits may cause start-up problems.

TROUBLESHOOTING

Problem Possible Cause Suggested Solution
Pump does not start. Mains voltage is missing. Check mains voltage.
Pump does not pump. Screen clogged. Clean sieve with water jet.
Pump does not switch off. Float switch cannot sink. Place the pump correctly on the ground shaft.
Delivery insufficient. Inlet sieve blocked. Clean the sieve.
		Pump performance reduced by heavily polluted water.
Pump switches off after short running time.	Motor protection switches the pump off due to excessive water contamination.	Pull out the mains plug and clean the pump and shaft.
	Water temperature too high (motor protection switches off).	Make sure that the maximum water temperature is 35 °C.

HINTS ON DISPOSAL

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

According to the European waste regulation 2012/19/EU this symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local council or your household waste disposal service.

DECLARATION OF CONFORMITY

Producer:

Chal-Tec GmbH, Wallstraße 16, 10179 Berlin, Germany.

This product is conform to the following European Directives:

2014/30/EU (EMC)

2014/35/EU (LVD)

2011/65/EU (RoHS)
