USER MANUAL HO110712 Emerio

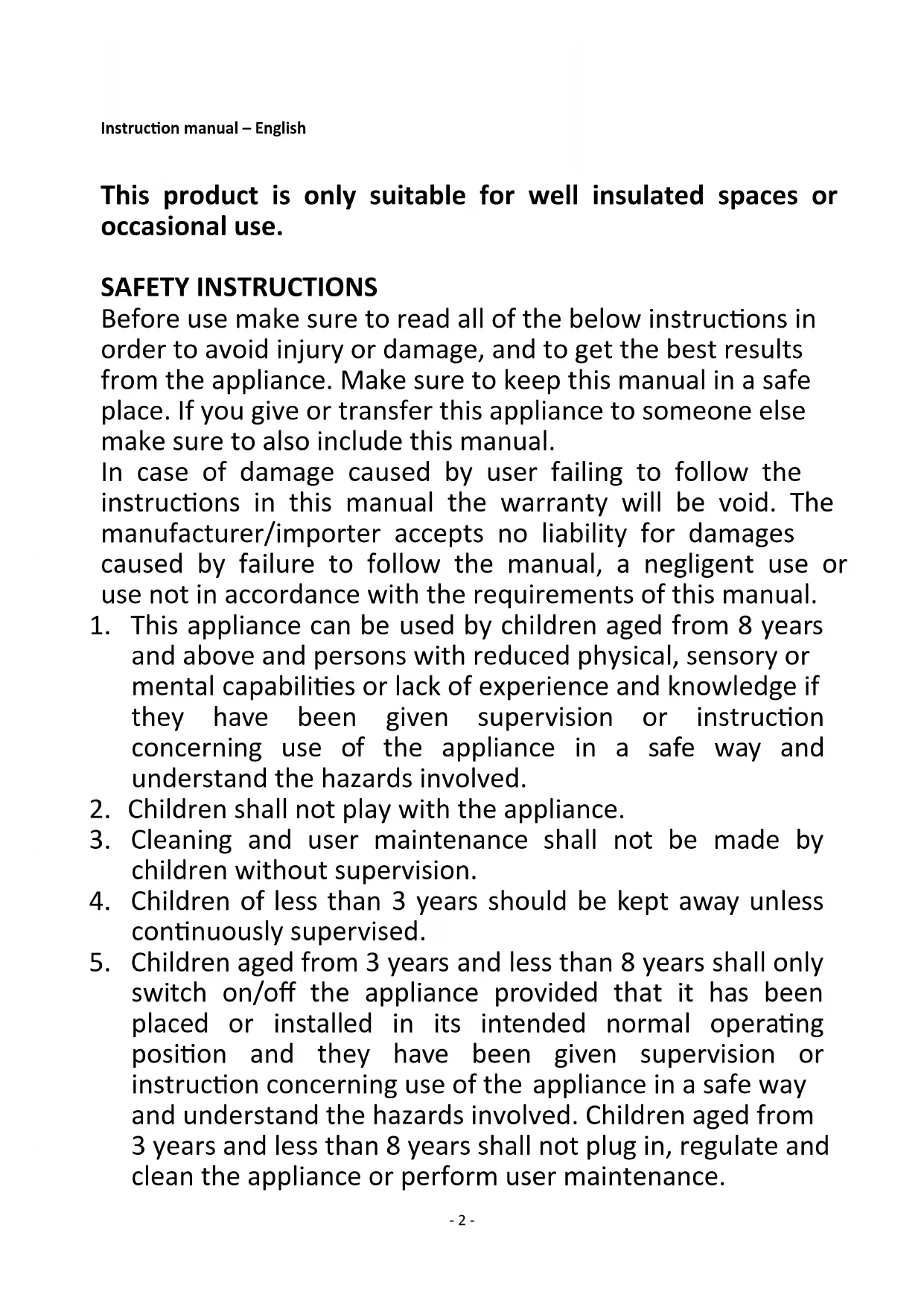

1. This appliance can be used by children aged from 8 years

and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

2. Children shall not play with the appliance.

3. Cleaning and user maintenance shall not be made by

children without supervision.

4. Children of less than 3 years should be kept away unless

continuously supervised.

5. Children aged from 3 years and less than 8 years shall only

switch on/off the appliance provided that it has been placed or installed in its intended normal operating position and they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children aged from 3 years and less than 8 years shall not plug in, regulate and clean the appliance or perform user maintenance.- 3 -

6. CAUTION — some parts of this product can become very

hot and cause burns. Particular attention has to be given where children and vulnerable people are present.

7. If the supply cord is damaged, it must be replaced by the

manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

8. WARNING: In order to avoid overheating, do not cover the

9. The heater must not be located immediately below a

10. Do not use this heater in the immediate surroundings of a

bath, a shower or a swimming pool.

11. This heater is filled with a precise quantity of special oil.

Repairs requiring opening of the oil container are only to be made by the manufacturer or his service agent who should be contacted if there is an oil leak; when scrapping the heater, follow the regulations concerning the disposal of oil.

12. Means “DO NOT COVER “.

13. Before inserting the plug into the mains socket, please

check that the voltage and frequency comply with the specifications on the rating label.

14. Disconnect the mains plug from the socket when the

appliance is not in use and before cleaning.

15. Ensure that the mains cable is not hung over sharp edges

and keep it away from hot objects and open flames.

16. Do not immerse the appliance or the mains plug in water

or other liquids. There is danger to life due to electric shock!

17. To remove the plug from the plug socket, pull the plug. Do

not pull the power cord.

18. Do not touch the appliance if it falls into water. Remove

the plug from its socket, turn off the appliance and send it to an authorized service center for repair.- 4 -

19. Do not plug or unplug the appliance from the electrical

outlet with a wet hand.

20. Never attempt to open the housing of the appliance, or to

repair the appliance yourself. This could cause electric shock.

21. Never leave the appliance unattended during use.

22. This appliance is not designed for commercial use.

23. Do not use the appliance for other than intended use.

24. Do not wind the cord around the appliance and do not

25. The oil heater may only be used in the upright position.

26. The unit must be positioned away from flammable or

easily deformable objects during use.

27. Place the oil heater on the floor at least 90 cm away from

the wall and any other objects, such as furniture, curtains or plants.

28. The surface temperature of the appliance is high; do not

touch it, only at the handle.

29. This heating device is not suitable for assembling in

vehicles and machines.

30. Regarding the information for the assembly of base

support, please refer to the below paragraph of the manual.- 5 - HO-110712 EN

1. Assemble the four wheels to the two base shelves.

2. Turn the heater upside down.

3. Position the wheel base assemblies between the end fins.

4. Traverse the clips through the appliance body and base shelves.

5. Tighten the screw.

Using the Appliance Set the thermostat knob to the minimal position and insert the plug to the power supply. Press the power switch: I=1000W; II=1500W; I+II=2500W Turn the thermostat knob in a clockwise direction to the max position. Once the room temperature has reached the desired value, turn the thermostat knob slowly in anti-clockwise direction until you hear a "click" sound; this is the setting temperature. The appliance will automatically maintain the setting temperature. It will switch on when the room temperature is below the setting, and switch off if it is above the setting. NOTE: The room must be in a good tight condition; if not, the heating results will be insufficient. After use, turn the thermostat to the minimal position and unplug the appliance from the power supply. SAFETY SYSTEM: The appliance has a safety system which automatically switches the unit off when overheated. If overheating occurs, remove the plug from the socket, push the buttons to switch the unit off and let it cool down for at least 10 minutes. Put the plug in the socket and switch the heater on. This heater is equipped with a tilt protection safety device. It has tilt protection safety functions and automatically switches off the power. For safety reasons, the unit will automatically switch off the power if it is put on unstable or uneven surfaces or if it is tilted accidentally.

MAINTENANCE AND CARE

The oil heater should be cleaned regularly; wipe the dust off the surface of the fins. This improves radiation.- 6 - Unplug the appliance from the power supply and allow the appliance to cool down completely. Wipe the appliance with a soft damp cloth. Do not use detergent or abrasives. Do not scratch the fin surfaces with sharp tools. Damages of the coat layer result in rusty spots. STORAGE Ensure that the oil heater is cooled off completely. Roll up the power cord in the cord storage when the heater is not in use. Store the appliance in a cool, dry place. Warning If you have a problem with your heater, please do not attempt to repair it yourself. Doing so may cause damage or personal injury. TECHNICAL DATA: Operating voltage: 220-240V~ 50Hz Power consumption: 2500W

GUARANTEE AND CUSTOMER SERVICE

Before delivery our devices are subjected to rigorous quality control. If, despite all care, damage has occurred during production or transportation, please return the device to your dealer. In addition to statutory legal rights, the purchaser has an option to claim under the terms of the following guarantee: For the purchased device we provide 2 years guarantee, commencing from the day of sale. If you have a defective product, you can directly go back to the point of purchase. Defects which arise due to improper handling of the device and malfunctions due to interventions and repairs by third parties or the fitting of non-original parts are not covered by this guarantee. Always keep your receipt, without the receipt you can’t claim any form of warranty. Damage caused by not following the instruction manual, will lead to a void of warranty, if this results in consequential damages then we will not be liable. Neither can we hold responsible for material damage or personal injury caused by improper use if the instruction manual is not properly executed. Damage to accessories does not mean free replacement of the whole appliance. In such case please contact our service department. Broken glass or breakage of plastic parts is always subject to a charge. Defects to consumables or parts subjected to wearing, as well as cleaning, maintenance, replacement of said parts or shipping and transportation costs to and from any place of repair are not covered by the warranty and are to be paid.

ENVIRONMENT FRIENDLY DISPOSAL

Recycling – European Directive 2012/19/EU This marking indicates that this product should not be disposed with other household wastes. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling. Emerio Deutschland GmbH (no service address) Höffer Weg 14 51519 Odenthal Germany Customer service: T: +49 (0) 3222 1097 600 E: info.de@emerio.eu- 7 - ERP information (EN) Supplier: Emerio Deutschland GmbH Höffer Weg 14 51519 Odenthal Germany Declare that the product detailed below: Information requirements for electric local space heaters Model identifier(s): Item Symbol Value Unit Item Unit Heat output

Type of heat input, for electric storage local space heaters only (select one)

manual heat charge control, with integrated thermostat

Minimum heat output (indicative)

manual heat charge control with room and/or outdoor temperature feedback

Maximum continuous heat output

electronic heat charge control with room and/or outdoor temperature feedback

Auxiliary electricity consumption

Type of heat output/room temperature control (select one) At minimum heat output

single stage heat output and no room temperature control

Two or more manual stages, no room temperature control

with mechanic thermostat room temperature control Yes

with electronic room temperature control

electronic room temperature control plus day timer

electronic room temperature control plus week timer

Other control options (multiple selections possible)

room temperature control, with presence detection

room temperature control, with open window detection No- 8 -

with distance control option

with adaptive start control

with working time limitation

with black bulb sensor
