USER MANUAL FH110784 Emerio

brusere eller swimmingpools.

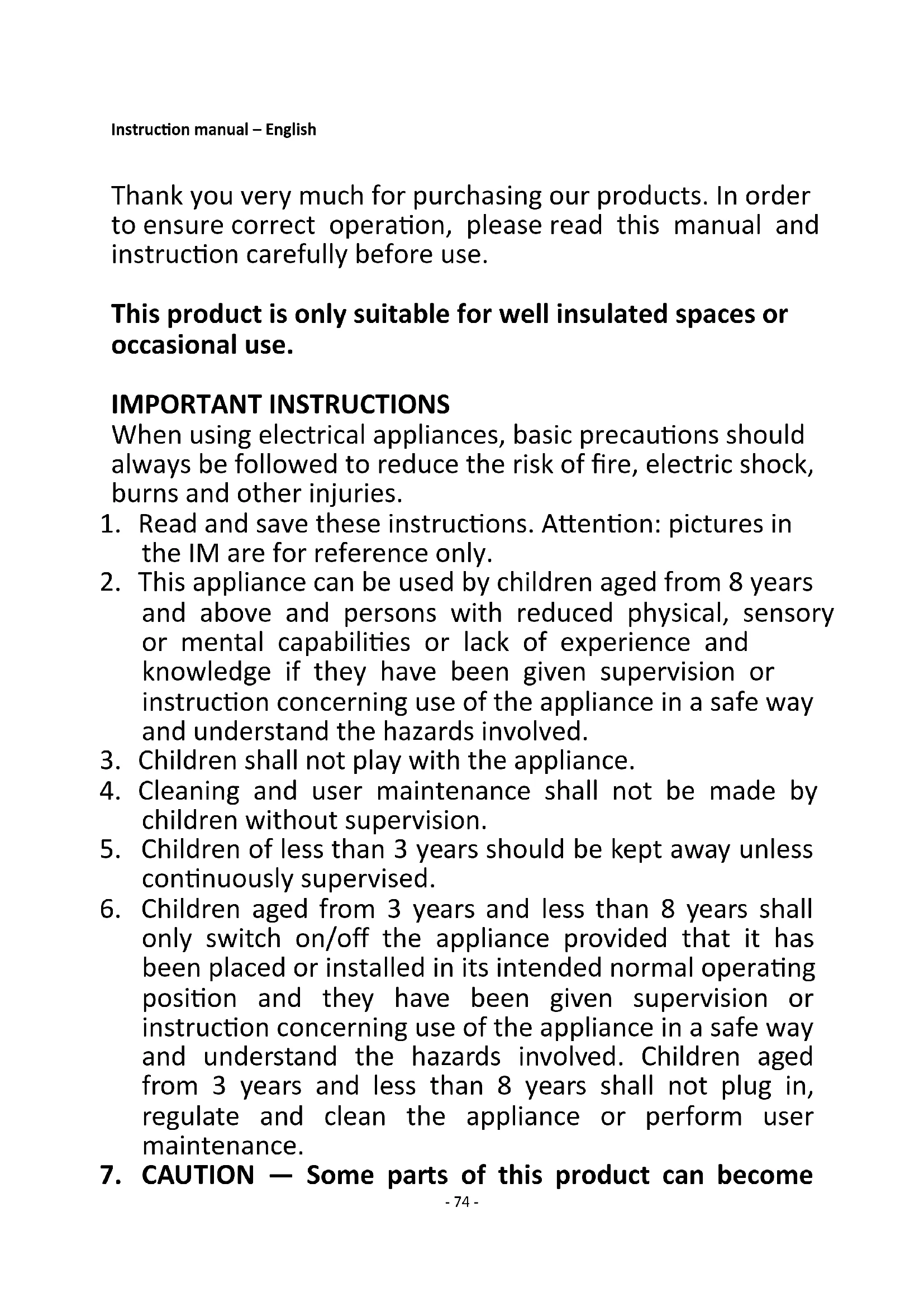

1. Read and save these instructions. Attention: pictures in

the IM are for reference only.

2. This appliance can be used by children aged from 8 years

and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

3. Children shall not play with the appliance.

4. Cleaning and user maintenance shall not be made by

children without supervision.

5. Children of less than 3 years should be kept away unless

continuously supervised.

6. Children aged from 3 years and less than 8 years shall

only switch on/off the appliance provided that it has been placed or installed in its intended normal operating position and they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children aged from 3 years and less than 8 years shall not plug in, regulate and clean the appliance or perform user maintenance.

7. CAUTION — Some parts of this product can become- 75 -

very hot and cause burns. Particular attention has to be given where children and vulnerable people are present.

8. If the supply cord is damaged, it must be replaced by the

manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

9. This appliance is intended to be used in household and

similar applications.

10. WARNING: In order to avoid overheating, do not cover

11. The heater must not be located immediately below a

12. WARNING: This heater is not equipped with a device to

control the room temperature. Do not use this heater in small rooms when they are occupied by persons not capable of leaving the room on their own, unless constant supervision is provided.

13. Do not use this heater in the immediate surroundings of

a bath, a shower or a swimming pool.

14. Make sure the appliance is in good condition after

remove it from the package.

15. Check your mains voltage; it must match the

specification of this heater.

16. Check the power cord and plug carefully before use to

ensure that they are not damaged.

17. Be sure the power is turned off before unplugging the

heater. Do not touch the plug with wet hands.

18. Don't cover the heater.

19. Don’t allow dust to enter the appliance.

20. Don't put the heater on soft surfaces such as beds or

21. Children must not play with or plug in the heater. Keep

children away from the package. Polyethylene bags can be dangerous.

22. Avoid using extension cords, as they may cause a fire

hazard due to overheating.- 76 -

of a table or counter) or place/run the power cord under rugs, carpeting, or in high-traffic areas where it may be tripped over or pulled.

25. Do not plug or unplug the appliance from the electrical

outlet with a wet hand.

26. Do not put any stress on the power cord where it

connects to the appliance, as the power cord could fray and break.

27. Keep the power cord and product always away from

28. Do not insert any other objects into the heater, as it may

cause an electric shock, fire or damage to this appliance.

29. Do not use this appliance to dry or heat clothing, shoes,

pipes or any other items.

30. Use the appliance in a well-ventilated area, this heater is

hot when in use, to avoid burns, do not let bare skin touch a hot surface, if provided, use handle when moving this heater, keep combustible materials, such as furniture pillows, bedding, paper, clothes, and curtains at least 3 feet ( 0.9 meters) from all sides of the heater.

31. Use this heater only as described in the manual, any

other use not recommended by the manufacturer may cause fire, electric shock or personal injury.

32. Do not operate the heater with a damaged cord or plug.

After the heater malfunctions or has been dropped or damaged in any manner, return the appliance to a service facility for examination, electrical or mechanical adjustment or repair.

33. The appliance should not be operated by means of an

external timer-switch or by means of a separate system with remote control not originally belonging to this appliance.- 77 -

34. This heating device is not suitable for assembling in

vehicles and machines.

35. The rotor guard shall not be disassembled/opened to

clean the rotor blades.

36. This appliance is not a toy.

37. Do not immerse the unit in water.

39. Any servicing other than cleaning and user maintenance

should be performed by an authorized service representative only.

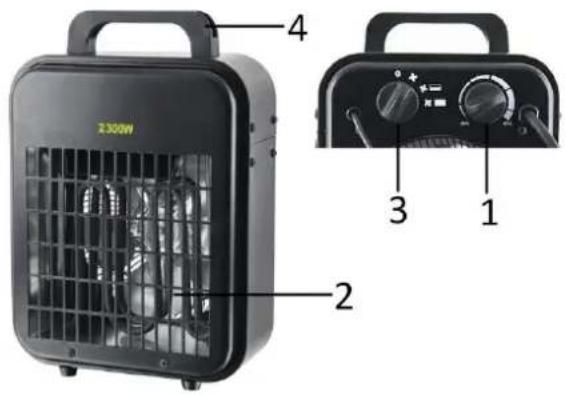

Heat setting: “0” position – OFF – Ventilation – WARM AIR (low heat output) – WARM AIR (high heat output)

Take off the screws and washers from the top of the main housing. Put the handle onto the top. Place the washers and then screw the screws into the positions. Make sure the handle has been connected tightly with the main housing. THERMOSTAT

1. Rotate the switch to choose the suitable setting --- ventilation/ WARM AIR (low heat output)/ WARM

AIR (high heat output).

2. Turn the thermostat knob in a clockwise direction to the max position.

3. Once the room temperature has reached the desired value, turn the thermostat knob slowly in

anti-clockwise direction until you hear a "click" sound; this is the setting temperature.

4. The appliance will automatically maintain the setting temperature. It will switch on when the room

temperature is below the setting, and switch off if it is above the setting. Note: To switch off the appliance, it is recommended to turn the heat switch to ventilation setting for about 15 seconds to cool down. After that, please turn the heat switch to “0” position and then unplug the appliance. This can help prolong the lifespan of the appliance. SAFETY SYSTEM The appliance has a safety system which automatically switches the unit off when overheated. If overheating occurs, switch off the appliance, remove the plug from the socket, and let it cool down for at least 10 minutes. Put the plug in the socket and switch the heater on. MAINTENANCE The fan heater only needs regular cleaning on the outside. Before you clean the unit, turn the switch off. Remove the plug form the socket and wait until the fan heater cools down completely. Use a damp cloth to wipe the heater housing. Do not use detergents, abrasive cleaning liquids or chemicals (alcohol, gasoline etc.) to clean the appliance.- 79 - TECHNICAL DATA Operating voltage: 220-240V ~ 50Hz Power consumption: 2300W Recycling – European Directive 2012/19/EU This marking indicates that this product should not be disposed with other household wastes. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.- 80 - ERP information (GB) Supplier: BAHAG AG Gutenbergstr. 21 68167 Mannheim GERMANY Declare that the product detailed below: Information requirements for electric local space heaters Model identifier(s): 24640716, 25394140 Item Symbol Value Unit Item Unit Heat output

Type of heat input, for electric storage local space heaters only (select one)

manual heat charge control, with integrated thermostat

Minimum heat output (indicative)

manual heat charge control with room and/or outdoor temperature feedback

Maximum continuous heat output

electronic heat charge control with room and/or outdoor temperature feedback

Auxiliary electricity consumption

Type of heat output/room temperature control (select one) At minimum heat output

single stage heat output and no room temperature control

Two or more manual stages, no room temperature control

with mechanic thermostat room temperature control Yes

with electronic room temperature control

electronic room temperature control plus day timer

electronic room temperature control plus week timer

Other control options (multiple selections possible)

room temperature control, with presence detection

room temperature control, with open window detection

with distance control option No- 81 -

with adaptive start control

with working time limitation

with black bulb sensor
