USER MANUAL Sleep And Fun JANE

Line drawing of a baby lying in a baby crib (no text or symbols)

Line drawing of a child sitting inside a baby crib with a soccer ball, enclosed in a safety cage (no text or symbols)

E INSTRUCCIONES DE USO Y MONTAJE
GB USE AND ASSEMBLY INSTRUCTIONS
F MODE D'EMPLOI ET INSTRUCTIONS POUR LE MONTAGE
D GEBRAUCHS- UND AUFBAUANWEISUNG
I ISTRUZIONI PER L'USO E IL MONTAGGIO
P INSTRUÇÕES DE USO E MONTAGEM

JANE

baby equipment

A

Illustration of a small boat with visible hull, side ribs, and deck structure (no text or symbols)

B

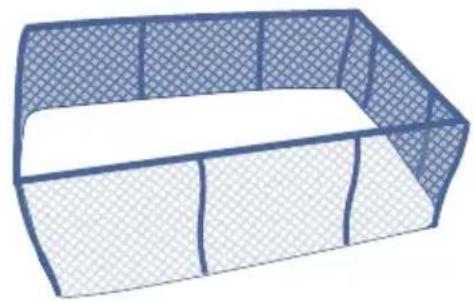

3D wireframe illustration of a rectangular box with patterned panels (no text or symbols)

C

Plain light blue rounded rectangle shape with no text or symbols

D

Blank rounded rectangle with no text, numbers, or symbols

E

COMPONENTES

A Set of structure and fabric cover

B Mini cot base

C Playpen mattress

D Mini cot mattress

D

TEILE

Line drawing of a baby crib with two sleeping figures (no text or symbols)

Line drawing of a child sitting inside a metal enclosure with a bench (no text or symbols)

+0 months 36 months 36 meses

MINI CUNA IMPORTANTE. CONSERVAR PARA FUTURAS CONSULTAS. LEER ATENTAMENTE

ADVERTENCIAS

Two technical diagrams showing a ladder and a cross-shaped frame with a red band, no text or symbols present.

PARQUE

Line drawing of a child sitting inside a baby crib or enclosure (no text or symbols)

MANTENIMIENTO Y LIMPIEZA: MINI CUNA - PARQUE

"CLICK" = OK "CLICK" = OK

Illustration of a garment pattern piece with red and gray bands, showing folding and stitching (no text or symbols)

4 "CLICK" = OK

"CLICK" = OK

6 OK OK OK OK

Illustration of a baby seat with hand placed on one side and red arrows indicating rotation or movement (no text or symbols)

Illustration of a baby crib with red arrows indicating measurement or positioning (no text or symbols)

Illustration of a baby seat with patterned backrest and side legs (no text or symbols)

Illustration of a hand using a tool to cut a garment with a red arrow indicating the process (no text or symbols present)

Illustration of a medical procedure showing a hand holding a device with red arrows indicating motion (no text or symbols present)

3D diagram of a rectangular object with four red-circled annotations pointing to its edges (no text or symbols present)

3D diagram of a rectangular structure with internal channels and red-circled annotations (no text or symbols)

2 VELCRO VELCRO

3 COLCHÓN

1 ②° ①° PUSH

2 ②° ①° PUSH

Illustration of a person adjusting a garment with a red arrow indicating the seam or fold (no text or symbols present)

3D rendered illustration of a cushioned seat or cushion device enclosed in a transparent housing (no text or symbols)

3D mechanical component diagram showing a red and gray part with a dotted line indicating assembly or alignment (no text or symbols)

Illustration of a JANE shopping bag with handle and strap (no text or symbols on the bag itself)

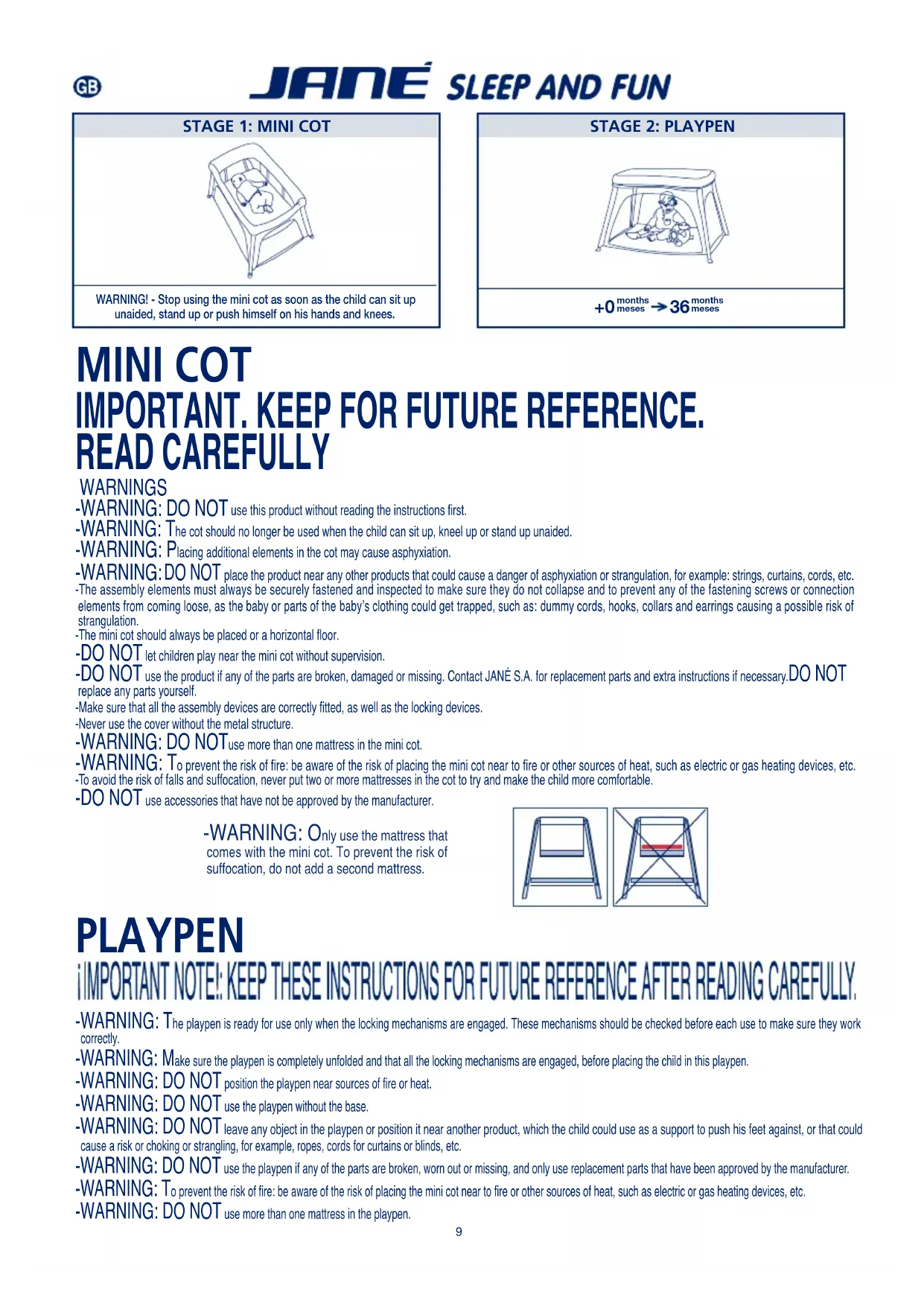

STAGE 1: MINI COT

Line drawing of a baby in a baby crib (no text or symbols)

WARNING! - Stop using the mini cot as soon as the child can sit up unaided, stand up or push himself on his hands and knees.

STAGE 2: PLAYPEN

Line drawing of a child sitting inside a simple metal structure (no text or symbols)

+0 months 36 months

MINI COT

IMPORTANT. KEEP FOR FUTURE REFERENCE. READ CAREFULLY

WARNINGS

-WARNING: DO NOT use this product without reading the instructions first.

-WARNING: The cot should no longer be used when the child can sit up, kneel up or stand up unaided.

-WARNING: Placing additional elements in the cot may cause asphyxiation.

-WARNING:DO NOT place the product near any other products that could cause a danger of asphyxiation or strangulation, for example: strings, curtains, cords, etc.

-The assembly elements must always be securely fastened and inspected to make sure they do not collapse and to prevent any of the fastening screws or connection elements from coming loose, as the baby or parts of the baby's clothing could get trapped, such as: dummy cords, hooks, collars and earrings causing a possible risk of strangulation.

-The mini cot should always be placed or a horizontal floor.

-DO NOT let children play near the mini cot without supervision.

-DO NOT use the product if any of the parts are broken, damaged or missing. Contact JANÉ S.A. for replacement parts and extra instructions if necessary. DO NOT replace any parts yourself.

-Make sure that all the assembly devices are correctly fitted, as well as the locking devices.

-Never use the cover without the metal structure.

-WARNING: DO NOT use more than one mattress in the mini cot.

-WARNING: To prevent the risk of fire: be aware of the risk of placing the mini cot near to fire or other sources of heat, such as electric or gas heating devices, etc.

-To avoid the risk of falls and suffocation, never put two or more mattresses in the cot to try and make the child more comfortable.

-DO NOT use accessories that have not be approved by the manufacturer.

-WARNING: Only use the mattress that comes with the mini cot. To prevent the risk of suffocation, do not add a second mattress.

Two technical line drawings of a stand or frame structure with cross-bracing, no text or symbols present.

PLAYPEN

i IMPORTANT NOTE!: KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE AFTER READING CAREFULLY.

-WARNING: The playpen is ready for use only when the locking mechanisms are engaged. These mechanisms should be checked before each use to make sure they work correctly.

-WARNING: Make sure the playpen is completely unfolded and that all the locking mechanisms are engaged, before placing the child in this playpen.

-WARNING: DO NOT position the playpen near sources of fire or heat.

-WARNING: DO NOT use the playpen without the base.

-WARNING: DO NOT leave any object in the playpen or position it near another product, which the child could use as a support to push his feet against, or that could cause a risk or choking or strangling, for example, ropes, cords for curtains or blinds, etc.

-WARNING: DO NOT use the playpen if any of the parts are broken, worn out or missing, and only use replacement parts that have been approved by the manufacturer.

-WARNING: To prevent the risk of fire: be aware of the risk of placing the mini cot near to fire or other sources of heat, such as electric or gas heating devices, etc.

-WARNING: DO NOT use more than one mattress in the playpen.

-Make sure that all the assembly devices are always correctly fitted. Check them regularly and, if necessary, adjust them.
-To prevent the risk of falls do not use the playpen when the baby is able to jump out of the playpen unaided.
-DO NOT use accessories that have not been approved by the manufacturer.
-For use with children up to a maximum age of: 3 years or 15 kg.

-WARNING: Only use the mattress that comes with this playpen, do not put an extra mattress on top, this would cause a risk of suffocation.

SIDE WINDOW WITH ZIP:

Always keep the window zip fully closed

Only open it when the baby is able to sit unaided and

ALWAYS WITH THE PERMANENT SUPERVISION OF AN ADULT

Line drawing of a child sitting inside a simple metal structure (no text or symbols)

MAINTENANCE AND CLEANING: MINI COT - PLAYPEN

-Keep the metal parts clean and dry to prevent them from rusting.
-Regularly grease the mobile parts and mechanisms with a silicone-based spray. Do not use oil or grease.
-To clean the plastic parts, just use mild detergent and warm water.
-For the fabric parts follow the washing instructions carefully. Let the parts dry naturally, but never in direct sunlight, as this could cause the fabric to fade.
-The upholstery parts that cannot be taken off can be cleaned with a damp sponge and a neutral detergent.

GUARANTEE INFORMATION

This article is guaranteed in accordance with R.D. 1/2007 of 16th November. Keep your receipt as proof of purchase, you need to show it at the store where you purchased the product to prove validity in the event of any type of claim.

This guarantee does not cover any faults or breakages caused by misuse of the article or by not following the safety and maintenance information listed in the instructions and on the care labels.

INSTRUCTIONS FOR USE:

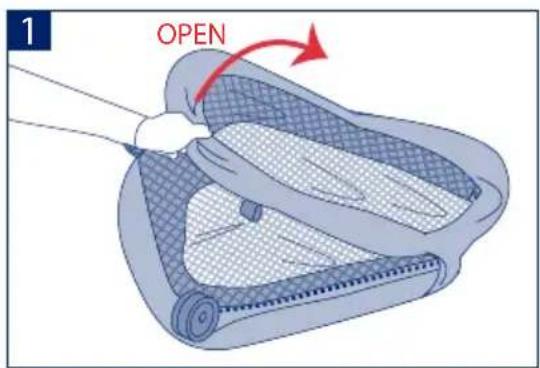

• UNFOLDING AND ASSEMBLING THE PLAYPEN

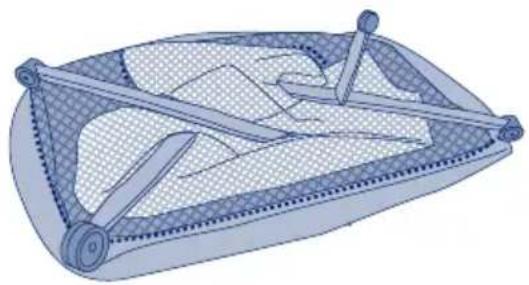

With the playpen on a table or clean surface, unfold it completely until you hear the two safety CLICKS.

OPEN

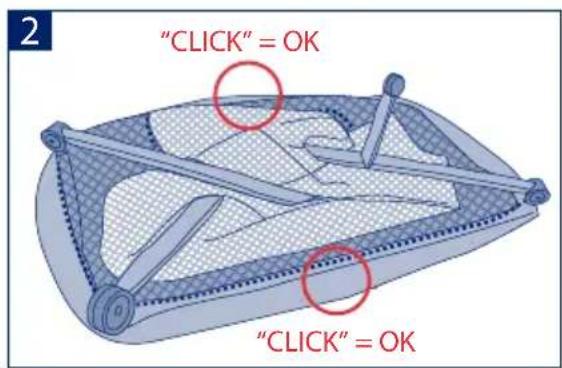

"CLICK" = OK "CLICK" = OK

Unfold the four legs until you hear them CLICK indicating that they are locked into place.

Illustration of a garment being adjusted with a red tool, showing fabric texture and a pointer (no text or symbols)

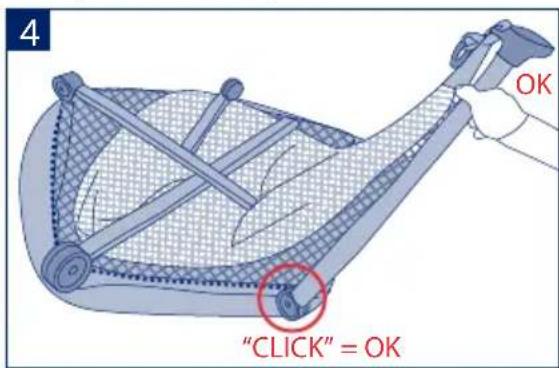

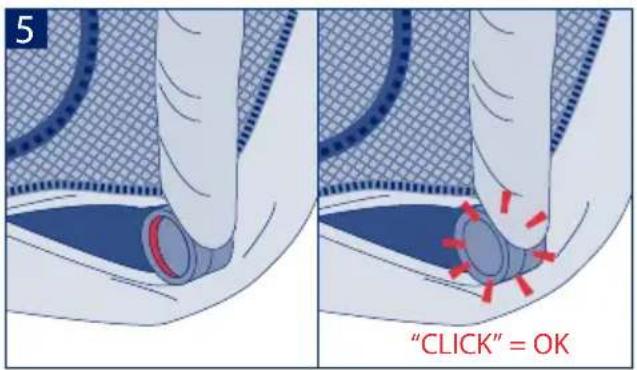

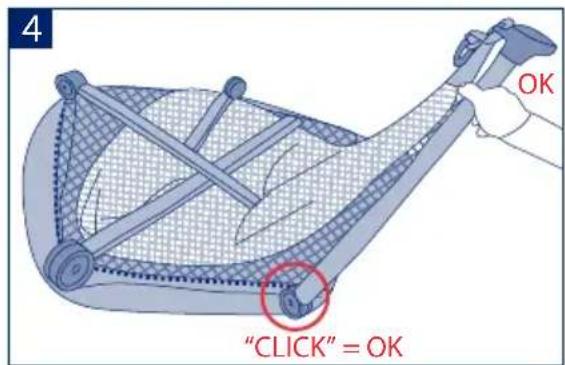

4 "CLICK" = OK

Check that all four legs are in the correctly locked into place.

5 "CLICK" = OK

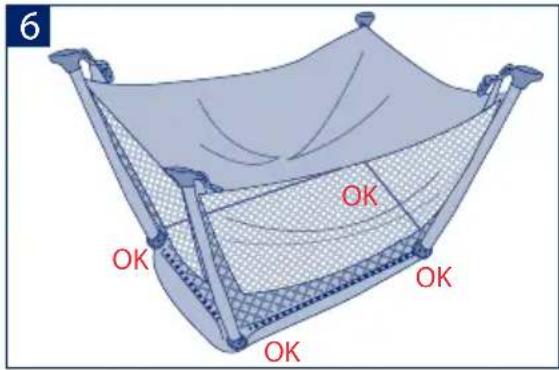

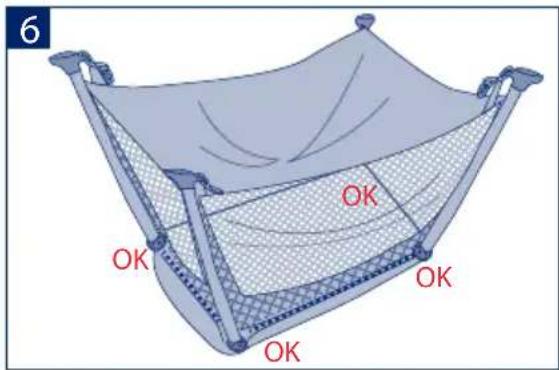

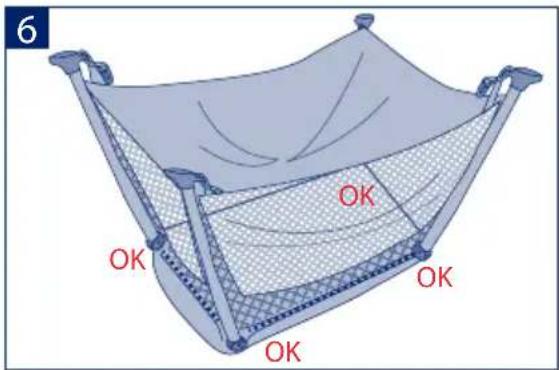

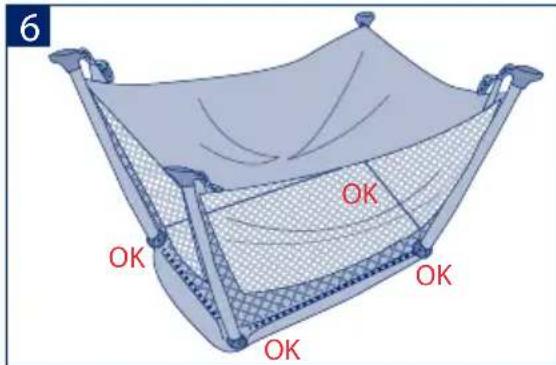

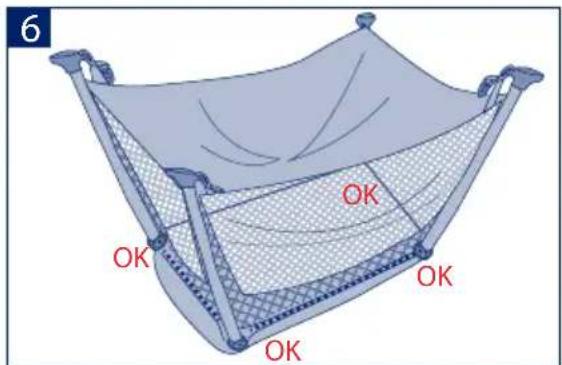

6 OK OK OK OK

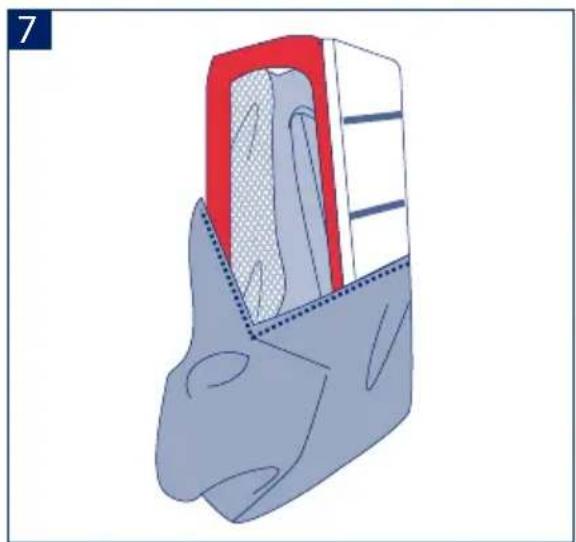

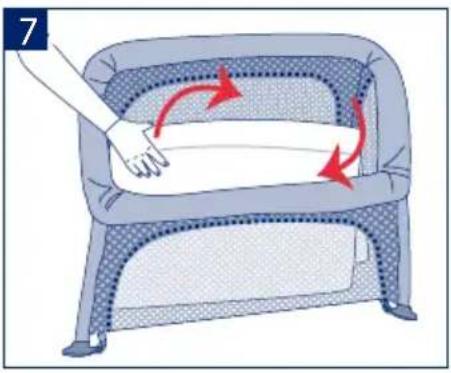

Put the folded mattress into the playpen as shown in diagram 7 and turn it 90^ to unfold it.

Illustration of a baby crib with red arrows indicating rotation or movement (no text or symbols)

Illustration of a baby seat with a bandage and red directional arrows indicating movement or pressure (no text or symbols)

Illustration of a baby seat with decorative panels and feet (no text or symbols)

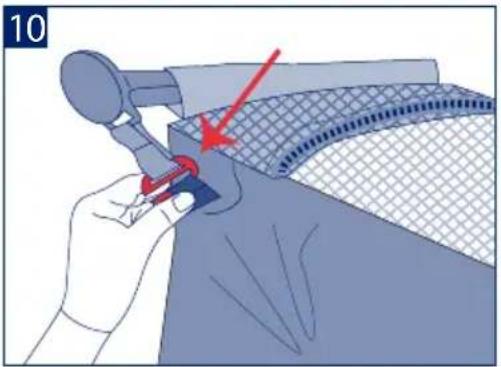

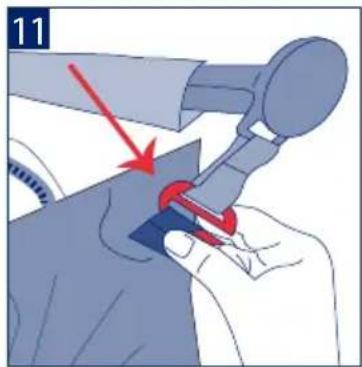

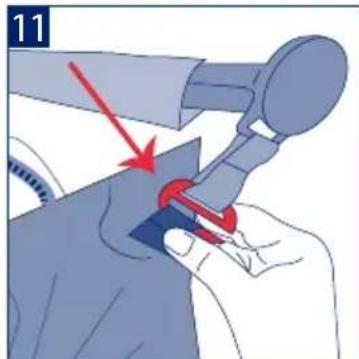

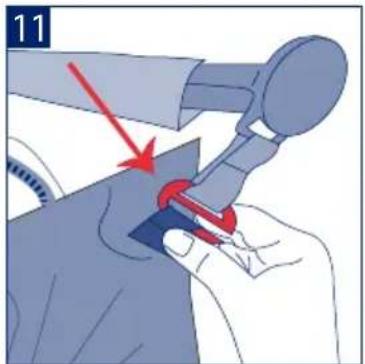

For the mattress to be securely held in place pass the strip through the vent of the playpen and fasten it with the hook on the leg, repeat this step on all four corners of the mattress.

Illustration of a hand using a tool to adjust or install a mechanical component, with no visible text or symbols.

Illustration of a hand using a belt buckle to adjust the seatbelt (no text or symbols present)

3D diagram of a rectangular object with four red-circled annotations pointing to its edges (no text or symbols present)

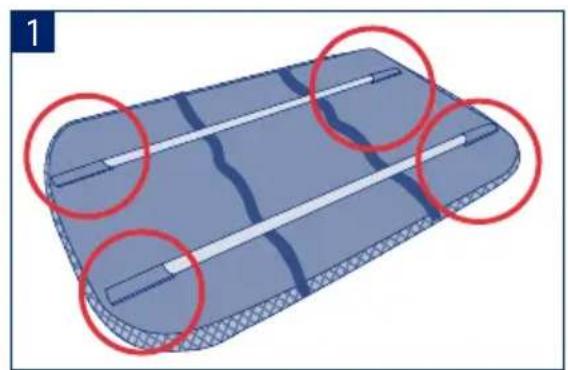

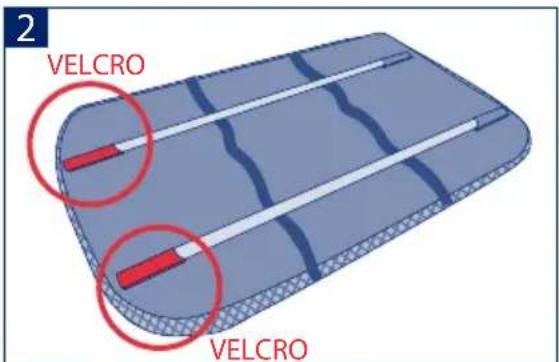

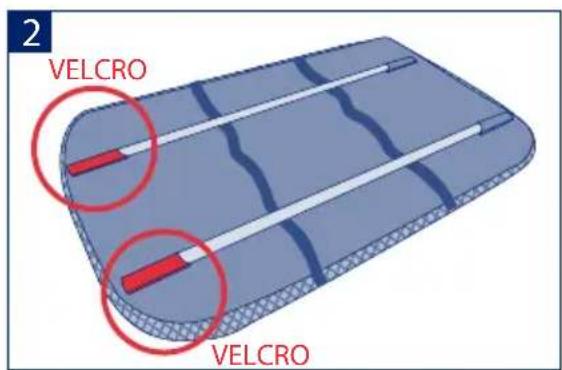

SUPPORT FOR THE MINI COT AND UPPER MATTRESS

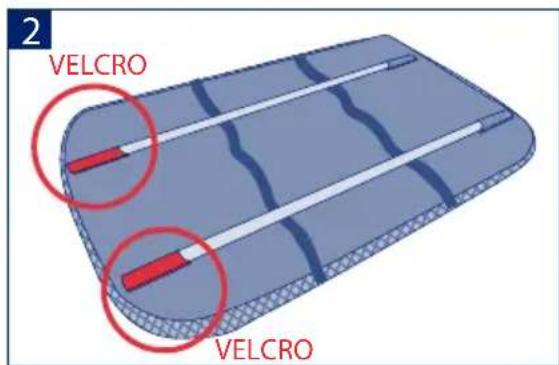

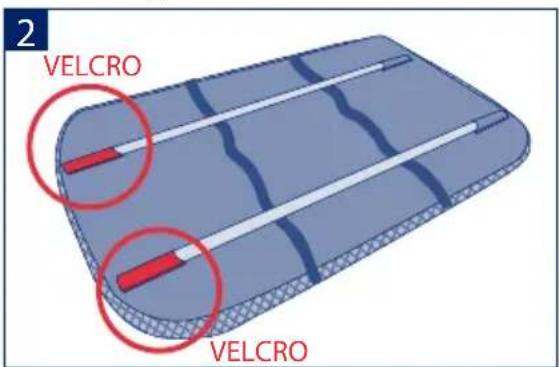

Check that the 2 tubes are in the cover (1) and that the 2 Velcro flaps are fastened (2).

Warning: Do not use the mini cot support without the metal support tubes.

3D diagram of a rectangular electronic component with four red-circled features, no text or symbols present

2 VELCRO VELCRO

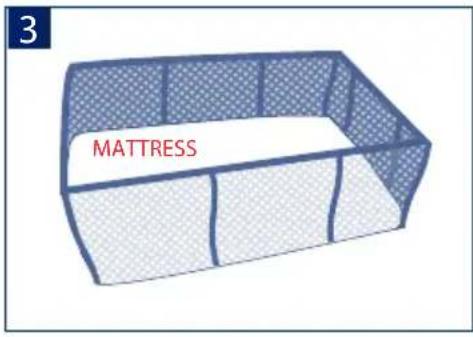

3 MATTRESS

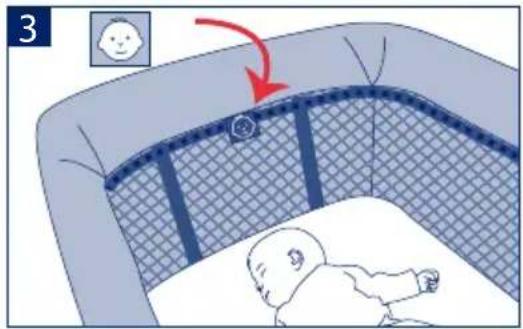

• FITTING THE SUPPORT FOR THE MINI COT AND UPPER MATTRESS

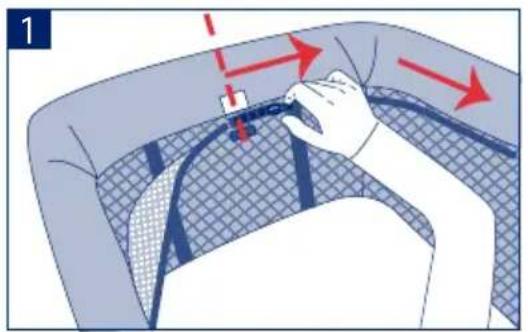

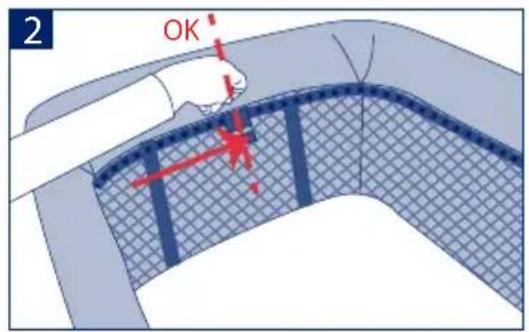

Place the support for the cot and the mattress inside the playpen, raise the flap and insert the zip pull into the zip of the playpen, closing it all around the internal walls of the playpen until reaching the end.

1

2 OK

To complete this step, cover the zip pull by lowering the flap and fastening it with the Velcro.

3

4

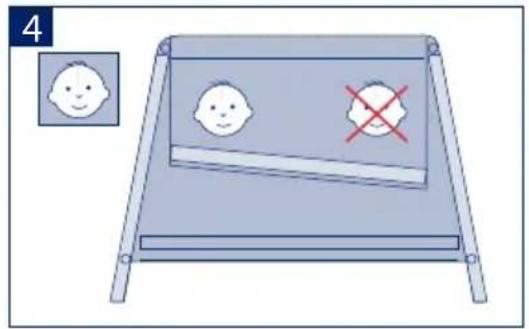

The mini cot is slightly inclined to help the child stay in the correct position. Always position the child so his head is under the flap with the face symbol.

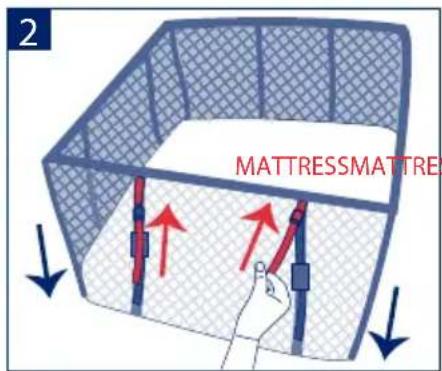

• ADJUSTING THE INCLINATION OF THE MINI COT MATTRESS

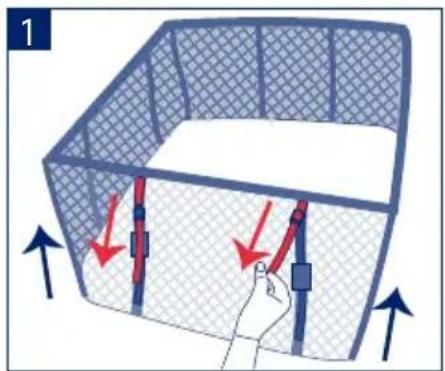

You can adjust the inclination of the base of the mattress using the two straps found on the headrest section. To raise the mattress tighten the straps and to lower it loosen the straps.

1

2 MATTRESS MATTREES

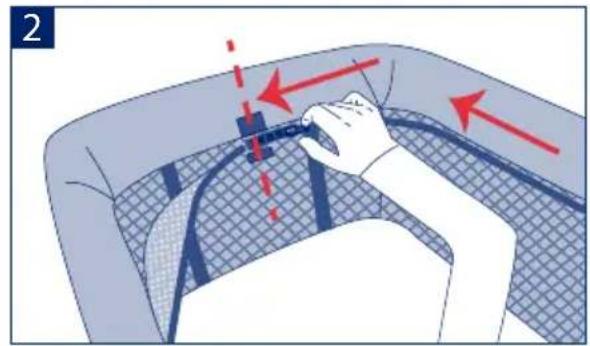

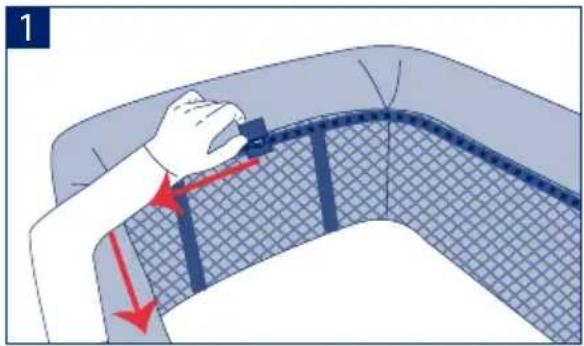

- REMOVING THE SUPPORT OF THE MINI COT AND MATTRESS

To remove the support from the cot, raise the flap and fully open the zip all the way around the walls of the playpen.

1

2

Never use the basket of the Mini cot by itself. While the basket is in use it must always be correctly fitted in the playpen structure using the support zip.

Take the mattress.

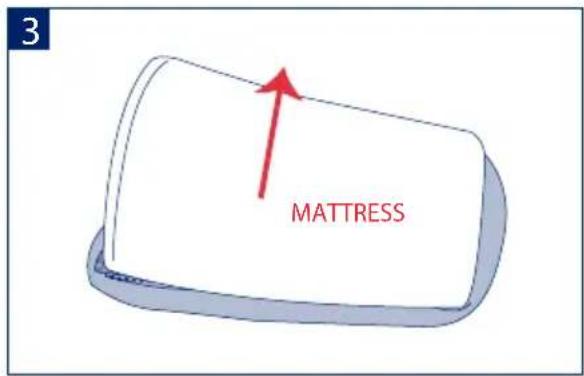

3 MATTRESS

NOTE: The mattress of the mini cot has a special safety zip. To open and close it, insert a clip or small object into the hole and use the puller.

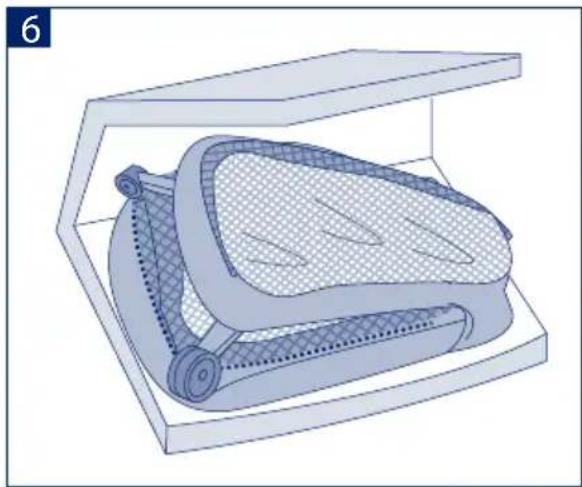

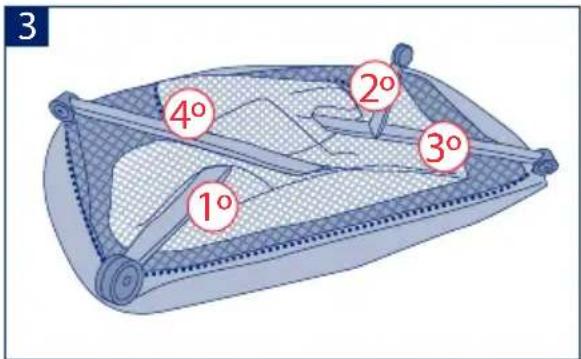

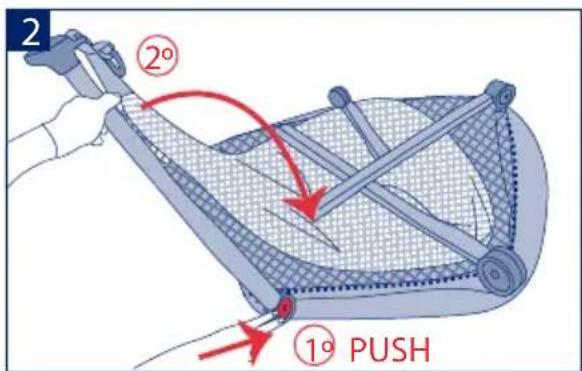

• FOLDING THE PLAYPEN

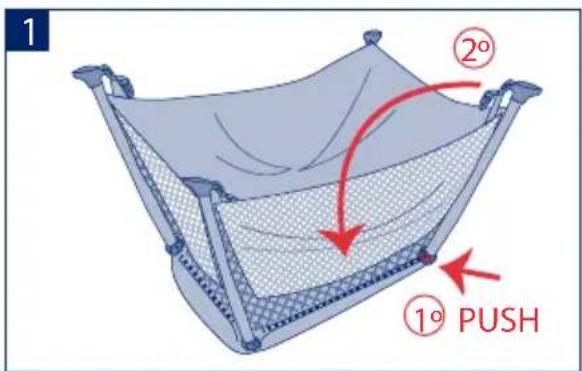

To fold the legs, press the button on the corners and move the leg inwards towards the middle of the playpen. Repeat this step for all four legs.

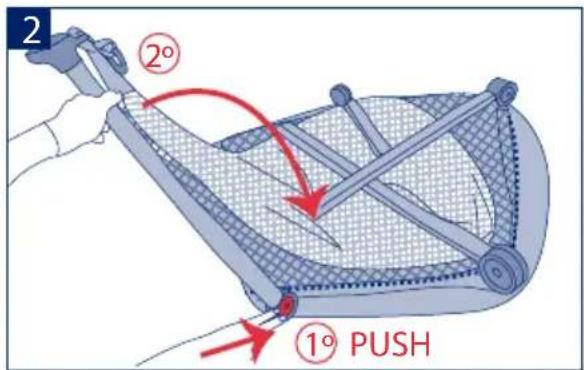

1 ②° ①° PUSH

2 ②° ①° PUSH

Once the legs have been folded, smooth the fabric on the other side to make it easier to fold the playpen.

Illustration of a person adjusting a garment with a red arrow indicating the seam or waist area (no text or symbols present)

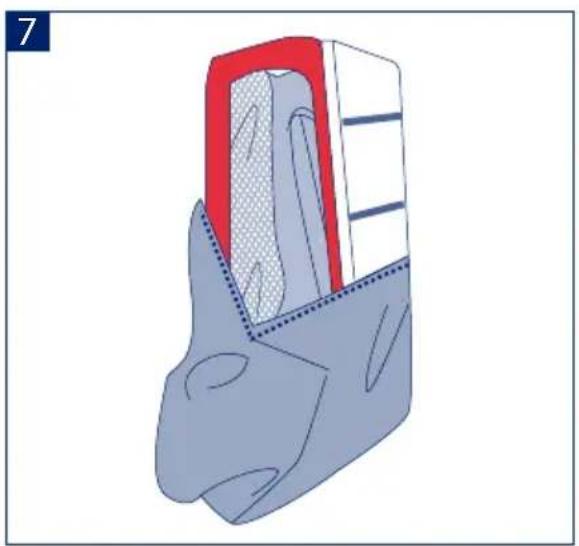

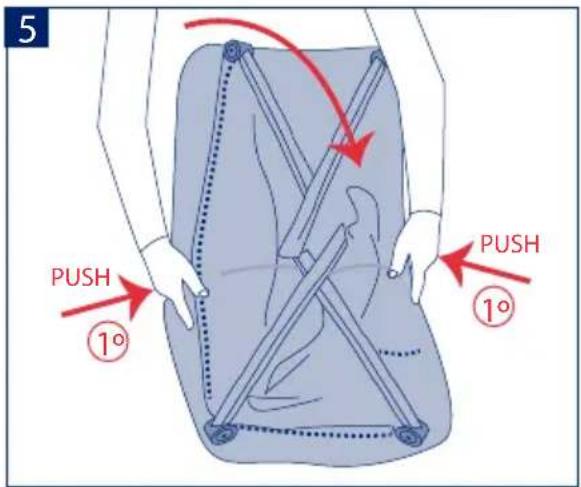

Press the side buttons and fold the playpen in half.

5 PUSH ①° PUSH ①°

3D technical illustration of a mechanical component inside a transparent housing (no text or symbols)

3D mechanical component diagram showing a red and gray part with cutouts and a dotted line indicating assembly (no text or symbols)

Illustration of a JADE-branded handbag with handles and decorative cutouts (no text or symbols on the bag itself)

ÉTAPE 1 : MINI BERCEAU

Line drawing of a baby crib with two sleeping animals (no text or symbols)

Line drawing of a child sitting inside a simple wooden structure with a book, no text or symbols present

+0 mois mo36

MINI BERCEAU

IMPORTANT. CONSERVER POUR DE FUTURES CONSULTATIONS. LIRE ATTENTIVEMENT

MISES EN GARDE

Two technical diagrams showing different frame structure configurations (no text or symbols)

PARC

i IMPORTANT! GARDER CES INSTRUCTIONS POUR DE FUTURES RÉFÉRENCES ET LIRE ATTENTIVEMENT.

Line drawing of a child sitting inside a simple structure with a roof (no text or symbols)

ENTRETIEN ET NETTOYAGE : MINI BERCEAU - PARC

"CLICK" = OK "CLICK" = OK

Diagram of a garment sewing process showing fabric folds and stitching (no text or symbols)

4 "CLICK" = OK

"CLICK" = OK

6 OK OK OK OK

Illustration of a baby crib with red arrows indicating rotation or movement (no text or symbols)

Illustration of a baby crib with red arrows indicating measurement or positioning (no text or symbols)

Illustration of a baby seat with patterned backrest and side legs (no text or symbols)

Illustration of a hand using a tool to adjust or install a garment with a red arrow indicating the process (no text or symbols present)

Illustration of a hand using a medical device to adjust a blue object, with red arrows indicating motion (no text or symbols)

3D diagram of a rectangular object with four red-circled annotations pointing to its edges (no text or symbols present)

SUPPORT DU MINI BERCEAU ET MATELAS SUPÉRIEUR

3D diagram of a rectangular object with internal cracks and two red-circled annotations (no text or symbols)

2 VELCRO VELCRO

3 MATELAS

• INSTALLATION DU SUPPORT DU MINI BERCEAU ET MATELAS SUPÉRIEUR

Illustration of a garment being adjusted with a red arrow indicating compression (no text or symbols present)

3D rendered diagram of a mechanical device with mesh pattern and cylindrical body (no text or symbols)

3D rendered mechanical component with red and blue sections, no visible text or symbols

Illustration of a JANE bag with handle and strap, no text or symbols present

STUFE 1: MINI-WIEGE

Line drawing of a baby crib with two sleeping faces (no text or symbols)

Simple line drawing of a child sitting inside a simple structure with a roof (no text or symbols)

+0 Monate Monate 36

MINI-WIEGE

Two technical diagrams showing a ladder and a crossbar device (no text or symbols)

LAUFSTALL

Line drawing of a child sitting inside a simple indoor space with a canopy (no text or symbols)

"CLICK" = OK "CLICK" = OK

Illustration of a garment pattern piece with red and gray fabric, showing stitching and movement (no text or symbols)

4 "CLICK" = OK

"CLICK" = OK

3D diagram of a mesh structure with labeled 'OK' regions, no text or symbols present

Illustration of a baby seat with hand positioning and red arrows indicating rotation (no text or symbols)

Illustration of a baby crib with red arrows indicating seat width and height (no text or symbols)

Illustration of a baby seat with patterned backrest and two legs (no text or symbols)

Illustration of a hand using a tool to adjust or install a mechanical component, with no visible text or symbols.

Illustration of a medical procedure showing a hand holding a device with red arrows indicating motion (no text or symbols present)

3D diagram of a rectangular object with four red-circled annotations pointing to its edges (no text or symbols present)

TRÄGER DER MINI-WIEGE UND OBERE MATRATZE

3D diagram of a rectangular object with internal cracks and red circles highlighting specific areas (no text or symbols)

2 VELCRO VELCRO

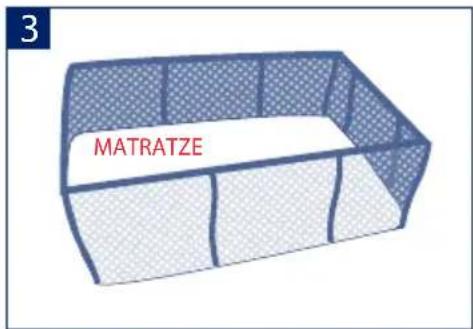

3 MATRATZE

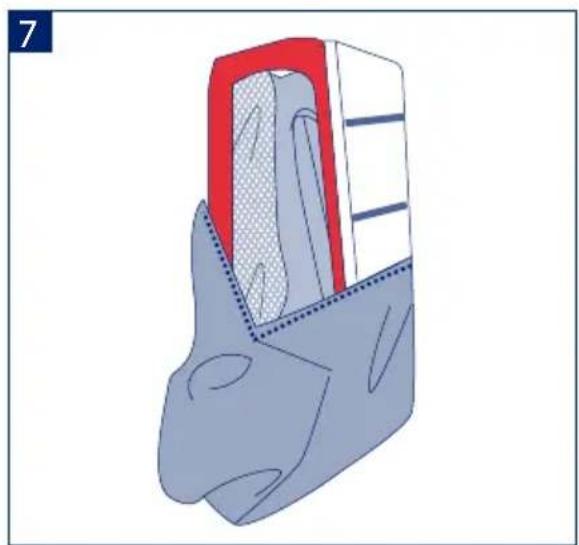

• EINBAU DES TRÄGERS DER MINI-WIEGE UND DER OBEREN MATRATZE

Illustration of a person adjusting a garment with a red arrow indicating the seam or waist (no text or symbols present)

3D rendered illustration of a cushioned object inside a transparent housing (no text or symbols)

3D mechanical component diagram showing a red highlighted section and gray base structure (no text or symbols)

Illustration of a JANE brand tote bag with handle and strap (no text or symbols on the bag itself)

TAPPA 1: MINI CULLA

Line drawing of a baby crib with a blanket and seat (no text or symbols)

Simple line drawing of a child sitting inside a baby crib or enclosure (no text or symbols)

+0 mesi mes36

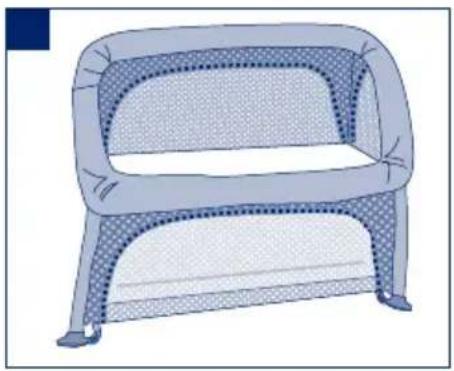

MINI CULLA

IMPORTANTE. CONSERVARE PER CONSULTAZIONI FUTURE. LEGGERE ATTENTAMENTE

AVVERTENZE

Two technical line drawings of a stand or support structure with diagonal braces (no text or symbols)

BOX

i IMPORTANTE!: CONSERVARE QUESTE ISTRUZIONI PER FUTURE CONSULTAZIONI. LEGGERE ATTENTAMENTE.

Two technical diagrams showing a ladder and a stand with diagonal braces (no text or symbols)

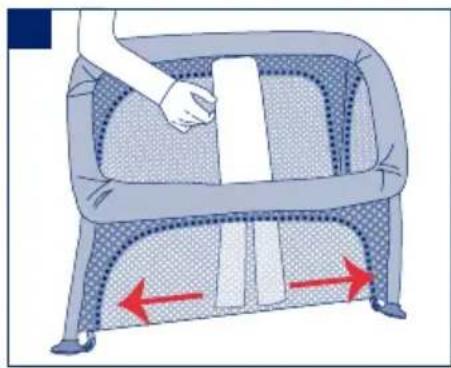

FINESTRELLA LATERALE CON CERNIERA:

Simple line drawing of a child sitting inside a baby barn (no text or symbols)

"CLICK" = OK "CLICK" = OK

Diagram of a sewing machine needle and collar mechanism, showing red and blue bands (no text or symbols)

4 OK "CLICK" = OK

"CLICK" = OK

6 OK OK OK OK

Illustration of a baby crib with red arrows indicating rotation or movement (no text or symbols)

Illustration of a baby crib with red directional arrows indicating movement or pressure (no text or symbols)

Illustration of a baby seat with patterned backrest and side legs (no text or symbols)

Illustration of a hand using a tool to adjust or install a garment with a red arrow indicating the process (no text or symbols present)

Illustration of a medical procedure showing a hand holding a device with red arrows indicating motion (no text or symbols present)

3D diagram of a rectangular structure with four red-circled annotations pointing to specific components (no text or symbols present)

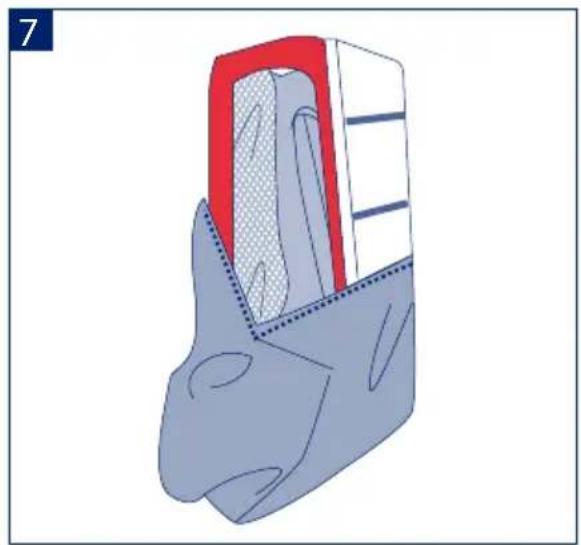

SUPPORTO DELLA MINI CULLA E MATERASSO SUPERIORE

3D diagram of a rectangular object with internal cracks and red circles highlighting specific areas (no text or symbols)

2 VELCRO VELCRO

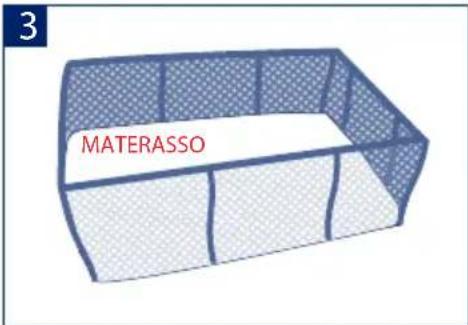

3 MATERASSO

1 ②° ①° PUSH

Illustration of a person adjusting a fabric or mesh material with a red arrow indicating the seam (no text or symbols present)

3D technical illustration of a mechanical component with meshed sections and a roller, enclosed in a transparent housing (no text or symbols)

3D model of a toothbrush with red and blue highlighted sections, showing internal structure (no text or symbols)

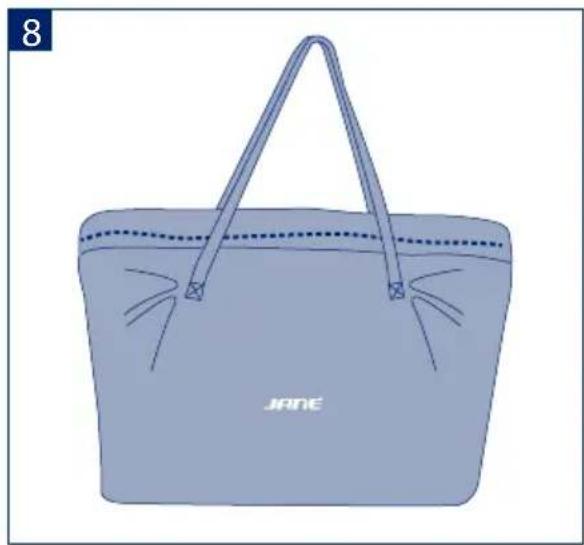

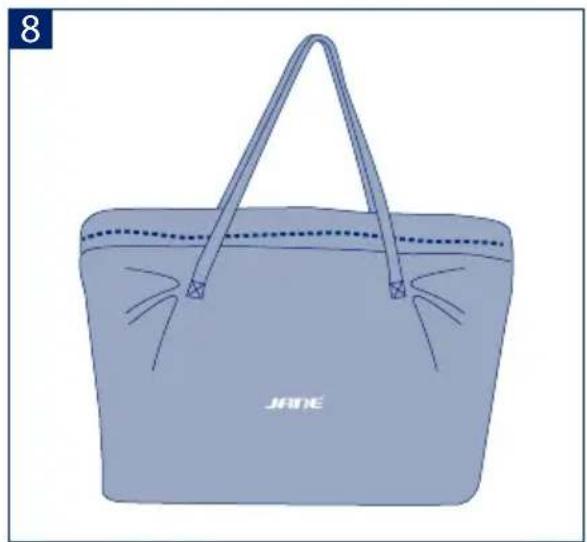

Illustration of a JANE bag with handle and dotted seam (no text or symbols on the bag itself)

ETAPA 1: MINI BERÇO

Line drawing of a baby crib with two sleeping animals (no text or symbols)

Line drawing of a child sitting inside a simple structure with a roof (no text or symbols)

+0

→ 36 mesesmeses

MINI BERÇO

IMPORTANTE. CONSERVAR PARA FUTURAS CONSULTAS. LEIA ATENTAMENTE

ADVERTÊNCIAS

Two technical diagrams showing a metal frame structure with cross-bracing, no text or symbols present.

JANELA LATERAL COM FECHO ZIP:

Line drawing of a child sitting inside a simple structure with legs and a roof (no text or symbols)

"CLICK" = OK "CLICK" = OK

Illustration of a garment being adjusted with a red arrow indicating motion (no text or symbols)

4 "CLICK" = OK OK

"CLICK" = OK

6 OK OK OK OK

Illustration of a baby seat with red arrows indicating rotation or movement (no text or symbols)

Illustration of a baby crib with red arrows indicating seat width (no text or symbols)

Illustration of a baby seat with patterned backrest and two legs (no text or symbols)

Illustration of a hand using a tool to adjust or install a garment with a mesh pattern (no text or symbols)

Illustration of a medical procedure showing a hand holding a tool with a red arrow indicating direction (no text or symbols present)

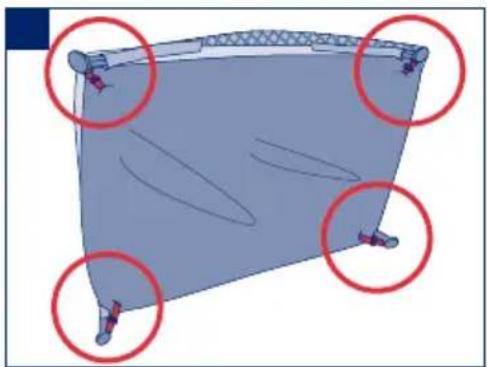

3D diagram of a rectangular structure with four red-circled annotations pointing to specific points on its surface (no text or symbols present)

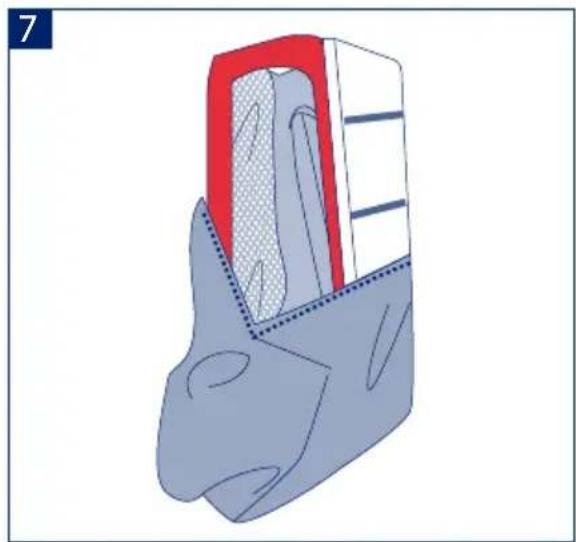

SUPORTE DO MINI BERÇO E COLCHÃO SUPERIOR

3D diagram of a rectangular object with internal channels and red-circled annotations (no text or symbols)

2 VELCRO VELCRO

3 COLCHÃO

Illustration of a person adjusting a car seatbelt with red arrows indicating movement (no text or symbols)

3 COLCHÃO

Illustration of a person adjusting a garment with a red arrow indicating the seam or waist (no text or symbols present)

3D rendered diagram of a cushioned object inside a transparent housing (no text or symbols)

3D mechanical component diagram showing a red and blue section with internal structure (no text or symbols)

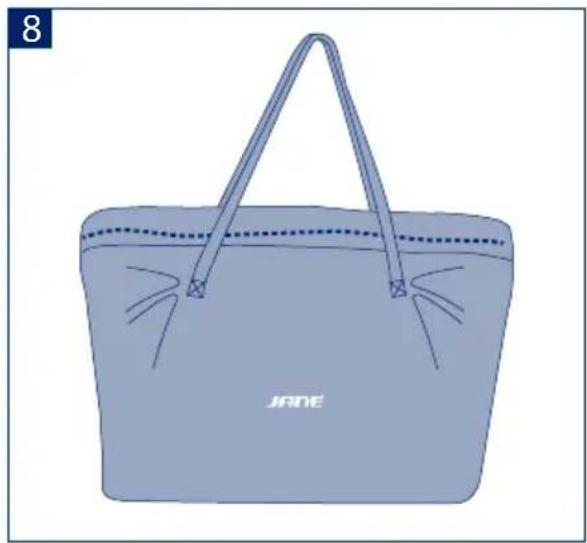

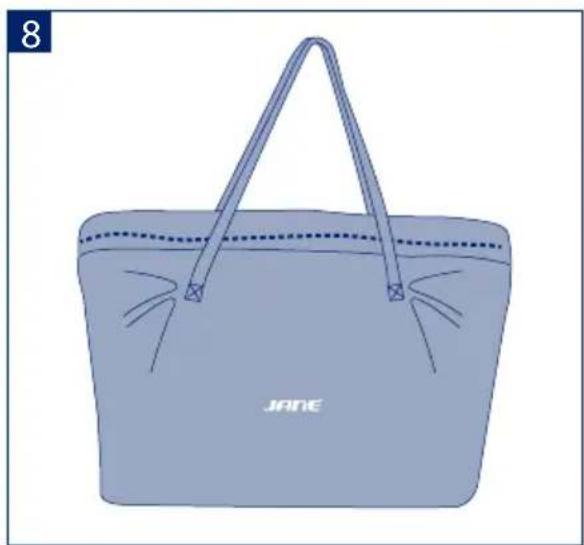

Illustration of a JANE bag with handle and strap, no text or symbols present

JANE

JANÉ, S.A.

Pol. Industrial Riera de Caldes

C/. Mercaders, 34
