USER MANUAL Smart JANE

Made in China - Designed in Spain

IM 2102.02

Kids zone. By JANE

SMART

SMART

ESP Capazo portable
EN Portable carrycot
Portabebe portatile
FR Nacelle portable
PT Alcofa Portátil
DE Tragbare Babywanne

Ref. 80497

ESP

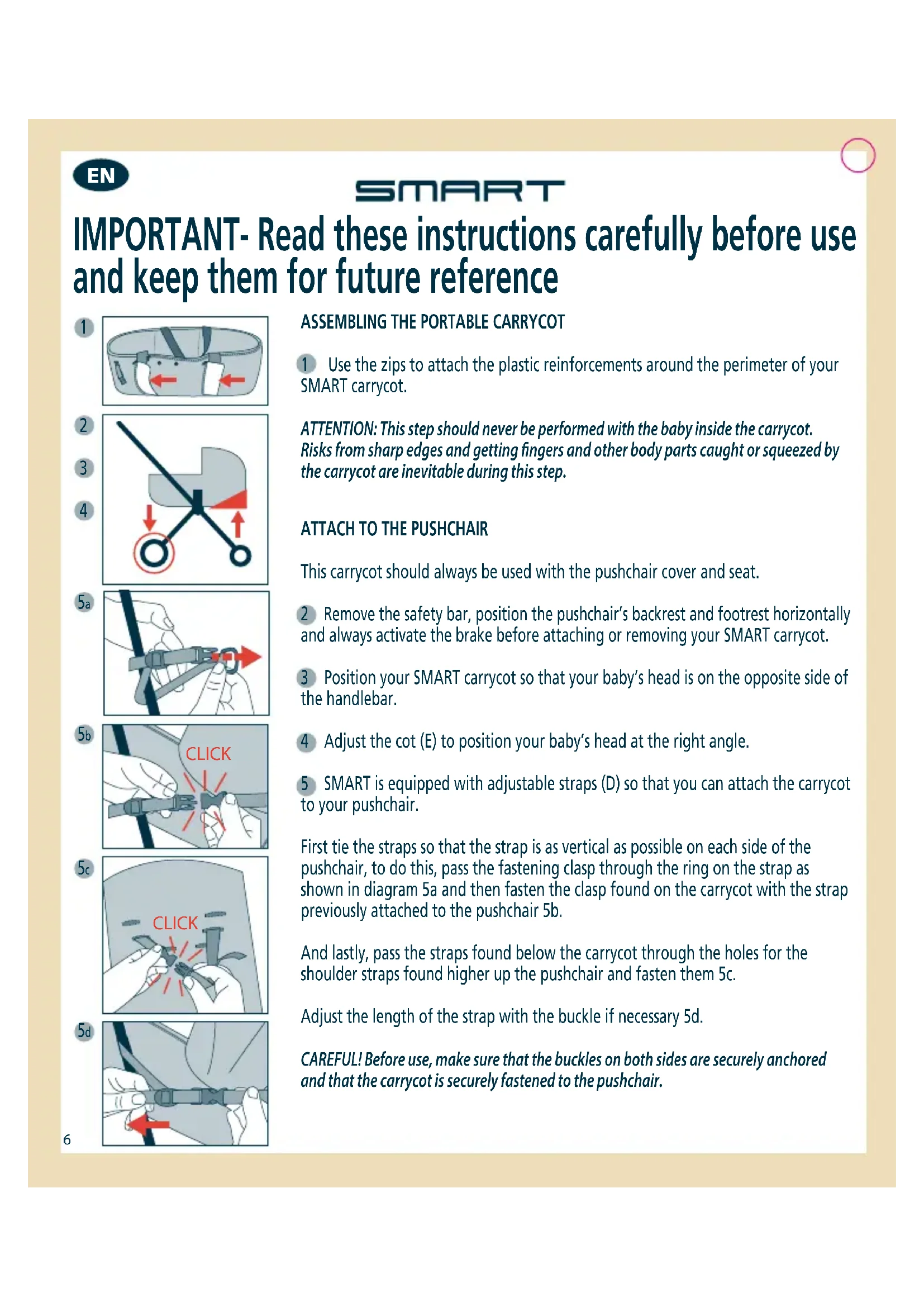

IMPORTANT- Read these instructions carefully before use and keep them for future reference

ASSEMBLING THE PORTABLE CARRYCOT

1 Use the zips to attach the plastic reinforcements around the perimeter of your SMART carrycot.

ATTENTION: This step should never be performed with the baby inside the carrycot. Risks from sharp edges and getting fingers and other body parts caught or squeezed by the carrycot are inevitable during this step.

ATTACH TO THE PUSHCHAIR

This carrycot should always be used with the pushchair cover and seat.

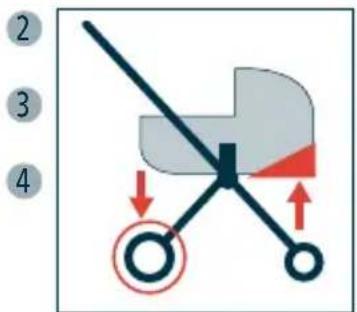

2 Remove the safety bar, position the pushchair's backrest and footrest horizontally and always activate the brake before attaching or removing your SMART carrycot.
3 Position your SMART carrycot so that your baby's head is on the opposite side of the handlebar.
4 Adjust the cot (E) to position your baby's head at the right angle.

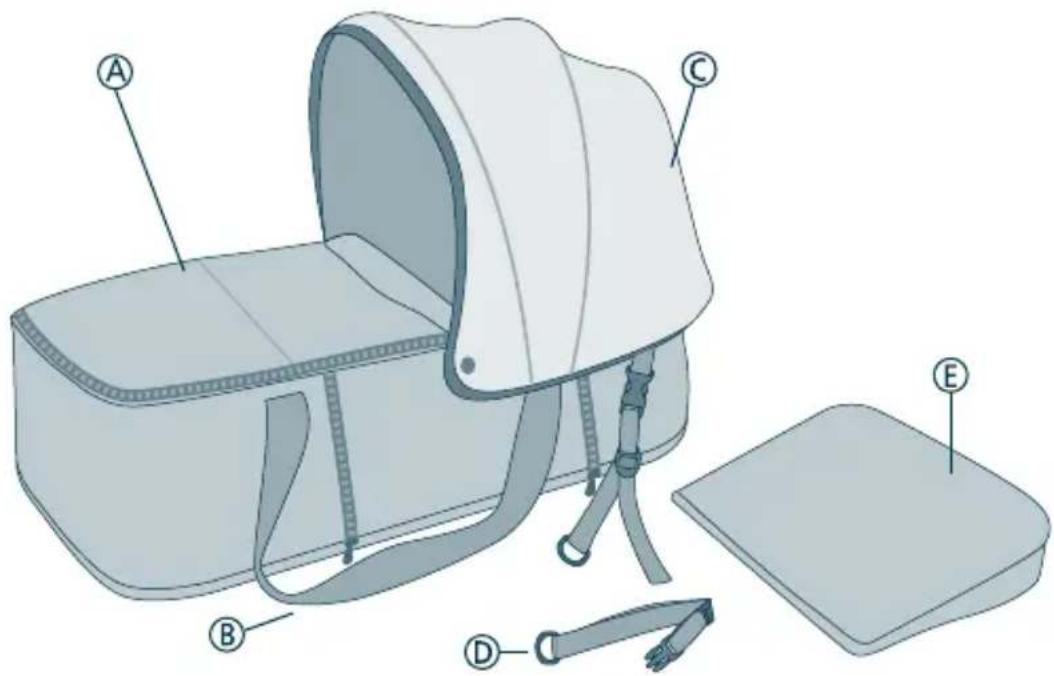

SMART is equipped with adjustable straps (D) so that you can attach the carrycot to your pushchair.

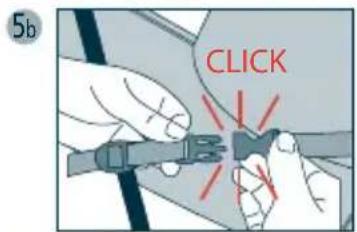

First tie the straps so that the strap is as vertical as possible on each side of the pushchair, to do this, pass the fastening clasp through the ring on the strap as shown in diagram 5a and then fasten the clasp found on the carrycot with the strap previously attached to the pushchair 5b.

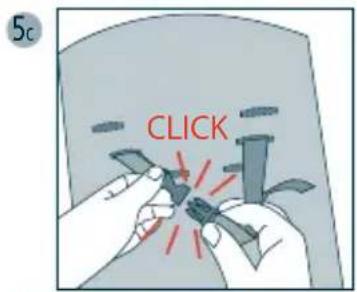

And lastly, pass the straps found below the carrycot through the holes for the shoulder straps found higher up the pushchair and fasten them 5c.

Adjust the length of the strap with the buckle if necessary 5d.

CAREFUL! Before use, make sure that the buckles on both sides are securely anchored and that the carrycot is securely fastened to the pushchair.

FOOT COVER

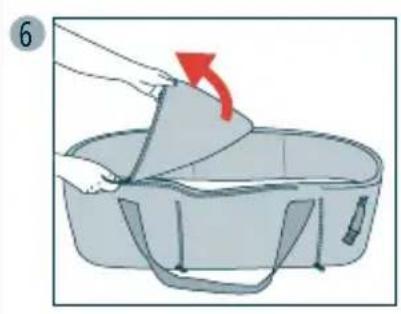

6 To open the foot cover (A), open the zips on the left and/or right of the SMART carrycot to the desired position.

USING THE HOOD

The hood (C) can be folded, unfolded and removed.

To attach the hood, fasten the clips to the ones on the carrycot as shown in the illustration.

To remove the hood, follow the same process in reverse.

WARNING: Do not put weight on top of the hood.

MAINTENANCE

Clean the plastic parts with soap and warm water, then carefully dry all the components.

Hand wash at temperature no higher than 30^ . Leave to dry naturally in a shaded place.

If the upholstery is exposed to sunlight for prolonged periods of time it may affect the colour of the fabric.

SMART comes with a guarantee with precise specifications for correct maintenance, which are important for the guarantee to remain fully valid.

For your safety and the good conservation of this product, it is important to bring it to one of our official workshops for regular inspections.

INFORMATION ABOUT THE GUARANTEE

This product comes with a guarantee in compliance with Royal Legislative Decree 1 / 2015 of 24 July. Keep your purchase receipt, you will need to show it in the shop where you bought the product to prove the guarantee is valid if you have any complaints.

This guarantee excludes any defects or breakages caused by inappropriate use of the article or inobservance of the safety and maintenance rules listed in the instruction pages and on the care labels, as well as faults caused by wear and tear through normal use and daily handling.

The label displaying the chassis number of the model should never be taken off, it contains important information.

NOTICE: For maximum safety and care for your new JANÉ item, it is very important that you register your new product on our website www.janeworld.com. This registration means we can inform you, if necessary, of the evolution and maintenance of your product. Additionally, if you would like, we can also inform you about new models or news that we think may be useful for you.

EN

WARNING:

• This product is only suitable for children unable to sit up on their own.
• Use only on a firm, horizontal, level and dry surface.
• Do not let other children play unattended near the carrycot.
• Do not use if a part is missing, broken or torn.
• Do not leave the flexible handles inside the carrycot.
• Do not use this carrycot on a support.
• Never leave the child unattended.
• Do not add an additional mattress.
• The Portable Carrycot should always be attached to the pushchair whilst empty, never with the child inside.
• Do not place the portable carrycot on high surfaces, such as tables, beds, etc. due to the risk of fall.
• Never use this portable carrycot without attaching it to the stroller as indicated in the instructions.
• Before use, make sure that the buckles on both sides are well anchored and that the carrycot is securely fastened to the pushchair.
• For safety reasons, do not use on slopes with more than a 12^ grade, as steeper slopes could compromise the pushchair's stability.

RESTRICTIONS:

• Use only original JANÉ parts.
• Always activate the pushchair's brake before attaching or removing your SMART carrycot.
• Always bear in mind the risk posed by open fire and other sources of heat such as heaters, gas fires, etc., when close to the carrycot.
• The handles and the bottom of the carrycot should be regularly inspected to check for signs of damage or wear and tear.
• This carrycot is designed for children from birth to 9kg in weight.
• Adjust the cot to position your baby's head at the right angle.
• This product is only suitable for children unable to sit up or turn over on their own, nor move on their hands and knees. Maximum weight of the child: 9 kg.
• For use in pushchairs. Never use this product without the cot and plastic reinforcements.
• Do not use stairs with the pushchair.
• Check that the child's head is in a higher position than the rest of the child's body.

SMART
