VEGE8 - Steamer Wëasy - Free user manual and instructions

Product Type	Steamer
Brand	Wëasy
Model	VEGE8
Power Supply	220-240 V ~ 50/60 Hz, 850 W (estimated)
Rice bowl capacity	1 liter
Number of steaming baskets	3 (numbered 1, 2, 3)
Timer	60 minutes
Automatic shut-off	Yes
Main functions	Steaming, reheating, integrated egg holder, juice collector
Maintenance	Removable parts dishwasher safe (except water tank)
Descaling	Every 8 uses with white vinegar (cold, overnight)
Safety	Automatic shut-off, do not immerse, hot surfaces, burning steam
Warranty	2 years (devices marketed from January 1, 2016)
Availability of spare parts	5 years after purchase
Customer service	www.hkoenig.com - [e-mail] - Tél: [phone]

Frequently Asked Questions - VEGE8 Wëasy

What is the capacity of the rice bowl?

The rice bowl has a capacity of 1 liter.

How many steaming baskets are included?

The VEGE8 steamer includes 3 steaming baskets numbered 1, 2, and 3, as well as a juice collector and an integrated egg holder.

How to descale the appliance?

Descale every 8 uses: pour 1 L of water and 150 ml of white vinegar into the tank, let it act cold overnight, then rinse with warm water. Do not use other descaling products.

Can I wash the parts in the dishwasher?

Yes, all removable parts (baskets, bowl, juice collector, etc.) can be washed in the dishwasher. The water tank must be cleaned with a damp cloth.

What is the timer duration?

The timer allows you to set a cooking time of up to 60 minutes. The appliance stops automatically at the end.

Does the appliance turn off automatically?

Yes, the switch turns off automatically when the timer rings, and the light goes out. You can also reheat food if there is no more water.

What are the important safety instructions?

Never immerse the appliance in water. Use kitchen gloves to handle the lid and hot baskets. Do not place the appliance near a heat source. Unplug it after use and keep out of reach of children.

What is the warranty for the VEGE8?

The warranty is 2 years for devices marketed from January 1, 2016. It covers breakdowns in normal use, but not wear and tear, consumable parts, or external damage.

Where can I find spare parts?

Spare parts are available for 5 years after purchase. Contact customer service via www.hkoenig.com or [e-mail].

How to use the steamer for the first time?

Wash all removable parts with warm soapy water. Place the turbo ring around the heating element (large side down), pour water up to the MAX level, arrange the food in the baskets, set the timer and let it cook.

USER MANUAL VEGE8 Wëasy

1. Check that the power supply voltage corresponds to that shown on the appliance.
2. Do not place the appliance near the hot source or in a hot oven, as serious damage could result.
3. Never leave the appliance in operation unattached. Keep away from children.
4. Do not use the appliance if the appliance or the cord is damaged, or the appliance has fallen or shows visible damage or does not work properly.
5. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
6. Burns can occur by touching the hot surface of the appliance, the hot water, the steam or the food.
7. Never immerse the appliance in water!
8. Do not move the appliance when it is full of liquid or hot foods.
9. Do not touch the appliance when it is steaming and use oven gloves to remove the lid, rice bowl and steamer baskets.
10. Always unplug the appliance immediately after use, when moving it or prior to any cleaning or maintenance.
11. This appliance is not intended for use by persons(including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been

given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

1. This appliance cannot be operated by an individual timer or remote or remote set.
2. This appliance may be used by children of at least 8 years of age, as long as they are supervised and have been given instructions about using the appliance safely and are fully aware of the dangers involved.
3. Cleaning and maintenance should not be carried out by children unless they are at least 8 years of age and are supervised by an adult.
4. Keep the appliance and its power cord out of reach of children under 8 years of age.
5. When using electrical equipment, safety precautions must always be taken to prevent the risk of fire, electric shock and/or injury in the event of misuse.
6. Make sure that the voltage rating on the typeplate corresponds to your main voltage of your installation. If this is not the case, contact the dealer and do not connect the unit.
7. Never leave the unit unattended while in operation.
8. Never open the appliance from the front, always position yourself slightly to the side to avoid burning yourself with steam.
9. The device must not be used if it has been dropped, it obvious signs of damage are visible or if it has leaks.
10. The machine is only used for household and indoor.

Instruction for use

1. Using warm water and washing up liquid, wash all the removable parts and the inside of the water tank, rinse and dry.
2. Place the base unit on a stable surface, put the turbo ring around the heating element (the largest side on the bottom).
3. Pour the fresh water directly into the water tank up to the maximum level.
4. Place the base into the baskets and put the food on the center of base.
5. Place the baskets on the top of the juice collector, and put the lid on.
6. Plug in and set the time for recommended cooking times (see table of cooking times), the indicator light on and steam cooking has begun.
7. Check the water level by looking the exterior water level indicator, if necessary, add water from the side of juice collector during cooking.
8. The switch off automatically, timer rings and the indicator light off.
9. You can reheat the food, carefully if there is any more water.
10. Remove the lid, place the basket(s) on the plate.
11. Unplug the appliance, let it cool completely before cleaning.

Cleaning and maintenance

1. Empty the water tank and clean it with a damp cloth.
2. All the other removable parts can be put in the dishwasher.
3. Descale the appliance every 8 times.
4. Position the turbo ring upside down around the heating element(the largest side on the upper). Fill the water tank with cold water up to "MAX" level, fill the inside of the turbo ring with white vinegar to the same level. Do not heat up (to avoid the descaling odour).Leave overnight to descale.

Rinse out the inside of water tank with warm water several times.

1. Stack the baskets one to the other following No.1 into No.2, then together into No.3. Put the rice bowl into the Steamer basket No.1. At last place the baskets on the juice collector and put lid over them all.

Descaling the water tank :

For optimal operation, descale your appliance every 8 uses. To do this, please :

• Remove the juice collector.

• Pour 1 L of water into the water tank.

• Add 1 glass (about 150 ml ) of white vinegar.

• Leave it cold for one night.

• Rinse the inside of the water tank several times with lukewarm water.
• Do not use any other decalcifying products.

Please follow the instruction for use carefully! This appliance produce boiling hot steam!

*depending on model

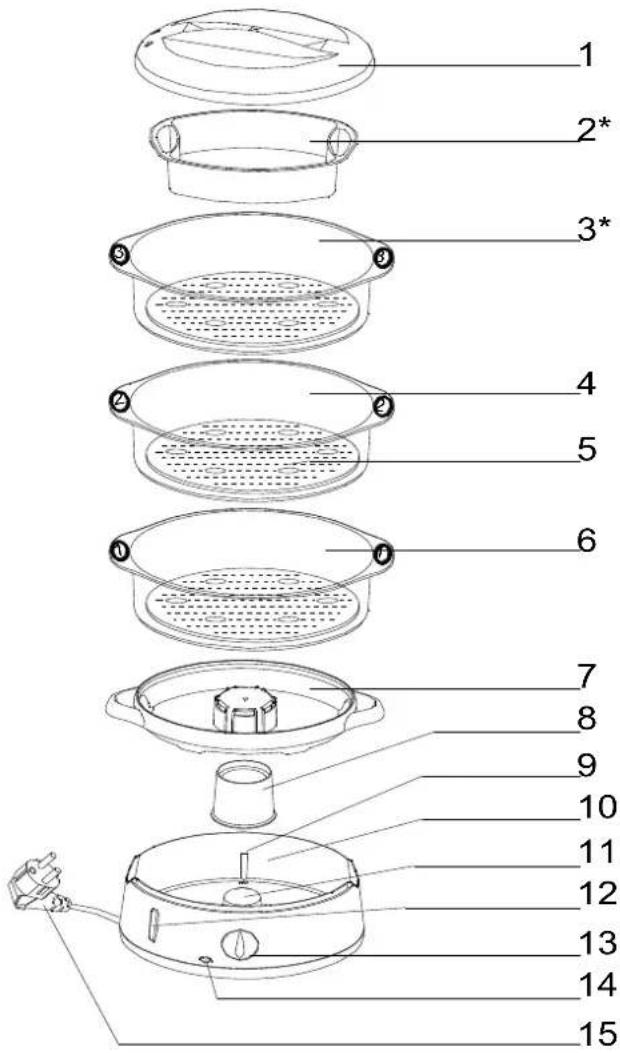

Description

1. lid
2. rice bowl (1L capacity) (depending on model)
3. Steam basket No.3 (depending on model)
4. Steamer basket No.2
5. base with clip and built-in egg holder
6. Steamer basket No.1

7. Juice collector

8. Removable turbo ring

9. Inside Maximum water level

10. Water tank

(1 hour continuous use)

1. Heating element
2. Exterior water level indicator
3. 60-minute timer
4. On indicator light
5. Power cord

GUARANTEE

The duration of the guarantee and Weasy Winkel products and 2 years on equipment from the original date of purchase or delivery date.

WARRANTY CONDITIONS

The warranty covers all failures arising under normal use complies with the uses and specifications present on the manual.

This warranty does not apply to packaging or transport problems during shipping the product by its owner. It also does not include normal wear and tear or maintenance or replacement of consumable parts,

DISCLAIMER OF WARRANTY

• Accessories and wear parts (*): filters, brushes, damaged glass or ceramic.
• Regular maintenance of the machine cleaning, battery charging, scaling ...
• All outages occur due to improper use (impacts, failure to comply with power supply recommendations, poor conditions of use ...), lack of maintenance or a function of diversion of device and the use of unsuitable accessories.
• The damage that an external origin: fire, water damage, power surges ...
• Any material that has been removed even partially by persons other than those authorized (including the user);
• Products whose serial number is missing, damaged or unreadable that would not allow its identification;
• Products subject to rent, demonstration or exhibition.
• Batteries for robot vacuum cleaner (these are guaranteed for 6 months).

(*) Wear parts: some component parts have material during use of it a function that causes them to wear, this wear is normal and influenced by the conditions of use and maintenance; these parts are not covered by warranty.

Accessories supplied with the unit are excluded from the warranty field. It will therefore be replaced or exchanged. However, some accessories can be purchased directly via our website: http://en.hkoenig.com/html/boutique_accessoires.htm

AVAILABILITY OF SPARE PARTS

The protection of the environment and the fight against waste are our main concerns,

Weasy undertakes to ensure that the products are repairable for 5 years following the purchase and that all parts are available during this period.

Repair in no way alters the quality of the product, it helps to limit the ecological impact of the waste.

TERMS AND CONDITIONS OF AVAILABILITY

Parts availability is defined as any purchase starting March 1, 2015. Weasy undertakes to provide the vendors and repairers with the spare parts necessary for the repair of the products within two months. In case of force majeure, a standard product exchange or refund solution will be offered to the user.

ENVIRONMENT

CAUTION:

Do not dispose of this product as it has with other household products. There is a separation of this waste product into communities, you will need to inform your local authorities about the places where you can return this product. In fact, electrical and electronic

products contain hazardous substances that have harmful effects on the environment or human health and should be recycled. The symbol here indicates that electrical and electronic equipment should be chosen carefully, a wheeled waste container is marked with a cross.

Adeva SAS / H.Koenig Europe - 8 rue Marc Seguin - 77290 Mitry Mory - France www.hkoenig.com - [e-mail] - [e-mail] - Tél: [phone]
