IAN 359991 - Light Decoration Livarno Lux - Free user manual and instructions

Product Type	LED star-shaped light decoration
Brand	Livarno Lux
Model	IAN 359991
Usage	Indoor and outdoor (temperature down to -21°C)
Supply voltage	220-240 V~, 50-60 Hz
Operating voltage	4.5 V DC
Power consumption	Approx. 2.5 W (string), 3.6 W (power supply)
Number of LEDs	6 (non-replaceable)
Power per LED	0.15 W
Protection rating	IP44 (splash-proof)
Protection class	II
Power cable length	Approx. 10 m
Functions	On, timer 6h/18h, off
Maximum ambient temperature	40 °C
Package contents	1 light string with power supply and eyelet, 1 lampshade, 1 power adapter, 1 instruction manual
Lampshade material	Not specified (plastic likely)
Care	Clean with a dry, lint-free cloth. Do not use water or solvents.
Safety	Do not open, do not replace LEDs, unplug before cleaning, keep out of reach of children under 8 years.
Batteries	None (mains)
Dimensions (string)	Not specified
Weight	Not specified

Frequently Asked Questions - IAN 359991 Livarno Lux

How to assemble the light star?

Insert the LEDs into the lampshade from the top, then close the lampshade completely to form the star. Use the two plastic hooks to close by inserting them into the small holes and turning them 90 degrees.

How to turn on and use the timer?

Plug in the power supply. Press the button once to turn on. A second press activates the timer (6h on, 18h off, automatic repeat). A third press turns it off.

Can I use this decoration outdoors?

Yes, it is designed for indoor and outdoor use, with IP44 rating (splash-proof). It withstands temperatures down to -21°C.

What to do if an LED does not light up?

The LEDs are not replaceable. If an LED is defective, the entire product must be replaced.

How to clean the light star?

First unplug the power supply. Use a dry, lint-free cloth. Never use water, solvents, or chemicals.

Can I use a different power adapter?

No, use only the supplied power adapter (model JT-DC4.5V3.6W-H4-IP44). Using another adapter voids the warranty and may be dangerous.

Does the timer run continuously?

Yes, once activated, the timer repeats automatically every day: 6 hours on, 18 hours off.

Can I attach the star with a nail or staple?

No, do not attach the cable with sharp staples or nails. Use the eyelet to hang the product on a support suitable for the weight.

What to do in case of malfunction?

Contact customer service: in France at 0800904879 or by email [e-mail]. Have your receipt and model number IAN 359991 ready.

How to dispose of the product at end of life?

Do not dispose of the product in household waste. Take it to an appropriate collection point. The packaging is recyclable, sort it according to local guidelines.

USER MANUAL IAN 359991 Livarno Lux

PDF ONLINE www.lidl-service.com

LED-LEUCHTSTERN / LED STAR LIGHT / ÉTOILE LUMINEUSE LED

DE AT CH

LED-LEUCHTSTERN

Operation and safety notes

NL BE

LED-STERLICHT

ESTRELLA LUMINOSA LED

GB / IE Operation and safety notes Page 9

Technical diagram showing labeled components of a mechanical or electrical device with numbered parts and a starburst-like structure.

Technical line drawing of a mechanical component with no visible text or symbols

Technical diagram of a mechanical assembly with no visible text or symbols

C 8 8

D 8 8

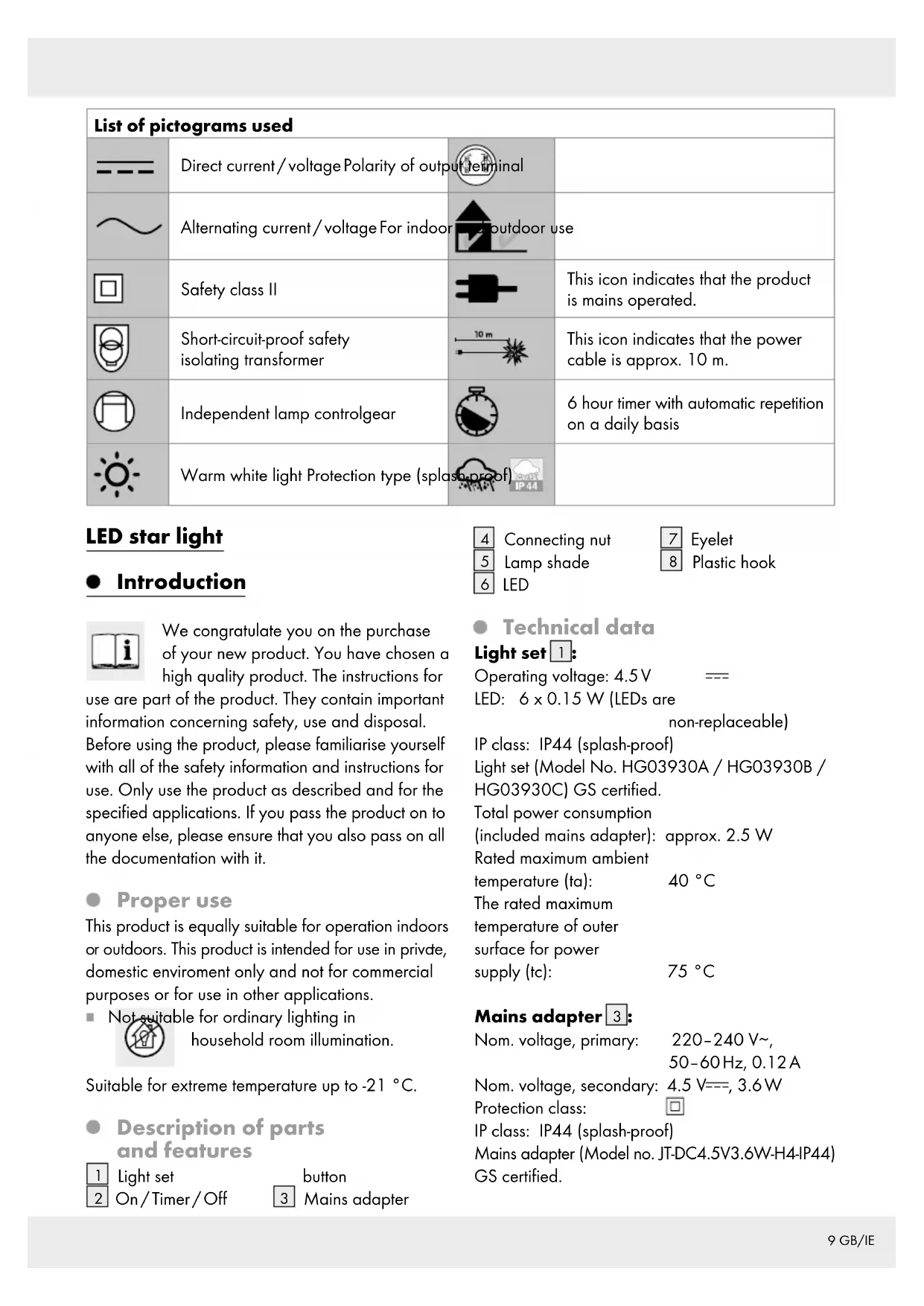

List of pictograms used
	Direct current/voltage Polarity of output	final
	Alternating current/voltage For indoor	outdoor use
	Safety class II		This icon indicates that the product is mains operated.
	Short-circuit-proof safety isolating transformer		This icon indicates that the power cable is approx. 10 m.
	Independent lamp controlgear		6 hour timer with automatic repetition on a daily basis
	Warm white light Protection type (spla: )

LED star light

- Introduction

We congratulate you on the purchase of your new product. You have chosen a high quality product. The instructions for

use are part of the product. They contain important information concerning safety, use and disposal.

Before using the product, please familiarise yourself with all of the safety information and instructions for use. Only use the product as described and for the specified applications. If you pass the product on to anyone else, please ensure that you also pass on all the documentation with it.

- Proper use

This product is equally suitable for operation indoors or outdoors. This product is intended for use in private, domestic environment only and not for commercial purposes or for use in other applications.

■ Not suitable for ordinary lighting in

household room illumination.

Suitable for extreme temperature up to -21 °C.

• Description of parts and features

1 Light set

2 On/Timer/Off

button

3 Mains adapter

4 Connecting nut
5 Lamp shade
6 LED

7 Eyelet

8 Plastic hook

- Technical data

Light set 1:

Operating voltage: 4.5V

三

LED: 6 x 0.15 W (LEDs are

non-replaceable)

IP class: IP44 (splash-proof)

Light set (Model No. HG03930A / HG03930B /

HG03930C) GS certified.

Total power consumption

(included mains adapter): approx. 2.5 W

Rated maximum ambient

temperature (ta): 40 °C

The rated maximum

temperature of outer

surface for power

supply (tc): 75 °C

Mains adapter 3:

Nom. voltage, primary:

220-240 V\~,

50-60Hz, 0.12A

Nom. voltage, secondary:

4.5 V=, 3.6 W

Protection class:

IP class: IP44 (splash-proof)

Mains adapter (Model no. JT-DC4.5V3.6W-H4-IP44)

GS certified.

Included items

1 Bulb with cable and eyelet
1 Lamp shade 1 Operating instructions
1 Mains adapter

Safety information

BEFORE USING THE PRODUCT, PLEASE FAMILI-ARISE YOURSELF WITH ALL OF THE SAFETY INFORMATION AND INSTRUCTIONS FOR USE! WHEN PASSING THIS PRODUCT ON TO OTHERS, PLEASE ALSO INCLUDE ALL THE DOCUMENTS!

DANG RORNING! DEATH AND AC TODDLERS AND

Never leave children unsupervised with the packaging material. The packaging material represents a danger of suffocation. Children frequently underestimate the dangers. Please keep children away from the product at all times.

This product is not a toy. It does not belong in the hands of children. Children are not able to appreciate the dangers associated with using the product.
This product can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the product in a safe way and understand the hazards involved. Children shall not play with the product. Cleaning and user maintenance shall not be made by children without supervision.
■ Ensure that the product is installed by suitably experienced or qualified persons only.

CAUTION! RISK OF OVERHEATING! Do not operate the product inside the packaging.

Do not pull the product cable and make sure it is laid down properly so that no one walks or trips over it.
The product can be used on all surfaces officially classified as being of "normal flammability".
Do not attach any other objects to the product.

Avoid the danger of death from electric shock!

Before use, ensure that the mains voltage available is the same as the required operating voltage for the product (220-240 V\~).
Before connecting the product to the mains you should always check the product and the mains adapter for any damage.
■ Never use the product if you discover that it is damaged in any way.
This products external flexible tube is non-replaceable. Hence if it becomes damaged you must dispose of the entire product.
This product does not contain any parts which can be serviced by the user. The LEDs cannot be replaced.
Only use the product with the supplied mains adapter for the type (Model No. JT-DC4.5V3.6W-H4-IP44); all warranty claims will otherwise expire.
■ Never open any of the electrical parts or insert any kind of object into them.
- Protect the mains cable from sharp edges, mechanical loads and hot surfaces.
Do not install with sharp fasteners or nails.
Always unplug the mains adapter from the socket before installation, dismantling or cleaning.
Never touch the product's plug or the product itself with wet hands.
The product must not be electrically connected to another set of lights.
If the product is not in use for any length of time (e.g. holidays), disconnect them from the power supply.
If you have any questions about the product or are unsure about any of its aspects, please seek the advice of an electrical equipment specialist.
The product is only suited for use with the included mains adapter (Model No. JT-DC4.5V3.6W-H4-IP44).
Please note that the mains adapter continues to draw a small amount of power even if the product is turned off as long as the mains adapter is plugged into a power outlet. To switch the product off completely, unplug the mains adapter from the socket.

■ The LEDs are not replaceable.
If the LEDs fail at the end of their lifes, the entire product must be replaced.

Use

Note: Remove all packaging materials from the product.

☐ Insert the plug on end of the product into the socket of the mains adapter 3. Please screw down the connecting nut 4 clockwise.
□ Unfold the lamp shade 5 gently and leave a gap.

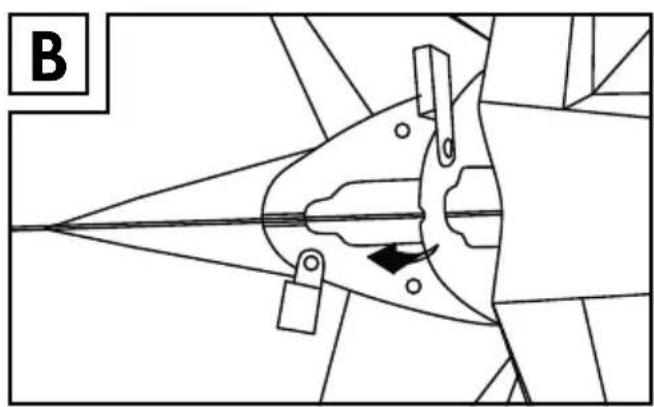

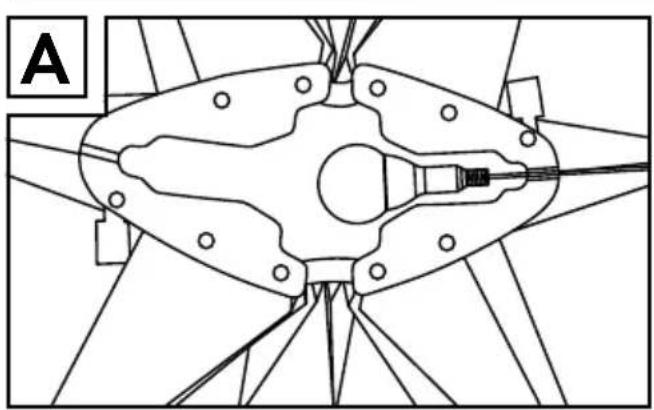

☐ Insert the LED from above into the lamp shade 5 (see Fig. A–D).
☐ Close the lamp shade completely, so that the shape of star form.

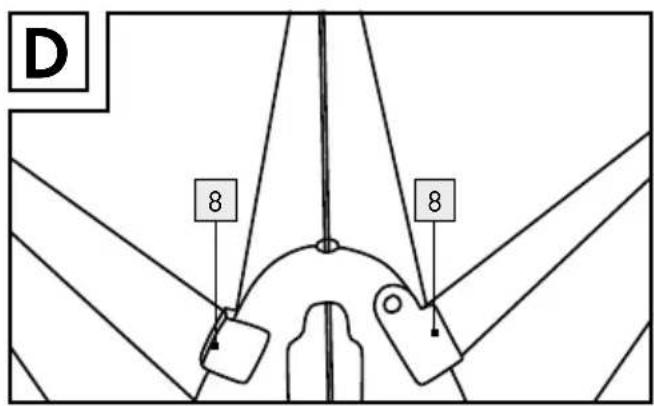

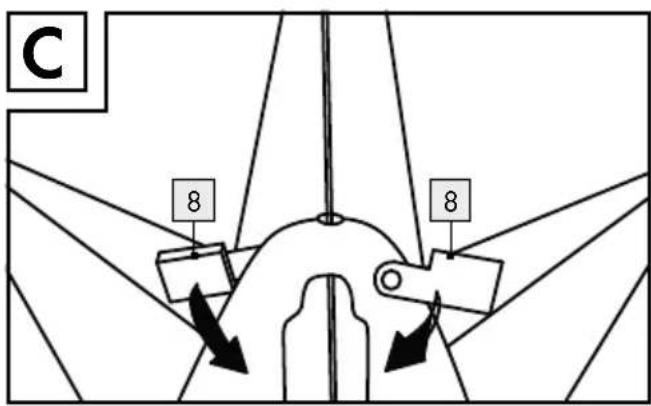

☐ Insert the two plastic hooks into small holes beside the opening and twist 90 degree to lock the lamp shade 5.
☐ Use the eyelet to hang up the product.
Note: The hang up location should be appropriate for the weight of the product.
☐ insert the mains adapter 3 into the mains socket.
☐ To switch on the light set, press 1st time On/Timer/Off button 2 after the product is connected to the socket of power supply.

- Timerfunction

☐ Press 2nd time On/Timer/Off button 2 to switch on the timer function. The On/Timer/Off button 2 will light up when the timer function is activated.
☐ The product lights glow permanently for 6 hours and will be followed by a subsequent pause of 18 hours. Afterwards, the product will light up again at its designated turn on time for 6 hours followed by a subsequent pause of 18 hours.
☐ Press 3rd time On/Timer/Off button 2 to switch off the light set 1.

- Cleaning and care

CAUTION! DANGER OF ELECTRIC SHOCK!

First pull the mains adapter 3 out of the mains socket.

CAUTION! DANGER OF ELECTRIC SHOCK!

For reasons of electrical safety the product must never be cleaned with water or other liquids or immersed in water.

Do not use any solvents, petrol or similar items. This would damage the product.
☐ Only a dry, lint-free cloth should be used for cleaning.

●Disposal

The packaging is made entirely of recyclable materials, which you may dispose of at local recycling facilities.

Observe the marking of the packaging materials for waste separation, which are marked with abbreviations (a) and numbers (b) with following meaning: 1–7: plastics / 20–22: paper and fibre-board / 80–98: composite materials.

The product and packaging materials are recyclable, dispose of it separately for better waste treatment. The Triman logo is valid in France only.

Contact your local refuse disposal authority for more details of how to dispose of your worn-out product.

To help protect the environment, please dispose of the product properly when it has reached the end of its useful life and not in the household waste. Information on collection points and their opening hours can be obtained from your local authority.

● Warranty claim procedure

To ensure quick processing of your case, please observe the following instructions:

Please have the till receipt and the item number (e.g. IAN 123456_7890) available as proof of purchase.

You will find the item number on the rating plate, an engraving on the front page of the instructions for use (bottom left), or as a sticker on the rear or bottom of the product.

If functional or other defects occur, please contact the service department listed either by telephone or by e-mail.

You can return a defective product to us free of charge to the service address that will be provided to you. Ensure that you enclose the proof of purchase (till receipt) and information about what the defect is and when it occurred.

Service

GB Service Great Britain

Tel.: [phone]

E-Mail: [e-mail]

IE Service Ireland

Tel.:[phone]

E-Mail: [e-mail]
