Product type	Electric fireplace
Brand	Klarstein
Model	Brixen
Power supply	220-240 V ~ 50 Hz
Heating power	2000 W (max), 1000 W (min)
Number of power levels	2 (1000 W and 2000 W)
Flame effect	Yes, integrated LED system
Thermostat	Yes, adjustable rotary knob
Safety shutdown	Yes, by overheating (manual reset)
Control type	Mechanical switches (O/I, I, II) + rotary thermostat
Usage	Indoor, well-insulated rooms or occasional use
Maintenance	Cleaning with a cloth; do not use abrasive products
Bulb replacement	Not necessary (sealed LED system)
User-replaceable parts	None
Article numbers	10032891, 10035056, 10035057
Manual pages	52 pages

Frequently Asked Questions - Brixen Klarstein

How to turn on the Brixen fireplace?

Plug the unit into a mains socket. Set the main switch (O/I) to I to power on, then use switches I (1000 W) and II (2000 W) to select the heating power. The rotary thermostat allows you to adjust the desired room temperature.

Does the LED flame work without heating?

Yes, you can turn on the flame effect alone by setting the main switch to I without activating the heating switches I and II. The flame works independently of the heating.

What to do if the heater suddenly turns off?

This is likely the safety shutdown due to overheating (e.g., blocked air vents). Unplug the unit for at least 15 minutes, then plug it back in and turn it on. Check that the openings are not blocked.

Can I use an extension cord with this heater?

No, it is not recommended to use an extension cord. Plug the unit directly into a mains socket to avoid any risk of overheating or electrical damage.

How to clean the electric fireplace?

Turn off and unplug the unit, let it cool down completely. Wipe the surface with a soft, dry cloth. Never use abrasive products or chemical cleaners.

Can I replace the bulb of the flame effect?

No, the unit uses an integrated electronic LED system that does not require replacement. There are no user-serviceable parts. In case of malfunction, have it checked by a qualified electrician.

What is the maximum electrical power?

The maximum power is 2000 W (simultaneous use of switches I and II). You can also use only 1000 W with switch I alone.

Where to install the heater?

Place it on a stable, flat, heat-resistant surface. Keep it away from curtains, furniture, and flammable materials. Do not install it directly under a power outlet and avoid damp rooms or outdoor areas.

Can the heater be used in a bedroom at night?

It is not recommended to leave the heater running unattended during the night. Do not use it in a small room occupied by persons who cannot leave the room on their own without supervision.

What to do in case of malfunction or damaged part?

Stop the unit immediately and unplug it. Do not attempt to disassemble or repair it yourself. Contact customer service or a qualified technician. Repairs must only be carried out by the manufacturer or its after-sales service.

USER MANUAL Brixen Klarstein

ONNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNN

KLARSTEIN

www.klarstein.com

Note: This product is only suitable for well insulated spaces or occasional use.

Unit 6 Riverside Business Centre

Brighton Road

Shoreham-by-Sea

BN436RE

United Kingdom

SICHERHEITSHINWEISE

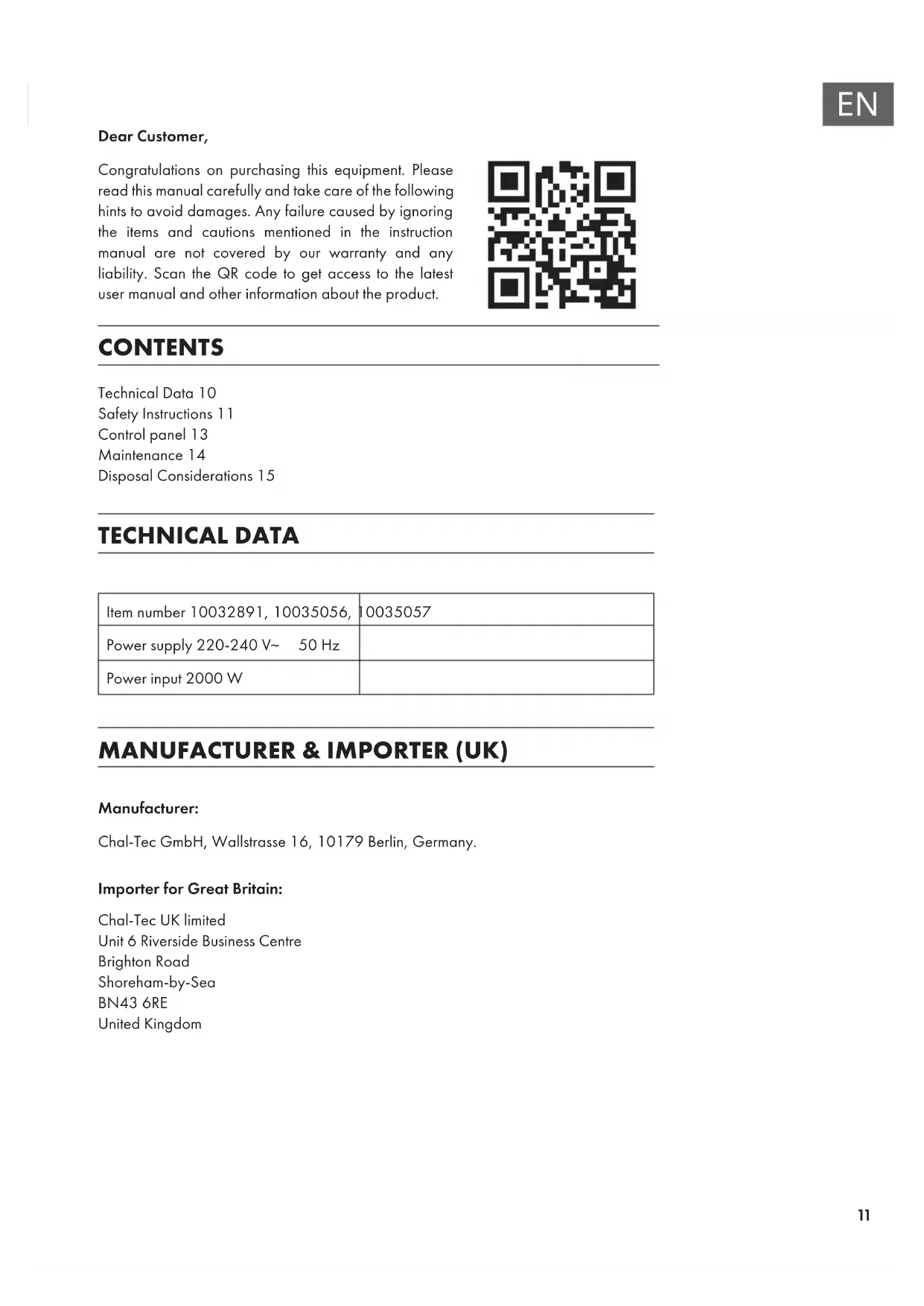

Congratulations on purchasing this equipment. Please read this manual carefully and take care of the following hints to avoid damages. Any failure caused by ignoring the items and cautions mentioned in the instruction manual are not covered by our warranty and any liability. Scan the QR code to get access to the latest user manual and other information about the product.

CONTENTS

Technical Data 10

Safety Instructions 11

Control panel 13

Maintenance 14

Disposal Considerations 15

TECHNICAL DATA

Item number 10032891, 10035056,	10035057
Power supply 220-240 V~ 50 Hz
Power input 2000 W

MANUFACTURER & IMPORTER (UK)

Manufacturer:

Chal-Tec GmbH, Wallstrasse 16, 10179 Berlin, Germany.

Importer for Great Britain:

Chal-Tec UK limited

Unit 6 Riverside Business Centre

Brighton Road

Shoreham-by-Sea

BN436RE

United Kingdom

SAFETY INSTRUCTIONS

When using any electrical appliance, basic safety precautions should always be followed including the following.

• Check that the voltage of the main circuit corresponds with the rating of the appliance before operating.
• Please ensure that the appliance is used on a stable, level, and heat resistant surface.
• DO NOT immerse cords, plugs or any part of the appliance in water or any other liquid.
  DO NOT leave the appliance unattended while it is operating.
• Close supervision is necessary when any appliance is used by or near children.
  Take care when any appliance is used near pets.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
  Children should not play with the appliance.
• Cleaning and user maintenance should not be undertaken by children without supervision.
• Switch off at the wall socket then remove the plug from the socket when not in use or before cleaning.
• If the supply cord or appliance is damaged, stop using the appliance immediately and seek advice from the manufacturer, its service agent or a similarly qualified person.
• DO NOT let the cord hang over the edge of a table or counter or let it come into contact with any hot surfaces.
• The use of accessory attachments other than those supplied is not recommended.
• DO NOT pull the plug out by the cord as this may damage the plug and/or the cable.
  DO NOT use this product for anything other than its intended use.
• This appliance is for household use only.
  DO NOT carry the appliance by the power cord.
  DO NOT use any extension cord with this appliance.
  DO NOT use the appliance outdoors.
• This heater is not equipped with a device to control the room temperature. DO NOT use this heater in small rooms when they are occupied by persons not capable of leaving the room on their own, unless constant supervision is provided.
  Always ensure that the heater is placed on a firm level surface.
• Ensure that the heater is not positioned close to curtains, furniture or any combustible materials as this could create a fire hazard.
• Never sit or stand on the fire.
• Never cut off the plug and hard wire into a fixed fused spur.
• The heater must not be located immediately below a mains socket outlet.
  DO NOT cover the heater as this may lead to a fire risk.

DO NOT obstruct any of the openings of the heater.
DO NOT insert any object through any openings on the heater.
- Check the heater from time to time for accumulated dust.
DO NOT use the heater in areas where flammable liquids are stored or where flammable fumes may be present.
- DO NOT cover the cord under the carpeting. DO NOT cover with throw rugs, runners or the like. Arrange the cord away from traffic areas and where it could be tripped over.
- This appliance has hot and arcing or sparking parts inside.
- DO NOT use it in areas where gasoline, paint or flammable liquids are used or stored.
- This fireplace should not be used as a drying rack for clothing. DO NOT hang
- Christmas stockings or other decorations on or near this product.
DO NOT operate the heater on a timer, or leave on overnight.
- When not being used, please unplug the heater from the mains socket.
- Keep the mains lead away from the hot body of the heater and ensure that it is not pulled tight between the socket and the heater.
- Always unplug the heater and allow it to cool before moving it from one location to another.
- WARNING! This product must be installed correctly, failure to do so may cause damage to your product and/or your surroundings.
DO NOT attempt to dismantle or repair any part of the heater.
- This should only be done by a qualified service agent.
- In the unlikely event the appliance develops a fault, stop using it immediately and seek advice from the Customer Support Team.

CONTROL PANEL

2341

Insert plug into mains socket Select the desired functions

Switch Description Function
1	O/I	Switches on/off electricity supply to the heater and flame effect. Note: This switch must be in the ON (I) position for heater to operate with or without heat.
2	I	Switchs on/off 1000W heat output.
3	II	Switchs on/off 2000W heat output. (with switch 2 turned on)
4	Rotate thermostat knob	The flame effect can be operated with or without heat. Rotate thermostat knob (4) clockwise or anti-clockwise to increase or decrease desired room temperature setting..

Safety cut-off

This appliance is fitted with a safety cut-off which will operate if the heater overheats (e.g. Due to blocked air vents). For safety reasons, the heater will NOT automatically reset.

To reset the appliance, disconnect the appliance from the mains supply for at least 15 minutes. Reconnect the supply to the mains and switch on the appliance.

MAINTENANCE

Before cleaning or maintenance operation, switch off and unplug the appliance. Ensure it is perfectly cooled.

To remove the dust, wipe the appliance with a cloth.

Never use abrasives or detergents.

Bulb replacement

This product does not use a standard bulb for its flame effect. The appliance uses an electronically controlled LED system to create the effect, therefor no parts need to be replaced. There are no user-serviceable parts on this appliance. Under no circumstances should the appliance be serviced be anyone other than a qualified electrician.

Symptom Solution
No operation/ no fan. Check if p	put the electric plug into the socket. Check for safety cut-off operation.
No fire effect light. Check the LED	system by qualified electrician.

If there is a legal regulation for the disposal of electrical and electronic devices in your country, this symbol on the product or on the packaging indicates that this product must not be disposed of with household waste. Instead, it must be taken to a collection point for the recycling of electrical and electronic equipment. By disposing of it in accordance with the rules, you are protecting the environment and the health of your fellow human beings from negative consequences. For information about the recycling and disposal of this product, please contact your local authority or your household waste disposal service.

This product contains batteries. If there is a legal regulation for the disposal of batteries in your country, the batteries must not be disposed of with household waste. Find out about local regulations for disposing of batteries. By disposing of them in accordance with the rules, you are protecting the environment and the health of your fellow human beings from negative consequences.

Information requirements for electric local space heaters

Model identifier(s): 10032891	10035056, 10035057
Item Symbol Value Unit Item Unit
Heat output Type of heat input, for electric storage					local space heaters only
Nominal heat output P	nom	2.0 kW	manual heat	charge control, with integrated thermostat	no
Minimum heat output (indicative)	Pmin	1.0 kW	manual heat	charge control with room and/or outdoor temperature feedback	no
Maximum continuous heat output	Pmax	2.0 kW	electronic heat	charge control with room and/or outdoor temperature feedback	no
Auxiliary electricity consumption					fan assisted heat output no
At nominal heat output (fan motor)	eI max	0.013	kW		Type of heat output/room temperature control
At minimum heat output (fan motor)	eI min	0.013	kW single	stage heat output and no room temperature control	no
In standby mode	eSb	0	kW Two or more manual stages, no room temperature control	no
				with mechanic thermostat room temperature control	yes
				with electronic room temperature control no
				electronic room temperature control plus day timer	no
				electronic room temperature control plus week timer	no
				Other control options (multiple selections possible)
				room temperature control, with presence detection	no
				room temperature control, with open window detection	no
				with distance control option	no
				with adaptive start control no
				with working time limitation	no
				with black bulb sensor	no
Contact details	Chal-Tec GmbH, Wallstraße 16, 10179, Berlin, Germany
