USER MANUAL NZAOT 600 A1 NEVADENT

Operating instructions

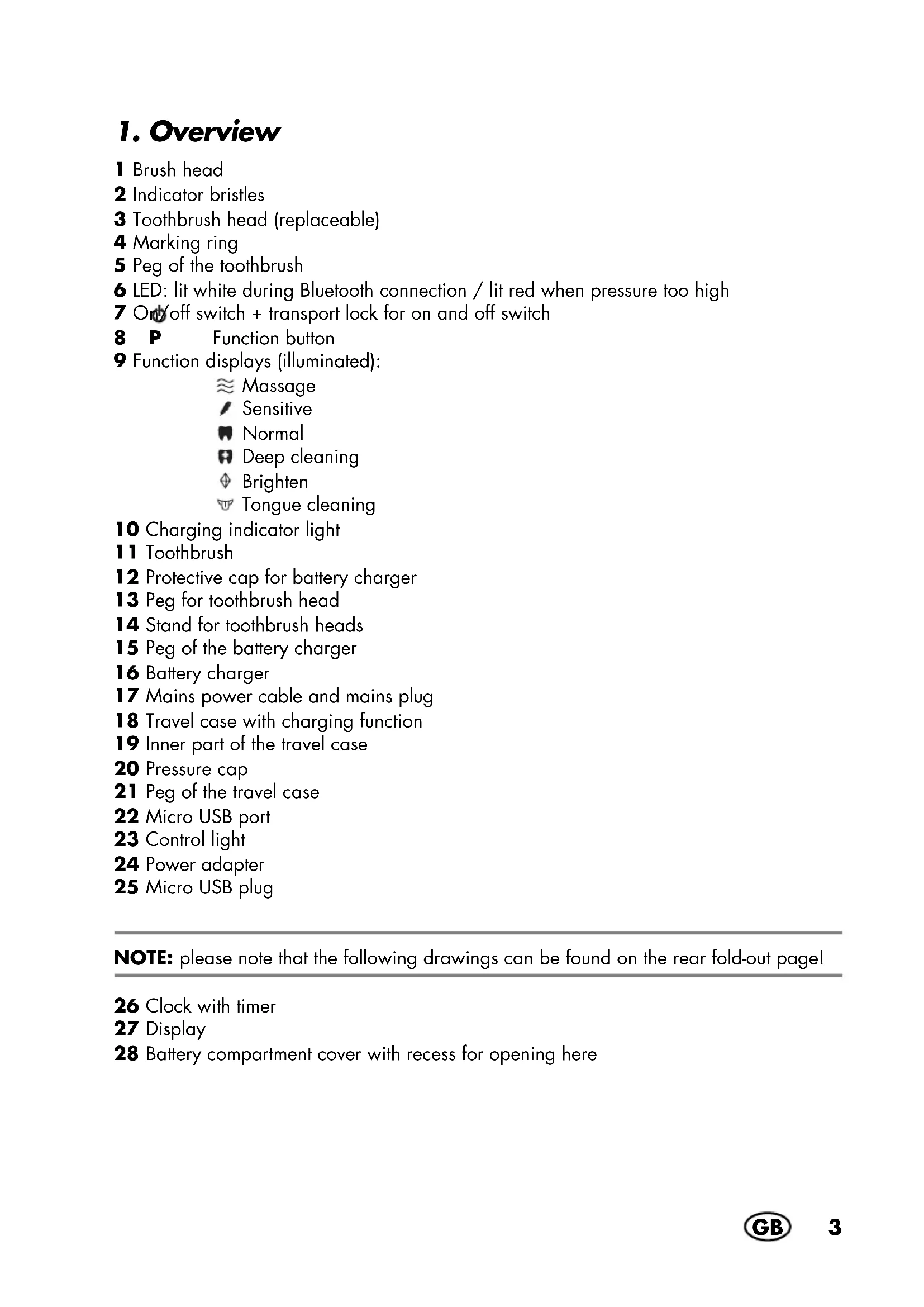

1 Brush head 2 Indicator bristles 3 Toothbrush head (replaceable) 4 Marking ring 5 Peg of the toothbrush 6 LED: lit white during Bluetooth connection / lit red when pressure too high 7 On/off switch + transport lock for on and off switch 8P Function button 9 Function displays (illuminated): Massage Sensitive Normal Deep cleaning Brighten Tongue cleaning 10 Charging indicator light 11 Toothbrush 12 Protective cap for battery charger 13 Peg for toothbrush head 14 Stand for toothbrush heads 15 Peg of the battery charger 16 Battery charger 17 Mains power cable and mains plug 18 Travel case with charging function 19 Inner part of the travel case 20 Pressure cap 21 Peg of the travel case 22 Micro USB port 23 Control light 24 Power adapter 25 Micro USB plug NOTE: please note that the following drawings can be found on the rear fold-out page! 26 Clock with timer 27 Display 28 Battery compartment cover with recess for opening here __321713_Zahnbuerste_B6.book Seite 3 Freitag, 19. Juli 2019 11:37 114

Figure A 29 Battery compartment 30 set Button for setting the time: switch to time format / hours / 10-minutes intervals / minute intervals 31 h/min Button for setting the time: change values Figure B 32 Double-sided adhesive ring 33 Wall mount 34 Housing Thank you for your trust! Congratulations on the purchase of your new electric toothbrush. For safe handling of the device and in order to get to know the entire range of features:

• Thoroughly read these user in- structions prior to initial use.

• Above all, observe the safety in- formation!

• The device should only be used as described in this copy of the user instructions.

• Keep this copy of the user in- structions for reference.

• If you pass the device on to someone else, please include this copy of the user instructions. The user instructions are a part of the product. We hope you enjoy using your new electric toothbrush! All brand and manufacturer names are the property of their respective owners. They are specified solely in order to simplify the ex- planation of the points illustrated.

The electric toothbrush is intended solely for tooth cleaning and oral hygiene in humans. The device is designed for private, domestic use. This device must not be used for com- mercial purposes.

3. Safety information

Warnings If necessary, the following warnings are used in this copy of the user instructions: DANGER! High risk: failure to ob- serve this warning may result in inju- ry to life and limb. WARNING! Moderate risk: failure to ob- serve this warning may result in injury or se- rious material damage. CAUTION: low risk: failure to observe this warning may result in minor injury or mate- rial damage. NOTE: circumstances and specifics that must be observed when handling the de- vice. GB_321713_Zahnbuerste.fm Seite 4 Freitag, 19. Juli 2019 1:50 135

Instructions for safe operation

This device can be used by children and people with restricted physical, sensory or intellectual abilities or people without ade- quate experience and/or understanding, if they are supervised or instructed on how to use this device and if they are aware of the re- sulting hazards. Cleaning and user maintenance must not be per- formed by children unless they are supervised.

Children must not play with the device.

The mains power cable of this device cannot be replaced. If the ca- ble should become damaged, the device itself must be disposed of. DANGER as small parts may be swallowed ~ The marking rings on the toothbrush heads are small parts that can be swal- lowed. Keep away from children under 36 months of age. DANGER for children ~ Packing materials are not children's toys. Children should not be allowed to play with the plastic bags: there is a risk of suffocation. DANGER to and from pets and livestock ~ Electrical devices can represent a dan- ger to pets and livestock. In addition, animals can also cause damage to the device. For this reason you should keep animals away from electrical devices at all times. DANGER! Risk of electric shock due to moisture ~ The toothbrush, the travel case, the power adapter, the battery charger, the mains power cable and the mains plug must never be immersed in water or any other liquids.

Protect the device from moisture, water drops and water splashes: failure to ob- serve this instruction may result in an electrical shock hazard. ~ Never touch the device with wet hands. ~ Make sure that the surface under the device is dry. ~ If the battery charger has fallen into wa- ter, pull out the mains plug immediately, and only then remove the battery charg- er from the water. If the travel case has nevertheless fallen into water while connected for charg- ing, pull out the power adapter immedi- ately, and only then take the travel case out of the water. If this happens, do not use the battery charger or the travel case again until it has been checked by a specialist work- shop.

The battery charger is connected to the power voltage, and must therefore not be used in the shower, in the bath, or over washbasins filled with water. 0-3 __321713_Zahnbuerste_B6.book Seite 5 Freitag, 19. Juli 2019 11:37 116

DANGER! Risk of electric shock ~ The installation of a residual current de- vice with a nominal trip current not ex- ceeding 30 mA in the building wiring offers additional protection. Contact a skilled electrician in this re- gard. ~ Do not start using the device if the de- vice, the travel case, the power adapt- er, the battery charger or the mains power cable shows visible damage, or if the device has previously been dropped.

Only connect the mains plug and power adapter into a properly installed and easi- ly accessible wall socket whose voltage corresponds to the specifications on the rating plate. The wall socket must still be easily accessible after the device is plugged in. ~ The hand unit of the toothbrush must only be charged using the battery charger supplied, or in the travel case. ~ Ensure that the mains power cable and the cable of the power adapter cannot be caught or crushed, and that they cannot be damaged by sharp edges or hot points. ~ To fully disconnect the battery charger from the power, pull out the mains plug. ~ When pulling the mains plug and the power adapter out of the wall socket, always pull by the plug and never by the cable. ~ Disconnect the mains plug and the pow- er adapter from the wall socket … …if there is a fault, …when you are not using the device, …before you clean the device and …during thunderstorms. ~ In order to avoid any hazards, do not make modifications to the device. Re- pairs must be carried out by a specialist workshop or the Service Centre. ~ When using an extension cable, this must correspond to the applicable safe- ty regulations. DANGER from batteries ~ Protect the battery against mechanical damages. Fire hazard! ~ Do not expose the device to direct sun- shine or heat. The ambient temperature should not be lower than 10 °C or high- er than 40 °C. ~ The battery must be charged only with the original accessory (power adapter, battery charger) supplied. DANGER from batteries ~ Be sure to observe the correct polarity when inserting the batteries. Replace only with the same or an equivalent type. ~ Batteries can be life-threatening if swal- lowed. Therefore you should store bat- teries out of the reach of young children. If a battery has been swal- lowed, medical assistance must be sought immediately. ~ DANGER OF EXPLOSION! Batter- ies must not be charged or reactivated by other means, nor must they be dis- mantled, thrown into a fire or short-cir- cuited. ~ Always remove used batteries from the device immediately, since these may leak and therefore cause damage. ~ Remove the batteries from the device if you intend not to use it for an extended period of time. The batteries may leak and damage the device. ~ Do not subject batteries to extreme con- ditions, place them on radiators or ex- pose them to direct sunlight. Otherwise, there is an increased danger of batter- ies leaking. ~ Always replace all batteries at the same time. __321713_Zahnbuerste_B6.book Seite 6 Freitag, 19. Juli 2019 11:37 117

~ If battery acid has leaked, avoid con- tact with the skin, eyes and mucous membranes. In case of contact with the acid, rinse the affected area at once with plenty of clean water and seek medical assistance immediately. ~ Batteries must be properly disposed of after use. CAUTION ~ Users could possibly experience mild bleeding of the gums during the first days of electric toothbrush usage. Should the bleeding continue over sev- eral days, a dentist should be consult- ed. ~ Exert only light pressure when brushing to prevent damage to the gums and to increase the service life of the bristles.

1 toothbrush11 8 toothbrush heads3 1 battery charger16 1 protective cap for battery charg- er12 1travel case18 1 power adapter24 1 clock with timer26 1 housing for clock34 1 wall mount33 1 double-sided adhesive ring32 2 batteries type LR03 AAA 1.5 V 1 copy of the user instructions

• Remove all packing materials.

• Check that the device is undamaged.

WARNING! Risk of material dam- age! ~ Be sure to observe the correct polarity when inserting the batteries (graphic on the bottom of the battery compartment). You need two batteries of type LR03 / AAA 1.5 V (contained in items sup- plied).

1. Lever open the battery compartment

cover28 of the clock26 at the recess and lift it off.

2. If necessary, replace the old batteries

with new ones. Be sure to observe the graphics illustrating the alignment of the batteries on the bottom of the battery compartment29.

3. Place the battery compartment cov-

er28 onto the clock26 and press it down.

5.2 Setting the time (Figure A)

1. Lever open the battery compartment

cover28 of the clock26 at the recess and lift it off.

2. Hold down the button30 for approx.

4 seconds. The display27 shows 12 h or 24 h. - 24-hour display: the hours are dis- played from 0 to 24. - 12-hour display: the hours are dis- played from 0 to 12.

3. Press the button31 to switch between

5. Repeatedly press the button31 to set

7. Repeatedly press the button31 to set

the time in 10 minute intervals.

9. Repeatedly press the button31 to set

the time in one minute intervals.

10. Press the button30. The time is now

11. Place the battery compartment cov-

er28 onto the clock26 and press it down.

5.3 Setting up the clock

1. Figure B: press the clock26 into the

2. Place the clock26 on a flat surface.

1. Figure B: press the clock26 into the

2. Remove one of the protective films from

the ring32 and stick it onto the wall mount33.

3. Clean the smooth surface (e.g. mirror,

wall tile) to which you wish to apply the wall mount.

4. Remove the other protective film and

stick the wall mount to the surface.

5. Mount the clock26 in the housing on

nection on/off The toothbrush11 is connected to the clock26 via Bluetooth. This connection is al- ready switched on when supplied. Switching off Bluetooth Switch off the Bluetooth connection e.g. if you are not using the clock26 and you wish to spare the battery.

1. Switch on the toothbrush11 using the

and then immediately switch it off again.

2. Hold down the button P8 for approx.

3 seconds and additionally briefly press the on/off switch

flashes rapidly 4 times in white. The Blue- tooth connection has now been broken. When you switch the toothbrush11 on again, the LED

will no longer be lit. Switching on Bluetooth

1. Switch on the toothbrush11 using the

and then immediately switch it off again.

2. Hold down the button P8 for approx.

3 seconds and additionally briefly press the on/off switch

flashes rapidly 4 times in white. The Blue- tooth connection is now switched on. When you switch the toothbrush11 on again, the LED

will be lit and the con- nection to the clock

will be restored after approx. 10 seconds.

5.6 Displays during brush-

• When the Bluetooth connection is switched on, the timer automatically starts when you begin brushing your teeth.

• The display27 shows the intervals dur- ing brushing as corners. The display be- gins in the top right of the display27, and moves round clockwise after each 30 second interval.

• During brushing, the display27 shows the symbol of the active mode.

6. Setting up the battery

charger DANGER! Risk of electric shock due to moisture! ~ The battery charger16 is connected to the power voltage, and must therefore not be used in the shower, in the bath, or over washbasins filled with water.

• Never set up the battery charger16 anywhere it could fall into water.

7. Charging the battery

• Fully charge the battery before using it for the first time.

• It takes approx. 16 hours to fully charge the battery.

• Place the toothbrush11 on the peg of the battery charger15 after use. This ensures that the toothbrush11 always works at full power. The battery is not damaged by regular charging. Battery charger

1. Plug the mains plug17 of the battery

charger16 into a suitable wall socket. The wall socket must still be easily ac- cessible after connection.

2. Place the switched-off toothbrush

onto the peg of the battery charger

The charging indicator light10 flashes white throughout the entire charging process. Lit segments of the charging in- dicator light show the progress of the charging process. When the battery is fully charged, first all segments of the charging indicator light10 are lit, and then they go out. Travel case

1. Place the switched-off toothbrush11

into the travel case18.

2. Insert the Micro USB plug25 of the

power adapter24 into the Micro USB port22 of the travel case18.

3. Plug the power adapter24 into a suita-

ble wall socket. The wall socket must still be easily accessible after connec- tion. The control light23 of the travel case is lit green.

4. Place the switched-off toothbrush11

into the travel case. One segment of the charging indicator light10 flashes white throughout the en- tire charging process. Lit segments of the charging indicator light show the pro- gress of the charging process. When the battery is fully charged, first all seg- ments of the charging indicator light10 are lit, and then they go out. Battery signals: charging indica- tor light

Toothbrush11 on the battery charger16 or in the travel case18: - All segments of the charging indicator light10 are lit white and then go out: the battery is fully charged. - One segment of the charging indicator light10 flashes white: the battery is be- ing charged. Toothbrush11 switched on: - The charging indicator light10 flashes red: the battery is weak. Charge the battery. __321713_Zahnbuerste_B6.book Seite 9 Freitag, 19. Juli 2019 11:37 1110

The items supplied include 8 toothbrush heads3. The various marking rings4 allow you to as- sign the toothbrush heads3 to different fam- ily members.

• Take a toothbrush head3 and slide it onto the peg of the toothbrush5.

• In order to remove, carefully pull the toothbrush head3 off upwards.

• The indicator bristles2 on the brush head1 slowly lose their colour during use. The decolouration shows when the toothbrush heads3 should be replaced. NOTE: we recommend that you replace the toothbrush heads3 every 3 months or after infections (see “Ordering toothbrush heads” on page 13).

CAUTION: ~ Users could possibly experience mild bleeding of the gums during the first days of electric toothbrush usage. Should the bleeding continue over sev- eral days, a dentist should be consult- ed. ~ If you have had dental surgery in the last two months, consult a dentist before using the toothbrush. ~ Exert only light pressure when brushing to prevent damage to the gums and to increase the service life of the bristles.

The toothbrush11 has 6 different modes. Depending on the desired mode, press the function button P8 repeatedly when switched on or off, until the corresponding symbol is lit: Normal mode - for cleaning teeth with high pulsation Deep cleaning mode - pulsating brushing for cleaning teeth with high pulsation Sensitive mode - gentle brushing for cleaning teeth with sensitive gums NOTE: if you are not used to using an elec- tric toothbrush and you have comparatively sensitive gums, you can use this mode for the first 1 to 2 weeks, and then switch to Normal mode later. Massage mode - pulsating brushing to massage your gums Brighten mode - pulsating brushing to brighten your teeth Tongue cleaning mode - for cleaning the tongue Gently move the toothbrush head3 over your tongue. __321713_Zahnbuerste_B6.book Seite 10 Freitag, 19. Juli 2019 11:37 1111

1. Remove the toothbrush11 from the bat-

2. Switch on the toothbrush using the

3. Press function button P8 repeatedly un-

til the function display9 for the desired mode is lit.

4. Switch off the toothbrush using the

5. Moisten the bristles, apply some tooth-

paste, and only switch on the tooth- brush

again when the brush head

is already in your mouth.

6. Slowly guide the brush head1 from

tooth to tooth without exerting too much pressure. Carefully clean all tooth sur- faces, the inner surfaces of the teeth and the tooth edges. Figure C: the recommended brushing time is at least 2 minutes, divided up into 30-second periods for each area of the mouth (bottom right, bottom left, top right, top left). The toothbrush11 indi- cates these intervals by a brief interrup- tion. NOTE: if the brush head

is pressed against the teeth too hard, the LED

lights up red. You should then reduce the pressure.

Remove the brush head1 from the mouth only when the toothbrush11 has been switched off. NOTES:

• We recommend that you replace the toothbrush heads3 every 3 months or after infections (see “Ordering tooth- brush heads” on page 13).

• The indicator bristles2 on the brush head1 slowly lose their colour during use. The decolouration shows when the toothbrush heads3 should be re- placed.

To secure the toothbrush11 against acci- dentally being switched on, activate the transport lock.

• Switching on the transport lock: Hold down the on/off switch 7 until the LED

6 flashes red three times.

• If you try to switch on the tooth- brush11 with the transport lock activat- ed, the left LED

• Switching off the transport lock: Hold down the on/off switch 7 until the LED

6 flashes red three times.

The travel case18 has space for the tooth- brush11 and 2 brush heads1.

• Open the travel case18 by pressing on the pressure cap20.

requirements DANGER! Risk of electric shock! ~ Before cleaning the battery charg- er16, pull the mains plug17 out from the mains socket. ~ Before cleaning the travel case18, dis- connect the power adapter24 from the mains socket. ~ Never immerse the toothbrush11, trav- el case18, power adapter24 or bat- tery charger16 in water! The battery charger16 and the travel case18 must be completely dry before being re- connected to the wall socket.

• To ensure the hygienic functionality of the toothbrush heads3 they must be rinsed thoroughly after every use and al- lowed to dry.

• Remove the toothbrush head3 once per week and clean it in hot water.

• Rinse the toothbrush11 as well and wipe it dry.

• Wipe the battery charger16 and the travel case18 with a damp cloth if nec- essary and rub dry.

• Figure D: if required, remove the inner part19 of the travel case18. You can clean this inner part in the dishwasher. After drying, replace the inner part onto the peg21 and place it into the travel case18.

• Figure E: if required, press the battery charger16 out of the stand14. You can clean the stand separately. After drying, press the battery charger16 into the stand until it clicks into place.

• Disconnect the device from the mains and store it in a dry location.

This product is subject to the provisions of European Direc- tive 2012/19/EC. The symbol showing a wheelie bin crossed through indicates that the product requires separate re- fuse collection in the European Union. This applies to the prod- uct and all accessories marked with this symbol. Products marked as such may not be discarded with normal domes- tic waste, but must be taken to a collection point for recycling electrical and electronic devices. This recycling symbol marks e.g. an object or parts of the materi- al as valuable for recycling. Re- cycling helps to reduce the consumption of raw materials and protect the environment. For information on disposal and the location of the nearest recycling centre, contact e.g. your City Cleaning Department or refer to the Yellow Pages. The battery integrated into this device must not be treated as household waste. The device with the installed battery must be disposed of properly. When disposing of this device, the waste disposal facility responsible must be in- formed that the device contains an integrat- ed battery. __321713_Zahnbuerste_B6.book Seite 12 Freitag, 19. Juli 2019 11:37 1113

Batteries must not be disposed of in the household waste. Used batteries must be dis- posed of properly. For this pur- pose, corresponding battery- disposal containers are available at battery- selling retail and wholesale stores, as well as local collection points. Batteries and rechargeable batteries which have the following letters, contain the follow- ing harmful chemicals: Cd (cadmium), Hg (mercury), Pb (lead). Packaging When disposing of the packaging, make sure you comply with the environmental reg- ulations applicable in your country.

14. Trouble-shooting

If your device fails to function as required, please try this checklist first. Perhaps there is only a minor problem, and you can solve it yourself. DANGER! Risk of electric shock! ~ Do not attempt to repair the device your- self under any circumstances.

15. Ordering toothbrush

heads You can order additional toothbrush heads3 on the internet: shop.hoyerhandel.com

1. Scan the QR code with your smart-

2. With the QR code you will access a

website where you can submit your re- order. Fault Possible causes / Ac- tion The device can- not be switched on.

• Is the battery empty?

• Is the transport lock ac- tivated? Press the on/ off switch 7 repeat- edly until the tooth- brush11 is switched on. Charging indi- cator light10 is not lit.

• The battery charg- er16 or power adapter24 is not connected to the mains power.

• The travel case18 is not connected to the power adapter24. The timer of the clock26 is not running.

• The Bluetooth connec- tion is switched off. Hold down the button P8 for approx. 3 seconds and addi- tionally briefly press the on/off switch

specifications Notes on the EU declaration of conformity HOYER Handel GmbH hereby declares that this product meets the basic requirements of the RED 2014/53/EU and the ROHS Direc- tive 2011/65/EU. A complete declaration of conformity can be found on the Internet at: http://qr.hoyerhandel.com/d/321713 Model: NZAOT 600 A1 Toothbrush Protection class: IPX4 (protected against water splashes) Battery: 1x 3.7 V Li ion 600 mAh 2.22 Wh Charging time: 16 hours Operating time: approx. 90 min Bluetooth Frequency range: Transmitting power: v5.0 2402 - 2480 MHz - 3.4 dBm Battery charger Power voltage:

Manufacturer: E-TEK Electronics Manufac- tory Co., LTD Input:

Symbols used Subject to technical modifications.

HOYER Handel GmbH Dear Customer, your device is provided with a 3 year war- ranty starting with the purchase date. In the event of product defects, you are entitled to statutory rights against the vendor. These statutory rights are not restricted by our war- ranty presented in the following. Warranty conditions The warranty period starts with the purchase date. Please keep the original purchase re- ceipt in a safe place. This document is re- quired to verify the purchase. If within three years from the purchase date of this product a material or factory defect occurs, the product will be repaired or re- placed by us – at our discretion – free of charge to you, or the purchase price will be refunded. This warranty implies that within the period of three years the defective de- vice and the purchase receipt are presented, including a brief written description of the defect and the time it occurred. If the defect is covered by our warranty, the repaired or a new product will be returned to you. No new warranty period starts with a repair or replacement of the product. Warranty period and statutory claims for defects The warranty period is not extended when the warranty has been claimed. This also ap- plies to replaced and repaired parts. Any damages and defects already existing at the time of purchase must be reported immedi- ately upon unpacking. Repairs arising after the expiration of the warranty period are subject to a charge. Warranty coverage The device was produced carefully according to strict quality guidelines and tested diligent- ly prior to delivery. Double insulation Certified Safety. Devices must comply with the generally ac- knowledged rules of technology and the German Product Safety Act (Produktsicherheitsgesetz - ProdSG). (Not for UK.) With the CE marking, HOYERHandel GmbH declares the conformity with EU guide- lines. Devices with this symbol may only be operated indoors (dry en- vironment). This symbol reminds you to dis- pose of the packaging in an envi- ronmentally friendly manner. Recyclable materials: cardboard (except corrugated cardboard) Direct current AC voltage The power adapter has the ener- gy efficiency class 5. __321713_Zahnbuerste_B6.book Seite 15 Freitag, 19. Juli 2019 11:37 1116

The warranty applies to material or factory defects. Excluded from the warranty are wear parts subject to normal wear and damages to fragile parts, e.g. switches, batteries, lamps or other parts manufactured from glass. This warranty expires if the product is dam- aged, not used as intended or not serviced. For the proper operation of the product, all in- structions listed in the operating instructions must be observed carefully. Any form of use and handling that is advised against in the operating instructions or warned against must always be avoided. The product is only intended for private and not for commercial use. In the case of incor- rect and improper treatment, use of force and interventions not performed by our author- ised Service Centre, the warranty shall cease. Handling in case of a warranty claim In order to ensure prompt processing of your matter, please observe the following notes:

• Please keep the article number IAN: 321713_1901 and the purchase receipt as a purchase verification for all in- quiries.

• The article number can be found on the rating plate, an engraving, the title page of your instructions (in the bottom left), or as a label on the rear or under- side of the device.

• If faulty operation or other defects occur, first contact the Service Centre listed in the following by telephone or email.

• Then, you are able to send a product re- ported as defective free of charge to the service address specified to you, includ- ing the purchase receipt and the infor- mation on the defect and when it occurred. At www.lidl-service.com you can download this and many other manuals, product vide- os and installation software. This QR code takes you directly to the Lidl Ser- vice website (www.lidl-service.com), where you can enter the article number (IAN) 321713_1901 to open your user instruc- tions. Service Centre Service Great Britain Tel.: 0800 404 7657 E-Mail: hoyer@lidl.co.uk Service Ireland Tel.: 1890 930 034 (0,08 EUR/Min., (peak)) (0,06 EUR/Min., (off peak)) E-Mail: hoyer@lidl.ie Service Malta Tel.: 80062230 E-Mail: hoyer@lidl.com.mt Service Cyprus Tel.: 8009 4409 E-Mail: hoyer@lidl.com.cy IAN: 321713_1901
