Product Type	Air Fryer
Brand	Klarstein
Model	VitAir Pommesmaster
Category	Fryer
Article Number	10034528, 10034529
Power Supply	220-240 V ~ 50/60 Hz
Power	1200-1400 W
Temperature Range	50 °C to 240 °C
Timer	1 minute to 12 hours
Capacity	6 L
Bowl Material	Non-stick
Included Accessories	Handle, cooking grid, baking tray, anti-grease filter
Cooking Modes	Frying, Pizza, Sear, Roast, Bake, Grill
Display	LED
Preset Function	Yes (delayed timer up to 12 h)
Tilt Position	Yes (for flipping food)
Safety	Transparent lid, unlock button
Cleaning	Do not immerse; accessories washable with soapy water
Manufacturer	Chal-Tec GmbH, Berlin

Frequently Asked Questions - VitAir Pommesmaster Klarstein

How to start the appliance?

Plug in the appliance, the display shows '---'. Press Start once to enter standby (display '000'), then select a mode with Menu or adjust temperature and time manually. Press Start again to start cooking.

Can I open the lid during cooking?

Yes, but only when the appliance is in the upright position. Press the lid unlock button and lift it. The heating stops automatically. Close to resume cooking. Never open the lid in the tilted position.

How to set the temperature and time?

Press TEMP/TIME to make the temperature or time flash. Use the +/- keys to adjust: temperature in 10 °C increments, time in 1 minute increments. Confirm with TEMP/TIME then start with Start.

What to do if the appliance doesn't heat up?

Check that the appliance is plugged in and the outlet works. Make sure the lid is properly closed and the bowl is in place. If the problem persists, contact customer service.

How to clean the bowl and accessories?

Let the appliance cool down and unplug it. Clean the housing with a damp cloth. The bowl, grid, tray, and filter can be washed with soapy water. Never immerse the appliance in water. Dry well before reuse.

What foods can I prepare?

The appliance allows frying, roasting, grilling, baking and searing. Ideal for fries, chicken, vegetables, steaks, pizza, cakes, etc. Refer to the cooking chart in the manual for recommended times and temperatures.

How to use the preset function (delayed timer)?

In standby, press Preset to set a delay from 1 minute to 12 hours (in 60 min increments after 1 h). Press Start, then select a mode and adjust cooking. The appliance starts automatically at the end of the delay.

How to install the anti-grease filter?

Place the filter under the heat shield and turn it clockwise. It is recommended for fatty foods. Clean it after each use.

What does the flashing screen mean?

Flashing '°C' or 'Min' indicates you are in temperature or time setting mode. The alarm icon is displayed during the countdown. Refer to the manual for other symbols.

How to use the lower grid and baking tray?

Place the grid in the bowl, then put the food directly on it. For the tray, first put the grid, then the tray on top. Use tongs to handle hot accessories.

USER MANUAL VitAir Pommesmaster Klarstein

Member of Berlin Brands Group

Handwerkerstr. 11

15366 Dahlwitz-Hoppegarten

Deutschland

Berlin Brands Group UK Ltd

PO Box 1145

Oxford,OX19UW

United Kingdom

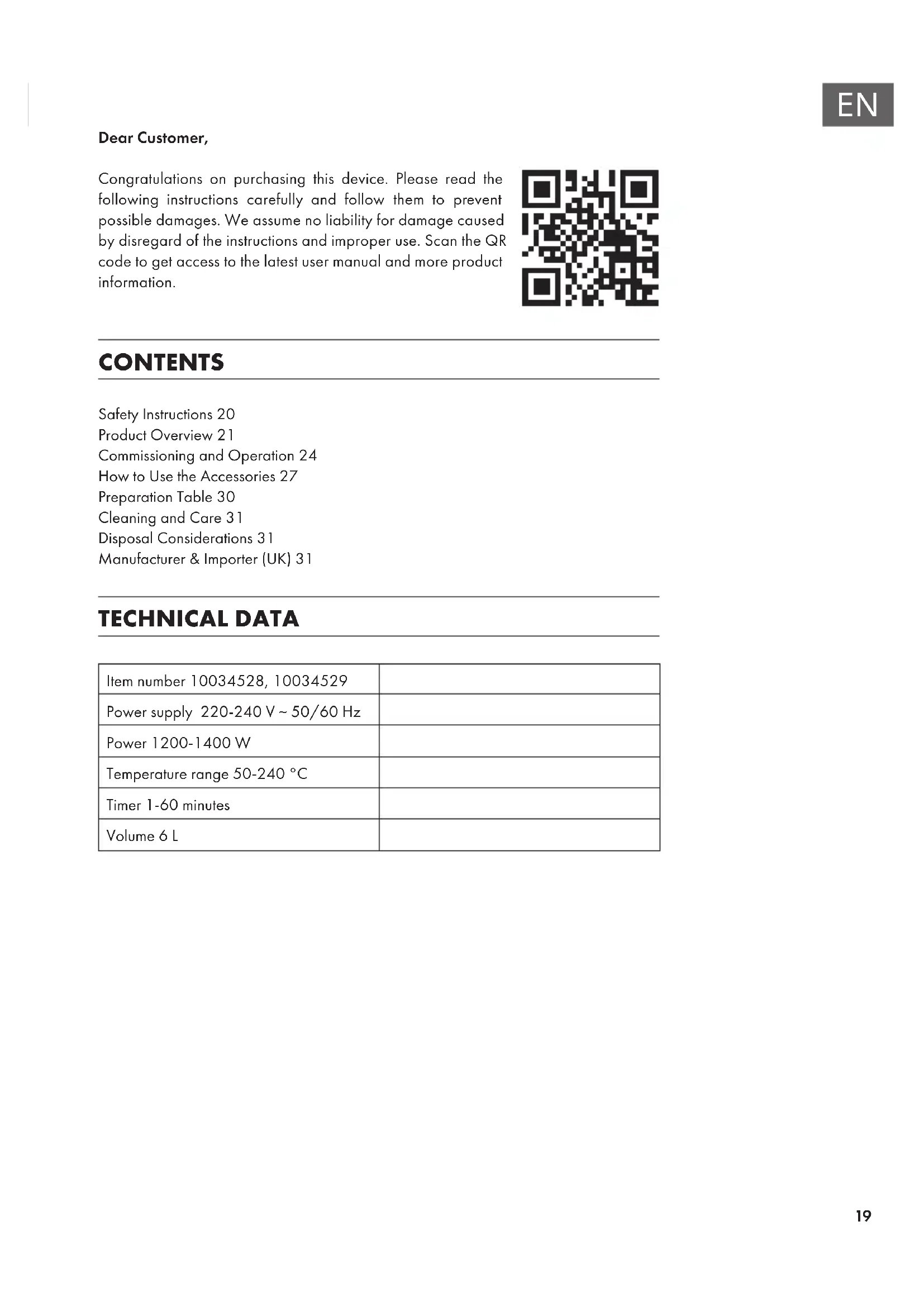

Dear Customer,

Congratulations on purchasing this device. Please read the following instructions carefully and follow them to prevent possible damages. We assume no liability for damage caused by disregard of the instructions and improper use. Scan the QR code to get access to the latest user manual and more product information.

CONTENTS

Safety Instructions 20

Product Overview 21

Commissioning and Operation 24

How to Use the Accessories 27

Preparation Table 30

Cleaning and Care 31

Disposal Considerations 31

Manufacturer & Importer (UK) 31

TECHNICAL DATA

Item number 10034528, 10034529
Power supply 220-240 V ~ 50/60 Hz
Power 1200-1400 W
Temperature range 50-240 °C
Timer 1-60 minutes
Volume 6 L

SAFETY INSTRUCTIONS

• Before using for the first time, check that the voltage of your power outlet matches the specified voltage.
• To avoid electric shock, do not immerse the power cord or the device itself in water or other liquids.
• Keep children and pets away from the device during operation.
  After use, switch off the appliance and disconnect the mains plug from the socket.
• The unit should be operated separately from other units on a separate circuit. If the circuit is overloaded by other devices, this device may not work properly.
  Take extreme care when moving a container containing hot food.
• Do not let the power cord hang over the edge of tables or work surfaces, and be careful not to allow the power cord to come into contact with the hot surfaces of the equipment.
  Always place the unit securely in the center of the table or worktop.
• Do not touch hot device surfaces. Use the handles to move or lift.
  The device must not be used by children.
• Use of accessories not expressly recommended by the manufacturer may result in injury.
• Do not place or use the unit on heat-sensitive glass surfaces, wooden surfaces or tablecloths. Be sure to place a heat-resistant plate with thermal protection under the unit on these surfaces.
• Never use the device if the power cord is damaged, if the device malfunctions or has been damaged in any other way.
• Before cleaning or when not in use, switch off the device and disconnect the power plug from the socket. Allow the device to cool down before removing or adding any parts.
• Do not place the device in the immediate vicinity of hot gas or electric ovens or in a heated oven.
• If the power plug does not fit properly, always contact a qualified electrician to minimize the potential for electrical shock. Never try to manipulate the power plug in any way.
• Do not clean the device with metallic scouring pads. Small metal parts could break off and short out the electrical components of the device, which could result in electric shock or damage the device.

• To minimize the risk of electric shock, only prepare food in the supplied, coated, non-stick container.

• This device is designed for indoor use only.

• Use the device only for its intended purpose.
• Keep this manual for future reference.
• This device may be only used by children 8 years old or older and persons with limited physical, sensory and mental capabilities and / or lack of experience and knowledge, provided that they have been instructed in use of the device by a responsible person who understands the associated risks.

CAUTION

Risk of burns! During hot air frying, hot steam is released through the air outlets. Keep your hands and face at a safe distance from the steam and from the air outlets. Also be careful of hot steam and air when you remove appliance parts from the appliance.

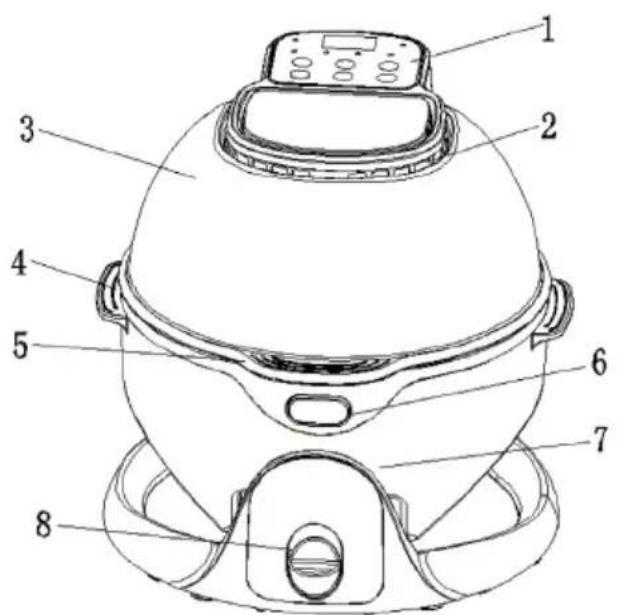

PRODUCT OVERVIEW

1	Control panel	5	Lid handle
2	Heat sink	6	Lid release button
3	Transparent cover	7	Case
4	Housing handle	8	Housing button

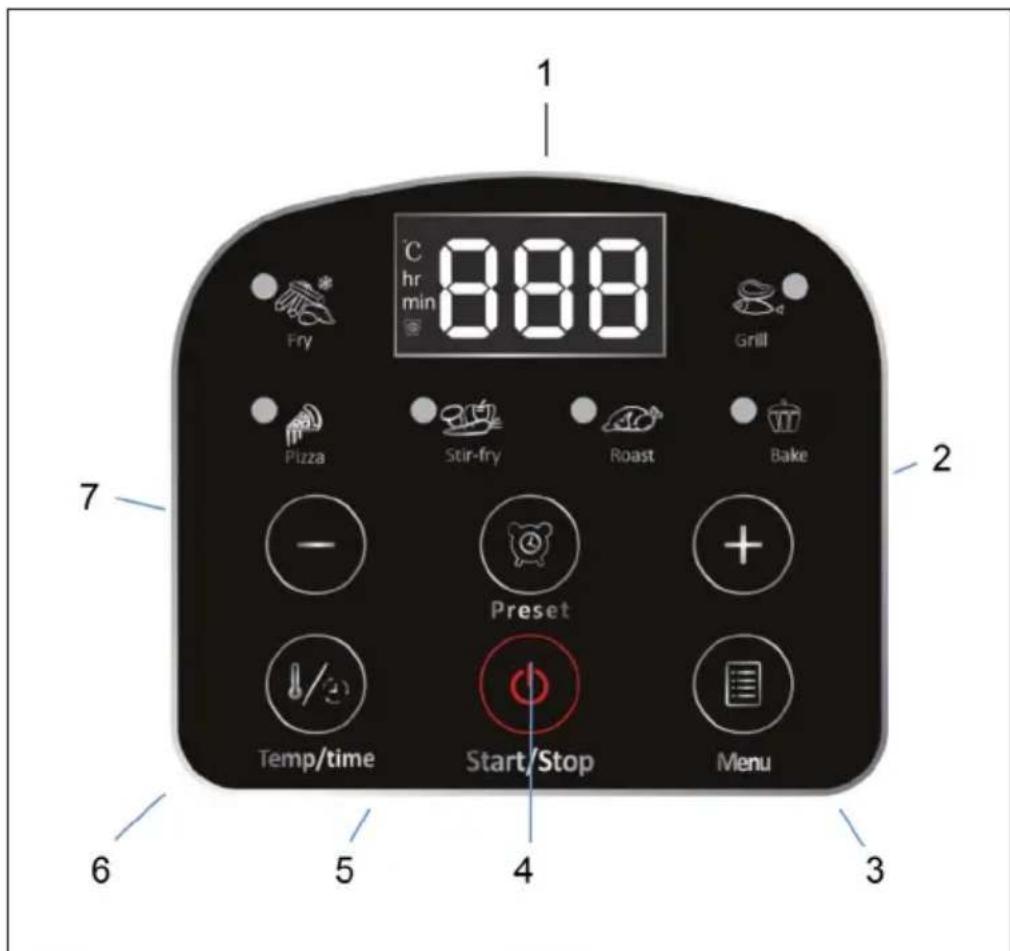

1	Display	5	Preset programs
2	Add temperature/time	6	Temperature/Time
3	Menu	7	Reduce temperature/time
4	Start/stop

Basic accessory

Handle Rack Baking pan Filter
A handy tool for carrying non-stick coating pot.	Be used for baking or roasting.	Be used with the dual rack for baking.	Use the filter to be fixed onto the heater shield, to prevent the accumulation of grease inside the heater.

Optional accessories (not included in packing content)

Tong

A handy tool for carrying food or plate in and out of the cooking pot.

COMMISSIONING AND OPERATION

Parameter reference table for difference modes

Mode Default	Temp (°C) Default Time (minutes)	Suggested accessories
Fry 240 30 /
Pizza 190 12 Low rack
Stir-fry 240 15 /
Roast 210 40 /
Bake 160 20 Low rack
Grill	200	15 Low rack

Operation

1	Press the lid release button to open the lid. Pull up it to the designated angle by holding the lid handle. Below is the correct method of opening or closing the lid of the appliance:
2	Put in the cooking pot and the accessories (if required) and the food to be cooked.
	Note: Do not stack the food close to the heating element or the food may get charred.

3	Make sure the lid is closed. One hand presses the base button down. The other hand holds the base handle to place the machine to regular direction or tilted direction.
	Note: Refer to below recipe table to choose the correct cooking direction.
	Note: The lid cannot be opened when the machine is at tilt direction.
	X→	X→
	X→	X→
4	Two hands hold the base handle to recover the machine from tilt to regular direction.
	X→	X→
5	Three lines (---) are displayed on the LED screen after the unit is connected to the power supply. If you press the START button once, the unit switches to standby mode. Three zeros (000) are displayed on the LED screen.
6	Press the menu button to select the desired mode. The corresponding preset time and temperature will be displayed on the LED screen. The temperature and preparation time can be adjusted according to individual needs.
7	If no mode setting is made, the appliance can still be used if the preparation time and temperature setting are made. If you press the TEMP/TIME button, "°C" will be displayed on the LED screen. You can press the +/- buttons to adjust the temperature. Each press changes the temperature by \( {10}^{ \circ }\mathrm{C} \) . Press the button again after adjusting the temperature. min" flashes on the LED screen. Use the +/- buttons to adjust the preparation time. Each time the button is pressed, the preparation time changes by one minute. Press the START button when you have finished your setting.
8	Press the START button to start the appliance. The cooking pan rotates continuously during operation. In the inclined position, the food in the cooking bowl is turned for even browning.
9	When a certain temperature is reached, the heating element may pause. As soon as the temperature drops, the heating element is automatically reactivated. This process is repeated each time the temperature you set is reached.
10	If food needs to be added during preparation, first move the appliance to the straight position by pulling the handle. Then, after pressing the lid release button, pull the lid upwards. The appliance will then stop heating immediately. If you close the lid again after adding the food, the preparation process continues. Never open the lid when the appliance is in the inclined position.
11	As soon as the set preparation time has elapsed, the appliance beeps. Unplug the appliance from the wall outlet and remove the food. Take care to avoid burns. Place the cooking pan on a fireproof surface to prevent damage to the worktop.
12	12. in standby mode, press the PRESET button and then set the cooking time. The preset preparation time is 30 minutes. Each time this button is pressed, the preparation time is adjusted by 60 minutes. The adjustable time range is from 1 minute to 12 hours. Once the time setting has reached one hour, each press adds another hour. After setting the preparation time, press the START button. Then press the Menu button to select the desired mode. Press the TEMP/TIME button to adjust the temperature and preparation time. If you then press the START button to confirm, the appliance starts operation and the preparation time is counted down. An alarm icon will appear on the LED screen during the countdown.

HOW TO USE THE ACCESSORIES

Pot handle

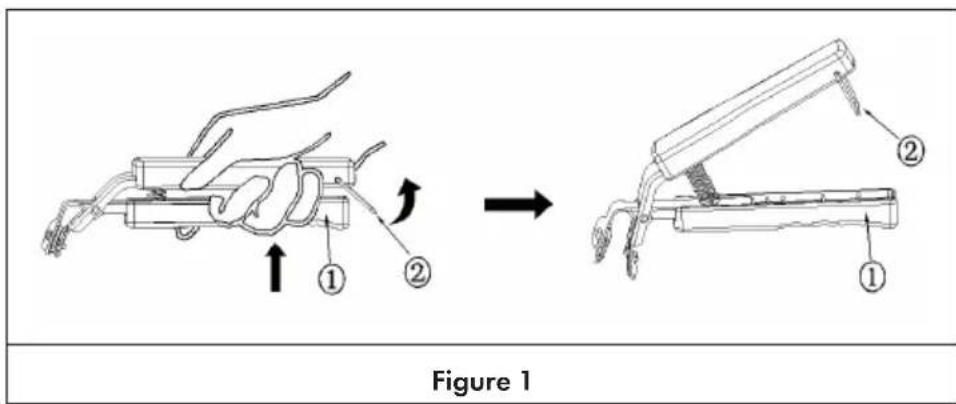

1. Lift the lower part of the handle (1), slide the lock counterclockwise upwards (2) and open the handle (Fig. 1).

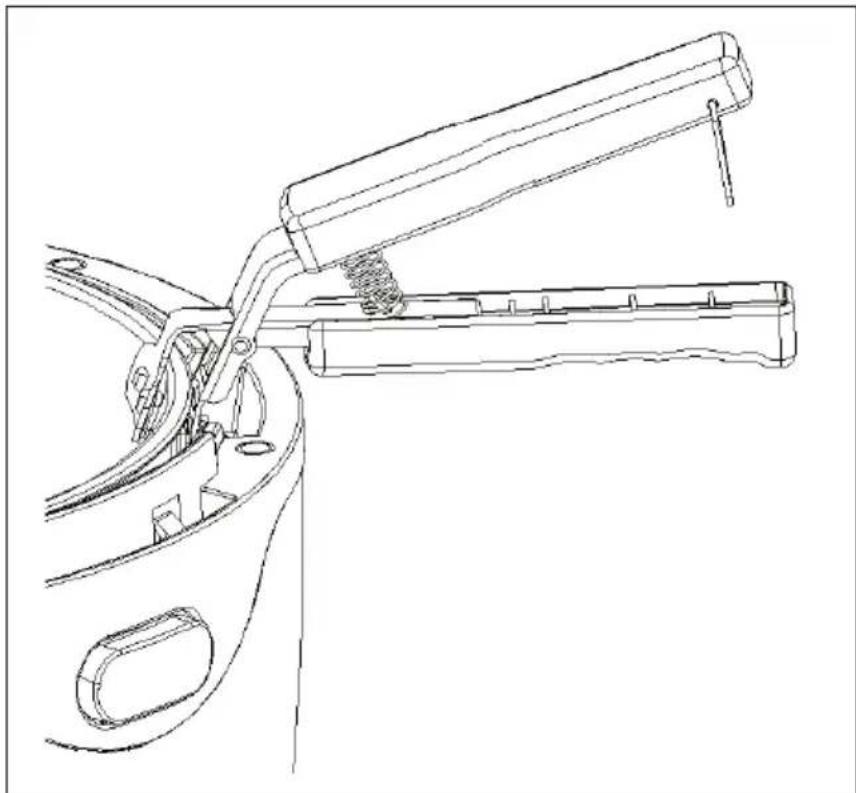

1. Insert the lower part of the clamp into the gap between pot and housing (Fig. 2).

Figure 2

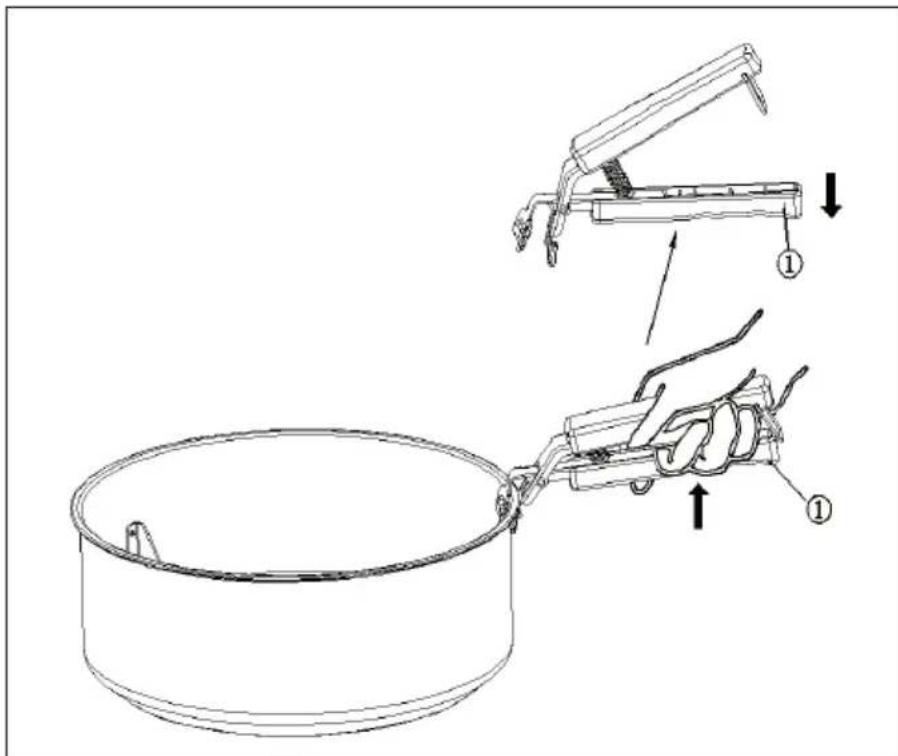

1. Lift the lower part of the handle (1) and do not release it. Make sure that the handle is firmly attached to the pot. Now you can lift the pot (Fig. 3).

2. If you want to remove the handle from the pot, release the pressure of the fingers on the lower part of the handle (1). Now you can remove the handle from the pot (Fig. 3).

Figure 3

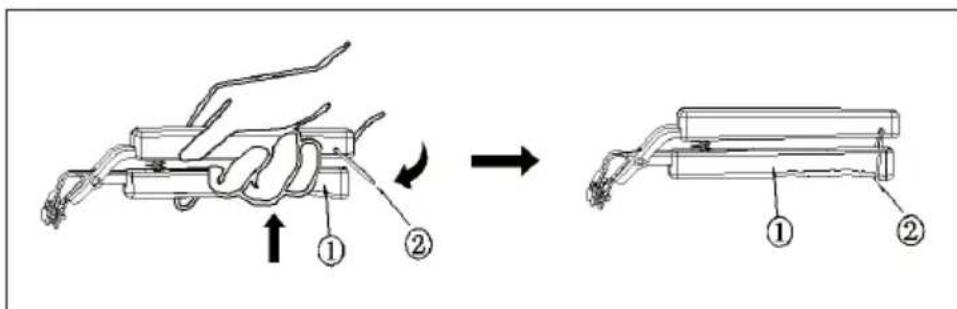

1. Lift the lower part of the handle (1) and slide the lock clockwise downwards (2). Make sure that the handle is properly closed for storage (Fig. 4).

Figure 4

Low rack

Put the rack into the cooking pot. Place the food on the rack direct, choose the desired functions.

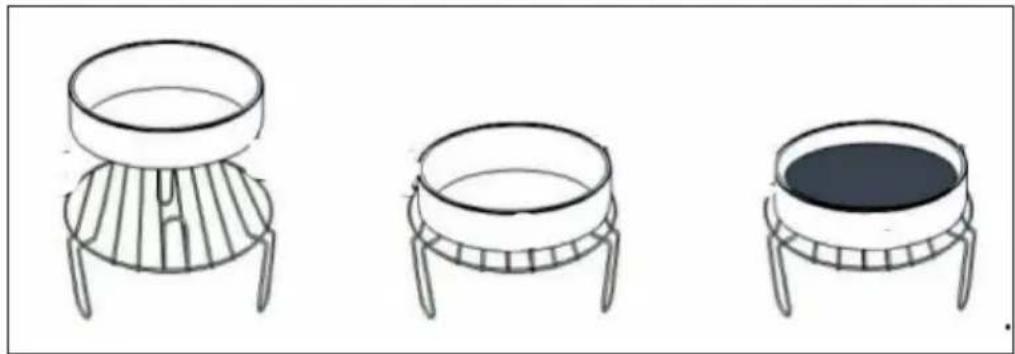

Baking pan and tong

1. Place the low rack into the cooking pot, put the baking pan onto the rack, place the food inside and choose the desired function.
2. Press "START".

Note: The tong is helpful to move the accessories and food.

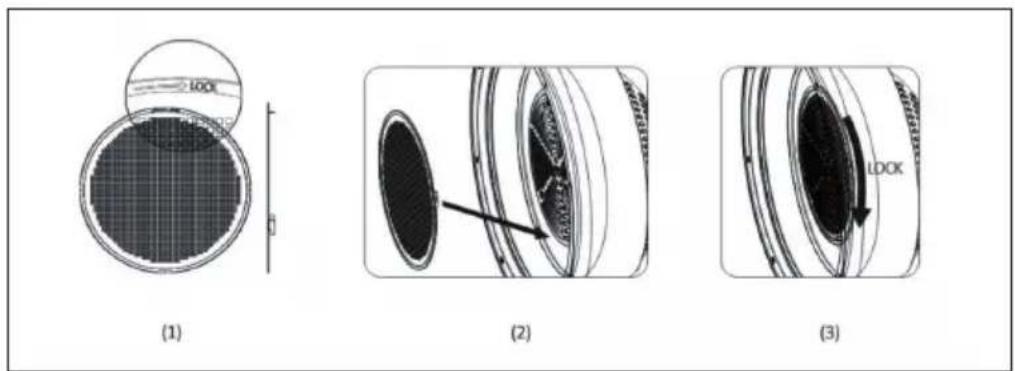

Filter

1. It is recommended to install a stainless steel grease filter on the heat protection before preparing fatty foods in order to avoid accumulation of grease inside the appliance.
2. Place the filter under the heat shield and turn it clockwise. Clean the grease filter after each use.

PREPARATION TABLE

	Temp.	Cooking time	Cooking direction		Recommended accessories
Chips 240 °C	25-30 min		#/#		Cook in the pot directly
Chicken 220	°C 30-35 min		#/#	#	Cook in the pot directly or with low rack
Vegetables 240	°C 15-20 min		#/#		Cook in the pot directly
Bean 230 °C	10-15 min		#/#		Cook in the pot directly
Potato 240 °C	30-35 min		#/#		Cook in the pot directly
Popcorn 240	C 12-15 min		#/#		Cook in the pot directly
Fried rice 240	°C 10-15 min		#/#		Cook in the pot directly
Drumstick 240	°C 20-25 min		#/#		Cook in the pot directly
Chestnut 200	°C 25-30 min		#/#		Cook in the pot directly
Fish	200 °C	10-15 min			Low rack
Steak 200 °C	12-18 min				Low rack
Pizza	190 °C	10-15 min			Low rack and baking pan
Cake	160 °C	20-25 min			Low rack and baking pan
Pie	180 °C	20-25 min			Low rack and baking pan
Toast	180 °C	25-30 min			Low rack and baking pan
cookie	190 °C	8-12 min			Low rack and baking pan
Egg Tart 180	°C	10-15 min			Low rack and baking pan

CLEANING AND CARE

• Unplug the power cord from the wall outlet before cleaning.
• The housing can be cleaned with a damp cloth.
• The cooking pan and accessories such as pliers, baking pan, low grid and filter can be cleaned with mild soapy water.
• Never immerse the appliance in water.
• Ensure that the accessories are dried before reuse.

DISPOSAL CONSIDERATIONS

If there is a legal regulation for the disposal of electrical and electronic devices in your country, this symbol on the product or on the packaging indicates that this product must not be disposed of with household waste. Instead, it must be taken to a collection point for the recycling of electrical and electronic equipment. By disposing of it in accordance with the rules, you are protecting the environment and the health of your fellow human beings from negative consequences. For information about the recycling and disposal of this product, please contact your local authority or your household waste disposal service.

MANUFACTURER & IMPORTER (UK)

Manufacturer:

Chal-Tec GmbH, Wallstrasse 16, 10179 Berlin, Germany.

Importer for Great Britain:

Berlin Brands Group UK Ltd

PO Box 1145

Oxford,OX1 9UW

United Kingdom
