Studio 5 - Fireplace Klarstein - Free user manual and instructions

Product Type	Electric Fireplace
Brand	Klarstein
Model	Studio 5
Power Supply	220-240 V ~ 50 Hz
Heating Power	1800 W
Control	Control panel and infrared remote control
Operating Modes	Flame only, High heat, Low heat
Temperature Range	10 °C to 30 °C
Integrated Timer	Yes (0 to 9 hours)
Weekly Programming	Yes (up to 8 heating periods)
Open Window Detection	Yes
Child Lock	Yes (Hold OK button for 6 seconds)
Display	Temperature (Celsius/Fahrenheit)
Cleaning	Soft, damp cloth, do not use abrasive products
Safety	Minimum distance of 1 m from flammable materials; do not cover; do not use with external timer
Usage	Not suitable as primary heating source

Frequently Asked Questions - Studio 5 Klarstein

How to turn on the flame effect without heating?

Press the on/off button. The flame effect turns on. If the room temperature is below 10 °C, the heater starts automatically. To turn off the heater, set the temperature to OFF.

How to set the temperature?

Press the (+) or (-) buttons to display the current temperature, then use these buttons to set the desired temperature. Confirm with OK.

How to use the remote control?

Make sure the main switch (A) at the bottom of the unit is set to ON. The remote control buttons have the same functions as those on the control panel.

How to lock the buttons?

Hold the OK button for more than 6 seconds to lock or unlock. The screen displays flashing [LOC] during locking.

How to program the weekly timer?

Access [ModE] mode via the Menu button, select [ProG] for preset programs or [MANU] for manual setting. Follow the steps to set days, times and duration. A maximum of 8 heating periods can be programmed.

What to do if the unit does not heat?

Check that the set temperature is higher than the room temperature. Make sure the heating symbol is displayed. If the open window detection is activated, it may have temporarily switched off the heating.

How to clean the unit?

Unplug the unit and let it cool completely. Clean the exterior with a soft, damp cloth. Never use harsh detergents or solvents. Clean the air inlets and outlets regularly.

What are the important safety precautions?

Keep a distance of at least 1 meter from flammable materials (furniture, curtains). Never cover the unit. Do not use it with an external timer. Do not use it near a bathtub, shower, or swimming pool. Never leave the unit unattended.

How to change the display from Celsius to Fahrenheit?

Press the Menu button for 3 seconds, then use the (+) or (-) buttons to switch between °C and °F.

What to do if the screen displays [LOC] permanently?

This means the buttons are locked. Hold the OK button for 6 seconds to unlock.

USER MANUAL Studio 5 Klarstein

ONNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNN

KLARSTEIN

www.klarstein.com

Note: The device is not suitable for use as a primary heat source.

Berlin Brands Group UK Ltd

PO Box 1145

Oxford,OX19UW

United Kingdom

PRODUKTDATENBLATT

Member of Berlin Brands Group

Handwerkerstr. 11

15366 Dahlwitz-Hoppegarten

Deutschland

Congratulations on purchasing this device. Please read the following instructions carefully and follow them to prevent possible damages. We assume no liability for damage caused by disregard of the instructions and improper use. Scan the QR code to get access to the latest user manual and more product information.

CONTENT

Product Data Sheet 20

Safety Instructions 21

Control Panel and Remote Control 22

Functions and Settings 24

Operating Modes 27

Program Weekly Timer 28

Cleaning and Care 31

Disposal Considerations 32

Fiche technique 33

TECHNICAL DATA

Item number 10031572, 10031573
Power supply 220-240 V ~ 50 Hz
Power 1800 W

MANUFACTURER & IMPORTER (UK)

Manufacturer:

Chal-Tec GmbH, Wallstrasse 16, 10179 Berlin, Germany.

Importer for Great Britain:

Berlin Brands Group UK Ltd

PO Box 1145

Oxford,OX1 9UW

United Kingdom

PRODUCT DATA SHEET

Model identifier(s): 10031572	10031573
Item Symbol Value Unit Item Unit
Heat output Type of heat input, for electric storage local space				heaters only
Nominal heat output P	nom	1.8 kW	manual heat	charge control, with integrated thermostat		N/A
Minimum heat output (indicative)	Pmin	0 kW	manual heat	charge control with room and/or outdoor temperature feedback		N/A
Maximum continuous heat output	Pmax,c	1.8 kW	electronic heat	charge control with room and/or outdoor temperature feedback		N/A
Auxiliary electricity consumption					fan assisted heat output N/A
At nominal heat output (fan motor)	elmax	N/A kW		Type of heat output/room temperature control
At minimum heat output (fan motor)	elmin	N/A kW	single stage	heat output and no room temperature control		no
In standby mode	elsb	N/A	W	Two or more manual stages, no room temperature control		no
				with mechanic thermostat room temperature control		no
				with electronic room temperature control		no
				electronic room temperature control plus day timer		no
				electronic room temperature control plus week timer		yes
				Other control options (multiple selections possible)
				room temperature control, with presence detection		no
				room temperature control, with open window detection		yes
				with distance control option		no
				with adaptive start control no
				with working time limitation		no
				with black bulb sensor		no
Contact details	Chal-Tec GmbH, Wallstraße 16, 10179, Berlin, Germany

SAFETYINSTRUCTIONS

• Do not use the appliance until it is securely fixed as described in this manual.
• Check that the voltage indicates on the data plate corresponds with that of the local network before connecting the appliance to the mains power supply.
• If the supply cord is damaged, it must be replaced by a qualified engineer in order to avoid a hazard.
• The fi replace heater must not be positioned directly under the power socket.
• Keep furniture, curtains and other flammable material at least 1 meter away from the appliance.
• Do not leave the appliance unattended during use.
• Do not leave the appliance unattended whilst connected to the mains supply.
• Keep out of reach of children and do not allow them to operate this appliance.
• This appliance is intended for household use only and should not be used for industrial purposes.
• Do not operate this appliance after a malfunction or after being damaged in any way.
• Repairs to electrical appliances should only be performed by a qualified electrician.
• Improper repairs may place user at serious risk.
• Do not run the mains cable under carpets, rugs, etc.
• Do not allow the mains cable to hang over sharp edges or come in contact with hot surfaces.
• In order to avoid overheating, do not cover the heater.
• Do not use this heater with a programmer, timer, separate remote control system or any other device that switches the heater on automatically, since a fire risk exists if the heater is covered or positioned incorrectly.
• Never immerse the product in water or any other liquid for any reasons.
• Do not use this heater in the immediate surroundings of a bath, a shower or a swimming pool.
• Do not use the appliance outdoors.
• Do not use if you have wet hands.
• Never use the appliance on or near hot surfaces.
• Do not operate with a damaged cord.
• Before cleaning the appliance, make sure it is unplugged from the power and that it is completely cooled.
• Do not clean the appliance with abrasive chemicals.
• Never use accessories that are not recommended or supplied by the manufacturer. It could cause danger to the user or damage to the appliance.
• This appliance is not intended for use by persons (including children) with reduced Physical, sensory or mental capabilities, or lack of experience and knowledge unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
  Children should be supervised to ensure that they do not play with the appliance.

CAUTION

Risk of burns! Some parts of this product can become very hot and cause burns. Particular attention has to be given where children and vulnerable people are present.

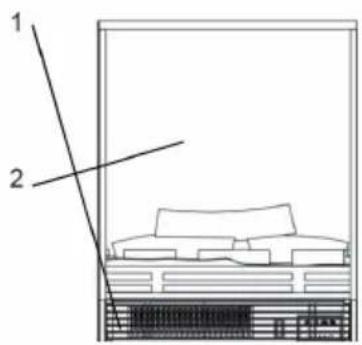

CONTROL PANEL AND REMOTE CONTROL

1Grille
2 Main body
3 Remote control

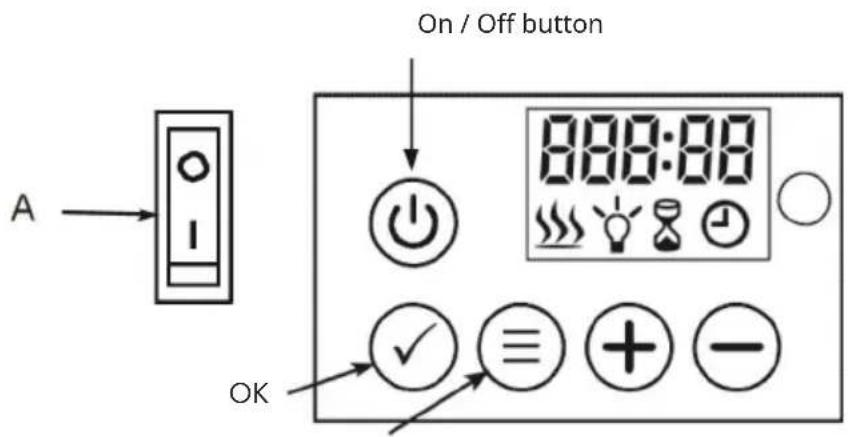

4 Control Panel

Menu button

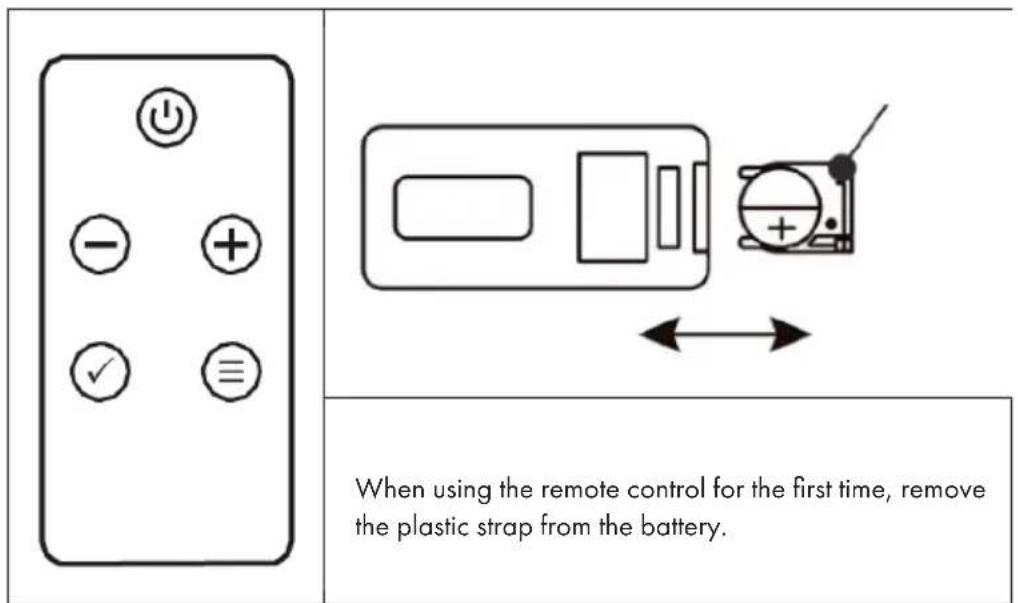

Note: This heater comes with a remote control. To operate the device with the remote control, the main switch (A) must be in the ON position. All buttons on the remote control have the same functions as the buttons on the control panel.

FUNCTIONS AND SETTINGS

Main switch (A)

Open the cover on the bottom of the unit and press button A down to the ON position.

On/Off button

Press the on / off button to start the flame effect. The following will appear on the display:

• The heating symbol will be displayed and the appliance will start to heat if the room temperature is below the standard setting (10^) . If the temperature is higher than 10^ , the icon will not be displayed and the unit will not heat up.
• The clock symbol will flash to indicate that no timer has yet been set. Follow the steps described in the „Operating Modes" section under „Timer Mode" to set the timer.

When the unit is switched on, two short beeps will sound, increasing in tone. When it is switched off, three beeps will sound, which will decrease in tone. When switching on, the heating level, the setpoint temperature and the clock symbol will be displayed. The display disappears after 60 seconds unless you press a key. Press any key to return to the display.

Key lock

Press and hold the OK button for more than 6 seconds to lock or unlock the keys. As soon as the keys are locked, [LOC] flashes on the display for 6 seconds and then disappears. Press any key and [LOC] will flash again. Press the OK button for 6 seconds to unlock the keys.

Note: The On/Off button (B) is never locked.

H 10 ###

Press the (+) or (-) button to start the heat setting directly (even if a weekly program is set). • Press either the (+) or (-) button to see the current temperature on the screen. • Press the (+) or (-) button to set the desired temperature. Press the OK button to confirm the setting. If the set temperature is higher than the room temperature detected by the device, the heating will start. The heater will not start if the set temperature is lower than the room temperature.

Note: The temperature can be set between 10 30^ . Select OFF to turn the heater off.

Set high heat output

H H	Press the MENU button on the control panel, the display will show H and the flashing heating symbol.
H H	Press the OK button to set the temperature. The default temperature is 10 °C (50 °F). The image at left will appear on the display.

Press the (+) or (-) button to set the temperature. If the set temperature is higher than the room temperature detected by the device, the heating will start. If the set temperature is lower than the room temperature, the heating will not start.

Set low heat output

Press the MENU button twice, the display will show L and the flashing heating symbol.

Press the OK button to set the temperature. The default temperature is 10 °C (50 °F). The image at left will appear on the display.

Press the (+) or (-) button to set the temperature. If the set temperature is higher than the room temperature detected by the device, the heating will start. If the set temperature is lower than the room temperature, the heating will not start.

Switch between Celsius and Fahrenheit

The default temperature display is Celsius. Press the D (MENU) button for 3 seconds, then press the (+) or (-) button to change the temperature display from Celsius to Fahrenheit.

Adjust brightness

The brightness control is used to select the desired flame brightness.

bri	Press the MENU button repeatedly to enter the brightness setting. The display will show [bri] and the flashing light bulb icon.
5	Press the OK button to start the brightness adjustment. Press the (+) or (-) button to select the desired brightness level.

Set runtime

Hour	Press the MENU button repeatedly to enter the timer setting. The display will show [Hour] and the flashing timer icon.
00	Press the OK button to start the timer setting. Press the (+) or (-) button to set the desired time between 0-9 hours. The display will show the set time.

OPERATING MODES

Select mode

Press the MENU button repeatedly to enter the operating modes. The display will show [ModE]. Press OK to enter the mode setting and use the (+) or (-) button to select the desired mode.

Open window mode

Press the MENU button several times to enter the [ModE] operating modes. Press OK to enter the mode setting and use the (+) or (-) button to select the open window mode. The display will show [OPEN].

Press OK to confirm and use the (+) or (-) button to select ON or OFF:

After activating the open window detection, the unit automatically turns off the heater when it detects that the room temperature has dropped more than 4^ within 10 minutes. The heater will turn off for 20 minutes.

To restart the heater, reset the desired temperature and press the OK button to confirm the setting. After resetting the temperature, open window detection is set to OFF.

Setting the Current Weekday and Time

TIME	Press the MENU button several times to enter the [ModE] operating modes. Press OK to enter the timer setting and use the (+) or (-) button to select the timer mode. The display will show [TIME].
D1	Press OK to enter the timer setting and use the (+) or (-) button to select the desired day for which you want to set a timer. D1 = Monday, D2 = Tuesday, D3 = Wednesday, D4 = Thursday, D5 = Friday, D6 = Saturday, D7 = Sunday.
10.00	Press OK and use the (+) or (-) button to set the hour.
10.30	Press OK and use the (+) or (-) button to set the minute. Then press OK again to save the setting.

Note: You can exit the timer setting at any time by pressing MENU. In the event of a power failure, the timer icon (clock) will blink continuously, signaling that no timer has been set. In this case, you must reprogram the timer.

PROGRAM WEEKLY TIMER

Note: Before you can program the week timer, you must first set the current weekday and time (see Setting the Current Weekday and Time).

There are 3 pre-set programs available. Each program includes one period or several periods of time in which the fireplace will heat. Outside of these periods of time, the fireplace will not heat. The period of one program may overlap with the period of another program.

Preset programs

P1 (program 1)

Monday to Friday from 05:15 for 4 hours high heating.

P2 (program 2)

Saturday to Sunday from 06:20 for 4 hours low heating.

P3 (program 3)

Monday to Friday from 17:45 for 4 hours high heating.

P4 (Programm 4)

Saturday to Sunday from 16:30 for 4 hours low heating.

Select preset program

Press the MENU button several times to enter the [ModE] operating modes. Press OK to enter the mode setting and use the (+) or (-) button to select the program mode. The display will show [ProG].

Press button + or - to select "ON" or "OFF" to turn on or turn off the weekly program. Press OK to validate. To exit the setting during operation, press button MENU.

0

OFF

Manual Setting for Weekly Programming

Press button MENU to select "ModE" menu. Press OK to validate, then button + or - to access Manual Setting MANU. Press OK to validate.

• Press button [+ or [-] to select the first activation day. Press OK to validate.
• Press [+] or [-] to select the last activation day. Press OK to validate.

Example of a manually set weekly timer

Note: Several programmed heating periods can be used for one day. A programmed heating period can also be used for several days.

d1.d7 @	For selecting "d1" (Monday) as first activation day, and "d7" (Sunday) as last activation day.
H SS	Press the (+) or (-) button to select the heating level: H = high heat output, L = low heat output. Press OK to confirm the selection
H 10 SS	Press the (+) or (-) button to set the desired temperature. Press OK to confirm the selection.
10.00 @	Press the (+) or (-) button to select the hour at which to start the heating. Press OK to confirm the selection.
10:30 @	Press the (+) or (-) button to select the minute at which to start the heating. Each press of the button increases the minute display by 5 minutes. Press OK to confirm the selection.
0:30 @	Press the (+) or (-) button to set how long the heater will run. Each press of the button increases the display by 30 minutes. Press OK to confirm the selection.
CON	Now the setting of the first heating period of the program is completed. The display will show [CON] (confirmed).
	Note: The program cannot run until the next day. The maximum duration may not exceed midnight. That is, if the start time is 20:30 and you set 4 hours for the duration, the program ends after 3:30 because that is when midnight is.
	To set a second heating period, press OK. If you have set the second heating period, press OK again and the display will return to the day selection for the second heating period.
FINSH	To complete the setting, press the (+) or (-) button until [FINSH] appears in the display. Then press OK to complete the programming.

Note: To save the settings made, always press the OK button. A maximum of 8 heating periods can be programmed for one program.

After the manual setting for the weekly timer is completed, the selected program will overwrite the default preset values.

CLEANING AND CARE

Note: Always disconnect from the power supply before cleaning or maintenance.

• Never use detergent, chemical agents or solvents as they could damage plastic parts.
• Let the appliance cool down completely before handling or cleaning.
• To prevent risk of fire or electrocution, do not pour water or any other liquid inside the appliance.
• Clean the outside wall of the appliance by rubbing it gently with a soft, damp cloth, either with or without soap.
  Regularly clean the air inlet and outlet vents of the fan.

DISPOSAL CONSIDERATIONS

If there is a legal regulation for the disposal of electrical and electronic devices in your country, this symbol on the product or on the packaging indicates that this product must not be disposed of with household waste. Instead, it must be taken to a collection point for the recycling of electrical and electronic equipment. By disposing of it in accordance with the rules, you are protecting the environment and the health of your fellow human beings from negative consequences. For information about the recycling and disposal of this product, please contact your local authority or your household waste disposal service.

This product contains batteries. If there is a legal regulation for the disposal of batteries in your country, the batteries must not be disposed of with household waste. Find out about local regulations for disposing of batteries. By disposing of them in accordance with the rules, you are protecting the environment and the health of your fellow human beings from negative consequences.

Cher client, chere clientele,

Berlin Brands Group UK Ltd

PO Box 1145

Oxford,OX1 9UW

United Kingdom

FICHE DE DONNÉES PRODUIT

Berlin Brands Group UK Ltd

PO Box 1145

Oxford,OX1 9UW

United Kingdom

FICHA TECNICA DEL PRODUCTO

Interruptor principal (A)

Modalita operative 69

PRODUTTORE IMPORTATORE (UK)

Produtlore:

Chal-Tec GmbH, Wallstraße 16, 10179 Berlin, Germania.

Berlin Brands Group UK Ltd

PO Box 1145

Oxford,OX1 9UW

United Kingdom

SCHEDA INFORMATIVA DEL PRODOTTO

Weektimerprogrammeren84

Berlin Brands Group UK Ltd

PO Box 1145

Oxford,OX1 9UW

United Kingdom

PRODUCTINFORMATIEBLAD

INSTRUCTIES VOOR AFVOER
