USER MANUAL Icefestival Bullet Klarstein

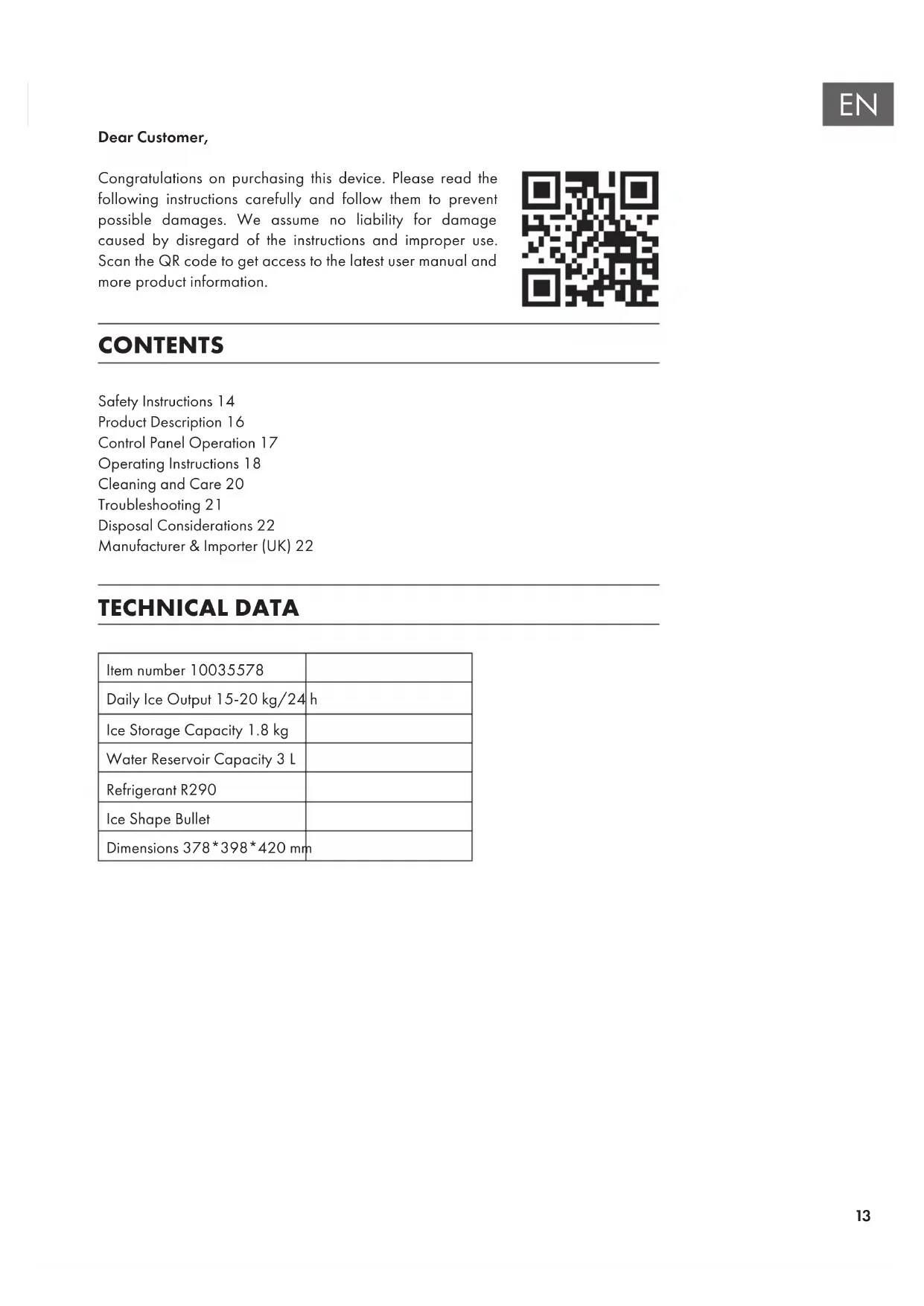

CONTENTS Dear Customer, Congratulations on purchasing this device. Please read the following instructions carefully and follow them to prevent possible damages. We assume no liability for damage caused by disregard of the instructions and improper use. Scan the QR code to get access to the latest user manual and more product information. TECHNICAL DATA Item number 10035578 Daily Ice Output 15-20kg/24h Ice Storage Capacity 1.8 kg Water Reservoir Capacity 3L Refrigerant R290 Ice Shape Bullet Dimensions 378*398*420mm Safety Instructions14 Product Description16 Control Panel Operation17 Operating Instructions18 Cleaning and Care20 Troubleshooting21 Disposal Considerations22 Manufacturer & Importer (UK)2214

SAFETY INSTRUCTIONS In order to avoid any accidents, please refer to following operation:

• Disconnect power before servicing.

• Do not pull directly on wire when plugging or unplugging the unit.

• If ice is abnormal, please call the seller.

• It is normal for the compressor and condenser surface to reach temperatures between 70°C and 90°C during operation and surrounding areas may be hot. Please don't touch it.

• Due to fast freezing, ice cubes may appear “Cloudy”. This is trapped air in the water and it will not affect quality or taste of ice.

• When out of use, please open the drawer at least 2cm to allow for air circulation and avoid any metallic components becoming rusted.

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

• Children shall not play with the appliance,

• Cleaning and user maintenance shall not be made by children without supervision.

• If the supply cord is damaged; it must be replaced by the manufacturer, its service agent or a similarly qualied person in order to avoid a hazard.

• Please according to local regulations regarding disposal of the appliance for its ammable blowing gas. Before you scrap the appliance, please take off the doors to prevent children trapped.

• This appliance is intended to be used in household and similar applications such as – staff kitchen areas in shops, ofces and other working environments; – farm houses and by clients in hotels, motels and other residential type environments; – bed and breakfast type environments; – catering and similar non-retail applications.

• Do not store explosive substances such as aerosol cans with a ammable propel- lant in this appliance.

• Children aged from 3 to 8 years are allowed to load and unload refrigerating appliances.

• Opening the door for long periods can cause a signicant increase of the tempera- ture in the compartments of the appliance.

• Clean regularly surfaces that can come in contact with food and accessible drain- age systems.

• Clean water tanks if they have not been used for 48 h.

• If the refrigerating appliance is left empty for long periods, switch off, defrost, clean, dry, and leave the door open to prevent mould developing within the appli- ance.15

• When positioning the appliance, ensure the supply cord is not trapped or dam- aged.

• Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance.

• Fill with potable water only or connect to potable water supply only.

• Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.

• Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.

• Do not damage the refrigerant circuit.

• Do not use electrical appliances inside the food storage compartments of the appli- ance, unless they are of the type recommended by the manufacturer.

• Risk of re / ammable materials, taking care to avoid causing a re by igniting ammable material.

• The new hose-sets supplied with the appliance are to be used and that old hose- sets should not be reused.16

Before/First Use of Your Ice Maker

1. During transportation, the incline angle of the cabinet should not be over 45 °C.

Do not turn the Ice maker upside down. As this may damage the compressor and sealed system.

2. Remove all packing material and carefully check your ice maker to ensure it is in

good condition and that there is no damage to the ice maker or power cord and plug.

3. The Ice maker should be placed horizontally on a level surface.To ensure proper

ventilation for your Ice maker allow 150mm of space at the top, the back and on each side. Do not install the Ice maker near an oven, radiator, or any other heat source.

4. Before using the Ice maker for the rst time, please wait 2 hours after positioning it,

and keep the front lid open for at least 2hours

5. Ensure that the voltage indicated on the ice maker corresponds with the voltage in

6. Pure water is not allowed to be used on this unit, spring water is recommended.

7. Please always keep the viewing window close during ice making.

CONTROL PANEL OPERATION

Press this button to shaved ice. Before the press of this button, please put enough ice into the bowl and covers the bowl cover well. Unit under ice making process if it lights up without ash It lights up when the ice in ice basket is full.18

It lights up when the water in water tank is not enough. Press it to start the ice making. OPERATING INSTRUCTIONS Step 1 Add water by manual: Open the lid, take out of the ice basket and ll the water reservoir with water. Note: Make sure the water is not over the bottom of the ice collecting tray. Add water by auto lling: please connect the pipe at back of the unit to the water tap directly. Note: The maximum permissible inlet water pressure: 0.6MPa. The minimum permissible inlet water pressure: 0.14MPa. Step 2 Connect to the power Step 3 Press the ICE button to turn unit on. The ice maker begins to work. Note: For the rst three cycles, the ice may be small and irregular in size, or even no ice.19

Step 4 If indicator ADD WATER lights up, please take out the basket, then add water as per step 1. Step 5 If indicator ICE FULL lights up, please take out the ice with the scoop. Note: When the ice basket is full please remove the ice immediately, Do not allow the ice collecting tray overll. Step 6 Press SHAVED ICE button to shave ice. Note: Before the press of this button, please put enough ice into the shaved ice bowl and cover the bowl cap well. Step 7 Press ICE button to stop the machine. Step 8 Put a tank in below the unit, then pull the unit a little forward, pull the drain plug at middle of the tank to drain water.20

• Clean the inner liner, ice collecting tray, water box, ice shovel and evaporator fre- quently. When cleaning, unplug the unit and remove the ice cubes. Use a diluted solution of water and vinegar to clean the inside and the outside surface of the Ice maker. Do not spray Ice maker with chemicals or diluted agents such as acids, gasoline or oil. Rinse thoroughly before starting.

• Keep ventilation openings in the appliance enclosure, or in the built-in structure, clear of obstruction. Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.

• To ensure the cleanliness of the ice cubes, water in the water reservoir is suggested to be replaced every 24 hours.

• If the compressor stops for any reason such as water shortage, too much Ice, power off, etc. Do not start the system right away, wait 3 minutes, and then re-start the Ice maker.

• Always use fresh water before starting ice production either at initial installation or after a long shut-off period.

• This unit is for home use only, not for outdoor use, if it is necessary for use outside, please make sure the view window is closed.21

1. Please note, if a power failure occurs due to disconnection of the power cord, or

the off power button has been pushed off during an ice making cycle, small ice chips may formed and lodge in the automatic shovel causing it to jam. If this occurs, the ice chips may be removed by disconnecting the power cord and gently pushing the shovel to the rear of the cabinet and removing the ice chips, then restarting.

2. Please restart the ice maker by pressing Stop and then Start. If the Ice shovel does

not push the Ice into the Ice collector after the formed Ice drops from the evaporator nger while at the same time the M light is on, check to see if the water tray is horizontal or balanced. If not then adjust by pressing the Ice shovel lightly with your nger. Then re-start the Ice maker. Problem Reason Solution The compressor works abnormally with a Buzzing noise. The voltage is lower than recommended Stop the Ice maker and do not restart until the voltage is normal. Conditions for Ice making Cycle are right but no ice is made. Refrigerant leaks. Sealed system is blocked. Call for service. The lights of ice full and add water come at in the same time. Water tray is blocked by ice cube. Clear the ice cube under the ice shovel pull out the plug and insert It again then press the ICE button, 3 minutes later the machine will restart automatically. Machine keeps running,but the water is warmer than the normal water. The magnetic valve is broken. Replace the magnetic valve.22

DISPOSAL CONSIDERATIONS If there is a legal regulation for the disposal of electrical and electronic devices in your country, this symbol on the product or on the packaging indicates that this product must not be disposed of with household waste. Instead, it must be taken to a collection point for the recycling of electrical and electronic equipment. By disposing of it in accordance with the rules, you are protecting the environment and the health of your fellow human beings from negative consequences. For information about the recycling and disposal of this product, please contact your local authority or your household waste disposal service. MANUFACTURER & IMPORTER (UK) Manufacturer: Chal-Tec GmbH, Wallstrasse 16, 10179 Berlin, Germany. Importer for Great Britain: Chal-Tec UK limited Unit 6 Riverside Business Centre Brighton Road Shoreham-by-Sea BN43 6RE United Kingdom23
