| Product type | Mobile monoblock air conditioner |
| Brand | Klarstein |
| Model | Metrobreeze New York Smart 12K |
| References | 10035800, 10035801, 10035802 |
| Cooling capacity | 12 000 BTU/h (3,5 kW) |
| Power supply | 220-240 V ~ 50-60 Hz |
| Dimensions (H x W x D) | 830 mm x 443 mm x 340 mm |
| Energy efficiency class | A (cooling) |
| Nominal EER | 2,6 |
| Power consumption (cooling) | 1,4 kWh (for 60 min) |
| Noise level (indoor) | 65 dB(A) |
| Refrigerant | R290 (propane) |
| Wi-Fi | Yes, 802.11 b/g/n, 2,4 GHz |
| Operating modes | Cooling, fan, dehumidification |
| Adjustable thermostat | 16 °C – 30 °C |
| Timer | 1 to 24 hours (scheduled on/off) |
| Remote control | Yes, with 2x AAA alkaline batteries |
| Net weight (approx.) | Approximately 28 kg |
| Filter material | Washable air filter |
| Recommended maintenance | Clean the filter every 2 weeks |
| Draining the water tank | Manual via drain plug |
| Certifications | Compliant with directive 2014/53/EU |
| Minimum ambient temperature | In dehumidification: > 17 °C for the compressor |
| Spare parts | Available on request from the manufacturer |
Frequently Asked Questions - Metrobreeze New York Smart 12K Klarstein
User questions about Metrobreeze New York Smart 12K Klarstein
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Air Conditioning in PDF format for free! Find your manual Metrobreeze New York Smart 12K - Klarstein and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. Metrobreeze New York Smart 12K by Klarstein.
USER MANUAL Metrobreeze New York Smart 12K Klarstein
METROBREEZE NEW YORK SMART 12K
Klimaanlage
Air Conditioner
Aire acondicionado
Climatiseur
ONNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNN
KLARSTEIN
www.klarstein.com
Berlin Brands Group UK Limited
PO Box 42
272 Kensington High Street
London, W8 6ND
United Kingdom
Congratulations on purchasing this device. Please read the following instructions carefully and follow them to prevent possible damages. We assume no liability for damage caused by disregard of the instructions and improper use. Scan the QR code to get access to the latest user manual and more product information.
CONTENTS
Notes on Refrigerant R290 26
Safety Instructions 27
Product Overview 29
Control Panel and Remote Control 30
Installation 31
How to Install the Window Seal 33
Before First Use 34
Use and Operation 34
Device Control by Smartphone 36
Cleaning and Care 38
Error Messages 40
Troubleshooting 41
Product Data Sheet 42
Disposal Considerations 44
Declaration of Conformity 44
TECHNICAL DATA
| Item number 10035800, 10035801, 10035802 |
| Power supply 220-240 V ~ 50-60 Hz |
| Dimensions 830 mm (H) x 443 mm (W) x 340 mm (D) |
| Cooling capacity 12.000 BTU |
| WiFi standard 802.11 b/g/n |
| WiFi frequency 2,4 GHz |
| WiFi radio-frequency power (max.) 20 dBm |
NOTES ON REFRIGERANT R290
Warnings
- The air conditioning system must be kept and transported upright. Otherwise, irreparable compressor damage may occur. Leave the unit for at least 24 hours before putting it into operation.
- Switch off the device and disconnect it from the power supply before cleaning.
- Make sure that the product creates a steady stream of air. Ensure the air inlets and outlets are not blocked.
- To prevent leaks, operate this unit on a horizontal surface.
- Any person performing work on a refrigerant circuit should have a current certificate from an industry-accredited assessment body. This ensures competence for the safe handling of refrigerants according to an industry-recognised assessment specification.
- If the device stops working, dispose of it properly.
- Store the device in a well-ventilated place when not in use.
- Store the device so that it is not damaged.
- Repairs may only be carried out by the manufacturer or an authorised specialist company.
- The cables connected to the device may contain potential ignition sources.
- Do not damage any components of the refrigerant circuit. Escaping refrigerant may not be noticed because it is odourless.
- Maintenance and repairs must be carried out under the supervision of specialists in the use of flammable refrigerants.
Information for rooms with refrigerant pipes
- Limit the piping to a minimum.
- Be careful not to damage the piping.
- Appliances with flammable refrigerants may only be installed in a well-ventilated room.
- Comply with national gas regulations.
- All mechanical connections must be freely accessible for maintenance purposes.
CAUTION
Risk of fire! This device contains the flammable refrigerant R290. If the refrigerant escapes and is exposed to an external ignition source, there is a risk of fire.
SAFETY INSTRUCTIONS
Special notes
- Only use agents recommended by the manufacturer for defrosting or cleaning.
- Never store the appliance in a room in which there are permanent sources of ignition (e.g. open flames, a switched on gas appliance or a switched on electric heater).
- Do not puncture or burn the appliance.
Note that coolant may be odourless.
Note: Only use the unit in rooms larger than Xm^2 (see table):
| Model X (m2) | |
| 5000 BTU/h, 7000 BTU/h, 8000 BTU/h 10 m2 | |
| 9000 BTU/h, 10000 BTU/h, 10500 BTU/h 13 m2 | |
| 12000 BTU/h, 14000 BTU/h, 16000 BTU/h, 18000 BTU/h 1 | 8 m2 |
General safety instructions
- The device is only suitable for indoor use.
- Do not use the product if it needs to be repaired or if it has not been installed properly.
-
Do not use the product in the following areas:
-
near heat sources,
- in areas where oil can splash,
- in areas exposed to direct sunlight,
- in areas where splash water can occur,
-
near bathtubs, in washrooms, near showers or swimming pools.
-
Never insert your fingers or other objects into the ventilation openings. In particular, warn children of the dangers this may cause.
- Ensure that the unit is held vertically during transport and storage so that the compressor is correctly positioned.
- Always turn off the appliance before cleaning and unplug it from the wall outlet.
-
Switch off the appliance before moving it and unplug it from the wall outlet. Move the appliance slowly and carefully.
-
To avoid the risk of fire, do not cover the unit.
- All fan connections must comply with local electrical safety regulations. If necessary, refer to these regulations.
Supervise children so that they do not play with the unit. - If the power cord is damaged, it must be replaced by the manufacturer, customer service or a similarly qualified person to avoid danger.
- This equipment may be used by children over the age of 8 and by persons (including children) with limited physical, sensory or mental capabilities and/or lack of experience and knowledge, provided they have been instructed in the use of this equipment by a person responsible for their safety and understand the hazards associated with the use of this equipment. Cleaning and maintenance of the appliance may only be carried out by children under supervision.
- The appliance must be installed in accordance with national wiring regulations.
Type and voltage of fuses: T, 250 V AC, 2 A or higher. - Contact customer service for cleaning and maintenance.
- Do not pull the power cord, deform or modify it, or immerse it in water. Incorrect handling of the power cord may result in damage to the equipment and/or electric shock.
- National gas regulations must be observed.
- Do not block the ventilation openings.
- Do not operate the appliance solely by inserting or removing the power plug, as this may result in electric shock or fire due to heat.
- Immediately unplug the appliance from the wall outlet if it emits strange noises, odours or smoke.
Instructions for Handling Damage
- In case of damage to the device, contact the manufacturer, customer service or a similarly qualified person.
- If damage occurs, turn off the power, unplug the power cord, and contact the manufacturer, the service representative, or a similarly qualified person.
The power cord must be securely earthed. - If the power cord is damaged, turn off the power to avoid danger and unplug the power cord from the wall outlet. The power cord must be replaced by the manufacturer, customer service or a similarly qualified person.
WARNING
Risk of injury! Repairs to the coolant circuit may only be carried out by trained specialist personnel. Never attempt to repair the unit yourself!

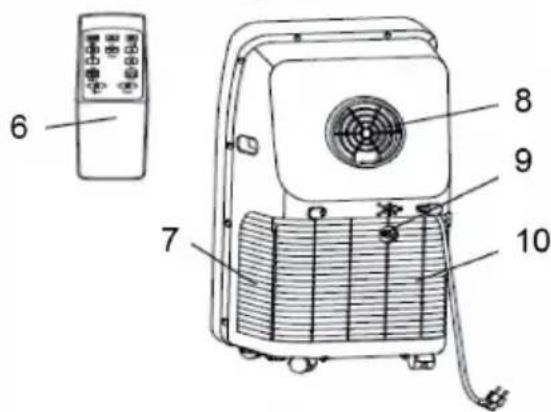

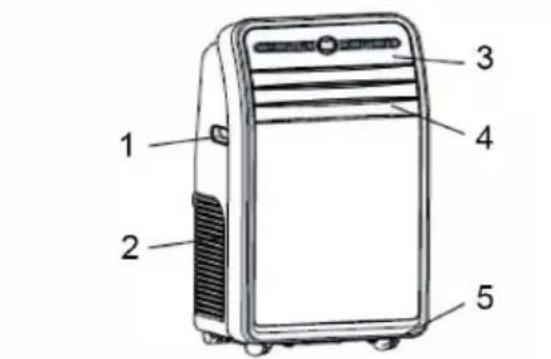

1 Handle
2 Air inlet (left)
3 Control panel
4 Air guide bar
5Truckle
6 Remote controller
7 Air inlet (right)
8 Air outlet
9 Outfall
10 Inlet grille
11 Exhaust pipe assembly
12 Window seal plate assembly

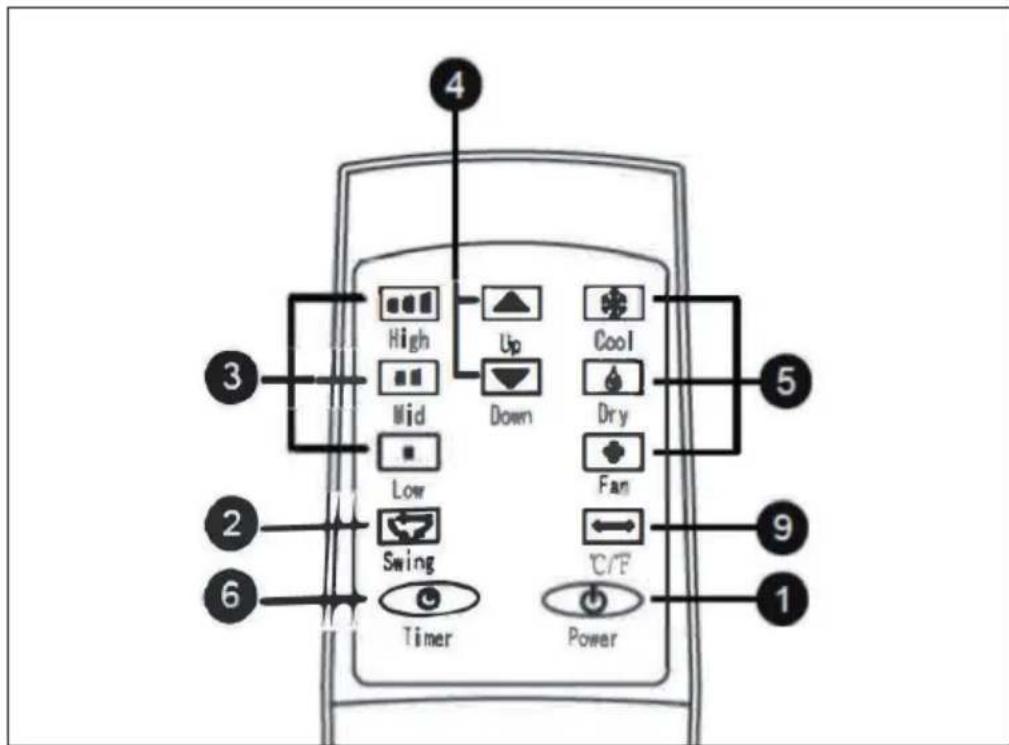

CONTROL PANEL AND REMOTE CONTROL
| 8 | 7 | |
| TIMER MODE | SPEED SWING ① | |
| 6 | 5 | 4 3 2 1 |
| 1 | Power Press the button to turn on/off air conditioner | |
| 2 | Swing Pressing the button can make air guide bar swings automatically. | |
| 3 | Wind speed Press the button to select high, medium and low wind speed. | |
| 4 | Up and Down Press to set temperature and time. | |
| 5 | Mode Press the button to select one of the modes. | |
| 6 | Timer Press the button to set timed start or shutdown time. | |
| 7 | Display This window displays the adjust temperature and time. | |
| 8 | Receiver Receives signals transmitted by remote controller. | |
| 9 | Celsius/Fahrenheit Realize the display conversion between Temperatures. | |
INSTALLATION
- Place the machine at flat floor near a window.
- To maintain a good air circulation and obtain an optimum machine performance, it shall leave a 50 cm space around.

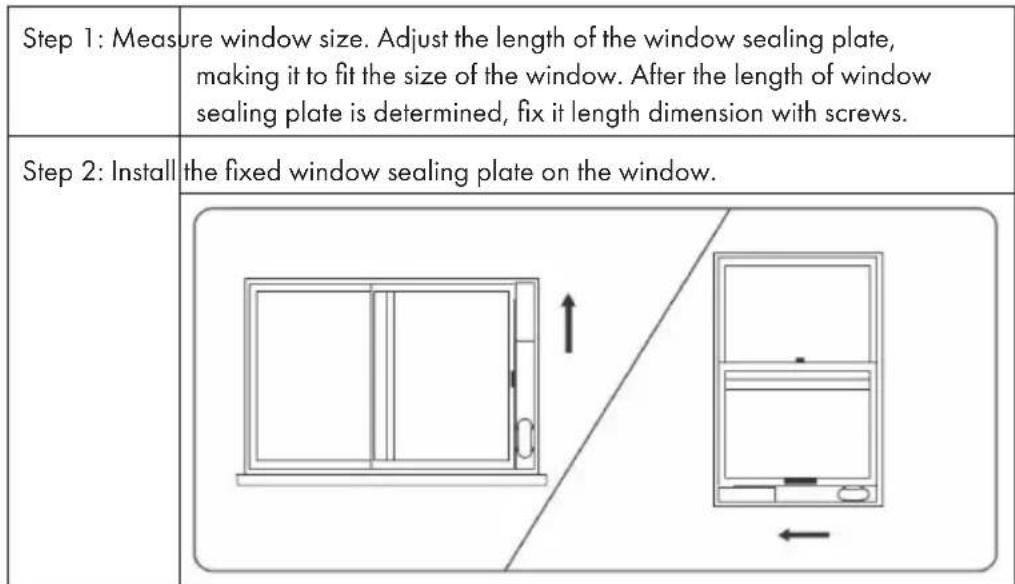

Mounting the Window Seal
| Step 3: Screw | the exhaust pipe assembly (exhaust joint end) into the rear panel exhaust port (counter clockwise). |
| Step 4: Place | the exhaust pipe assembly (exhaust flat port) into the window sealing plate assembly and fix it with screws. |

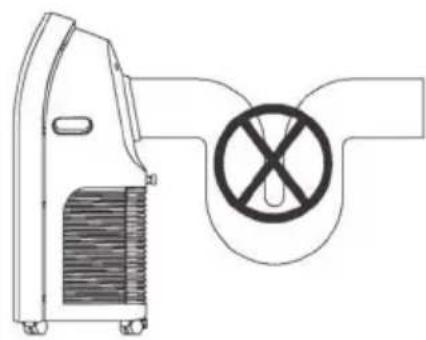

Important Hints on Installation
The smoothness of exhaust pipe is very important. Incorrect installation will affect the operation of air conditioners.
- In installation, avoid the exhaust pipe bending substantially.
- Ensure the air flow smoothly inside the pipe.
The exhaust pipe length is specially designed for this model, do not arbitrarily replace or extend it, or it will lead to failure easily.
The maximum developed length of exhaust pipe is 1500mm . shorten its length as far as possible in use. It's recommended to keep it in level in installation.
HOW TO INSTALL THE WINDOW SEAL
Installing the window sealing is easy. You can attach it to a tilted window or to a laterally opened window. Our demonstration is performed on a laterally opened window. It is especially suitable for low positions of the exhaust pipe.
The velcro tape must be attached on three sides. Leave out the side with the window being connected to the frame. Clean the frame and dry it first, so that the tape sticks.
| 1 2 3 | ||
| Attach the velcro tape on the left, on the top and on the bottom of the window frame. We recommend that you cut the tape into strips for each window side first. | Now attach the velcro tape to the inner window sides. | Stick the window sealing to the velcro strips on the window frame first (starting with the top), then on the velcro strips on the window. Push the exhaust air tube of the air conditioner through the hole, which can be adjusted in height and size. |
BEFORE FIRST USE
Remote Controller
1 Slide the battery cover on the back of the remote controller to open.
2 Insert 2 new alkaline 7th batteries. When inserted, their terminals shall be ensured to be installed correctly.
3 Put the battery cover into place.
Important Hints on Using Batteries
- The remote controller only uses 7th alkaline batteries. Do not use rechargeable or other types of batteries.
- When replacing the batteries, replace both. Do not mix old and new batteries in use.
- If the air conditioner is not used for a long time, remove the batteries from the remote controller.
- If there is battery leakage, do not the battery.
- Chemicals inside the battery may cause burns or other health hazards; if their liquid flows to the skin or clothing, rinse with water immediately; if eating it accidentally, gargle with water immediately, and then go to a hospital and see a doctor for further examination.
USE AND OPERATION
Refrigeration mode
- After being powered and turned on, its refrigeration mode or pressing mode button to select refrigeration mode by default, and the refrigeration indicator light is on.
- Press the up or down button to adjust the settled temperature (16^ - 30^) .
- Press the wind speed button to select high, medium or low wind speed.
Air distribution mode
- Press the mode button or via the remote controller to select air distribution mode, and air distribution indicator light is on.
- Press the wind speed button to select high, medium or low wind speed.
- Temperature cannot be set.
Dehumidification mode
- Select dehumidification mode by pressing mode button or via remote controller, and the dehumidification indicator light is on.

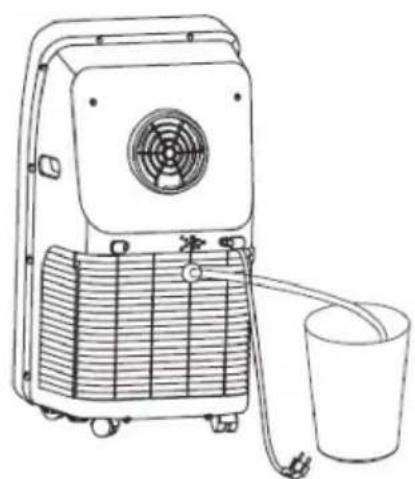

- As shown in the picture below, remove the plug of drainage outfall, insert the aqueduct, and put another end of the aqueduct into water containers or drain channels.
When entering dehumidification mode, if the room temperature is ≥ 17^ (or 62^ ), the compressor will start to work. Then control according to the following rules: when room temperature is ≤ 15^ , compressor stops; when the temperature rises back to ≥ 17^ ( 59^ ), the compressor restarts (the restart of compressor shall meet the 3-minute delay protection function).
Note: When the dehumidification function is in use, the exhaust pipe assembly shall be removed; otherwise it will lead to not obvious dehumidification effect or display "FL" water full alarm.
Time mode
- In standby mode, press time button to set time start. Press the up-and-down button to the time of start (0~24 hours), and time indicator light is on.
- In startup mode, press time button to set time switch-off.
- Press the up-and-down button to the time of switch-off (1~24 hours), and time indicator light is on.
DEVICE CONTROL BY SMARTPHONE
If you integrate the device into your home WiFi, you can conveniently operate it via the associated Klarstein app. The app not only allows you to remotely control the device via your smartphone, but also gives you access to recipes and additional information.
Follow these steps to connect your smartphone to your Klarstein device:
1 Download the Klarstein app first by scanning the QR code with your smartphone (see below), or download it directly from App Store or Google Play.
2.2 Make sure your smartphone is connected to the same WiFi network that your Klarstein device is to be connected to.
3 Open the Klarstein app.
4 Sign in to your account. If you do not have an account, sign up in the Klarstein app.
5 Follow the instructions from the app.
App Download
Use the scan function of your smartphone to scan the QR code and save the app on your smartphone.
Note: The app provides further information on how to use the app and help on how to connect to your device as soon as you open it for the first time.
iOS Android
Troubleshooting connection problems
If your Klarstein device cannot be found in the WLAN, check the following:
Is the device plugged in?
- Is the WiFi feature of my phone enabled?
- Is the WiFi function of the Klarstein device activated? (Follow the instructions in the app)
- Has the WLAN password been entered correctly?
- Are the router, Klarstein device and smartphone in the immediate vicinity during the connection attempt? (Ideally no more than 5 m apart)
- If you have deactivated the 2.4 GHz band in the settings of your wireless router, activate it in your router settings.
Note: For further help, follow the instructions in the app when setting up the connection.
CLEANING AND CARE
The product has an automatic water evaporation system. The circulation of condensed water cools the condenser. This not only increase refrigeration efficiency but save energy.

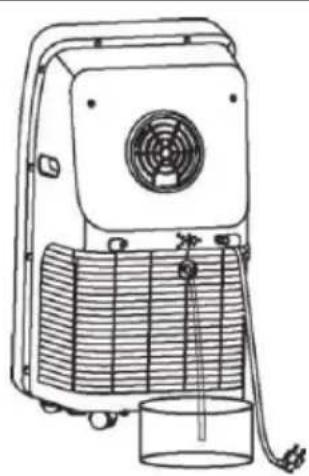

Discharging the Water Container
If the machine's water container is full, the display screen will present "FL" accompanied by audible alarm, and the compressor will stop working automatically. At this point, we need to discharge the water. Discharging steps are follows:
1 Unplug the power cord and remove the exhaust pipe assembly.
2 Remove the conditioner to a appropriate place.
3 Disconnect the plug in drainage outfall to exhaust the water inside the machine.
4 Re-plug the water plug well.
5 Reinstall the exhaust pipe assembly and start the machine.
Cleaning the Surface
- To avoid electrical shock, turn off the conditioner and pull it plug out before conducting maintenance and repair.
- Wipe with a soft cloth. Do not use chemicals, such as benzene, alcohol, gasoline, etc. otherwise, its surface or even the machine will be damaged.
- Do not let water splash into the conditioner inside.
Cleaning the Filter Screen
It's recommended to cleaning the filter screen once every two weeks, if the indoor air quality is poor, cleaning frequency shall be raised. Since the filter becomes clogged with dust, the conditioning effect will be reduced. Specific cleaning steps are as follows:

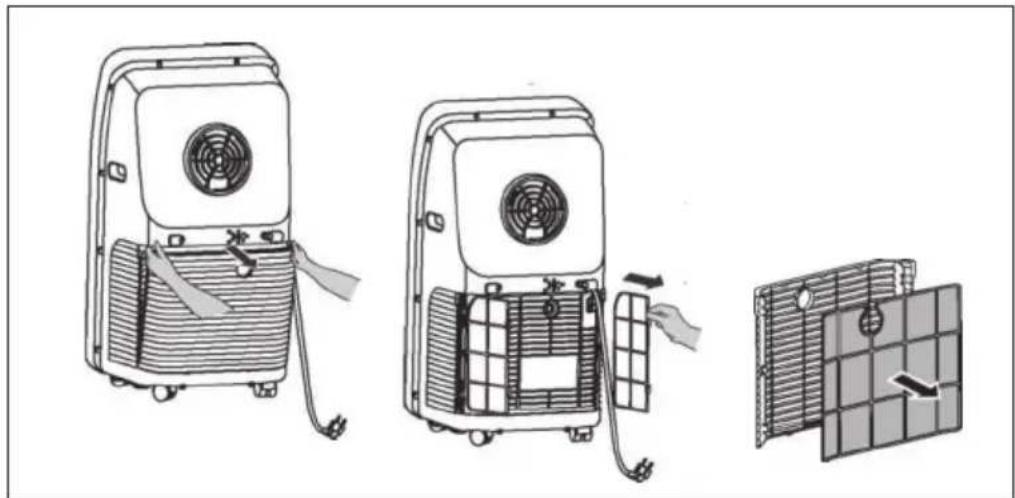

- Remove the intake grille and then filter screen in the direction shown in the following picture below. Put the filter screen into neutral detergent water or warm water (about 40^ ) to clean, and then place in shade for drying.
- Reinstall the cleaned filter screen; Restart the machine, and it can run normally.

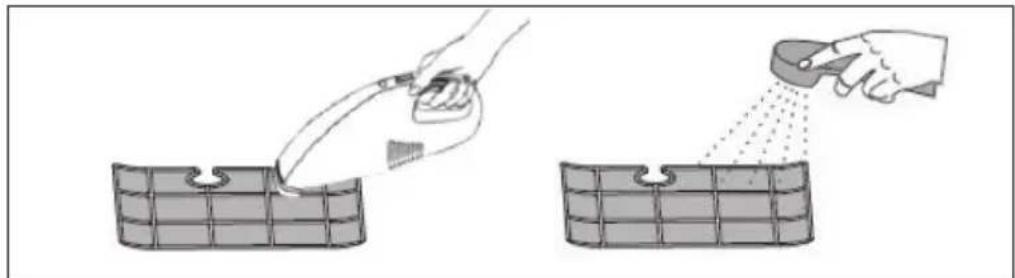

Note: If the filter screen is not too dirty, just use a vacuum cleaner to suck the dust. If the filter screen is not too dirty, clean it with water or warm water. Do not use high temperature water (optimum temperature is around 40^ ) or harsh detergents (such as alcohol, petrol, benzene, etc.) to clean the filter screen. In order to avoid filter screen deformation keep the keep filter screen away from heat, and put in dry air for drying naturally. Do not operate the machine whose filter has not been installed.
Seasonal Maintenance
If the machine will be not in use for a long time, its maintenance follows the steps below:
- Pull out the plug in drainage fallout to drain off water.
- Keep the conditioner working 2 hours in the air distribution mode until its inside becomes dry.
- Turn it off and pull it plug out.
- Clean its filter screen and reinstall back.
- Remove its exhaust pipe and accessories, and keep them safely.
- Remove the batteries in remote controller.
- Put the conditioner into a plastic bag and place it in a cool and dry place.
Hints on seasonal Re-Use
- Confirm whether water plug and filter screen are installed.
- Check whether power cord is intact. If there is breakage, do not use the machine.
- Reinstall the remote controller batteries.
- Reinstall other parts following installation instructions.
ERROR MESSAGES
| E1 | Coil temperature sensor failure. |
| E2 | Indoor temperature sensor failure. |
| E4 | Anti-freeze protection: when the coil temperature is below 0°C, the whole machine will stop. When the coil temperature rose to 8°C or more, the protection will leave, and it will restore to its original work. |
TROUBLESHOOTING
| Problem Possible Cause Solution | ||
| Conditioner does not work. | No power. Power on. | |
| Screen displays “FL”. Re-start | and put back to normal after power cut and drainage. | |
| Off-timer function is activated. | Restart after it being turned off 3 minutes. | |
| The refrigeration effect of the conditioner is not good. | Direct sunlight. Pull curtains. | |
| Doors and windows are open, or there are too much people or heat source. | Close the doors and windows, and remove the heat source. | |
| Dirty filter screen. Clean or replace the filter screen. | ||
| The conditioner's noise is too big. | The conditioner base is not placed flat. | Place on a flat and solid surface, and try avoid shaking. |
| Compressor does not work. | Compressor delay protection has been activated. | Waite 3 minutes, and restart the conditioner when its temperature is reduced. |
Information according to regulation (EU) No. 626/2011
Supplier's trademark:
Klarstein
Supplier's model identifier:
10035800, 10035801, 10035802
Inside sound power levels at standard rating conditions on cooling mode in dB:
65dB
Refrigerant (R290) leakage contributes to climate change. Refrigerant with lower global warming potential (GWP) would contribute less to global warming than a refrigerant with higher GWP, if leaked to the atmosphere. This appliance contains a refrigerant fluid with a GWP equal to 3. This means that if 1kg of this refrigerant fluid would be leaked to the atmosphere, the impact on global warming would be 3 times higher than 1kg of CO_2 , over a period of 100 years. Never try to interfere with the refrigerant circuit yourself or disassemble the product yourself and always ask a professional.
Energy efficiency ratio (EER rated): 2.6
Energy efficiency class:
A
Energy consumption 1,4 kWh per 60 minutes, based on standard test results. Actual energy consumption will depend on how the appliance is used and where it is located.
Cooling capacity _rated in kW:
3.5 kW
Information according to regulation (EU) No. 206/2012
| Model identifier(s) 10035800, 10035801, 10035802 | |||
| Description Symbol Value Unit | |||
| Rated capacity for cooling P | rated for cooling | 3.5 kW | |
| Rated capacity for heating P | rated for heating | kW | |
| Rated power input for cooling P | EER | 1.4 kW | |
| Rated power input for heating P | COP | - kW | |
| Rated Energy efficiency ratio EERd 2.6 - | |||
| Rated Coefficient of performance | COPd | -- | |
| Power consumption in thermostat-off mode | PTO | - | W |
| Power consumption in standby mode | PSB | 0.44 | W |
| Electricity consumption of single/double duct appliances (indicate for cooling and heating separately) | DD: QDDSD: QSD | -SD: 1.303 (for cooling)SD: 1.187 (for heating) | DD: kWh/a SD: kWh/h |
| Sound power level | LWA | 65 | dB(A) |
| Global warming potential | GWP | 3 | kgCO2eq. |
| Contact details for obtaining more information | Chal-Tec GmbH, Wallstraße 16, 10179 Berlin, Germany. | ||
DISPOSAL CONSIDERATIONS
If there is a legal regulation for the disposal of electrical and electronic devices in your country, this symbol on the product or on the packaging indicates that this product must not be disposed of with household waste. Instead, it must be taken to a collection point for the recycling of electrical and electronic equipment. By disposing of it in accordance with the rules, you are protecting the environment and the health of your fellow human beings from negative consequences. For information about the recycling and disposal of this product, please contact your local authority or your household waste disposal service.
This product contains batteries. If there is a legal regulation for the disposal of batteries in your country, the batteries must not be disposed of with household waste. Find out about local regulations for disposing of batteries. By disposing of them in accordance with the rules, you are protecting the environment and the health of your fellow human beings from negative consequences.
DECLARATION OF CONFORMITY
CE UK CA
Manufacturer:
Chal-Tec GmbH, Wallstrasse 16, 10179 Berlin, Germany.
Importer for Great Britain:
Berlin Brands Group UK Limited
PO Box 42
272 Kensington High Street
London, W8 6ND
United Kingdom
Hereby, Chal-Tec GmbH declares that the radio equipment type Metrobreeze New York is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: use.berlin/10035800
For Great Britain: Hereby, Chal-Tec GmbH declares that the radio equipment type Metrobreeze New York is in compliance with the relevant statutory requirements. The full text of the declaration of conformity is available at the following internet address: use. Berlin/10035800
Estimado cliente:
Berlin Brands Group UK Limited
PO Box 42
272 Kensington High Street
London, W8 6ND
United Kingdom
Chere cliente, cher client,
FICHE DE DONNÉES PRODUIT
Berlin Brands Group UK Limited
PO Box 42
272 Kensington High Street
London, W8 6ND
United Kingdom
Berlin Brands Group UK Limited
PO Box 42
272 Kensington High Street
London, W8 6ND
United Kingdom
