Congratulations on the purchase of your appliance. Please read the following instructions carefully and follow them to prevent potential damage. We accept no liability for damage caused by disregarding the instructions and improper use. Please scan the QR code to access the latest operating instructions and further information about the product.

QR code image containing encoded data, no visible human-readable text

CONTENTS

Safety Instructions 26

Device overview 28

Control panel 29

Installation and Operation 30

Wind modes 33

Filling the Water Tank with Water 36

Device Control by Smartphone 38

Cleaning and Care 40

Troubleshooting 42

Disposal Considerations 43

Declaration of Conformity 43

TECHNICAL DATA

Product code 10048232, 10048233
Power supply 220-240 V~50 Hz
Power 50 W
Water tank capacity 10 L
Air volume 340 m3/h
Evaporation volume 600 ml/h (high speed)
Noise level ≤55 dB (high speed)
Product size in mm(LxWxH) 280 x 251.4 x 663
Netto weight 4.6±0.5 kg
Packing weight	6.4±0.5Kg (weight of two standard medium-sized ice-packs included)
Application environment Relative humidity less than 95 % (25 °C)
WiFi standard	802.11 b/g/n
WiFi frequency	2.4 GHz
WiFi radio-frequency power (max.)	20 dBm

SAFETY INSTRUCTIONS

• Before use, check the voltage on the rating plate. Only connect the appliance to sockets that correspond to its voltage.
• Keep the appliance and its cable away from sources of heat or sharp objects that could cause damage.
• Do not place the cord under carpets. Do not cover the cord with small items of clothing or similar. Keep the cord away from areas with heavy foot traffic to avoid tripping hazards.
• Do not operate the appliance if the cable or plug is damaged.
• If the supply cord or plug is damaged, it must be replaced by the manufacturer, its service agent, or a similarly qualified person to avoid a hazard.
• For indoor use only.
• Do not cover the machine while in use. Place the appliance on a stable, flat, horizontal surface. Make sure that the appliance is kept in an upright position during use.
• Ensure that the appliance is switched off before connecting it to the mains power supply.
• Always make sure your hands are dry before operating or adjusting any switches on the product, or before touching the plug and mains supply connections.
• Never leave this appliance unattended while it is in use. Turn off and unplug the appliance when leaving the room for an extended period.
  • Children shall not play with the appliance.
• Switch off and unplug the appliance from the mains socket when not in use, before filling, cleaning or carrying out any other maintenance.
• To disconnect the appliance, switch it off and then remove the plug from the socket. Do not pull the cord to disconnect the plug.
• Only use the appliance as described in this manual.
• Do not insert your fingers into the openings of the guard.
• Keep hair, tissues, tablecloths, clothes and curtains away from all openings of the fan. They could be sucked into the fan and caught in the internal moving parts, which could cause injury or damage.
• Do not use the appliance in wet or damp areas, such as bathrooms.
• Do not operate the appliance if it is not mounted on its wheels or is lying on its side.
• Ensure the cord is fully extended before use.

• Evaporative coolers moisturise the ambient air when in operation. Over-humidification of residential rooms should be avoided. Recommendation: Maintain a relative humidity of 40–50%. Excessive humidity can damage the home and cause health problems.

• The appliance must only be set up on waterproof and moisture-proof flooring (it is unavoidable that some water will be spilled when the tank is emptied).
  • Each time the tank is emptied, completely remove any residual water from the equipment. To prevent nucleation, remove residual water from the appliance and water tank every three days.

• This device can be used by children over eight years of age, as well as by persons with limited physical, sensory or mental abilities, or a lack of experience or knowledge, provided they have been supervised or instructed in the safe use of the device, and understand the dangers involved. Children must not play with the device. Children must not clean or maintain the air cooler without supervision.
• Keep new and used batteries away from children.
• If the battery compartment does not close securely, stop using the product. The batteries contain environmentally hazardous substances. They must be removed from the product before it is scrapped, and disposed of safely.

Special notes on use

• Be aware that high humidity levels may encourage biological organisms to grow in the environment.
• Make sure that the area around the humidifier does not become damp or wet. If dampness occurs, reduce the humidifier's output. If you cannot turn the humidifier output down, use it intermittently. Do not allow absorbent materials, such as carpets, curtains, drapes or tablecloths, to become damp. Always unplug the appliance when filling or cleaning it.
• Never leave water in the reservoir when the appliance is not in use.
• Empty and clean the humidifier before storing it away. Clean the humidifier before next use.

WARNING

Danger of injury! Ensure that children do not swallow the battery. If swallowed, the button cell battery can cause severe internal burns within 2 hours, which can lead to death. If you think a battery may have been swallowed, consult a doctor immediately.

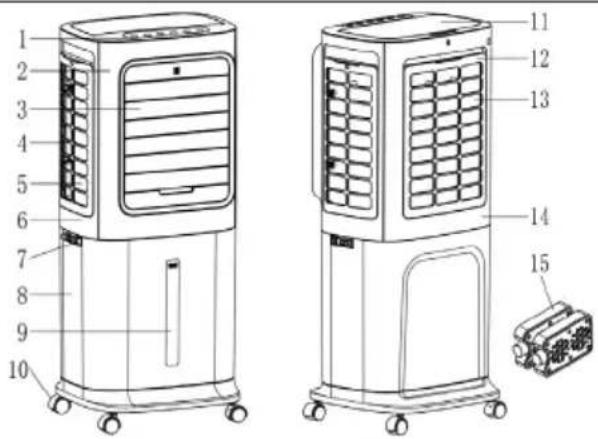

DEVICE OVERVIEW

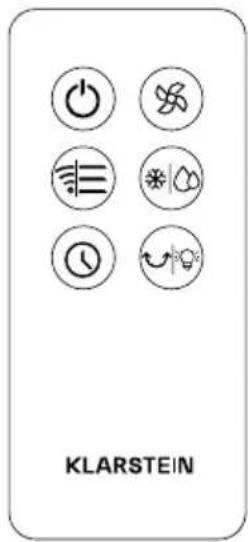

Remote control

KLARSTEIN

Technical diagram of two air purifiers with numbered labels for identification

1	Button PVC	6	Side shell	11	Water filling gate
2	Front shell	7	Water tank buckle	12	Back filter
3	Horizontal blade	8	Water tank	13	Back cooling pad
4 Side filter 9 Water gauge 14			Back shell
5 Side cooling pad 10 Castors 15 Ice pack

Technical line drawing of a rectangular electronic device with star-shaped cutouts and mounting holes (no text or symbols)

Ice pack x 2

Usage of ice-pack

The ice pack has cold storage and heat preservation features. It slowly absorbs heat from the water, keeping the water temperature in the tank lower than the ambient temperature for several hours. The air blown out is cooler under the effect of the ice pack.

1. Place the ice pack in the freezer until it is completely frozen.
2. Place the frozen ice pack in the water tank. After 10 minutes, the water tank temperature will be lower than the ambient temperature.
3. Two ice packs are contained in the scope of delivery and can be used continuously.
4. Do not open the ice pack or swallow its contents.

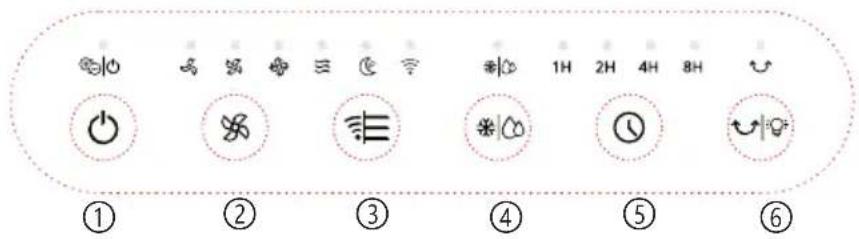

CONTROL PANEL

Diagram showing six labeled icons representing basic electrical or mechanical symbols, numbered 1 to 6.

Buttons
1	On / Off
2	Speed
3	Mode
4	Cooler/ Humidifier
5	Timer
6	Swing/ Screen off

INSTALLATION AND OPERATION

1. Unpack the product and take it out. Check that the appliance is undamaged and that all the accessories are included.
2. Once unpacked, the product can be used straight away (no installation required).

Note: Before use, make sure that the horizontal blade is open.

Remote control

The function of some buttons on the remote control corresponds to the function of the buttons on the control panel. Point the infrared transmitter of the remote control at the receiver of the unit during use. Make sure that there are no obstacles between the remote control and the unit. Remove the batteries from the remote control if you will not be using it for a long period of time.

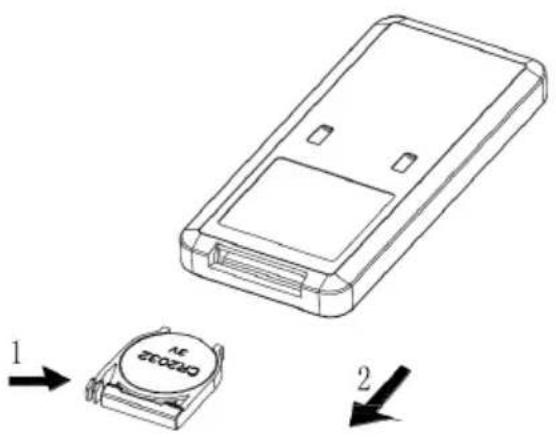

Using the remote control

First, open the battery cover on the remote control and insert a 3V CR2032 battery. To open the battery cover, press in the direction of arrow 1 to release the top part of the battery cover, then pull it out in the direction of arrow 2.

Please ensure that the remote control is aimed at the receiver when in use. If the battery runs out of charge, simply pull out the cover in the direction indicated and replace it with a new CR2032 battery. Please note the positive and negative poles of the battery. Then, replace the battery cover.

1 2 Chro203 3V

Operation

The following table provides an explanation of the touch button functions. To start using the corresponding functions, touch the buttons on the control panel or the remote control. After switching on, the buzzer will beep twice to indicate that the system has entered standby mode. All the function indicator lights are off. Except for the on/off key, pressing any other keys will have no effect.

1	On / Off button:To enter the working state in standby mode, press this button.The default setting is:Fan: When running at low speed, the LED lights are on. After the power is turned on for the first time, the fan will run at medium speed for three seconds and then switch to low speed. If the fan was in low speed mode when it was powered off and then powered on again, it will run at medium speed for three seconds before switching to low speed.Cooling: Off. The indicator light is off.Wind mode: Running at normal speed.Timing: No timing; indicator lights (1h, 2h, 4h, and 8h) are off.Swing: Off. The indicator light is off.Power light: On; indicator light is on. The plasma turns on when the power is turned on, and turns off when the power is turned off.Note: Pressing this button while the machine is in working status and all functions are off will put the machine in standby mode.
2	Wind Speed buttonIn the power-on state, press the "Wind Speed" button to enter the wind speed adjustment mode. Cycle through low wind speed, medium wind speed, high wind speed, and then back to low wind speed.The indicator light cycles through "1" → "2" → "3" → "1" in sequence.In the power-on state, press and hold the "Wind Speed" button for three seconds to enter the air-dry function with high-level wind. After running for 20 minutes, the appliance automatically enters the standby mode. In air-dry mode, the high-speed wind indicator light will flash and the other indicator lights will turn off.During operation of the auto drying function for the cooling pad, except for the "On/Off" button, the other buttons are invalid. Press and hold the "Wind Speed" button for three seconds to exit the auto-drying function for the cooling pad.
3	Mode buttonWhen you first turn it on, the normal wind mode operates. Press the mode button to switch wind modes. The order is normal wind, natural wind, sleeping wind, and then back to normal wind. The corresponding LED lights up.
4	Cooler/ Humidifier buttonWhile in the power-on state, press the "Cooler/Humidifier" button to activate or deactivate the cooling/humidifier function.When the cooling/humidifier function is on, the water pump is working and the indicator light is on.When the cooling/humidifier function is off, the water pump stops working and the indicator light turns off.Water shortage protection function: When the cooling function is turned on and the water pump has been running for 45 seconds, if the water tank is detected as being low on water for more than 5 seconds, the protection switch disconnects (water shortage). The water pump stops working, the indicator light flashes at a frequency of 0.5 seconds on and 0.5 seconds off, and the buzzer sounds a water shortage alarm 10 times. The humidification function turns off. Press the cooling/ humidification button again to turn off the indicator light.
5	Timer buttonWhile in the power-on state, press the timer button to enter timer mode. Set the timer from one to eight hours (timing accumulation). The display rule is as follows:Set the two-hour timer. One hour after the timer-off function takes effect, the two-hour indicator light turns off and the one-hour indicator light turns on. This means that the indicator lights will automatically decrease (see the table below). When all the timer lights go out, the machine shuts down and enters standby mode.
	Timing (h) Indicator light
	8	8h
	7 1h, 2h, 4h
	6 2h, 4h
	5 1h, 4h
	4	4h
	3 1h, 2h
	2	2h
	1	1h
6	Swing buttonIn the power-on state, press the swing button to turn the swing function on or off.Swing on: The swing works and the indicator light is on.Swing off: Swing stops working and the indicator light turns off.

WIND MODES

Normal mode:

The appliance operates according to the user-selected wind speed level. There are three levels: high, medium, and low. It runs at a fixed speed.

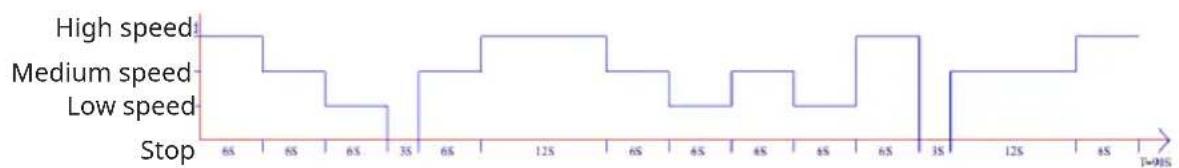

Natural mode

The Natural Wind mode allows the product to operate according to the user-set wind speed and the preset program rules. This mode automatically switches between high, medium, and low gears. This mode imitates nature's blowing effects, making the wind softer and more comfortable.

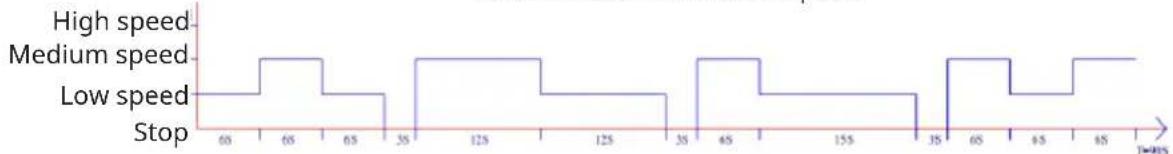

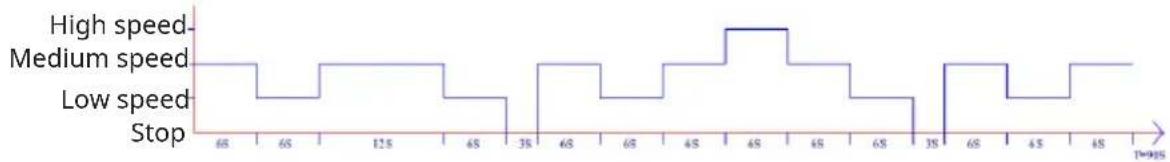

The wind speed operating law is shown below:

Natural mode in high speed

Natural mode in medium speed

Natural mode in low speed

Sleep wind mode

Sleep Wind is an operating mode in which the product will downshift according to the wind speed level set by the user and the preset program rules. This mode prevents people from feeling uncomfortable due to excessive wind after falling asleep. The following are the wind levels set for this mode, as well as the operating mode after sleep wind is activated.

High-speed sleep wind: 30 minutes of high normal wind → 30 minutes of mid normal wind → low speed sleep wind runs continuously.

Mid-speed sleep wind: 30 minutes of medium normal wind → low normal wind running continuously.

Low-speed sleep wind: low sleep normal wind runs continuously.

In sleep wind mode, the corresponding wind speed level indication changes when switching to normal wind mode.

Appliance Features

(1) Touch control.
(2) Three wind speeds (Hi/Mid/Low).
(3) Wind mode: Normal, Natural, or Sleep.
(4) Cooler/humidifier function.
(5) Timing function: 1-8 hours
(6) Auto-drying function for cooling pad before storage.
(7) Infrared remote control function.
(8) Automatic left-right swing and manual adjustment for up-down (the horizontal blades can be closed manually).
(9) Memory function without plugging out.
(10) Removable water tank with a 10L capacity.
(11) Water pump sprinkling cycling system with a larger water circulation volume and faster cooling effect.
(12) Top refilling.
(13) Three air inlets and three cooling pads on three sides.
(14) The display brightness decreases to about 30% after one minute of inactivity.
(15) Screen-off function
(16) Water shortage function
(17). With Plasma
(18). With Wi-Fi

FILLING THE WATER TANK WITH WATER

Before using the cooler/humidifier function, please fill the water tank with water.

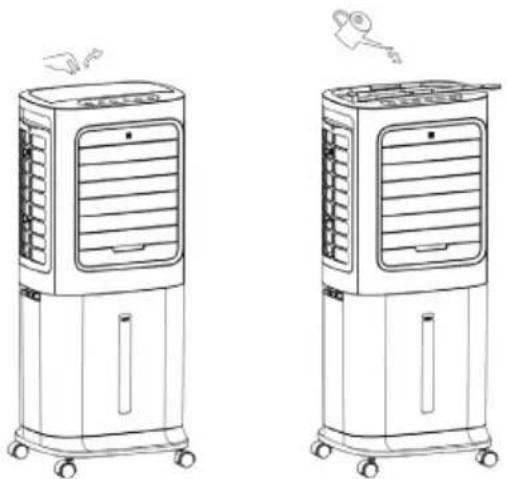

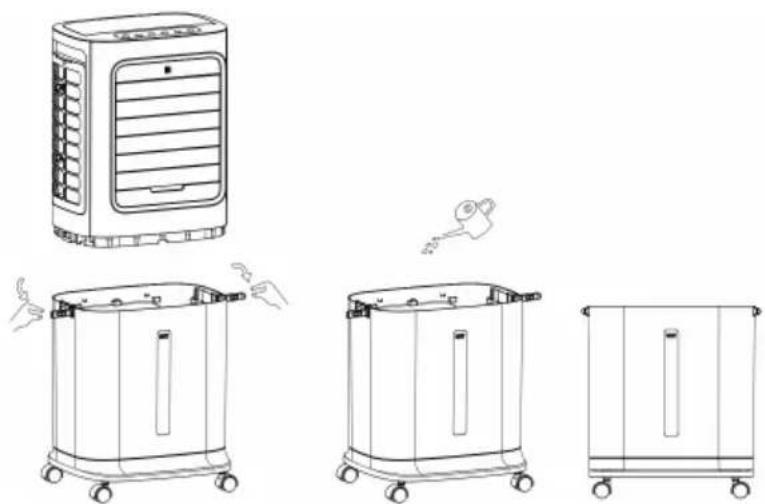

How to fill the water tank:

1. First, open the water filling gate and slowly pour water into the tank. After adding water, close the gate again.

Line drawings of two identical air purifiers with ventilation grilles and wheels, no text or symbols present.

1. Another way is to open the water tank buckles, separate the machine from the water tank, and slowly pour water into the tank. After adding water, reassemble the machine and water tank, and fasten the buckles.

2. Pay attention to the water gauge in front of the water tank when adding water.

3. Be careful not to exceed the highest water level.

4. Be sure to use clean tap water.

5. Note: When using this machine for the first time, it is normal for there to be a slight smell and for the water in the tank to change colour slightly. This is non-toxic and harmless and will not affect your health.

Line drawings of a portable air conditioner unit with three variants of packaging, showing front, side, and side views (no text or symbols)

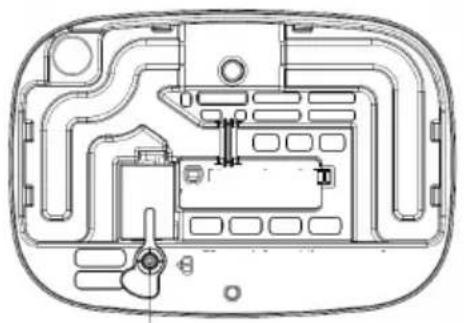

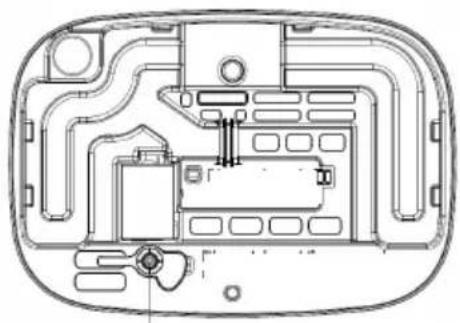

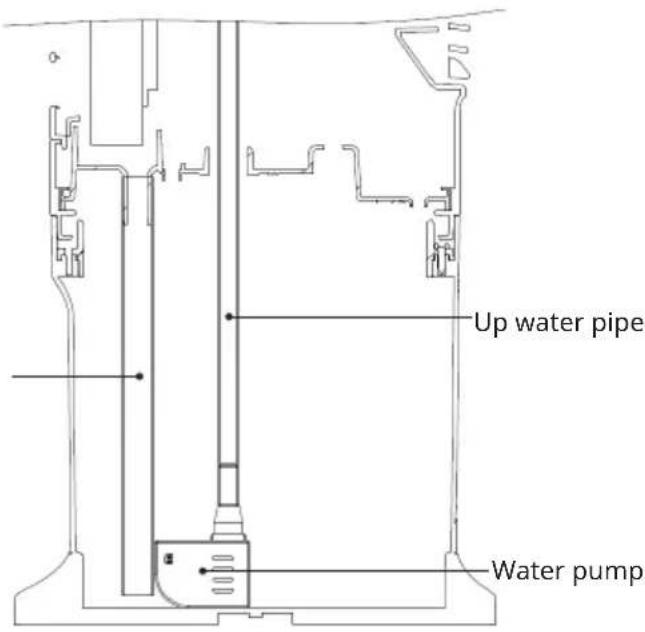

Usage of water pump

Top-down schematic of a device interior showing internal components and wiring (no text or labels)

Top-down schematic of a device layout with no visible text, numbers, or symbols

Fastening the water pump buckle Opening the water pump buckle

1. After taking out the fuselage, make sure that you take out the pump when using the appliance and put it back in after use. Make sure that the water tank is cleaned after each use.

2. Rotate the water pump buckle clockwise and remove the water pump and water pipe from the storage tank. The water pipe is secured by two buckles. This will allow the water pump to drop naturally to the bottom of the tank.

Down water pipe

Up water pipe Water pump

DEVICE CONTROL BY SMARTPHONE

If you integrate the device into your home WiFi, you can conveniently operate it via the associated Klarstein app. The app not only allows you to remotely control the device via your smartphone, but also gives you access to recipes and additional information.

Follow these steps to connect your smartphone to your Klarstein device:

1 Download the Klarstein app first by scanning the QR code with your smartphone (see below), or download it directly from App Store or Google Play.
2 Make sure your smartphone is connected to the same WiFi network that your Klarstein device is to be connected to.
3 Open the Klarstein app.
4 Sign in to your account. If you do not have an account, sign up in the Klarstein app.
5 Follow the instructions from the app.

App Download

Use the scan function of your smartphone to scan the QR code and save the app on your smartphone.

Note: The app provides further information on how to use the app and help on how to connect to your device as soon as you open it for the first time.

iOS Android

Troubleshooting connection problems

If your Klarstein device cannot be found in the WiFi, check the following:

1 The device is not plugged in. Make sure that your device is plugged into an electric socket.
2 The device is not in pairing mode. Make sure that the WiFi indicator (LED) on the smart device control panel is blinking as described in the 'Reset WiFi settings' instruction of your smart device (instructions are usually available on device connection process).
3 The WiFi access point does not operate on 5 GHz. Make sure that your access point operates on 2.4 GHz band and you have a separate SSID on 2.4 GHz band. If you are not sure about the operating band of your access point, please contact your internet provider company.

Important: please note that if your WiFi router is dual band - operating on both 2.4 GHz and 5 GHz band - you need to separate the SSIDs for each band and use the 2.4 GHz SSID for connection.

4 Firewall settings of your WiFi network; the firewall setting of your WiFi network may not allow the Klarstein app to configure the WiFi settings on your smart device. Please make sure that you are not using a public WiFi network, e.g. airports, dormitories, companies, etc.

5 Different credentials used in smartphone and the app. Make sure that the WiFi credentials entered in the Klarstein app are the same as the ones that your smartphone is connected to.

Following the above mentioned points, if your smart device still fails to connect to the app, please contact us via email for support: [e-mail]

Activation of pairing mode on the appliance

Press and hold the mode button for 5 seconds until the Wifi-indicator light flashes, indicating that you are entering WiFi pairing mode.

CLEANING AND CARE

Note: Be sure to unplug the mains plug before cleaning or servicing the equipment.

Outer surfaces

• If dust has accumulated on the exterior, wipe it off with a soft cloth. If the surface is particularly dirty, mix water below 50^ with a neutral detergent, wipe it off with a soft cloth, then leave it to dry naturally.
• During cleaning, do not use gasoline, banana oil or any other substances that may easily damage the outer surface.

Cleaning the water tank

• Unplug the power and turn the water tank lock horizontally to remove the tank.
• Clean the water tank with a little detergent, then rinse it with water. Finally, pour out the dirty water.

Machine body cleaning

1. Wipe the surface with a damp cloth. Never rinse with water directly.
2. Do not use corrosive detergents or solvents to clean the appliance.
3. Always turn off the appliance and unplug the power cord before cleaning, otherwise there may be an electric shock.

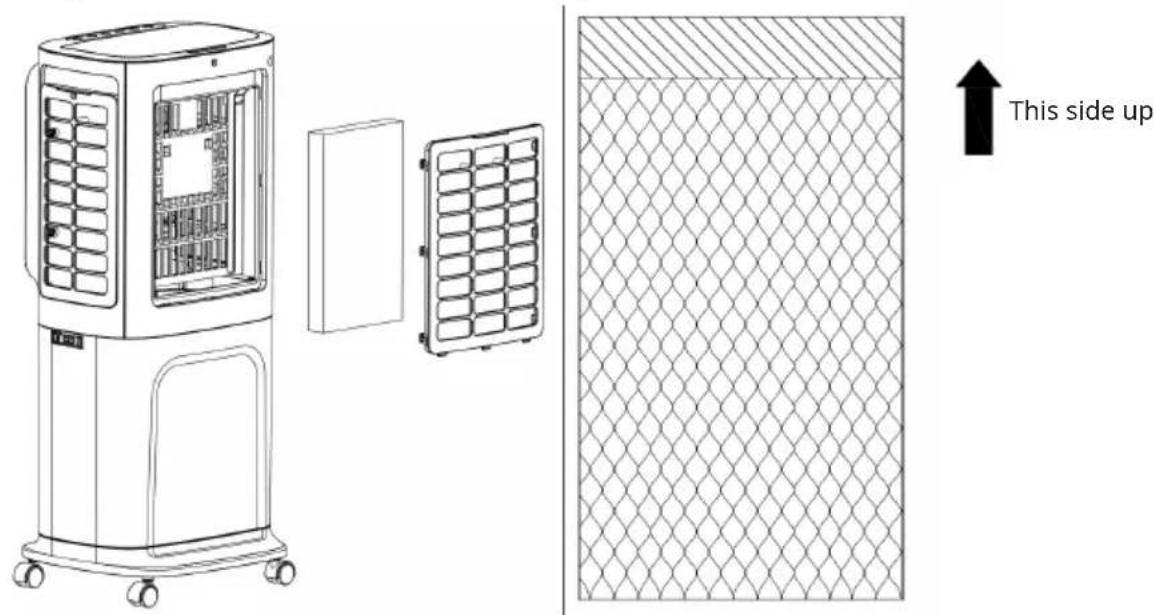

Cleaning the air filter and the honeycomb filter assembly

If there are too many foreign objects attached to the air filter, it will affect the air outlet, so clean it at least once a month.

1. Unplug the power supply.
2. Pull up the handle of the rear net and the measuring net to remove the honeycomb filter assembly (see operation below).
3. Soak the assembly in detergent for a few minutes, then wash and dry it.
4. After disassembling and cleaning the honeycomb filter, make sure that the side with the water dividing strip is facing upwards when installing it (see the figure below for the installation orientation).

This side up

1. Plug the appliance back in and make sure that it runs smoothly.

Installation and use after cleaning

1. Install the cooling pad assembly and water tank to ensure correct installation.
2. Then, connect the power supply to confirm that the product is working properly.

Maintenance

• When not in use for an extended period of time, unplug the power cord, pack the product, and prevent dust from entering the body.
• Before doing so, ensure that the cooling pad, filter, etc., are dry and that there is no water in the water tank.

TROUBLESHOOTING

Problem Potential cause	Possible solution
The appliance is not working.	The plug has not been inserted correctly.	Plug the power plug securely into the wall socket.
	The unit is switched off. Switch the device on.
	The wiring in the unit has come loose.	Contact a specialist company for repairs.
The humidifier is not working / The pump is making strange noises.	No water in the water tank or the water level is below the MIN mark.	Switch off the machine and fill water into the water tank. Make sure that the water level is above the MIN mark.
	The submersible pump is not drawing water.	Press the "Humidification" button several times until the submersible pump draws water normally.
	The filter screen of the submersible pump is clogged.	Clean the filter screen.
	The water outlet hole of the nebuliser unit is blocked.	Contact a specialist company for repairs.
	The pump or the wiring in the unit has come loose.	Contact a specialist company for repairs.
Abnormal noises. Deposits	in the nebuliser unit. Contact a specialist company for repairs.
	Loose fan blades or engine damage.	Contact a specialist company for repairs.

DISPOSAL CONSIDERATIONS

Symbol of a trash bin with crossed lines and a horizontal bar below (no text or labels)

If there is a legal regulation for the disposal of electrical and electronic devices in your country, this symbol on the product or on the packaging indicates that this product must not be disposed of with household waste. Instead, it must be taken to a collection point for the recycling of electrical and electronic equipment. By disposing of it in accordance with the rules, you are protecting the environment and the health of your fellow human beings from negative consequences. For information about the recycling and disposal of this product, please contact your local authority or your household waste disposal service.

This product contains batteries. If there is a legal regulation for the disposal of batteries in your country, the batteries must not be disposed of with household waste. Find out about local regulations for disposing of batteries. By disposing of them in accordance with the rules, you are protecting the environment and the health of your fellow human beings from negative consequences.

DECLARATION OF CONFORMITY

Manufacturer & Importer for Great Britain:

Chal-Tec GmbH, Mühlenstraße 25, 10243 Berlin, Germany.

Contact: [e-mail]

Hereby, Chal-Tec GmbH declares that the radio equipment type Breezecube Smart is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: use. berlin/10048248

For Great Britain: Hereby, Chal-Tec GmbH declares that the radio equipment type Breezecube Smart is in compliance with the relevant statutory requirements. The full text of the declaration of conformity is available at the following internet address: use.berlin/10048248

Estimado cliente:

QR code image containing encoded data, no visible human-readable text

ÍNDICE

Technical diagram of an air conditioner unit with numbered components and a close-up view of the internal component.

Technical line drawing of a rectangular electronic component with internal gear-like slots and mounting holes (no text or symbols)

Parches de frío x 2

Control panel with six icons and numbered labels, likely representing system status or function buttons

Modo aire de sueño

Line drawings of two different air purifiers with ventilation slots and wheels (no text or symbols)

Line drawings of various household air purifiers with different frame designs (no text or symbols)

Top-down schematic of a device interior showing internal components and wiring (no text or labels)

Top-down schematic of a device layout with no visible text, numbers, or symbols

Symbol of a trash bin with crossed lines indicating no waste or discharge, and a solid black rectangle below (no text or labels)

QR code image with partial text 'S' visible on the left side

SOMMAIRE

Technical diagram of an air conditioner unit with numbered components and a close-up view of the internal component.

Technical line drawing of a rectangular electronic component with star-shaped cutouts and mounting holes (no text or symbols)

Control panel with six icons and numbered labels, likely representing system status or function buttons

Line drawings of two different air purifiers with ventilation grilles and wheels (no text or symbols)

Line drawings of various household air purifiers with different arrangements and mounting tips (no text or symbols)

Top-down schematic of a device interior showing internal components and wiring (no text or labels)

Top-down schematic of a device casing with internal components and wiring (no text or labels)

Symbol of a trash bin with crossed lines and a horizontal bar below (no text or labels)

DÉCLARATION DE CONFORMITÉ

Fabricant :

QR code image containing encoded data, no visible human-readable text

INDICE

Technical diagram of an air conditioner unit with numbered labels pointing to its components

Technical line drawing of a rectangular electronic device with star-shaped cutouts and mounting holes (no text or symbols)

Elemento refrigerante x 2

Diagram showing six labeled icons representing basic electrical or mechanical symbols, numbered 1 to 6.

Line drawings of two identical air purifiers with ventilation grilles and wheels, no text or symbols present.

Line drawings of a portable air conditioner unit with hand gestures and three separate views (no text or symbols)

Top-down schematic of a device interior showing internal components and wiring (no text or labels)

Top-down schematic of an electronic device casing with internal components and wiring (no text or labels)

Questo lato in alto

Symbol of a trash bin with crossed lines indicating no waste, and a solid rectangle below (no text or labels)
