USER MANUAL Iceblock Ecosmart Klarstein

QR code image containing encoded data, no visible human-readable text

INHALTSVERZEICHNIS

Technische Daten 4

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

Berlin Brands Group UK Limited

PO Box 42

272 Kensington High Street

London, W8 6ND

United Kingdom

Congratulations on purchasing this device. Please read the following instructions carefully and follow them to prevent possible damages. We assume no liability for damage caused by disregard of the instructions and improper use. Scan the QR code to get access to the latest user manual and more product information.

QR code image containing encoded data, no visible human-readable text

CONTENT

Technical Data 28

Notes on Refrigerant R290 29

Safety Instructions 30

Device Overview and Function Keys 32

Control Panel 33

Remote Control 34

How to install the Window Seal 35

Installing the Device 36

Commissioning and Operation 36

Device Control by Smartphone 40

Cleaning and Care 42

Troubleshooting 42

Product Data Sheet 44

Product Data Sheet 46

Disposal Considerations 48

Declaration of Conformity 48

TECHNICAL DATA

Item number 10034656 10	034658
Power supply 220-240 V ~ 50/60 Hz
Cooling capacity 7000 BTU/h ~ 2050 W 9000 BTU/h		~ 2600 W
Nominal power (cooling) 785 W 1000 W
WiFi standard	802.11 b/g/n
WiFi frequency	2,4 GHz
WiFi radio-frequency power (max.)	20 dBm

NOTES ON REFRIGERANT R290

Warnings

• The air conditioning system must be kept and transported upright. Otherwise, irreparable compressor damage may occur. Leave the unit for at least 24 hours before putting it into operation.
• Switch off the device and disconnect it from the power supply before cleaning.
• Make sure that the product creates a steady stream of air. Ensure the air inlets and outlets are not blocked.
  • To prevent leaks, operate this unit on a horizontal surface.
• Any person performing work on a refrigerant circuit should have a current certificate from an industry-accredited assessment body. This ensures competence for the safe handling of refrigerants according to an industry-recognised assessment specification.
• If the device stops working, dispose of it properly.
• Store the device in a well-ventilated place when not in use.
• Store the device so that it is not damaged.
• Repairs may only be carried out by the manufacturer or an authorised specialist company.
• Do not damage any components of the refrigerant circuit. Escaping refrigerant may not be noticed because it is odourless.
• Maintenance and repairs must be carried out under the supervision of specialists in the use of flammable refrigerants.

Information for rooms with refrigerant pipes

• Limit the piping to a minimum.
• Be careful not to damage the piping.
• Appliances with flammable refrigerants may only be installed in a well-ventilated room.
  • Comply with national gas regulations.
• All mechanical connections must be freely accessible for maintenance purposes.

CAUTION

Risk of fire! This device contains the flammable refrigerant R290. If the refrigerant escapes and is exposed to an external ignition source, there is a risk of fire.

SAFETY INSTRUCTIONS

Special notes

• Only use agents recommended by the manufacturer for defrosting or cleaning.
• Never store the appliance in a room in which there are permanent sources of ignition (e.g. open flames, a switched on gas appliance or a switched on electric heater).
• Do not puncture or burn the appliance.
  • Note that coolant may be odorless.

Note: Only use the unit in rooms larger than X m² (see table):

Model X ( m^2 )
5000 BTU/h, 7000 BTU/h, 8000 BTU/h 4 m^2
9000 BTU/h, 10000 BTU/h, 10500 BTU/h 12 m^2
12000 BTU/h, 14000 BTU/h, 16000 BTU/h,18000 BTU/h 15 m^2

General safety instructions

• The device is only suitable for indoor use.
- Do not use the product if it needs to be repaired or if it has not been installed properly.
- Do not use the product in the following areas:

• near heat sources,
• in areas where oil can splash,
• in areas exposed to direct sunlight,
• in areas where splash water can occur,

• near bathtubs, in washrooms, near showers or swimming pools.

• Never insert your fingers or other objects into the ventilation openings. In particular, warn children of the dangers this may cause.

• Ensure that the unit is held vertically during transport and storage so that the compressor is correctly positioned.
  • Always turn off the appliance before cleaning and unplug it from the wall outlet.
• Switch off the appliance before moving it and unplug it from the wall outlet. Move the appliance slowly and carefully.

• To avoid the risk of fire, do not cover the unit.
- All fan connections must comply with local electrical safety regulations. If necessary, refer to these regulations.
- Supervise children so that they do not play with the unit.
- If the power cord is damaged, it must be replaced by the manufacturer, customer service or a similarly qualified person to avoid danger.
- This equipment may be used by children over the age of 8 and by persons (including children) with limited physical, sensory or mental capabilities and/or lack of experience and knowledge, provided they have been instructed in the use of this equipment by a person responsible for their safety and understand the hazards associated with the use of this equipment. Cleaning and maintenance of the appliance may only be carried out by children under supervision.
- The appliance must be installed in accordance with national wiring regulations.
• Type and voltage of fuses: T, 250 V AC, 2 A or higher.
- Contact customer service for cleaning and maintenance.
- Do not pull the power cord, deform or modify it, or immerse it in water. Incorrect handling of the power cord may result in damage to the equipment and/or electric shock.
• National gas regulations must be observed.
- Do not block the ventilation openings.
- Do not operate the appliance solely by inserting or removing the power plug, as this may result in electric shock or fire due to heat.
- Immediately unplug the appliance from the wall outlet if it emits strange noises, odours or smoke.

Instructions for Handling Damage

• In case of damage to the device, contact the manufacturer, the customer service or a similarly qualified person.
• If damage occurs, turn off the power, unplug the power cord, and contact the manufacturer, the service representative, or a similarly qualified person.
  • The power cord must be securely earthed.
• If the power cord is damaged, turn off the power to avoid danger and unplug the power cord from the wall outlet. The power cord must be replaced by the manufacturer, customer service or a similarly qualified person.

WARNING

Risk of injury! Repairs to the coolant circuit may only be carried out by trained specialist personnel. Never attempt to repair the unit yourself!

DEVICE OVERVIEW AND FUNCTION KEYS

1	Air inlet	6	Air inlet
2	Control panel	7	Rolls
3	Front cover	8	Rear cover
4	Ventilation grilles	9	Warm air outlet
5	Power cords	10	Water outlet

Accessories

Designation Quantity
Device 1
Exhaust air hose hot air 1
Hose connector (window side) 1
Hose connector (fan side) 1
Window seal set 1
Remote control 1

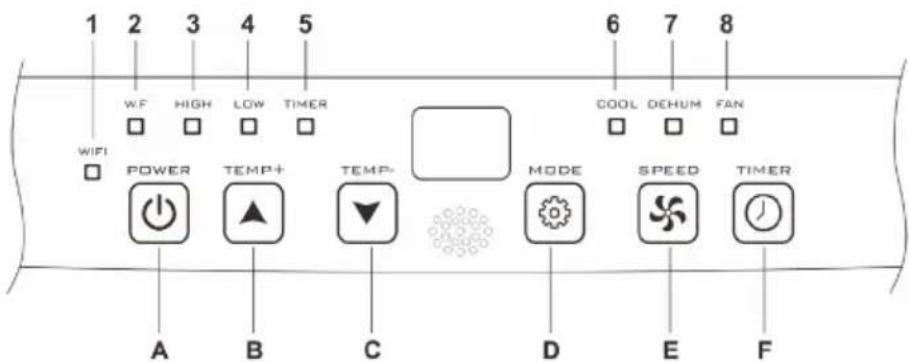

CONTROL PANEL

A	Power on/off	1	WIFI indicator
B	Temperature up	2	Water full
C	Temperature down	3	High fan speed
D	Operation MODE	4	Low fan speed
E	Fan speed	5	Timer on/off
F	Timer on/off	6	Cooling
		7	Dehumidifying
		8	Fan

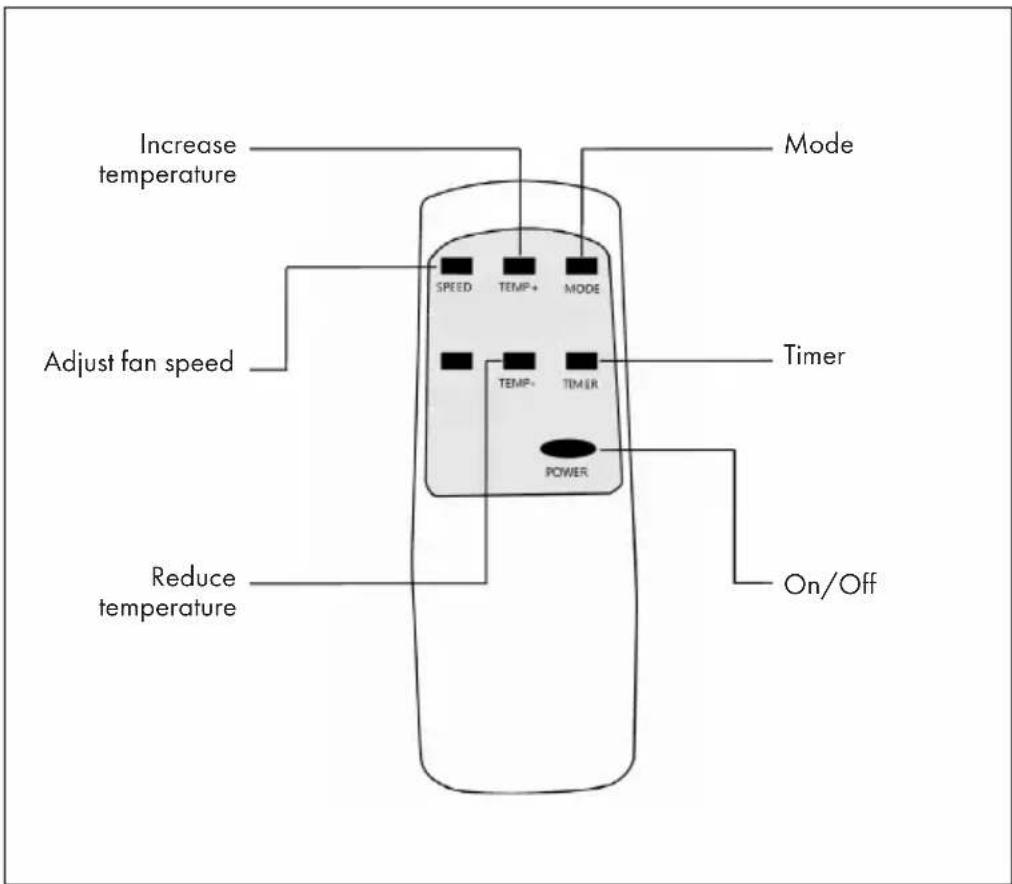

REMOTE CONTROL

Increase temperature Mode Speed TEMP+ MODE Adjust fan speed Timer TEMP+ TIMER POWER Reduce temperature On/Off

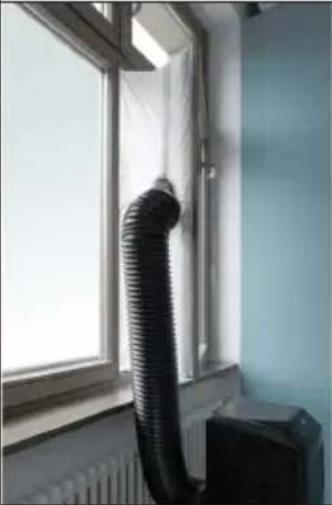

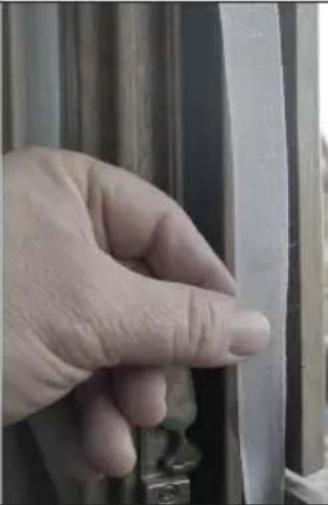

HOW TO INSTALL THE WINDOW SEAL

Installing the window sealing is easy. You can attach it to a tilted window or to a laterally opened window. Our demonstration is performed on a laterally opened window. It is especially suitable for low positions of the exhaust pipe.

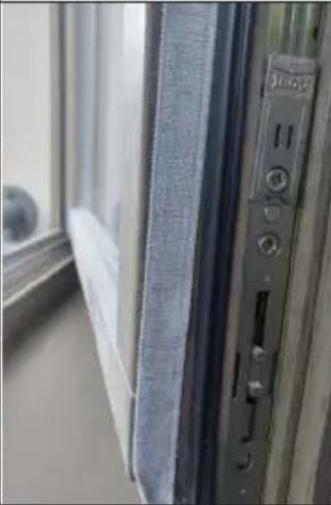

The velcro tape must be attached on three sides. Leave out the side with the window being connected to the frame. Clean the frame and dry it first, so that the tape sticks.

123
Attach the velcro tape on the left, on the top and on the bottom of the window frame.We recommend that you cut the tape into strips for each window side first.	Now attach the velcro tape to the inner window sides.	Stick the window sealing to the velcro strips on the window frame first (starting with the top), then on the velcro strips on the window.Push the exhaust air tube of the air conditioner through the hole, which can be adjusted in height and size.

INSTALLING THE DEVICE

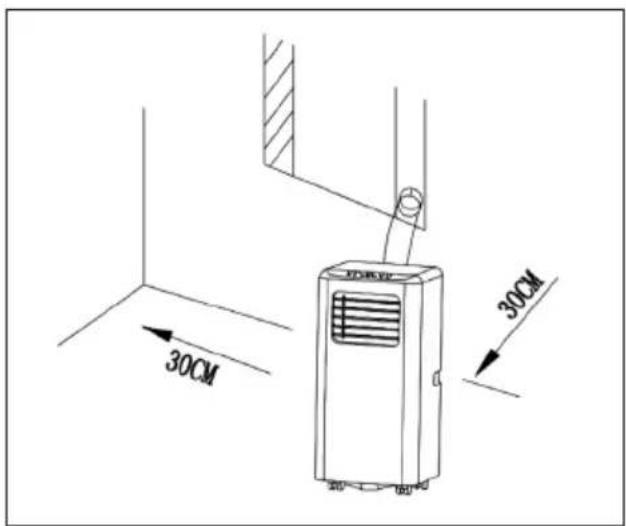

• Place the unit on a flat surface at least 30 cm from all sides of the unit. Do not block the ventilation openings.
• Do not use the device primarily as a dehumidifier.
  • The wiring must comply with local electrical safety regulations.

30CM 30CM

COMMISSIONING AND OPERATION

1. Select a location where there is a power connection nearby.

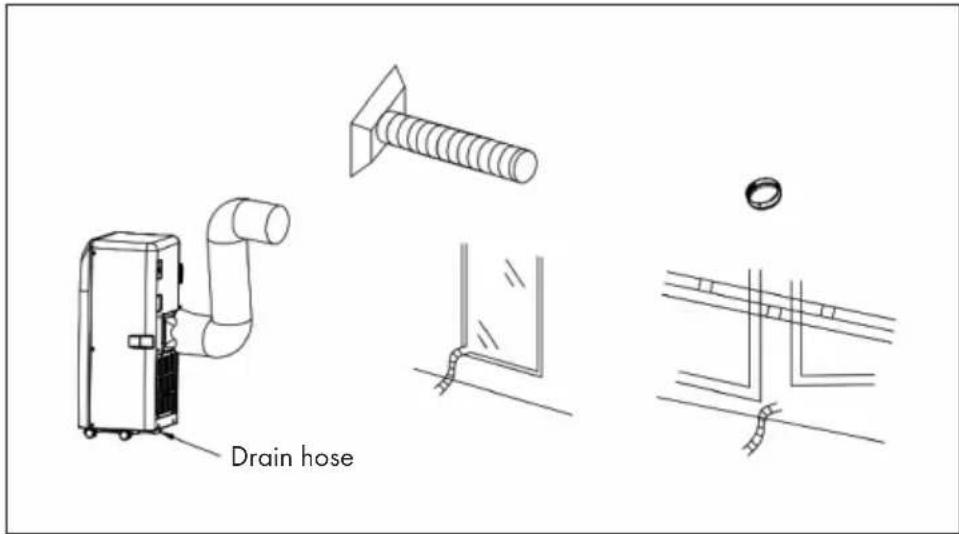

2. Install the exhaust hose as shown in the two illustrations below and adjust the position of the window.

Drain hose

1. Connect the exhaust hose (only on models with integrated heater) to the exhaust hose (see section „Cleaning and Care“) as shown in the illustration.
2. Plug the mains plug into an earthed AC 220 \~ 240 V socket.
3. Press the ON/OFF button to turn on the unit.

Before use

Make sure that the exhaust hose is correctly installed.

Safety instructions for cooling and air dehumidification

• If you are using cooling and dehumidifying functions, wait at least 3 minutes after turning off the unit before turning it on again.
  • Make sure the power supply meets the requirements.
• Use an AC connector.
• Use the AC outlet only for this equipment and make sure that no other equipment is connected to this circuit.

Cooling

• Press and hold the Mode button until the cooling icon appears on the screen.
• Press TEMP+/TEMP to select the desired temperature (16-31 °C).
• Press the SPEED button to select the fan speed.

Dehumidification

• Press and hold the Mode button until the dehumidification icon appears on the screen.
• The temperature is automatically set to 2^ less than the room temperature.
• The fan motor speed is automatically set to low.

Fan

• Press and hold the Mode button until the fan icon appears on the screen.
• Press the SPEED button to select the fan speed.

Heating function

Note: This function is not available for models that have only one cooling unit.

• Press and hold the Mode button until the heating icon appears on the screen.
• Press the TEMP+/TEMP buttons to select the desired room temperature (16-31 °C).
• Press the SPEED button to select the fan speed.

Automatic switch-on time (timer)

• When the unit is turned off, press the TIMER button and select the desired power-on time.
• Preset ON Time" is displayed on the screen.
  • The on time can be selected at will (00:00 - 24:00).

Automatic switch-off time (timer)

• When the unit is turned on, press the TIMER button and select the desired off time.
• Preset OFF Time" is displayed on the screen.
  • The off time can be selected at any time (00:00 - 24:00).

Safety function of the inner water tank

The internal water tank has a safety function that controls the water level. When the water level reaches a certain level, the water level indicator light illuminates to indicate that the water tank is full (If the water pump motor is damaged and the water tank is full, remove the rubber plug on the bottom of the unit to drain all water).

Note: If you plan not to use this unit for an extended period of time, remove the rubber plug from the drain hole at the bottom of the unit and drain all water to the outside.

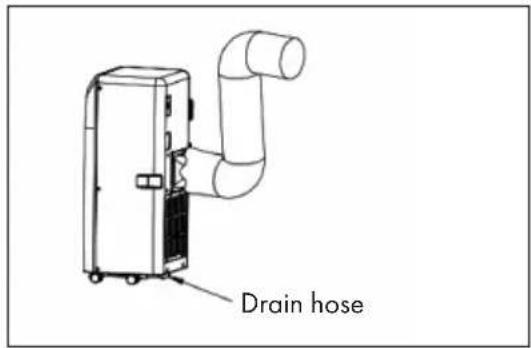

Continuous drainage

You can use a drain hose for continuous drainage, which is connected to the lower drain opening. This is only necessary when the unit is in heating mode.

Drain hose

Continuous dehydration does not need to be used when the unit is in cooling or dehumidification mode. The unit can automatically evaporate the condensation water through the water pump motor.

If the water pump motor is damaged, a drain hose must be used for drainage. Connect the drain hose to the lower drain opening.

If the water pump motor motor is damaged, you can also dispose of the accumulated condensation water manually. When the water level indicator lights up, connect a drain hose to the lower drain opening to drain all the water in the water tank to the outside.

DEVICE CONTROL BY SMARTPHONE

If you integrate the device into your home WiFi, you can conveniently operate it via the associated Klarstein app. The app not only allows you to remotely control the device via your smartphone, but also gives you access to recipes and additional information.

Follow these steps to connect your smartphone to your Klarstein device:

1 Download the Klarstein app first by scanning the QR code with your smartphone (see below), or download it directly from App Store or Google Play.
2 Make sure your smartphone is connected to the same WiFi network that your Klarstein device is to be connected to.
3 Open the Klarstein app.
4 Sign in to your account. If you do not have an account, sign up in the Klarstein app.
5 Follow the instructions from the app.

App Download

Use the scan function of your smartphone to scan the QR code and save the app on your smartphone.

Note: The app provides further information on how to use the app and help on how to connect to your device as soon as you open it for the first time.

iOS Android

How to start the WIFI function on the device

Press and hold the SPEED button to start the WIFI mode. The WIFI indicator on the control panel turns on. As the unit searches for other units, the indicator blinks. When the unit is connected, the indicator lights continuously. As long as the device is connected to your smartphone via WIFI, you can control all device functions via the app.

Troubleshooting connection problems

If your Klarstein device cannot be found in the WLAN, check the following:

• Is the device plugged in?
• Is the WiFi feature of my phone enabled?
- Is the WiFi function of the Klarstein device activated? (Follow the instructions in the app)
- Has the WLAN password been entered correctly?
- Are the router, Klarstein device and smartphone in the immediate vicinity during the connection attempt? (Ideally no more than 5 m apart)
- If you have deactivated the 2.4 GHz band in the settings of your wireless router, activate it in your router settings.

Note: For further help, follow the instructions in the app when setting up the connection.

CLEANING AND CARE

• Switch off the appliance before cleaning and unplug the appliance from the wall outlet.
• Do not use gasoline or other chemicals to clean the product.
• Do not wash the appliance directly.
  • If the unit is damaged, contact customer service.

Cleaning the Air Filter

• The air filter can be blocked by dust/protection and should be cleaned once every two weeks.
• Open the ventilation grille and remove the air filter.
• Clean the air filter with a neutral detergent and lukewarm water. Then dry the filter in the shade.
• Replace the air filter and all other components.

Cleaning the unit surface

Clean the unit surface with a neutral detergent and a damp cloth. Then rub the device surface dry with a dry cloth.

TROUBLESHOOTING

Problem Possible cause Suggested solution
The unit does not start when the On/Off button is pressed.	The water level indicator light flashes because the water tank is full.	Empty the water from the water tank.
	The room temperature is higher than the set temperature (electric heating mode).	Reset the temperature setting.
	The room temperature is lower than the set temperature (cooling mode).	Reset the temperature setting.

Problem Possible cause Suggested solution
The unit does not cool properly.	The doors or windows weren't closed properly.	Make sure all doors and windows are closed.
	There are heat sources in the room.	If possible, remove the heat sources.
	The exhaust hose has not been connected or is blocked.	Connect or clean the hose.
	The temperature setting is too high.	Reset the temperature setting.
	The air inlet is blocked. Clean the air inlet.
The unit is very loud. The floor of the site is not level or flat enough.		If possible, place the unit on a flat, flat surface.
		This is normal.

Error codes

E1 The temperature sensor of the capacitor is defective.	Replace the temperature sensor of the capacitor.
E2 The water tank is full during cooling. Remove the rubber plug and drain the water.
E3 The temperature sensor of the evaporator is defective.	Replace the evaporator temperature sensor.
E4 When heating, the water tank is full. Empty	the water tank.

PRODUCT DATA SHEET

Information according to regulation (EU) No. 626/2011

Supplier's trademark: Klarstein

Supplier's model identifier: 10034656

Inside sound power levels at standard rating conditions on cooling mode in dB: 65 dB

Refrigerant (R290) leakage contributes to climate change. Refrigerant with lower global warming potential (GWP) would contribute less to global warming than a refrigerant with higher GWP, if leaked to the atmosphere. This appliance contains a refrigerant fluid with a GWP equal to 3. This means that if 1kg of this refrigerant fluid would be leaked to the atmosphere, the impact on global warming would be 3 times higher than 1kg of CO_2 , over a period of 100 years. Never try to interfere with the refrigerant circuit yourself or disassemble the product yourself and always ask a professional.

Energy efficiency ratio ( EER_rated ): 2,6

Energy efficiency class: A

Energy consumption 0,8 kWh per 60 minutes, based on standard test results. Actual energy consumption will depend on how the appliance is used and where it is located.

Cooling capacity P_rated in kW: 2,1 kW

Information according to regulation (EU) No. 206/2012

Model identifier(s) 10034656
Description Symbol Value Unit
Rated capacity for cooling P	rated for cooling	2,1 kW
Rated capacity for heating P	rated for heating	kW
Rated power input for cooling P	EER	0,8 kW
Rated power input for heating P	COP	-kW
Rated Energy efficiency ratio EERd 2,6 -
Rated Coefficient of performance COPd --
Power consumption in thermostat-off mode	P_TO	-W
Power consumption in standby mode	P_SB	0,5 W
Electricity consumption of single/double duct appliances (indicate for cooling and heating separately)	DD: Q_DD SD: Q_SD	0,8 DD: kWh/aSD: kWh/h
Sound power level	L_WA	65	dB(A)
Global warming potential	GWP	3	kgCO _2 eq.
Contact details for obtaining more information	Chal-Tec GmbH, Wallstraße 16, 10179 Berlin, Germany.

PRODUCT DATA SHEET

Information according to regulation (EU) No. 626/2011

Supplier's trademark: Klarstein

Supplier's model identifier: 10034658

Inside sound power levels at standard rating conditions on cooling mode in dB: 65 dB

Refrigerant (R290) leakage contributes to climate change. Refrigerant with lower global warming potential (GWP) would contribute less to global warming than a refrigerant with higher GWP, if leaked to the atmosphere. This appliance contains a refrigerant fluid with a GWP equal to 3. This means that if 1kg of this refrigerant fluid would be leaked to the atmosphere, the impact on global warming would be 3 times higher than 1kg of CO_2 , over a period of 100 years. Never try to interfere with the refrigerant circuit yourself or disassemble the product yourself and always ask a professional.

Energy efficiency ratio ( EER_rated ): 2,6

Energy efficiency class: A

Energy consumption 1,0 kWh per 60 minutes, based on standard test results. Actual energy consumption will depend on how the appliance is used and where it is located.

Cooling capacity P_rated in kW: 2,6 kW

Information according to regulation (EU) No. 206/2012

Model identifier(s) 10034658
Description Symbol Value Unit
Rated capacity for cooling P	rated for cooling	2,6 kW
Rated capacity for heating P	rated for heating	kW
Rated power input for cooling P	EER	1,0 kW
Rated power input for heating P	COP	-kW
Rated Energy efficiency ratio EERd 2,6 -
Rated Coefficient of performance	COPd	--
Power consumption in thermostat-off mode	P_TO	-W
Power consumption in standby mode	P_SB	0,5 W
Electricity consumption of single/double duct appliances (indicate for cooling and heating separately)	DD: Q_DD SD: Q_SD	1,0 DD: kWh/aSD: kWh/h
Sound power level	L_WA	65	dB(A)
Global warming potential	GWP	3	kgCO _2 eq.
Contact details for obtaining more information	Chal-Tec GmbH, Wallstraße 16, 10179 Berlin, Germany.

DISPOSAL CONSIDERATIONS

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

If there is a legal regulation for the disposal of electrical and electronic devices in your country, this symbol on the product or on the packaging indicates that this product must not be disposed of with household waste. Instead, it must be taken to a collection point for the recycling of electrical and electronic equipment. By disposing of it in accordance with the rules, you are protecting the environment and the health of your fellow human beings from negative consequences. For information about the recycling and disposal of this product, please contact your local authority or your household waste disposal service.

This product contains batteries. If there is a legal regulation for the disposal of batteries in your country, the batteries must not be disposed of with household waste. Find out about local regulations for disposing of batteries. By disposing of them in accordance with the rules, you are protecting the environment and the health of your fellow human beings from negative consequences.

DECLARATION OF CONFORMITY

CE UK CA

Manufacturer:

Chal-Tec GmbH, Wallstrasse 16, 10179 Berlin, Germany.

Importer for Great Britain:

Berlin Brands Group UK Limited

PO Box 42

272 Kensington High Street

London, W8 6ND

United Kingdom

Hereby, Chal-Tec GmbH declares that the radio equipment type Iceblock Ecosmart is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: use.berlin/10034656

For Great Britain: Hereby, Chal-Tec GmbH declares that the radio equipment type Iceblock Ecosmart is in compliance with the relevant statutory requirements. The full text of the declaration of conformity is available at the following internet address: use. berlin/10034656

Estimado cliente,

QR code image containing encoded data, no visible human-readable text

ÍNDICE

Datos técnicos 50

Technical diagram of a device with numbered components, likely an air conditioning or cooling unit.

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

Berlin Brands Group UK Limited

PO Box 42

272 Kensington High Street

London, W8 6ND

United Kingdom

QR code image containing encoded data, no visible human-readable text

SOMMAIRE

Fiche technique 72

Technical diagram of a device with numbered components, likely an electrical or mechanical assembly.

FICHE DE DONNÉES PRODUIT

FICHE DE DONNÉES PRODUIT

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

DÉCLARATION DE CONFORMITÉ

CE UK CA

Fabricant :

Chal-Tec GmbH, Wallstraße 16, 10179 Berlin, Allemagne.

Berlin Brands Group UK Limited

PO Box 42

272 Kensington High Street

London, W8 6ND

United Kingdom

QR code image containing encoded data, no visible human-readable text

INDICE

Dati tecnici 94

Technical diagram of a device with numbered components, likely an air conditioning or cooling unit.

1	Lufteinlass	6	Ingresso aria
2	Bedienfeld	7	Ruote
3	Vordere Abdeckung	8	Copertura posteriore
4	Lüftungsgitter	9	Uscita aria calda
5	Netzkabel	10	Uscita acqua

Utensili

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

Berlin Brands Group UK Limited

PO Box 42

272 Kensington High Street

London, W8 6ND

United Kingdom

KLARSTEIN
