USER MANUAL HeatPal Marble Klarstein
Note: This product is only suitable for well insulated spaces or occasional use.
Produktdatenblatt 4
Technical line drawing of a mechanical assembly with a screwdriver inserted, showing structural components and force arrows (no text or symbols)natural_image
Symbol of a trash bin crossed with a diagonal line, no text or labels presentBerlin Brands Group UK Ltd
PO Box 1145
Oxford, OX1 9UW
United Kingdom
Member of Berlin Brands Group
Handwerkerstr. 11
15366 Dahlwitz-Hoppegarten
Deutschland
Congratulations on purchasing this device. Please read the following instructions carefully and follow them to prevent possible damages. We assume no liability for damage caused by disregard of the instructions and improper use. Scan the QR code to get access to the latest user manual and more product information.
Product Data Sheet 14
Safety Instructions 15
Product Description 17
Control Panel 18
Installation 18
Operation 19
Cleaning and Care 20
Disposal Considerations 20
Manufacturer & Importer (UK) 20
TECHNICAL DATA
| Item number 10032022, 10032992, 10032993 |
| Power supply 230 V ~ 50 Hz |
| Power consumption 1300 W |
PRODUCT DATA SHEET
| Model identifier(s): 10032022, 10032992, 10032993 | ||||||
| Item Symbol Value Unit Item Unit | ||||||
| Heat output Type of heat input, for electric storage local space | heaters only | |||||
| Nominal heat output P | nom | 1.266 | kW manual | manual | heat charge control, with integrated thermostat | N/A |
| Minimum heat output (indicative) | Pmin | N/A kW | manual heat | heat | charge control with room and/or outdoor temperature feedback | N/A |
| Maximum continuous heat output | Pmax,c | 1.266 | kW electronic | electronic | heat charge control with room and/or outdoor temperature feedback | N/A |
| Auxiliary electricity consumption | fan assisted heat output N/A | |||||
| At nominal heat output (fan motor) | elmax | N/A kW | Type of heat output/room temperature control | |||
| At minimum heat output (fan motor) | elmin | N/A kW | single stage | heat | heat output and no room temperature control | no |
| In standby mode el | SB | 0.000 W | Two or more | manual | stages, no room temperature control | no |
| with mechanic thermostat room temperature control | yes | |||||
| with electronic room temperature control | no | |||||
| electronic room temperature control plus day timer | no | |||||
| electronic room temperature control plus week timer | no | |||||
| Other control options (multiple selections possible) | ||||||
| room temperature control, with presence detection | no | |||||
| room temperature control, with open window detection | no | |||||
| with distance control option | no | |||||
| with adaptive start control no | ||||||
| with working time limitation | no | |||||
| with black bulb sensor | no | |||||
| Contact details | Chal-Tec GmbH, Wallstraße 16, 10179, Berlin, Germany | |||||
SAFETY INSTRUCTIONS
- Don't do any modification to the heater.
• Children of less than 3 years should be kept away unless continuously supervised. - Children over the age of 8 and persons with reduced physical, sensory or mental capabilities or those with a lack of experience and knowledge may only use the device if they are instructed on how to do so by a person responsible for their safety, or if they are supervised and understand the hazards associated with the use of the device. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
CAUTION
Risk of burns! Some parts of this product can become very hot and cause burns. Particular attention has to be given where children and vulnerable people are present.
• Children should be supervised to ensure that they do not play with the appliance.
- Do not use this heater in the immediate surroundings of a bath, a shower or a swimming pool.
• In order to avoid overheating, do not cover the heater.
- The heater must not be located immediate below a socket outlet.
- This heater has hot and arcing or sparking parts inside. Please do not place combustible or chemical items near the heater.
- This heater is not equipped with a device to control the room temperature. Do not use this heater in small rooms. When they are occupied by persons not capable of leaving the room on their own, unless constant supervision is provided
- To avoid over-heating since a fire risk exists, do not cover the heater.
- To avoid burns, do not touch the hot surfaces of the heater when it is in use.
- Do not use the heater in outdoors.
- Do not insert or allow foreign objects to enter any ventilation or exhaust opening as this may cause an electric shock or fire, or damage the heater.
- Always unplug the heater when not in use. To disconnect the heater, remove the plug from the electrical outlet.
- Connect the heater to properly grounded outlets only.
- Never use a damaged cord or plug. If the supply cord is damaged, must be replaced by the manufacturer, an affiliate agent or a qualified person in order to avoid hazard.
- The total ampere ratings of the equipment plugged in should not exceed the ampere rating of the cord if you are using an extension cord.
- Do not run cord under carpet and do not cover cord with throw rugs, runners, or the like. Place the cord away from traffic area and where it will not be tripped over.
- Use this heater only as described in this manual.
- In order to avoid hazard due to inadvertent resetting of the thermal cut-out, this appliance must not be supplied through an external switching device, such as a timer, or connected to a circuit that is regularly switched on and off by the utility.
- Only qualified service representative should perform repairing and maintenance services.
- Never splash any liquid to the product, whenever the product is on or off!
- Never place the product in the high humid area and hang up any damp objects (eg. Towel, blanket or etc.)
- When the product is re-packed after use or Winter seasons, please place into the dry surrounding area for storage. It's due to the material of marble could be absorbed some sort of moisture from the surrounding area rapidly.
- Once the product is turned on at the first time, there maybe some moisture being evaporated! Also, it will be disappeared gradually when the product is heating after few minutes later.
PRODUCT DESCRIPTION


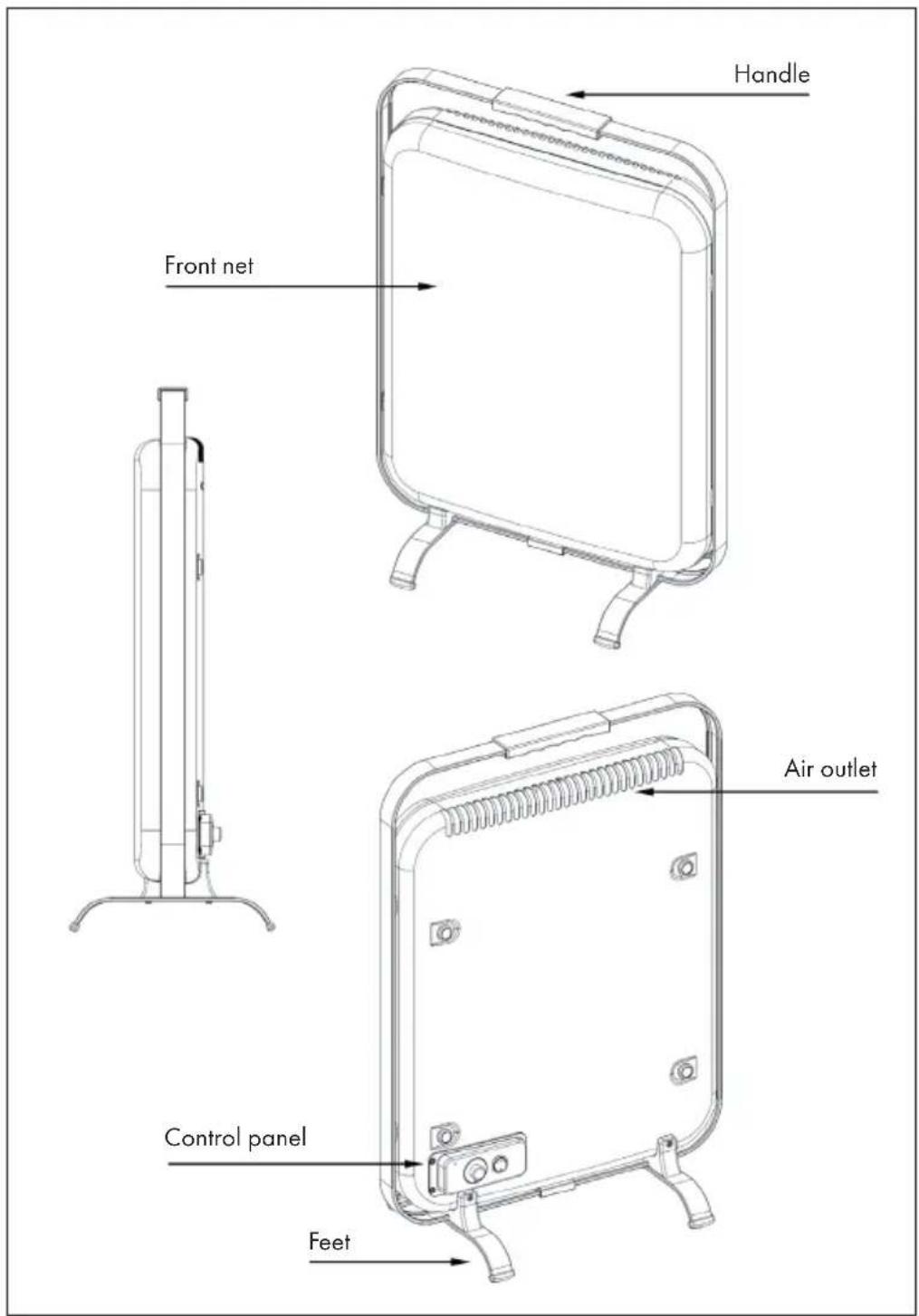

Handle Front net Air outlet Control panel FeetCONTROL PANEL

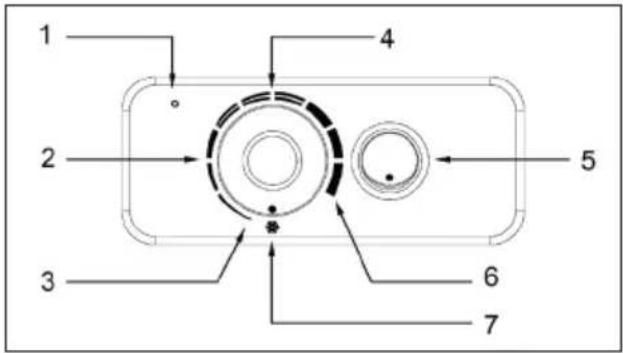

1 Heating indicator light
2 Temperature control knob
3 MIN position
4 Comfortable zone
5 Power switch
6 MAX position
7 Anti-Frost position
Carefully unpack the components and check that no damage occurred during transportation. If any damage is apparent or any component is missing, please contact the dealer immediately.

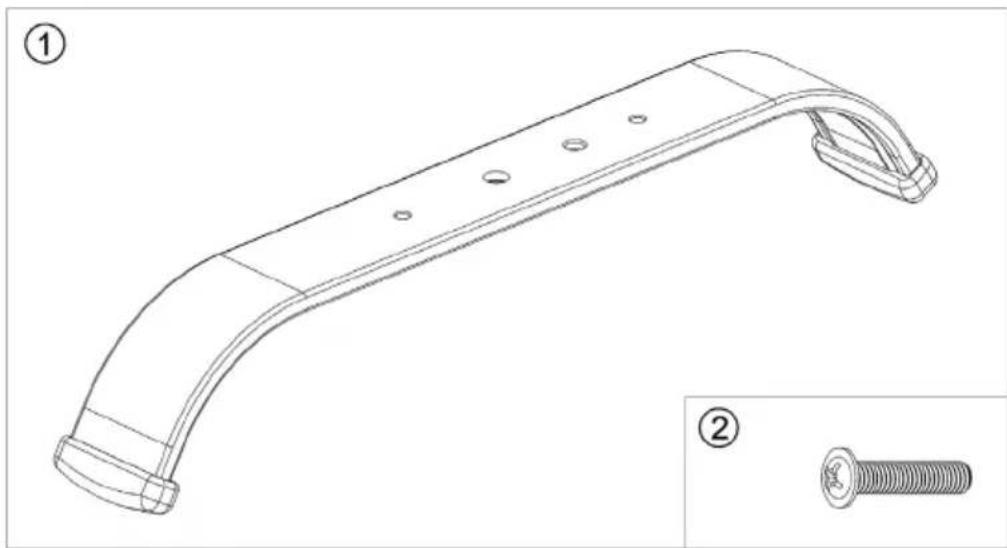

Installation Kit
2 Screw (4x)

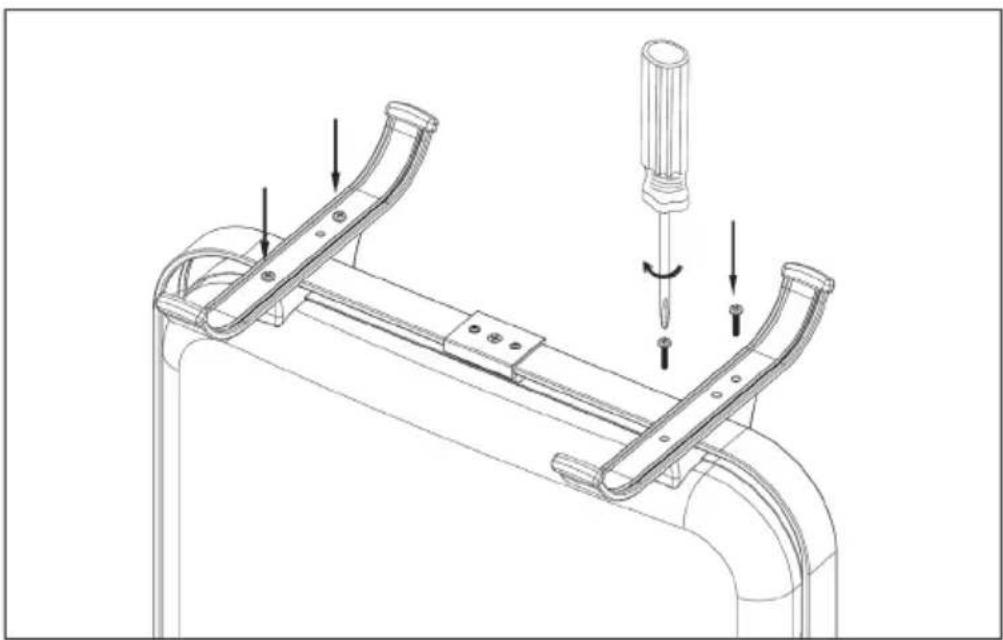

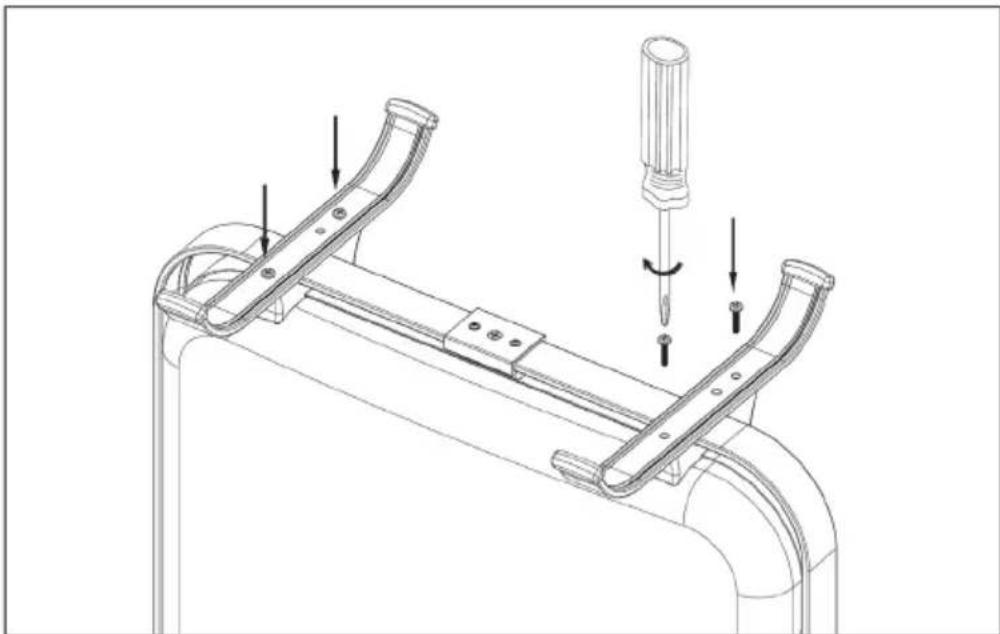

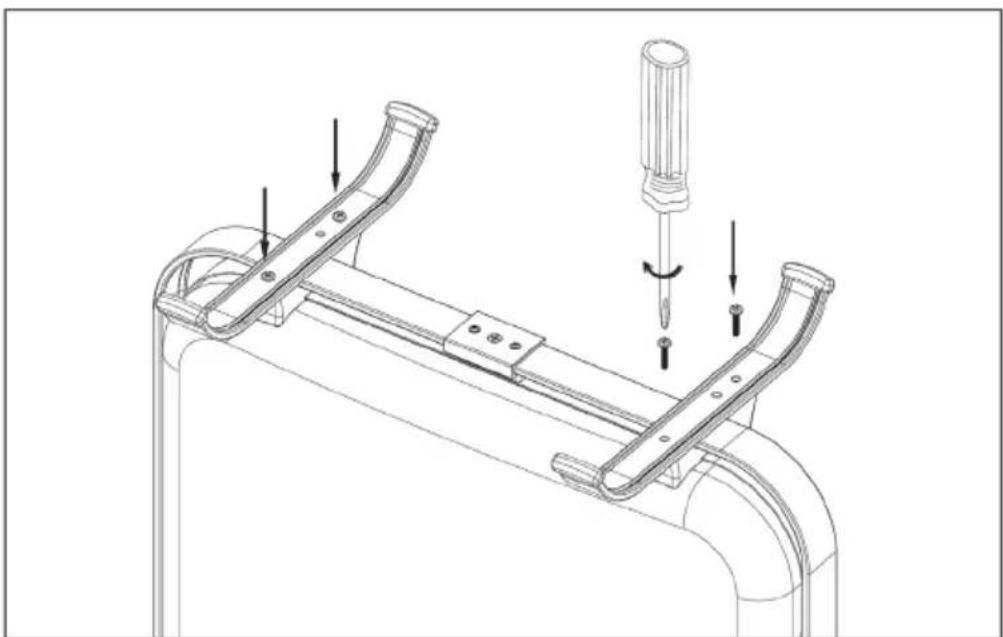

Installation
OPERATION
1 Ensure that the Temperature Control Knob is at "Max" position. Also, make sure the power switch is at "OFF" position. Plug the power cord into a suitable electrical outlet.
2 Switch "ON" the heater.
3 Then adjust the temperature control knob to set the room temperature. According to the personal needs, you can turn the temperature control knob in a clock-wise or anti-clockwise direction to increase or decrease the room temperature.
4 When the room temperature reaches the pre-set temperature the power will cut out and the heating indicators light will be "OFF" at the same time. The power will resume when the room temperature drops at least 3^ lower than the pre-set temperature.
5 Anti-Frost mode: It will keep the surrounding temperature above freezing point to avoid the pipe breakage by ice.
CLEANING AND CARE
Note: Turn off the unit and unplug it from the power outlet. Wait until the unit has completely cooled down before cleaning it.
- Use a vacuum cleaner to clean the ventilation slots and grilles.
- Remove dust on the outside surfaces with a damp (not wet) cloth.
- Do not use strong cleaning agents or abrasives.
- Do not spray the device with liquids or immerse it in water or other liquids.
• Never open the heater housing.
DISPOSAL CONSIDERATIONS
MANUFACTURER & IMPORTER (UK)
Manufacturer:
Chal-Tec GmbH, Wallstrasse 16, 10179 Berlin, Germany.
Importer for Great Britain:
Berlin Brands Group UK Ltd
PO Box 1145
Oxford, OX1 9UW
United Kingdom
