Product type	Wall-mounted electric heater
Brand	Klarstein
Model	Lindholm
Power	1000-2000 W (adjustable)
Power supply	220-240 V ~ 50/60 Hz
Heating modes	Low power (1000 W) and high power (2000 W)
Temperature range	16 °C to 40 °C
Timer	1 to 24 hours (automatic shut-off)
Child lock	Yes (activation by pressing and holding for 3 seconds)
Remote control	Included (functions identical to control panel)
Display	Digital screen with room temperature
Installation	Wall or on feet (accessories provided)
Safety distances	15 cm from floor, 50 cm from ceiling, 1 m from combustible materials
Usage	Indoor, well-insulated rooms or occasional use
Maintenance	Clean grilles with a vacuum cleaner; exterior surfaces with a damp cloth
Recycling	Do not dispose of with household waste (WEEE directive)

Frequently Asked Questions - Lindholm Klarstein

How to turn on the Klarstein Lindholm heater?

Make sure the main switch on the side is on. Then press the POWER button on the device or remote control. The screen shows the room temperature and heating starts in low power mode.

How to set the desired temperature?

Use the PLUS and MINUS buttons on the device or remote control to adjust the temperature between 16 °C and 40 °C. The value is displayed on the screen.

How to use the automatic shut-off timer?

Press the TIMER button to enter the timer setting. Use the +/- buttons to choose a duration from 1 to 24 hours. The device will automatically turn off at the end of the set time.

How to activate the child lock?

Press and hold the CHILD LOCK button for 3 seconds. A padlock symbol appears on the screen, and all panel buttons are locked. Repeat the operation to deactivate.

What are the safety distances to be observed?

Install the heater at least 15 cm from the floor and 50 cm from the ceiling. Maintain a distance of at least 1 meter from combustible materials such as furniture, curtains or carpets.

How to clean the heater?

Unplug the device and let it cool completely. Use a vacuum cleaner for the ventilation slots and grilles. Exterior surfaces can be cleaned with a damp cloth (not wet). Do not use abrasive products.

Can I use the heater with a programmable plug?

No, the use of an external timer or remote-controlled plug is prohibited to avoid the risk of overheating. Use only the built-in timer.

What to do if the heater does not heat?

Check that the main switch is on and the set temperature is higher than the room temperature. Make sure the child lock is not activated. If the problem persists, contact a qualified professional.

Can the heater be installed on the ceiling?

No, installation is intended only on the wall or floor using the provided feet. Never install it on the ceiling.

How to recycle the device at end of life?

Do not throw the device away with household waste. In accordance with the WEEE directive, take it to a collection point for electrical and electronic equipment. Used batteries must be recycled separately.

USER MANUAL Lindholm Klarstein

Note: This product is only suitable for well insulated spaces or occasional use.

QR code image containing encoded data, no visible human-readable text

INHALTSVERZEICHNIS

Freistehend

Simple line drawing of a rectangular box with two side handles, no text or symbols present.

BEDIENUNG

Bedienfeld

Member of Berlin Brands Group

Handwerkerstr. 11

15366 Dahlwitz-Hoppegarten

Deutschland

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

Berlin Brands Group UK Ltd

PO Box 1145

Oxford, OX1 9UW

United Kingdom

Congratulations on purchasing this device. Please read the following instructions carefully and follow them to prevent possible damages. We assume no liability for damage caused by disregard of the instructions and improper use. Scan the QR code to get access to the latest user manual and more product information.

QR code image containing encoded data, no visible human-readable text

CONTENT

Safety Instructions 14

Product Data Sheet 15

Wall Installation 16

Operation 17

Cleaning and Care 19

Disposal Considerations 20

Declaration of Conformity 20

TECHNICAL DATA

Item number 10035362, 10035362
Power supply 220-240 V ~ 50/60 Hz
Power 1000-2000 W

SAFETYINSTRUCTIONS

- Check that the voltage indicates on the data plate corresponds with that of the local network before connecting the appliance to the mains power supply.

- If the supply cord is damaged, it must be replaced by a qualified engineer in order to avoid a hazard.

- The heater must not be positioned directly under the power socket.

- Keep furniture, curtains and other fl ammable material at least 1 meter away from the appliance.

- Keep out of reach of children and do not allow them to operate this appliance.

- This appliance is intended for household use only and should not be used for industrial purposes.

- Do not operate this appliance after a malfunction or after being damaged in any way.

• Repairs to electrical appliances should only be performed by a qualified electrician.

- Improper repairs may place user at serious risk.

- Do not run the mains cable under carpets, rugs, etc.

- Do not allow the mains cable to hang over sharp edges or come in contact with hot surfaces.

• In order to avoid overheating, do not cover the heater.

- Do not use this heater with a programmer, timer, separate remote control system or any other device that switches the heater on automatically, since a fire risk exists if the heater is covered or positioned incorrectly.

- Never immerse the product in water or any other liquid for any reasons.

- Do not use this heater in the immediate surroundings of a bath, a shower or a swimming pool.

- Do not use the appliance outdoors.

- Do not use if you have wet hands.

- Never use the appliance on or near hot surfaces.

- Do not operate with a damaged cord.

- Before cleaning the appliance, make sure it is unplugged from the power and that it is completely cooled.

- Do not clean the appliance with abrasive chemicals.

- Never use accessories that are not recommended or supplied by the manufacturer. It could cause danger to the user or damage to the appliance.

- This device may be only used by children 8 years old or older and persons with limited physical, sensory and mental capabilities and / or lack of experience and knowledge, provided that they have been instructed in use of the device by a responsible person who understands the associated risks.

• Children should be supervised to ensure that they do not play with the appliance.

CAUTION

Risk of burns! Some parts of this product can become very hot and cause burns. Particular attention has to be given where children and vulnerable people are present.

PRODUCT DATA SHEET

Model identifier(s): 10035362, 10035363
Item Symbol Value Unit Item Unit
Heat output Type of heat input, for electric storage local space					heaters only
Nominal heat output P	nom	2,0 kW	manual heat	charge control, with integrated thermostat		N/A
Minimum heat output (indicative)	Pmin	1,0 kW	manual heat	charge control with room and/or outdoor temperature feedback		N/A
Maximum continuous heat output	Pmax,c	2,0 kW	electronic heat	charge control with room and/or outdoor temperature feedback		N/A
Auxiliary electricity consumption					fan assisted heat output N/A
At nominal heat output el	max	N/A kW			Type of heat output/room temperature control
At minimum heat output	elmin	N/A kW	single stage	heat output and no room temperature control		no
In standby mode	elSB	0,0	W		Two or more manual stages, no room temperature control	no
					with mechanic thermostat room temperature control	no
					with electronic room temperature control	no
					electronic room temperature control plus day timer	yes
					electronic room temperature control plus week timer	no
					Other control options (multiple selections possible)
					room temperature control, with presence detection	no
					room temperature control, with open window detection	no
					with distance control option	no
					with adaptive start control no
					with working time limitation	no
					with black bulb sensor	no
Contact details	Chal-Tec GmbH, Wallstraße 16, 10179, Berlin, Germany

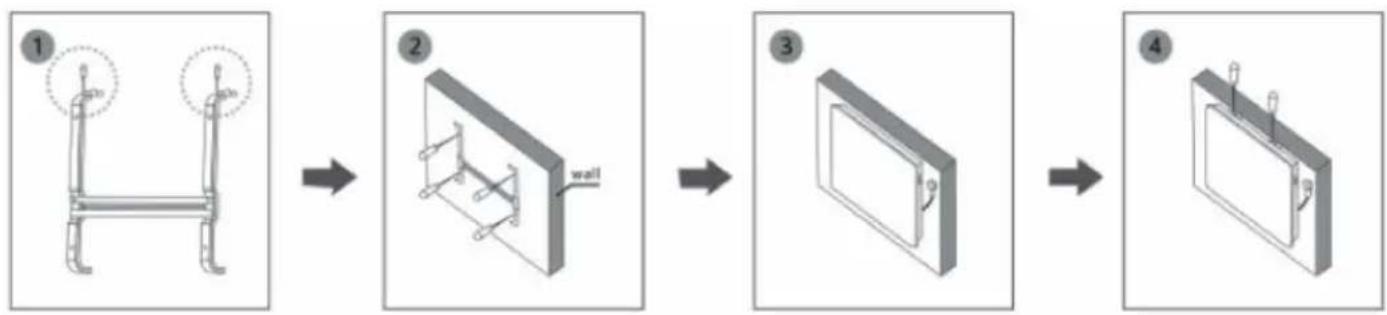

WALL INSTALLATION

Note: The product must be installed at least 15 cm from the floor and 50 cm from the ceiling.

• Remove the bracket from the housing (Figure 1).
• Drill the holes on both sides of the wall and then insert the plastic expansion plugs. Fasten the bracket to the wall with screws (picture 2).
• Move the heater to a suitable position so that the holes are level with the bracket (Fig. 3).
• Tighten the screw at the top of the bracket to ensure that it is tight (Figure 4).

Freestanding

Mount the feet on the baseboard in accordance with below scheme.

Simple line drawing of a rectangular box with two side handles, no text or symbols present.

OPERATION

Control panel

1	Display	5	MODE button
2	PLUS button	6	TIMER button
3	MINUS button	7	Remote control receiver
4	POWER button	8	CHILD LOCK button

Switch on the device

Before switching on, turn the main switch on the side of the heater. Then press the POWER button. The display shows the room temperature and operates at a low heating level.

Select heating mode

Press the MODE button to select low heat output (0) or high heat output (0)?

Setting the temperature

Press the PLUS or MINUS button to set the desired temperature between 16-40 °C.

Setting the switch-off timer

Press the TIMER button to set the timer between 1-24 hours. When the timer expires, the unit will automatically turn off.

Activating/deactivating the child lock

Press and hold the CHILD LOCK button for 3 seconds to activate the child lock. The corresponding symbol appears in the display and the buttons are locked. Press the button again for 3 seconds to deactivate the child lock.

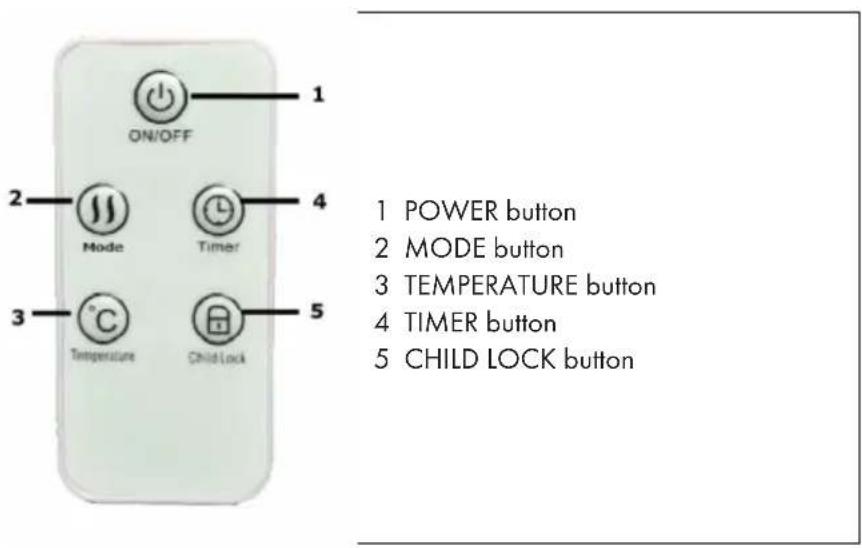

Operation by remote control

The touch screen buttons on the product correspond to the remote control functions:

ON/OFF 1 2 4 Mode Timer 3 5 Temperature Child Lock 1 POWER button 2 MODE button 3 TEMPERATURE button 4 TIMER button 5 CHILD LOCK button

CLEANING AND CARE

Note: Turn off the unit and unplug it from the power outlet. Wait until the unit has completely cooled down before cleaning it.

• Use a vacuum cleaner to clean the ventilation slots and grilles.
• Remove dust on the outside surfaces with a damp (not wet) cloth.
• Do not use strong cleaning agents or abrasives.
• Do not spray the device with liquids or immerse it in water or other liquids.
  • Never open the heater housing.

Storage

Keep the unit in a dust-free place during the low season. Pack it in the original carton. Wind the heater cable cleanly to avoid damaging the cable.

DISPOSAL CONSIDERATIONS

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

If there is a legal regulation for the disposal of electrical and electronic devices in your country, this symbol on the product or on the packaging indicates that this product must not be disposed of with household waste. Instead, it must be taken to a collection point for the recycling of electrical and electronic equipment. By disposing of it in accordance with the rules, you are protecting the environment and the health of your fellow human beings from negative consequences. For information about the recycling and disposal of this product, please contact your local authority or your household waste disposal service.

This product contains batteries. If there is a legal regulation for the disposal of batteries in your country, the batteries must not be disposed of with household waste. Find out about local regulations for disposing of batteries. By disposing of them in accordance with the rules, you are protecting the environment and the health of your fellow human beings from negative consequences.

DECLARATION OF CONFORMITY

CE UK CA

Manufacturer:

Chal-Tec GmbH, Wallstrasse 16, 10179 Berlin, Germany.

Importer for Great Britain:

Berlin Brands Group UK Ltd

PO Box 1145

Oxford, OX1 9UW

United Kingdom

Hereby, Chal-Tec GmbH declares that the radio equipment type Lindholm is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: use.berlin/10035362

For Great Britain: Hereby, Chal-Tec GmbH declares that the radio equipment type Lindholm is in compliance with the relevant statutory requirements. The full text of the declaration of conformity is available at the following internet address: use.berlin/10035362
