USER MANUAL FORTE 70 Trevi

• For additional information and updates of this product see: www.trevi.it2

TO SET YOUR LANGUAGE DEVICE

- Select “MENU”; - Select the “IMPOSTAZIONI” icon; - Select the number 2 function “CONFIGURAZIONE TELEFONO”; - Select the number 2 “IMPOSTAZIONI LINGUA”; - Select “LINGUA DEL DISPLAY” and find their own language from those available.

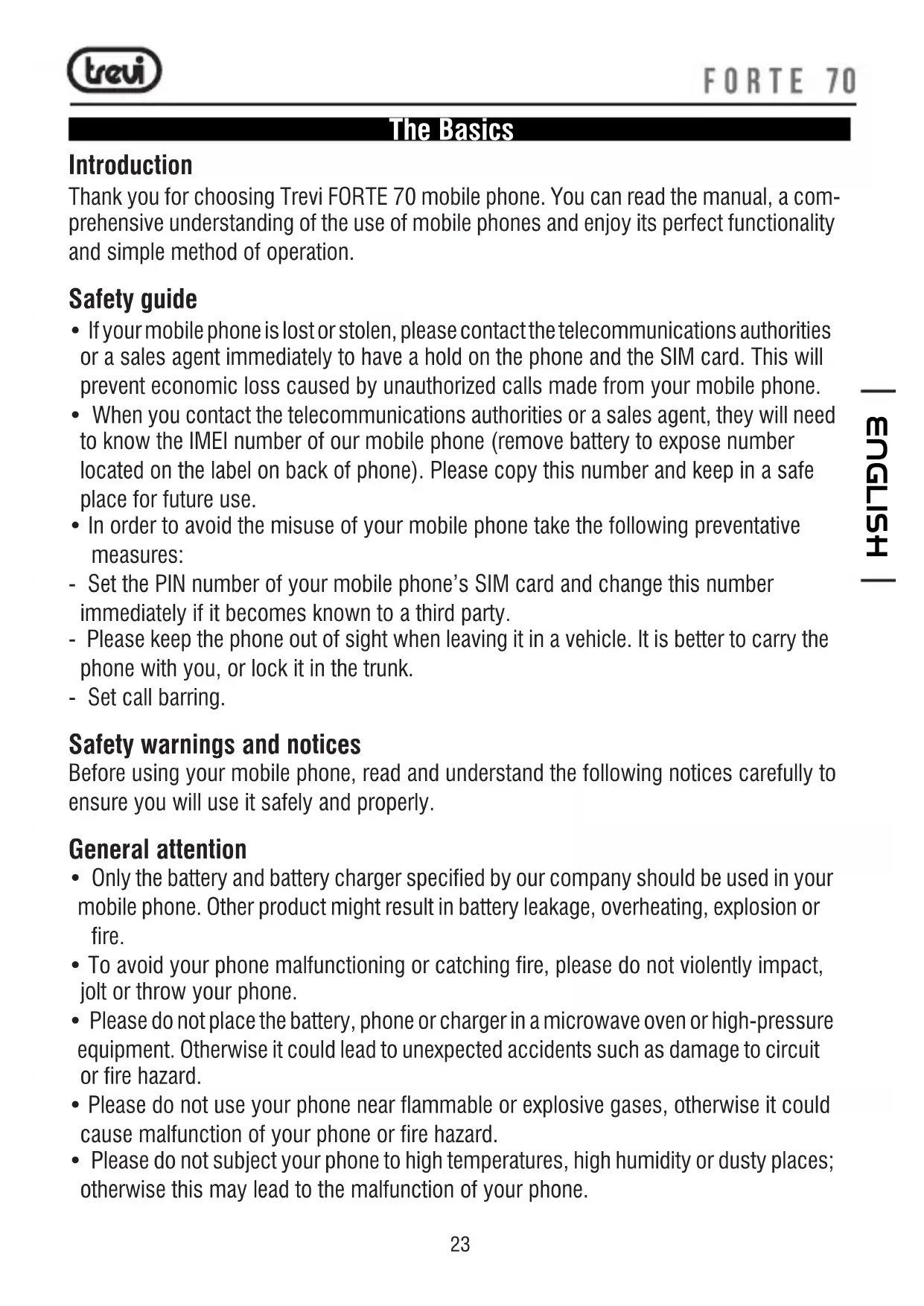

• If your mobile phone is lost or stolen, please contact the telecommunications authorities or a sales agent immediately to have a hold on the phone and the SIM card. This will prevent economic loss caused by unauthorized calls made from your mobile phone.

• When you contact the telecommunications authorities or a sales agent, they will need to know the IMEI number of our mobile phone (remove battery to expose number located on the label on back of phone). Please copy this number and keep in a safe place for future use.

• In order to avoid the misuse of your mobile phone take the following preventative measures: - Set the PIN number of your mobile phone’s SIM card and change this number immediately if it becomes known to a third party. - Please keep the phone out of sight when leaving it in a vehicle. It is better to carry the phone with you, or lock it in the trunk. - Set call barring. Safety warnings and notices Before using your mobile phone, read and understand the following notices carefully to ensure you will use it safely and properly. General attention

• Only the battery and battery charger specified by our company should be used in your mobile phone. Other product might result in battery leakage, overheating, explosion or fire.

• To avoid your phone malfunctioning or catching fire, please do not violently impact, jolt or throw your phone.

• Please do not place the battery, phone or charger in a microwave oven or high-pressure equipment. Otherwise it could lead to unexpected accidents such as damage to circuit or fire hazard.

• Please do not use your phone near flammable or explosive gases, otherwise it could cause malfunction of your phone or fire hazard.

• Please do not subject your phone to high temperatures, high humidity or dusty places; otherwise this may lead to the malfunction of your phone. ENGLISH24

• Keep your phone out of the reach of small children. Your phone is not a toy. Children could hurt themselves.

• To avoid your phone falling and malfunctioning or being damaged, please do not place it on uneven or unstable surfaces. Notices when using your phone

• Turn off your mobile phone where the phone is not allowed, such as on the airport or in hospitals. Using the mobile phone in those places may impact the normal operation of electronic devices and medical instruments. Follow relevant regulations when using your mobile phone in those places. Your mobile phone has the auto turn-on feature. Check your alarm clock settings to confirm that your mobile phone will not be turned on automatically during flight.

• Please do not use your mobile phone near the weak signal or high precision electronic devices. RF interference might cause malfunctioning of such electronic devices and other problems. Special tips must be paid near the following equipment: hearing aids, pace makers and other medical electronic devices, fire detectors, automatic doors and other automatic control installations. To find out the effect of mobile phones on a pacemaker or other pieces of electronic medical equipment please contact the manufactures or local sales agents of the equipment.

• Please do not subject the LCD to impact or use the screen to strike things, as this will damage the LCD board and cause leakage of the liquid crystal. There is a risk of blindness if the liquid crystal substance gets into the eyes. If this occurs rinse eyes immediately with clear water (under no circumstances rub your eyes) and go immediately to a hospital for treatment.

• Do not dissemble or modify your mobile phone, as it will lead to damage to the phone such as battery leakage or circuitry failure.

• Under very rare circumstances using the mobile phone in certain model cars may negatively affect the internal electronic equipment. In order to assure your safety under such circumstances please do not use the mobile phone.

• In the event of antenna malfunction, do not use your phone as it could be harmful to human body.

• Avoid letting the phone come into close contact with magnetic objects such as magnetic cards as the radiation waves of the mobile phone may erase the information stored on floppy disks, pay cards and credit cards.

• Please keep small metal objects, such as thumbtacks far away from the receiver. When the receiver is in use it becomes magnetic and may attract these small metal objects and thus these may cause injury or damage the mobile phone.

• Avoid having the mobile phone come into contact with water or other liquids. If liquids enter the phone, this could cause a short circuit, battery leakage or other malfunction.

• Keep the manual. ENGLISH25 ENGLISH Notices when using battery

• The battery has a limited service life. The remaining life gets shorter as the times of charging increase. If the battery becomes feeble even after the charging, this indicates the service life is over and you have to use a new specified battery.

• Do not dispose of old batteries with everything domestic garbage. Please dispose of old batteries at the directed places with specific rules for their disposal.

• Please do not throw batteries into a fire, as this will cause the battery to catch fire and explode.

• When installing the battery, do not use force or pressure, as this will cause the battery to leak, overheat, crack and catch fire.

• Please do not use wires, needles or other metal objects to short-circuit the battery. Also, do not put the battery near necklaces or other metal objects as this will cause the battery to leak, overheat, crack and catch fire.

• Please do not solder the contact points of the battery.

• If the liquid in the batteries goes into the eyes, there is a risk of blindness. It this occurs do not rub the eyes, but immediately rinse eyes with clear water and go to the hospital for treatment.

• Please do not disassemble or modify the battery, as this will cause the battery to leak, overheat, crack and catch fire.

• Please do not use or place the batteries near high temperature places such as near a fire or heating vessel as this will cause the battery to leak, overheat, crack and catch fire.

• If the battery overheats, changes color or becomes distorted during use, charging or storage, please stop using and replace it with a new battery.

• If the liquid from the battery comes in contact with skin or clothing this could cause burning of the skin. Immediately use clear water to rinse and seek medical tips if necessary.

• If the battery leaks or gives off a strange odor, please remove the battery from the vicinity of the open fire to avoid a fire or explosion.

• Please do not let the battery become wet as this will cause the battery to overheat, smoke and corrode.

• Please do not use or place batteries in places of high temperature such as in direct sunlight, as this will cause the battery to leak and overheat, lower performance and shorten the battery’s life.

• Please do not continuously charge for more than 24 hours. With earphone or headphones use: To prevent possible hearing damage, limit the amount of time listening at high volumes.26 Cleaning and maintenance

• The mobile phone, battery and charger are not water resistant. Please do not use them in the bathroom or other excessively moist areas and likewise avoid allowing them to get wet in the rain.

• Use a soft, dry cloth to clean the mobile phone, battery and charger.

• Please do not use alcohol, thinner, benzene or other solvents to wipe the mobile phone.

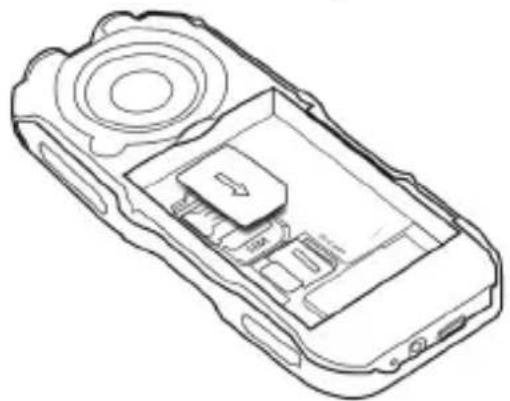

• A dirty outlet will cause poor electrical contact, lose of power and even inability to recharge. Please clean regularly. SIM card and battery installation Installation - Carefully remove the rear cover by levering the side of the rear furniture that has the opening, as shown below; - Insert the SIM into the SLOT with the metal contacts facing down and taking care to respect the position of the cut corner of the SIM; - Insert the battery paying attention to the metal contacts; - Reposition the rear cover carefully, taking care not to damage the plastic anchors; - Before using the appliance for the first time, fully charge the battery, using the supplied USB cable and power supply. Note regard Micro-SIM adapter used on Trevi phones The slots for SIM cards are designed to accommodate only the consideration SIM format. The use of SIM (micro or nano) with its adapter and ‘not recommended as it can cause damage to the device and the micro/nano SIM itself.

• TREVI not liable for damages caused by the use of adapters for micro/nano-SIM.

• TREVI reserves the right to refuse free assistance in warranty on defective products that have ‘caused by the use of the SIM adapters for micro/nano-SIM.

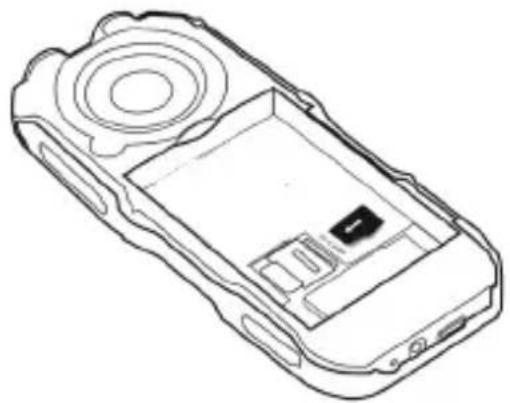

• Do not insert memory card into the SIM card slot. ENGLISH27 ENGLISH Micro SD card installation To store photos, videos, and music should insert a micro SD external memory.

• Carefully remove the back cover;

• Insert the micro SD card keeping the surface with the electrical contacts facing down (display side);

• Replace the back cover. Notes:

• Some card brands may not be compatible with the phone. The use an incompatible memory may be damaged or the card memory itself.

• The appliance only supports memory formatted in FAT. If you enter formatted cards differently the phone will ask you to reformat the memory card. Battery recharge CHARGING THROUGH POWER SUPPLY:

1. With the device switched off, connect the Micro USB socket of the supplied power

adapter to the Micro USB socket of the telephone (16);

2. Connect the power supply to a standard network socket;

3. The device will switch on to show the battery icon for a few seconds with the charging

phase. To view, at any time, the level of charge just press any key on the phone;

4. When the battery is fully charged (the icon will no longer be moving), you can disconnect

the power supply from the wall outlet and then disconnect it from the phone. Notes:

• Only use the supplied power supply, different power supplies may damage the battery.

• You can use the device even when it is charging, but, for a longer battery life, it is not recommended for use; moreover, using the appliance, the times of charging are Nano SIM card with adapter28 lengthened.

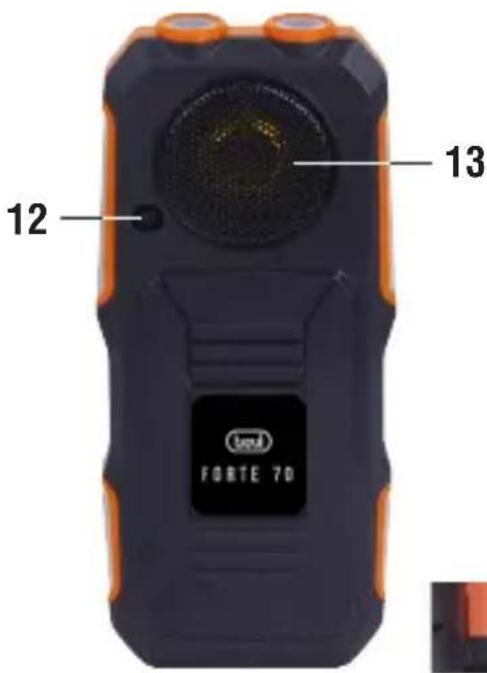

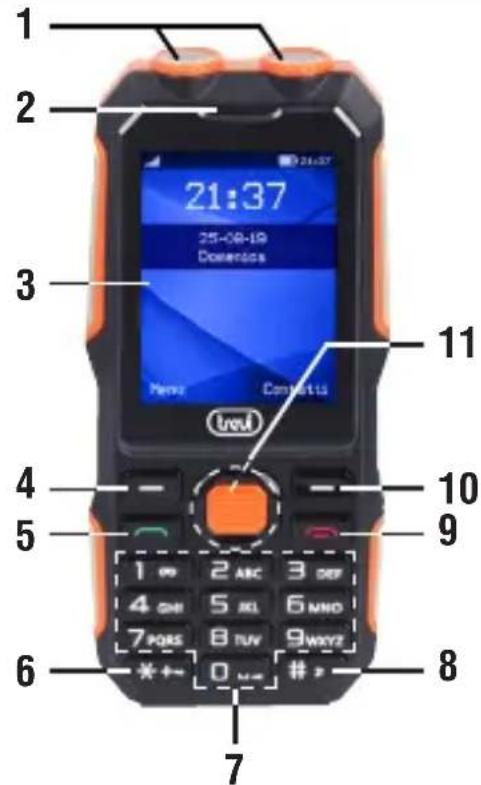

• During charging the appliance may increase in temperature, this does not affect the performance and life of the appliance. Keys Functions ENGLISH

shows each time its function.

5. Dial/Answer a calls.

9. End call and power on/off function

shows each time its function.

Basic Functions Powering On/Off

• For switch ON the phone, press and hold the ON/OFF button(9) for 3 seconds.

• For switch OFF the phone, press and hold the ON/OFF button(9) for 2 seconds. Dialing Calls In the standby interface, press number keys to input the area code and the telephone

• Dialing a call to a number in the phonebook Enter the phonebook and use the up or down direction keys(11) to find the telephone number you want to call. Press(5) button. The mobile phone automatically dials the chosen telephone number.

• Redialing the last number In the standby interface, press(5) button to show the dialed calls. Press the up or down direction keys(11) to select a number you want to dial and then press the Dial key(5).

• Answering incoming calls Press(5) button or the Ok key to answer an incoming call. Press(9) button to end the current conversation. To reject an incoming call, press(9) button.

• Call divert Network Call Transfer service allows you to call a business case in a default transferred to a phone number you specify. The features include: Divert all voice calls. Divert if unreachable, Divert if no answer, Divert if busy, Divert all data calls.

• Call barring Into the “Call barring” sub-menu, you can set the following call barring any combination to improve security. Some network providers may not provide this service call restrictions, specific use, please contact your network provider. Network provider will provide a four password so that you can enable call restrictions. Change the password to enter the old call barring password, set new restrictions on the password. Main Features Phonebook You can use the phonebook to store records, can store the following: name and phone number. In the phonebook list, select a contact to make a call when you press the dial keys. Select a record in the phonebook, you can do the following: - New: You can save a new contacts here. - Write message: Send text message to this number. - Call: Make a call to the number. - Delete: Delete the number. - Delete multiple: Delete several contacts at one time. - Import/Export: Copy the current contact to Phone/SIM or import/export contact.30 - Send vCard: Send contact to other people by SMS or BT. - Others: You can check your own number, service number and memory status here. You also can press Middle button to check/edit/copy details of certain contact. Call settings Call History In this submenu, you can view all call divert, call waiting, call barring, hide ID and others. Missed calls/Dialed calls/Received calls/Rejected calls In this submenu, will display list of Missed calls/Dialed calls/Received calls/Rejected calls. Select call records, press the Options key: - Details: View the details. - Call: Call the record number. - Write message: Write and send text message to record number. - Add to contacts: Save the number to the phone or SIM card. - Add to Blacklist: Add the number to the blacklist. - Delete: Delete the number. - Delete all: Delete all call logs. Messages Make sure that the information in writing before the message center number is set correctly. Access to an information menu, you can edit the message. Write message Insert text, phone number and others.

• Send: Insert the number of the contacts and then send SMS to this number. Inbox Messages which are received. Outbox Messages are not sent successfully. Drafts Draft messages. Sentbox Messages are sent successfully. Multimedia Camera You can take pictures anytime, anywhere, and to save the photos to your phone or memory card. - Image viewer: You can check exist images. - DV mode: to switch to Video mode. ENGLISH31 ENGLISH - Effect: adding effects to the image. - Settings: You can set the image banding, Shutter sound, Auto save, storage, size and image quality directly.

You can take videos anytime, anywhere and to save the videos to your memory card. - View video directory: You can check videos in the phone or memory card. - DC mode: to switch to Camera mode. - Effect: adding effects to the image. - Settings: You can set the video banding, format, storage. Image Select an album sub-menu, you can easily view stored in the camera album picture list, and press the left selection key to enter to “Options” to choose the pictures to do the View, Delete, Mark, Rename, Slide show. Audio You can play local music in the memory card/phone memory. Video You can play video which stored in the memory card.

FM interface, press the middle button(11) to turn On/Off FM mode, press the left selection key “Options” can show FM options menu, the contents as follow: - Auto search and save: Auto search FM channels in the channel list. - Channel list: Shows FM channel list. - Manual search: Can be their own editors to manually enter the channel frequency, the effective value of 87,5 ~ 108,0MHz. - Background play: You can open the background play of FM. - Record: You can record the current channel. - Scheduled recording: You can preset the record time and frequency. - Record file list: list of recording files - Storage: To select the memory where store the files - Help: You can get the operation guide in here. Profiles Enter in the function; display the profile mode list including: Normal, Silent, Meeting, Indoor and Outdoor. First, based on the current scene, select a different profile, then you only need a personal profile can be set and activated. Press the middle button(11) to activate the selected profile.32

• Activate: Press OK key to activate the profile mode.

• Settings: - Rename: Change the profile mode’s name. - Ring settings: According to their own preferences set ringtones, can also be set from the memory card custom ringtones. - Adjust volume: Set the volume for Caller Volume, Message Volume, Alarm & calendar ringtone, Call volume, Power ringtone. - Ring type: Set the ring type such as Ringtone Silent, Vibrate, Ringtone and Vibrate or Ringtone then Vibrate. - Other alert rings: Select the key tone, battery low alert, power ringtone and dial tone. Application Electric Torch Turn on or turn off the torch here Alarm Select and edit three alarm clock: You can set alarm on/off, Time, Repeat and Alarm tone. You can choose to set to repeat: Once, Daily, Working days. World clock To set a local city or add different word city. Stopwatch Select “Start” to Start timing, select “Stop” to Stop timing Select “Start” to start timing, select “Count” calculation segmentation time Select “Stop” to Stop time, choose the “Reset” perform Reset Select the “Reset” repeat timing Calendar Enter calendar the screen will show a calendar month with the current date marked. Press the up, down, left, and right navigation keys to change the date, calendar information on the screen will be updated accordingly. Press the left soft key “Options” option to add schedule. Calculator Press OK Key to view the calculation results. Press the up, down, left, right and OK key to select +, -, *, /, = respectively. Press Clear to delete the figure. ENGLISH33 ENGLISH Bluetooth - Bluetooth: Turn On/Off bluetooth. - Bluetooth visibility: You can set it on/off. - Paired device: You can search for nearby bluetooth devices and pair them. - Device name: Bluetooth device name which can be renamed. - Bluetooth storage: To receive the file will be automatically transferred to the specified path, the path can be set as phone or memory card. Entertainment You can play game here. Settings Into the phone settings sub-menu, you can make the following settings: Phone settings You can customize your favorite phone functions based on your interest with this function. Data & Time You can set time, date and format for your phone. Language settings Set the current system language. Shortcut settings You can set the navigation keys designated menu. Auto power on/off Phone can power on/off according to your preset time. Power management Shows the battery’s charge status Restore factory settings You can recover the phone into the initial settings with this function. The default pas- sword is 1234. Display - Power On/Off display: Set the power-On or power-Off animations. - Wallpaper settings: Set an image as wallpaper. - Idle display settings: On, it will be displayed in the standby interface. - Contrast: Adjust the displaying contrast. - Backlight: Set the backlight time. - Keypad backlight time: Set the keypad backlight time. Security Into the “Security Settings” menu, you can set the phone’s security options, mobile phone34 or SIM card to avoid unauthorized use. Information on disposal of battery Whatever type of battery used up, it should never be placed in household waste, fire or water. Each type of battery should be collected, recycled or disposed of at an appropriate dedicated collection points. USERS INFORMATION pursuant to Legislative Decree No. 49 of March 14, 2014 “Implementation of Directive 2012/19/EU on Waste Electrical and Electronic Equipment (RAEE)”. This wheeled bin symbol on the product indicates that at the end of its life must be collected separately from other waste. The user must, therefore, take the remote control integrates the essential components that got to its life to the appropriate differentiated collection centers for electronic and electro-technical waste, or return it to the dealer when purchasing a new appliance of equivalent type, in terms of one to one, or one to zero for equipment having longer side of less than 25cm. Appropriate separate collection for the decommissioned equipment for recycling, processing and environmentally compatible disposal helps prevent negative impact on the environment and human health and promotes recycling of the materials making up the product. Illegal dumping of the product by the user entails the application of administrative sanctions stated in Legislative Decree n. Legislative Decree No. 49 of March 14, 2014. TREVI pursues a policy of continuous research and development, the products may have different features from those described. Technical specifications Standard:............................................................................GSM - GPRS GSM frequencies: ............................................ Dual Band 900/1800MHz Display: ..................................................................................... 2,4 Inch Battery: .........................................rechargeable Lithium 3,7V- 2500mAh Bluetooth: .......................................................................................V 2.0 Bluetooth transmission power: .....................................................2,5mW Bluetooth band transmission: ...................................................... 2,4GHz Dimensions: .................................................................48x118x17,3mm Weight: .................................................................... 150gr (with battery) ENGLISH35 ENGLISH FAQS and solutions If you have any questions about the phone, please find the solutions from the table below. Note: - Please, note, the telephone does not work with telephone providers that use the UMTS technology. FAQs Causes Solutions Poor reception When you use your phone at poor reception areas, like near high rise buildings or base rooms, the radio wave cannot be transmitted. Avoid this as far as you can. Poor reception When you use your phone at network traffic congestion, such as working time and off-duty time, the congestion can result in poor reception. Avoid this as far as you can. This is related to the distance to base station in question. You may to provide service coverage map. Echoes or noises The trunk line of network is in bad condition. It is a regional problem. Hang off the call and dial again. Choose another better line. In some areas, the call lines are in bad condition. Shorter standby time The standby time is relevant to network settings. In poor reception areas, turn off your phone temporarily. Replace the batteries Change with a new battery. When no signals are received, your phone will continue searching for base stations, thus consuming a large amount of battery power and reducing standby time. Use your phone at strong signal areas or Turn off the phone temporarily. Failed to turn on your phone The battery power is used up. Check the battery power level or charge the battery. SIM card error The SIM card is damaged. Contact your network service provider. The SIM card is not properly installed. Ensure the SIM card is properly installed. Failed to connect to the network The SIM card is invalid. Contact your network service provider. Beyond the GSM coverage. Consult the network service provider for service areas. The signal is feeble. Retry at a stronger signal area.36 Failed to make a call The call barring feature is used. Cancel the call barring settings. The fixed dialing number feature is used. Cancel the fixed dialing number settings. PIN code error Enter incorrect PIN codes for three times in succession. Contact your network service provider. Failed to charge the battery The battery or the charger is damaged. Change a new battery or charger. Charge the battery when ambient temperature is lower than -10°C or above 55°C. Change the environment. Poor connection. Check whether the plug is properly connected. Failed to add contacts to phonebook The storage space of phonebook is used up. Delete some contacts from the phonebook. Failed to set up some features Your network not provider the services. Contact your network service provider. ENGLISH37 Les Bases Introduction Merci d’avoir choisi le téléphone portable Trevi FORTE 70. Vous pouvez lire le manuel, comprendre parfaitement l’utilisation des téléphones mobiles et en apprécier la fonction- nalité parfaite et la simplicité d’utilisation. Guide de sécurité

FAQ CAUSES SOLUTIONS

SIMPLIFIED EU DECLARATION OF CONFORMITY
