USER MANUAL FRESS10805 Sogo

1. Always read the instruction book

carefully before use.

2. This manual can be downloaded from

our website, www.sogo.com

3. Keep these instructions for future

• Please read the instructions carefully before using the appliance.

• This product is designed for indoor household, non-industrial and non- commercial use. Do not use the item outdoors or for any other purpose. Misuse or improper handling can cause problems with the appliance and can cause injury to the user.

• Make sure that the voltage indicated on the rating plate matches the main wall outlet voltage before plugging in the appliance.

• Always remove the plug from the outlet when the appliance is not in use. Do not leave the appliance unattended when it is switched on.

• Before cleaning or storing your appliance, always unplug the appliance from the power source and allow it to cool.

• The appliances are not intended to be operated by means of an external timer or separate remote-control system.

1. Always read the instruction book

carefully before use.

2. This manual can be downloaded from

our website, www.sogo.es

3. Keep these instructions for future

• Please read the instructions carefully before using the appliance.

• This product is designed for indoor household, non-industrial and non- commercial use. Do not use the item outdoors or for any other purpose. Misuse or improper handling can cause problems with the appliance and can cause injury to the user.

• Make sure that the voltage indicated on the rating plate matches the main wall outlet voltage before plugging in the appliance.

• Always remove the plug from the outlet when the appliance is not in use. Do not leave the appliance unattended when it is switched on.

• Before cleaning or storing your appliance, always unplug the appliance from the power source and allow it to cool.

• The appliances are not intended to be operated by means of an external timer or separate remote-control system.

• Do not place or operate the appliance near14 español english français portuguese deutsch italiano sources of water.

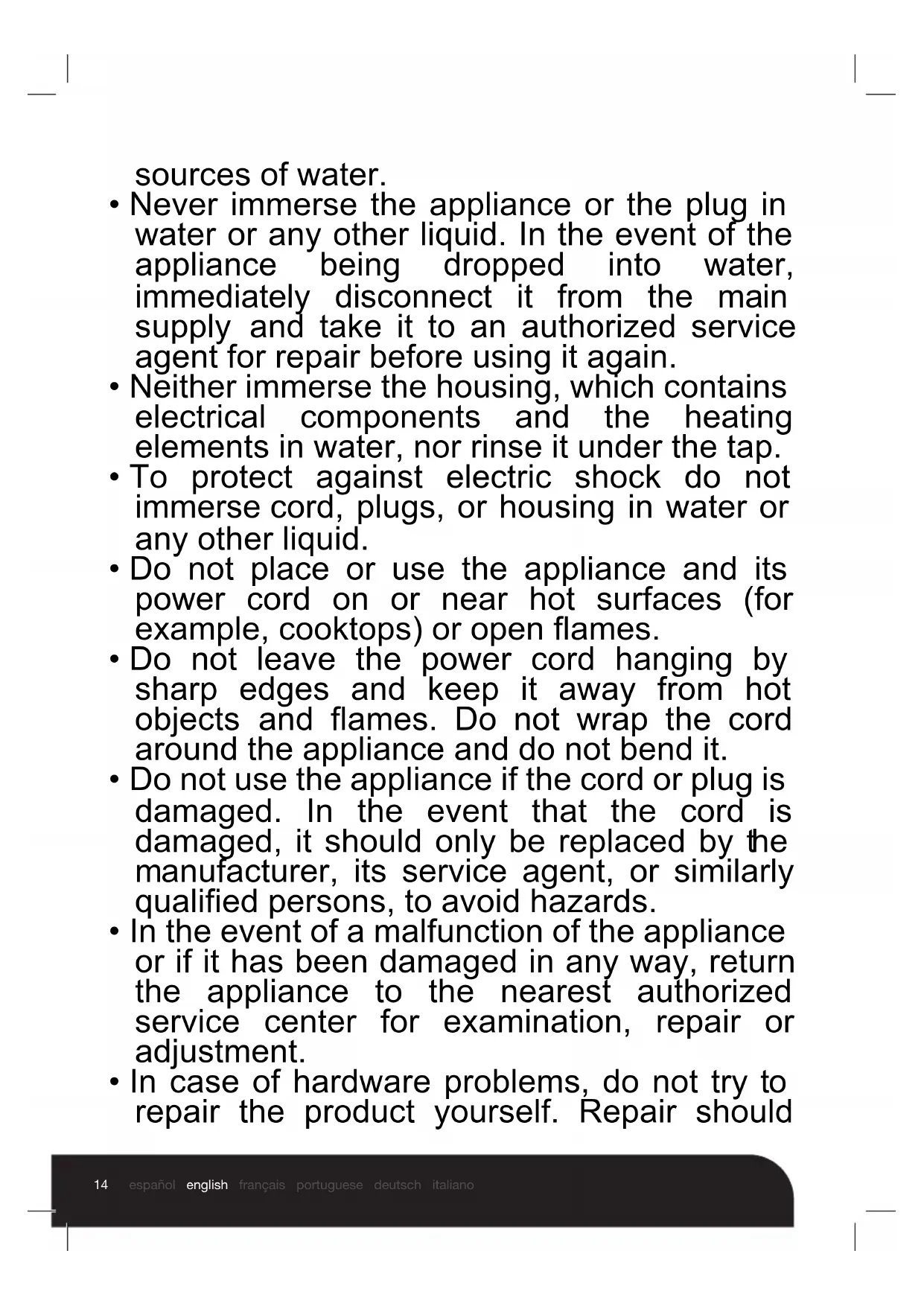

• Never immerse the appliance or the plug in water or any other liquid. In the event of the appliance being dropped into water, immediately disconnect it from the ma

upply and take it to an authorized service agent for repair before using it again.

• Neither immerse the housing, which contains electrical components and the heating elements in water, nor rinse it under the tap.

• To protect against electric shock do not immerse cord, plugs, or housing in water or any other liquid.

• Do not place or use the appliance and its power cord on or near hot surfaces (for example, cooktops) or open flames.

• Do not leave the power cord hanging by sharp edges and keep it away from hot objects and flames. Do not wrap the cord around the appliance and do not bend it.

• Do not use the appliance if the cord or plug is damaged. In the event that the cord is damaged, it should only be replaced by t

anufacturer, its service agent, or similarly qualified persons, to avoid hazards.

• In the event of a malfunction of the appliance or if it has been damaged in any way, return

he appliance to the nearest authorized service center for examination, repair or adjustment.

• In case of hardware problems, do not try to repair the product yourself. Repair should only be carried out by qualified technicians.

• When you want to remove the plug from the wall socket, do so by pulling the plug and not by the the cord or the appliance itself.

• Make sure your hands are dry before plugging or unplugging.

• This appliance is not to be used by the persons (including children) with reduced physical, sensory or mental capabilities or lack of experience and knowledge, unless they have been given supervision or instruction.

• This appliance can be used by children aged from 8 years and above, and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning, use of the appliance in a safe way and understand the hazards involved.

• Children must be supervised to ensure that they do not play with the appliance.

• Children should not perform cleaning or maintenance, unless they are over 8 years old and supervised.

• Keep the appliance and its cord out of reach of children less than 8 years.

• Do not allow the children to use the appliance without supervision.

• Do not use the appliance for any other purpose than described in this manual.

• Do not let the appliance operate unattended.15 español english français portuguese deutsch italiano sources of water.

• Never immerse the appliance or the plug in water or any other liquid. In the event of the appliance being dropped into water, immediately disconnect it from the main supply and take it to an authorized service agent for repair before using it again.

• Neither immerse the housing, which contains electrical components and the heating elements in water, nor rinse it under the tap.

• To protect against electric shock do not immerse cord, plugs, or housing in water or any other liquid.

• Do not place or use the appliance and its power cord on or near hot surfaces (for example, cooktops) or open flames.

• Do not leave the power cord hanging by sharp edges and keep it away from hot objects and flames. Do not wrap the cord around the appliance and do not bend it.

• Do not use the appliance if the cord or plug is damaged. In the event that the cord is damaged, it should only be replaced by the manufacturer, its service agent, or similarly qualified persons, to avoid hazards.

• In the event of a malfunction of the appliance or if it has been damaged in any way, return the appliance to the nearest authorized service center for examination, repair or adjustment.

• In case of hardware problems, do not try to repair the product yourself. Repair should only be carried out by qualified technicians.

• When you want to remove the plug from t

all socket, do so by pulling the plug and not by the the cord or the appliance itself.

• Make sure your hands are dry befor

ugging or unplugging.

• This appliance is not to be used by the per sons (including children) with reduced physical, sensory or mental capabilities or lack of experience and knowledge, unless they have been given supervision or instruction.

• This appliance can be used by children aged

rom 8 years and above, and persons with reduced physical, sensory or mental capabilities or lack of experience and

nowledge if they have been given supervision or instruction concerning, use o

he appliance in a safe way and understand the hazards involved.

• Children must be supervised to ensure that they do not play with the appliance.

• Children should not perform cleaning or maintenance, unless they are over 8 years old and supervised.

• Keep the appliance and its cord out of reac

of children less than 8 years.

• Do not allow the children to use the appliance without supervision.

• Do not use the appliance for any other purpose than described in this manual.

• Do not let the appliance operate unattended.16 español english français portuguese deutsch italiano

• Never use accessories that are not recommended by the manufacturer.

• Always disconnect the appliance from t

ains when it is left unattended and before assembling, disassembling or cleaning.

• Do not use the appliance for any other purpose than described in this manual.

• Do not let the appliance operate unattended.

• Do not place the appliance against a wall or against any other appliance. Leave at least 10 cm free space from the all sides before placing the appliance.

• Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking out accessories.

• Ensure that the appliance is placed on a horizontal, even and stable surface.

• After cooking, frying basket and inner pot should not be placed directly on t

ountertop to avoid burning the countertop.

• This appliance is intended to be used in household and similar applications such as: a) staff kitchen areas in shops, offices a

her working environments; b) farm houses; c) by clients in hotels, motels and other residential type environments; d) bed and breakfast type environments. Instruction to be followed while using the appliance

• Always put the ingredients to be fried in the basket, to prevent it from coming into contact with the heating elements.

• Do not cover the air inlet and the air outer openings while the appliance is operating.

• Do not fill the pan with oil as this may cause a fire hazard.

• Extreme caution must be taken when moving an appliance containing hot oil or other hot liquids.

• Never touch the internal part of the appliance while in use.

• The temperature of accessible surfaces may be high when the appliance is operating

• Do not place anything on top of the appliance to prevent from any type of burn cause of hot surface.

• During air frying, hot steam is released through the air outlet openings, Keep your hands and face at a safe distance from the steam and from the air outlet openings.

• Also be careful of hot steam and air when you remove the pan from the appliance.

• Immediately unplug the appliance if you see dark smoke coming out of the appliance. Wait for the smoke emission to stop before you remove the pan from the appliance.

• WARNING: Do not touch hot surfaces.

• WARNING: This equipment shall be used17 español english français portuguese deutsch italiano

• Never use accessories that are not recommended by the manufacturer.

• Always disconnect the appliance from the mains when it is left unattended and before assembling, disassembling or cleaning.

• Do not use the appliance for any other purpose than described in this manual.

• Do not let the appliance operate unattended.

• Do not place the appliance against a wall or against any other appliance. Leave at least 10 cm free space from the all sides before placing the appliance.

• Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking out accessories.

• Ensure that the appliance is placed on a horizontal, even and stable surface.

• After cooking, frying basket and inner pot should not be placed directly on the countertop to avoid burning the countertop.

• This appliance is intended to be used in household and similar applications such as: a) staff kitchen areas in shops, offices and other working environments; b) farm houses; c) by clients in hotels, motels and other residential type environments; d) bed and breakfast type environments. Instruction to be followed while using the appliance

• Always put the ingredients to be fried in the basket, to prevent it from coming into contact with the heating elements.

• Do not cover the air inlet and the air outer openings while the appliance is operating.

• Do not fill the pan with oil as this may cause a fire hazard.

• Extreme caution must be taken when moving an appliance containing hot oil or other hot liquids.

• Never touch the internal part of the appliance while in use.

• The temperature of accessible surfaces may be high when the appliance is operating

• Do not place anything on top of the appliance to prevent from any type of burn cause of hot surface.

• During air frying, hot steam is released through the air outlet openings, Keep your hands and face at a safe distance from the steam and from the air outlet openings.

• Also be careful of hot steam and air when y

remove the pan from the appliance.

• Immediately unplug the appliance if you see dark smoke coming out of the appliance. Wait for the smoke emission to stop before you

emove the pan from the appliance.

• WARNING: Do not touch hot surfaces.

• WARNING: This equipment shall be used18 español english français portuguese deutsch italiano with CAUTION as this electrical appliance contains a heating function. Surface of this appliance is also different from other functional surfaces which can produce high temperatures. Since temperatures are differently perceived by different persons. The equipment must be touch only at intended handles and gripping surfaces with the help of heat protectors like gloves or similar type of clothing. Otherwise let it for sufficient time to cool down before touching the hot surfaces. Intr oduction This electric air fryer provides an easy and healthy way of preparing your favorite dishes. The best part of using the air fryer is that you can prepare as many types of fried dishes and have them without worry and or being conscious about consuming fatty foods, as it does not consume oil at all or if it consumes oil, then only a very little quantity. By using hot rapid air circulation, it is able to make numerous dishes. The best part is that the Air fryer heats food at all directions and most of the ingredients do not need any oil. TECHNICAL SPECIFICATIONS Voltage Power Frequency Capacity 220-240V 1400W 50-60Hz 3.5L

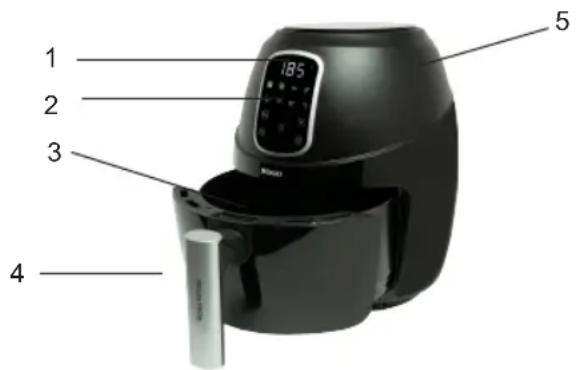

1. Power/Start-Stop Button: Once the unit is plugged in, the Power Button will light up and

screen shows the off mode of the unit. By pressing the Power Button once activate the digital screen and pressing twice automatically starts the cooking process at the default temperature of 180℃ and time of 15 min. While the air fryer is in working mode by pressing the Power Button for few moments continuously, causes the display enters in off mode immediately and the buzzer beeps 5 times, turning off the appliance and leaving the cooking process uncompleted. The fan will continue running for 10 sec. to cool down the Unit.

2. Minus and Plus Buttons: While in function, use these buttons to increase or decrease the

temperature and time as per desire.

3. Temperature and Time Control Button: There is one single button to control and change

the time and temperature value, pressing once this button enables you to raise or lower cooking temperature by 5℃ intervals ranging from 65℃ to 200℃. And pressing twice the same button enables you to select exact cooking time by changing, from 1 to 60 min. For all modes except when dehydrating.

4. LED Digital Display: The Digital Numeric Display shows the remaining Temperature and

Time during the cooking process.

5. Preset Cooking Menus: There are 8 pre-established menus in this air fryer. To select any

one of those press Menu button “M” and the first pre-established menu icon starts blinking, to keep changing the menu options, press again until the desired menu icon blinks (Note: The Temperature and time for every single menu has already been fixed as default time and temperature). Once selected the desired menu either press the power button to start the cooking process or it will start automatically after five sec.

HOW TO OPERATE THE AIR FRYER

• Place the Basket with desired food and plug in the unit to the wall outlet

• Press the Power’ key and the screen panel will light on and the default temp ‘180ºC’ and default time ‘15:00’ appears on to the control panel and unit is under default mode of operation.

• Touch the "temp / timer" toggle key to change the temperature and time function in order to change the time and temperature settings with the help of the "+" and "-" buttons.

• To cook food in any of the preset menu cooking modes, touch the Menu button “M” and the menu options will start flashing. Press and hold the Menu button until the desired menu option flashes.

• After selecting the menu option, press the Start / Pause button to start the cooking function.

español english français portuguese deutsch italiano with CAUTION as this electrical appliance contains a heating function. Surface of this appliance is also different from other functional surfaces which can produce high temperatures. Since temperatures are differently perceived by different persons. The equipment must be touch only at intended handles and gripping surfaces with the help of heat protectors like gloves or similar type of clothing. Otherwise let it for sufficient time to cool down before touching the hot surfaces. Introduction This electric air fryer provides an easy and healthy way of preparing your favorite dishes. The best part of using the air fryer is that you can prepare as many types of fried dishes and have them without worry and or being conscious about consuming fatty foods, as it does not consume oil at all or if it consumes oil, then only a very little quantity. By using hot rapid air circulation, it is able to make numerous dishes. The best part is that the Air fryer heats food at all directions and most of the ingredients do not need any oil. TECHNICAL SPECIFICATIONS Voltage Power Frequency Capacity 220-240V 1000W 50-60Hz

1. Power/Start-Stop Button: Once the unit is plugged in, the Power Button will light up and screen

shows the off mode of the unit. By pressing the Power Button once activate the digital screen and pressing twice automatically starts the cooking process at the default temperature of 185℃ and time of 15 min. While the air fryer is in working mode by pressing the Power Button for few moments continuously, causes the display enters in off mode immediately and the buzzer beeps 5 times, turning off the appliance and leaving the cooking process uncompleted. The fan will continue running for 10 sec. to cool down the Unit.

2. Minus and Plus Buttons: While in function, use these buttons to increase or decrease the

temperature and time as per desire.

3. Temperature and Time Control Button: There is one single button to control and change the

time and temperature value, pressing once this button enables you to raise or lower cooking temperature by 5℃ intervals ranging from 65℃ to 200℃. And pressing twice the same button enables you to select exact cooking time by changing, from 1 to 60 min. For all modes except when dehydrating.

4. LED Digital Display: The Digital Numeric Display shows the remaining Temperature and Time

during the cooking process.

5. Preset Cooking Menus: There are 8 pre-established menus in this air fryer. To select any one

of those press Menu button “M” and the first pre-established menu icon starts blinking, to keep changing the menu options, press again until the desired menu icon blinks (Note: The Temperature and time for every single menu has already been fixed as default time and temperature). Once selected the desired menu either press the power button to start the cooking process or it will start automatically after five sec.

HOW TO OPERATE THE AIR FRYER

• Place the Basket with desired food and plug in the unit to the wall outlet

• Press the Power’ key and the screen panel will light on and the default temp ‘185ºC’ and default time ‘15:00’ appears on to the control panel and unit is under default mode of operation.

• Touch the "temp / timer" toggle key to change the temperature and time function in order to change the time and temperature settings with the help of the "+" and "-" buttons.

• To cook food in any of the preset menu cooking modes, touch the Menu button “M” and the menu options will start flashing. Press and hold the Menu button until the desired menu option flashes.

• After selecting the menu option, press the Start / Pause button to start the cooking function.20 español english français portuguese deutsch italiano Shaking the food half way through process To get the most out of your Air fryer and the best results, it is always recomended to shake or turn upside down the food half way through the process to get an evenly cooked final result. But most of the times it is not easy to remember to stop the air fryer, shake the food and start again. Auto reminder function to shake the food in halfway through process So this model of air fryer has “auto reminder” function, which reminds you with the help of simply “5” times beep signal and control panel flashing with “000” for about 20s to shake or stir the food. Functioning of the auto reminder fuction The automatic reminder function is preestablished on the fryer and will work as long as the total process time is equal to or greater than “12” minutes in both preset and personalized menus. Assuming a 12 minute menu has been set. During the first 2/3 of the time (8 minutes) it will do the normal cooking and when 1/3 (4 minutes) of time remained left, the display will show “000”, it will begin to flash for about 20 seconds and a beep will sound “5 ”Times to remind you that you can shake or stir the food. This is time to remove the basket from the fryer. Once removed, the process will stop and the front panel will turn off. Stir the food and place the air fryer basket back into its position and the air fryer activates automatically in order to complete the cooking process where it had left off. And in case if you don’t want to stir the food, after 20sec. till the cooking process was suspended, the fryer starts working until the completion of the cooking procedure.

te: Preheat the air fryer for 5 minutes before preparing any type of dish. The above default datas are for reference only, the user can adjust the desired temperature and time as required. Tips Smaller size ingredients usually require a slightly shorter preparation time than large size ingredients A larger amount of ingredients only requires a silghtly longer preparation time comparatively smaller amount of ingredients. Shaking smaller ingredients halfway through the preparation time optimizes the end result and can prevent unevenly fried ingredients. Add some oil to fresh potatoes for a crispy result. Fry your ingredients in the air fryer within a few minutes after you added the oil. Do not prepare extremely greasy ingredients such as sausages in the air fryer . Snacks that can be prepared in a oven can also be prepared in the air fryer The optimal amount for preparing crispy fries is 500 grams. Use pre-made dough to prepare filled snacks quickly and easily. Pre-made dough also requires a shorter preparation time than home-made dough. Place a baking tin or oven dish in the air fryer basket if you want to bake a cake or quiche or if you want to fry fragile ingredients or filled ingredients You can also use the Air fryer to reheat ingredients. To reheat ingredients, set the temperature to 150ºC for up to 10 minutes. Cleaning

1. Clean the appliance after every use.

2. The pan and the non-stick coating basket: do not use metal kitchen utensils or

abrasive cleaning materials to clean them, as this may damage the non-stick coating.

3. Remove the mains plug from the wall socket and let the appliance cool down.

Note: Remove the pan to let the air fryer cool down more quickly.

4. After cooking, frying basket and inner pot should not be placed directly on the countertop to

avoid burning the countertop.

5. Wipe the outside of the appliance with a moist cloth.

6. Clean the pan, separator and basket with hot water, some cleaning liquid and a non-abrasive

7. You can use degreasing liquid to remove any remaining dirt.

Tip: If dirt is stuck to the basket or the bottom of the pan, fill the pan with hot water with some cleaning liquid. Put the basket in the pan and let the pan and the basket soak for approximately 10 minutes.

8. Clean the inside of the appliance with hot water and non-abrasive sponge.

9. Clean the heating element with a cleaning brush to remove any food residues.

10. Unplug the appliance and let it cool down.

11. Make sure all parts are clean and dry.

12. Store in a cool and dry place21

español english français portuguese deutsch italiano Shaking the food half way through process To get the most out of your Air fryer and the best results, it is always recomended to shake or turn upside down the food half way through the process to get an evenly cooked final result. But most of the times it is not easy to remember to stop the air fryer, shake the food and start again. Auto reminder function to shake the food in halfway through process So this model of air fryer has “auto reminder” function, which reminds you with the help of simply “5” times beep signal and control panel flashing with “000” for about 20s to shake or stir the food. Functioning of the auto reminder fuction The automatic reminder function is preestablished on the fryer and will work as long as the total process time is equal to or greater than “12” minutes in both preset and personalized menus. Assuming a 12 minute menu has been set. During the first 2/3 of the time (8 minutes) it will do the normal cooking and when 1/3 (4 minutes) of time remained left, the display will show “000”, it will begin to flash for about 20 seconds and a beep will sound “5 ”Times to remind you that you can shake or stir the food. This is time to remove the basket from the fryer. Once removed, the process will stop and the front panel will turn off. Stir the food and place the air fryer basket back into its position and the air fryer activates automatically in order to complete the cooking process where it had left off. And in case if you don’t want to stir the food, after 20sec. till the cooking process was suspended, the fryer starts working until the completion of the cooking procedure.

French Fries 200ºC 15min Pizza 180ºC 15min Pork Chops 185ºC 25min Fish 185ºC 15min Bake 175ºC 30min Roast 200ºC 30min Chicken 185ºC 20min Seafood 185ºC 12min Note: Preheat the air fryer for 5 minutes before preparing any type of dish. The above default datas are for reference only,the user can adjust the desired temperature and time as required. Tips Smaller size ingredients usually require a slightly shorter preparation time than large size ingredients A larger amount of ingredients only requires a silghtly longer preparation time comparatively smaller amount of ingredients. Shaking smaller ingredients halfway through the preparation time optimizes the end result and can prevent unevenly fried ingredients. Add some oil to fresh potatoes for a crispy result. Fry your ingredients in the air fryer within a few minutes after you added the oil. Do not prepare extremely greasy ingredients such as sausages in the air fryer . Snacks that can be prepared in a oven can also be prepared in the air fryer The optimal amount for preparing crispy fries is 500 grams. Use pre-made dough to prepare filled snacks quickly and easily. Pre-made dough also requires a shorter preparation time than home-made dough. Place a baking tin or oven dish in the air fryer basket if you want to bake a cake or quiche or if you want to fry fragile ingredients or filled ingredients You can also use the Air fryer to reheat ingredients. To reheat ingredients, set the temperature to 150ºC for up to 10 minutes. Cleaning

1. Clean the appliance after every use.

2. The pan and the non-stick coating basket: do not use metal kitchen utensils or

abrasive cleaning materials to clean them, as this may damage the non-stick coating.

3. Remove the mains plug from the wall socket and let the appliance cool down.

Note: Remove the pan to let the air fryer cool down more quickly.

4. After cooking, frying basket and inner pot should not be placed directly on the countertop to

oid burning the countertop.

5. Wipe the outside of the appliance with a moist cloth.

6. Clean the pan, separator and basket with hot water, some cleaning liquid and a non-abrasiv

7. You can use degreasing liquid to remove any remaining dirt.

Tip: If dirt is stuck to the basket or the bottom of the pan, fill the pan with hot water with some

leaning liquid. Put the basket in the pan and let the pan and the basket soak for approximately 10 minutes.

8. Clean the inside of the appliance with hot water and non-abrasive sponge.

9. Clean the heating element with a cleaning brush to remove any food residues.

10. Unplug the appliance and let it cool down.

11. Make sure all parts are clean and dry.

12. Store in a cool and dry place22

español english français portuguese deutsch italiano TROUBLE SHOOTING Problem Possible cause Solution The Air fryer does not work The appliance is not plugged in. Put the mains plug in an earthed wall socket. You have not set the timer. Set the time to the required preparation time to switch on the appliance. The ingredients fried with the air fryer are not done. The amount of ingredients is much more in the basket compare to the basket size. Put smaller batches of ingredients in the basket. Smaller batches are fried more evenly. The set temperature is too low. Set the temperature to the required temperature setting (see section ‘settings’ in chapter ‘Using the appliance’). The preparation time is too short. Set the time to the required preparation time (see section ‘Settings’ in chapter’ Using the appliance’). The ingredients are half fried or unevenly fried in the air fryer. Certain types of ingredients need to be shaken halfway through the preparation time. Ingredients that lie on top or across each other (e.g. fries) need to be shaken halfway through the preparation time. See section ‘Settings’ in chapter ‘Using the appliance’. Fried snacks are not crispy when they come out of the air fryer. You used a type of snacks meant to be prepared in a traditional deep fryer. Use oven snacks or lightly brush some oil on to the snacks for a crispier result. I cannot slide the pan into the appliance properly. There are too much ingredients in the basket. Do not fill the basket beyond the MAX indication even try to fill Little less. The basket is not placed in the pan correctly. Push the basket down into the pan until you hear a click. White smoke comes out of the appliance. You are preparing greasy ingredients. When you fry greasy ingredients in the air fryer, a large amount of oil will leak into the pan. The oil produces white smoke and the pan may heat up more than usual. This does not affect the appliance or the end result. The pan still contains grease residues from previous use. White smoke is caused by grease heating up in the pan . make sure you clean the pan properly after each use. French fries are fried unevenly in the air fryer. You did not use the right potato type. Use fresh potatoes and make sure they stay firm during frying. You did not rinse the potato sticks properly before you fried them. Rinse the potato sticks properly to remove the starch from outside of the sticks. French fries are not crispy when they come out of the air fryer. The crispiness of the fries depends on the amount of oil and water in the fries. Make sure you dry the potato sticks properly before you add the oil. Cut the potato sticks smaller for a crispier result. Add slightly more oil for a crispier result. IMPORTANT:

• Avant de nettoyer ou de ranger votre appareil, débranchez toujours l’appareil de la source d’alimentation et laissez-le refroidir.23 español english français portuguese deutsch italiano TROUBLE SHOOTING Problem Possible cause Solution The Air fryer does not work The appliance is not plugged in. Put the mains plug in an earthed wall socket. You have not set the timer. Set the time to the required preparation time to switch on the appliance. The ingredients fried with the air fryer are not done. The amount of ingredients is much more in the basket compare to the basket size. Put smaller batches of ingredients in the basket. Smaller batches are fried more evenly. The set temperature is too low. Set the temperature to the required temperature setting (see section ‘settings’ in chapter ‘Using the appliance’). The preparation time is too short. Set the time to the required preparation time (see section ‘Settings’ in chapter’ Using the appliance’). The ingredients are half fried or unevenly fried in the air fryer. Certain types of ingredients need to be shaken halfway through the preparation time. Ingredients that lie on top or across each other (e.g. fries) need to be shaken halfway through the preparation time. See section ‘Settings’ in chapter ‘Using the appliance’. Fried snacks are not crispy when they come out of the air fryer. You used a type of snacks meant to be prepared in a traditional deep fryer. Use oven snacks or lightly brush some oil on to the snacks for a crispier result. I cannot slide the pan into the appliance properly. There are too much ingredients in the basket. Do not fill the basket beyond the MAX indication even try to fill Little less. The basket is not placed in the pan correctly. Push the basket down into the pan until you hear a click. White smoke comes out of the appliance. You are preparing greasy ingredients. When you fry greasy ingredients in the air fryer, a large amount of oil will leak into the pan. The oil produces white smoke and the pan may heat up more than usual. This does not affect the appliance or the end result. The pan still contains grease residues from previous use. White smoke is caused by grease heating up in the pan . make sure you clean the pan properly after each use. French fries are fried unevenly in the air fryer. You did not use the right potato type. Use fresh potatoes and make sure they stay firm during frying. You did not rinse the potato sticks properly before you fried them. Rinse the potato sticks properly to remove the starch from outside of the sticks. French fries are not crispy when they come out of the air fryer. The crispiness of the fries depends on the amount of oil and water in the fries. Make sure you dry the potato sticks properly before you add the oil. Cut the potato sticks smaller for a crispier result. Add slightly more oil for a crispier result. IMPORTANT:

DAS DIGITALE BEDIENFELD

DAS DIGITALE BEDIENFELD

DECLARATION OF CONFORMITY

This device complies with Low Voltage Directive 2014/35/EC, Electromagnetic Compatibility Directive 2014/30/EU, Directive 2015/863/EU on the restriction of the use of certain hazardous substances in electrical and electronic equipment and Directive 2009/125/EC on the eco-design requirements applicable to energy-related products.
