USER MANUAL FRESS10475 Sogo

Electric Food Dehydrator

Friteuse sans Huile

Caution: please read and preserve these important instructions

INTRODUICION

This all new Air FRYER provides an easy and healthy way of preparing your favorite ingredients. By using hot rapid air circulation, it is able to make numerous dishes. The best part is that the Air FRYER heats food at all directions and most of the ingredients do not need any oil.

IMPORTANT

Please read this manual carefully before any using of the appliance as dangers may occur under incorrect operations.

This manual can also be downloaded from our website www.sogo.es

DANGER

• Do not immersing the housing in water or rinse under the tap due to the multi electrical and heating components.
• Avoid any liquid enter the appliance to prevent from electric shock or short-circuit.
• Keep all ingredients in the basket to prevent any contact from heating elements.
• Do not cover the air inlet and the air outlet when the appliance is working.
• Filling the oil catch plate with oil may cause a fire hazard.
• Do not touch the inside of the appliance while it is operating.

WARNING

Check if the voltage indicated on the appliance fits the local mains voltage.

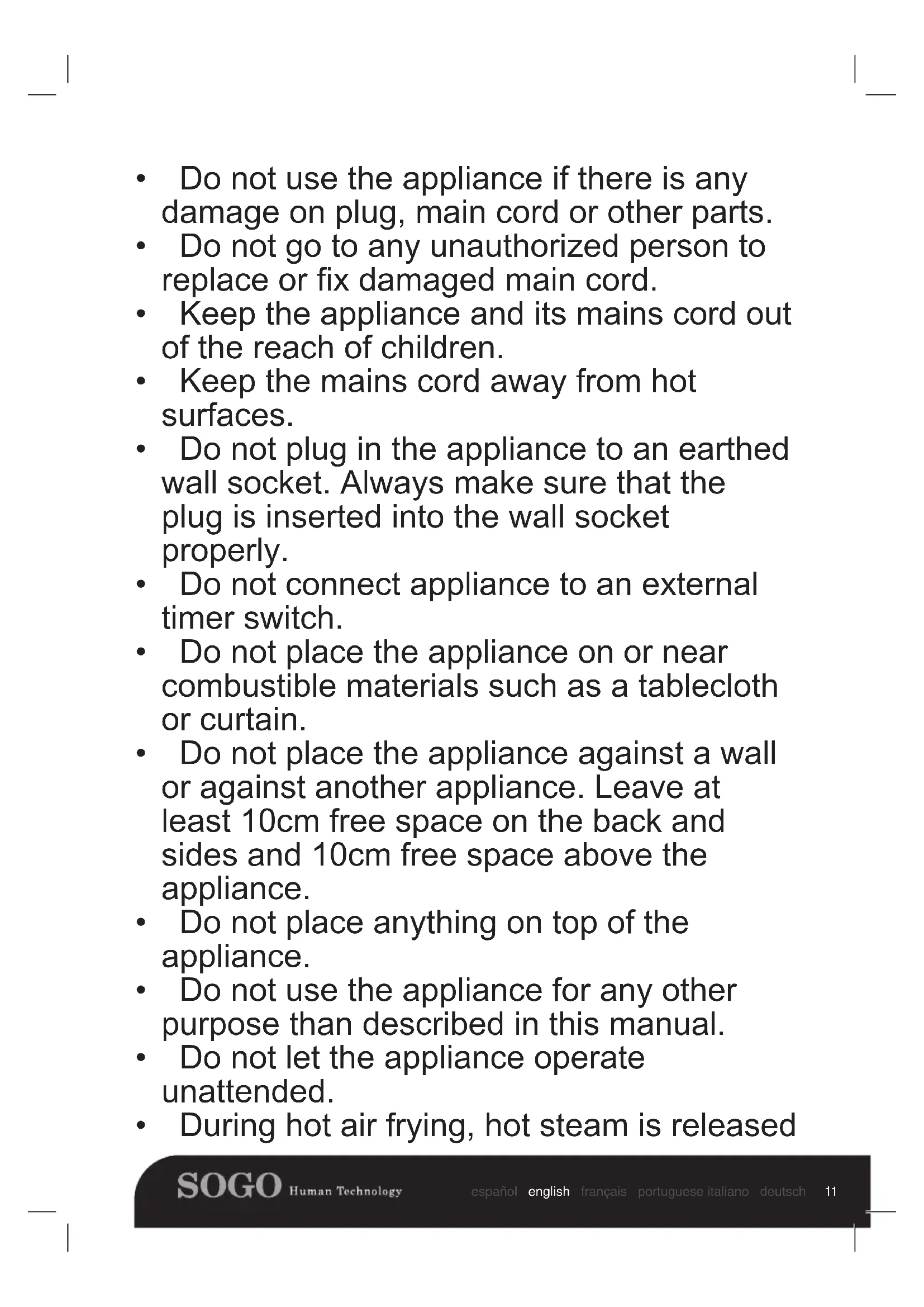

• Do not use the appliance if there is any damage on plug, main cord or other parts.
• Do not go to any unauthorized person to replace or fix damaged main cord.
• Keep the appliance and its mains cord out of the reach of children.
• Keep the mains cord away from hot surfaces.
• Do not plug in the appliance to an earthed wall socket. Always make sure that the plug is inserted into the wall socket properly.
• Do not connect appliance to an external timer switch.
• Do not place the appliance on or near combustible materials such as a tablecloth or curtain.
• Do not place the appliance against a wall or against another appliance. Leave at least 10cm free space on the back and sides and 10cm free space above the appliance.
• Do not place anything on top of the appliance.
• Do not use the appliance for any other purpose than described in this manual.
• Do not let the appliance operate unattended.
• During hot air frying, hot steam is released

through the air outlet openings. Keep your hands and face at a safe distance from the steam and from the air outlet openings.

Also, be careful of hot steam and air when you remove the basket from the appliance.

• Any accessible surfaces may become hot during use.
• Immediately unplug the appliance if you see dark smoke coming out of the appliance. Wait for the smoke emission to stop before you remove the basket from the appliance.
• The appliance is not intended to be operated by means of an external timer or a separate remote-control system
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
  Children shall not play with the appliance.
• Cleaning and user maintenance shall not be made by children without supervision.
• Children should be supervised to ensure that they do not play with the appliance.
  If the supply cord is damaged, it must be

replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

CAUTION

• Ensure the appliance in placed on a horizontal, even and stable surface.
• This appliance is designed for household use only. It may not suitable to be safely used in environments such as staff kitchens, farms, motels, and other non-residential environments.
• The guarantee is invalid if the appliance is used for professional or semi-professional purposes, or it is not used according to instructions.
• Always unplug the appliance while not using.
• The appliance needs approximately 30 minutes to cool down for handle or cleaning safely.

AUTOMATIC SWITCH-OFF

The appliance has a built-in timer, it will automatically shut down the appliance when count down comes to zero. You can manually switch off the appliance by turning timer knob to zero anticlockwise.

Electromagnetic fields (EMF) The appliance complies with all standards regarding Electro-Magnetic fields (EMF). Under proper handling, there is no harm for human body based on available scientific Evidence.

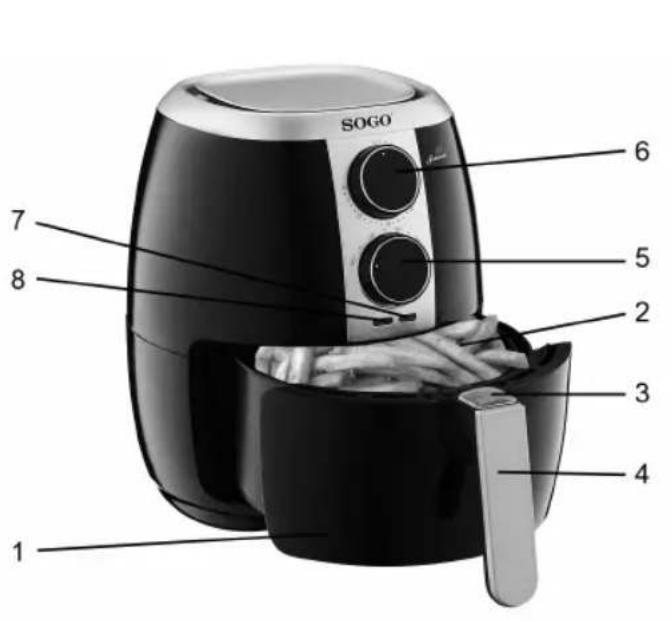

1. Pan
2. Basket
3. Basket release button
4. Basket handle
5. Timer (0-30 min) / power-on knob
6. Temperature control knob
7. Heating-up light
8. Power-on light
9. Air inlet
10. Air oulet openings
11. Mains cord

BEFORE FIRST USE

1. Remove all packaging materials and stickers or labels.
2. Clean the basket and oil catch plate with hot water, with some washing liquid and a non-abrasive sponge. These parts are safe to be cleaned in dishwasher.
3. Wipe inside and outside of the appliance with a cloth. And there is no need to fill the Oil catch plate with oil and frying fat as the appliance works on hot air.

PREPARING FOR USE

Place the appliance on a stable, horizontal and even surface.

Do not place the appliance on non-heat-resistant surface.

USING THE APPLIANCE

This appliance is able to prepare a huge range of dishes, you may get help from the recipe book.

HOT AIR FRYING

1. Connect the mains plug into an earthed wall socket.
2. Use the basket handle and pull the basket out of air fryer
3. Place the ingredients in the basket

Note: Do not exceed the MAX indication (see section 'settings' in this chapter), as it may effect the quality of the food.

1. Slide the Basket back into the Air fryer and close the door
2. Turn the temperature control knob to the proper temperature. See section 'Settings' in this chapter to determine the right temperature
3. Determine the required preparation time for the ingredient (see section 'Settings' in this chapter).
4. To switch on the appliance, turn the timer knob to the required preparation time

Add 3 minutes to preparation time if the appliance is cold

Note: If you want, you can also preheat the appliance without any ingredients inside. In that case, turn the timer knob for more than 3 minutes and wait until the heating-up light goes out (after about 3 minutes). Then fill the basket and turn the timer knob to the required preparation time.

a. The power-on light and the heating-up light turns on.
b. The timer starts counting down the set preparation time.
c. During the hot air frying process, the heating-up light comes on and goes out

from time to time. This indicates that the heating element is switched on and off to maintain the set temperature.

1. Some ingredients require to shake halfway during the preparation time (see section 'Settings' in this chapter). By this way, pull the basket out of the appliance by the handle and shake it. Then slide the basket back into the magic fryer

Tip: If you set the timer half of the preparation time, you have to shake the ingredients when you hear the timer bell ringing. However, this means that you have to set the timer again to the remaining preparation time after shaking.

1. When you hear the timer bell, the set preparation time has elapsed. Pull the basket out of the appliance and place it on the heat-resistant holder

Note: You can also switch off the appliance manually. Do like this, turn the temperature control knob to 0.

1. Check if the ingredients are ready. If the ingredients are not ready yet, simply slide the basket back into the appliance and set the timer to a few extra minutes.
2. Empty the basket into a bowl or onto a plate.

Tip: To remove large or fragile ingredients, lift the ingredients out of the basket by a pair of tongs.

1. When a batch of ingredients is ready, the fryer is instantly ready for preparing another batch.

SETTINGS

This table below will help you to select the basic settings for the ingredients.

Note: Keep in mind that these settings are indications. As ingredients differ in origin, size, shape and brand, we cannot guarantee the best setting for your ingredients.

Because the Rapid Air technology reheats the air inside the appliance instantly, pull the basket briefly out of the appliance during hot air frying barely disturbs the process.

Tips

• Smaller ingredients usually require a slightly shorter preparation time than larger ingredients.

• A larger amount of ingredients only requires a slightly longer preparation time, a smaller amount of ingredients only requires a slightly shorter preparation time.

• Shaking smaller ingredients halfway during the preparation time optimizes the end result and can help prevent unevenly fried ingredients.
• Add some oil to fresh potatoes for a crispy result. Fry your ingredients in the fryer within a few minutes after adding the oil.
• Do not prepare extremely greasy ingredients such as sausages in the FRYER.
  Snacks can be prepared in an oven can also be prepared in the FRYER.
  The optimal amount for prepare crispy fries is 500 grams.
  Use pre-made dough to prepare filled snacks quickly and easily. Pre-made dough also requires a shorter preparation time than home-made dough.
• Place a baking tin or oven dish in its basket if you want to bake a cake or quiche or if you want to fry fragile ingredients or filled ingredients.
  You can also use it to reheat ingredients. To reheat ingredients, set the temperature to 150^ for up to 10 minutes.

CLEANING

Clean the appliance after every use.

Do not clean basket and the inside of the appliance by metal kitchen utensils or abrasive cleaning materials, as this may damage the non-stick coating of them.

1. Remove the mains plug from the wall socket and make the appliance cool down.
2. Wipe the outside of the appliance with a moist cloth.
3. Clean the oil catch plate and basket with hot water, some washing-up liquid and a non-abrasive sponge.

You can remove any remaining dirt by degreasing liquid.

Note: The oil catch plate and basket are dishwasher-proof.

Tip: If dirt is stuck to the basket or the bottom of the oil catch plate, fill the plate with hot water

1. Clean the inside of the appliance with hot water and non-abrasive sponge.
2. Clean the heating element with a cleaning brush to remove any food residues.

STORAGE

1. Unplug the appliance wait for complete cooled down
2. Make sure all parts are clean and dry.

TECHNICAL SPECIFICATION:

SS-10475

220-240V~50/60Hz - 1500W

INTRODUCTION

DECLARATION OF CONFORMITY

This device complies with Low Voltage Directive 2014/35/EC, Electromagnetic Compatibility Directive 2014/30/EU, Directive 2011/65/EU on the restriction of the use of certain hazardous substances in electrical and electronic equipment and Directive 2009/125/EC on the eco-design requirements applicable to energy-related products.

This symbol means that in case you wish to dispose of the product once its working has ended, take it to an authorised w agent for the selective collection of waste electrical and electronic equipment (WEEE)

Imported by:

Sanysan Appliances S.L, NIF: B98753056, C/ Barcas 2, 2

46002 Valencia, Spain

Product made in P.R.C. - Designed by

SOGO based on the European Quality

Standards

Customer Service: www.sogosat.com /

[e-mail] / 0034 902 222 161
