USER MANUAL GDKP 5460 B GRUNDIG

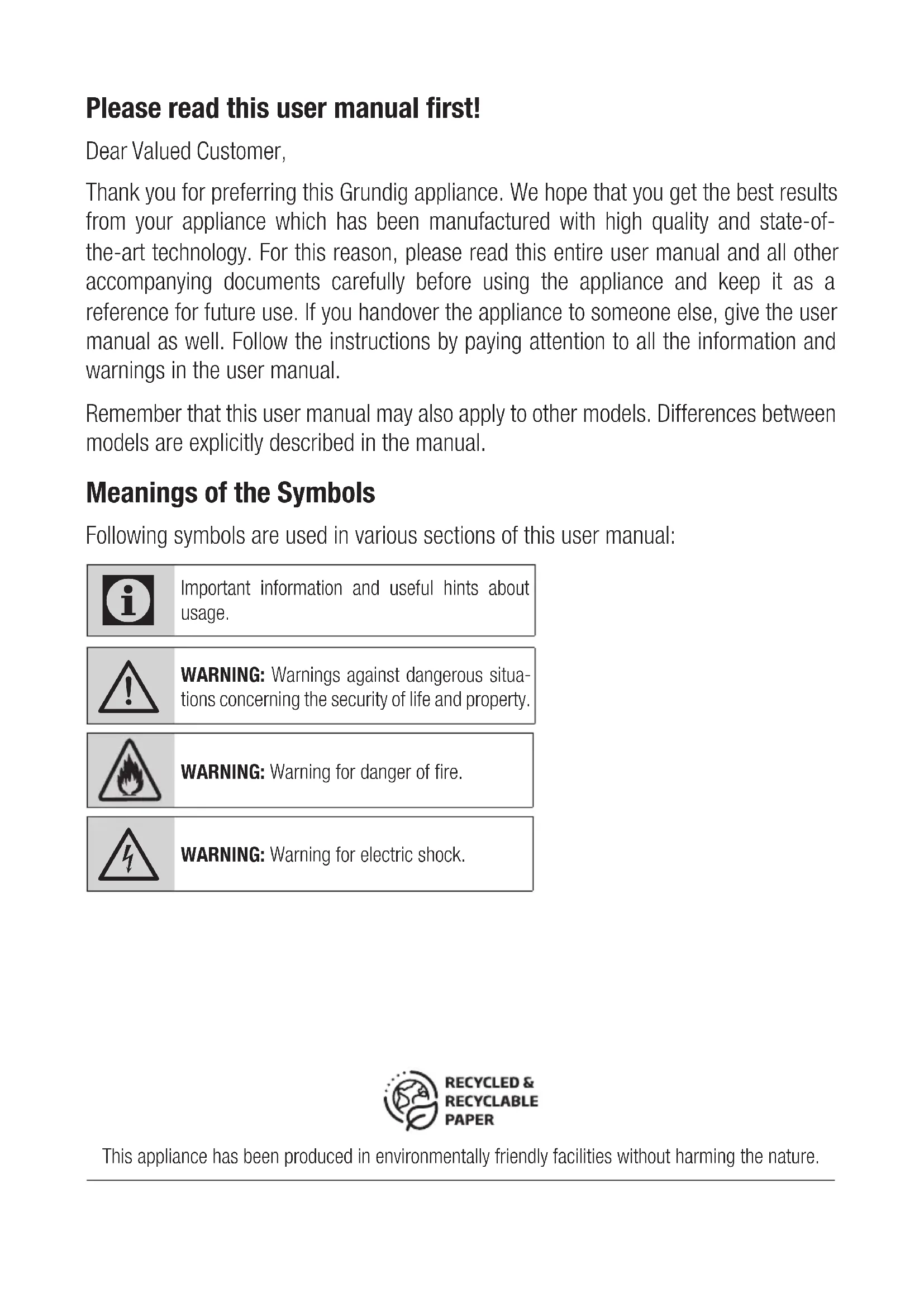

DANSK 64-76 SUOMI 77-89 NORSK 90-102 SVENSKA 103-15 NEDERLANDS 116-129Please read this user manual first! Dear Valued Customer, Thank you for preferring this Grundig appliance. We hope that you get the best results from your appliance which has been manufactured with high quality and state-of- the-art technology. For this reason, please read this entire user manual and all other accompanying documents carefully before using the appliance and keep it as a reference for future use. If you handover the appliance to someone else, give the user manual as well. Follow the instructions by paying attention to all the information and warnings in the user manual. Remember that this user manual may also apply to other models. Differences between models are explicitly described in the manual. Meanings of the Symbols Following symbols are used in various sections of this user manual:

Important information and useful hints about usage.

WARNING: Warnings against dangerous situa-

tions concerning the security of life and property.

WARNING: Warning for danger of fire.

WARNING: Warning for electric shock.

This appliance has been produced in environmentally friendly facilities without harming the nature.4 / EN Cooker Hood / User Manual

Important safety and environmental instructions

Important Safety Instructions Read Carefully And Keep For Future Reference This section contains safety instructions that will help protect from risk of fire, electric shock, exposure to leak micro- wave energy, personal injury or property damage. Failure to follow these instructions shall void any warranty.

• Grundig products comply with the applicable safety standards; therefore, in case of any damage on the appliance or power cable, it should be repaired or replaced by the dealer, service center or a specialist and authorized service alike to avoid any danger. Faulty or unqualified repair work may be dangerous and cause risk to the user.

• This appliance is intended to be used in household and similar applications such as: – Staff kitchen areas in shops, offices and other working en- vironments; – Farm houses – By clients in hotels, and other residential type environments; – Bed and Breakfast type envi- ronments.

• Operate the appliance for its intended purpose only as de- scribed in this manual.

• The manufacturer cannot be held liable for damages resulting from improper installation or misuse of the product.

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental ca- pabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

• Children shall not be allowed play with the appliance. Cleaning and user maintenance shall not be made by children without su- pervision.Cooker Hood / User Manual 5 / EN

Important safety and environmental instructions

• The minimum distance between the supporting surface for the cooking vessels on the hob and the lowest part of your product must be at least 65 cm.

• If the instructions for installation for the gas hob specify a greater distance, this has to be taken into account.

• Make sure that your mains power supply complies with the information supplied on the rat- ing plate of the appliance.

• Never use the appliance if the power cable or the appliance it- self is damaged.

• Prevent damage to the power cable by not squeezing, bending, or rubbing it on sharp edges. Keep the power cable away from hot surfaces and naked flame.

• Use the appliance with a grounded outlet only.

WARNING: Do not connect the

appliance to the mains until the installation is fully complete.

• Place the appliance in a way so that the plug is always accessible.

• Do not touch the lamps if they have operated for a long time. They can burn your hands since they will be hot.

• Follow the regulations set out by competent authorities on dis- charge of the exhaust air (this warning is not applicable for use without flue).

• Operate your appliance after put- ting a pot, pan etc. on the hob. Otherwise, high heat may cause deformation in some parts of your product.

• Turn off the hob before taking the pot, pan etc. from it.

• Do not leave hot oil on the hob. Pans with hot oil may cause self combustion.

• Pay attention to your curtains and covers since oil may catch fire while cooking food such as fries.

• Grease filter must be cleaned at least monthly. Carbon filter must be replaced at least every 3 months.6 / EN Cooker Hood / User Manual

Important safety and environmental instructions

• Product shall be cleaned ac- cordance with user manual. If cleaning was not carried out in accordance with user manual, there may be fire risk.

• Do not use non-fire-resistant filtering materials instead of the current filter.

• Only use the original parts or parts recommended by the man- ufacturer.

• Do not operate the product with- out the filter and do not remove the filters while the product is running.

• In the event of be started any flame, de-energize your product and cooking appliances.

• In the event of be started any flame, cover the flame and never use water to extinguish.

• Unplug the appliance before each cleaning and when the ap- pliance is not in use.

• The negative pressure in the envi- ronment should not exceed 4 Pa (4x10 bar) while the hood for elec- tric hob and appliances running on another type of energy but electric- ity operate simultaneously.

• In the environment where the appliance is being used, the ex- haust of devices running on fuel oil or gas, such as room heater must be absolutely isolated or device must be hermetical type.

• When connecting the flue, use pipes with a diameter of 120 or 150 mm. Pipe connection must be as short as possible and have as few elbows as possible.

• Danger of choking! Keep all the packaging materials away from children. CAUTION: Accessible parts may become hot when used with cook- ing appliances.

• The product outlet must not be connected to air channels that include other smoke.

• The ventilation in the room may be insufficient when the hood for electric hob is used simultane- ously with the devices operating on gas or other fuels (this may not apply to appliances that only discharge the air back into the room).Cooker Hood / User Manual 7 / EN

Important safety and environmental instructions

• Objects placed on the product may fall. Do not place any ob- jects on the product.

• Do not flambe under the your product.

WARNING: Before installing the

Hood, remove the protective films.

• Never leave high naked flames under the hood when it is in op- eration

• Deep fat fryers must be contin- uously monitored during use: overheated oil can burst into flames.

1.2 Compliance with the WEEE

Directive and Disposing of the Waste Product: This product complies with EU WEEE Directive (2012/19/EU). This product bears a classification symbol for waste electrical and electronic equip- ment (WEEE). This symbol indicates that this product shall not be disposed with other household wastes at the end of its ser- vice life. Used device must be returned to offical collection point for recycling of electrical and electronic devices. To find these collection systems please contact to your local au- thorities or retailer where the product was pu- chased. Each household performs important role in recovering and recycling of old appliance. Appropriate disposal of used appliance helps pre- vent potential negative consequences for the envi- ronment and human health.

1.3 Compliance with RoHS Directive

The product you have purchased complies with EU RoHS Directive (2011/65/EU). It does not contain harmful and prohibited materials specified in the Directive.

1.4 Package Information

Packaging materials of the product are manufactured from recyclable materials in accordance with our National Environment Regulations. Do not dis- pose of the packaging materials together with the domestic or other wastes. Take them to the pack- aging material collection points designated by the local authorities.8 / EN Cooker Hood / User Manual 2 General appearance

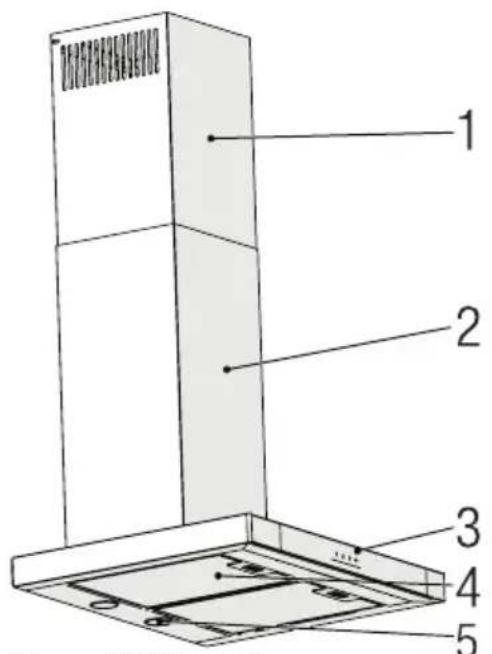

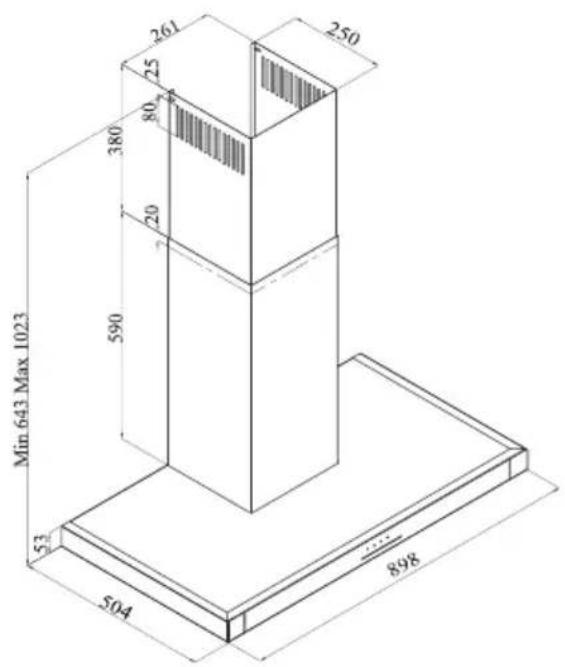

4. Aluminum grease filter

Supply voltage & Frequency 220-240V~ 50 Hz Lamp power 2x3 W Motor power 210 W Flow rate – 3. Level 645 m³/h Insulation class of motor Class F Insulation class Class I (Figure 1) (Figure 2)Cooker Hood / User Manual9 / EN 3 Operation of the appliance

3.1 Controlling the appliance

A B C D Key FunctionA : 1. stage button Operates the appliance on 1st speed. When you press this button again to turn off the appliance, the screen speed stage turns off.B : 2. stage button Operates the appliance on 2nd speed. When you press this button again to turn off the appliance, the screen speed stage turns off.C : 3rd stage button Operates the appliance on 3rd speed. When you press this button again to turn off the appliance, the screen speed stage turns off.D : Light On/Off You may illuminate the cook-ing area by pressing this button. Re-press the button to turn off the lamp.3.2 Energy efficient usage • When using your appliance, adjust the speed settings according to vapour and odour intensity, in order to save energy. • Use low speeds (1-2) under normal conditions, and high speed (3) for intense odour and vapour.

• The lamps on the hood are placed for illuminat- ing the cooking area. • Using them for environmental lighting shall cause unnecessary energy expenditure and in-sufficient lighting.3.3 Operating the hood • Your appliance contains a motor that has various speeds. • For better performance, we recommend using low speeds under normal conditions and high speeds in cases of strong odours and intense vapour. • You can start your appliance by pressing on the desired speed setting button. (A, B, C). • You may illuminate the cooking area by pressing the lamp (D).3.4 Automatic stop Your appliance has Automatic Stop feature, ena-bling it to ventilate for a bit more and remove the unwanted odours and vapour inside the environ-ment and turn off automatically after the cooking is done. To enable Automatic Stop feature, press the any speed stage button (A, B, C) on the control panel for longer than 2 seconds; the 15-minute timer function shall be activated. When the au-tomatic stop feature is active, pressing the same speed button shall disable the automatic stop function and the appliance's motor shall stop. This feature is disables when you switch between dif-ferent speed stages. If you want the appliance to stop automatically, you need to enable the auto-matic stop feature again.3.5 Replacement of lamp MAX 3 W (Figure 3)10 / EN Cooker Hood / User Manual

3.7 Operation without chimney

• Air is filtered through the carbon filter and recirculated in the room. Carbon filter is used when it is impossible to use a flue in the house.

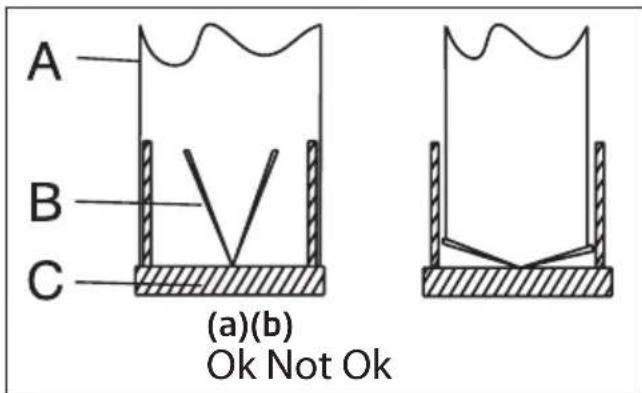

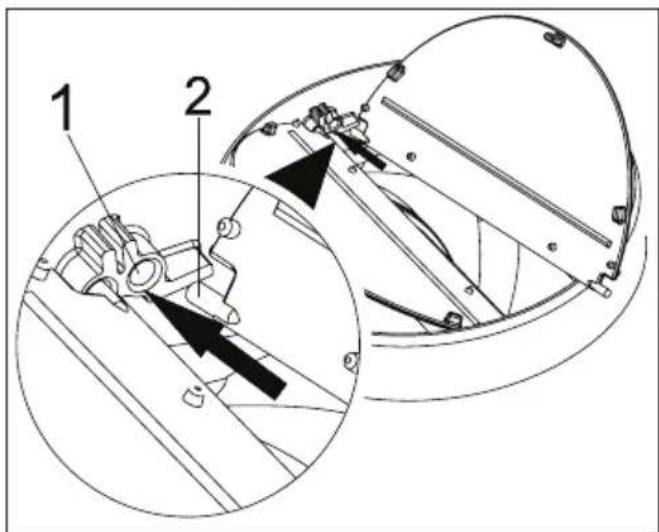

• In flueless use, remove the flaps inside the flue adapter.

• Remove the aluminum grease filter. To install the carbon filter, fit the filter to the tabs by centring it on the plastic piece on both sides of the fan body. tighten it by turning right or left.

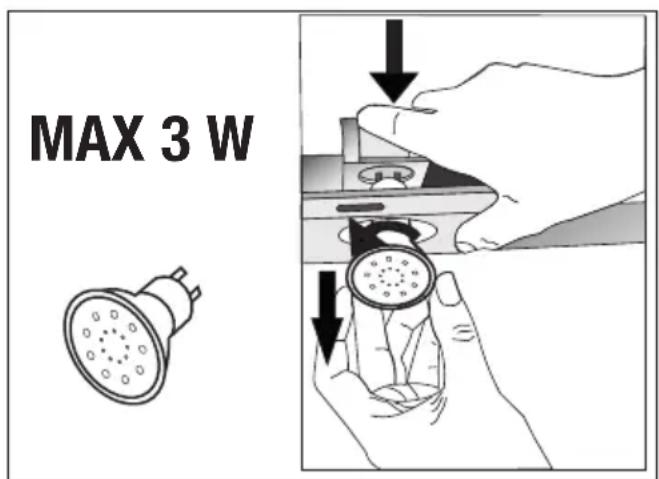

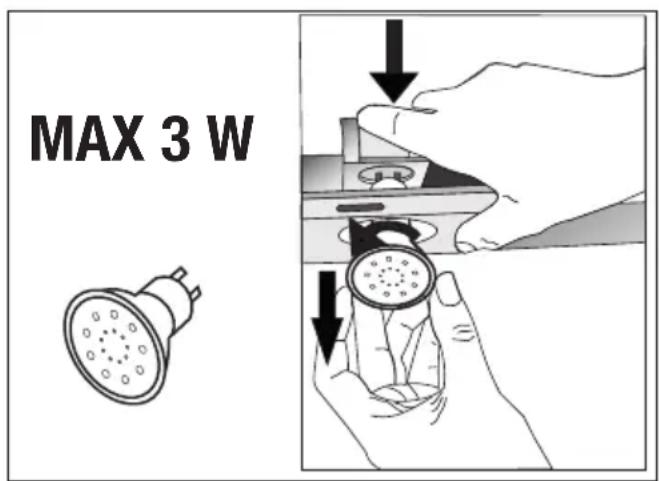

• Replace aluminum grease filter. Make the electrical connections of the appliance. Your appliance uses 3W spot LED lamp. For re- placing the lamps, push downwards on the hold- er from its behind, turn it counter-clockwise, and take it out downwards. Apply the above operation in reverse to install new lamps (Figure 3). Bulb Bulb power 3 W Holder/Socket GZ 10 Bulb voltage 220 - 240 V Size 53*50 mm ILCOS code DR/F3-220-240- GZ10-50-53 Luminous flux 250 lm Correlated colour temperature 3000 K This product contains a light source of energy ef- ficiency class “F”.

3.6 Operation with chimney

• Vapour is extracted through the flue duct, which is fastened to the connection head on the hood.

• The diameter of the flue duct must be the same as the connection ring. In horizontal settings, the pipe has to have a slight upward slope (around 10º) so that the air can exit the room easily. 3 Operation of the applianceCooker Hood / User Manual 11 / EN 4 Cleaing and maintenance

Before cleaning and maintenance, unplug the product or turn off the switch.

4.1 Cleaning of aluminum grease

filter Aluminum grease filter is used to retain the oil particles in the air. Aluminum grease filter may change colour after repeated cleaning. This is nor- mal, and you do not have to replace your filters. (Figure 4)

• Push the aluminum grease filter lock forward.

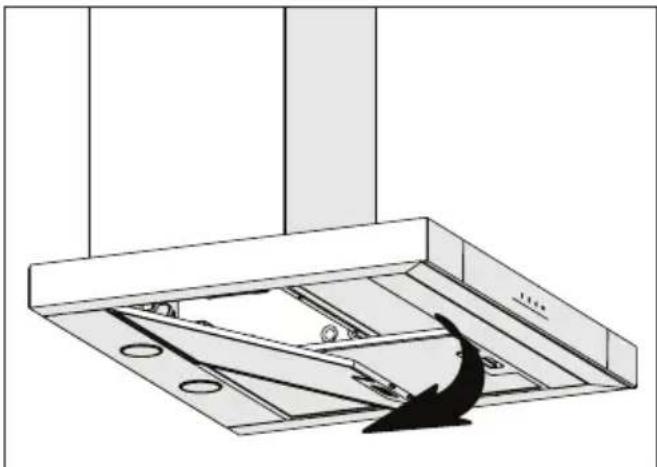

• Then pull it slightly down and pull it out (Figure 4). Otherwise, you may bend the filter. Wash and rinse aluminum grease filter with liquid deter- gent and replace aluminum grease filter to their seats by carrying out the steps specified above in reverse order. These aluminum grease filter are used to retain the oil particles in the air.

You may also wash the aluminum grease filter in the washing ma- chine.

CAUTION: In case of normal use, clean your aluminum grease filter once in a month.

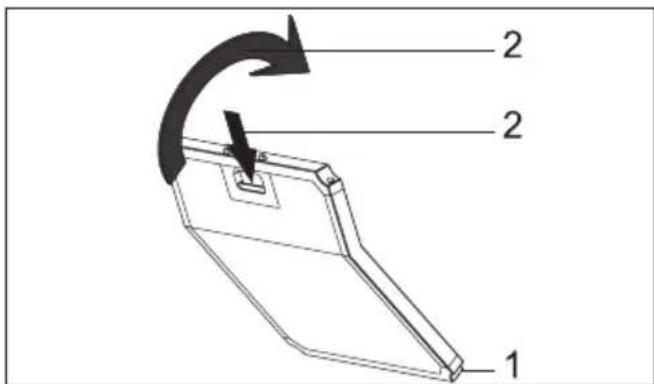

4.2 Replacement of carbon filters

(Figure 5) The appliance you have purchased is appropriate for use with carbon filters.

• Remove the aluminum grease filter (Figure 4).

• Place the lower part of the carbon filter to the motor cabinet (Figure 5).

• Press on the tab of the carbon filter and push it forward, and ensure that the tabs of carbon filter are engaged and locked (Figure 5).

• Attach the aluminum grease filter.

• Carbon filter shall never be washed.

• Replace carbon filters once every 3 months.

• You can obtain the carbon filter from the authorized services.12 / EN Cooker Hood / User Manual 5 Installation of appliance

WARNING: Before starting the in-

WARNING: Failure to install with

screws and stabilizers in accordance with these instructions may result in electric shock. For the installation of the hood, please contact the nearest Authorized Service. It is the customer's responsibility to prepare the location and electrical installation of the hood.

5.1 Position of the appliance

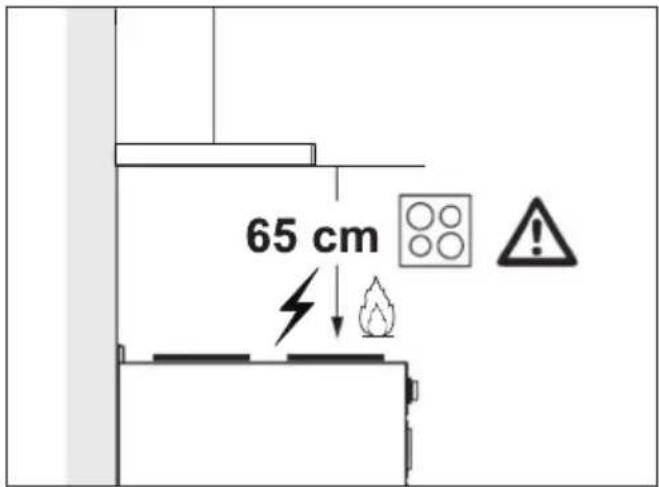

• Distance between the cooker and the cooker hood must be considered prior to assembly. This distance should be 65 cm (Figure 6).

• Distance must be measured from the surface of grate for gas cookers,

• From surface of glass for electric cookers.

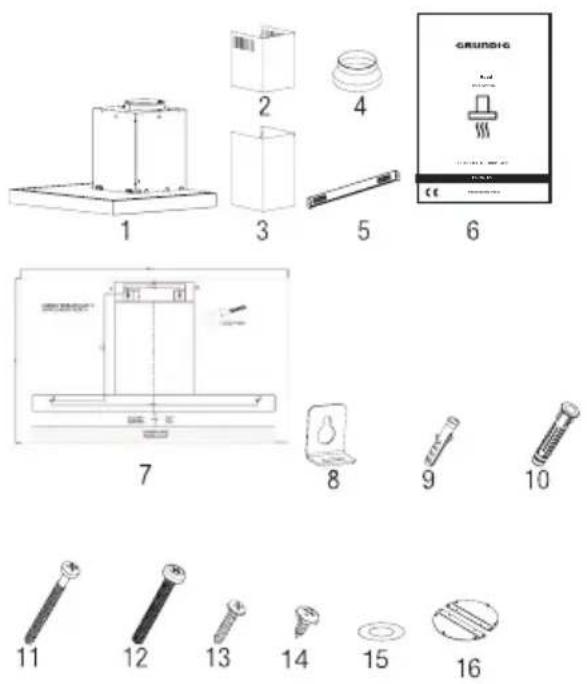

5.2 Installation accessories

11. 5.5x60 wall mount screw (4x)

12. M5x35 hanging plate connection screw (2x)

The information required to make the location suit- able for the installation of the hood is given below.

• Wall must be flat, straight and have the suffi- cient bearing capacity.Cooker Hood / User Manual 13 / EN

• Depth of drilling holes must comply with the length of bolts.

• The bolts and dowels provided are suitable for brick walls. For other construction material (e.g. drywall, plate, porous concrete), suitable fixing dowels and nuts shall be used. (Figure 7)

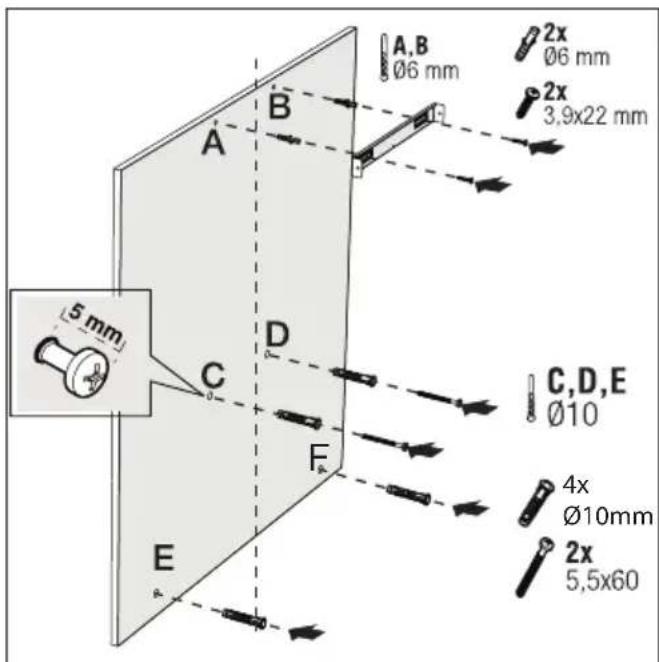

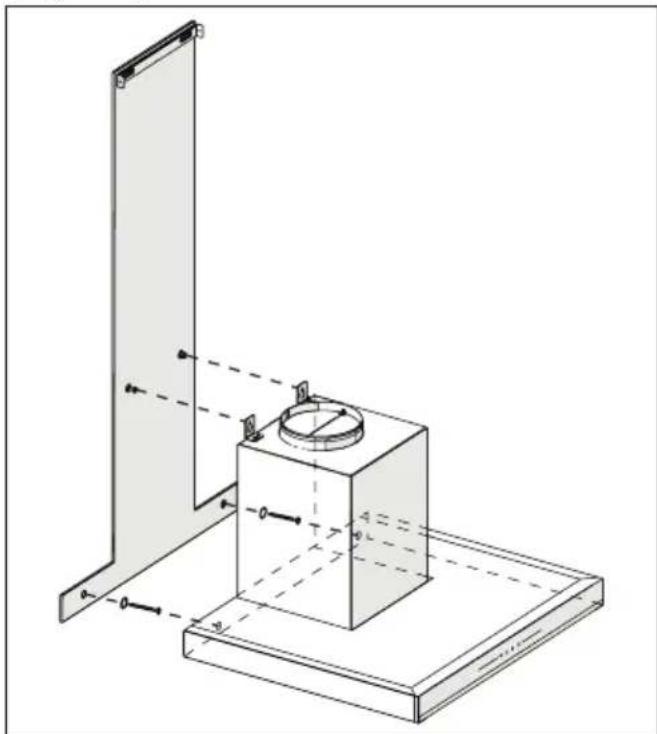

CAUTION: Before drilling, ensure that there are no power, gas or wa- ter pipes in the close proximity of the drilling locations. Draw a mid location line from the ceiling perpen- dicular to the lower edge of the hood (Figure 7). Fix the assembly scheme on the wall. For points A and B, take the maximum dimensions of the hood as reference, and drill points A and B you have marked with a Ø6 mm drill bit, and tap Ø6 mm plastic wall plugs. Install the chimney connection plate to the wall with 2 pieces of 3.9x22 screws (Figure 8). To install the hood body, drill points C,D,E,F spec- ified in the installation template with a Ø10 mm drill bit and tap Ø10 mm plastic dowels to these points (Figure 8). 5 Installation of appliance Install 2 pieces of 5.5x60 mounting screws to points C and D with a clearance of 5 mm between the screw head and the wall (Figure 8). (Figure 8) Install two pieces of hanging plates to the body of the hood with M5x35 mounting screws (Figure 8). (Figure 9) Hold the cooker hood by its body and place it on the mounting screws on the wall and tighten the screws (Figure 9). Install M4 washers to the 5.5x60 suspension screws. Secure the cooker hood with 5.5x60 screws to the wall through the mounting hole on the interior of the appliance (Figure 9).14 / EN Cooker Hood / User Manual

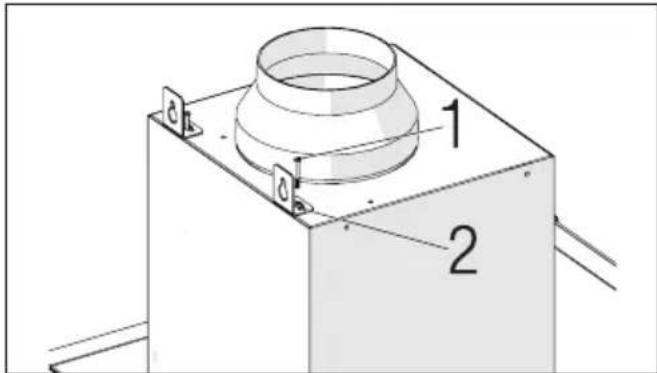

5.4 Connecting to chimney

If you are going to use the Ø 120/150 mm plastic Chimney adapter, connect one end of the pipe to this adapter, if you are not going to use it, to the direct output on the product. Connect the other end of the pipe to your chimney. Check that these two connections are tight enough so they will not come out when the appliance runs on full pow- er. Check if the flaps inside the chimney operate when they are tightened with clamps. Connect the chimney connection duct outside the adapter (Figure 11/a). If the connection duct is fitted in- side the adapter, suction of air shall not occur as the chimney flap that prevents the return of air will remain closed (Figure 11/b). The length of the pipe connection as well as the number of elbows must be as minimum as possible. A : Chimney exit pipe B : Non return flaps C : Plastic flue The valves are closed then the appliance is not operating and prevent possible outside odour and dust from entering inside. (Figure 10) 5 Installation of appliance (Figure 11a/11b) Ok Not Ok (a) (b)

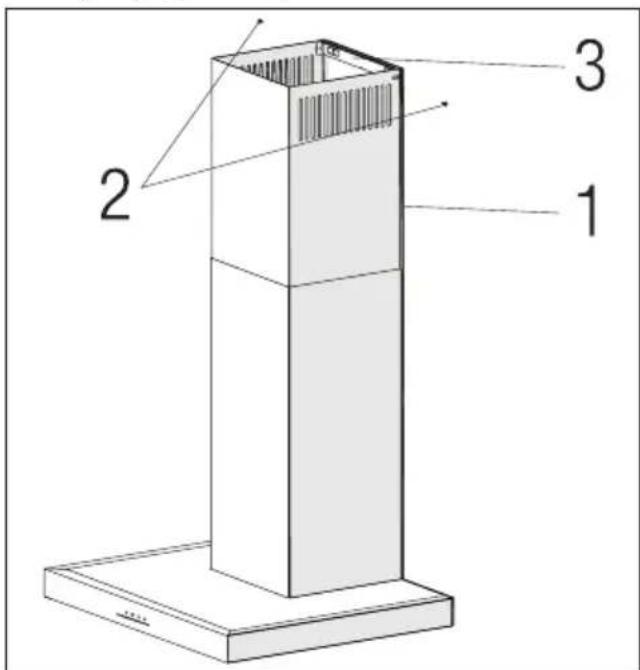

5.5 Installation of the hood to the

chimney Make the electrical connection of your hood be- fore starting the installation of the chimney. Slip the chimney plates around the body. Install the chimney plate to the chimney fastening plate that is secured to the wall from its upper out- er edges (Figure 12). (Figure 12)

15 / EN 5 Installation of appliance

• If you do not intend to use the appliance for a long time, store it carefully.

• Before lifting the appliance unplug it and then let it cool completely.

• Keep the appliance and its accessories in their original packages.

• Store it in a cool, dry place.

• Always keep the appliance out of the reach of children.

5.7 Handling and transportation

• During handling and transportation, carry the appliance in its original packaging. The packag- ing of the appliance protects it against physical damages.

• Do not place heavy loads on the appliance or the packaging. The appliance may be damaged.
