Product Type	Amplified speaker (active speaker)
Brand	Malone
Model	PW2910A
Article Numbers	10011083, 10011084
Power Supply	110-240 V ~ 50/60 Hz
Maximum Power	300 watts
Sensitivity	92 dB
Frequency Range	65 Hz - 20 kHz
Microphone Inputs	XLR connector and 6.35 mm jack with separate level control (MIC LEVEL)
Line Inputs	RCA and XLR connectors with separate level control (LINE LEVEL)
Line Output	6.35 mm jack (LINE OUT)
Sound Settings	Master volume, bass control (Bass), treble control (Treble)
Indicators	Power LED (green), overload LED (red)
Switch	On/Off (POWER ON/OFF)
Power Cord	Mains plug, detachable
Intended Use	Sound reproduction for events, karaoke, public address
Safety	Do not open, disconnect during thunderstorms, avoid exposure to water and liquids
Maintenance	Wipe with a soft, dry cloth, do not use abrasive products
Repairability	All repairs must be carried out by a qualified professional only
Recycling	Do not dispose of with household waste, take to a WEEE collection point

Frequently Asked Questions - PW2910A Malone

How to connect a microphone?

Use the XLR connector or the 6.35 mm jack on the front panel. Adjust the input level with the MIC LEVEL knob.

How to adjust bass and treble?

Turn the Bass and Treble controls on the control panel to adjust low and high frequencies according to your preferences.

What to do if the speaker does not turn on?

Check that the power cord is properly connected, the POWER switch is set to ON, and the mains socket works. If the problem persists, contact a professional.

Can I use the speaker outdoors?

Yes, but avoid direct exposure to rain, humidity, or extreme temperatures. Disconnect it and store it in a dry place after use.

How to clean the speaker?

Unplug the speaker before cleaning. Use a soft, dry cloth to wipe the surface. Never use chemical or abrasive products.

What does the red LED on the panel mean?

The red LED indicates overload or distortion. Reduce the master volume or input levels to avoid damaging the speaker.

Can I connect a musical instrument?

Yes, connect your instrument (guitar, keyboard) to a line input (RCA or XLR) using an appropriate adapter. Adjust the LINE LEVEL for optimal sound.

How to recycle this device at end of life?

Do not dispose of the device with household waste. Take it to a collection point for waste electrical and electronic equipment (WEEE) in accordance with local regulations.

Can I repair the speaker myself?

No, never open the device. All repairs must be carried out by a qualified technician to avoid the risk of electric shock or damage.

What is the maximum power of the speaker?

The maximum power is 300 watts. Ensure not to exceed this limit to avoid overload.

USER MANUAL PW2910A Malone

Black MALONE portable speaker device with mesh grille and ventilation slots (no visible text or symbols on body)

INHALTSVERZEICHNIS

Member of Berlin Brands Group

Handwerkerstr. 11

15366 Dahlwitz-Hoppegarten

Deutschland

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

Berlin Brands Group UK Ltd

PO Box 1145

Oxford, OX1 9UW

United Kingdom

Congratulations on your purchase. Please read the following instructions carefully and follow them to prevent potential damage. We accept no liability for damage caused by disregarding the instructions and improper use. Please scan the QR code to access the latest operating instructions and further information about the product.

CONTENTS

Safety Instructions 12

Connection and operation 13

Device Overview 14

Repairs 15

Special disposal instructions for consumers in Germany 16

Disposal Considerations 18

Declaration of Conformity 18

TECHNICAL INFORMATION

Product code 10011083, 10011084
Power supply 110-240 V ~ 50/60 Hz
Maximum performance 300 watts
Sensitivity 92 dB
Frequency response 65 Hz - 20 kHz

SAFETY INSTRUCTIONS

General instructions

- Lightning - If you do not use the device for a longer period of time or in the event of electrical storms, unplug the device from the power outlet or disconnect the device from the antenna connection. This prevents damage to the product due to lightning and overvoltage.

• Overloading - Do not overload electrical outlets, extension cords or integral sockets as this may result in a fire or electric shock.

- Foreign objects and liquid entry - Never push objects of any kind into the unit through openings as they may touch dangerous voltage points or short out parts that could cause a fire or electric shock. Never spill liquids of any kind on the unit.

- Repair and maintenance - Do not attempt to service this product yourself as opening or removing covers may expose you to dangerous voltages or other hazards. Leave all maintenance work to qualified service personnel.

- Damage requiring servicing - Unplug the appliance from the wall outlet and refer servicing to qualified service personnel when any of the following situations occur:

a) If the mains cable or plug is damaged.
b) If liquid has been spilled or objects have fallen onto the product.
c) If the product has been exposed to rain or water.
d) If the product has been dropped or damaged.
e) If the product has a significantly reduced performance.

- Spare parts - If spare parts are needed, make sure that the specialist company replacing the parts only uses spare parts that are approved by the manufacturer or have the same characteristics as the original part. Unauthorised substitutions may result in fire, electric shock or other hazards.

- Heat - Do not install near any heat sources such as radiators, heat registers, stoves, or other products (including amplifiers).

Special notes

• Children over 8 years as well as mentally, sensory and physically impaired persons may only use the device if they have been informed in detail about the functions and safety precautions by a supervisor responsible for them beforehand and understand the associated risks.
• Children should be supervised to ensure that they do not play with the device. Make sure that children and babies do not play with plastic bags or other packaging materials.
• Make sure that the mains adapter/mains plug always remains easily accessible so that the unit can be quickly disconnected from the mains in an emergency.
• When you are no longer using the device, switch it off and pull the plug out of the socket.

1 Turn down the volume before switching on the unit.
2 Connect the audio source to the corresponding connector.
3 Connect the power cable.
4 Switch on the audio source and the speaker
5 Adjust the desired volume.
6 With the "Bass" and "Treble" controls, you can adjust the bass and treble according to your listening habits.

Note: The power specifications of the speakers can be found on the sticker on the back of the speaker.

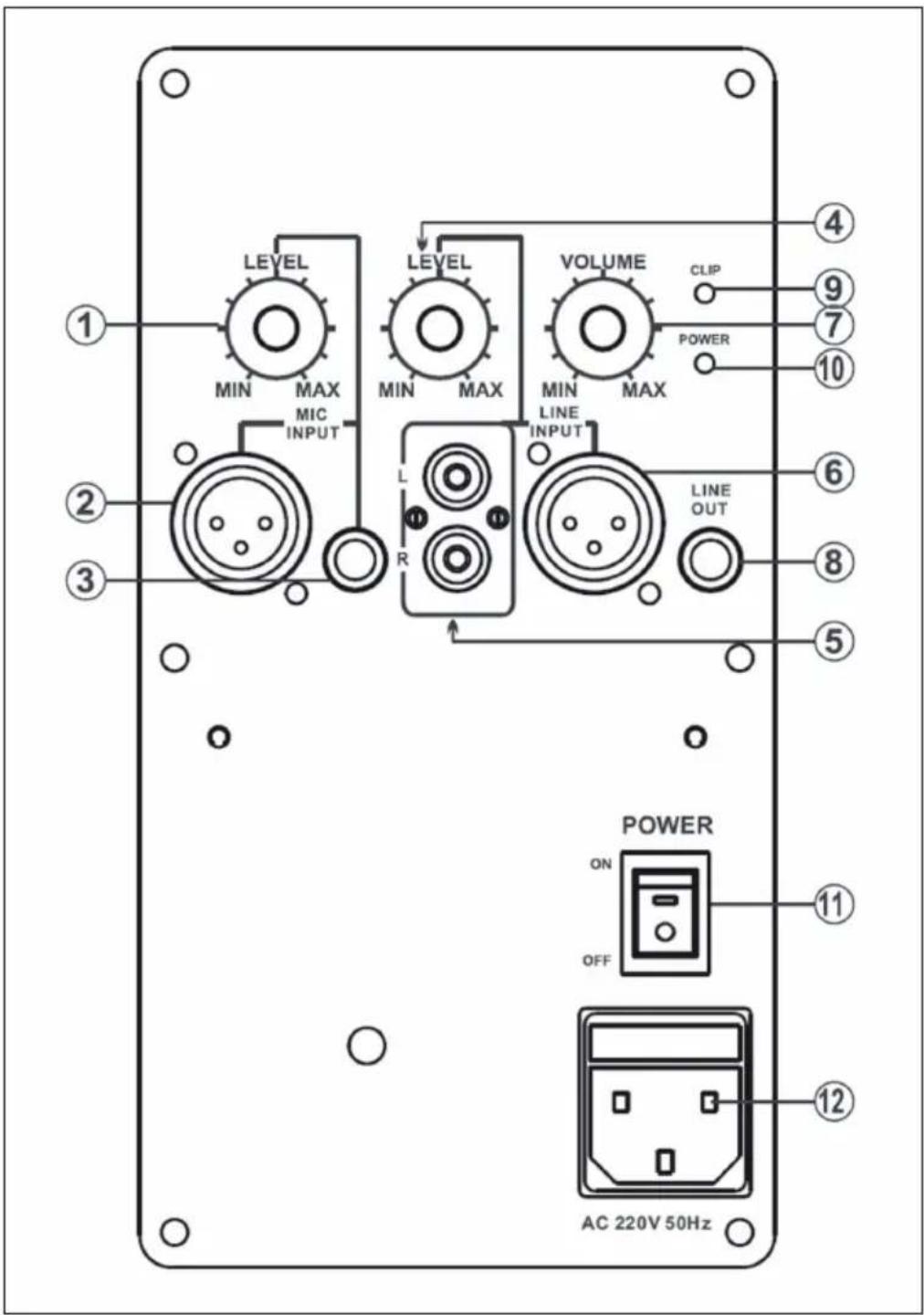

DEVICE OVERVIEW

1	Microphone input level control	7	Main volume control
2	XLR connection	8	6.35 mm output
3	6.35 mm connection	9	Overload indicator LED
4	Line input level control	10	Operating LED
5	RCA connection	11	Main switch
6	XLR connection	12	Power connection

REPAIRS

• Repairs to the device should only be carried out by an authorised specialist workshop.
• Modifying or changing the product will compromise product safety.
• Attention: risk of injury!
• Never open the unit without authorisation and never carry out repairs yourself!
• Incorrect assembly may lead to malfunctions or total failure.
• Do not open the device under any circumstances.

SPECIAL DISPOSAL INSTRUCTIONS FOR CONSUMERS IN GERMANY

Dispose of your old appliances properly. This ensures that WEEE is recycled in an environmentally sound manner and that negative impacts on the environment and human health are avoided. The following rules must be observed during disposal:

- Every consumer is legally obliged to dispose of electrical and electronic equipment (waste equipment) as well as batteries and accumulators separately from household waste. You can recognise the corresponding waste equipment by the following symbol of the crossed-out waste bin (WEEE symbol).

- You must separate used batteries and accumulators that are not enclosed in the old appliance, as well as lamps that can be removed from the old appliance without destroying it, from the old appliance without destroying it before handing it in at a disposal point.

- Certain lamps and bulbs also fall under the Electrical and Electronic Equipment Act and must therefore be treated as old equipment. Incandescent bulbs and halogen lamps are excluded. Please dispose of light bulbs and halogen lamps with your household waste unless they bear the WEEE symbol.

- Each consumer is responsible for deleting personal data from the electrical or electronic equipment.

The distributors' obligation regarding return of goods

Distributors with a sales area for electrical and electronic equipment of at least 400 square metres and distributors of foodstuffs with a total sales area of at least 800 square metres who offer electrical and electronic equipment several times a calendar year or permanently and make it available on the market are obliged,

1 when supplying new electrical and electronic equipment to an end-user, to take back free of charge at the place of supply or in the immediate vicinity thereof the old electrical and electronic equipment of the end-user of the same type which fulfils substantially the same functions as the new electrical and electronic equipment; and

2 to take back, free of charge, at the request of the end-user, WEEE that does not exceed 25 centimetres in any external dimension in the retail outlet or in the immediate vicinity thereof; the take-back may not be linked to the purchase of an EEE and is limited to three WEEEs per type of equipment.

• In the case of distribution by means of distance communication, free collection at the place of delivery is limited to electrical and electronic equipment in categories 1, 2 and 4 according to Article 2(1) of the Electrical and Electronic Equipment Act, namely "heat transmitters", "display screen equipment" (surface area of more than 100cm^2 ) or "large equipment" (the latter with at least one external dimension exceeding 50 centimetres). For other electrical and electronic equipment (categories 3, 5, 6), a return option must be guaranteed at a reasonable distance from the respective end user.
• Old appliances may be handed in free of charge at the local recycling centre or at the following collection points near you: www.take-e-back.de
• For electrical and electronic equipment in categories 1, 2 and 4, we also offer the possibility of free collection at the place of delivery. When purchasing a new appliance, you have the option of selecting an old appliance collection via website.
• Batteries can be returned free of charge wherever they are sold (e.g. supermarkets, DIY stores, drug-stores). Recycling centres also take back batteries. You can also return batteries to us by post. Used batteries in household quantities can be returned directly to us free of charge from Monday to Friday between 07:30 and 15:30 at the following address:

Chal-Tec GmbH

Member of Berlin Brands Group

Handwerkerstr. 11

15366 Dahlwitz-Hoppegarten

Germany

• It is important to note that, for safety reasons, lithium batteries must be secured against short-circuiting before they are returned (e.g. by taping off the terminals).
• If there are also the signs Cd, Hg or Pb under the crossed-out dustbin on the battery, this indicates that the battery contains hazardous substances. ("Cd" stands for cadmium, "Pb" for lead and "Hg" for mercury).

Note on waste prevention

By extending the life of your old appliances, you help to use resources efficiently and avoid additional waste. You can extend the life of your old appliances by having defective old appliances repaired. If your old appliance is in good condition, you could donate it, give it away or sell it.

DISPOSAL CONSIDERATIONS

Symbol of a trash bin crossed with a diagonal line, representing no waste or discharge (no text or labels)

If there is a legal regulation for the disposal of electrical and electronic devices in your country, this symbol on the product or on the packaging indicates that this product must not be disposed of with household waste. Instead, it must be taken to a collection point for the recycling of electrical and electronic equipment. By disposing of it in accordance with the rules, you are protecting the environment and the health of your fellow human beings from negative consequences. For information about the recycling and disposal of this product, please contact your local authority or your household waste disposal service.

This product contains batteries. If there is a legal regulation for the disposal of batteries in your country, the batteries must not be disposed of with household waste. Find out about local regulations for disposing of batteries. By disposing of them in accordance with the rules, you are protecting the environment and the health of your fellow human beings from negative consequences.

DECLARATION OF CONFORMITY

Manufacturer:

Chal-Tec GmbH, Wallstrasse 16, 10179 Berlin, Germany.

Importer for Great Britain:

Berlin Brands Group UK Ltd

PO Box 1145

Oxford, OX1 9UW

United Kingdom

The complete declaration of conformity of the manufacturer can be found at the following link: https://use.berlin/10011084
