USER MANUAL Cosmic Beam Smart Blumfeldt

Note: The device is only suitable for outdoor use.

Berlin Brands Group UK Limited PO Box 42

272 Kensington High Street London, W8 6ND

United Kingdom

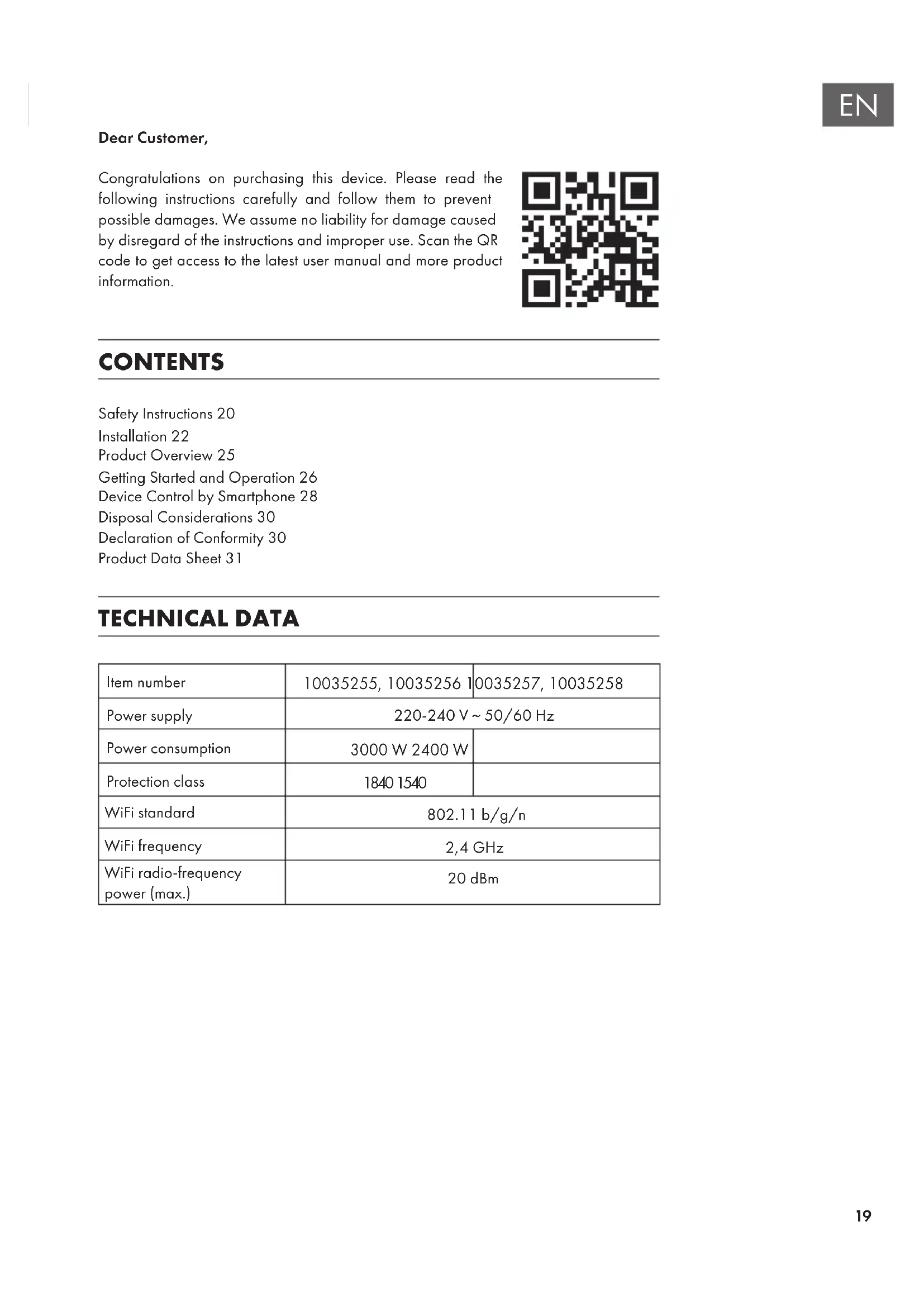

Congratulations on purchasing this device. Please read the following instructions carefully and follow them to prevent possible damages. We assume no liability for damage caused by disregard of the instructions and improper use. Scan the QR code to get access to the latest user manual and more product information.

CONTENTS

Safety Instructions 20

Installation 22

Product Overview 25

Getting Started and Operation 26

Device Control by Smartphone 28

Disposal Considerations 30

Declaration of Conformity 30

Product Data Sheet 31

TECHNICAL DATA

Item number	10035255, 10035256	10035257, 10035258
Power supply	220-240 V ~ 50/60 Hz
Power consumption	3000 W 2400 W
Protection class	1840 1540
WiFi standard	802.11 b/g/n
WiFi frequency	2,4 GHz
WiFi radio-frequency power (max.)	20 dBm

SAFETY INSTRUCTIONS

• Read all instructions before using this unit.
• Do not leave this unit unattended when in use.
• This heater will get hot when in use. Do not touch hot surfaces.

CAUTION

Risk of burns! Some parts of this product can become very hot and cause burns. Particular attention has to be given when children and vulnerable people are present.

• Do not move the unit when in use. Wait until the heater is completely cool before moving and check that it has been unplugged from the power supply.
• Position the unit at least 1m away from highly combustible materials such as furniture, trees, leaves, dry grass and bushes.
• The heater must not face with the heating element pointing upwards towards a ceiling. The heater element must be facing the area it is to heat.

Note: In order to avoid overheating do not cover the heater. It is not for drying clothes.

• Keep children and pets at a safe distance from the unit.
• This device may be only used by children 8 years old or older and persons with limited physical, sensory and mental capabilities and / or lack of experience and knowledge, provided that they have been instructed in use of the device by a responsible person who understands the associated risks.
• Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
• Do not operate the heater if any signs of damage or malfunction manifest themselves.
• Do not attempt to repair or adjust any electrical or mechanical functions on this unit. The unit does not contain any user serviceable parts. Only a qualified electrician should perform servicing or repairs.
• If the power cable is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard. Do not handle the element with bare hands. If it is inadvertently touched, remove finger marks with a soft cloth and methylated spirits or alcohol, otherwise the marks will burn into the element causing premature heater failure.
• Do not replace or attempt to replace the element in this product.
• Do not use this heater in the immediate surroundings of a bath, shower or swimming pool.
• This product must not be left outdoors exposed to the elements for long periods of time.

• Do not touch the plug with wet or damp hands.

• Do not run the power cable under carpeting. Do not cover the power cable with rugs, runner, or similar coverings. Arrange the power cable away from foot traffic and where it will not be tripped over.

• Do not wind the power cable around the unit.
• Do not insert or allow foreign objects to enter any ventilation or opening on the heater, as this may result in electric shock, fire, or damage to the heater.
• To prevent a possible fire, do not block the air vents.
• A heater has hot and arcing or sparking parts inside. Do not use in areas where petrol, paint, explosive and/or flammable liquids are used or stored. Keep unit away from heated surfaces and open flames.
• Where possible, avoid the use of an extension cable as this may overheat and cause a fire. However, if you have to use an extension cable, ensure it is suitable for the purpose, has been tested for outdoor use and preferably has an RCD device fitted or attached.
• Always ensure the heater is plugged into a suitable socket, one that is tested for outdoor use.
• Always unplug the unit and ensure the unit is completely cold before moving, cleaning or storing.
• This heater is intended for domestic use only and should not be used commercially for contract purposes. Any alternative use, not recommended by the manufacturer, may result in fire, electric shock, or injury to persons.
• The use of attachments on the heater is not recommended.
• Do not use this heater with a programmer, timer, separate remote control system on any other device that switches the heater on automatically, since a fire risk exists if the heater is covered or positioned incorrectly.

INSTALLATION

Installation notes

Fixing the heater rightly on the wall or put the heater in the right position.
The heater is to be installed so that the controls cannot be touched by a person who using a bath or shower.
- Heater is to be installed so that it is not located directly under a socket-outlet.
- Consult a qualified electrician or service technician if the power cord is damaged.
Always store the heater when not in use.
Make sure the heater has cooled down before store it away.
- Do not use the heater in infirm person living room without supervision.
- Ensure the heater keep certain distance against other furniture or appliances to avoid a hazard.

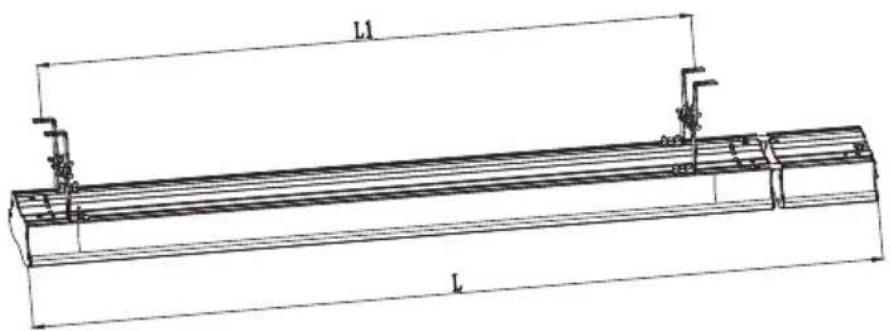

Model Length (mm) L1 (mm)
10035255	1840 1607
10035256
10035257	1540 1307
10035258

Wall mount

A

B

C

1. Use the screws to install two of the fixed frame to the machine above, as shown in figure A
2. Use the screws to install two of the fixed frame on the wall or ceiling, as shown in Figure B
3. Connect the machine with a screw, as shown in figure C.

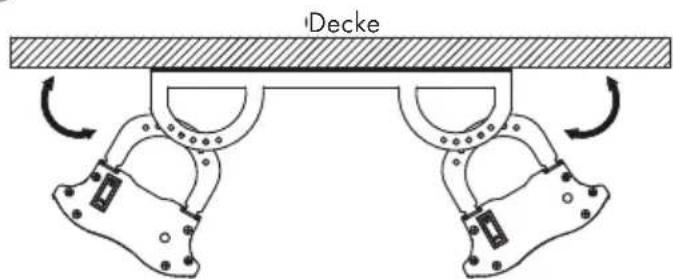

Ceiling installation

1

Ceiling installation: the distance from the wall of the electrical appliances to 200mm , as shown in Fig.1.

(2)

Double hanging ceiling installation: two electrical appliances are connected through a connecting frame is installed on the ceiling, as shown in Figure 2

(Spare parts must be purchased separately.

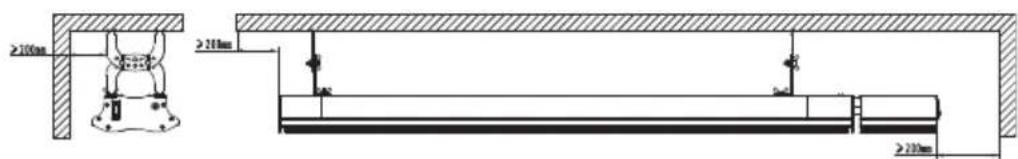

The unit must be installed at least 2200mm above the floor and 200mm from the ceiling.

a1

b1

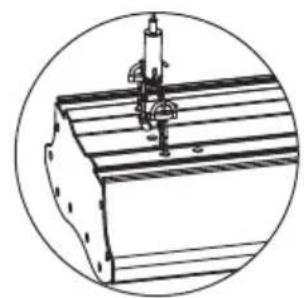

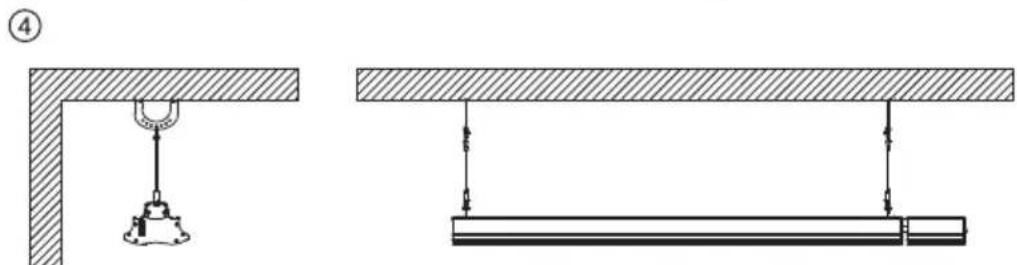

Extended installation: Hook the unit and let it hang down from the ceiling (spare parts must be purchased separately).

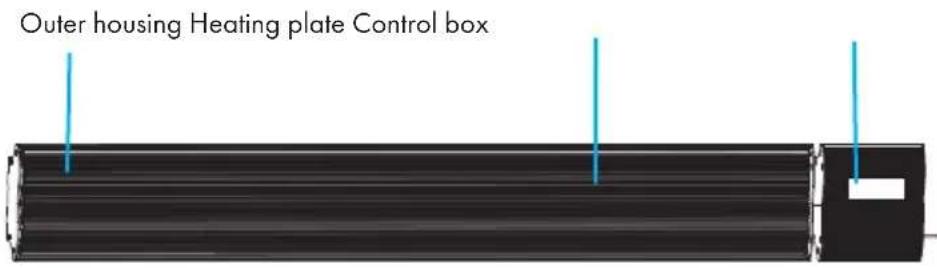

PRODUCT OVERVIEW

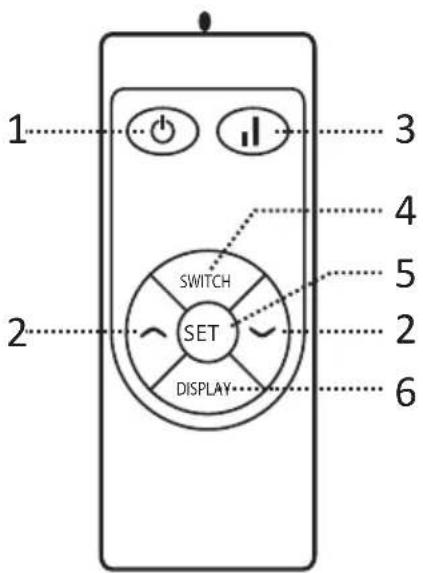

Remote

1 On/off button
2 Adjustment button
3 High/Low switch button
4 Switch button
5 Set button
6 Display button

GETTING STARTED AND OPERATION

• Take out the heater from the carton carefully. Please save the carton for off-season storage,
• Firmly fixed heaters according to the installation instructions,
• Do not use the same socket with other high-power appliance to avoid overloading.

Switch ON

The power light flashes when heater is connected with power.
- Press turn on the heater, screen show temperature of the room, if it lower than preset temperature, the heater will be worked. Indicator light will blink.

Lock functor

While the unit is in operation, first press the SWITCH button and then the button . The key lock has been activated for all keys.

Display screen ON/OFF function

• When you press the DISPLAY button, the backlight goes off but the indicator light remains on.
• When you press the DISPLAY button again, the backlight turns back on.

Temperature setting

• First press the SET button.

Then press the or buttons to increase or decrease the temperature by one degree at a time. The maximum adjustable temperature is 45^ and the minimum adjustable temperature is 5^ .

After you have set the temperature, the screen returns to the room temperature display.

Timer

• When you press the SET button twice, "00" will flash on the screen. You can set the time by pressing the or buttons.
  Each press of or increases or decreases the time by one hour.

After you set the time, the machine automatically saves and returns to the original display screen.

Open window detection

• If the room temperature falls by 3^ or more within 2 minutes while the unit is in operation, the unit stops heating, the screen flashes and a warning tone sounds.

Close the windows and restart the unit to resume heating operation.

WLAN reset

In the operating status, press "4", "3" and "2" in succession within 5 seconds to reset the WLAN. This takes about 10 seconds.

High/low heat output

While the appliance is in operation, press the High/Low switch button key to select a high or low heat output.

Switch off

To turn off the unit, press 心

DEVICE CONTROL BY SMARTPHONE

If you integrate the device into your home WiFi, you can conveniently operate it via the associated Klarstein app. The app not only allows you to remotely control the device via your smartphone, but also gives you access to additional information.

Follow these steps to connect your smartphone to your Klarstein device:

1. Download the Klarstein app first by scanning the QR code with your smartphone (see below), or download it directly from App Store or Google Play.
2. Make sure your smartphone is connected to the same WiFi network that your Klarstein device is to be connected to.
3. Open the Klarstein app.
4. Sign in to your account. If you do not have an account, sign up in the Klarstein app.
5. Follow the instructions from the app.

App Download

Use the scan function of your smartphone to scan the QR code and save the app on your smartphone.

Note: The app provides further information on how to use the app and help on how to connect to your device as soon as you open it for the first time.

Troubleshooting connection problems

If your Klarstein device cannot be found in the WLAN, check the following:

Is the device plugged in?
- Is the WiFi feature of my phone enabled?
- Is the WiFi function of the Klarstein device activated? (Follow the instructions in the app)
- Has the WLAN password been entered correctly?
- Are the router, Klarstein device and smartphone in the immediate vicinity during the connection attempt? (Ideally no more than 5 m apart)
- If you have deactivated the 2.4 GHz band in the settings of your wireless router, activate it in your router settings.

Note: For further help, follow the instructions in the app when setting up the connection.

DISPOSAL CONSIDERATIONS

If there is a legal regulation for the disposal of electrical and electronic devices in your country, this symbol on the product or on the packaging indicates that this product must not be disposed of with household waste. Instead, it must be taken to a collection point for the recycling of electrical and electronic equipment. By disposing of it in accordance with the rules, you are protecting the environment and the health of your fellow human beings from negative consequences. For information about the recycling and disposal of this product, please contact your local authority or your household waste disposal service.

This product contains batteries. If there is a legal regulation for the disposal of batteries in your country, the batteries must not be disposed of with household waste. Find out about local regulations for disposing of batteries. By disposing of them in accordance with the rules, you are protecting the environment and the health of your fellow human beings from negative consequences.

DECLARATION OF CONFORMITY

Manufacturer:

Chal-Tec GmbH, Wallstrasse 16, 10179 Berlin, Germany.

Importer for Great Britain:

Berlin Brands Group UK Limited PO Box 42

272 Kensington High Street London, W8 6ND

United Kingdom

Hereby, Chal-Tec GmbH declares that the radio equipment type Cosmic Beam Smart is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: use.berlin/10035255

For Great Britain: Hereby, Chal-Tec GmbH declares that the radio equipment type Cosmic Beam Smart is in compliance with the relevant statutory requirements. The full text of the declaration of conformity is available at the following internet address: use.berlin/10035255

Model identifier(s): 10035255		10035256
Item Symbol Value Unit Item Unit
Heat output Type of heat input, for electric storage					local space heaters only
Nominal heat output P	nom	3.0	kW manual		heat charge control, with integrated thermostat		no
Minimum heat output P	min	1.4	kW manual		heat charge control with room and/or outdoor temperature feedback		no
Maximum continuous heat output	Pmax	2.8	kW electronic		heat charge control with room and/or outdoor temperature feedback		no
Auxiliary electricity consumption					fan assisted heat output no
At nominal heat output el	max	2.768	kW		Type of heat output/room temperature control (select one)
At minimum heat output el	min	1.415	kW single stage		heat output and no room temperature control		no
In standby mode	elsb	0.3	W Two or more		manual stages, no room temperature control		no
					with mechanic thermostat room temperature control		no
					with electronic room temperature control		no
					electronic room temperature control plus day timer		yes
					electronic room temperature control plus week timer		no
					Other control options (multiple selections possible)
					room temperature control, with presence detection		no
					room temperature control, with open window detection		yes
					with distance control option		yes
					with adaptive start control		no
					with working time limitation		no
					with black bulb sensor		yes
Contact details	Chal-Tec GmbH, Wallstraße 16, 10179, Berlin, Germany

PRODUCT DATA SHEET

Model identifier(s): 10035257, 10035258
Item Symbol Value Unit Item Unit
Heat output Type of heat input, for electric storage					local space heaters only
Nominal heat output P	nom	2.4	kW manual	heat charge control, with integrated thermostat		no
Minimum heat output P	min	1.1	kW manual	heat charge control with room and/or outdoor temperature feedback		no
Maximum continuous heat output	Pmax	2.3	kW electronic	heat charge control with room and/or outdoor temperature feedback		no
Auxiliary electricity consumption					fan assisted heat output no
At nominal heat output el	max	2.283	kW		Type of heat output/room temperature control (select one)
At minimum heat output el	min	1.125	kW single	stage heat output and no room temperature control		no
In standby mode	elsb	0.17	WTwo or more	manual stages, no room temperature control		no
					with mechanic thermostat room temperature control	no
					with electronic room temperature control	no
					electronic room temperature control plus day timer	yes
					electronic room temperature control plus week timer	no
					Other control options (multiple selections possible)
					room temperature control, with presence detection	no
					room temperature control, with open window detection	yes
					with distance control option	yes
					with adaptive start control	no
					with working time limitation	no
					with black bulb sensor	yes
Contact details	Chal-Tec GmbH, Wallstraße 16, 10179, Berlin, Germany
