USER MANUAL Cosmic Beam Ultra Blumfeldt

Note: The device is suitable for outdoor use and well-insulated interiors.

Berlin Brands Group UK Limited

PO Box 42

272 Kensington High Street

London, W8 6ND

United Kingdom

Dear customer,

Congratulations on the purchase of your device. Please read the following instructions carefully and follow them to prevent potential damage. We accept no liability for damage caused by disregarding the instructions or improper use. Please scan the QR code to access the latest operating instructions and for further information about the product.

CONTENTS

Safety Instructions 18
Device Overview 20
Operating elements 21
Assembly 22
Operation 25
Cleaning and Care 26
Product Data Sheet 27
Disposal instructions 28
Manufacturer & importer (UK) 28

TECHNICAL DATA

Article number 10031978
Power supply 220-240 V ~ 50/60 Hz
Power consumption 2200 W

SAFETY INSTRUCTIONS

• Do not leave the device unattended when it is in operation.
• This heater gets hot during use. Do not touch the hot surfaces.

CAUTION

Risk of burns! Some parts of this product can become very hot and cause burns. Special attention is required when children and vulnerable persons are present.

• Do not move the device when it is in operation. Wait for the heater to cool completely before moving it and see if it has been unplugged.
• Place the device at least 1.5m away from easily flammable materials such as furniture, trees, leaves, dry grass and shrubs.
• The heater must not point with the heating element up towards the ceiling. The heating element must face the surface to be heated.

Note: To avoid overheating, the heater must not be covered. Do not use the device to dry clothes.

• Keep children and pets away from the device.
• Children over 8 years as well as mentally, sensory and physically impaired persons may only use the device if they have been informed in detail about the functions and safety precautions by a supervisor responsible for them beforehand and understand the associated risks.
• Children must not play with the device. Cleaning and maintenance must not be carried out by children without supervision.
• Do not use the device if it shows signs of damage or malfunction.
• Do not attempt to repair or adjust electrical or mechanical functions on this device. The device does not contain any user serviceable parts. Only a qualified electrician should carry out maintenance or repair work.
• If the power cord is damaged, it must be replaced by the manufacturer, its customer service or similarly qualified persons in order to avoid a hazard.

• Do not touch the heating element with bare hands. If the device is accidentally touched, remove fingerprints with a soft cloth, otherwise they will burn into the element and cause premature heater failure.

• Do not replace or attempt to remove the heating element.

• Do not use the radiant heater in the immediate vicinity of a bath, shower or swimming pool.
• This product must not be exposed to the elements for a long period of time.
• Do not touch the plug with wet or damp hands.
• Do not run the power cord under a carpet. Do not cover the power cord with carpets, rugs, or the like. Lay the power cord so that no one can trip on it.
• Do not wrap the power cord around the device.
• Make sure that no foreign objects enter the ventilation or opening of the heater, as this can lead to electric shock, fire or damage to the device.
• To avoid a possible fire, the ventilation slots must not be blocked.
• The heater has hot and sparking parts inside. Do not use in areas where gasoline, paint, explosive and / or flammable liquids are being used or stored. Keep the device away from hot surfaces and open flames.
• If possible, avoid using an extension cord as it can overheat and cause a fire. However, if you do need to use an extension cord, make sure that it is suitable for outdoor use and, preferably, has a circuit breaker or is plugged in.
• Always make sure that the heater is plugged into a suitable socket that has been approved for outdoor use.
• Always unplug the appliance and make sure that the device has completely cooled down before transporting, cleaning or storing it.
• This heater is intended for domestic use only and should not be used for commercial purposes. Any other use not recommended by the manufacturer could result in fire, electric shock or personal injury.
• The use of attachments on the heater is not recommended.
• Do not use this heater with a programmable socket, timer, separate remote control, or any other device that automatically turns the heater on as there is a risk of fire if the heater is covered or incorrectly positioned.

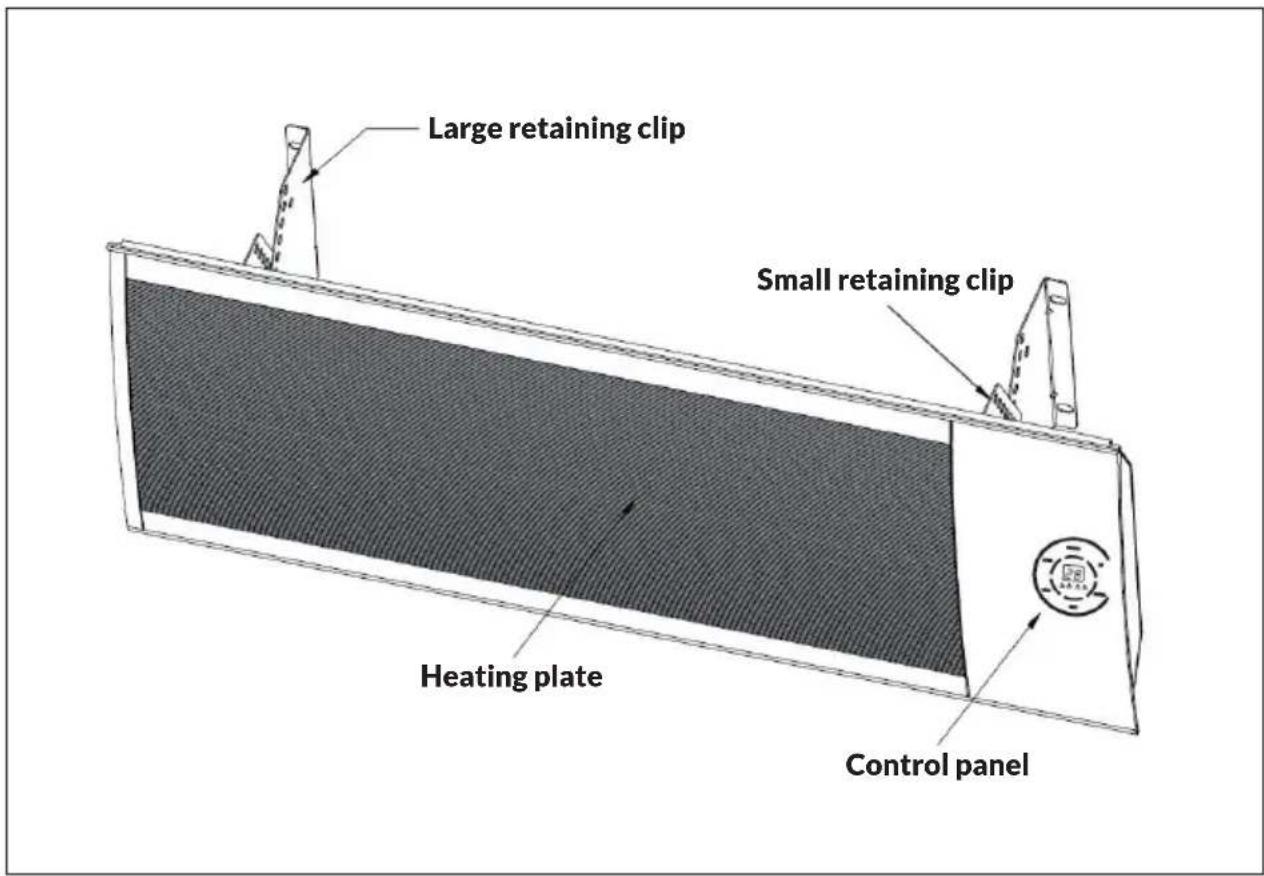

DEVICE OVERVIEW

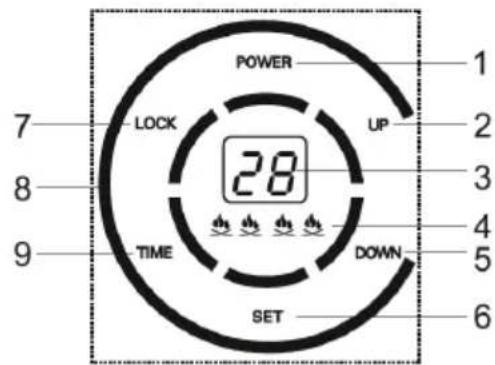

OPERATING ELEMENTS

1	Power supply indicator	9	Timer display
2	Increase heating level display	10	On/off switch
3	Temperature or timer display	11	Display on/off
4	Display brightness display	12	Plus button
5	Decrease heating level display	13	Lock button
6	Display setting	14	Timer
7	Display lock	15	Minus button
8	Operating display	16	Power switch

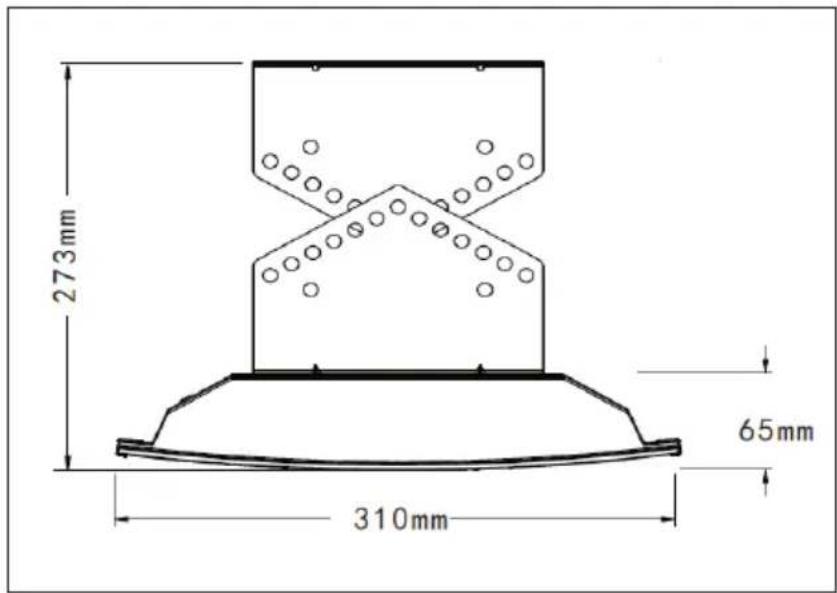

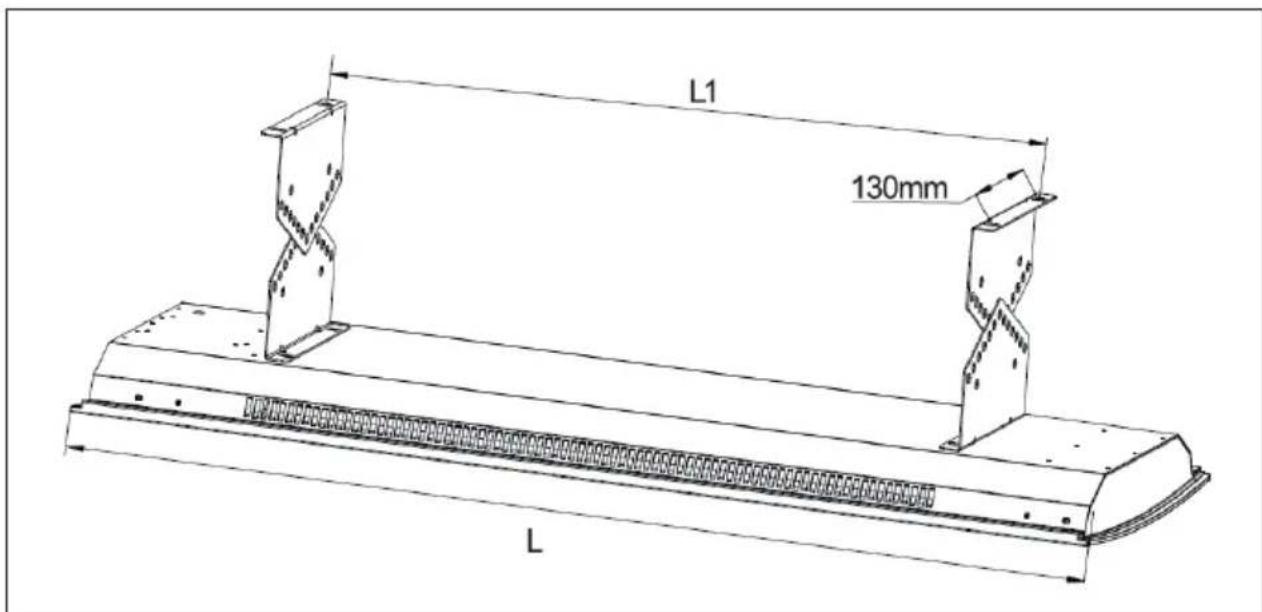

ASSEMBLY

• Secure the heater properly to the wall or place it in the correct position.
• The device must be installed in such a way that it cannot be used by a person taking a shower or bath.
  The device must be mounted so that it is not directly under a socket.
• If the power cable is damaged, please contact an electrician or the customer service.
  Always stow away the heater when not in use.
• Make sure that the appliance has cooled down before putting it away.
• Do not use the device unsupervised in the living room of elderly people or near children.
• To prevent damage, please make sure that the device is placed at a safe distance from curtains, furniture and other objects.

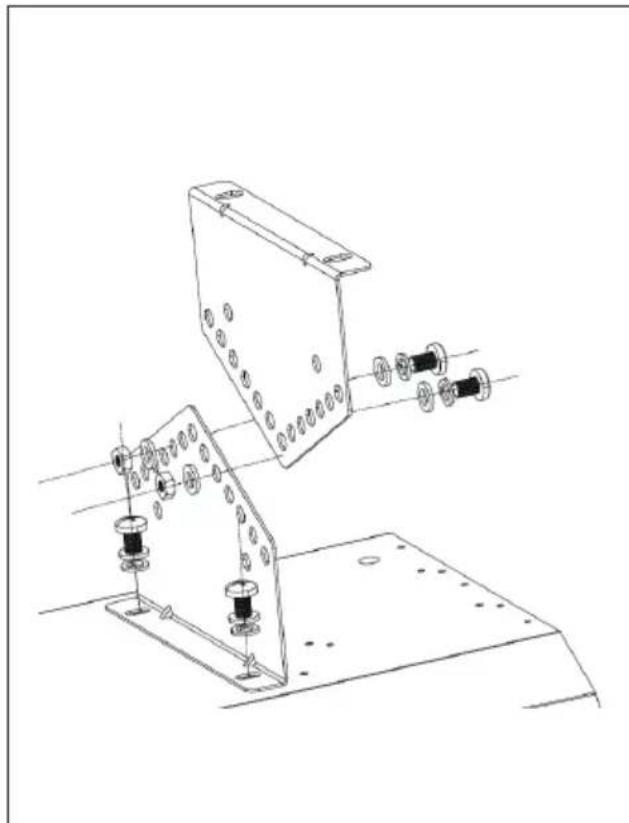

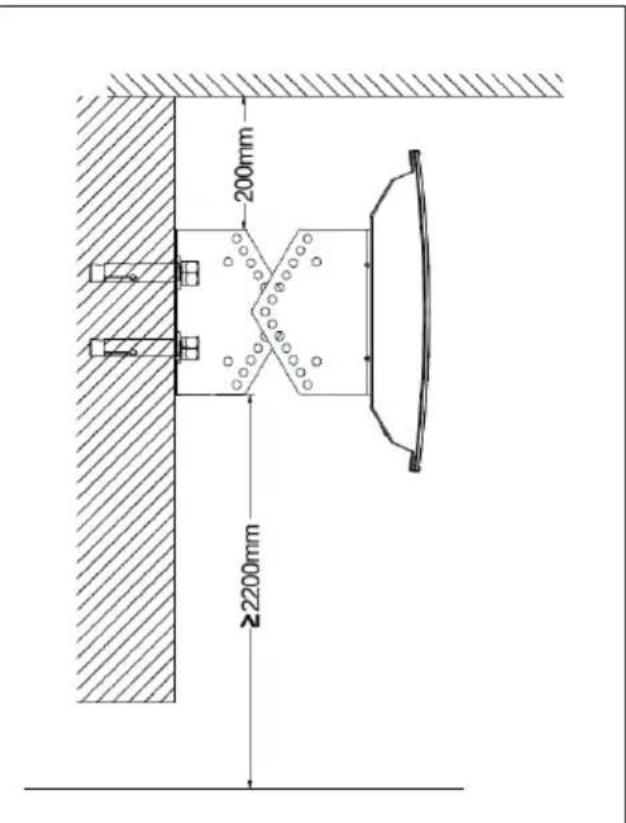

Screw the two brackets together Minimum distance to ceiling and floor

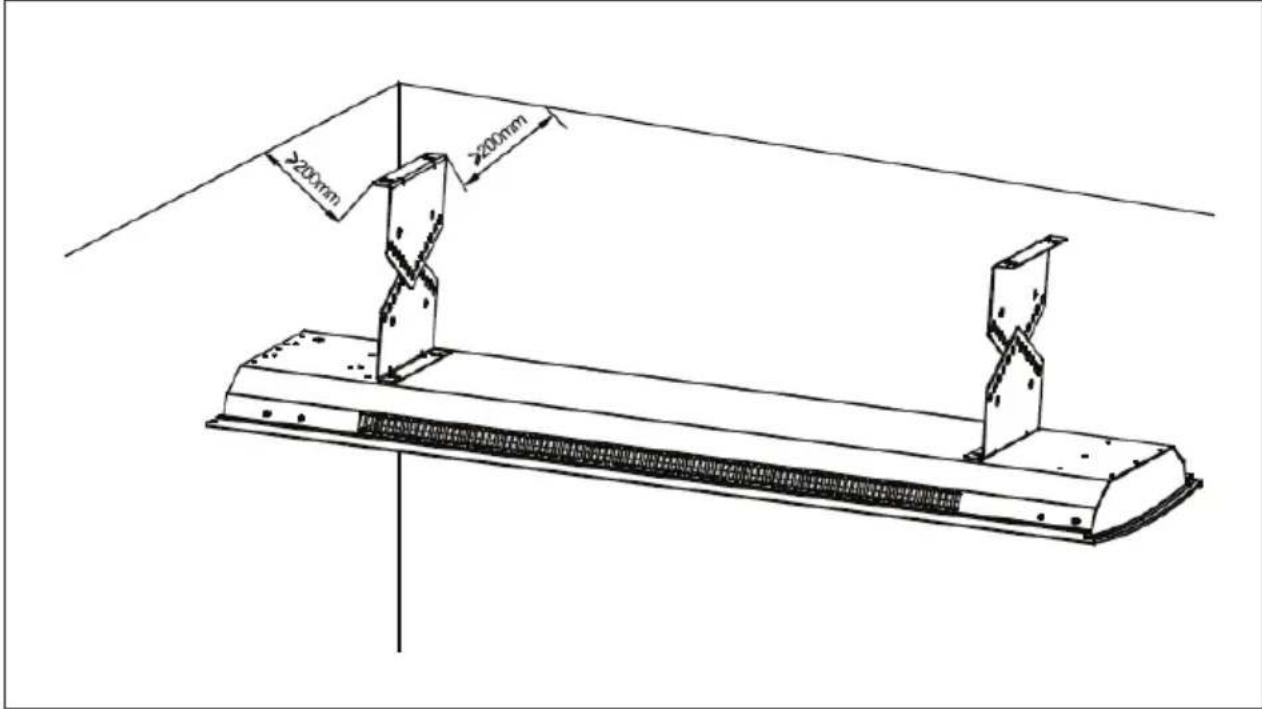

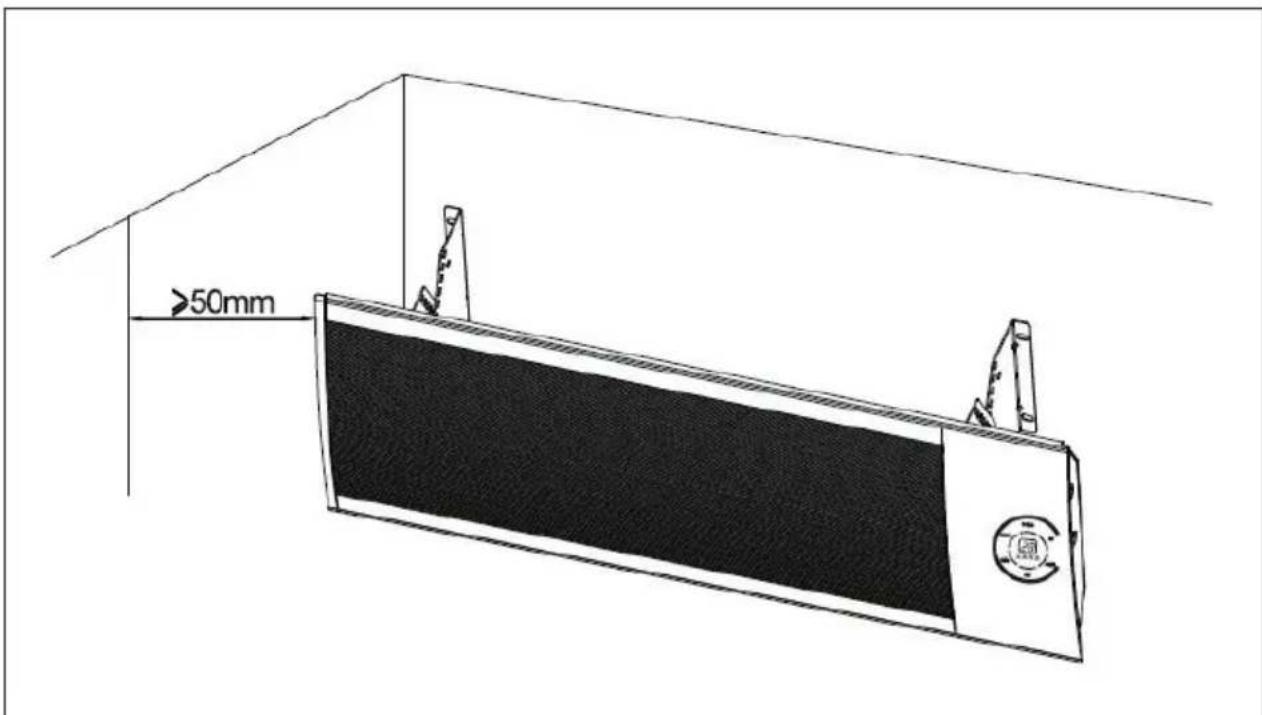

Minimum distances to the walls

OPERATION

• Carefully remove the heater from the box. Please be sure to keep the box, as you can store the device in it during warmer seasons.
• Attach the heater as described in the installation instructions.
• Make sure that you do not use the same socket for the heater and other high-power appliances, as this could lead to a mains overload.

Switching on the device

• Once you have connected the device to the power supply, the power indicator on the device will light up.
• To turn the device on, press . The display shows the current room temperature. If the room temperature is lower than the preset temperature, the heating function is automatically activated. The indicator light then flashes.

Button lock

• First press the button. The indicator light will turn on and all buttons are locked.

Screen on/off

• When you press the button, the screen will turn off, but the indicator light will remain on.
• Press the button again to turn the screen back on.

Temperature setting

• Press or to set the temperature. Pressing the or buttons increases or decreases the temperature by one degree at a time. The maximum temperature setting is 45^ and the minimum temperature setting is 5^ . Set the desired temperature and the device will automatically save the set temperature, return to working mode and display the room temperature.

Time setting

• When you press the TIME button, the display shows [88]. Press the or button to set the time before auto power off. The minimum is one hour and the maximum time setting is nine hours. Each time you press the or button, the set period will increase or decrease by one hour. After you set the time, the system will save it automatically and return to working mode. The temperature and the time until switch-off are then displayed on the screen.

Switching off the appliance

• Press the button to turn off the device. The indicator light will stay on even after the power is turned off if the device is plugged into the power outlet.

Important notes on use

CAUTION

Risk of burns! The heater gets very hot when in use. To avoid burns, do not touch the surface.

• If you require service or repair of the device, please contact customer service or a qualified person.
• To avoid damage, the power cord must be replaced by the manufacturer or another qualified person.
• Do not allow children or infirm persons to operate the device unsupervised.

CLEANING AND CARE

• Before cleaning, unplug the appliance from the wall outlet and allow it to cool down completely.
• Do not use abrasive cleaners or solvents for cleaning and never immerse the device in water.
• Clean the outside with a soft and damp cloth.
• This device contains parts that are not accessible to the user. Repairs may only be carried out by qualified specialists.

PRODUCT DATA SHEET

Model identifier(s): 10031978
Item Symbol Value Unit Item	Unit
Heat output Type of heat input, for electric storage local space				heaters only
Nominal heat output P	nom	2.2 kW	manual heat	charge control, with integrated thermostat		N/A
Minimum heat output (indicative)	Pmin	1.1 kW	manual heat	charge control with room and/ or outdoor temperature feedback		N/A
Maximum continuous heat output	Pmax,c	2.2 kW	electronic heat	heat charge control with room and/or outdoor temperature feedback		N/A
Auxiliary electricity consumption fan assisted heat output				N/A
At nominal heat output	elmax	2.236	kW Type	of heat output/room temperature control
At minimum heat output	elmin	N/A	kW		single stage heat output and no room temperature control	no
In standby mode	elsb	0.42 W	Two	or more manual stages, no room temperature control		no
					with mechanic thermostat room temperature control	no
					with electronic room temperature control no
					electronic room temperature control plus day timer	yes
					electronic room temperature control plus week timer	no
					Other control options
					room temperature control, with presence detection	no
					room temperature control, with open window detection	yes
					with distance control option	no
					with adaptive start control	no
					with working time limitation	no
					with black bulb sensor	yes
Contact details	Chal-Tec GmbH, Wallstraße 16, 10179, Berlin, Germany

If there is a legal regulation in your country regarding the disposal of electrical and electronic equipment, this symbol on the product or on the packaging indicates that this product must not be disposed of with household waste. Instead, it must be taken to a collection point for the recycling of electrical and electronic equipment. By disposing of this product in accordance with the regulations, you are protecting the environment and the health of those around you from negative consequences. For information on recycling and disposal of this product, contact your local government or household waste disposal service.

This product contains batteries. If there is a legal regulation in your country regarding the disposal of batteries, the batteries must not be disposed of in household waste. Consult your local regulations for the disposal of batteries. By disposing of this product in accordance with the regulations, you are protecting the environment and the health of those around you from negative consequences.

MANUFACTURER & IMPORTER (UK)

Manufacturer:

Chal-Tec GmbH, Wallstrasse 16, 10179 Berlin, Germany.

Importer for Great Britain:

Berlin Brands Group UK Limited

PO Box 42

272 Kensington High Street

London, W8 6ND

United Kingdom
