Dear Customer,

Congratulations on purchasing this equipment. Please read this manual carefully and take care of the following hints to avoid damages. Any failure caused by ignoring the items and cautions mentioned in the instruction manual are not covered by our warranty and any liability. Scan the QR code to get access to the latest user manual and other information about the product.

QR code image containing encoded data, no visible human-readable text

CONTENTS

Technical Specifications 15

Safety Instructions 16

Installation 18

Controls Overview 20

Device Control by Smartphone 21

Maintenance and Cleaning 23

Disposal Considerations 24

Manufacturer & Importer (UK) 24

TECHNICAL SPECIFICATIONS

Article number 10046346
Power supply 220–240 V~ 50/60 Hz
Power 2000 W
Mounting wall
WLANFrequencyMax. radio-frequency power	2,4 GHz<20 dBm

SAFETY INSTRUCTIONS

- Check that the voltage indicates on the data plate corresponds with that of the local network before connecting the appliance to the mains power supply.

- If the supply cord is damaged, it must be replaced by a qualified engineer in order to avoid a hazard.

- The heater must not be positioned directly under the power socket.

- Keep furniture, curtains and other flammable material at least 1 meter away from the appliance.

- Keep out of reach of children and do not allow them to operate this appliance.

- This appliance is intended for household use only and should not be used for industrial purposes.

- Do not operate this appliance after a malfunction or after being damaged in any way.

- Repairs to electrical appliances should only be performed by a qualified electrician.

- Improper repairs may place user at serious risk.

- Do not run the mains cable under carpets, rugs, etc.

- Do not allow the mains cable to hang over sharp edges or come in contact with hot surfaces.

- In order to avoid overheating, do not cover the heater.

- Do not use this heater with a programmer, timer, separate remote control system or any other device that switches the heater on automatically, since a fire risk exists if the heater is covered or positioned incorrectly.

- Never immerse the product in water or any other liquid for any reasons.

- Do not use this heater in the immediate surroundings of a bath, a shower or a swimming pool.

- Do not use the appliance outdoors.

- Do not use if you have wet hands.

- Never use the appliance on or near hot surfaces.

- If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

- Before cleaning the appliance, make sure it is unplugged from the power and that it is completely cooled.

- Do not clean the appliance with abrasive chemicals.

- Never use accessories that are not recommended or supplied by the manufacturer. It could cause danger to the user or damage to the appliance.

- This device may be only used by children 8 years old or older and persons with limited physical, sensory and mental capabilities and / or lack of experience and knowledge, provided that they have been instructed in use of the device by a responsible person who understands the associated risks.

- Children of less than 3 years should be kept away unless continuously supervised.

• Children aged from 3 years and less than 8 years shall only switch on/off the appliance provided that it has been placed or installed in its intended normal operating position and they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children aged from 3 years and less than 8 years shall not plug in, regulate and clean the appliance or perform user maintenance.

- Children should be supervised to ensure that they do not play with the appliance.

CAUTION

Risk of burns! Some parts of this product can become very hot and cause burns. Particular attention has to be given where children and vulnerable people are present.

• Always ensure the heater is plugged into a suitable socket, one that is tested for outdoor use.
• To disconnect heater, turn controls to OFF, then remove plug from socket. Do not unplug by pulling on the power cable.
• Always unplug the unit and ensure the unit is completely cold before moving, cleaning or storing.
• This heater is intended for domestic use only and should not be used commercially for contract purposes. Any alternative use, not recommended by the manufacturer, may result in fire, electric shock, or injury to persons.
• The use of attachments on the heater is not recommended.
• The heater must not be located immediately below a socket outlet.
• Do not use this heater with a programmer, timer, separate remote-control system or any other device that switches the heater on automatically, since a fire risk exists if the heater is covered or position incorrectly.
• Do not use this heater in the immediate surroundings of a bath, a shower or a swimming pool.

INSTALLATION

Before the installation, the following matters need your attention.

• Products should be put down gently.
• Installation in acidic and alkaline environments is not recommended.
• The product must be earthed.
- The products are required to check the product brand mark on the voltage and the local voltage whether conform.
- Ensure the power rating should have sufficient current carrying capacity.

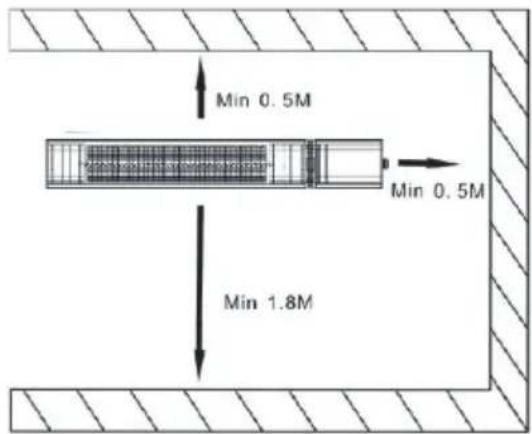

Ensure the production's installation site

For safe use of the product, the product installation position should have a minimum height of 1.8 m from the ground, ceiling, roof, and a minimum distance of 0.5 m from both sides walls.

Min 0.5M Min 0.5M Min 1.8M

Installation steps

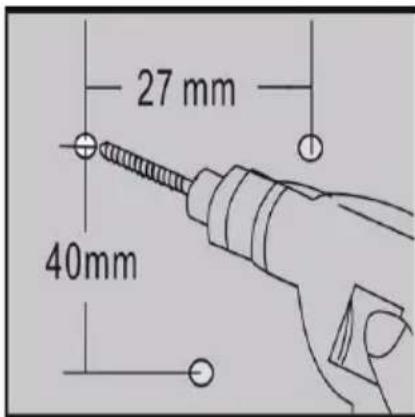

1. Depending on where the product installation location is, use a power drill to make four 8 mm round holes.

27 mm 40mm

1. Insert the three plastic wall anchors into the three holes.

Three identical cylindrical objects with circular heads placed on a plain background (no text or symbols)

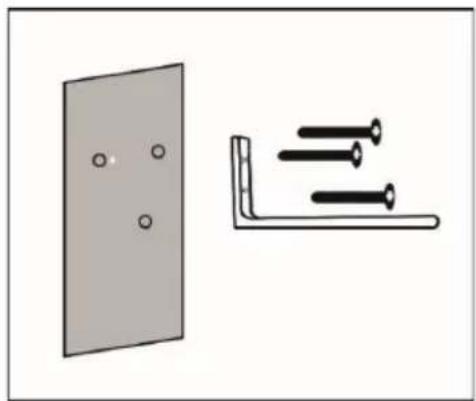

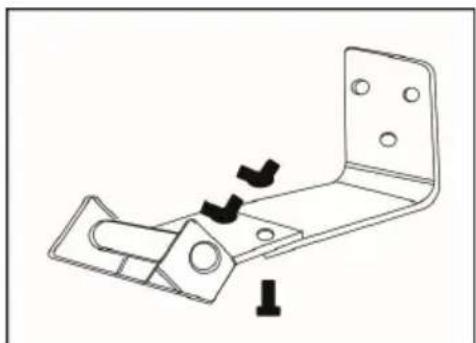

1. Fix the bracket using three ST4×35 screws and make sure the installation points are fixed securely.

Simple diagram showing a gray panel and a bracket with three black bolts (no text or symbols)

1. Before fixing the heater, make sure the rocker power switch on the right side and then fixed the bracket to the heater using two M6×14 screws and butterfly nuts.

Technical line drawing of a metal bracket with mounting holes and a pull-up force indicator (no text or symbols)

You can adjust the heater head as indicated in the illustration.

Technical line drawing of a mechanical component with no visible text or symbols

CONTROLS OVERVIEW

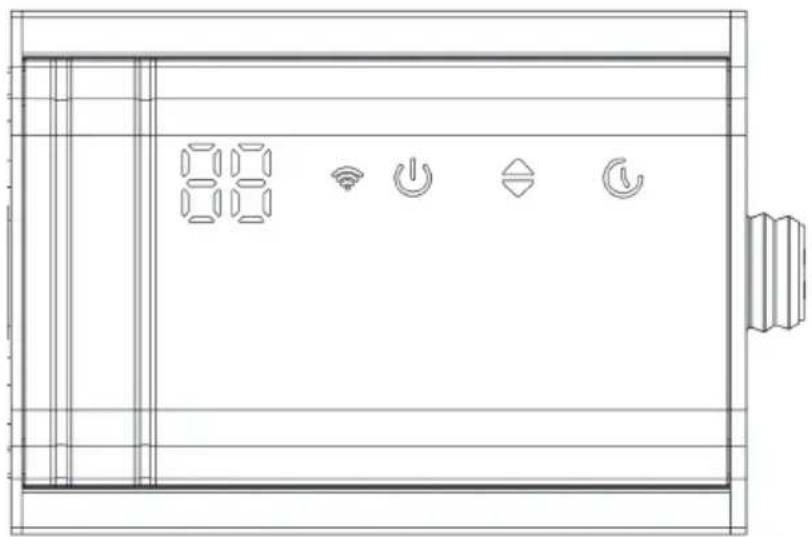

Display panel

Technical line drawing of a device panel with six labeled icons (no text or symbols)

The rocker power switch on the right side controls power on/off.

After power on, touch the power switch in the control panel to make the heater to to standby P. Then touch the up/down button to control different power settings from P1-P9.

After turn on the heater, touch the timer button in the control panel to control power off from 1 to 24 hours.

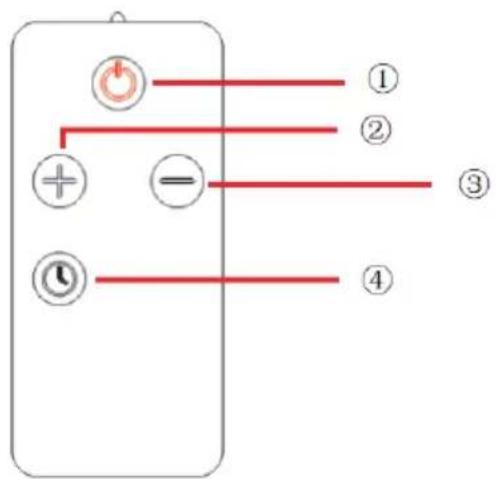

Remote control

Diagram of a battery terminal with labeled electrical symbols and numbered connection points

1 Standby/off Switches the heater to standby/off.
2 Up button Increase power settings or timer.
3 Down button Decrease power settings or timer
4 Timer After power on, press this button to turn the timer on and use up and down button to choose different hours.

DEVICE CONTROL BY SMARTPHONE

If you integrate the device into your home WiFi, you can conveniently operate it via the associated Blumfeldt app. The app not only allows you to remotely control the device via your smartphone, but also gives you access to recipes and additional information.

Follow these steps to connect your smartphone to your Blumfeldt device:

1. Download the Blumfeldt app first by scanning the QR code with your smartphone (see below), or download it directly from App Store or Google Play.
2. Make sure your smartphone is connected to the same WiFi network that your Blumfeldt device is to be connected to.
3. Open the Blumfeldt app.
4. Sign in to your account. If you do not have an account, sign up in the Blumfeldt app.
5. Follow the instructions from the app.

App Download

Use the scan function of your smartphone to scan the QR code and save the app on your smartphone.

Note: The app provides further information on how to use the app and help on how to connect to your device as soon as you open it for the first time.

iOS Android

QR code with a green logo in the center, likely linking to a digital service or website.

QR code with green logo in center, likely linking to a digital service or website

Troubleshooting connection problems

If your Blumfeldt device cannot be found in the WLAN, check the following:

1. The device is not plugged in. Make sure that your device is plugged into an electric socket.
2. The device is not in pairing mode. Make sure that the WiFi indicator (LED) on the smart device control panel is blinking as described in the 'Reset WiFi settings' instruction of your smart device (instructions are usually available on device connection process).
3. The WiFi access point does not operate on 2.4 GHz. Make sure that your access point operates on 2.4 GHz band and you have a separate SSID on 2.4 GHz band. If you are not sure about the operating band of your access point, please contact your internet provider company.

Important: please note that if your WiFi router is dual band - operating on both 2.4 GHz and 5 GHz band - you need to separate the SSIDs for each band and use the 2.4 GHz SSID for connection.

1. Firewall settings of your WiFi network; the firewall setting of your WiFi network may not allow the Blumfeldt app to configure the WiFi settings on your smart device. Please make sure that you are not using a public WiFi network, e.g. airports, dormitories, companies, etc.

2. Different credentials used in smartphone and the app. Make sure that the WiFi credentials entered in the Blumfeldt app are the same as the ones that your smartphone is connected to.

Following the above mentioned points, if your smart device still fails to connect to the app, please contact us via email for support: [e-mail]

MAINTENANCE AND CLEANING

Attention! Careful and regular maintenance of Infrared Heater is required to attain a long and efficient operation of your appliance.

1. Check the cleanliness of the Reflector and IR-Filament at least once a month. If necessary, apply cleaning and maintenance instructions.
2. The number of checks may be increased considering the amount of dust in the environment.
3. Check the deformation of the Reflector, Wire and Frame visually while cleaning the appliance. In case of any deformation, consult a qualified technician.
4. Check the power cable and plug visually while cleaning the appliance. In case of any deformation, consult a qualified technician.
5. It is recommended to change the reflector every 2 years for more efficient operation.

Cleaning

Attention! Regular and careful cleaning helps your heater to operate efficiently for many years.

1. Unplug your power cable for your safety before cleaning your appliance.
2. Take out the front grid wire through the inlets on the frame using a slotted screwdriver.
3. The reflector and filament must be cleaned with a soft cloth, a smooth brush or cool or dry air. The cloth may be damp but never too wet and the cleaner should not include any chemicals.
4. Refrain from using cleaning materials likely to damage the reflector (cleanser etc.).
5. Reinsert the wire grid using a slotted screwdriver.

DISPOSAL CONSIDERATIONS

Symbol of a trash bin with crossed lines indicating no waste, and a solid black rectangle below (no text or labels)

If there is a legal regulation for the disposal of electrical and electronic devices in your country, this symbol on the product or on the packaging indicates that this product must not be disposed of with household waste. Instead, it must be taken to a collection point for the recycling of electrical and electronic equipment. By disposing of it in accordance with the rules, you are protecting the environment and the health of your fellow human beings from negative consequences. For information about the recycling and disposal of this product, please contact your local authority or your household waste disposal service.

This product contains batteries. If there is a legal regulation for the disposal of batteries in your country, the batteries must not be disposed of with household waste. Find out about local regulations for disposing of batteries. By disposing of them in accordance with the rules, you are protecting the environment and the health of your fellow human beings from negative consequences.

MANUFACTURER & IMPORTER (UK)

Manufacturer:

Chal-Tec GmbH, Wallstrasse 16, 10179 Berlin, Germany.

Importer for Great Britain:

Berlin Brands Group UK Limited

PO Box 42

272 Kensington High Street

London, W8 6ND

United Kingdom
