USER MANUAL Bonito Foppapedretti

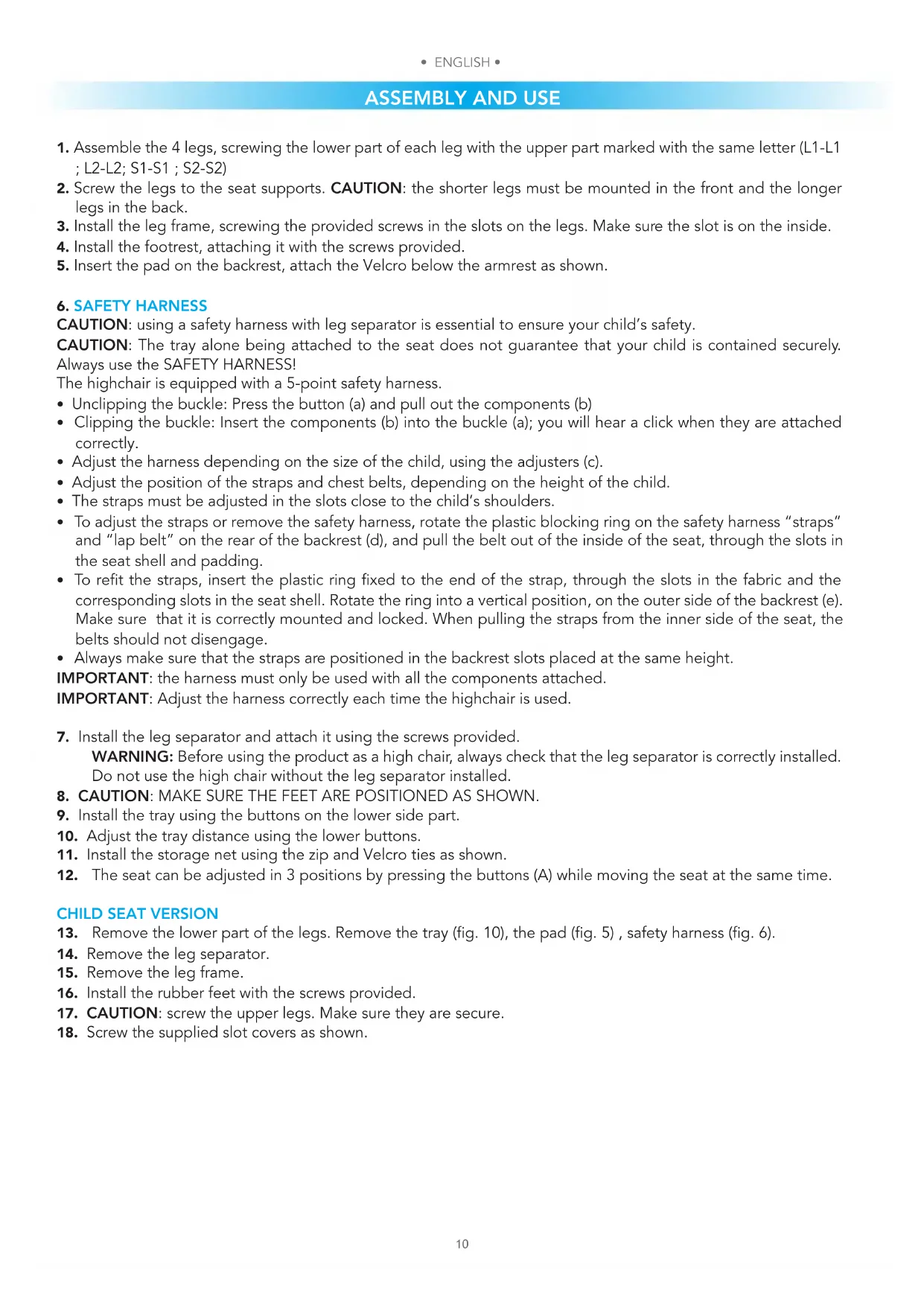

1. Assemble the 4 legs, screwing the lower part of each leg with the upper part marked with the same letter (L1-L1

; L2-L2; S1-S1 ; S2-S2)

2. Screw the legs to the seat supports. CAUTION: the shorter legs must be mounted in the front and the longer

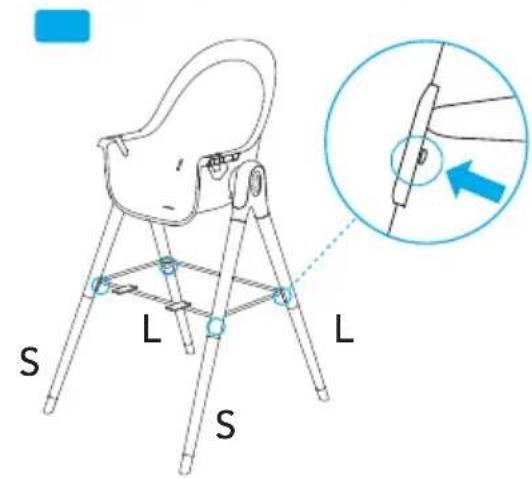

3. Install the leg frame, screwing the provided screws in the slots on the legs. Make sure the slot is on the inside.

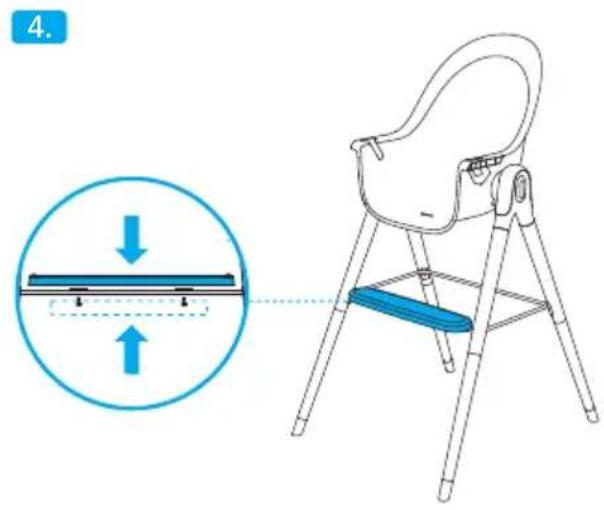

4. Install the footrest, attaching it with the screws provided.

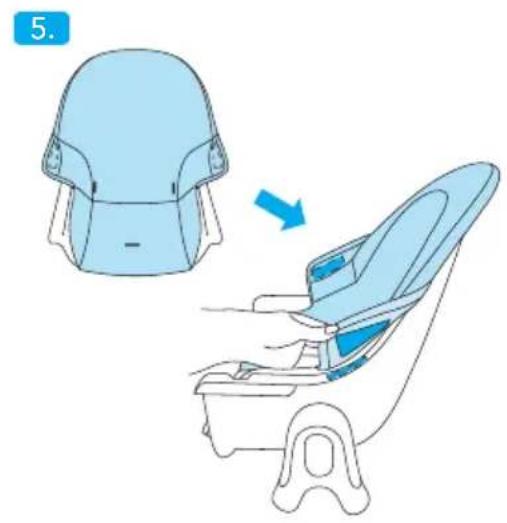

5. Insert the pad on the backrest, attach the Velcro below the armrest as shown.

CAUTION: using a safety harness with leg separator is essential to ensure your child’s safety. CAUTION: The tray alone being attached to the seat does not guarantee that your child is contained securely. Always use the SAFETY HARNESS! The highchair is equipped with a 5-point safety harness.

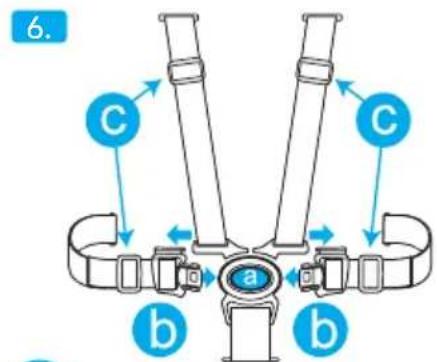

• Unclipping the buckle: Press the button (a) and pull out the components (b)

• Clipping the buckle: Insert the components (b) into the buckle (a); you will hear a click when they are attached correctly.

• Adjust the harness depending on the size of the child, using the adjusters (c).

• Adjust the position of the straps and chest belts, depending on the height of the child.

• The straps must be adjusted in the slots close to the child’s shoulders.

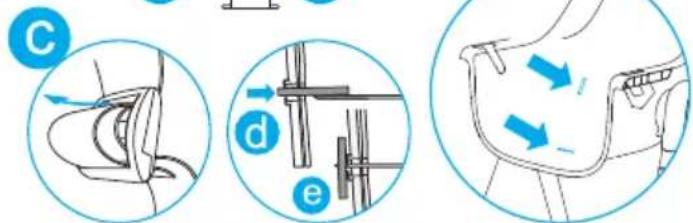

• To adjust the straps or remove the safety harness, rotate the plastic blocking ring on the safety harness “straps” and “lap belt” on the rear of the backrest (d), and pull the belt out of the inside of the seat, through the slots in the seat shell and padding.

• To ret the straps, insert the plastic ring xed to the end of the strap, through the slots in the fabric and the corresponding slots in the seat shell. Rotate the ring into a vertical position, on the outer side of the backrest (e). Make sure that it is correctly mounted and locked. When pulling the straps from the inner side of the seat, the belts should not disengage.

• Always make sure that the straps are positioned in the backrest slots placed at the same height. IMPORTANT: the harness must only be used with all the components attached. IMPORTANT: Adjust the harness correctly each time the highchair is used.

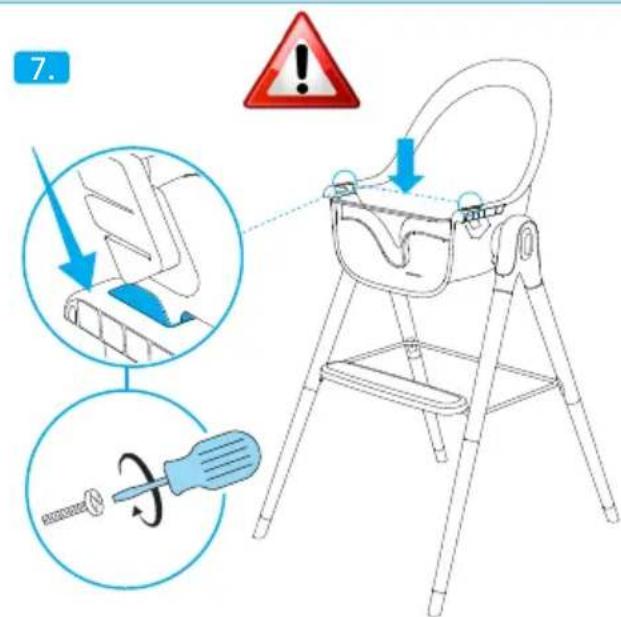

7. Install the leg separator and attach it using the screws provided.

WARNING: Before using the product as a high chair, always check that the leg separator is correctly installed.

Do not use the high chair without the leg separator installed.

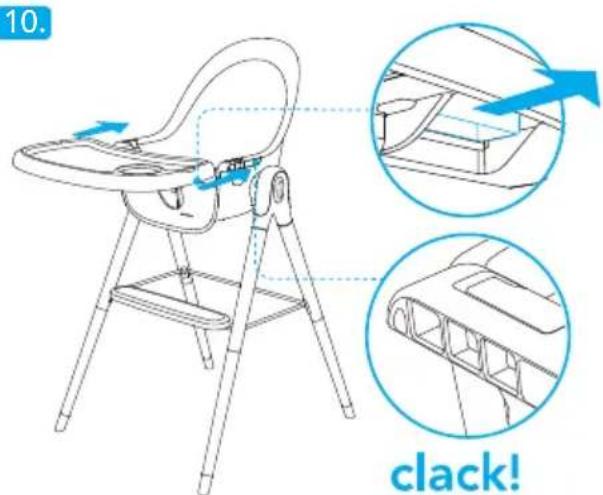

10. Adjust the tray distance using the lower buttons.

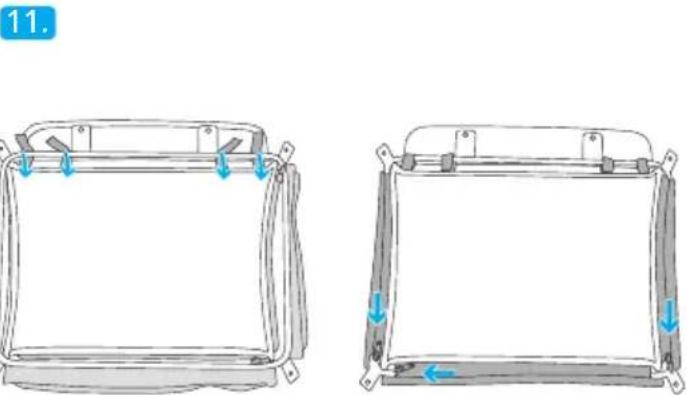

11. Install the storage net using the zip and Velcro ties as shown.

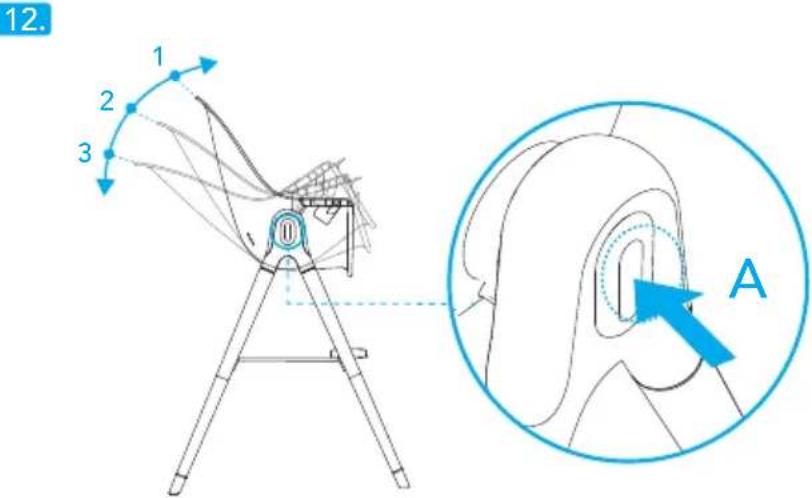

12. The seat can be adjusted in 3 positions by pressing the buttons (A) while moving the seat at the same time.

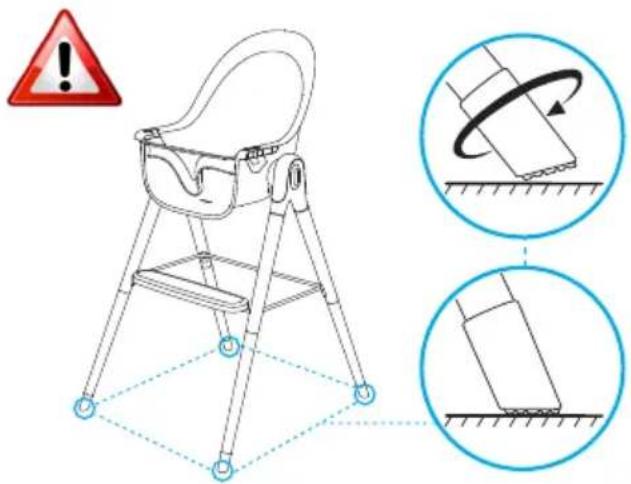

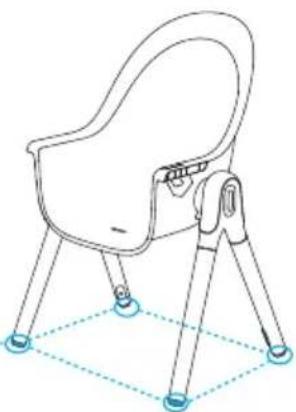

16. Install the rubber feet with the screws provided.

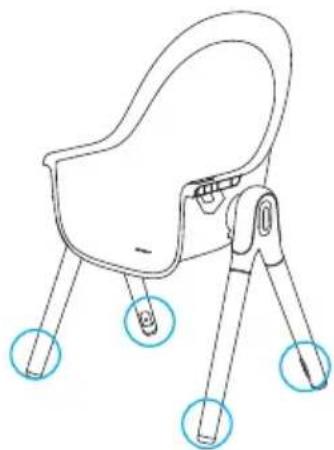

17. CAUTION: screw the upper legs. Make sure they are secure.

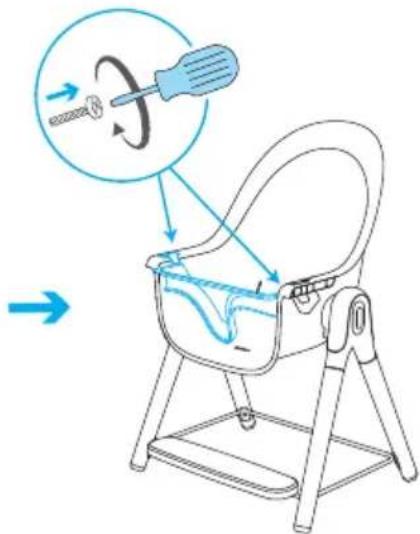

18. Screw the supplied slot covers as shown.

• WARNING: Never leave the child unattended.

• Always use the restraint system.

• Falling hazard: Prevent your child from climbing on the product.

• Do not use the product unless all components are correctly fitted and adjusted.

• Be aware of the risk of open fire and other sources of strong heat in the vicinity of the product.

• Be aware of the risk of tilting when your child can push its feet against a table or any other structure.

• Use the high chair only when your baby can sit up by himself.

• Do not use this HIGH CHAIR if any part is broken, torn or missing.

• Do not use components, spare parts or accessories that have not been supplied or approved by the manufacturer.

• This product is intended for children able to sit up unaided and up to 3 years or a maximum weight of 15 kg.

• In order to guarantee the safety of your child when using this product as a High chair it is necessary to use the safety harness with crotch strap correctly fitted to the seat, the restraint barrier and the padded seat reducer. Always use the safety harness.

• This HIGH CHAIR must only be assembled by an adult.

• Ensure that it is correctly assembled before use.

• This HIGH CHAIR must not be used if one of the elements has not been assembled or attached correctly and adequately.

• Always use the safety harness to prevent the child being seriously injured by falling or sliding out of the product.

• Check regularly that the harness is correctly attached and not damaged or frayed.

• WARNING: Make sure that the child always has the harness properly secured and adjusted to the right size.

• IMPORTANT: The harness must only be used with all the components attached.

• CAUTION: The tray alone being attached to the seat does not guarantee that your child is secured. Always use the safety harness!

• Do not place the HIGH CHAIR near to windows or walls, or where there are cords, curtains or similar, which may be used by the child to climb or cause suffocation or strangulation.

• WARNING: Proximity to fire or other sources of strong heat, such as electric or gas heaters, can be dangerous.

• Do not place the product near to stairs.

• Do not place it on a raised surface, e.g. on a table or a worktop.

• Use the product only on flat surfaces.

• Do not use as a car seat or travel seat.

• Do not move or carry the product with your child inside it.

• CAUTION: Make sure that your child is at a safe distance when opening or closing. When adjusting the HIGH

• CHAIR (tilting the backrest or positioning the tray) make sure that the moving parts of the HIGH CHAIR do not come into contact with your child’s body.

• Do not allow your child to climb into the HIGH CHAIR unaided or to play in it or dangle out of it. This product is WARNINGS12

• ENGLISH • • ENGLISH • not a toy.

• This product is intended for use by a single child.

• Check periodically that all the components are locked correctly.

• Remove and dispose of the packaging safely. Plastic bags can be dangerous, with a risk of suffocation, if handled by children.

• Make sure that all users are aware of how to work the product correctly.

• Never use the high chair without the cover.

• Do not attach any accessories, spare parts or components to the product that are not supplied by the manufacturer.

• Do not make any modifications: any changes could compromise safety. CHILD SEAT VERSION (EN 17191:2021) CAUTION:

• DO NOT place this product near a window as it can be used as a step by the child and cause the child to fall out of the window.

• Be aware of the risk of open fires and other sources of strong heat in the vicinity of the product.

• DO NOT place this product near a window where cords from blinds or curtains could strangle a child.

• Minimum age for use: 3 years.

• The child must be able to walk.

• Never leave your child unattended.

• DO NOT use as a booster seat.

• DO NOT use on a raised surface (table, chairs, etc.). Only use on flat, stable surfaces.

• DO NOT use near stairs, raised, inclined, or irregular surfaces, or pools.

• To avoid a fire risk, never place the product near fans, electric heaters, gas stoves or other sources of strong heat.

• DO NOT use if any part is broken or torn.

• Make sure the area in which the product will be used is free of objects or furnishing that obstruct or impair its proper use.

• Never use it to transport the child in a motor vehicle.

• To prevent the risk of falling, never allow the child to stand in the chair.

• Do not allow other children to play unattended near the product.

• Always use under adult supervision.

• This product is intended for use in the home and on dry surfaces.

• Do not install accessories, spare parts or components that have not been supplied by the manufacturer.

• Do not make any changes: any variation could compromise safety.

• Never move the product with the child sitting in it.

MAINTENANCE AND CLEANING

• Make sure that all the locking devices are functioning properly and check regularly that the safety devices are correctly engaged and locked.

• Check all parts subject to wear or tear regularly.

• Do not use spray lubricants, do not use aggressive substances.

• To clean the HIGH CHAIR, use a sponge, hot water and a mild soap or detergent, and dry thoroughly.

• Stubborn stains may be removed with a mild detergent. Never use abrasive substances, products containing ammonia or bleach, or alcohol-based detergents.

• To clean the lining, follow the instructions on the washing label. WARNINGS13

• ENGLISH • • ENGLISH • FORMAL GUARANTEE The contents of this document as stated below will come into effect as from 01.01.2005 and replace, on every account and in full, any previous message referring to the guarantee provided by Foppa Pedretti S.p.A. FORMAL GUARANTEE Foppa Pedretti S.p.A. the head ofce of which is located at n. 11 Via Volta, Grumello del Monte (Italy), guarantees directly to the Consumer that this brand new product is free of faults with regard to the materials, design and manufacture and that it complies with the characteristics as declared by the manufacturer. This formal guarantee is valid in all Member Countries of the European Union and it neither excludes nor limits the Consumer’s rights in accordance with mandatory measures provided for by the law with regard to the Retailer of the Product. To take advantage of this formal guarantee, the Consumer must return the faulty product to the Retailer, presenting to the same the proof of purchase of the Product which must clearly show the Retailer’s address, the date of purchase of the Product with the Retailer’s stamp and signature and an indication of the Product itself or, alternatively, the receipt which must not have been altered and which must clearly show the same information as that referred to above. The formal guarantee is valid for twelve (12) months from the date of purchase of the Product. During this period, Foppa Pedretti S.p.A. will repair or replace the faulty product, at its own discretion. The formal guarantee is granted to the end buyer of the Product (Consumer) and it neither excludes nor limits the mandatory rights of the Consumer as provided for by the law and/ or the rights that the Consumer may have with regard to the Dealer/Retailer of the Product. EXCLUSIONS TO THE FORMAL GUARANTEE. The formal guarantee is excluded in the case of damage caused to the Product for the following reasons: if the product is used in a way that does not comply with the information contained in the use and assembly instruction sheet, if the product is knocked or dropped, if the Product is exposed to humidity or extreme heat or environmental conditions, or to sudden changes in the same, corrosion, oxidization, unauthorized alterations or repairs to the Product, repairs using unauthorised spare parts, improper use, improper maintenance or failure to carry out the same, improper maintenance compared to the information given on the use and assembly instruction sheet, incorrect assembly, accidents, damage caused by food or drink, damage caused by chemical products, cases of force majeure. In any case, Foppa Pedretti S.p.A. declines all responsibility for damage caused to persons or to property, other than the Product, when such damage is caused by a failure to comply with the instructions/advice/warnings cont a ined in the manua l or, alternatively, in the use and assembly instruction sheet provided with each Product for the owner/user. (Purely as an example, in the case of a cot : “Check your baby constantly. Make sure that the sheets and blankets do not cover the baby’s head…”). Furthermore, Foppa Pedretti S.p.A. declines all responsibility for damage to persons and to property when the breakage of its products is due to a deterioration in the components of the Product that are subject to wear. All the components of the Product made of plastic are considered to be components subject to wear.14
