USER MANUAL LS50LED LENCO

Lenco Veratart machine with illuminated blue and black design, open lid, and no visible text or symbols on the device itself.

USER MANUAL Turntable with Built-in speakers and lighting animations

Usage of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure.

KEEP THESE INSTRUCTIONS IN MIND:

1. Do not cover or block any ventilation openings. When placing the device on a shelf, leave 5 cm (2") free space around the whole device.
2. Install in accordance with the supplied user manual.
3. Keep the device away from heat sources such as radiators, heaters, stoves, candles and other heat-generating products or naked flame. The device can only be used in moderate climates. Extremely cold or warm environments should be avoided. Working temperature between 0^ and 35^ C.
4. Avoid using the device near strong magnetic fields.
5. Electrostatic discharge can disturb normal usage of this device. If so, simply reset and restart the device following the instruction manual. During file transmission, please handle with care and operate in a static-free environment.
6. Warning! Never insert an object into the product through the vents or openings. High voltage flows through the product and inserting an object can cause electric shock and/or short circuit internal parts. For the same reason, do not spill water or liquid on the product.
7. Do not use in wet or moist areas such as bathrooms, steamy kitchens or near swimming pools.
8. The device shall not be exposed to dripping or splashing and make sure that no objects filled with liquids, such as vases, are placed on or near the apparatus.
9. Do not use this device when condensation may occur. When the unit is used in a warm wet room with damp, water droplets or condensation may occur inside the unit and the unit may not function properly; let the unit stand in power OFF for 1 or 2 hours before turning on the power: the unit should be dry before getting any power.
10. Although this device is manufactured with the utmost care and checked several times before leaving the factory, it is still possible that problems may occur, as with all electrical appliances. If you notice smoke, an excessive build-up of heat or any other unexpected phenomena, you should disconnect the plug from the main power socket immediately.
11. This device must operate on a power source as specified on the specification label. If you are not sure of the type of power supply used in your home, consult your dealer or local power company.
12. Keep away from animals. Some animals enjoy biting on power cords.
13. To clean the device, use a soft dry cloth. Do not use solvents or petrol based fluids. To remove severe stains, you may use a damp cloth with dilute detergent.
14. The supplier is not responsible for damage or lost data caused by malfunction, misuse, modification of the device or battery replacement.
15. Do not interrupt the connection when the device is formatting or transferring files. Otherwise, data may be corrupted or lost.
16. If the unit has USB playback function, the USB memory stick should be plugged into the unit directly. Don't use an USB extension cable because it can cause interference resulting in failing of data.
17. The rating label has been marked on the bottom or back panel of the device.
18. This device is not intended for use by people (including children) with physical, sensory or mental disabilities, or a lack of experience and knowledge, unless they're under supervision or have received instructions about the correct use of the device by the person who is responsible for their safety.
19. This product is intended for non professional use only and not for commercial or industrial use.
20. Make sure the unit is adjusted to a stable position. Damage caused by using this product in an unstable position vibrations or shocks or by failure to follow any other warning or precaution contained within this user manual will not be covered by warranty.
21. Never remove the casing of this device.
22. Never place this device on other electrical equipment.

23. Do not allow children access to plastic bags.

24. Only use attachments/accessories specified by the manufacturer.

25. Refer all servicing to qualified service personnel. Servicing is required when the device has been damaged in any way, such as the power supply cord or the plug, when liquid has been spilled or objects have fallen into the device, when the device has been exposed to rain or moisture, does not operate normally, or has been dropped.

26. Long exposure to loud sounds from personal music players may lead to temporary or permanent hearing loss.

27. If the product is delivered with power cable or AC power adaptor:

28. If any trouble occur, disconnect the AC power cord and refer servicing to qualified personnel.

29. Don't step on or pinch the power adaptor. Be very careful, particularly near the plugs and the cable's exit point. Do not place heavy items on the power adaptor, which may damage it. Keep the entire device out of children's reach! When playing with the power cable, they can seriously injure themselves.

● Unplug this device during lightning storms or when unused for a long period.

● The socket outlet must be installed near the equipment and must be easily accessible.

- Do not overload ac outlets or extension cords. Overloading can cause fire or electric shock.

● Devices with class 1 construction should be connected to a main socket outlet with a protective earthed connection.

● Devices with class 2 construction do not require a earthed connection.

● Always hold the plug when pulling it out of the main supply socket. Do not pull the power cord. This can cause a short circuit.

- Do not use a damaged power cord or plug or a loose outlet. Doing so may result in fire or electric shock.

1. If the product contains or is delivered with a remote control containing coin/cell batteries: Warning:

● "Do not ingest battery, Chemical Burn Hazard" or equivalent working.
● [The remote control supplied with] This product contains a coin/button cell battery. If the battery is swallowed, it can cause severe internal burns in just 2 hours and can lead to death.

- Keep new and used batteries away from children.

- If the battery compartment does not close securely, stop using the product and keep it away from children.

- If you think batteries might have been swallowed or placed inside any part of the body, seek immediate medical attention.

1. Caution about the use of Batteries:

● Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type.

● Battery cannot be subjected to high or low extreme temperatures, low air pressure at high altitude during use, storage or transportation.

● Replacement of a battery with an incorrect type that can result in an explosion or the leakage of flammable liquid or gas.

- Disposal of a battery into fire or a hot oven, or mechanically crushing or cutting of a battery, that can result in an explosion.

● Leaving a battery in an extremely high temperature surrounding environment that can result in an explosion or that leakage of flammable liquid or gas.

● A battery subjected to extremely low air pressure that may result in an explosion or the leakage of flammable liquid or gas.

● Attention should be drawn to the environmental aspects of battery disposal.

INSTALLATION

- Unpack all parts and remove protective material.

- Do not connect the unit to the mains before checking the mains voltage and before all other connections have been made.

1. TURNTABLE PARTS:

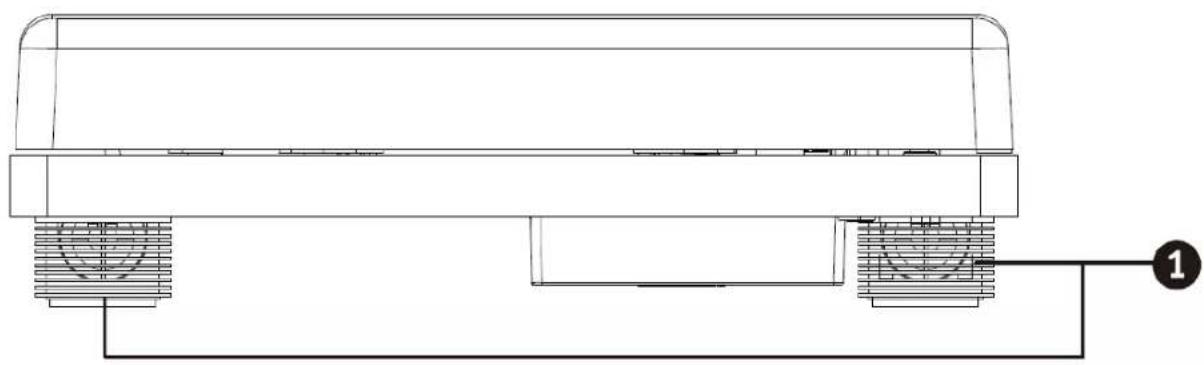

   FRONT


Technical line drawing of a mechanical assembly with two components and a numbered connection point (no text or symbols)

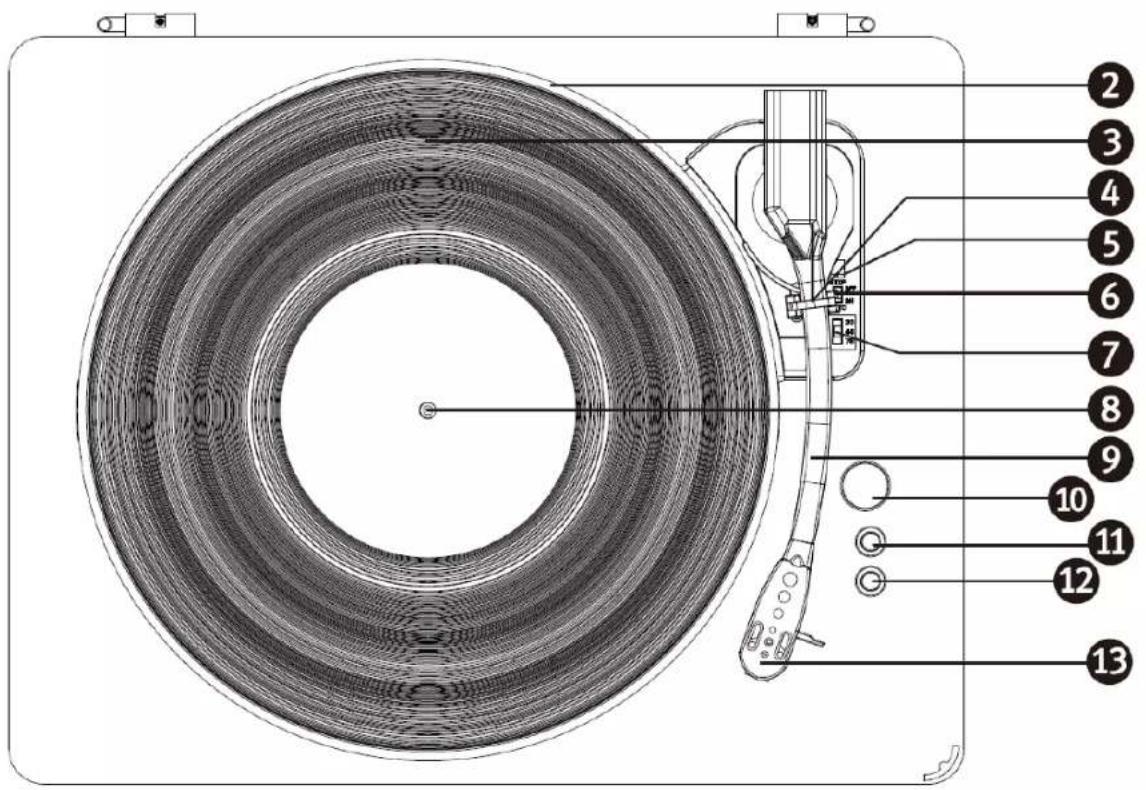

TOP

Technical diagram of a circular mechanical device with numbered components for identification

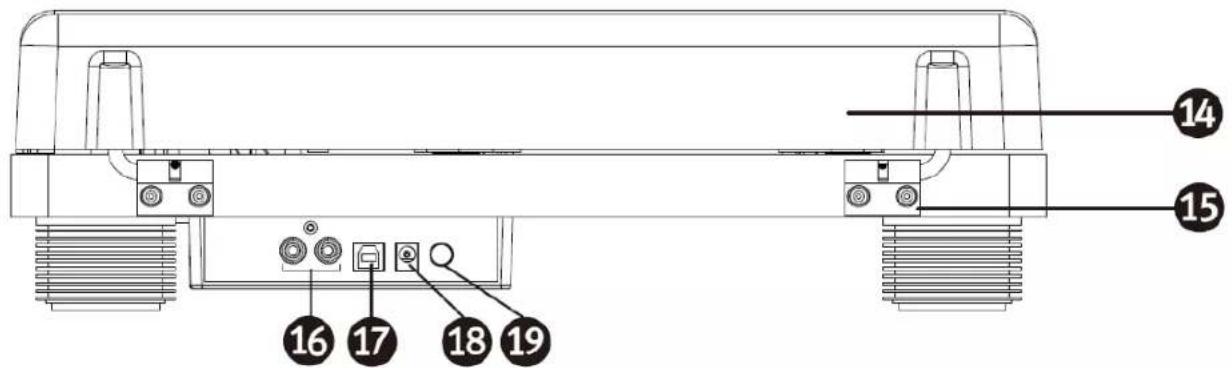

BACK

Technical diagram of a mechanical device with numbered components and labeled ports

1. Speaker
2. Turntable Platter
3. Slip Mat
4. Lift Lever Turntable Arm Lock
5. Lift Lever
6. Auto Stop Control Switch
7. Speed Selection Switch
8. Turntable Shaft
9. Turntable Arm
10. Volume Knob
11. Lighting button 1 (ON/OFF, Color)
12. Lighting button 2 (Music, Fade)
13. Phono Stylus Cartridge
14. Removable Dust Cover
15. Hinge
16. RCA Output Jack
17. USB Jack
18. Power Adaptor Jack
19. Power ON/OFF Button

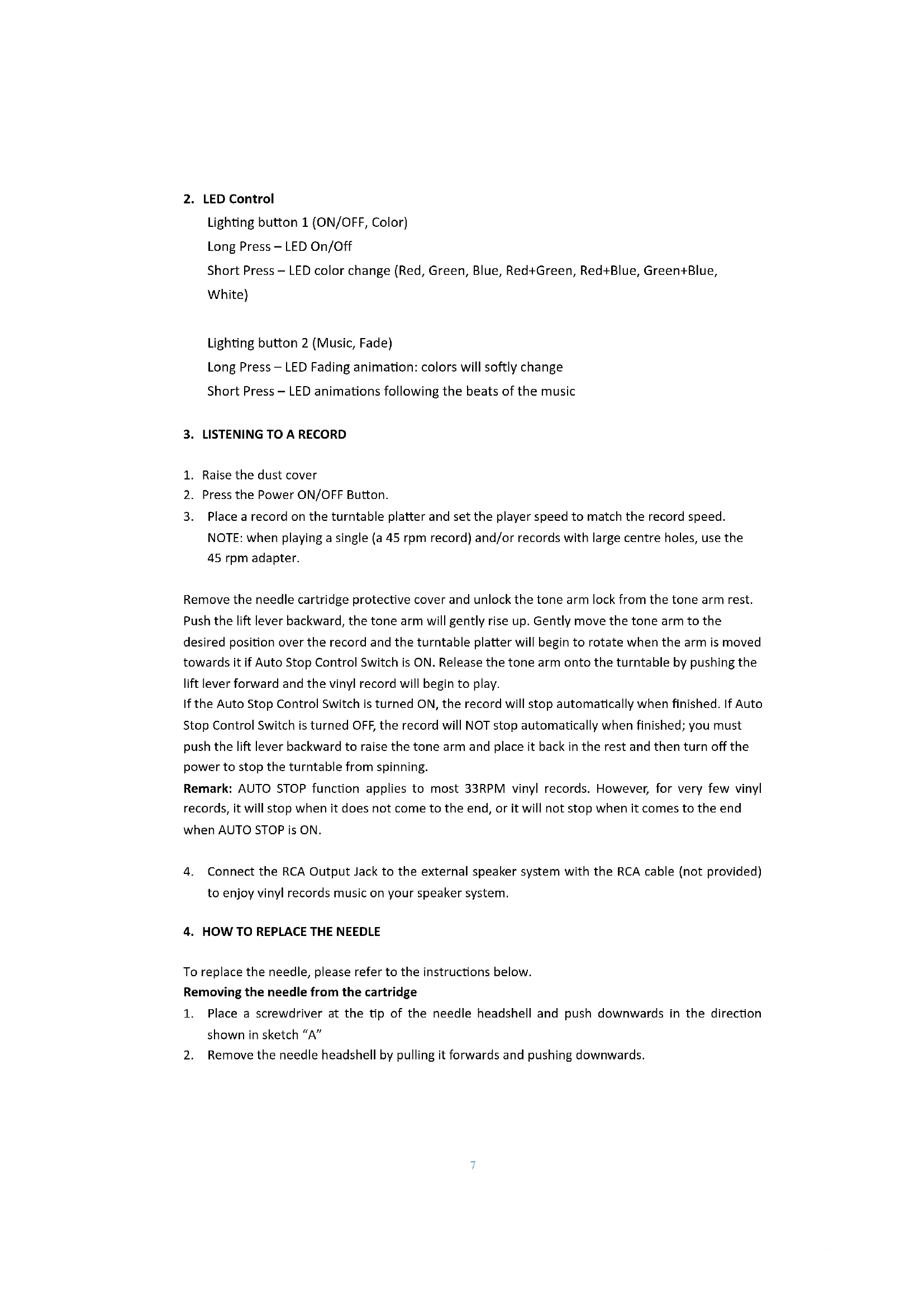

2. LED Control

Lighting button 1 (ON/OFF, Color)

Long Press – LED On/Off

Short Press – LED color change (Red, Green, Blue, Red+Green, Red+Blue, Green+Blue,

White)

Lighting button 2 (Music, Fade)

Long Press – LED Fading animation: colors will softly change

Short Press – LED animations following the beats of the music

3. LISTENING TO A RECORD

1. Raise the dust cover
2. Press the Power ON/OFF Button.
3. Place a record on the turntable platter and set the player speed to match the record speed.

NOTE: when playing a single (a 45 rpm record) and/or records with large centre holes, use the 45 rpm adapter.

Remove the needle cartridge protective cover and unlock the tone arm lock from the tone arm rest.

Push the lift lever backward, the tone arm will gently rise up. Gently move the tone arm to the desired position over the record and the turntable platter will begin to rotate when the arm is moved towards it if Auto Stop Control Switch is ON. Release the tone arm onto the turntable by pushing the lift lever forward and the vinyl record will begin to play.

If the Auto Stop Control Switch is turned ON, the record will stop automatically when finished. If Auto Stop Control Switch is turned OFF, the record will NOT stop automatically when finished; you must push the lift lever backward to raise the tone arm and place it back in the rest and then turn off the power to stop the turntable from spinning.

Remark: AUTO STOP function applies to most 33RPM vinyl records. However, for very few vinyl records, it will stop when it does not come to the end, or it will not stop when it comes to the end when AUTO STOP is ON.

1. Connect the RCA Output Jack to the external speaker system with the RCA cable (not provided) to enjoy vinyl records music on your speaker system.

4. HOW TO REPLACE THE NEEDLE

To replace the needle, please refer to the instructions below.

Removing the needle from the cartridge

1. Place a screwdriver at the tip of the needle headshell and push downwards in the direction shown in sketch "A"
2. Remove the needle headshell by pulling it forwards and pushing downwards.

Inserting the needle

1. Hold the tip of the needle headshell and insert it by pressing in the direction illustrated by "B".
2. Push the needle headshell upwards in the direction illustrated by "C" until the needle locks into the tip position.

Close-up of a black electronic device with a downward arrow and labeled point A (no text or symbols on the device itself)

Close-up of a mechanical component with labeled parts (C and B) and directional arrows indicating motion or movement (no readable text or symbols)

Guide Pins (inside)

AUDACITY SOFTWARE OVERVIEW

Audacity is free software, licensed under the GNU General Public License (GPL). More information as well as open source code can be found on the web at https://www.audacityteam.org/download/

* Please ensure you have installed the software before starting.

Setting up your PC to work with Audacity

1. Connect an input source to the unit.
2. Connect the USB lead to your computer.
3. Install the Audacity recording software.
4. Open the Audacity program.

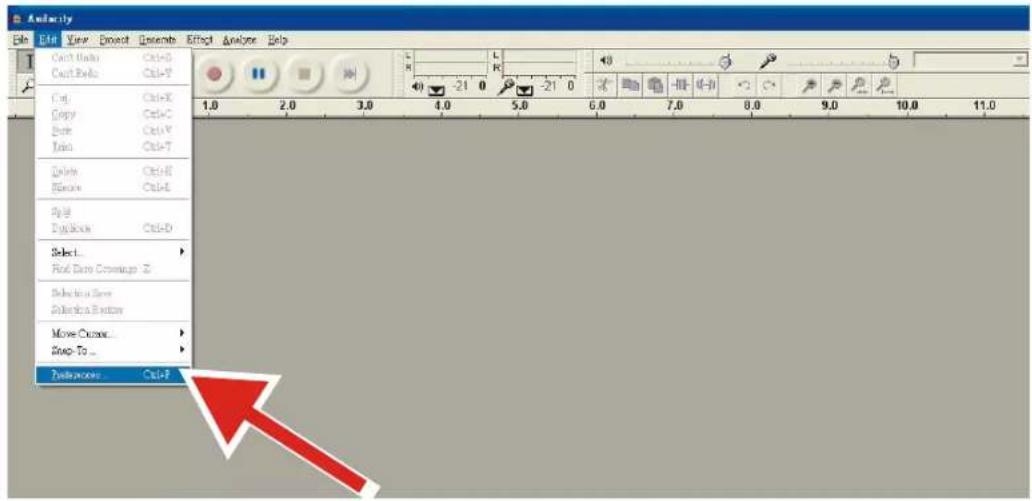

5. Select Preferences from the Edit tab in the Audacity Menu.

Unity Edit View Insert Elements Effect Adeline Help Cut Down Ctrl+G Cut Exit Ctrl+F Copy Ctrl+K Copy Ctrl+C Paste Ctrl+Y Paste Ctrl+T Delete Ctrl+E Delete Ctrl+L Play Update Ctrl+D Select... Find Data Coverings: Z Select from Save Shelatch Button Move Current... Snap-To... Feedback Ctrl+F

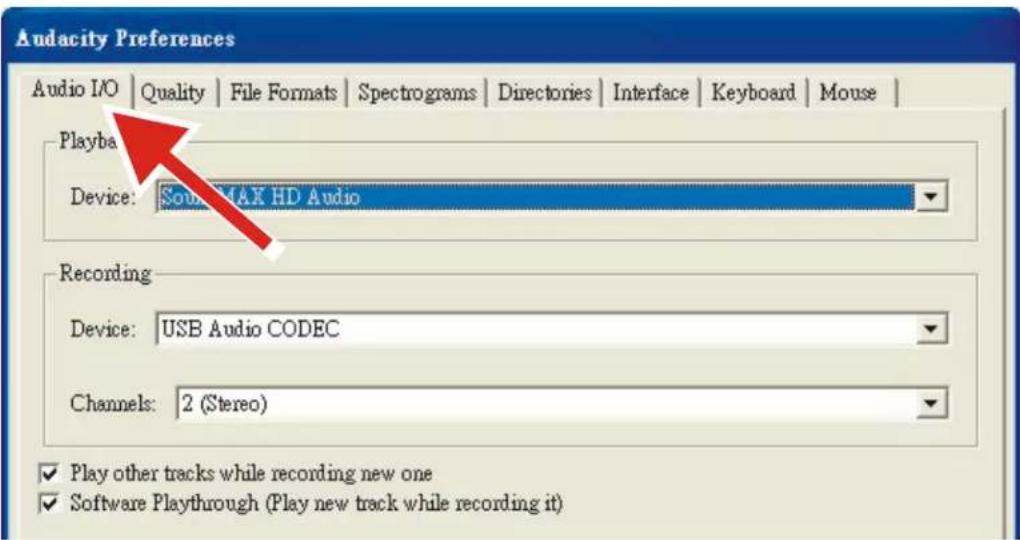

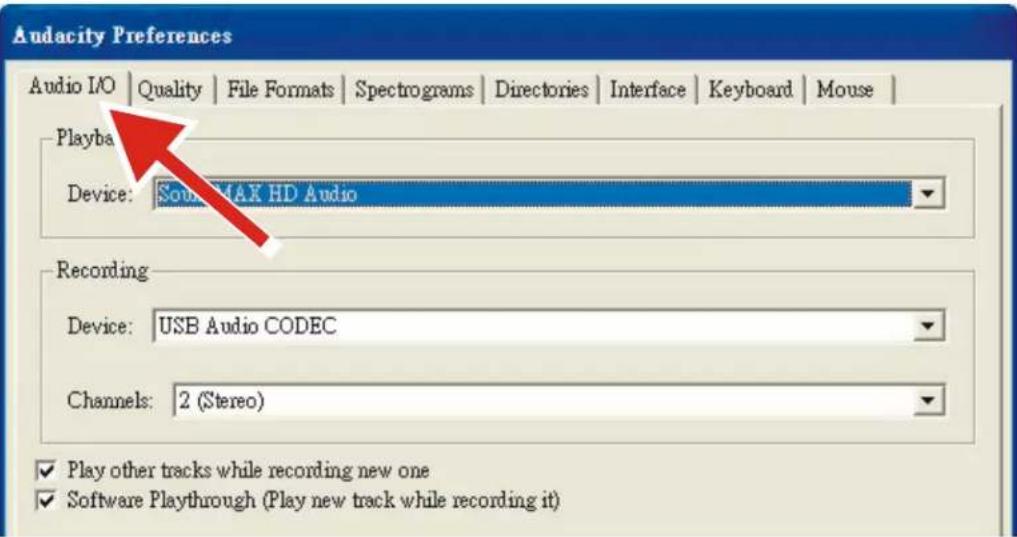

1. Select Audio I/O tab at the top left.

• Under Playback, Device, select your internal sound card.
• Under Recording, Device, select USB Audio CODEC.
• Under Recording, Channels, select 2 (Stereo).
- Check the box marked Play other tracks while recording new one.
• Check the box marked Software Playthrough.

Audacity Preferences Audio I/O | Quality | File Formats | Spectrograms | Directories | Interface | Keyboard | Mouse | Playba Device: South MAX HD Audio Recording Device: USB Audio CODEC Channels: 2 (Stereo) ✓ Play other tracks while recording new one ✓ Software Playthrough (Play new track while recording it)

Recording Albums with Audacity

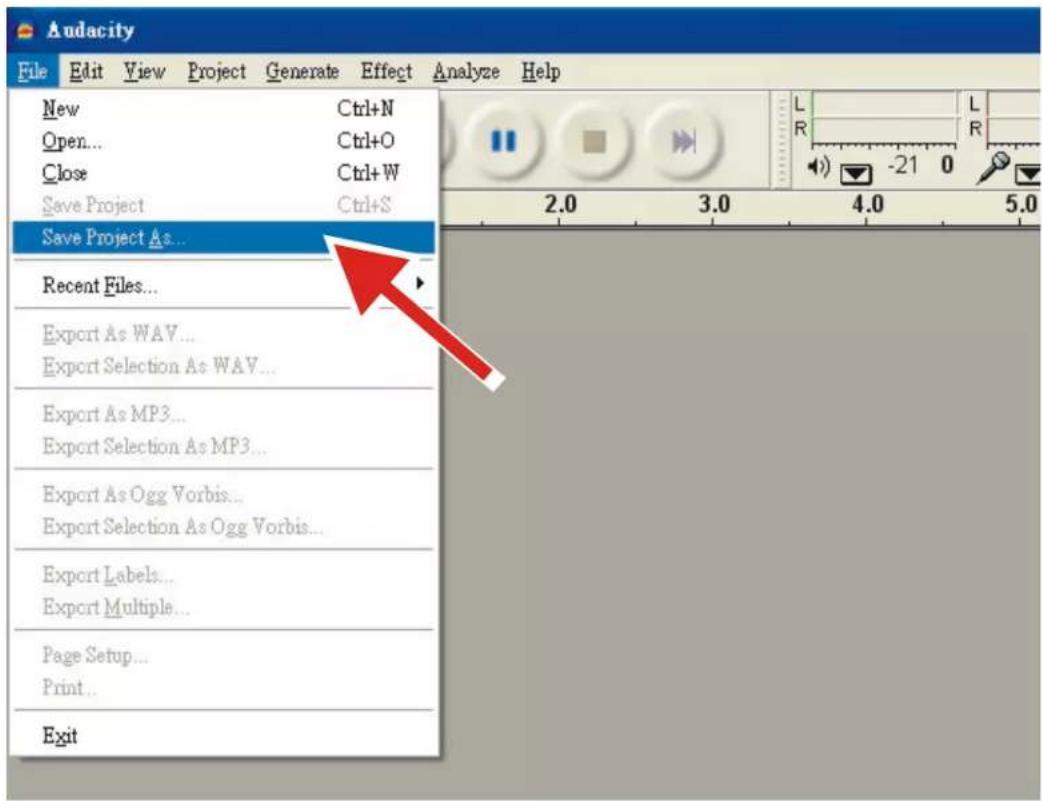

1. Saving a project

• Audacity writes all the changed and recorded audio to a directory called Projectname_data, which is located right where you saved the project file itself.
• Thus, select Save Project as from your Audacity File tab and choose a location and filename for your project.
• Please note that when you startup Audacity fresh, only the "Save As..." menu option is available.

Audacity File Edit View Project Generate Effect Analyze Help New Ctrl+N Open... Ctrl+O Close Ctrl+W Save Project Ctrl+S Save Project As... Recent Files... Export As WAV... Export Selection As WAV... Export As MP3... Export Selection As MP3... Export As Ogg Vorbis... Export Selection As Ogg Vorbis... Export Labels... Export Multiple... Page Setup... Print... Exit

2. How to record

- Set your USB turntable up to play the song or album you want to record.

- Click on the red Record button

to beto begin recording.

- Lower tone arm on USB turntable onto album and track you want to record.

- Click on the blue Pause button

to pause the recording. Press it again to continue.

- Click on the yellow Stop button.

That's it. You can now play around with your recording and explore the editing capabilities of Audacity. Remember that you can use the Undo function almost without limits while the project is open.

NOTE: CD's cannot be burned directly from the Audacity application. Other CD burning applications should be used.

Remark: For advanced operation, refer instructions inside CD.

1. TIPS FOR BETTER TURNTABLE PERFORMANCE

1. When opening or closing the turntable cover, handle it gently, gripping it either at the centre or at each side.
2. Do not touch the needle tip with your fingers; avoid bumping the needle against the turntable platter or record edge.
3. Frequently clean the needle tip-use a soft brush in a "back-to-front" motion only.
4. If you must use a needle cleaning fluid, use very sparingly.
5. Gently wipe the dust cover and turntable housing with a soft cloth. Use only a small amount of mild detergent to clean the turntable and dust cover.
6. Never apply harsh chemicals or solvents to any part of the turntable system.

7. Weight at the backend of the tone arm is set at standard needle pressure, it is not recommended to do adjustment; otherwise, it may affect the normal use of this turntable.

8. TECHNICAL SPECIFICATIONS

Lenco
Turntable	LS-50LED (V2)
Type	Belt drive full manual
Drive Motor	DC motor
Speed	33 1/3 rpm, 45 rpm, 78 rpm
Wow and flutter	<0.35%
Turntable platter	300mm
Cartridge
Type	Ceramic cartridge 402-M208-015
Stylus	0.7 mil
Optimum tracking force	4-6 gram
Output	160-380mv(HP-4005)
Frequency response	-28db(10KHz)
Crosstalk	10db(1KHz)
Signal-to-noise ratio(S/N)	40db
General
ADAPTOR	input AC100-240V~50/60Hz0.5A
	output DC12V1000mA
PRODUCT	DC12V1000mA
Audio output (Line Out)	400-600mv
Power consumption	12W
Dimension	410x330x118MM
Net weight	approx 3.23KGS

Power supply adaptor

Manufacturer: SHENZHEN SHI GUANGKAIYUAN TECHNOLOGY.,LTD.

Model number: GKYPS0100120EU1

Use only original AC adaptor

Use only the power supply listed in the user instructions

Information	Value and and precision
Manufacturers name or trade mark, commercial registration and address	SHENZHEN SHI GUANGKAIYUAN TECHNOLOGY.,LTD.2 floor, 41 TianSheng Road, TianLiao village, GongMing Stree, Guangming, Shenzhen, GuangDong, P.R.China
Model Identifier	GKYPS0100120EU1
Input voltage	100-240V
Input AC frequency	50-60 Hz
Output voltage	12V
Output current	1A
Output Power	12W
Average active efficiency	83.5%
Efficiency at low load (10%)	78%
No load Power consumption	0.068W

1. Guarantee

Lenco offers service and warranty in accordance to European law, which means that in case of repairs (both during and after the warranty period) you should contact your local dealer.

Important note: It is not possible to send products that need repairs to Lenco directly.

Important note: If this unit is opened or accessed by a non-official service center in any way, the warranty expires.

This device is not suitable for professional use. In case of professional use, all warranty obligations of the manufacturer will be voided.

2. Disclaimer

Updates to Firmware and/or hardware components are made regularly. Therefore some of the instruction, specifications and pictures in this documentation may differ slightly from your particular situation. All items described in this guide for illustration purposes only and may not apply to particular situation. No legal right or entitlements may be obtained from the description made in this manual.

3. Disposal of the Old Device

Symbol of a trash bin crossed out by two crossed lines, with no text or labels present.

This symbol indicates that the relevant electrical product or battery should not be disposed of as general household waste in Europe. To ensure the correct waste treatment of the product and battery, please dispose them in accordance to any applicable local laws of requirement for disposal of electrical equipment or batteries. In so doing, you will help to conserve natural resources and improve standards of environmental protection in treatment and disposal of electrical waste (Waste Electrical and Electronic Equipment Directive).

4. CE Marking

Hereby, Lenco Benelux B.V., Thermiekstraat 1a, 6361 HB Nuth, The Netherlands, declares that this product is in compliance with the essential EU directive requirements.

The declaration of conformity may be consulted via [e-mail]

5. Service

For more information and helpdesk support, please visit www.lenco.com

Commaxx B.V. Wiebachstraat 37, 6466 NG Kerkrade, The Netherlands.

Nederlands

OPGELET:

Technical line drawing of a mechanical assembly with two components and a numbered connection point (no text or symbols)

BOVENKANT

Technical diagram of a vinyl record with numbered parts for identification

ACHTERKANT

14 15 16 17 18 19

Endpoints Cut-Block Ctrl+G Cut-Block Ctrl+F Cut Ctrl+E Copy Ctrl+C Paste Ctrl+V Paste Ctrl+T Delete Ctrl+K Remove Ctrl+L Flip Drop/Divide Ctrl+D Select... Post-Dress Coverage: Z Selection From: Robertson Window Move Options... Snap-To... Endpoints Ctrl+F

Audacity Preferences Audio I/O | Quality | File Formats | Spectrograms | Directories | Interface | Keyboard | Mouse | Playba Device: South MAX HD Audio Recording Device: USB Audio CODEC Channels: 2 (Stereo) ✓ Play other tracks while recording new one ✓ Software Playthrough (Play new track while recording it)

Audacity File Edit View Project Generate Effect Analyze Help New Ctrl+N Open... Ctrl+O Close Ctrl+W Save Project Ctrl+S Save Project As... Recent Files... Export As WAV... Export Selection As WAV... Export As MP3... Export Selection As MP3... Export As Ogg Vorbis... Export Selection As Ogg Vorbis... Export Labels... Export Multiple... Page Setup... Print... Exit

2. Opnemen

Symbol of a trash bin crossed with no visible text or labels

Technical line drawing of a mechanical assembly with two components and a numbered connection point (no text or symbols)

OBERSEITE

Technical diagram of a vinyl record with numbered parts for identification

RÜCKSEITE

Technical diagram of a mechanical device with numbered components and labeled ports

Anality File Edit View Insert Transform Effect Analyze Help Cash Tools Ctrl+Z Cash Tools Ctrl+Y Copy Ctrl+X Copy Ctrl+C Delete Ctrl+Y Down Ctrl+T Delete Ctrl+K Delete Ctrl+L Style Step Source Ctrl+O Select... First User Comments: 0 Selection Drive... Selection Finish... Move Options... Snap-To... Preferences Ctrl+F

Audacity Preferences Audio I/O | Quality | File Formats | Spectrograms | Directories | Interface | Keyboard | Mouse | Playba Device: South MAX HD Audio Recording Device: USB Audio CODEC Channels: 2 (Stereo) ✓ Play other tracks while recording new one ✓ Software Playthrough (Play new track while recording it)

Audacity File Edit View Project Generate Effect Analyze Help New Ctrl+N Open... Ctrl+O Close Ctrl+W Save Project Ctrl+S Save Project As... Recent Files... Export As WAV... Export Selection As WAV... Export As MP3... Export Selection As MP3... Export As Ogg Vorbis... Export Selection As Ogg Vorbis... Export Labels... Export Multiple... Page Setup... Print... Exit

2. Aufzeichnen

Symbol of a trash bin crossed with no visible text or labels

[e-mail]

5. Service

Technical line drawing of a mechanical assembly with two components and a numbered connection point (no text or symbols)

PARTIE SUPÉRIEURE

Technical diagram of a vinyl record with numbered parts for identification

ARRIÈRE

Technical diagram of a mechanical device with numbered components and labeled ports

Edit View Insert Elements Effect Avolone Help Cut Ctrl+X Copy Ctrl+C Delete Ctrl+Y Delete Ctrl+Z Delete Ctrl+E Clear Ctrl+L Paste Preview Ctrl+O Select... Final Save Coverage (%) Remove Save Remove Continue Move Correct... Swap-To... Next Options Ctrl+H

Audacity Preferences Audio I/O | Quality | File Formats | Spectrograms | Directories | Interface | Keyboard | Mouse | Playba Device: South MAX HD Audio Recording Device: USB Audio CODEC Channels: 2 (Stereo) ✓ Play other tracks while recording new one ✓ Software Playthrough (Play new track while recording it)

Audacity File Edit View Project Generate Effect Analyze Help New Ctrl+N Open... Ctrl+O Close Ctrl+W Save Project Ctrl+S Save Project As... Recent Files... Export As WAV... Export Selection As WAV... Export As MP3... Export Selection As MP3... Export As Ogg Vorbis... Export Selection As Ogg Vorbis... Export Labels... Export Multiple... Page Setup... Print... Exit

Symbol of a trash bin crossed with no visible text or labels

Technical line drawing of a mechanical assembly with two components and a numbered connection point (no text or symbols)

PARTE SUPERIOR

Technical diagram of a vinyl record with numbered parts for identification

PARTE TRASERA

Technical diagram of a mechanical device with numbered components and labeled ports

Annuity Edit View Direct Generate Effect Analyse Help Copy Tools Ctrl+G Copy Tools Ctrl+F Copy Ctrl+L Copy Ctrl+C Delete Ctrl+Y Delete Ctrl+Z Delete Ctrl+E Delete Ctrl+R Delete Ctrl+S Up/Down Replace Ctrl+D Select... Post-Down Coverage 3 Before Next Before Selection Review Move Close... Snap-To... Feedback... Ctrl+F

Audacity Preferences Audio I/O | Quality | File Formats | Spectrograms | Directories | Interface | Keyboard | Mouse | Playba Device: Solid MAX HD Audio Recording Device: USB Audio CODEC Channels: 2 (Stereo) ✓ Play other tracks while recording new one ✓ Software Playthrough (Play new track while recording it)

Audacity File Edit View Project Generate Effect Analyze Help New Ctrl+N Open... Ctrl+O Close Ctrl+W Save Project Ctrl+S Save Project As... Recent Files... Export As WAV... Export Selection As WAV... Export As MP3... Export Selection As MP3... Export As Ogg Vorbis... Export Selection As Ogg Vorbis... Export Labels... Export Multiple... Page Setup... Print... Exit

2. Cómo grabar

Symbol of a trash bin crossed out by two crossed lines, with a solid black rectangle below (no text or labels)

Technical line drawing of a mechanical assembly with two components and a numbered connection point (no text or symbols)

ALTO

Technical diagram of a circular mechanical device with numbered components for identification

PARTE POSTERIORE

14 15 16 17 18 19

Anality Edit View Insert Elements Effect Avolone Help Cut Ctrl+L Copy Ctrl+C Delete Ctrl+V Insert Ctrl+T Delete Ctrl+E Clear Ctrl+G Split Preview Ctrl+D Select... Post-Store Coverage: 0 Selection Frame Selection Window Move Course... Swap-To... References Ctrl+F

Audacity Preferences Audio I/O | Quality | File Formats | Spectrograms | Directories | Interface | Keyboard | Mouse | Playba Device: South MAX HD Audio Recording Device: USB Audio CODEC Channels: 2 (Stereo) ✓ Play other tracks while recording new one ✓ Software Playthrough (Play new track while recording it)

Audacity File Edit View Project Generate Effect Analyze Help New Ctrl+N Open... Ctrl+O Close Ctrl+W Save Project Ctrl+S Save Project As... Recent Files... Export As WAV... Export Selection As WAV... Export As MP3... Export Selection As MP3... Export As Ogg Vorbis... Export Selection As Ogg Vorbis... Export Labels... Export Multiple... Page Setup... Print... Exit

2. Come registrare

Symbol of a trash bin with crossed lines and a solid black rectangle below (no text or labels)

Technical line drawing of a mechanical assembly with no visible text or symbols

ВИД СВЕРХУ

Technical diagram of a vinyl record with numbered parts for identification

ВИД СЗАДИ

Technical diagram of a mechanical device with numbered components and labeled ports

Edit View Direct Generate Effect Analyse Help Cut Tools Ctrl+S Copy Ctrl+C Zoom Ctrl+Y Turn Ctrl+T Delete Ctrl+E Bluish Ctrl+S Up Gr Drop Now Ctrl+D Select... Post-Down Coverage 3 Select from New Subercia Review Move Close... Snap-To... Preferences Ctrl+F

Audacity Preferences Audio I/O | Quality | File Formats | Spectrograms | Directories | Interface | Keyboard | Mouse | Playba Device: South MAX HD Audio Recording Device: USB Audio CODEC Channels: 2 (Stereo) ✓ Play other tracks while recording new one ✓ Software Playthrough (Play new track while recording it)

Audacity File Edit View Project Generate Effect Analyze Help New Ctrl+N Open... Ctrl+O Close Ctrl+W Save Project Ctrl+S Save Project As... Recent Files... Export As WAV... Export Selection As WAV... Export As MP3... Export Selection As MP3... Export As Ogg Vorbis... Export Selection As Ogg Vorbis... Export Labels... Export Multiple... Page Setup... Print... Exit

3. Запись

Symbol of a trash bin crossed out by two crossed lines, with a solid black rectangle below (no text or labels)

Technical line drawing of a mechanical assembly with two components and a numbered connection point (no text or symbols)

SET OVENFRA

Technical diagram of a vinyl record with numbered parts for identification

SET BAGFRA

Technical diagram of a mechanical device with numbered components and labeled ports

https://www.audacityteam.org/download/

* Sørg for at installere softwaren, inden du starter.

Edit View Direct Generate Effect Avolone Help Cust-Undo Ctrl+G Cust-Endo Ctrl+F Cut Ctrl+L Copy Ctrl+C Zoom Ctrl+Y Turn Ctrl+T Delete Ctrl+E Delete Ctrl+S Up Replace Ctrl+D Select... Post-Down Coverage 3 Make From Now Selected Window Move Current... Snap-To... NextProcess Ctrl+F

1. Væ lg fanen Audio I/O (Lyd ind/ud) øverst til venstre.

2. Væ lg your internal sound card (dit indbyggede lydkort) i Playback, Device (Afspilning, Enhed).
   • Under Recording, Device (Optagelse, Enhed) skal du væ Ige USB Audio CODEC (USB lyd-CODEC).
   • Under Recording, Channels (Optagelse, Kanaler) skal du væ lge 2 (Stereo).

3. Markér boksen Play other tracks while recording new one (Afspil andre spor, mens et nyt optages).
   • Markér boksen Software Playthrough (Software-gennemspilning).

Audacity Preferences Audio I/O | Quality | File Formats | Spectrograms | Directories | Interface | Keyboard | Mouse | Playba Device: Sound MAX HD Audio Recording Device: USB Audio CODEC Channels: 2 (Stereo) ✓ Play other tracks while recording new one ✓ Software Playthrough (Play new track while recording it)

Optagelse af albums med Audacity

Audacity File Edit View Project Generate Effect Analyze Help New Ctrl+N Open... Ctrl+O Close Ctrl+W Save Project Ctrl+S Save Project As... Recent Files... Export As WAV... Export Selection As WAV... Export As MP3... Export Selection As MP3... Export As Ogg Vorbis... Export Selection As Ogg Vorbis... Export Labels... Export Multiple... Page Setup... Print... Exit

2. Sådan optager du

Symbol of a trash bin crossed out by two crossed lines, with a blank rectangular base below (no text or symbols)

Technical line drawing of a mechanical assembly with two components and a numbered connection point (no text or symbols)

OVANSIDA

Technical diagram of a vinyl record with numbered parts for identification

BAKSIDAN

Technical diagram of a mechanical device with numbered components and labeled ports

Close-up of a mechanical component with a downward arrow and labeled point A (no text or symbols on the object itself)

Diagram of a mechanical device with labeled parts (C and B) and directional arrows indicating motion or movement (no text or symbols beyond labels)

Styrstift (inuti)

Ö VERSIKT Ö VER AUDACITYS PROGRAMVARA

Edit View Insert Generate Effect Analyze Help Cut Tools Ctrl+D Cut Links Ctrl+F Copy Ctrl+K Copy Ctrl+C Drop Ctrl+Y Turn Ctrl+T Delete Ctrl+E Delete Ctrl+S Up Ctrl Downside Ctrl+D Select... Find Zero Coverage Z Select to Save Set to Save Button Move Current... Snap-To... Preferences Ctrl+F

Audacity Preferences Audio I/O | Quality | File Formats | Spectrograms | Directories | Interface | Keyboard | Mouse | Playba Device: Solid MAX HD Audio Recording Device: USB Audio CODEC Channels: 2 (Stereo) ✓ Play other tracks while recording new one ✓ Software Playthrough (Play new track while recording it)

Audacity File Edit View Project Generate Effect Analyze Help New Ctrl+N Open... Ctrl+O Close Ctrl+W Save Project Ctrl+S Save Project As... Recent Files... Export As WAV... Export Selection As WAV... Export As MP3... Export Selection As MP3... Export As Ogg Vorbis... Export Selection As Ogg Vorbis... Export Labels... Export Multiple... Page Setup... Print... Exit

Symbol of a trash bin crossed with a diagonal line, no text or numbers present
