ACCUHOOGSNOEIER

Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of the device.

FR BE

GB/IE Translation of the original instructions Page 19

Volumen Oltank: 65 cm

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

DE-44867 BOCHUM

DEUTSCHLAND

www.kompernass.com

General power tool safety warnings 22

1.Work area safety 22
2. Electrical safety 23
3. Personal safety 23
4. Power tool use and care 23
5.Use and handling of the cableless electrical power tool 24
6. Service 24

Appliance-specific safety instructions for cordless pruners 24
Precautions against kickback 25
Further safety instructions 26
Safety guidelines for battery chargers 26
Original accessories/auxiliary equipment 27

Before initial use 27

Charging the battery pack (see fig. A) 27
Attaching/disconnecting the battery pack to/from the device 27
Checking the battery charge level 27
Fixing/attaching the shoulder strap 28
Mounting the saw chain and blade 28
Tightening and checking the saw chain 28
Lubricating the chain 28
Sharpening the saw chain 28

Initial use 29

Switching on and off 29
Checking the automatic oil system 29
Adjusting the telescopic handle 29
Adjusting the cutting angle 29
Sawing techniques 29
Working safely. 30

Transport and storage 30

Cleaning and maintenance 31

Troubleshooting: Cordless pruner 32

Maintenance intervals: Cordless pruner 32

Spare part orders 32
Disposal 33
Kompernass Handels GmbH warranty 33
Service 34
Importer 34
Translation of the original Conformity Declaration 35
Ordering a replacement battery 36
Telephone ordering 36

CORDLESS PRUNER FAHE 20-Li B2

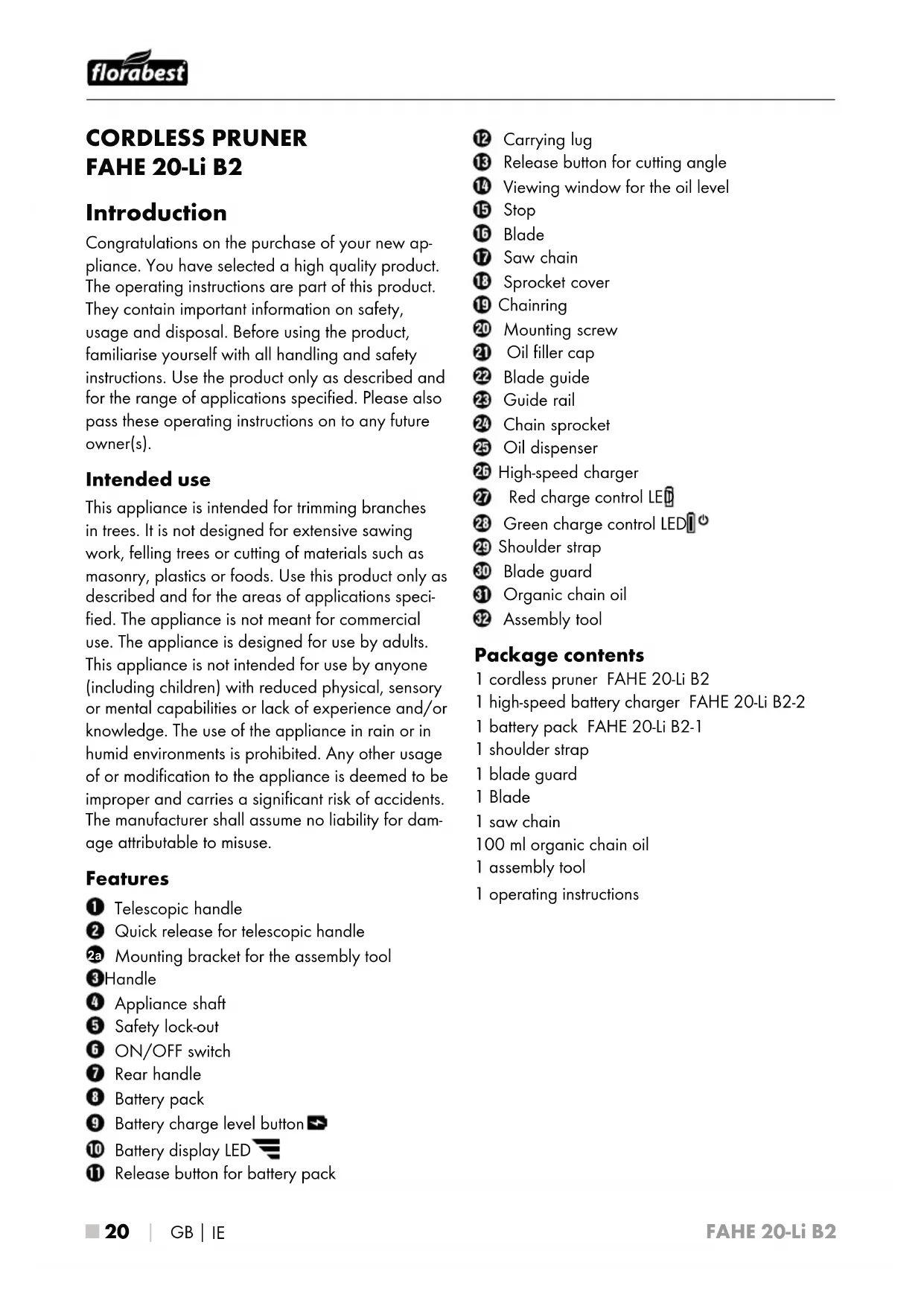

Introduction

Congratulations on the purchase of your new appliance. You have selected a high quality product. The operating instructions are part of this product. They contain important information on safety, usage and disposal. Before using the product, familiarise yourself with all handling and safety instructions. Use the product only as described and for the range of applications specified. Please also pass these operating instructions on to any future owner(s).

Intended use

This appliance is intended for trimming branches in trees. It is not designed for extensive sawing work, felling trees or cutting of materials such as masonry, plastics or foods. Use this product only as described and for the areas of applications specified. The appliance is not meant for commercial use. The appliance is designed for use by adults. This appliance is not intended for use by anyone (including children) with reduced physical, sensory or mental capabilities or lack of experience and/or knowledge. The use of the appliance in rain or in humid environments is prohibited. Any other usage of or modification to the appliance is deemed to be improper and carries a significant risk of accidents. The manufacturer shall assume no liability for damage attributable to misuse.

Features

Telescopic handle
Quick release for telescopic handle
23 Mounting bracket for the assembly tool
3 Handle
4 Appliance shaft
5 Safety lock-out
6 ON/OFF switch
Rear handle
8 Battery pack
Battery charge level button
10 Battery display LED
1 Release button for battery pack

12 Carrying lug
13 Release button for cutting angle
Viewing window for the oil level
15 Stop
16 Blade
Saw chain
16 Sprocket cover
19 Chainring
20 Mounting screw
2 Oil filler cap
Blade guide
Guide rail
24 Chain sprocket
25 Oil dispenser
26 High-speed charger
Red charge control LED
28 Green charge control LED
Shoulder strap
30 Blade guard
Organic chain oil
Assembly tool

Package contents

1 cordless pruner FAHE 20-Li B2
1 high-speed battery charger FAHE 20-Li B2-2
1 battery pack FAHE 20-Li B2-1
1 shoulder strap
1 blade guard
1 Blade
1 saw chain
100 ml organic chain oil
1 assembly tool
1 operating instructions

Technical data

Cordless pruner: FAHE 20-Li B2

Rated voltage: 20 V = = (direct current)

Max. rotational speed: 2500min^3

No-load speed: max. 5 m/s

Weight

(without battery,

cutting tool and strap): approx. 2.6kg

Oil tank volume: 65 cm

Cut length: approx. 200 mm

Blade: 8" Oregon O8ONDEA318

Saw chain: Oregon 91P033X

Use only the following battery to operate the cordless tool: FAHE 20-Li B2-1

Type: LITHIUM
Rated voltage: 20 V	= (direct current)
Capacity: 3000 mAh /
Cells: 10

Use only the following high-speed battery charger to charge the cordless tool: FAHE 20-Li B2-2

INPUT:

Rated voltage: 230-240 V , 50 Hz (alternating current)

Power consumption: 85 W
Fuse (internal): 3.15 A

OUTPUT:

Rated voltage: 21.5 V = = (direct current)

Charging current: 3.5 A

Charging time: approx. 60 min

Protection class: II (double shielded)

Noise and vibration data:

Measured values for noise determined in accordance with EN ISO 22868. The A-rated noise level of the power tool is typically as follows:

Sound pressure level: I_SA = 88 dB (A)

Uncertainty: K_pA = 3 ~dB

Sound power level: L_WA = 106 dB(A)

Uncertainty: K_WA = 3 dB

Wear ear protection!

Vibration values (vector total of three directions) determined in accordance with EN ISO 22867:

Vibration: < 2.5 m/s^2

Uncertainty K = 1.5m / s^2

WARNING!

Also reduce the risk due to vibrations, e.g. the risk of Raynaud's phenomenon, by taking frequent breaks and rubbing your hands together!

NOTE

The vibration level specified in these instructions has been measured in accordance with a standardised measuring procedure specified and can be used to make equipment comparisons. The specified vibration emission value can also be used to make an initial exposure estimate.

WARNING!

The vibration level varies in accordance with the use of the power tool and may be higher than the value specified in these instructions in some cases. There is a risk of underestimation of the vibration load if the power tool is used regularly in this manner. Try to keep the vibration loads as low as possible. Measures to reduce the vibration load are, e.g. wearing gloves and limiting the working time. In this case all states of operation must be included (e.g. times when the power tool is switched off and times where the power tool is switched on but running without load).

Explanation of symbols on the appliance:

Read the operating instructions and safety advice before initial operation!

Wear protective gloves!

Wear safety shoes!

Wear ear protection!

Wear a hard hat!

Wear safety goggles!

Keep bystanders away from the appliance!

Do not use chain saw one-handed!

Always use chain saw two-handed!

Beware of chain saw kickback and avoid contact with bar tip!

Protect the appliance against rain or moisture!

Risk of fatal electrical shock! Keep at least 10 m away from overhead power lines.

Caution! Falling objects. Especially when cutting above head height.

Beware of thrown objects!

Caution! Risk of injury due to running blades.

Sound power level LWA data in dB.

Turn the device off and remove the battery pack before performing any maintenance work!!

A full tank will last for approx. 15 minutes of continuous operation.

Running direction of the chain!

Oil filler cap

General power tool safety warnings

W

• Read all safety warnings and all instructions. Failure to follow the safety instructions and other instructions may result in electric shock, fire and/or serious injury.

NOTE

National regulations may restrict the use of the appliance.

Save all safety instructions and other instructions for future reference.

The term "power tool" in the safety instructions refers to your mains-operated (cable) power tools or battery-operated (cableless) power tool.

1. Work area safety

a) Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

2. Electrical safety

a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
d) Do not abuse the cable. Never use the cable for carrying, pulling or unplugging the power tool. Keep cable away from heat, oil, sharp edges or moving parts. Damaged or entangled cables increase the risk of electric shock.
e) When operating a power tool outdoors, use an extension cable suitable for outdoor use. Use of a cable suitable for outdoor use reduces the risk of electric shock.
f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.

3. Personal safety

a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are ill, tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.
b) Use personal protective equipment. Always wear safety goggles. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.
c) Prevent unintentional starting. Ensure the switch is in the off position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.

d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection systems can can reduce dust-related hazards.

4. Power tool use and care

a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
b) Do not use the power tool if the switch is defective. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
c) Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.
d) Store idle power tools out of the reach of children. Do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
e) Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.
f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.

g) Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations other from those intended could result in a hazardous situation.

5. Use and handling of the cableless electrical power tool

a) Charge a rechargeable battery unit using only the charger recommended by the manufacturer. Chargers are often designed for a particular type of rechargeable battery. There is a risk of fire if other types of rechargeable battery are used.
b) Only the rechargeable battery units supplied are to be used with the power tools. The use of other rechargeable battery units may lead to the danger of injury or fire.
c) When they are not being used, store rechargeable battery units away from paper clips, coins, keys, nails, screws or other small metal objects that could cause the contacts to be bridged. Short-circuiting the contacts of a rechargeable battery may result in burns or fire.
d) Fluid may leak out of rechargeable batteries if they are misused. If this happens, avoid contact with the fluid. If accidental contact occurs, rinse the affected area with water. Seek additional medical help if any of the fluid gets into your eyes. Escaping battery fluid may cause skin irritation or burns.

Never charge non-rechargeable batteries.

t the battery from heat, e.g. also from continuous sunlight, fire, water and humidity. There is a risk of explosion.

6. Service

a) Have your power tool serviced by a qualified repair person using only original replacement parts. This will ensure that the safety of the power tool is maintained.

Appliance-specific safety instructions for cordless pruners

Always wear a hard hat, hearing protection and safety gloves. Also wear eye protection to prevent splashes of oil or saw dust from falling into your eyes. Wear a dust mask to protect yourself from dust.
Never use the appliance while standing on a ladder.
Do not lean too far forwards while using the appliance. Ensure you are standing firmly and keep your balance at all times. Use the supplied carrying strap to spread the weight evenly on the body.
Wear sturdy, non-slip boots.
Do not use the appliance in the rain.
Do not use the appliance near overhead power lines. Maintain a minimum distance of 10m to overhead power lines.
Do not stand under the branches that you want to cut off, to avoid injuries due to falling branches. Be aware of branches that may spring back, to avoid injuries. Work at an angle of approximately 60^ .
■ Be aware that the appliance can kick back.
- Keep an eye not only on the branches being cut, but also on falling material, to avoid tripping.
After 30 minutes' work, take a break of at least one hour.
Always wear protective gloves.
Cover the guide rail and the chain during transport during transport and storage using the cover.
- Do not use the appliance in a potentially explosive environment containing flammable liquids, gases or dusts. The sparks generated by the machine could ignite the vapours or gases.
The power outlet used must be suitable for the plug. To avoid electrical shocks, never try to modify the plug.

Never remove the plug from the power supply by pulling on the power cable. Always pull the power plug itself. Do not drag or carry the appliance using the power cable. Keep power cable away from heat, oil, sharp edges or moving parts.

Remove the battery pack from the appliance after completion of work or during cleaning and maintenance.

Avoid unintentional starting of the appliance.

Appliances with defective switches must be repaired immediately to avoid damage or injuries.

Store the appliance outside of the reach of children. Only those who are fully acquainted with these operating instructions and the appliance itself may operate the appliance.

Maintain power tools carefully. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.

• Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.

Therefore, have the appliance checked by qualified specialists. Use only the replacement parts recommended by the manufacturer.

Precautions against kickback

CAUTION KICKBACK!

Be aware of the danger of kickback when working with the appliance. There is a risk of personal injury. You can avoid kickbacks by being careful and using the correct sawing technique.

Contact with the tip of the rail can, in some cases, lead to an unexpected rearwards reaction resulting in the guide rail 23 flying upwards towards the operator (see Fig. A).

Fig. A

■ Kickbacks can occur if the tip of the guide rads touches an object or if the wood bends and the saw chain gets caught in the cut (see Fig. B).

Fig. B

If the saw chain jams in the upper edge of the guide rail the rail can kick back violently towards the operator.

Any such reaction can lead to you losing control over the saw and possibly injuring yourself. Do not rely solely on the chainsaw's built-in safety devices. As the user of a chainsaw, you can take a number of measures to avoid accidents and injury. A kickback is caused by incorrect use or misuse of the power tool. It can be avoided by taking proper precautions as given below:

Hold the saw firmly with both hands, with your thumb and finger around the handles of the chainsaw. Hold your body and arms in a position in which you can withstand kickback forces. If suitable measures are taken, the operator can control the recoil forces. Never let go of the chainsaw.

Avoid an abnormal posture. This will prevent inadvertent contact with the tip of the rail and allows a better control of the chainsaw in unexpected situations.

Always use the replacement rails and saw chains specified by the manufacturer. Incorrect replacement rails and saw chains can lead to a tearing of the saw chain and/or kickback.
Follow the manufacturer's instructions for sharpening and maintenance of the saw chain. Setting the depth stop too low can increase the risk of kickback.
Do not saw with the tip of the blade. This can lead to kickback.
Ensure that there are no objects on the ground that you can trip over.

Further safety instructions

CAUTION! RISK OF INJURY!

To prevent injuries, never touch the appliance above the handle while it is running!
During operation, no other person or animal may be within a radius of 15 metres. The operator is responsible for third parties within the working area.
- Keep the appliance, the cutting mechanism and the blade guard in good condition to prevent injury.
Children should be supervised to ensure that they do not play with the appliance.
Do not use the appliance until you have familiarised yourself with its use.
Do not work with a damaged or incomplete appliance or an appliance that has been modified without the consent of the manufacturer. Never use the unit with defective protective equipment. Do not use the appliance if it has a defective on/off switch. Before use, check the security state of the appliance, especially the blade and the saw chain. If the appliance has been dropped, check for significant damage or defects.
Never start the appliance before the blade, saw chain and sprocket covers have been fitted correctly.
When starting and operating the appliance, ensure that it does not come into contact with the ground, stones, wire or other foreign material. Switch the appliance off before you put it down.
The device is designed for two-handed operation. Never work with one hand.

Hold the appliance only by the insulated handles as the saw chain could come into contact with hidden power lines. Contact between the saw chain and a live wire may make exposed metal parts of the power tool live and could give the operator an electric shock.
Make sure that the appliance is switched off when relocating the appliance and that you cannot accidentally touch the on/off switch. Carry the appliance with the saw chain and blade facing backwards. Fit the blade guard during transportation.
- Attach the bumper spike firmly before every cut and do not start until this has been done.
■ Be extremely careful when sawing small bushes and branches. The thin branches and twigs can catch in the saw and fly in your direction or knock you off balance.
Do not cut any wood that is lying on the ground and do not attempt to saw roots that are protruding from the soil. Avoid immersing the saw chain in the soil at all costs, as this could blunt the saw chain.
When sawing a branch under tension, be aware of the possibility of the branch flying back once the tension is suddenly removed. There is a risk of personal injury.
Do not use force to free the appliance if the cutting tools get caught or jammed in branches. Switch the appliance off immediately and do not switch it on until the blockage has been removed. There is a risk of personal injury!

Safety guidelines for battery chargers

This appliance may be used by children aged 8 years and above and by persons with limited physical, sensory or mental capabilities or lack of experience and knowledge, provided that they are under supervision or have been told how to use the appliance safely and are aware of the potential risks.

Children must not use the appliance as a plaything. Cleaning and user maintenance tasks may not be carried out by children unless they are supervised.

This charger is suitable for indoor use only.

If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

RESIDUAL RISKS!

Even if you operate this power tool properly, there will still be residual risks. The following risks can occur in the context of the design and construction of this power tool: a) Cuts b) Hearing damage, if no suitable hearing protection is worn. c) Damage to health caused by hand-arm vibrations if the appliance is used for extended periods or is not properly used and maintained.

WARNING!

Do not operate the appliance with a damaged cable, power cable or power plug. A damaged power cable causes danger to life by electric shock.

Original accessories/auxiliary equipment

Use only the additional equipment and accessories detailed in the operating instructions. The use of tools and accessories other than those recommended in the operating instructions could lead to an increased risk of personal injury for you.

Before initial use

Charging the battery pack (see fig. A)

CAUTION!

Always unplug the appliance before you remove the battery pack 8 from or connect the battery pack to the high-speed charger 26
Never charge the battery pac3 when the ambient temperature is below 10^ or above 40^ .
Connect the battery pack to the high-speed charger.
Insert the power plug into the mains power socket. The red control LED will light up.
The green control LED indicates that the charging process is complete and the battery pack ready for use.

CAUTION!

If the red control LED flashes, this means that the battery pack has overheated and cannot be charged.
If the red and green control LED37 28 flash simultaneously, this means that the battery pack defective.
Fit the battery pack back onto the appliance.

Attaching/disconnecting the battery pack to/from the device

Attaching the battery pack:

Allow the battery pack to click onto the rear handle of the appliance.

Removing the battery pack:

Press the release button and remove the battery pack 3.

Checking the battery charge level

Press the battery charge level button to check the status of the battery. The status/ remaining charge will be shown on the battery display LED 10 as follows:
RED/ORANGE/GREEN = maximum charge/ performance RED/ORANGE = medium charge/performance RED = low charge - charge the battery

Fixing/attaching the shoulder strap

Hook the shoulder strap into the carrying lug 12
Adjust the length of the shoulder strap to your size so that carrying lug at hip height when hooked in place.
In addition, you can adjust the height of the carrying lug on the appliance shaft loosening the screw.

Mounting the saw chain and blade

WARNING!

Wear protective gloves! There is a danger of injury from the sharp cutting teeth!
The sprocket covers together with the chain tensioning ring and the fixing screw are not pre-assembled on the appliance at delivery.
The turning of the blade is not intended by the manufacturer.
The chain travel direction on the blade must be adhered to every assembly.

Place the saw chain in the blade groove. Ensure that the saw chain is rubbing in the correct direction.
Attach the blade with the labelling facing upwards and guide the saw chain around the chain sprocket. The guide rail must be above the blade guide
Put the sprocket cove on.
Tighten the fixing screw slightly.
Now, tighten the saw chain (see section Tightening and checking the saw chain).
Tighten the fixing screw completely.

Tightening and checking the saw chain

WARNING!

Wear protective gloves! There is a danger of injury from the sharp cutting teeth!

Undo the fixing screw.
Turn the chain tensioning ring in a clockwise direction to increase the tension.

The saw chain must lie against the underside of the blade.
Check whether the saw chain can be drawn over the blade by hand 16.
Now tighten the fixing screw completely.

NOTE

A new saw chain stretches and must be tightened more regularly.

Lubricating the chain

Remove the oil filler cap.
Fill the oil tank with approx. 65~ml of organic chain oil 31.

WARNING!

Never work without chain lubrication! If the saw chain 17 runs dry, the cutting equipment may become irreparably damaged within a short time. Always check chain lubrication and oil level 14 in the tank before starting work.

NOTE

• Use only saw chain oil. Preferably biodegradable. Do not use waste oil, motor oil, etc.
• While working, check whether the automatic chain lubrication is working correctly. Check the chain lubricator before and during work.

Sharpening the saw chain

NOTE

You will find detailed information on sharpening in the sharpening set, e.g. from Oregon.
Alternatively, you can use an electrical saw chain sharpening device and follow the instructions of the manufacturer.
If you have any doubts about implementing the work, the saw chain 17 should be replaced.

Initial use

NOTE

Comply with regulations regarding noise protection and local rules. Using the appliance on certain days (e.g. on Sundays and public holidays), during certain times (midday period, night time) or in certain locations (e.g. health resorts, clinics, etc.) may be restricted or prohibited.

Switching on and off

Switching on:

Press the safety lock-out and keep it pressed and then press the on/off switch

After the starting process, the safety lock-out can be released.

Switching off:

Release the ON/OFF switch

Checking the automatic oil system

Before starting work, check the window for the oil level 14 and the automatic oil system.

Switch the appliance on and hold it over a lightly coloured floor surface. The appliance must not touch the ground.

If there is an oil trace, the appliance is operat ing correctly.

If there is no oil trace, clean the oil dispense 25 or have the appliance repaired by our Customer Service.

To clean, wipe the residues from the oil dispenser using a brush or cloth.

Adjusting the telescopic handle

The telescopic handle can be adjusted continuously by means of the quick release

Activate the quick release 2 and adjust the length by pushing or pulling as required.

Close the quick release again, thereby fixing the desired working length of the telescopic handle

If the screw of the quick release has loosened, tighten it again with a hex key.

Adjusting the cutting angle

NOTE

The cutting angle can be adjusted in 3 stages.

Remove the battery pad from the appliance.
Press the release button.
Adjust the angle of the motor unit to the required position.
Let go of the release button and the motor unit will click into place.
Insert the battery pack back into the appliance.

Sawing techniques

#

WARNING!

Pay attention to falling clippings.
Be aware of the danger of branches flying back.

NOTE

• Place the stop 15 on the branch. This will help you work more safely and quietly.
• Now you can begin with the sawing.

Sawing off small branches

Saw small branches (00 - 8cm) from the top down (see figure).

Sawing off larger branches

When sawing larger branches (0 8-20 cm), first make a relief cut A (see figure).
A relief cut also prevents peeling of the bark on the main trunk.
Saw from the top B to the bottom A.

Saw in sections

Long or thick branches should be shortened before making the final cut (see figure).

Working safely

• Keep the appliance, the cutting mechanism and the blade guard ③ good condition to prevent injury.
  If the appliance has been dropped, check for significant damage or defects.
  Maintain the specified angle 60^ ± 10^ to ensure safe working (see figure).

Do not use the appliance while standing on a ladder or with unsteady footing.
Do not be tempted into making a poorly considered cut. You could endanger yourself and others.
Children should be supervised to ensure that they do not play with the appliance.

• Change your working position regularly. Using the appliance for a long time can lead to vibration-related circulation disorders of the hands. You can extend the usage duration by means of appropriate gloves or by taking regular breaks. Note that any personal predisposition to poor blood circulation, low external temperatures or large prehensile forces can reduce the usage period.

Transport and storage

Use the blade guard for transporting the appliance.
Ensure that the appliance cannot switch on during transport (see figure).

Always clean the appliance thoroughly before storing.
Store the appliance in a dry place and out of the reach of children.
Store the appliance horizontally or secured against falling.
Empty the oil tank. Organic chain can become resinous.
For better retention of the mounting tool. You can use this in the mounting bracket 2a.

Cleaning and maintenance

NING! RISK OF INJURY!

Always switch the appliance off and remove the battery before carrying out any work on the appliance.

The appliance must always be kept clean, dry and free from oil or grease.

Never allow fluids to get into the device.

Use a soft, dry cloth to clean the housing. Never use petrol, solvents or cleansers which can damage plastic.

If a lithium-ion battery is to be stored for an extended period, the charge level should be checked regularly. The optimum charge level is between 50% and 80% . The optimum storage climate is cool and dry.

The pole pruner must be cleaned of sawdust at regular intervals.

A new saw chain stretches and must be tightened more regularly.

Troubleshooting: Cordless pruner

Problem Possible	Cause Troubleshooting
Saw chain 17 runs with difficulty, chain comes off or has extended	Chain tension insufficient Check chain tension
No progress	Saw chain 18/ry/overheating or is sagging	Top up with oil or grind, replace or tighten the saw chain 17

Maintenance intervals: Cordless pruner

The figures given here are based on normal operating conditions. In the event of more difficult conditions, such as strong dust generation and longer daily working hours, the given intervals are to be reduced correspondingly.

Appliance part Action	Before	starting work	Weekly In the event of faults	In the event of damage	As required
Lubricating the chain	check	X
Saw chain 17	check and note sharpness	X
	check chain tension	X
	sharpen				X
Guide rail 28	check (wear, damage)	X
	clean		X	X
	deburr		X
	replace				X
Chain sprocket 29	check		X
	replace				X

Spare part orders

Replacement parts can be ordered directly from the service centre. Please provide the following details when making an order: machine type and item number.

NOTE

Replacement parts not listed (such as batteries, switches) can be ordered via our service hotline.

Disposal

The packaging is made from environmen- tally friendly material and can be disposed of at your local recycling plant.

dispose of power tools in your normal domestic waste!

European Directive 2012/19/EU requires that worn-out power tools be collected separately and recycled in an environmentally compatible manner.

dispose of batteries in your normal domestic waste!

Defective or worn-out rechargeable batteries must be recycled according to Directive 2006/66/EC. Take the battery pack and/or device to the existing collection facilities.

Please consult your local authorities regarding suitable disposal of worn out power tools/battery packs.

Dispose of the packaging in an environmentally friendly manner. Note the labelling on the packaging and separate the packaging material components for disposal if necessary. The packaging material is labelled with abbreviations (a) and numbers (b) with the following meanings: 1-7: Plastics, 20-22: Paper and cardboard, 80-98: Composites

Your local community or municipal authorities can provide information on how to dispose of the worn-out product.

This appliance has a 3-year warranty valid from the date of purchase. If this product has any faults, you, the buyer, have certain statutory rights. Your statutory rights are not restricted in any way by the warranty described below.

Warranty conditions

The validity period of the warranty starts from the date of purchase. Please keep your original receipt in a safe place. This document will be required as proof of purchase.

If any material or production fault occurs within three years of the date of purchase of the product, we will either repair or replace the product for you at our discretion. This warranty service is dependent on you presenting the defective appliance and the proof of purchase (receipt) and a short written description of the fault and its time of occurrence.

If the defect is covered by the warranty, your product will either be repaired or replaced by us. The repair or replacement of a product does not signify the beginning of a new warranty period.

Warranty period and statutory claims for defects

The warranty period is not prolonged by repairs effected under the warranty. This also applies to replaced and repaired components. Any damage and defects present at the time of purchase must be reported immediately after unpacking. Repairs carried out after expiry of the warranty period shall be subject to a fee.

Scope of the warranty

This appliance has been manufactured in accordance with strict quality guidelines and inspected meticulously prior to delivery.

The warranty covers material faults or production faults. The warranty does not extend to product parts subject to normal wear and tear or fragile parts such as switches, batteries, baking moulds or parts made of glass.

The warranty does not apply if the product has been damaged, improperly used or improperly maintained. The directions in the operating instructions for the product regarding proper use of the product are to be strictly followed. Uses and actions that are discouraged in the operating instructions or which are warned against must be avoided.

This product is intended solely for private use and not for commercial purposes. The warranty shall be deemed void in cases of misuse or improper handling, use of force and modifications/repairs which have not been carried out by one of our authorised Service centres.

Warranty claim procedure

To ensure quick processing of your case, please observe the following instructions:

Please have the till receipt and the item number (e.g. IAN 12345) available as proof of purchase.
You will find the item number on the type plate, an engraving on the front page of the instructions (bottom left), or as a sticker on the rear or bottom of the appliance.
If functional or other defects occur, please contact the service department listed either by telephone or by e-mail.
You can return a defective product to us free of charge to the service address that will be provided to you. Ensure that you enclose the proof of purchase (till receipt) and information about what the defect is and when it occurred.

You can download these instructions along with many other manuals, product videos and software on www.lidl-service.com.

Service

WARNING!

Have the power tool repaired by the Service centre or a qualified electrician and only using genuine replacement parts. This will ensure the ongoing safety of the appliance.
Always ensure that the power plug or the mains cable is replaced only by the manufacturer of the appliance or by that party's approved Customer Service unit. This will ensure the ongoing safety of the appliance.

GB Service Great Britain

Tel.: [phone] (£ 0.10/Min.)

E-Mail: [e-mail]

IE Service Ireland

Tel.: [phone]

(0,08 EUR/Min., (peak))

(0,06 EUR/Min., (off peak))

E-Mail: [e-mail]

IAN 300034

Importer

Please note that the following address is not the service address. Please use the service address provided in the operating instructions.

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

DE-44867 BOCHUM

GERMANY

www.kompernass.com

Translation of the original Conformity Declaration

We, KOMPERNASS HANDELS GMBH, Custodian of Documents: Mr. Semi Uguzlu, BURGSTR. 21, DE - 44867 BOCHUM, DEUTSCHLAND, hereby declare that this product complies with the following standards, normative documents and the EC directives:

Machinery Directive (2006/42/EC)

EMC (Electromagnetic Compatibility) (2014/30/EU)

RoHS Directive (2011/65/EU)*

*The manufacturer bears the full responsibility for compliance with this conformity declaration. The object of the declaration described above complies with the requirements of the Directive 2011/65/EU of the European Parliament and Council of 8 June 2011 on the limitations of use of certain dangerous substances in electrical and electronic appliances.

Outdoor Directive (2005/88/EC) (2000/14/EC)

Sound power level LWA:

Measured: 100,6 dB (A)
Guaranteed: 106 dB (A)

Applied harmonised standards:

EN 60745-1:2009/A11:2010

EN ISO 11680-1:2011

EN 55014-1:2006/A2:2011

EN 55014-2:2015

EN 60335-1:2012/A11:2014

EN 60335-2-29: 2004/A2:2010

EN 62233:2008

EN 61000-3-2: 2014

EN 61000-3-3:2013

EN 50581:2012

Type/appliance designation: Cordless pruner FAHE 20-Li B2

Year of manufacture: 01 - 2018
Order number: IAN 300034

Bochum, 08/02/2018

Semi Uguzlu

• Quality Manager -

The right to effect technical changes in the context of further development is reserved.

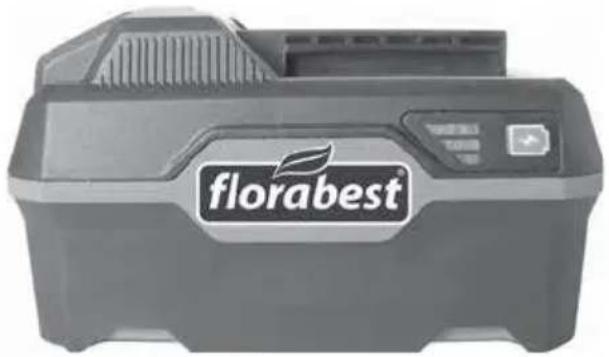

Ordering a replacement battery

If you want to order a replacement battery for your appliance, you can do so easily via the Internet on www.kompernass.com or by telephone.

The price of the replacement battery is €25, including VAT and shipping. Due to limited stocks, this item may sell out in a relatively short time.

NOTE

• Online ordering of replacement parts is not possible in all countries. In this case, please contact the Service hotline.

The promotion is limited to one battery per customer/appliance and also to a timeline of two months after the promotion period. Thereafter, the replacement battery can be ordered as a replacement part under other conditions.

Telephone ordering

GB Service Great Britain

Tel.: [phone] (£ 0.10/Min.)

E-Mail: [e-mail]

IE Service Ireland

Tel.: [phone]

(0,08 EUR/Min., (peak))

(0,06 EUR/Min., (off peak))

E-Mail: [e-mail]

CY Service Cyprus

Tel.: [phone]

E-Mail: [e-mail]

To ensure a fast processing of your order, have the article number of you appliance to hand (e.g. IAN 300034) in case of questions. The article number can be found on the type plate or the title page of these instructions.

Table des matieres

Introduction 38

Chere cliente, cher client,

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

DE-44867 BOCHUM

ALLEMAGNE

www.kompernass.com

Directive relative aux machines

(2006/42/CE)

-Responsible qualite-

Nominate spanning: 230 - 240 V ~, 50 Hz (wisselstroom)

Nominal vermogen: 85 W

Zekering (intern): 3,15 A T3.15A

UITGANG/Output:

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

DE-44867 BOCHUM

DUITSLAND

www.kompernass.com

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

DE-44867 BOCHUM

NÉMECKO

www.kompernass.com

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

DE-44867 BOCHUM

ALEMANIA

www.kompernass.com

Consumo admissivel: 85 W

Fusivel (interior): 3,15 A

SAÍDA/Output:

Tensao admissivel: 21,5 V= (corrente continua)

Corrente admissivel: 3,5 A

Colocar o bloco accumulator:

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

DE-44867 BOCHUM

ALEMANHA

www.kompernass.com

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

DE-44867 BOCHUM

GERMANY

www.kompernass.com
