USER MANUAL GP 1100.1 Güde

Translation of the original instructions Pump series

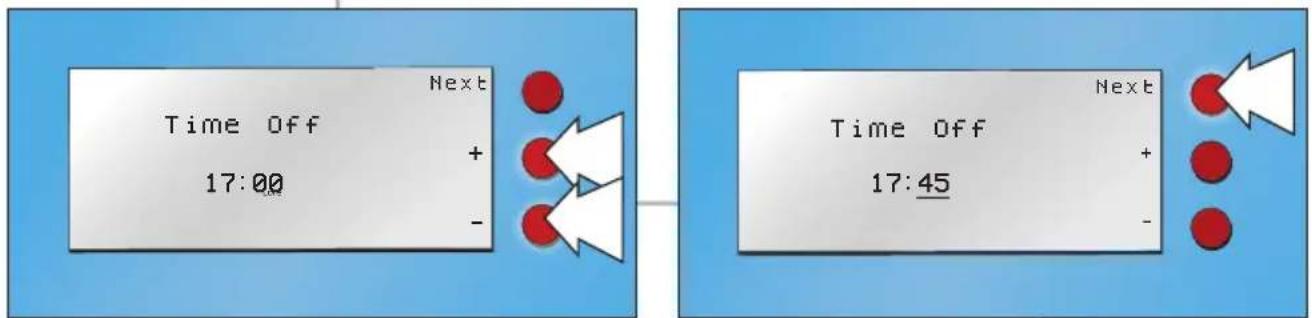

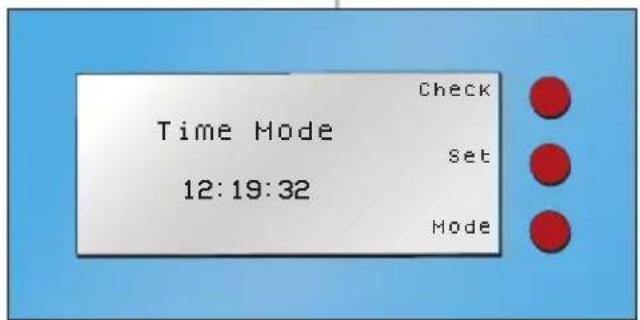

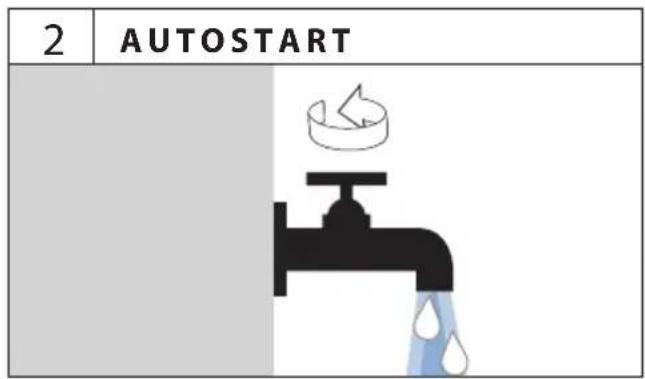

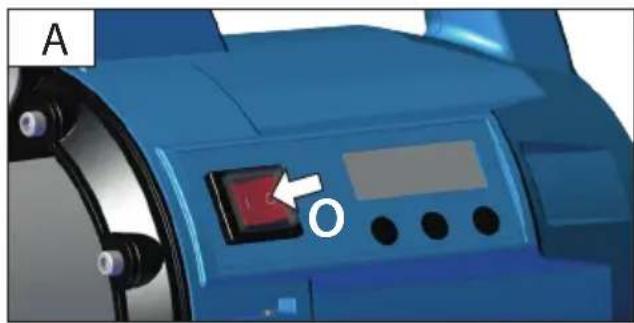

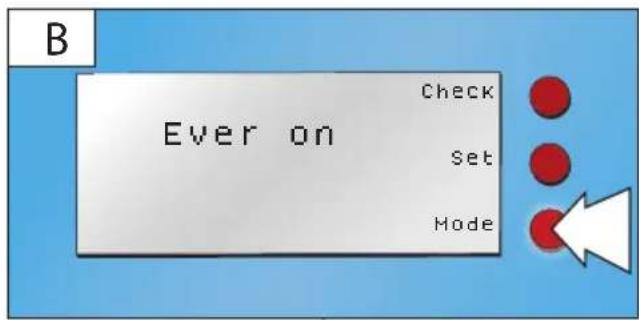

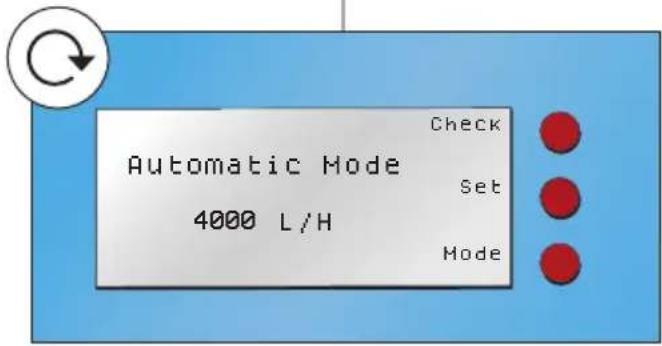

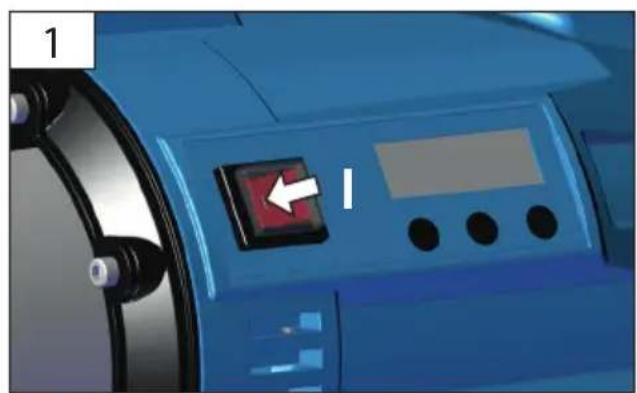

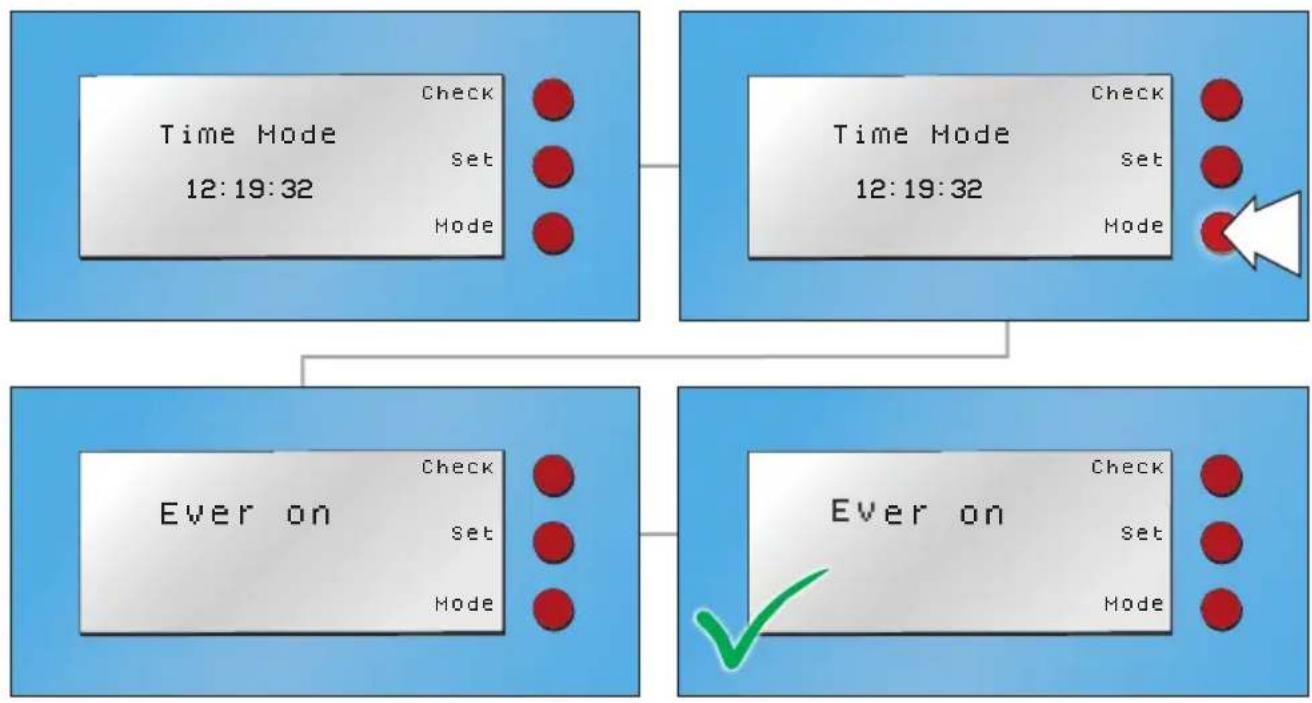

Time Off 00:00 Next Lorem

Time Off 17:00 Next Lorem

Time Off 17:00 Next Lore

HWA 1100.1 VFGP 1100.1

HWA 1100.1 VFGP 1100.1

HWA 1100.1 VFGP 1100.1

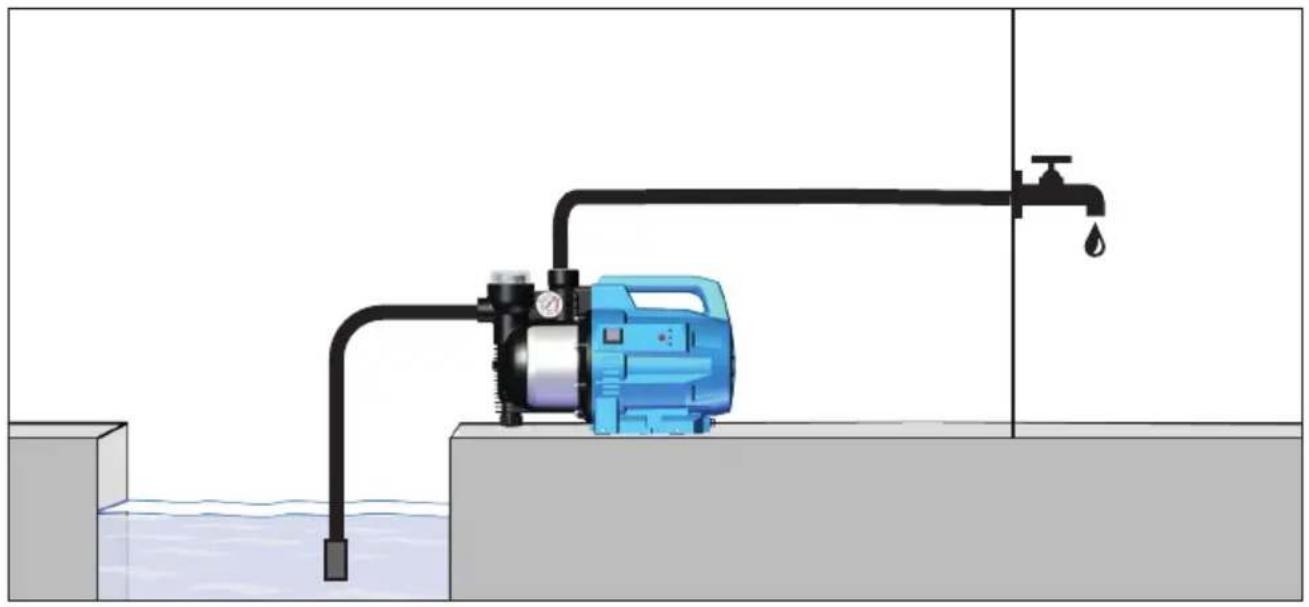

Read and understand the operating instructions before using the appliance. Abide by all the safety measures stated in the service manual. Act responsibly toward third parties. In case of any doubts about connection and operation refer please to our customer center Specied Conditions of Use The pump is designed for pumping clean water only to supply the home with water and to use it at home, in garden, courtyard and for elds. Respecting technical data and safety precautions. Do not use this product in any other way as stated for normal use. Not observing general regulations in force and instructions from this manual does not make the manufacturer liable for damages. The pump is not suitable for long-term operation (e.g. as a circulating pump in ponds or for brooks). If this type of operation is carried out, the service life will be reduced accordingly. Do not leave the pump unattended while in operation in order to prevent subsequent damages caused by eventual malfunctions. Make sure to disconnect the device from the grid if you do not plan on using it. Do not use the pump for drinking water! The pump must not be connected to the existing water-supply network as a pressure-boosting device. Never use the pump as a pool circulation pump. Safety Warnings WARNING! Electric shock! There is a risk of an injury caused by electric shock! This appliance is not intended for use by persons (inclu

ding children) with limited physical, sensory or mental capabilities or insucient experience and/or knowledge unless they are supervised by a person who is respon- sible for their safety or have been instructed by them in the safe use of the appliance. Children should be supervised in order to ensure that they do not play with the tool. Always keep children and unauthorised persons out of reach of the appliance. Operation is only allowed with a safety switch against stray current (RCD max. stray current of 30mA). Before putting into operation, a qualied electrician must check whether electric safety measures required are in place. Any national regulations in this regard must be complied with. Electric connection to a socket. Do not expose tools to rain. Do not use tools in damp or wet locations. It is necessary to make sure the connecting socket was not near water and humidity and the plug was protected against humidity. Avoid installing the appliance in wet shafts (risk of short circuit, corrosion eects)! Check the voltage. Technical data given on the type label must correspond with electric network voltage. Only use splash proof extension cables approved for outdoor purposes. Do not grab the feeder cable, plunge the pump, lift or carry it while it is connected to the grid! Check the cable and/or socket for damages before the appliance putting into operation. To avoid danger, a damaged mains supply pipe must be replaced by the manufacturer. Do not under any circum

stances attempt any repair yourself. Protect the feeder cable from excessive temperatures, oil and sharp edges. If the pump is in operation, neither people nor animals can be present or plunged in the pumped liquid (e.g. pools, cellars, etc.). The pump must not in any case run without llings Do not leave the pump unattended while in operation in order to prevent subsequent damages caused by even

tual malfunctions. Make sure to disconnect the device from the grid if you do not plan on using it. The temperature of the drained liquid must not exceed +35 °C. When using the pump for domestic water supply, always observe the local regulations of water management authorities and the waste water drainage. If the pump is used in ponds, wells, etc. and appropriate pumping stations, standards valid for pumps in the given country must unconditionally be observed. Do not use pump at outside temperatures over 40 °C or under 0 °C In cold weather, the pumping body motor should not be wrapped in a blanket or another piece of textile with intent to prevent the water freezing. The user is responsible to third parties if pump (dum

ping stations, etc.) is used.26

Water escapes between the motor and pump, mecha- nical seal leaks (approx. 35 drops of water per day is considered insignicant, this leakage is functional with a mechanical seal). Requirements for operating sta The operating sta must carefully read the OperatingIn- structions before using the appliance. Qualication: Apart from the detailed instructions by aprofessional, no special qualication is necessary forappliance using. Minimum age: Persons over 16 years of age can only workon the appliance.An exception includes young

sters trained in order to reachknowledge under supervi- sion of the trainer duringoccupational education. Training: Using the appliance only requires corre- spondingtraining by a professional or the Operating Instructions. Nospecial training is necessary. Emergency procedure Conduct a rst-aid procedure adequate to the injury and summon qualied medical attendance as quickly as possible. Protect the injured person from further harm and calm them down. For the sake of eventual accident, inaccordance with DIN13164, a workplace has to be ttedwith a rst-aid kit. It isessential to replace any usedmaterial in the rst-aid kitimmediately after it has been used. If you seek help,state the following pieces ofinformation

3. Number of injured persons

Maintenance Before any adjustment, cleaning and maintenance work, switch o the device and disconnect it from the power supply. Prior to every use, visually check the machine to rule out any defects, in particular on the power cable and the plug. The appliance must not be used if damaged or safety equipment is defective. Replace any worn-out and damaged parts. Repairs and works specied in these Instructions may only be performed by qualied authorised sta. Use only original accessories and original spare parts. Caution! Depending on the design, water that is left standing for a longer period of time may cause corrosion in the pump housing! (Brown colouration) For winter storage, ensure that there is no water in the device. Otherwise, frost exposure may cause irreparable damage to the device. The pump must be stored in a completely empty and frost-proof state. You can reduce the chance of the mechanical seals sticking by ushing out the pump with suitable oil (e.g. vegetable oil). Only a regularly maintained and treated appliance can serve as a satisfactory aid. Insucient maintenance and care can lead to unforeseen accidents and injuries. Guarantee Warranty period of 12 months applies to commercial use and 24 months applies to private use and commences on the day of purchase of the device. The guarantee solely covers inadequacies caused by ma

terial defect or manufacturing defect. Original payment voucher with the sales date needs to be submitted for any claim in the guarantee period. The guarantee does not cover any unauthorised use such as appliance overloading, use of violence, damage as a result of any unauthorised interference or caused by foreign items. Failing to follow the operating and assembly instructions and common wear are also not included in the guarantee. GÜDE cannot be held responsible for damages incurred in consequence of unqualied installation or unskilled handling of the pump. The device has to be checked on a regular basis to ensu

re perfect functioning. Let us refer to the fact we do not assume any responsibi- lity – according to standards in force – for damage even- tually caused by our appliances in the below-mentioned cases: Unprofessional repairs executed by unauthorised service centres; Use in conict with the designed purpose, or failure to observe the use as designed; Pump overload with a continuous run; Damage as a result of icing or any other fault caused by climatic inuences; Identical regulations apply for accessory parts. To prevent damage (such as ooded rooms, etc.) as a result of faulty pump operation (failure or fault) the owner (user) is obliged to take reasonable safety measures (alarm assembly, spare pump, etc.).27

SYMBOLS Read the operating instructions to reduce the risk of injury. Machine to be always unplugged before any adjustment and servicing work on it. Insert the mains plug Staying in the transportation medium prohibited Warning against dangerous voltage Warning about automatic start-up Any damaged or disposed electric or electro- nic devices must be delivered to appropriate collection centres. CE marking TÜV / GS conformity mark Service Do you have any technical questions? Any claim? Do you need any spare parts or operating instructions? We will quickly help you and without needles bureaucracy at our web pages at www.guede.com in the Servicing part. Please help us be able to help you. In order to identify your device in case of claim we need the serial No., product No. and year of production. All this data can be found on the type label. Serial No.: Art. No: Year of production:28

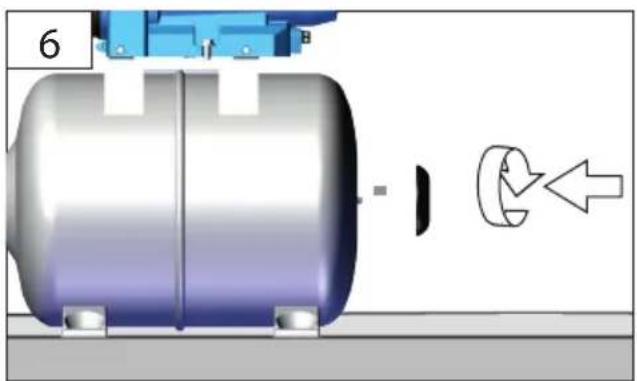

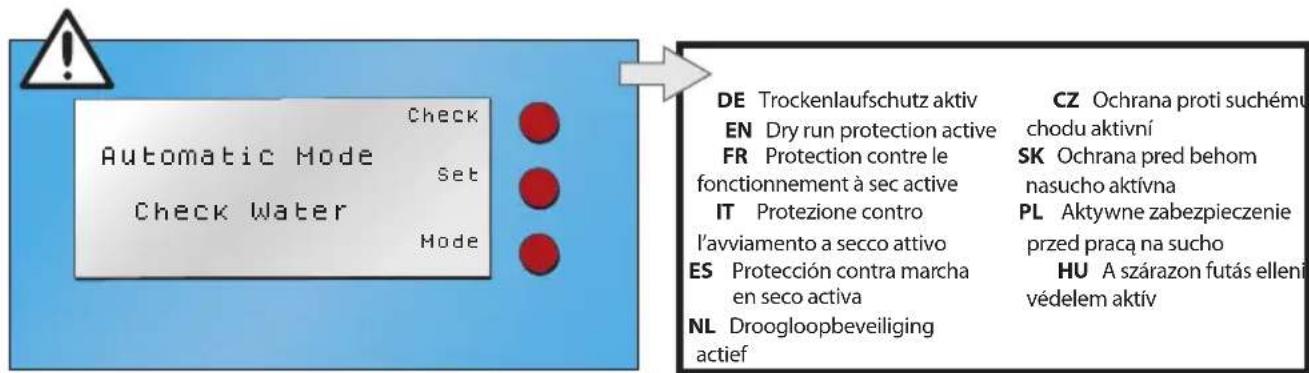

Inspection and maintenance plan Time interval Description Any other detailsAs needed Clean the check valve and the prelter. Check the check valve function.As required Check pressure pipe and intake pipe for leakage and seal if necessary Check for any leaks As required Check and correct tank pressure See page 16; Tank pressure 1,5 – 1,8 Bar Failure removal Failures Causes RemovalEngine does not start No power supply. Blocked pump wheelTurn the engine shaft with screwdri verthrough the fan cover (to release frictioncircles sealing that may be stuck together).Pump does not suck Missing, loose or blocked check valve Check valve is not in water. No water in the pump shell. Too high suction head. Air bubbles in the suction pipeline. Connections not sealed, pump sucks air, pump is not deaerated. Prelter cloggedFix or clean the check valve. Immerse the check valve into water. Fill the pump shell with water. Check the suction head. Check the tighten of suction pipeline. Carefully repeat connection according to thechapter „Connection“! Clean the prelter. Thermal detector swit ching the pump o

Pump is overheated and switched o by thethermal overloading protection. No electric power supply. Impurity particles (e.g. pebbles) have settleddown in the suction hole.Let the device getting cool!

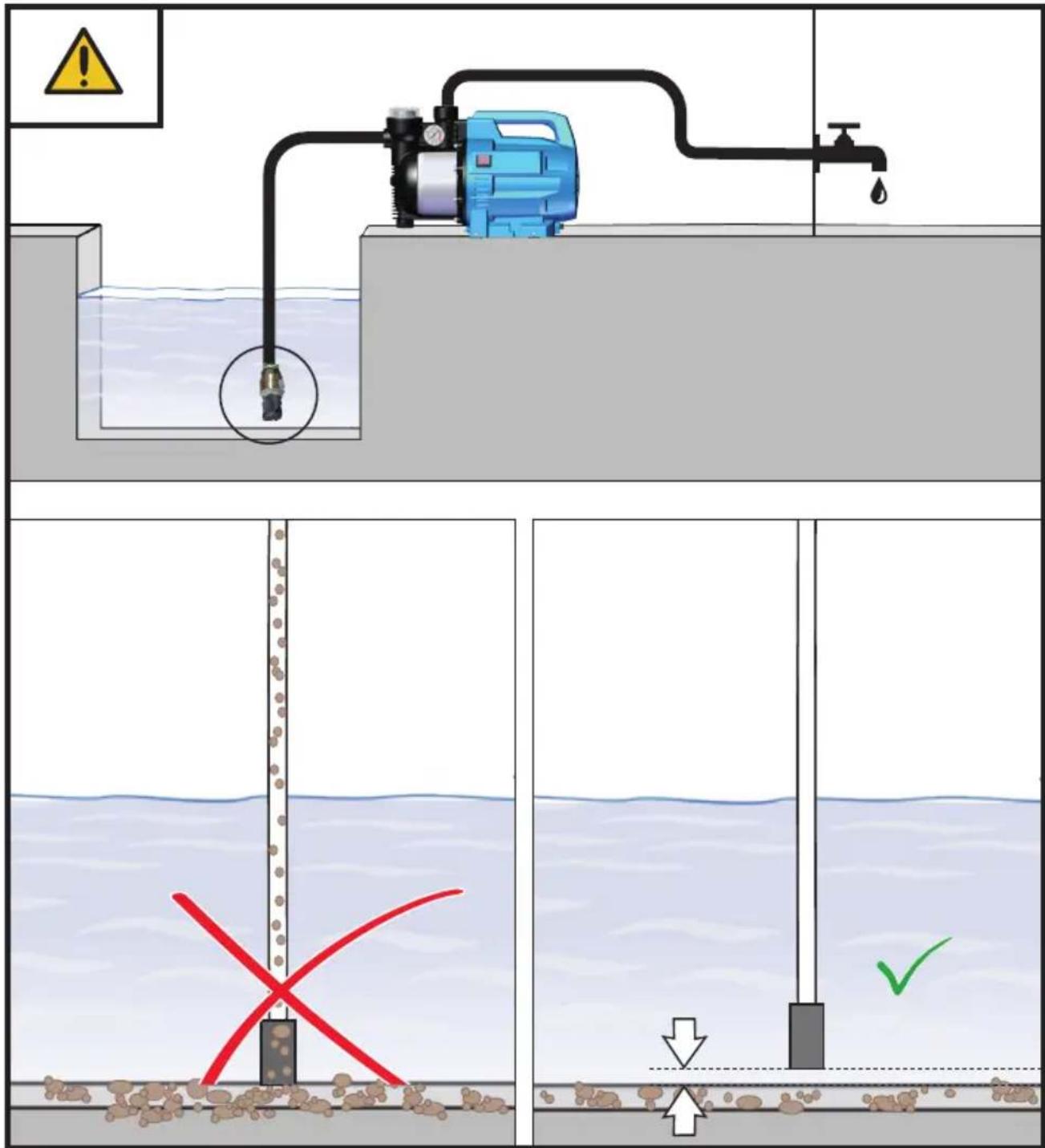

Check power supply. Disassemble and clean the suction hose,prevent from suction of foreign substances.Insucient amount of water pumpedToo high suction head. Check the suction head. Strainer of the check valve dirty Clean the strainer., Position the check valve lower.Water level quickly drops down Check water levelReduced switching intervals Air pressure in the receiver too low Seals on the pre-lter/non-return valve dirty Control air pressure.

Clean the seals and grease them with Vaseline Water is coming out of the tank valve Membrane defective Replace/repair (specialist workshop)29
