USER MANUAL Sani System Gun POLTI

CURVED FLOW CONCENTRATOR

POLTI HPMED DETERGENT

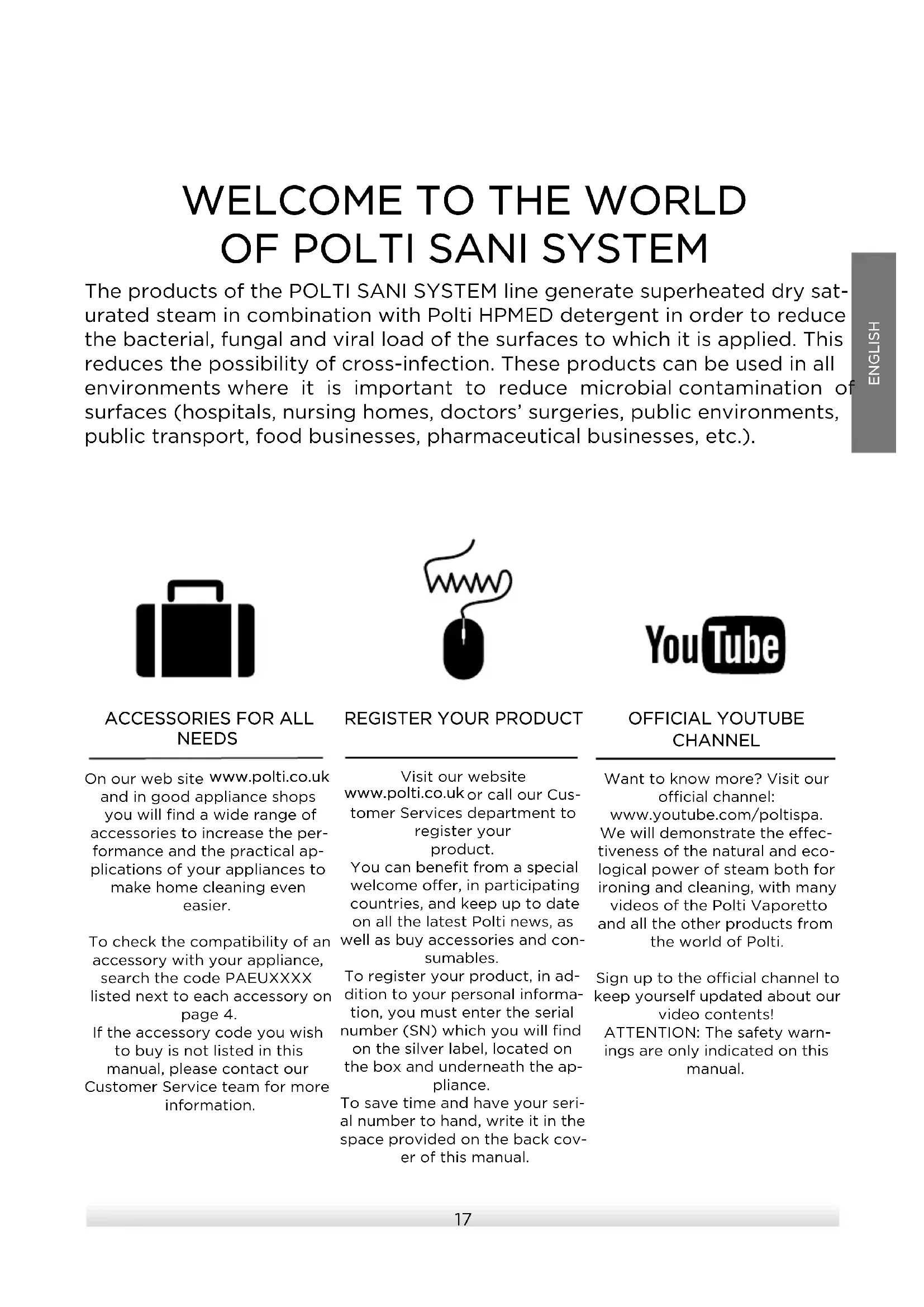

The products of the POLTI SANI SYSTEM line generate superheated dry sat- urated steam in combination with Polti HPMED detergent in order to reduce the bacterial, fungal and viral load of the surfaces to which it is applied. This reduces the possibility of cross-infection. These products can be used in all environments where it is important to reduce microbial contamination of surfaces (hospitals, nursing homes, doctors’ surgeries, public environments, public transport, food businesses, pharmaceutical businesses, etc.).

NEEDS On our web site www.polti.co.uk and in good appliance shops you will find a wide range of accessories to increase the per- formance and the practical ap- plications of your appliances to make home cleaning even easier. To check the compatibility of an accessory with your appliance, search the code PAEUXXXX listed next to each accessory on page 4. If the accessory code you wish to buy is not listed in this manual, please contact our Customer Service team for more information.

REGISTER YOUR PRODUCT

Visit our website www.polti.co.uk or call our Cus- tomer Services department to register your product. You can benefit from a special welcome offer, in participating countries, and keep up to date on all the latest Polti news, as well as buy accessories and con- sumables. To register your product, in ad- dition to your personal informa- tion, you must enter the serial number (SN) which you will find on the silver label, located on the box and underneath the ap- pliance. To save time and have your seri- al number to hand, write it in the space provided on the back cov- er of this manual. OFFICIAL YOUTUBE CHANNEL Want to know more? Visit our official channel: www.youtube.com/poltispa. We will demonstrate the effec- tiveness of the natural and eco- logical power of steam both for ironing and cleaning, with many videos of the Polti Vaporetto and all the other products from the world of Polti. Sign up to the official channel to keep yourself updated about our video contents! ATTENTION: The safety warn- ings are only indicated on this manual.18 SAFETY WARNINGS

(ACCESSORY CONNECTED TO THE PRODUCT), READ

ALL THE INSTRUCTIONS AND WARNINGS IN THIS MANUAL AND IN THE POLTI VAPORETTO AND POLTI VAPORETTO LECOASPIRA COMPATIBLE MANUALS. Polti S.p.A. declines all liability for any accident deriving from any improper use of this appliance. The product should only be used in accordance with this manual and the Polti Vaporetto and Polti Vaporetto Lecoaspira manuals. Any use which does not comply with these instructions will invalidate the warranty. SAFETY SYMBOLS:

WARNING: High temperature. Risk of scalding!

If shown on the product, do not touch as parts may be very hot.

Risk of scalding! This appliance reaches very high temperatures. Incorrect use of the device can cause scalding.

• Never disassemble or carry out maintenance on the appliance apart from that indicated in this manual. In the event of a fault or malfunction, do not try to repair the appliance yourself. Incorrect use or a lack of respect for the instructions herein may lead to serious accidents. Always contact Authorised Service Centres.

• This appliance must not be used if it has been dropped, if there are visible signs of damage or if it leaks.

• Remove the plug for the product which the accessory is connected to from the socket before filling the tank/boiler with water. ENGLISH• To carry out any maintenance or cleaning requiring access to the boiler which the accessory is connected to, ensure that the appliance is switched off at the power switch and disconnected from the mains for at least 2 hours.

• Always unplug the appliance if it is not in use.

• This appliance can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children must be supervised to ensure they do not play with the appliance.

• Keep the appliance out of reach of children when it is plugged in or cooling down.

• Keep all the parts of the packaging out of the reach of children; they are not toys. Keep the plastic bag out of the reach of children: danger of suffocation.

• The appliance must not be left unattended if plugged in to the mains.

• Steam must not be directed towards equipment containing electrical components, such as the interior of ovens.

• This appliance is intended for indoor and similar domestic use only. In order to reduce the risk of accidents, including: fires, electrocution, personal injury and scalding, both during use and during preparation, maintenance and storage, always take the basic precautions listed in this manual.

• The earthing system and highly sensitive residual-current circuit breaker, complete with magnetothermic cut-out for your system, guarantee safe use of electrical appliances. Therefore, for your own safety, check that the electrical system to which the appliance is connected complies with current laws.

• Do not connect the appliance to the mains if the voltage does not correspond with that of the electrical circuit in use.

• Do not overload sockets with adaptors and/or transformers.

ENGLISH20 Only connect the appliance to a single socket with current that is compatible with the plug supplied.

• Electrical extension leads that are unsuitable for the power rating or which are not compliant with law may overheat and possibly lead to short circuiting, fire, power outage or damage to the equipment. Only use extension leads which are certified, suitable for the power rating, supporting 16A and earthed.

• Always turn the appliance off before unplugging it.

• Do not pull or jerk the connection cable of the accessory or subject it to stress (twisting, crushing or stretching). Keep the connection cable away from hot and/or sharp surfaces and parts. Avoid crushing the connection cable in doors and windows. Do not pull the connection cable tight around corners. Avoid treading on the connection cable. Do not wind the connection cable around the appliance, especially if the appliance is hot. Do not place the appliance on top of the connection cable; this can be dangerous.

• Do not touch or use the appliance barefoot and/or with wet body or feet.

• Do not use in swimming pools containing water. Do not use the appliance near containers full of water, e.g. sinks, baths and swimming pools.

• Never immerse the cleaner in water or other fluid.

RISKS DURING USE OF THE PRODUCT –

• The appliance should not be used in areas where there is a danger of explosions or in the presence of toxic substances.

• Do not direct the steam jet onto toxic substances, acids, solvents, detergents or corrosive substances.

• Do not direct the steam jet onto explosive powders or liquids, hydrocarbons, open flames and or extremely hot objects.

• The handling and removal of dangerous substances must be carried out according to the indications of the manufacturers of these substances.

• Do not direct the steam jet on any part of the body of people or animals. ENGLISH• Do not direct the steam jet onto clothes while they are being worn.

• Cloths and rags and fabrics which have been subjected to a deep steam reach very high temperatures, above 100°C. Wait a few minutes and check that they have cooled before handling them. Therefore, avoid contact with the skin if they have just been steamed. The steam lock on the handle guarantees greater safety, as it prevents the accidental activation of steam delivery by children or people who are unaware of the function of the appliance. When steam is not being used, engage the steam lock. To continue steam delivery, return the switch to its original position.

WARNING: Do not use any chemical products other than

those recommended by the manufacturer. Polti S.p.a. guarantees correct operation of the system only if it is used with Polti HPMed. If products other than Polti HPMed are used, Polti will accept no liability and the guaran- tee will be invalidated.

CORRECT USE OF THE PRODUCT

This appliance is intended for home and simi- lar professional use, according to the descrip- tions and instructions given in this manual. Please read these instructions carefully and keep them. If this manual is lost, it can be consulted and/or downloaded from the web- site www.polti.co.uk. POLTI S.p.A. reserves the right to make the aesthetic, technical and construction changes it deems necessary, without prior notice. Before leaving our factory all our products are rigorously tested. This is the reason why your Polti Sani System may contain some residual water in the boiler. Correct use of the product is only as detailed in this instruction manual. Any other use may damage the appli- ance and invalidate the warranty. Polti S.p.A. declines all responsibility for acci- dents resulting from the use of this appliance in a manner that does not comply with these instructions for use. The Polti Sani System Gun is to be connected exclusively to Polti Vaporetto and Polti Lecoaspira appliances for steam disinfection of surfaces and fabrics. Thanks to its patented Superheated Chamber technology, the high temperature saturated dry steam generated in the high pressure boiler is fur- ther superheated up to 180 ° to ensure effec- tive disinfection and rapid drying of surfaces, without leaving traces of residual moisture. It reduces the bacterial, fungal and viral load of the surfaces to which it is applied. This re- duces the possibility of cross-infection. Laboratory and field tests have shown how treatment with the superheated (up to 180°C) dry saturated steam jet of Polti Sani System mixed with Polti HPMed detergent can elimi- nate up to 99.999% of viruses, germs, bacte- ria , funghi and spores and is also an effective solution against bed bugs. A deep disinfec- tion, therefore the maximum level of abate- ment, is obtained by delivering steam keep- ing the distance of 10 cm given by the spacer for 30 seconds continuously, remaining fo- cussed on the potentially contaminated area. The steam can treat an area with a diameter of about 10cm. We recommend this deep dis- infection for door handles, counters and for all those objects and surfaces most exposed to the frequent and continuous passage of people. After performing the deep disinfection, you can carry out subsequent disinfection mainte- nance operations by moving the dispenser over the surface to be treated by simulating brushstrokes from right to left (and vice versa), or from top to bottom (and vice versa) for about 30 seconds per square me- ter, which corresponds to 30 linear cm per second. Wait for the spontaneous evaporation of the residual condensation for 30 to 60 seconds without manually drying the surfaces, so as to avoid possible risks of cross-infection.

INFORMATION FOR USERS

Pursuant to European Directive 2012/19/EU, regarding electric and electronic appliances, this appliance must not be disposed of with domestic waste, but sent to an official collec- tion facility. This appliance complies with EU Directive 2011/65/EU. The crossed-out bin symbol on the appliance indicates that, at the end of its useful lifespan, the product must be disposed of separately from other waste. Therefore, at the end of its life, the user must hand over the appliance to an appropriate collection centre for electric and electronic waste or, according to the legislation in force in the country, leave the used appliance with the distributor when buying a new product to replace it. Proper separate waste collection to facilitate the subsequent recycling, treatment and environmentally compatible disposal of the appliance helps to prevent negative effects on the environment and human health, and promotes recycling of the materials the product is made of. Unlawful disposal by the owner involves the application of the administrative sanctions envisaged by current legislation. POLTI HPMED Thanks to its characteristics, Polti HPMed de- tergent is the ideal adjuvant to the action of the superheated dry saturated steam sup- plied by Polti Sani System. Polti HPMed is a hydroalcoholic solution that removes bad odours and can be used in the presence of people. ENGLISH

PORTUGUÊS1. PREPARING FOR USE

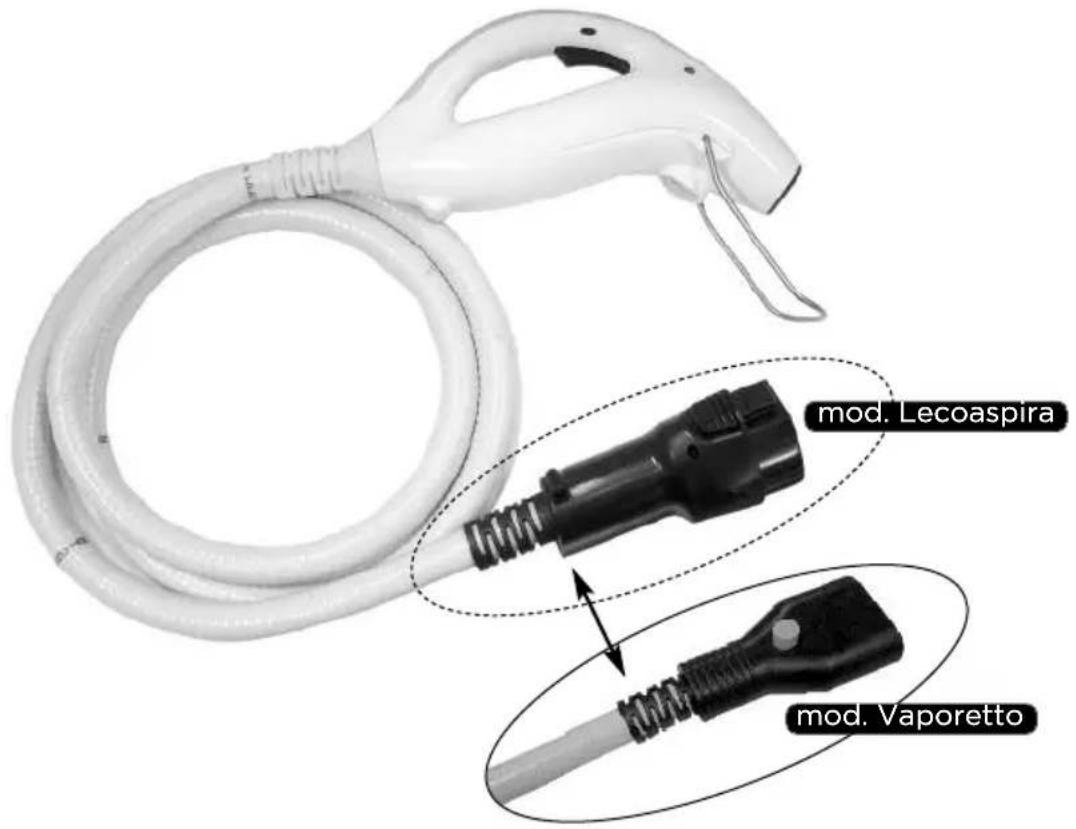

1.1 Connect the Polti Sani System Gun's

monoblock to your steam generator, as de- scribed in the generator's user manual.

1.2 Unscrew the cap of the Polti HPMed deter-

1.3 Insert the stopper into the bottle (2) until it

rests on the base of the bottle, ensuring that it stays as straight as possible (3).

1.4 Screw the bottle into the dispensing gun

fitting taking care to ensure that the stopper enters the hole inside the fitting perfectly, without bending (4). As soon as the level of Polti HPMed contained in the disposable bottle drops below the low level indicated on the label, replace with a new bottle. Once the disposable bottle has been opened and fitted onto the dispenser, it is to be used within 7 days before replacing with a new one.

2. INSTRUCTION FOR USE

2.1 Switch on your steam generator as de-

scribed in the user's manual.

2.2 Connect the Polti Sani System Gun and

wait until the heating light goes out.

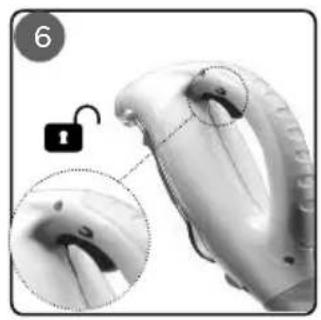

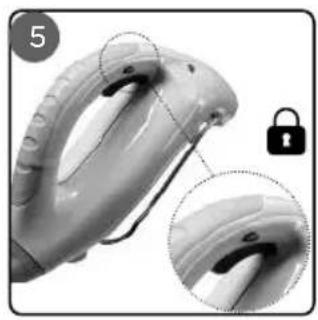

2.3 The steam gun has a safety button that pre-

vents accidental activation of the steam supply by children or people who don’t know how it works. Should the appliance be left momen- tarily unguarded, move the safety switch to the off position (5). To continue steam deliv- ery, move the switch back to its original posi- tion (6).

2.4 Direct the steam downwards for 2 sec-

onds in order to bring all the components of the appliance to their correct temperature, in order to avoid condensation.

2.5 Position the gun perpendicular to the sur-

face to be treated and keep it at the distance provided by the spacer bracket / holder to avoid direct contact for delicate material (7).

2.6 Deliver the steam using “brushing” move-

ments to cover the surface to be treated. This way, the flow of superheated dry satu- rated steam will cover the whole surface.

Before treating delicate or unusual surfaces with the Polti Sani System Gun , consult the manufacturer’s instructions and always carry out a test on a hidden part or on a sample of the material. Allow the steamed part to dry to make sure that no changes in colour or deformations have occurred. Make sure that the surface to be treated is clean before disinfecting it. In the event of visible dirt, clean the surface before sanitis- ingit. Direct the steam downwards for 2 seconds in order to bring all the components of the ma- chine to their correct temperature, in order to avoid condensation. Bring the gun perpendic- ular to the surface to be treated and keep it at a distance of 10 cm, as provided by the spacer, avoiding direct contact with the sur- face. Deliver the steam continuously, using “brushing” movements to cover the surface to be sanitised. Repeated treatments will lead to more effi- cient disinfecting of the treated surfaces. Polti Sani System Gun delivers superheated saturated dry steam that, added to Polti HPMed, dries without leaving residues within 30 seconds to 1 minute, depending on the en- vironmental conditions. To treat piping, drains, etc., connect the gun to the adaptor to obtain a concentrated jet of steam. Before starting to use the device, make sure that the material to be treated can withstand the high temperature.

WARNING: After turning on for the first time,

direct the first jet of steam onto a cloth or downwards for approximately 30 seconds without attaching the disposable bottle. This will allow the working temperature and the optimum pressure to be reached.

WARNING: Do not screw the bottle to the

gun without the stopper. If no consumption of Polti HPMed is seen during use of the product, this means that the stopper has not been inserted correctly, or has folded within the bottle. Unscrew the bottle and repeat the insertion procedure, taking care to posi- tion it correctly.

WARNING: For additional safety, test steam

delivery on a hidden part, leave the steamed part to dry to ensure that no changes in colour or deformations have occurred.

ENGLISH24 Refer to the Steam Disinfection Protocol in- cluded in the box for instructions on how to treat different surfaces.

4. CONNECTION OF ACCESSORIES

The following accessories can be connected to the dispenser: Straight flow concentrator, for a concentrat- ed jet. Curved flow concentrator to reach difficult places. Just bring the accessory chosen into line with the delivery device nozzle and rotate the ac- cessory until it locks into place (8). Use the concentrator to treat drains; do not use it on surfaces.

5. STORING THE DEVICE

When you have finished using the device, put it away in a clean and dry place after discon- necting it from the power mains. Keep it away from sources of heat and protect from the weather. Do not expose the device to ex- treme temperatures.

6. GENERAL MAINTENANCE

To clean the outside of the appliance, only use a damp cloth and tap water. All acces- sories can be cleaned using running water, ensuring they are completely dry before the next use. Clean the steam gun after every 10 uses or if visibly dirty. Clean the dispensing nozzle us- ing the brush included, sliding it inside the gun so as to remove any limescale residue in it (9). Do not use detergents of any type.

WARNING: When using the concentrator

accessory, it is necessary to detach the Polti HPMed disposable bottle and connect the empty bottle supplied because there could be a small loss of condensate from the dis- penser where the bottle attaches.

WARNING: Perform these operations when

the appliance is turned off, cold and discon- nected from the mains or disconnected from Polti Vaporetto and Polti Lecoaspira. ENGLISH7. TROUBLESHOOTING

PROBLEM CAUSE SOLUTION

Does not dispense steam. The steam dispenser is not inserted correctly. Child safety inserted. Insert the steam dispenser (4) correctly all the way down. Deactivate the safety switch. During use the appliance does not consume Polti HPMed. The stopper inside the bottle has not been in- serted correctly. Insert the stopper correctly. If problems persist or are not listed above, please contact a Polti Authorised Service Centre (www.polti.co.uk for the updated list) or contact Customer Services.

ENGLISH26 WARRANTY This appliance is guaranteed for one year from the date of purchase if purchased by a professional/commercial business with an in- voice (VAT number). If the purchase is made by a consumer with a tax receipt, the warranty period is two years, as required by the Con- sumer Code. The date of purchase and the du- ration of the guarantee must be proven by the tax document issued by the seller:

• Invoice: one year warranty

• Tax receipt: two-year warranty For repairs, the appliance must be accompa- nied by proof of purchase. This warranty does not affect the consumer rights deriving from European Directive 99/44/EC as regards some aspects of sale and warranty of consumer goods, rights which the consumer should uphold with re- spect to the seller. This warranty is valid in the countries which adhere to European Directive 99/44/EC. For other countries, local regulations on war- ranties apply.

WHAT THE WARRANTY COVERS

During the warranty, Polti guarantees free re- pair of a product with a manufacturing or fac- tory defect and, therefore, the client is not li- able to pay for any work or materials. In case of irreparable defects, Polti may re- place the product free of charge. To avail of the warranty, the customer should visit one of the Polti Authorised Service Cen- tres with proof of purchase from the seller valid for tax purposes and bearing the date of purchase of the product. Without proof of purchase and the relative date of purchase, the work will be charged for. Store the proof of purchase document safely for the whole duration of the warranty.

WHAT THE WARRANTY DOES NOT COVER

• Any fault or damage not deriving from a manufacturing defect.

• Any fault due to improper use or use other than that indicated in the instruc- tion booklet, an integral part of the prod- uct sales contract.

• Any defect resulting from force majeure (fires, short circuits) or caused by third parties (tampering).

• Damage caused by the use of non-original Polti parts, and repairs or modifications performed by staff or service centres not authorised by Polti.

• Damage caused by the customer.

• Parts (filter, brush, hose, battery, etc.) damaged by use (consumable goods) or normal wear and tear.

• Any damage caused by limescale.

• Defects resulting from lack of mainte- nance/cleaning according to the manu- facturer’s instructions.

• Assembly of non-original Polti accessories or those that have been modified or which are not suitable for the appliance. Inappropriate use and/or use not compliant with the instructions for use and any other warnings or indications contained in this man- ual invalidates the warranty. Polti takes no responsibility for any direct or indirect damage to people, objects or animals caused by non-compliance with the instruc- tions indicated in this instruction booklet, re- garding warnings for use and product mainte- nance. To see the up-to-date list of the Polti Autho- rised Service Centres, visit the website www.polti.co.uk. ENGLISH27 FRANÇAIS
