USER MANUAL Perfect Air CA2000 Concept

Naciśniewiem przycisku 'Anion' walks because it's the best way to get a job.

concept

concept

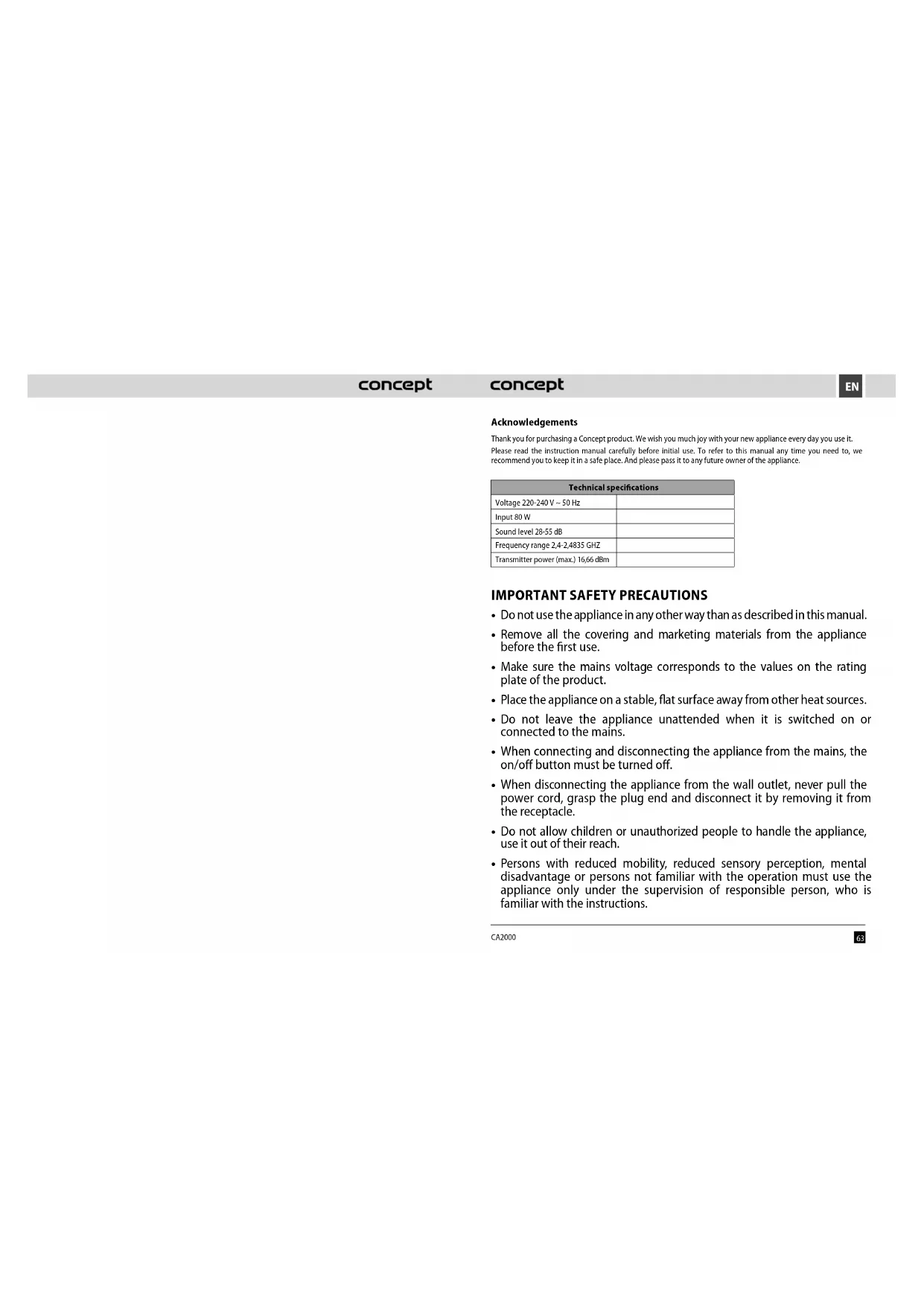

Thank you for purchasing a Concept product. We wish you much joy with your new appliance every day you use it. Please read the instruction manual carefully before initial use. To refer to this manual any time you need to, we recommend you to keep it in a safe place. And please pass it to any future owner of the appliance.

Technical specifications
Voltage 220-240 V - 50 Hz
Input 80 W
Sound level 28-55 dB
Frequency range 2,4-2,4835 GHz
Transmitter power (max.) 16,66 dBm

IMPORTANT SAFETY PRECAUTIONS

• Do not use the appliance in any other way than as described in this manual.
• Remove all the covering and marketing materials from the appliance before the first use.
• Make sure the mains voltage corresponds to the values on the rating plate of the product.
• Place the appliance on a stable, flat surface away from other heat sources.
• Do not leave the appliance unattended when it is switched on or connected to the mains.
• When connecting and disconnecting the appliance from the mains, the on/off button must be turned off.
• When disconnecting the appliance from the wall outlet, never pull the power cord, grasp the plug end and disconnect it by removing it from the receptacle.
• Do not allow children or unauthorized people to handle the appliance, use it out of their reach.
• Persons with reduced mobility, reduced sensory perception, mental disadvantage or persons not familiar with the operation must use the appliance only under the supervision of responsible person, who is familiar with the instructions.

EN

concept

concept

• Pay extra attention if the appliance is used near children.
• Do not use the appliance as a toy.
• Never put your fingers, pencils or other objects into the openings of the appliance.
• Never use the appliance without cover grids.
• Do not let small children and sick persons to be exposed to a direct air flow.
• Do not cover the appliance.
• Do not put anything on the appliance or place anything in front of it.
• The appliance must only be used in the upright position.
• Do not use the appliance near shower, bathtub, sink or pool.
• Do not use the appliance in a damp or dusty environment.
• Do not use the appliance in an environment where there are explosive gases and flammable substances (solvents, varnishes, adhesives, etc.).
• Before assembly and disassembly, disconnect the power cord from the wall outlet.
• Before cleaning and after use of the appliance, switch the appliance off and disconnect it from the mains.
• Keep the appliance clean, do not allow foreign objects to into the grid openings. It could cause serious injury, short circuit, damage to the appliance or cause fire.
• Do not use coarse and chemically aggressive substances to clean the appliance.
• Do not use the appliance with a damaged cord or plug and have it repaired immediately by an authorized service centre.

• Do not use the appliance if it is not working properly, has been dropped, damaged or immersed in liquid. Have it checked and repaired by an authorized service centre.

• Do not use the appliance outdoors.

• The appliance is only suitable for home use and is not intended for commercial use.
• Do not touch the appliance with wet hands.
• Do not immerse the power cord, plug or appliance in water or any other liquid.
• Do not repair the appliance yourself. Contact an authorized service centre.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved. Cleaning and maintenance performed by the user must not be carried out by children unless they are 8 years old and under supervision. Children aged under 8 years of age must be kept away from the appliance and its power cord. Do not let children play with the appliance.

Damages from failure to follow the manufacturer's instructions are not covered by the warranty.

EN

concept

concept

EN

PRODUCT DESCRIPTION

1. Control panel
   2.Air Inlet
2. Filter cover
3. Control panel
4. Handle
   6.Air outlet

CONTROL PANEL LAYOUT

A. Automatic mode control
B. Speed control
Sleepe mode
C. sleep mode D. for spending indicators
B. Tn -speed in
E. Timer
F. lonizer
G.Child lock
H. UV lamp
LUVlmpindicator
1. RM35 Air purity indicator
1. FV 2.5 An parity indicator
K. Tiberian 1
L. Filter replacement indicator
M. Starting button

OPERATING INSTRUCTIONS

INSTALLING THE FILTER

1. Remove the filter cover
2. Remove the filters from the appliance body and remove the packaging material.
3. Insert the filters into the appliance in the order shown in the picture.
4. Place the HEPA filter into the appliance body.
5. Place the carbon filter into the appliance body.
6. Place the pre-filter inside and click the filter cover back into its place. (The appliance will not work correctly if the filter cover is not positioned correctly.)

1. HEPA filter
2. Carbon filter
3. Profilin
4. Prefilter

FILTER / DUST SENSOR MAINTENANCE

Pre-filter: Clean the filter every 15 days. To remove dust from the filter surface, use a vacuum cleaner or wash it with water and dry thoroughly.

HEPA ^+ carbon filter: Clean the filters every 2 months. Use the vacuum cleaner to remove dust from both filter surfaces. Leave the filters in a well-ventilated place. Do not expose the filters to direct sunlight. Do not wash the filters with water. Replace the filter every six months or when the 1500 hour filter change prompt flashes, and reset the filter change timer by holding the "Child lock" button.

• Disconnect the mains supply before cleaning and maintenance.
• Do not operate the appliance with the filter removed (operation without the effect of removing dust may cause the appliance to malfunction).
  If the appliance is idle for a long time, unplug the power cord (it also consumes power in standby mode).

CONTROL

When connected to the mains, the device enters the standby mode. After pressing the "Power" button, the device turns on in last set mode. (Not in the Timer setting mode or the Sleep mode) If you press the "Power" button again, the device will switch to the standby mode and logs the last setting.

After pressing the "Child Lock" button, the button lights up and blocks functions of all the other buttons. Press the button and hold it for 3 seconds to activate this mode. While holding down the "Child Lock" button for 5 seconds, the display will show the time of the filter use.

Press the "Anion" button to activate the ionizer function, the button lights up. Press it again to turn the ionizer off.

concept

concept

Press the "Timer" button to set the shut-down timer. Each press changes the time by 30 minutes. The maximum time of the timer setting is 12 hours. Press and hold the "Timer" button for 3 seconds to cancel the timer.

Press the "UV" button to activate the UV lamp function, the button lights up. Press it again to turn the UV lamp off.

If you press the "Auto" button again, the device will enter the automatic mode and the button will light up. In this mode the device operates according to the degree of air pollution. PM2.5<60 (low power of the motor), 60<PM2.5<150 (medium power of the motor), PM2.5≥150 (high power of the motor)

If you press the "Sleep" button, the device will enter the automatic mode and all the lightning will turn off. The motor runs at low power. A timer is available in this mode. Press any button to exit the sleep mode.

Press the "Speed" button to change the motor speed to low (500 rpm), medium (700 rpm) and high (900 rpm). The device exits the automatic mode. After pressing this button, the motor speed will not automatically change according to the air pollution, but remain in the mode you selected.

When operating in automatic mode, the device enters sleep mode in low light. If the lighting increases again, the device returns to its original function.

INSTALLATION INSTRUCTIONS

In case of internal dust, such as pollen, the appliance should be placed on the ground. Since pollen, dust, etc are usually held close to the floor, it is recommended to place the purifier on a flat floor in the room.
In order not to block the air inlet and outlet, place the appliance about 30~cm or more away from the left and right sides of the wall, furniture, curtains, etc. For effective use of the appliance, please keep it at least 30~cm away from the wall behind it.
- Do not cover the top of the appliance nor place any objects on it. (It could cause the appliance to malfunction.)
Note: Do not place magnets or metal objects on the appliance.
- Do not block the air inlet and outlet, for example, do not place any objects on the air outlet. Or on the front side, on the air inlet.
- Place the appliance at least 1 m away from TV and radio receivers. Placing it near them may cause signal interference.

• Switch off the appliance immediately if any of the following situations occur (could cause electric shock, spark or smoke)

• Unusual sound or vibration occurs during operation.
  The appliance is unusually hot and there is a smell of burning.

Clean the plug regularly.

If the plug is dusty, moisture may damage the insulated part of the plug and cause a fire.
If the appliance is not used for a long time, unplug the power cord.
- Never clean the plug or the appliance with water.

• Be sure to disconnect the power supply before performing any maintenance on the appliance. The appliance may suddenly start and cause electric shock and injury.
• Connect the plug to the wall socket correctly (if the plug is not inserted correctly, it may result in electric shock due to overheating or even a fire). Do not use a damaged plug or loose socket.
  Always pull the power cord by the plug. Pulling on the cord may cause damage to the power cord, electric shock, short circuit, or fire.
• If any of the following occurs and the remedy found in the "Troubleshooting" table does not help, contact an authorized service centre.

The power button does not work.
The power cord or plug is unusually hot.
- You noticed unusual sound or vibration.
- There are any other abnormalities or faults.

To prevent electric shock, unqualified persons should not disassemble the appliance.

concept

concept

TROUBLESHOOTING

Common faults, error code description and troubleshooting method.

Problem Cause Remedy
The appliance does not turn on or the power button does not work.	The socket of the appliance is not plugged in.	Check the electrical connection of the socket.
	The front cover is not correctly fitted.	Check that the front cover is fitted correctly.
	The appliance is not placed on a stable and flat surface.	Place the appliance on a stable, flat surface.
	Child lock is activated. Hold the "child lock" button for 3 seconds.
The air is not clean, but the PM 2.5 on the display shows low values and the purifiers does not operate at full power.	The purifier is not located in a place where it can easily absorb bad air or dust.	Change the position of the purifier (e.g. on the ground).
The PM 2.5 on the display constantly shows high values, although the purifiers runs continuously.	The dust sensor is dirty. Clean the dust sensor.
The appliance emits unpleasant odour.	The filter is dirty or it has not been replaced for a long time.	Clean or replace the filter.
The purifier runs for a long time, but the air quality does not improve.	The filters have not been inserted into the purifier in the right order.	Make sure that the filters are in the right order.
	The filters have not been removed from the plastic bag.	Remove the filters from the plastic bag.
The appliance immediately enters sleep mode when it is turned on.	Automatic mode is activated. Turn off the automatic mode.

Before you can control the device through the application, it is necessary to connect it to your phone and give it access to your Wi-Fi network.

Recommended distance during set-up: less than 4 meters

Make sure your air purifier, router, and your mobile phone are close together so that you can pair your phone with the device with no problems.

Download and installation of the app

1. Scan the OR code below (Fig. 1) or find and download the "Concept Home" application from Google Play or App Store (Fig. 2).
2. If you already have Concept Home, open the app, sign in, and continue with the pairing instructions.
3. If you are a new user, start by registering (Fig. 3). Follow the instructions to enter the verification code and complete the registration. (Fig. 4)
4. Follow the instructions to create a family (Fig. 5).

Fig.1 Fig.2 Fig.3 Fig.4
Fig.5

EN

concept

concept

EN

INSTRUCTIONS FOR PAIRING THE DEVICE

1. At the beginning of pairing, you need to be connected to your Wi-Fi network.
2. With the appliance switched on, press and hold the ionizer button until the Wi-Fi icon flashes.
3. Then press ^+ orAdd deviceV (Fig. 6) in the application to add a new device.
4. Select the "Smart Home Appliances" item in the left menu and select the air purifier. Confirm the "Confirm indicator rapidly blink" message (FIG. 7).
5. Select your Wi-Fi network to which the device needs to connect to and enter your password. (Fig. 8)
6. This will start the set-up process, which may take some time. (Fig. 9)
7. Your phone will try to connect to the device and it will connect it to your Wi-Fi network.
8. After successful set-up (Fig. 10), press Completed to enter the device control interface (Fig. 11).

Fig.6 Fig.7 Fig.8 Fig.9

Fig.10 Fig.11

PAIRING TROUBLESHOOTING

• Verify that your Wi-Fi network password is correct.
  The device only supports 2.4 GHz Wi-Fi networks
  The router is overloaded as many other devices are connected.
• When attempting to connect to the device (Fig. 9), try to manually connect to its Wi-Fi network.

SERVICE CENTRE

Extensive maintenance or repair, which requires access to internal parts of the product, has to be performed by a qualified specialist or the service centre.

ENVIRONMENTAL CONCERNS

• Packaging materials and old appliances should be recycled.
• Packaging materials may be disposed of as sorted waste.
• Dispose the plastic bags made of polyethylene (PE) of as sorted waste.

Recycling of the appliance at the end of its lifespan

This appliance is labelled in accordance with European Directive 2012/19/EU concerning used electrical and electronic appliances (Waste Electrical and Electronic Equipment - WEEE). The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. The disposal of such material has to be done according to the recycling regulations. For more detailed information about recycling of this appliance see the authorized local office or service for household waste disposal or the shop, where you purchased the appliance.

The product meets all the necessary requirements of the EU directives applicable to the specific product.

Changes in text, design, and technical specifications are subject to change without prior notice and we reserve the right to change them.

Danksagung

Fig.6 Fig.7 Fig.8 Fig.9

Fig.10 Fig.11

SERVICE

Fig.6 Fig.7 Fig.8 Fig.9

Fig.10 Fig.11

PROBLEM CON ACCOPIAMENTO

Fig.1 Fig.2 Fig.3 Fig.4 Fig.5

concept

concept

INSTRUCCIONES PARA SINCRONIZAR EL ARTEFACTO

Fig.6 Fig.7 Fig.8 Fig.9

Fig.10 Fig.11

SERVICIO

Fig.1 Fig.2 Fig.3
Fig.4

Fig.5

RO

concept

concept

RO

INSTRUCTION DE IMPERECHERE A PARATULU

Fig.6 Fig.7 Fig.8 Fig.9

Fig.10 Fig.11

AVERTIZARI LA PROBLEME CU IMPERECHERE

Verificati da caca parola pe care ati introclus-o la reteaua dumneavoastr Wi-Fi este corecta.
- Aparatul sprijina doar retele Wi-Fi de 2,4 GHz
- Routersul este suprasolicitat de connectarea multor dispositive.
- In timpul incercarii de conectare la aparat (fig. 9) incercati sā va conectati manua I rejeaua Wi-Fi a acestuia.

SERVICE

Intretinone cau caracter me amplu Sau reparata care necessite o intervenlte la partie interioare ale produsului, trebuie s fa ie executate de catre un specialist calificat saud de un service.

PROTECTIA MEDIULUI

www.www.my-concept.com

Podrobnosti o produktu

CONCEPT POLSKA sp. z o.o.

ul Ostrowskiego 30, 53-238 Wroclaw

tel.:[phone]fax:[phone]

mail: [e-mail]
www. www.my-concept.jp

Daneproduktu

The manufacturer (or Importer) is responsible for ensuring the product complies with the requirements of applicable legal regulations as well as those of the relevant technical standards. Moreover, they are responsible for ensuring the product has the properties the manufacturer described in documents related to the goods or those reasonably expected by the customer with regard to the nature of the goods or based on advertising produced by the manufacturer, and further they are responsible for ensuring the product is fit for the purpose proposed by the manufacturer or that a product of the same type is normally used for.

The quality warranty term is 24 months from product takeover by the customer.

The warranty does not apply to wear and tear caused by regular use. The customer shall not be entitled to any warranty claims if, prior to taking the product over, they knew the product contained a defect or if the defect is attributable to the customer.

In terms of these warranty conditions, a defective battery is considered a battery that is electronically inoperative (i.e., does not communicate with the base unit, the charging or discharging circuits are defective, etc.) or has an internal short circuit.

Defects or changes in parameters caused by normal use and wear (e.g. natural capacity decrease) are in no way considered a defect in terms of warranty.

The battery is provided warranty service for a period of 6 months. In terms of these warranty conditions, the battery has the nature of a consumable, for more details see "Consumables".

Consumables

For consumables (batteries, etc.) we guarantee the preservation of technical parameters for 6 months, in case it was not damaged by improper use and its lifetime has not expired.

The warranty specifically does not apply:
- if the product installation, operation and service conditions stipulated in the product operating manual have not been adhered to,
to malfunctions caused due to mechanical, heat or chemical damage, short circuit, over voltage or incorrect installation.
to malfunctions caused by an inexpert third-party intervention,
- to malfunctions caused by natural disaster, - to malfunctions caused by insufficient or inappropriate maintenance in violation of the operating manual, including malfunctions caused by water and other sediments.
- to changes in colour of the heating surface or to scratching of the surface caused as a result of using the products in an unusual manner,
to appearance and functional changes caused by exposure to sunlight, thermal radiation of water and other sediments.
- if the service life of certain product parts expires, e.g. for accumulators, bulbs, etc.

The warranty does not apply to any products and services provided along with the product (gifts, promotional articles, etc.).

Filing a complaint

A complaint against a product defect must be filed as soon as identified, yet no later than before the end of the warranty term.

The customer must file a product complaint with the dealer from which they have purchased the product, or with any authorised service centre, a list of which is included in the product package, or available at www.my-concept.com.

While filing a product complaint, the product must be duly cleaned and securely packed so as to prevent any damage during its transport to an authorised service centre, where relevant, unless the product is delivered in person.

The customer must submit proof of having concluded a purchase contract for the product by producing the receipt.

While filing their complaint, the customer must indicate the noted defect and identify the preferred complaint application method.

Complaints processing

As long as the noted defect may be removed, the user has the right to have the defect duly removed free of charge on a timely basis.

If the noted defect is not removable, or if the customer becomes entitled to replacement of the product or a part thereof, yet the replacement is not possible, for example due to the product having been sold out, the customer has the right to return the product (withdrawal from the contract).

The customer shall have the right to a new product (replacement) or to replacement of a part of the product even if the defect can be removed, provided they cannot properly use the product due to repeated occurrence of the defect or due to a high number of such defects. In such a case, the customer also has the right to return the product (by withdrawing from the contract).

If the product is not returned the customer does not withdraw from the contract), or if the customer does not apply the right to a new defect-free product (replacement), to replacement of a part thereof or to repair of the product, they may request a reasonable discount. The customer also has a right to a reasonable discount if a new defect-free product cannot be supplied to them, or if a product part cannot be replaced or the product repaired unless the situation is remedied within a reasonable time limit, or if remedying the situation would create major discomfort on the part of the customer.

The seller, authorised service centre or a staff member authorised by them must decide about each complaint immediately or within three business days in complicated cases. This term does not include a reasonable period of time, depending on the type of product concerned, required for the defect to be assessed by an expert. A complaint, including defect removal, must be dealt with without any undue delay, yet no later than within 30 calendar days of the complaint filing date, unless the seller and the customer agree on a later deadline.

On returning the product (withdrawing from the contract) the customer must return any accessories and documents supplied along with the product.

The customer does not have the right to keep the defective parts and components of the product replaced as part of a repair of the product.

This shall be without prejudice to any other rights the customer may have in relation to the purchase of the product.

Remark: Complaints against products damaged in transport are governed by the carrier's complaints procedure.

Manufacturer

Jindlich Valenta - Concept

Vysokomytska 1800,565 01 Chocn

Czech Republic

tel.: [phone]

tax+4204654/3304

Company ID No.13216660 1. Name of Company:

email: [e-mail]
www: www.my-concept.com

Product data

Model:
Production number:
Date of purchase: Seal and signature of vendor:

concept concept

GARANTIEBEDINGUNGEN

Garantie

CONDITIONS DE GARANTIE

Garantie

Material consumabili

CONCEPT POLSKA sp. z o.o.

Ostrowskiego 30, 53-238 Wroclaw
Tel.: [phone], Fax: [phone]
www.my-concept.pl

ASPICO KFT
