USER MANUAL HWP5 H.KOENIG

Spare parts are subject to the specific model. The right of modification is reserved. Illustration of appliance

1. water supply connector

high pressure hose 16 3. water outlet

MContents Illustration of appliance 1 General instruction

Dear customers, DO NOT use your high-pressure washer before reading this manual! General instruction This high-pressure washer is designed for domestic use only:

1. to clean cars, motorbikes, caravans,

2. to clean patios, fences, garden

walls, pathways, driveways and house facades, particularly useful for cleaning blocked driveway.

3. to remove of algae and moss from

roofs, brickwork and guttering.

4. to clean garden tools and machinery,

furniture and barbecues.

5. to clean hygienic of animal pens andtheir surrounding area.

6. With accessories, replacement parts

and detergents approved by factory. Observe the instructions provided with these detergents. The packing material can be recycled. Please do not place the packaging into the ordinary refuse for disposal, but arrange for the proper recycling. Old appliances contain valuable materials that can be recycled. Please arrange for the proper recycling of old appliances. Please dispose your old appliances using appropriate collection systems. Read symbols in the operating instructions

Danger: immediate danger that can

cause severe injury or even death.

Warning: possible hazardous situation

that could lead to severe injury or even death. Caution: possible hazardous situation that could lead to mild injury to persons or damage to property.The high-pressure washer may not be directed at persons, animals, live electrical equipment or at the appliance itself. Protect the appliance against frostSafety instruction Danger

Never touch the mains plug and the socket with wet hands.

The appliance must not be used if the power cord or important parts of the appliance, e.g. high pressure hoses, trigger gun or safety devices are damaged. Please arrange for it to be replaced immediately by an authorized repair agent or a skilled electrician.

The appliance may not be used in areas where a risk of explosion is present. 4.The high pressure washer must not be directed at other persons or directed by the user at him/herself to clean clothing or footwear. 5.If the appliance is used in hazardous areas (e.g. filling stations) all of the safety provisions and operating instructions detailed in this manual must be observed. 6.Never use the appliance to clean objects containinghazardous substances.

Vehicle tyres or tyre valves are susceptible to damage from the high pressure washer and may burst. The first indication of this is a discoloration of the tyre. Damaged vehicle tyres/tyre valves are highly dangerous. Ensure that a distance of at least 30 cm is observed when cleaning with the washer.

Risk of explosion. Do not spray flammable liquids. Never draw in fluids containing solvents or undiluted acids. This includes petrol, paint thinner and heating oil. The spray mist thus generated is highly inflammable, explosive and poisonous. Do not use acetone, undiluted acids or solvents as they are damaging to the materials from which is the appliance is made.Warning

The mains plug and the coupling of an extension cable must be watertight and must never lay in the water.

Unsuitable extension cables can be hazardous. Only use extension cables outdoors which have been approved for this purpose and labeled with a sufficient cable cross- section: 1- 10m: 1.5mm

Always fully unroll electrical cables.

High pressure hoses, fixtures and couplings are important for the safety of the appliance. Only use high pressure hoses, fixtures and couplings recommended by the manufacturer.

This appliance is not intended for use by persons with reduced physical, sensory or mental capabilities. The appliance must not be operated by children or persons who have notbeen instructed accordingly. Children should be supervised to prevent them from playing with the appliance.

The operator must use the appliance correctly. When working with the appliance, he must consider the local conditions and pay due care and attention to other persons, in particular children who are nearby.

This appliance may be used by children of at least 8 years of age, as long as they are supervised and have been given instructions about using the appliance safely and are fully aware of the dangers involved.

Cleaning and maintenance should not be carried out by children unless they are at least 8 years of age and are supervised by an adult.

Keep the appliance and its power cord out of reach of children under 8 years of age.

When using electrical equipment, safety precautions must always be taken to prevent the risk offire, electric shock and/or injury in the event of misuse.

Make sure that the voltage rating on the typeplate corresponds to your main voltage of your installation. If this is not the case, contact the dealer and do not connect the unit.

Never leave the unit unattended while in operation.

The device must not be used if it has been dropped, it obvious signs of damage are visible or if it has leaks.

Please keep this document at hand and give it to the future owner in case of transfer of your device.

Do not operate this appliance if it has a damaged cord or plug, if it is not working properly or if it has been damaged or dropped. If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.Caution

Do not use the machine if the persons nearby do not wear safety protection device.

Wearing protective clothing and safety goggles to protect against splash back containing water or dirt.

Create stability for the appliance prior to all work on or with the appliance to prevent accidents or damage. The stability of the appliance is warranted when it is placed on to an even surface.

For safety reasons, we recommend that you operate the appliance only via an earth-leakage circuit breaker (max. 30mA).

Make sure that the power cord or extension cables are not damaged by running over, pinching, dragging or similar. Protect the power cable from heat, oil, and sharp edges.

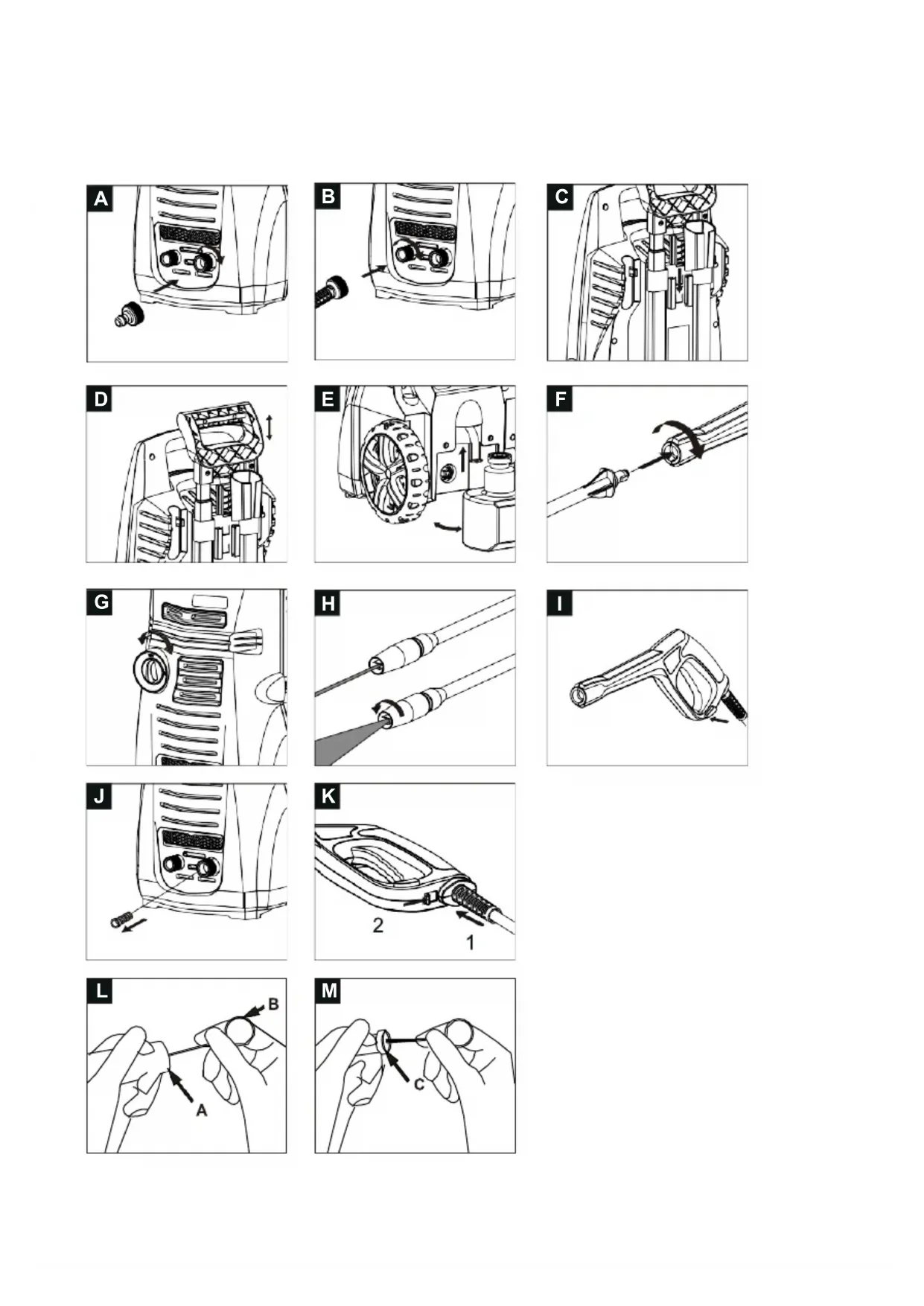

Never leave the appliance unattended when it is in operation.Operation Special accessories expand the possibilities of using your appliance. Please contact the dealer for further information. Illustrate accessories before start-up. 1.Install coupling for water connection (pic A). Screw the coupling to the water connection on the appliance. 2.Install high pressure hose (pic B. pic K). Insert the high pressure hose tightly in to coupling on the appliance, it will lock in audibly. Note: make sure the connection nipple is aligned correctly. Check the secure connection by pulling on the high pressure hose.

3. Install the storage of trigger gun (pic C).

Insert the storage of trigger gun and push down all the way

4. Install spray lance (pic F).

Push the spray lance into the trigger gun and fasten it by turning it through 90 degree. Water supply Impurities in the water can damage the high pressure pump and accessories. All high pressure washer (except hot water system) use the cold water. The suitable water temperature is 5℃to 60℃. Water supply from mains Observe regulations of water supply For connection values, use fibre-reinforced water hose (not included) with a standard coupling, normally the length is 5m, connect the water hose to the appliance and water supply.

1. Open the water tap

2. Unlock the lever on the trigger gun 3.Pull on the lever of

the trigger gun 4.Turn on the appliance (pic G ON: open OFF: close) Start up Dry runs lasting longer than two minutes lead to damages to the high pressure pump. If the appliance does not build up pressure within two minutes, switch it off and proceed as instructed in the Chapter “Troubleshooting”. The trigger gun is subjected to recoil force when the water washer is discharged. Make sure that you have a firm footing andare also holding the trigger gun and spray lance firmly. The spray lance has two main settings stream and fan for easy cleaning (pic H).

Caution Prior to cleaning, make sure that the high pressure washer is placed safely on level ground. Wear protective goggles and protective clothing during the cleaning process. Notes: Release the lever of the trigger gun, the device will switch off again. High pressure washer remains in the system. Working with detergent.

Use detergent when cleaning. Remove the lid from the detergent bottle and press the detergent bottle into detergent (pic E). Notes: The device is under low pressure when using detergent and pulling out spray lance. Release the lever on the trigger gun, lock the lever on the trigger gun, insert the spray lance into trigger gun when interrupting operation. Notes: The device is under low pressure when using detergent and pulling out spray lance. Release the lever on the trigger gun, lock the lever on the trigger gun, insert the spray lance into trigger gun when interrupting operation.( as pic Q)Finish operation

Press the lever on the trigger gun to release any remaining pressure and water in the system.

Store the water hose and high pressure hose. Maintenance and care Turn off the appliance and remove the mains plug prior to any care and maintenance work. Prior to longer periods of storage, pull out the filter (18) in the detergent bottle and clean under running water. Pull out the filter in the water connection and clean under running water (pic J). Use the needle to clean the residue (pic M). In winter, please do not put the machine outside without draining the water to avoid the damage to the machine. Just put it in a room with frost prevention.Troubleshooting Symptom Cause Recommended action Appliance is not running 1.Machine not plugged in 2.Defective socket 3.Defective extension cable 4.Incorrect mains voltage 5.Switch off 6.Fuse has blown

Turn on switch 6.Replace fuse Pump stop working Lack of water lead to high temperature check water flow quantity -put the hose in the 10 bottle (per minute)

Fluctuating pressure

Check that hoses and connections are airtight 3.Contact the dealer

Appliance does not reach operation pressure

Spray lance blocked or worn

Short supply of water 3.Hose kinked 4.Filter blocked 5.Hose blocked

Clean hose Trigger gun can be used Trigger gun is locked Unlock trigger gun safety

Machine often starts and stops by itself

1. Safety valve worn out

2.Pump,high pressure hose, trigger gun is leaking 1.Contact the nearest service center 2.Contact the nearest service centerThe content in this instruction manual (include accessories) is kept the final modifying and explanation rights Appliance is leaking Slight leakage from the appliance pump is normal. If the leakage increases contract the authorized customer service. Transport instruction Mind the weight of appliance during moving. Put the appliance a level ground. Pull out the telescopic rod (Max. length 410mm, as pic D)to move the appliance.

Storage 1.Place the appliance on a level ground 2.Disconnect trigger gun and high pressure hose 3.Disconnect high pressure hose with outlet 4.Put the trigger gun into the trigger gun holder 5.Wind back power cord and high pressure Please store the machine properly especially during winter

Water temperature !0~ 40 °CSchematic drawing
