USER MANUAL HWP3 H.KOENIG

THIS MACHINE IS DESIGN ED FOR DOMESTIC USE ONLY! COMMERCIAL OR INDUSTRIAL USE ARE PROHIBITED. Illustration of appliance Spare parts are subject to the specific model. The right of modification is reserved.

1. High pressure hose

6. Trigger gun holder

16. Accessory storage

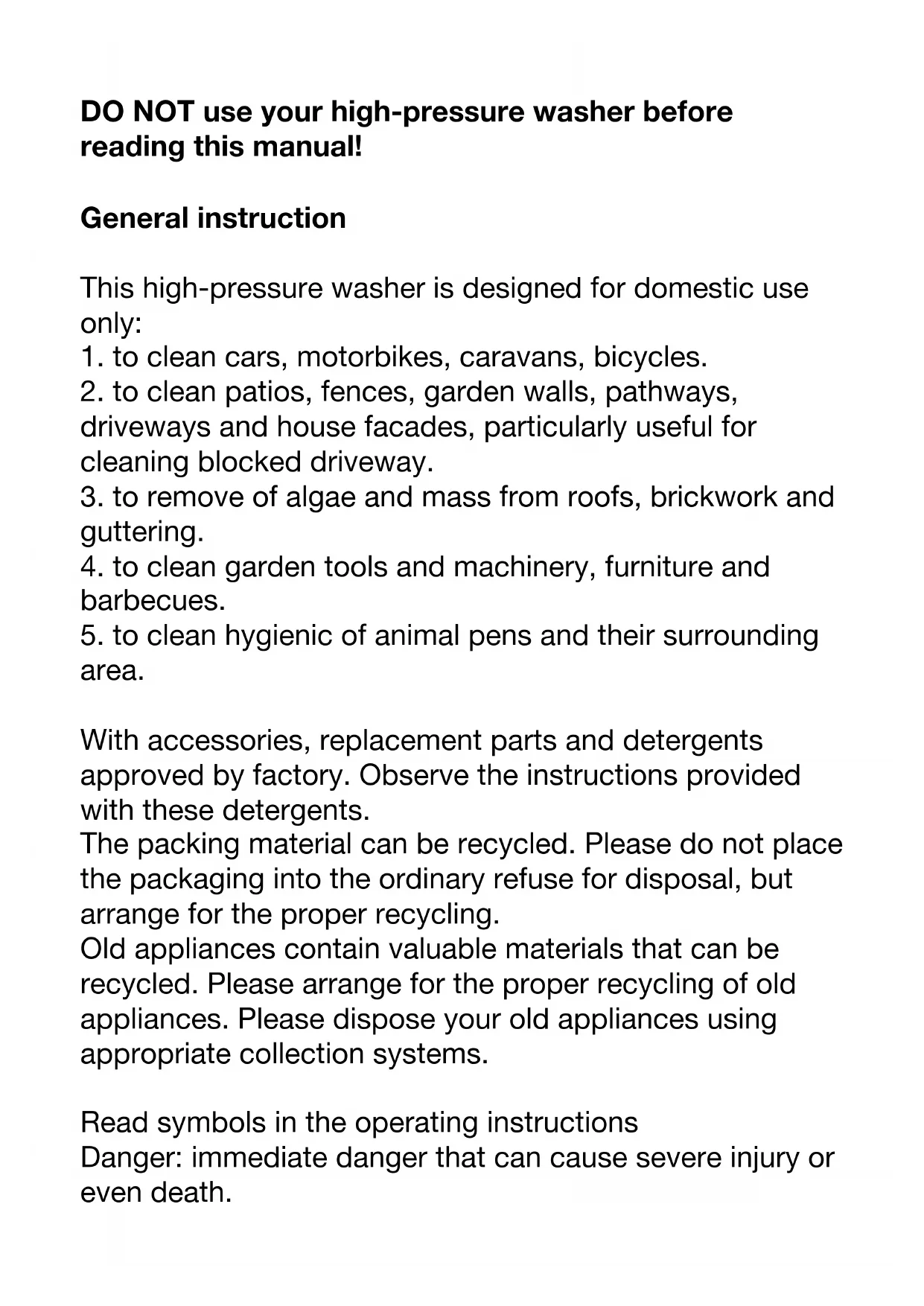

18. FilterDO NOT use your high-pressure washer before

reading this manual! General instruction This high-pressure washer is designed for domestic use only:

1. to clean cars, motorbikes, caravans, bicycles.

2. to clean patios, fences, garden walls, pathways,

driveways and house facades, particularly useful for cleaning blocked driveway.

3. to remove of algae and mass from roofs, brickwork and

4. to clean garden tools and machinery, furniture and

5. to clean hygienic of animal pens and their surrounding

area. With accessories, replacement parts and detergents approved by factory. Observe the instructions provided with these detergents. The packing material can be recycled. Please do not place the packaging into the ordinary refuse for disposal, but arrange for the proper recycling. Old appliances contain valuable materials that can be recycled. Please arrange for the proper recycling of old appliances. Please dispose your old appliances using appropriate collection systems. Read symbols in the operating instructions

Danger: immediate danger that can cause severe injury or

even death.Warning: possible hazardous situation that couId lead to severe injury or even death. Caution: possible hazardous situation that couId lead to mild injury to persons or damage to property. The high-pressure washer may not be directed at persons, animals, live electrical equipment or at the appliance itself. Protect the appliance against frost. Safety instruction Danger

1. Never touch the mains plug and the socket with wet

2. The appliance must not be used if the power cord or

important parts of the appliance, e.g. high-pressure hoses, trigger gun or safety devices are damaged. Please arrange for it to be replaced immediately by an authorised repair agent or a skilled electrician.

3. The appliance may not be used in areas where a risk

of explosion is present.

4. The high-pressure washer must not be directed at

other persons or directed by the user at him/herself to clean clothing or footwear. 5.lf the appliance is used in hazardous areas (e.g. filling stations) all of the safety provisions and operating instructions detailed in this manual must be observed.

6. Never use the appliance to clean objects containing

hazardous substances.

7. Vehicle tyres or tyre valves are susceptible to damage

from the high-pressure washer and may burst. The first indication of this is a discoloration of the tyre. Damagedvehicle tyres/tyre valves are highly dangerous. Ensure that a distance of at least 30 cm is observed when cleaning with the washer. 8.Risk of explosion. Do not spray flammable liquids. Never draw in fluids containing solvents or undiluted acids. This includes petrol, paint thinner and heating oil. The spray mist thus generated is highly inflammable, explosive and poisonous. Do not use acetone, undiluted acids or solvents as they are damaging to the materials from which is the appliance is made.

9. Do not operate this appliance if it has a damaged cord

or plug, if it is not working properly or if it has been damaged or dropped. If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard. Warning 1.The mains plug and the coupling of an extension cable must be watertight and must never lay in the water. 2.Unsuitable extension cables can be hazardous. Only use extension cables outdoors which have been approved for this purpose and labeled with a sufficient cable cross- section: 1-10m: 1.5mm2 10-30m: 2.5mm2

3. Always fully unroll electrical cables.

4. High pressure hoses, fixtures and couplings are

important for the safety of the appliance. Only use high pressure hoses, fixtures and couplings recommended by the manufacturer.

5. this appliance can be used by children aged from 8

years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision orinstruction concerning use of the appliance in a safe way and understand the hazards involved. Children should be supervised to prevent them from playing with the appliance. 6.The operator must use the appliance correctly. When working with the appliance, he must consider the local conditions and pay due care and attention to other persans, in particular children who are nearby. Caution

1. Do not use the machine if the persans nearby do not

wear safety protection device.

2. Wearing protective clothing and safety goggles to

protect against splash back containing water or dirt. 3.Create stability for the appliance prior to ail work on or with the appliance to prevent accidents or damage. The stability of the appliance is warranted when it is placed on to an even surface. 4.For safety reasons, we recommend that you operate the appliance only via an earth-leakage circuit breaker (max. 30mA).

5. Make sure that the power cord or extension cables are

not damaged by running over, pinching, dragging or similar. Protect the power cable from heat, oil, and sharp edges. 6.Never leave the appliance unattended when it is in operation.Operation Special accessories expand the possibilities of using your appliance. Please contact the dealer for further information. Install accessories before start-up. 1.lnstall coupling for water connection (pic A). Screw the coupling to the water connection on the appliance. 2.lnstall high pressure hose (pic B. pic K). lnsert the high-pressure hose tightly in to coupling on the appliance, it will Iock in audibly. Note: make sure the connection nipple is aligned correctly. Check the secure connection by pulling on the high-pressure hose. 3.lnstall trigger gun holder and accessory storage (pic C). lnsert trigger gun holder and accessory storage. Then push down ail the way.

4. lnstall spray lance (pic F).

Push the spray lance into the trigger gun and fasten it by turning it through 90 degree. Water supply lmpurities in the water can damage the high-pressure pump and accessories. Ali high pressure washer (except hot water system) use the cold water. The suitable water temperature is 5°C to 60°C. Water supply from mains Observe regulations of water supply For connection values, use fibre-reinforced water hose (not included) with a standard coupling, normally the length is Sm, connect the water hose to the appliance and water supply.

1. Open the water tap

2. Unlock the lever on the trigger gun

3. Pull on the lever of the trigger gun

4. Turn on the appliance (pic G ON: open OFF: close)

Start up Dry runs lasting longer than two minutes lead to damages to the high-pressure pump. If the appliance does not build up pressure within two minutes, switch it off and proceed as instructed in the Chapter "Troubleshooting". The trigger gun is subjected to recoil force when the water washer is discharged. Make sure that you have a firm footing and are also holding the trigger gun and spray lance firmly. The spray lance is adjustable from stream to fan patterm for easy cleaning (pic H). Caution Prior to cleaning, make sure that the high-pressure washer is placed safely on level ground. Wear protective goggles and protective clothing du ring the cleaning process. Notes: Release the lever of the trigger gun, the device will switch off aga in. High pressure washer remains in the system.Finish operation

2. Press the lever on the trigger gun to release any remaining pressure and water in the

4. Store the water hose and high-pressure hose.

Maintenance and care Turn off the appliance and remove the mains plug prior to any care and maintenance work. Prior to longer periods of storage, pull out the filter (18) in the detergent bottle and clean under running water. Pull out the filter in the water connection and clean under running water (pic J). Use the needle to clean the residue (pic M). In winter, please do not put the machine outside without draining the water to avoid the damage to the machine. Just put it in a room with frost prevention.Troubleshooting Symptom Cause Recommended action Appliance is not running

1. Machine not plugged in

2. Try another socket

3. Try another extension cable

Pump stop working Lack of water lead to high temperature check water flow quantity - put the hose in the 10 bottle (per minute) Fluctuating pressure

1. Spray lance blocked

2. Pump is sucking air

3. lmpurities in pump

1. Clean lance with needle

2. Check that hoses and connections

Appliance does not reach operation pressure

1. Spray lance blocked or worn

2. Short supply of water

2. Check in let flow rate

3. Straighten out hose

Trigger gun can be used Trigger gun is locked UnIock trigger gun safety Machine often starts and stops by itself

1. Safety valve worn out

2. Pump, high pressure hose,

trigger gun is leakina

1. Contact the nearest service center

2. Contact the nearest service center

The content in this instruction manual (include accessories) is kept the final modifying and explanation rights. Appliance is leaking Slight leakage from the appliance pump is normal. If the leakage increases contract the authorized customer service. Transport isntruction Mind the balnace of appliance du ring moving. Put the appliance a level ground. Eco designed handle more comfortable to move the appliance (as Pic.D). Storage

1. Place the appliance on a level ground

2. Disconnect trigger gun and high-pressure hose

3. Disconnect high pressure hose with outlet

4. Put the trigger gun into the trigger gun holder

5. Wind back power cord and high pressure

Please store the machine properly especially du ring winterTechnical specification Voltage: AC220-240V Working pressure: 6.5Mpa Power: 1400W Water temperature 0-40°C Max. pressure: 11.0Mpa Working temp.: 5-50°C Flow rate: 320L/H Length: 321 mm Max. tap water : 0 .4Mpa Width: 257mm

ENVIRONMENT CAUTION: Do not dispose of this product as it has with other household products. There is a separation of this waste product into communities, you will need to inform your local authorities about the places where you can return this product. In fact, electrical and electronic products contain hazardous substances that have harmful effects on the environment or human health and should be recycled. The symbol here indicates that electrical and electronic equipment should be chosen carefully, a wheeled waste container is marked with a cross.
