USER MANUAL KB 8873 SEVERIN

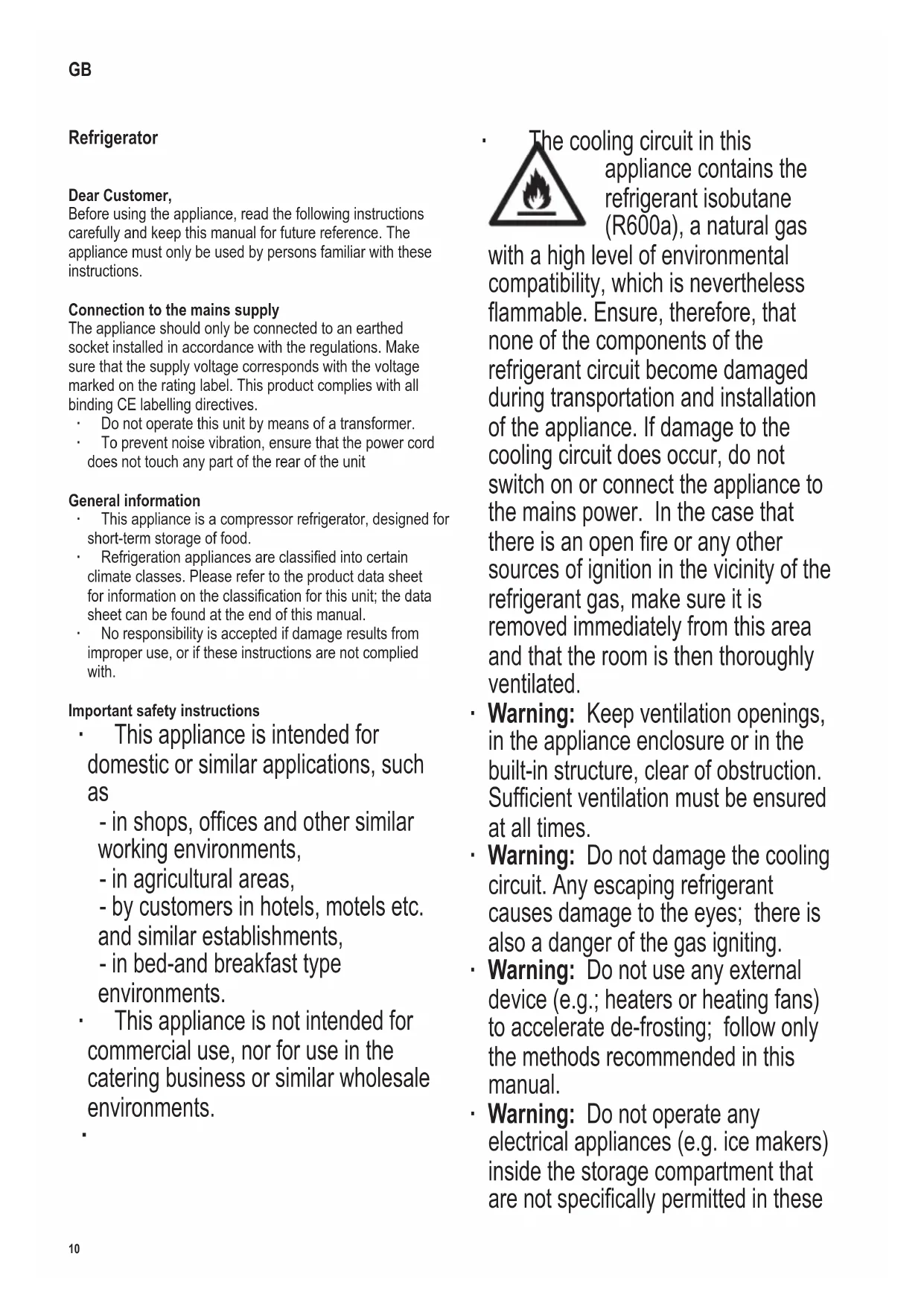

- in shops, ofces and other similar working environments, - in agricultural areas, - by customers in hotels, motels etc. and similar establishments, - in bed-and breakfast type environments. ∙ This appliance is not intended for commercial use, nor for use in the catering business or similar wholesale environments.

∙ The cooling circuit in this appliance contains the refrigerant isobutane (R600a), a natural gas with a high level of environmental compatibility, which is nevertheless ammable. Ensure, therefore, that none of the components of the refrigerant circuit become damaged during transportation and installation of the appliance. If damage to the cooling circuit does occur, do not switch on or connect the appliance to the mains power. In the case that there is an open re or any other sources of ignition in the vicinity of the refrigerant gas, make sure it is removed immediately from this area and that the room is then thoroughly ventilated. ∙ Warning: Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction. Sufcient ventilation must be ensured at all times. ∙ Warning: Do not damage the cooling circuit. Any escaping refrigerant causes damage to the eyes; there is also a danger of the gas igniting. ∙ Warning: Do not use any external device (e.g.; heaters or heating fans) to accelerate de-frosting; follow only the methods recommended in this manual. ∙ Warning: Do not operate any electrical appliances (e.g. ice makers) inside the storage compartment that are not specically permitted in these GB11 142 x 208 mm instructions. ∙ Before it is connected to the mains power, the unit must be thoroughly checked for transport damage, including its power cord. In the event of any such damage being found, the appliance must not be connected to the mains. ∙ When positioning the appliance, ensure the supply cord is not trapped or damaged. ∙ Do not locate multiple portable socket- outlets or portable power supplies at the rear of the appliance. ∙ This appliance is not designed for the storage of explosive substances such as aerosol cans with a ammable propellant. ∙ If the unit is sold, handed over to a third party or disposed of at a suitable recycling facility, attention must be drawn to the presence of the insulation agent ‘cyclopenthane’ as well as to the refrigerant R600a. For additional information on correct recycling please refer to the section Disposal. ∙ In order to comply with safety regulations and to avoid hazards, any repairs or modications to this unit must be carried out by our authorised service personnel, including the replacement of the power cord. ∙ This appliance may be used by children (at least 8 years of age) and by persons with reduced physical, sensory or mental capabilities, or lacking experience and knowledge, provided they have been given supervision or instruction concerning the use of the appliance and fully understand all dangers and safety precautions involved. ∙ Children aged from 3 to 8 years are allowed to load and unload refrigerating appliances. ∙ Children must not be permitted to play with the appliance. ∙ Children must not be permitted to carry out any cleaning or maintenance work on the appliance. ∙ For frequent cleaning we recommend the use of warm water with some mild detergent. For detailed information on cleaning the appliance, please refer to the section De-frosting and cleaning. To avoid contamination of food respect the following instructions: ∙ Opening the door for long periods can cause a signicant increase of the temperature in the compartments of the appliance. ∙ Clean regularly surfaces that can come in contact with food and accessible drainage systems. ∙ Store raw meat and sh in suitable containers in the refrigerator so that it is not in contact with or drip onto other food. ∙ If the refrigerating appliance is left empty for long periods switch off, defrost, clean, dry and leave the door open to prevent mould developing within the appliance.12 142 x 208 mm Storing food ∙ The temperatures inside the refrigerator cabinet and cold storage compartment depend mainly on the ambient temperature, the temperature control setting and the amount of food stored. Cold storage compartment: ∙ The cold storage compartment is specically designed for short-term storage of fresh meat, sh and poultry. Main cabinet ∙ Different areas of the refrigerator cabinet are affected differently by the cooling effect. The warmest area is around the door in the higher part of the cabinet, the coldest around the rear wall and in the lower part of the cabinet. ∙ The food should therefore be stored as follows: ∙ On main cabinet shelves (from top to bottom): bakery items, ready meals, dairy products, meat, sh and cold meats/sausages. ∙ In the door (from top to bottom): butter, cheese, eggs, tubes (eg mustard), small bottles, large bottles, milk and fruit-juice tetra-packs. ∙ To prevent the risk of personal injury or damage to the unit, it must only be transported while in its original packaging. ∙ Caution: Keep any packaging materials well away from children: there is a risk of suffocation. ∙ The ice removed from the unit during de-frosting is not suitable for human consumption. ∙ The power cord should be regularly examined for any signs of damage. In the event of such damage being found, the appliance must no longer be used. ∙ To avoid the risk of re, do not place any thermo-electric appliances on top of the unit. Do not place liquid containers on top of the unit, to prevent any leaking or escaping liquid damaging the electrical insulation. ∙ This unit is designed for storing food only. ∙ Alcoholic substances may be stored only in properly sealed containers and in upright positions. ∙ Do not store any glass bottles containing carbonated or other freezable liquids in the unit: such bottles may burst during the freezing process. ∙ To avoid the risk of food poisoning, do not consume food after its storage time has expired. Thawed foods must not be frozen a second time. ∙ Do not lean or put undue weight on the shelves, compartments, door etc. ∙ Protect the inside of the refrigerator at all times from open ames and any other sources of ignition. ∙ Remove the plug from the wall socket - in case of any malfunction, - before de-frosting, - during cleaning, - before maintenance or repair work is carried out. ∙ When removing the plug from the wall socket, never pull on the power cord; always grip the plug itself. ∙ If the unit is not used for an extended period of time, we recommend keeping the door open. ∙ We reserve the right to introduce technical modications. Familiarisation

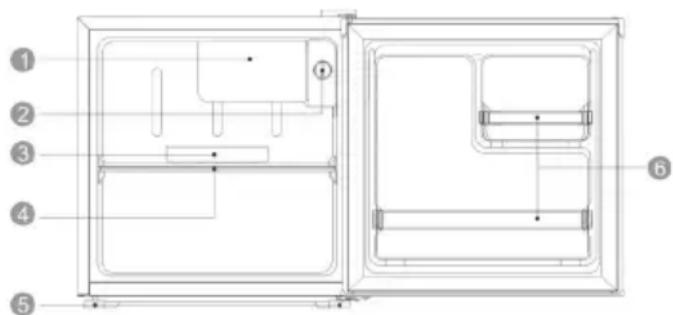

1. Cold storage compartment

4. General storage shelf

6. Door storage compartments13

142 x 208 mm Before using for the rst time ∙ Remove any exterior and interior packaging materials completely, including the adhesive strips. ∙ Please ensure proper disposal of all packaging materials. ∙ Before it is connected to the mains, the unit must be thoroughly checked for transport damage, including its power cord. ∙ Clean the unit as described in the section De-frosting and cleaning. ∙ The unit should only be transported in its vertical position; do not tilt any more than 30°. ∙ Once the unit has been positioned, wait for about 30 minutes before it is connected to the mains. ∙ If the unit has been tilted more than 30° during transport, allow it to stand upright for at least 4 hours before it is connected to the mains. ∙ When the unit is rst switched on, a slight ‘new’ smell may be noticed. However, this will disappear once the cooling process has begun. Installation ∙ The appliance should be set up in a well-ventilated, dry room. ∙ It should be operated in conditions where the relative humidity is no more than 70 %. ∙ The product data sheet at the end of this manual contains details of the ambient temperature range suitable for this appliance. ∙ Do not use the appliance outdoors. ∙ Ensure that the plug is accessible and can be removed from the wall socket at any time. ∙ Do not expose the appliance to direct sunlight, and do not position it next to any heat sources (radiators, cookers etc). If this cannot be avoided, however, a suitable insulation must be in installed between the heat source and the unit. ∙ The unit must not be installed inside a cabinet, nor directly below a hanging cupboard, shelf or similar object . ∙ Do not place any objects on top of the unit, and do not otherwise cover it. ∙ If the oor is uneven, the height-adjustable feet at the front of the unit can be used to compensate and ensure optimum stability. Ventilation Ensure that there is enough space around the unit so that the air circulation round and behind it is not obstructed. (Rear 7.5 cm, sides 5 cm, top 10 cm.) Reversible door If required, the door may be reversed, i.e. from right-hinged (default installation) to left-hinged.

Warning: Always disconnect the unit from the mains

before any maintenance or repair work is carried out.

1. Remove the upper hinge blind cover.

2. Use a suitable socket spanner to remove the three

screws holding the upper hinge to the housing, and then lift off the hinge.

3. Carefully lift up the door and place it on a soft surface

to protect it from scratches.

4. Remove the three blind covers for the hinge mounting

holes on the opposite side and t them in the corresponding place on the other side. Ensure that the cover are rmly pushed down into the holes.

5. Remove the adjustable feet.

6. Remove the two screws on the lower hinge plate and

7. Remove the hinge-pin from the hinge plate, turn the

plate through 180° and put back the hinge-pin.

8. Install the hinge plate with the hinge pin facing up

on the other side. Caution: Do not yet tighten the screws.

9. Replace and tighten the adjustable feet.

10. Replace the door in its new position. Ensure that the

hinge pin is inserted into the guide bushing (hole) on the lower part of the door.

11. Install the upper hinge on the closed door. Ensure that

the hinge pin is inserted into the guide bushing (hole) on the upper part of the door. Caution: Do not yet tighten the screws.

12. Adjust the closed door to its proper position and

tighten the screws of the upper and lower hinge plates.

13. Replace the hinge cover on the upper hinge.

14. Put the unit back in its intended position and wait for

about four hours before connecting it to the mains.14 142 x 208 mm Temperature control ∙ The unit is activated by connecting it to the mains. It is only switched off completely when the plug is removed from the wall socket. ∙ The temperature in the refrigerator cabinet can be adjusted by setting the temperature control. ∙ Turning the control clockwise will decrease the temperature, while turning it anti-clockwise will increase it. ∙ We recommend turning the temperature control initially to a medium setting. After a certain time, the actual temperature should then be checked with a thermometer, and adjustments made if necessary. ∙ Following a power interruption, or if the unit has been switched off on purpose, it may take 3 to 5 minutes before it switches on again. ∙ Note: In position ‘0’, the cooling function is switched off, though the appliance is still connected to the mains. ∙ If you notice frost on the rear wall, the most likely cause is that the door has been left open for too long, or that warm food has been placed inside the refrigerator or that the temperature control has been set too high. ∙ Liquid or strong-smelling food, or food which is likely to absorb strong odours (e.g. cheese, sh, butter), should be stored separately or in hermetically sealed containers. ∙ Warm food should be left to cool down to room temperature before being placed in the refrigerator. ∙ Always ensure that the door is properly closed and that the seal is not obstructed by food stored inside the cabinet or door. De-frosting and cleaning ∙ Always remove the plug from the wall socket before cleaning. ∙ When the build-up of ice has reached a thickness of 2 mm, the unit must be de-frosted. ∙ Turn the temperature control down to ‘0’ and leave the door open. Place the drip tray at the centre, at the back edge of the shelf. The unit is now defrosting, and the resulting melt-water is collected at the bottom and in the drip tray. ∙ Warning: do not use any external device or other means (e.g. heaters or heating fans) to accelerate de- frosting. ∙ Do not pour water over or inside the unit. ∙ For frequent cleaning we recommend the use of warm water with some mild detergent. To prevent any unpleasant odour within the refrigerator, it should be cleaned about once a month. ∙ Any accessories should be cleaned separately with soapy water. Do not put them in a dishwasher. ∙ Do not use abrasives or harsh cleaning solutions or any cleaning agents that contain alcohol. ∙ After cleaning, thoroughly clean all surfaces with fresh water before wiping them completely dry. When re- inserting the plug into the wall socket ensure that you have dry hands. ∙ Take care not to remove or damage the rating plate inside the cabinet during cleaning. ∙ To save energy, the compressor (at the rear) should be cleaned carefully at least twice a year with a brush or a vacuum cleaner. Energy saving tips ∙ The appliance should be set up in a well-ventilated, dry room. ∙ Do not expose the appliance to direct sunlight, and do not position it next to any heat sources (radiators, cookers etc). If this cannot be avoided, however, suitable insulation must be installed between the heat source and the unit. ∙ Do not cover the ventilation openings and grilles, and ensure sufcient air circulation behind the unit. ∙ The compressor (at the rear) should be cleaned at regular intervals. Accumulated dust causes an increase in energy consumption. ∙ Warm food should be allowed to cool down before it is stored inside. ∙ Do not leave the fridge door open for too long when loading or taking out food. ∙ Do not set a lower-than-necessary temperature. For detailed information on the temperature settings, please refer to the section Temperature control. Trouble-shooting Certain typical sounds can be heard when the appliance is switched on. These sounds are: ∙ caused by the electrical motor within the compressor assembly; during compressor start-up the sound level will be slightly higher for a limited period of time. ∙ caused by the cooling agent owing through the circuit. The following table lists possible malfunctions and their probable causes and solutions. In the event of operational problems, check rst whether a solution can be found using this table. If the problem persists, disconnect the appliance from the mains power and contact our Customer Service Department.15 142 x 208 mm Problem Possible cause and solution The appliance is not working at all. ∙ There is a power failure ∙ The main fuse has blown. ∙ The temperature control is set to ‘0‘. ∙ The fuse in the wall socket (if applicable) has blown. This can be checked by connecting another electrical device to the socket and checking for function. The normal operating sound changes or becomes louder. ∙ Check for proper positioning (uneven oor?). ∙ Are any adjacent objects affected by the running of the cooling unit (i.e. causing them to vibrate?) ∙ Are there any objects on top of the unit which might be vibrating? Transporting the appliance To prevent damage to the unit during transport, ensure that all accessories and components inside and around the appliance are securely fastened. The unit must only be transported in its vertical position; do not tilt any more than 30°. Once the unit has been positioned, wait for about 30 minutes before it is connected to the mains. If the unit has been tilted more than 30° during transport, allow it to stand in an upright position for at least 4 hours before it is connected to the mains. Disposal Appliances that are marked with this symbol have to be disposed of separately from household rubbish. These appliances contain valuable resources that can be recycled. A correct waste disposal protects the environment and the health of those around you. To get informed about it, either defer to your municipal administration or the retailer. ∙ Pull the mains plug out of the socket and disconnect it from the appliance before getting rid of it. ∙ The cooling medium Isobutane (R600a) and the propellant in the isolation Cyclopentane (C5H10) are inammable substances, thus, need to be appropriately disposed of. ∙ Make sure the tubes of the cooling circuit don’t get damaged before the proper disposal. Guarantee This product is guaranteed against defects in materials and workmanship for a period of two years from the date of purchase. Under this guarantee the manufacturer undertakes to repair or replace any parts found to be defective, providing the product is returned to one of our authorised service centres. This guarantee is only valid if the appliance has been used in accordance with the instructions, and provided that it has not been modied, repaired or interfered with by any unauthorised person, or damaged through misuse. This guarantee naturally does not cover wear and tear, nor breakables such as glass and ceramic items, bulbs etc. This guarantee does not affect your statutory rights, nor any legal rights you may have as a consumer under applicable national legislation governing the purchase of goods. If the product fails to operate and needs to be returned, pack it carefully, enclosing your name and address and the reason for return. If within the guarantee period, please also provide the guarantee card and proof of purchase. Information needed by the Customer Service Department Should repairs to the appliance become necessary, please contact our Customer Service Department, providing a detailed fault description and quoting the model number KB … on the rating plate of the appliance (see picture). This information will help us to handle your request efciently.16 142 x 208 mm Appliance specication sheet Model identier KB 8873 / 8874 / 8875 / 8876 Type of refrigerating appliance: Low-noise appliance: no Design type: Free-standing Wine storage appliance: no Other refrigerating appliance: yes Overall dimensions (H x W x D in mm) 496 x 470 x 447 Total volume (in l) 46 EEI 125 Energy efciency class F Annual energy consumption (in kWh/a)* 100 Airborne acoustical noise emission class B Airborne acoustical noise emissions (in dB(A) re 1pW) 35 Climate class N-ST Ambient temperature (in °C) 16-38 Temerature rise time (in h) - Weight (in kg) 14 Winter setting no Compartment Parameters: Typ Volume (in l) Recommended temperature (in°C) Freezing capacity (kg/24h) Defrosting type A = auto M = manuel Fast freezing facility Fresh food 46 4 - M - Light source parameters: Type of light source - Energy efciency class - Electric data see rating label *) The actual consumption depends on the use and the location of the appliance.17 142 x 208 mm Réfrigérateur Chère cliente, Cher client, Avant d’utiliser cet appareil, veuillez lire soigneusement les instructions suivantes et conserver ce manuel pour future référence. L’appareil doit être utilisé exclusivement par des personnes familiarisées avec les présentes instructions. Branchement au secteur Cet appareil doit être branché sur une prise de terre installée selon les normes en vigueur. Assurez-vous que la tension d’alimentation correspond à la tension indiquée sur la plaque signalétique de l’appareil. Ce produit est conforme à toutes les directives relatives au marquage “CE”. ∙ Ne pas brancher cet appareil sur un transformateur. ∙ Pour éviter tout bruit de vibration, vériez que le cordon ne touche aucune partie à l’arrière du réfrigérateur. Informations générales ∙ Cet appareil est un réfrigérateur à compresseur, destiné à la conservation à court terme d’aliments. ∙ Les appareils de réfrigération sont classés par classes climatiques. Veuillez vous référer à la che technique pour connaître la classe climatique de cet appareil ; celle-ci se trouve à la n de ce manuel. ∙ Nous déclinons toute responsabilité en cas de dommages éventuels subis par cet appareil, résultant d’une utilisation incorrecte ou du non-respect de ce mode d’emploi. Importantes consignes de sécurité ∙ Cet appareil est destiné à une utilisation domestique ou similaire, telle que - dans des bureaux et autres locaux commerciaux, - dans des zones agricoles, - par la clientèle dans les hôtels, motels et établissements similaires, - et dans des maisons d’hôtes. ∙ Cet appareil n’est conçu ni pour un usage commercial ni pour un usage dans la restauration ou environnements similaires.
