USER MANUAL Bee 3 Bugaboo

Abstract gray circular lines forming a ring-like pattern (no text or symbols)

bugaboo bee ^3

gebruiksaanwijzing

user guide

bedienungsanleitung

mode d'emploi

3D rendering of a small wheeled vehicle with articulated arms and wheels (no text or symbols visible)

onderstel

3D rendered diagram of a car's front panel and side door (no text or symbols)

Line drawing of a U-shaped metal clamp or clip (no text or symbols)

baleinen en klemmen van de zonnekap

zwenkwielen

Line drawing of a folded garment with pleats and straps (no text or symbols)

regenscherm

2

3D rendered image of a gray plastic or cushion with a circular hole on top (no text or symbols)

zonnekap

4

* De basis wieg en adapters worden apart verkocht (excl. Special Editions)

A B C D E F G H I J K L

A. duwbeugel

B. polsband

C. ontgrendelknop

D. zonnekap

M N O P Q R S U V T W

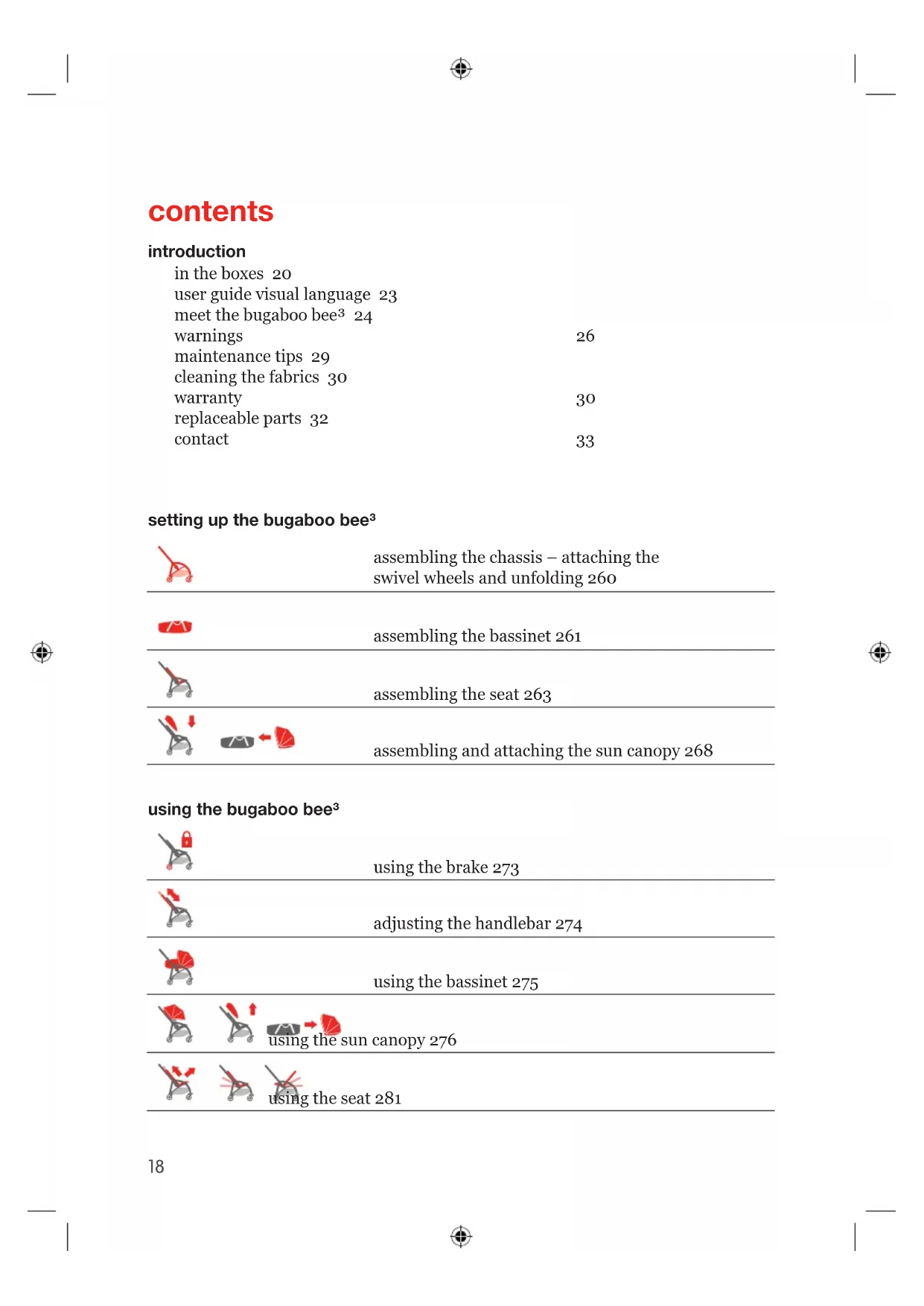

meet the bugaboo bee ^3 24

warnings 26

maintenance tips 29

cleaning the fabrics 30

warranty 30

replaceable parts 32

contact 33

setting up the bugaboo bee ^3

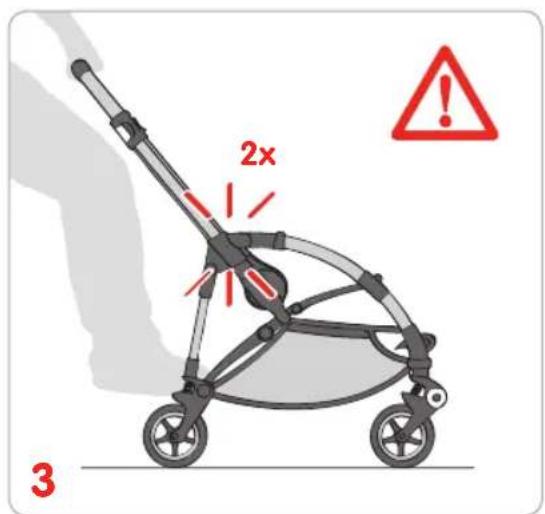

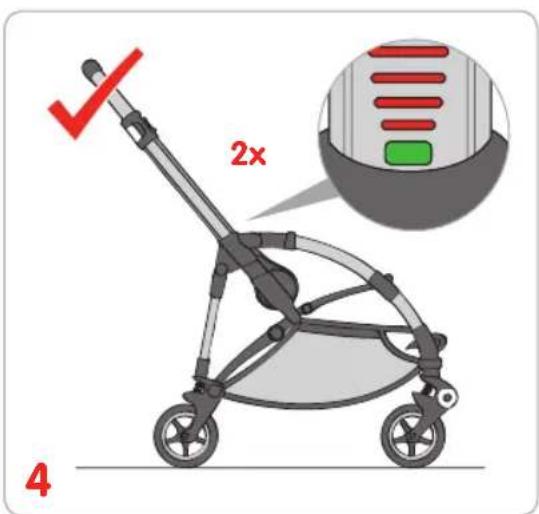

assembling the chassis - attaching the

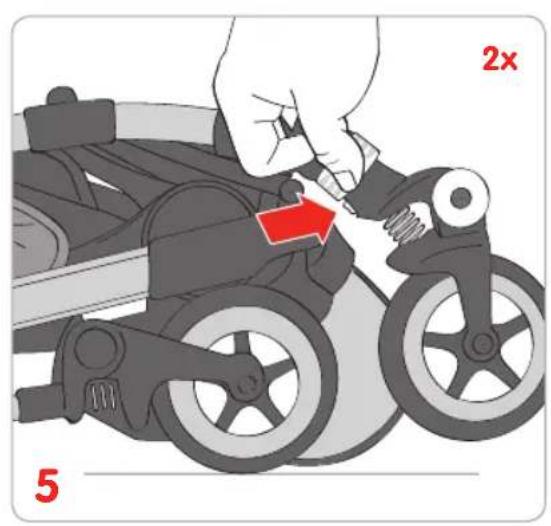

swivel wheels and unfolding 260

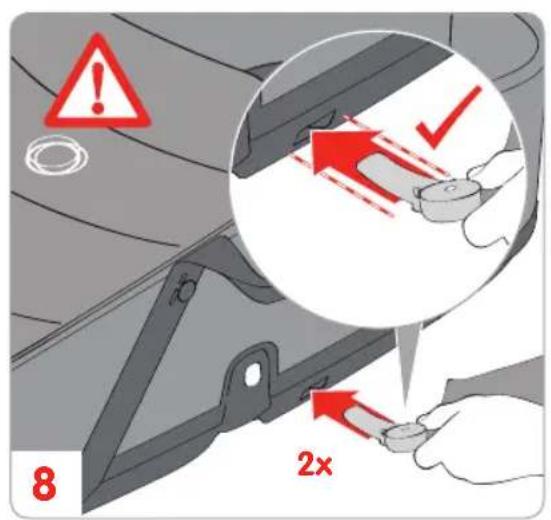

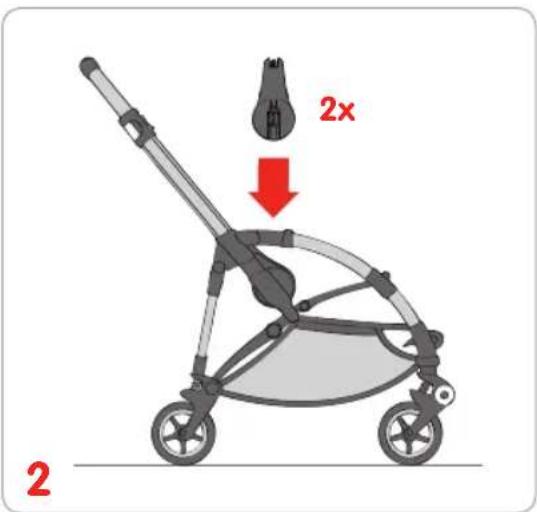

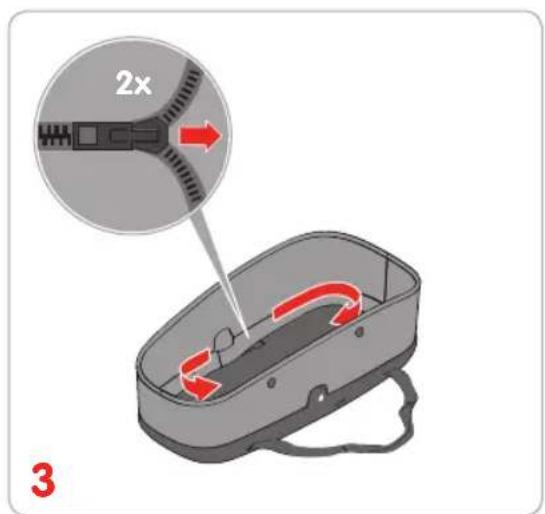

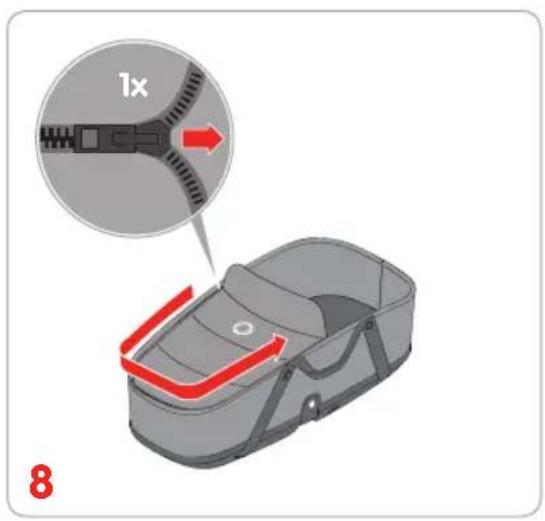

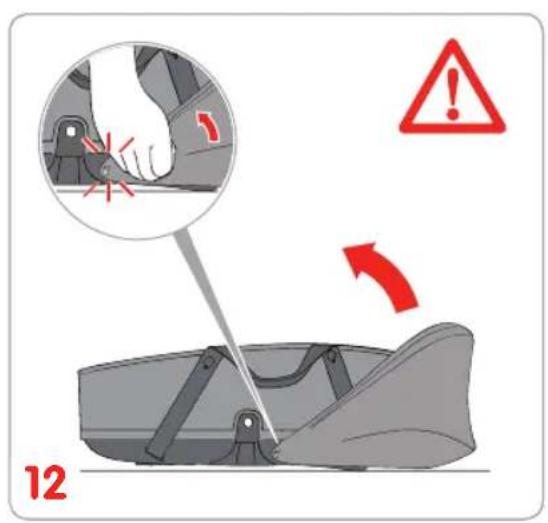

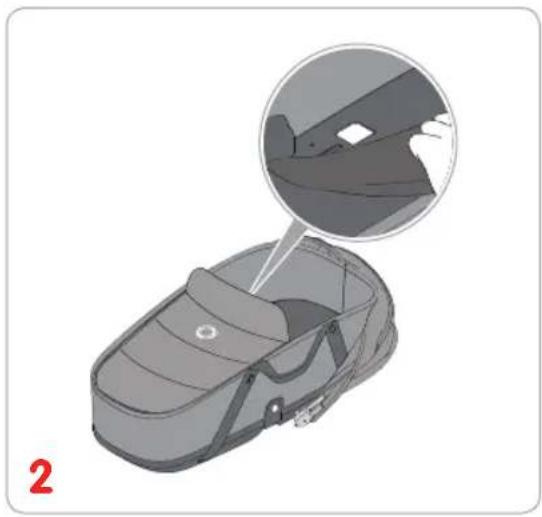

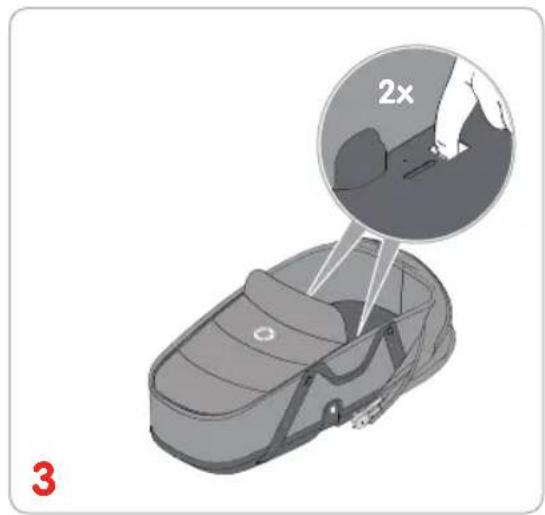

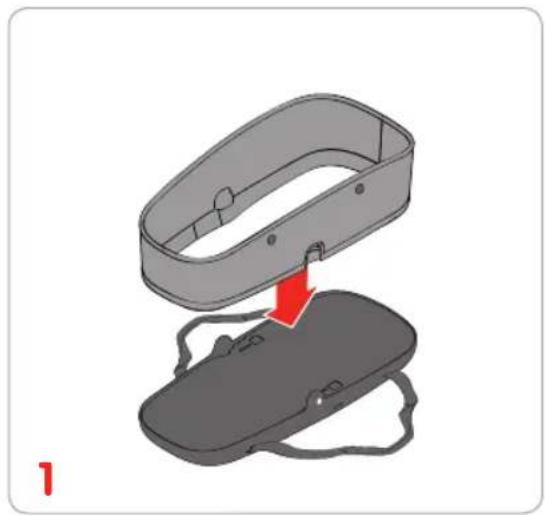

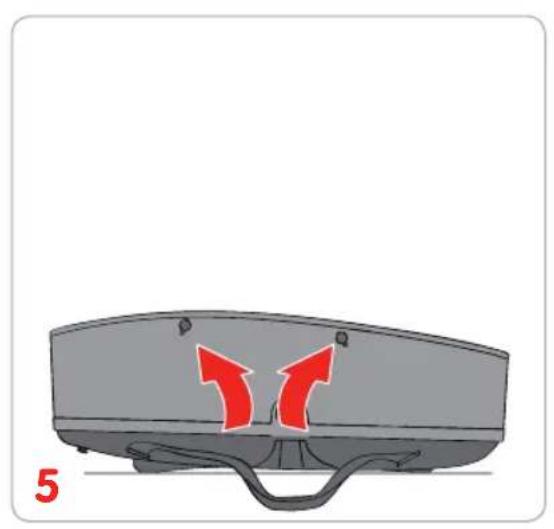

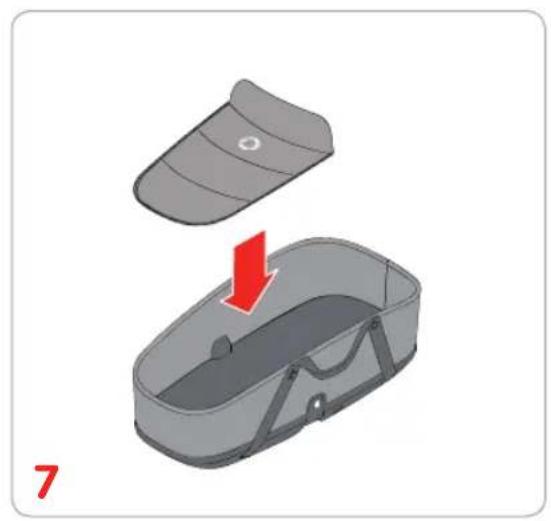

assembling the bassinet 261

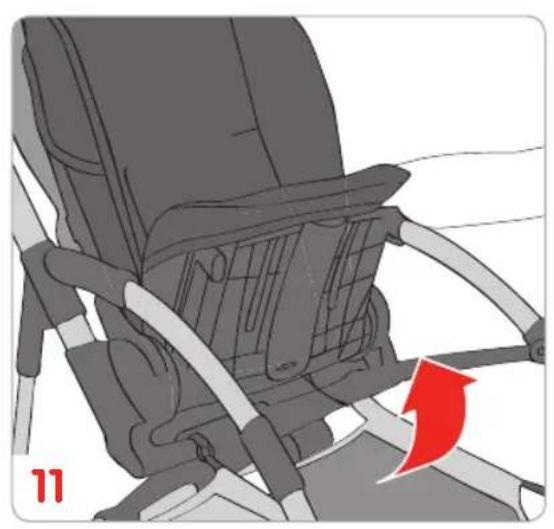

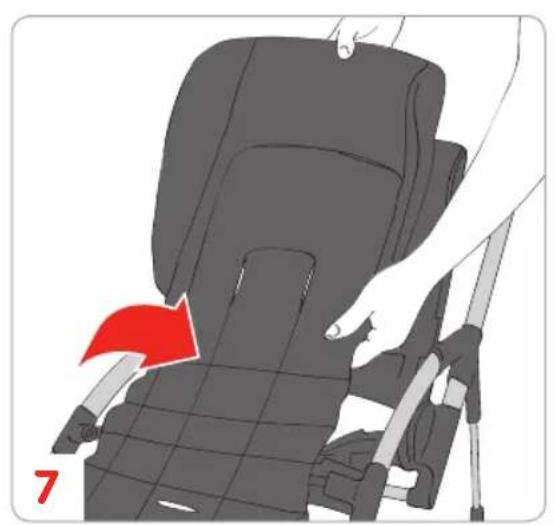

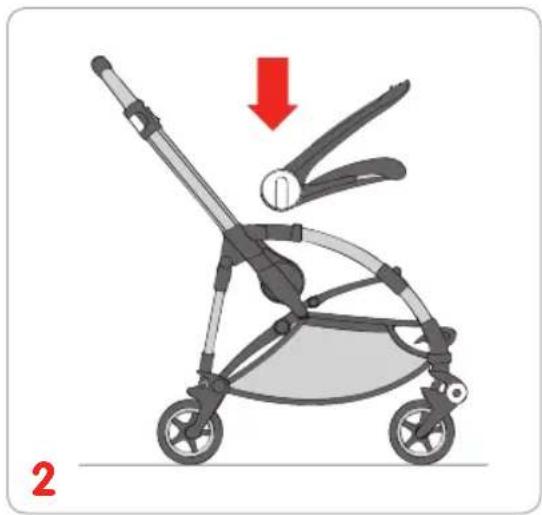

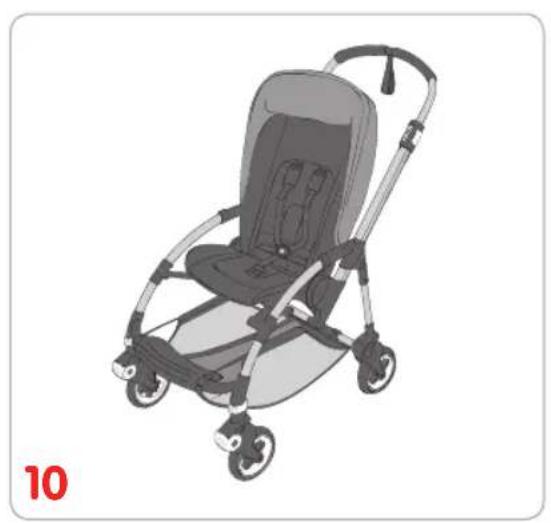

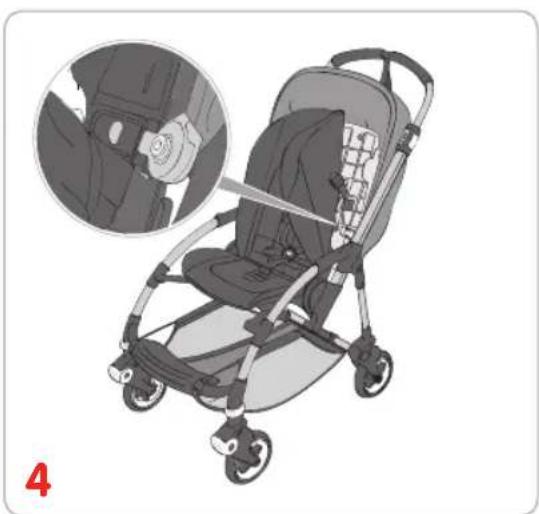

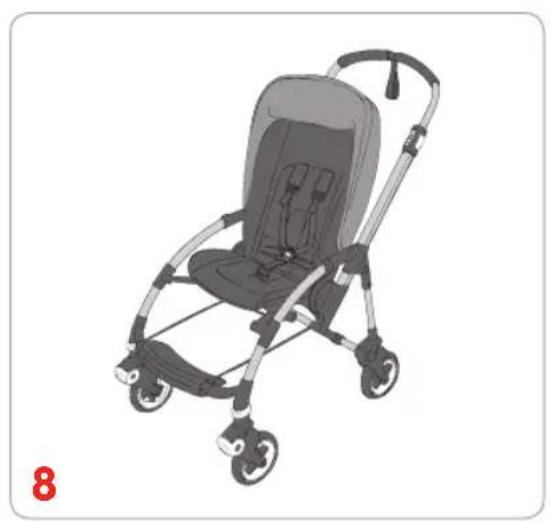

assembling the seat 263

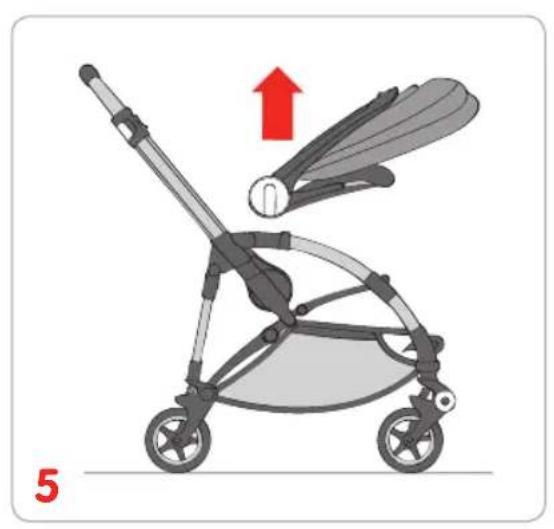

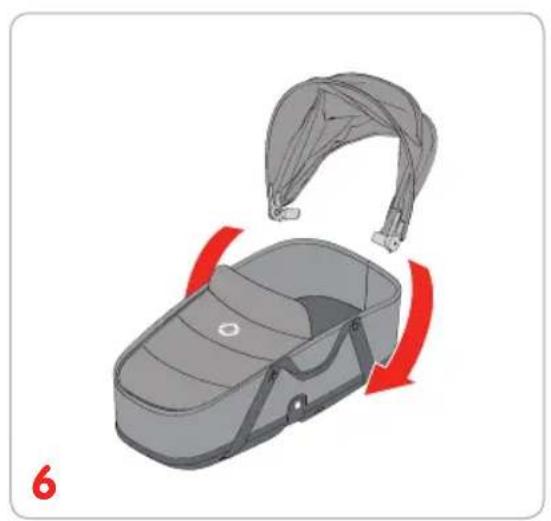

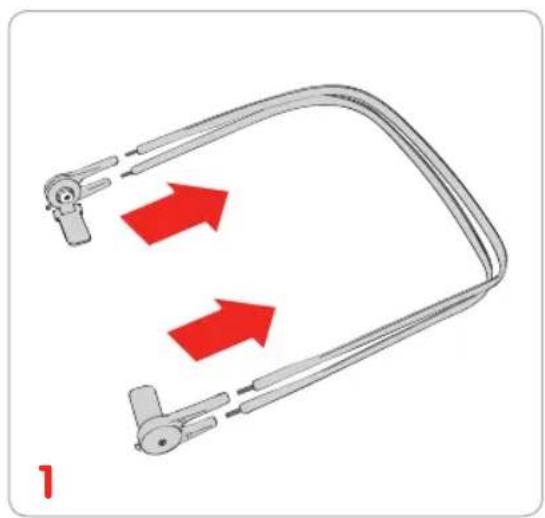

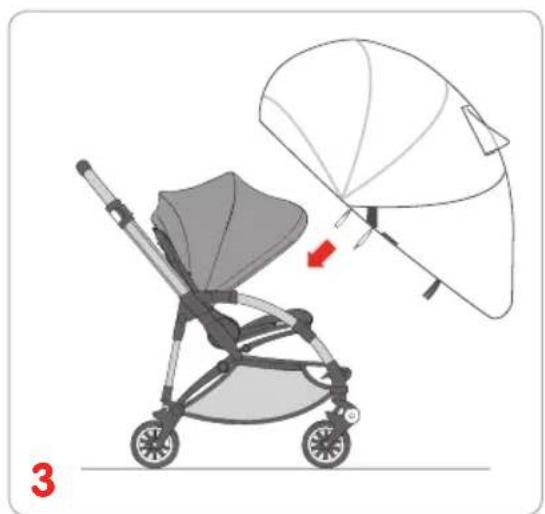

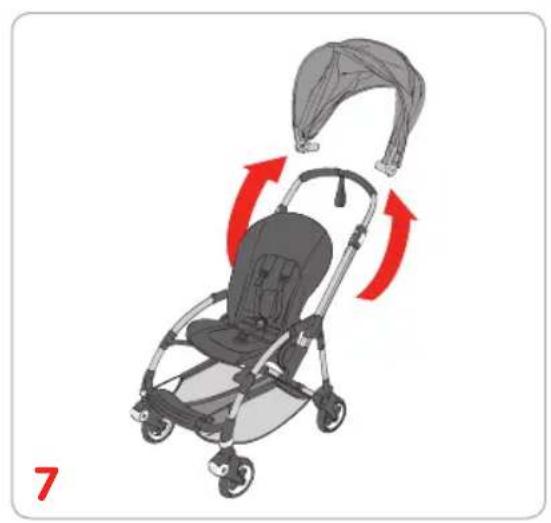

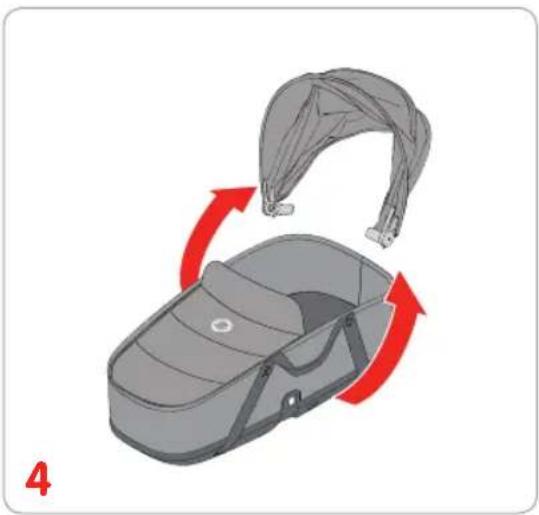

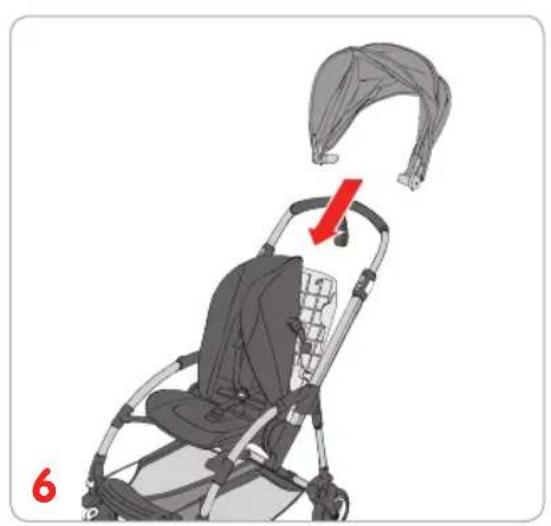

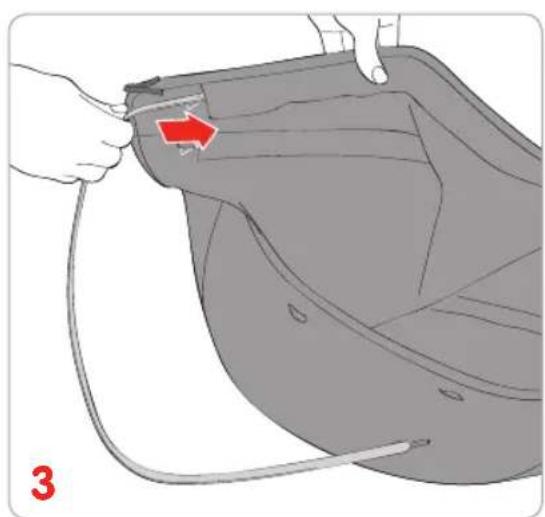

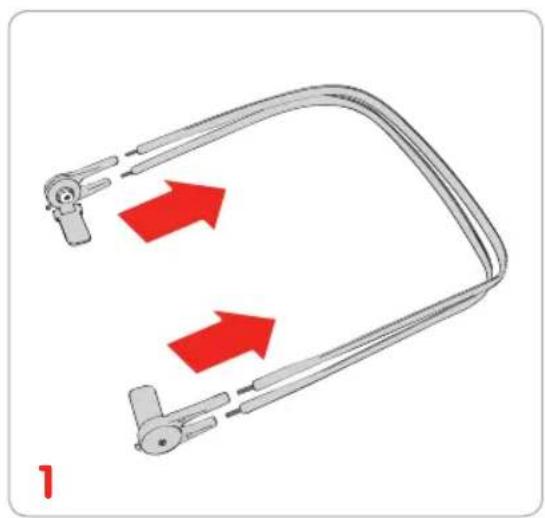

assembling and attaching the sun canopy 268

using the bugaboo bee ^3

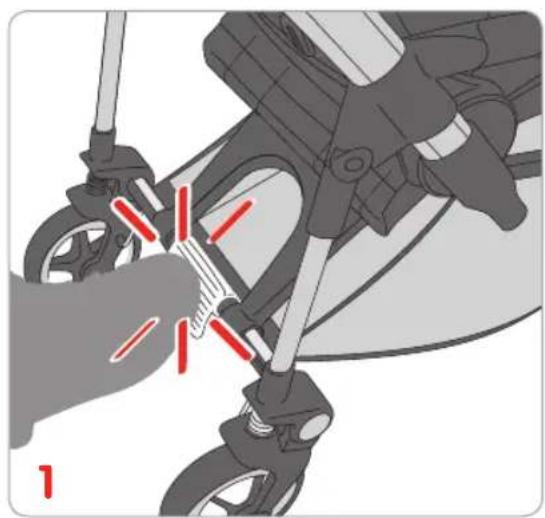

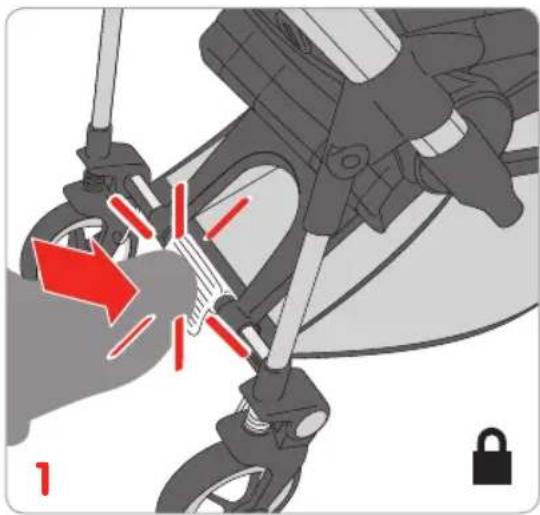

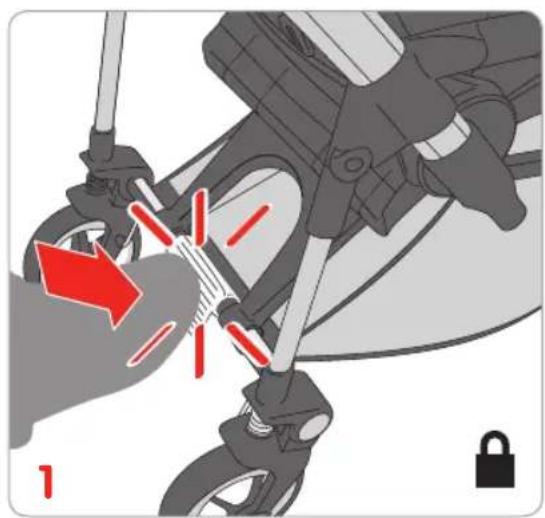

using the brake 273

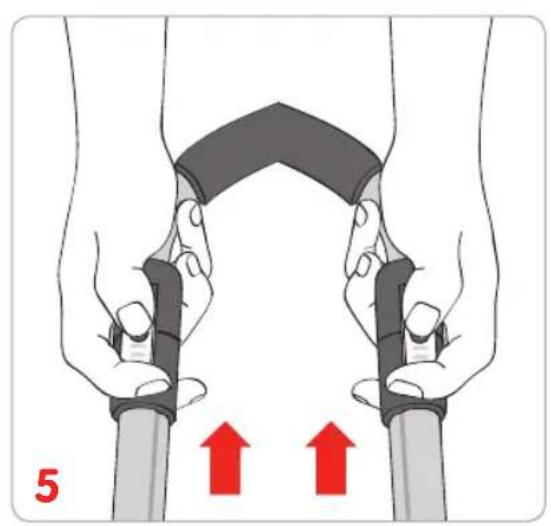

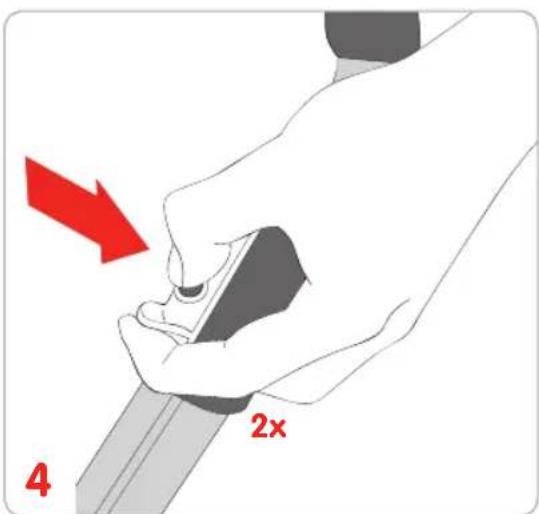

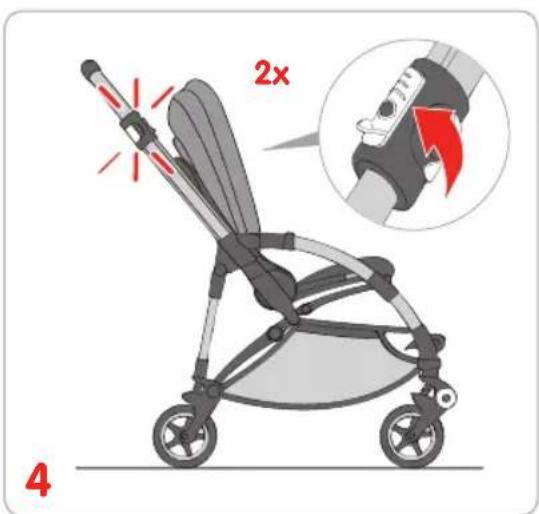

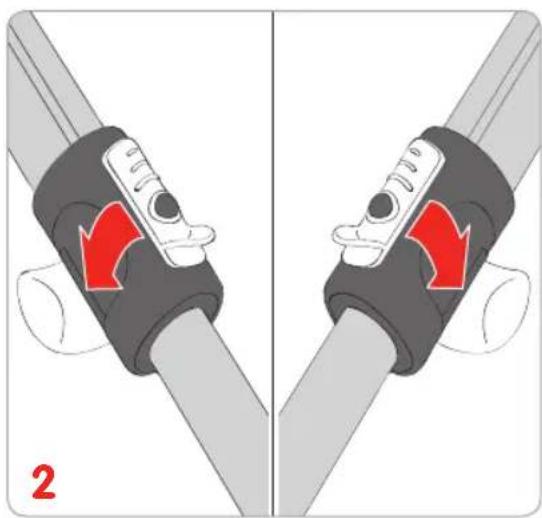

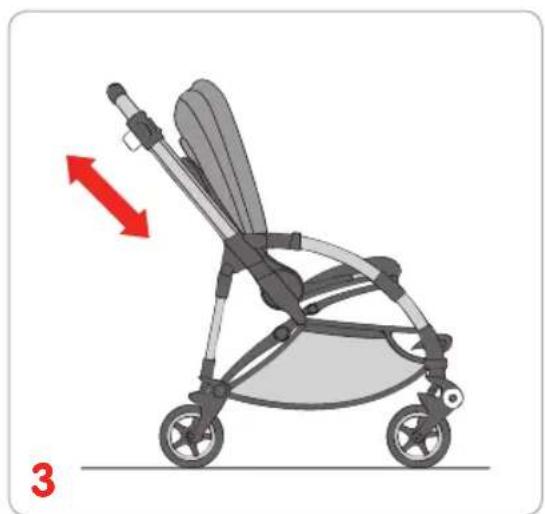

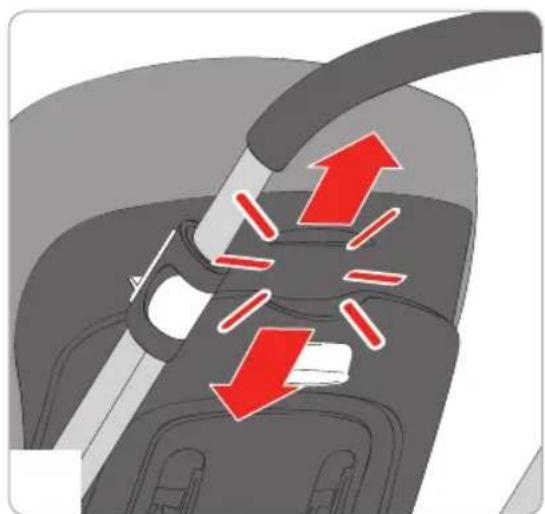

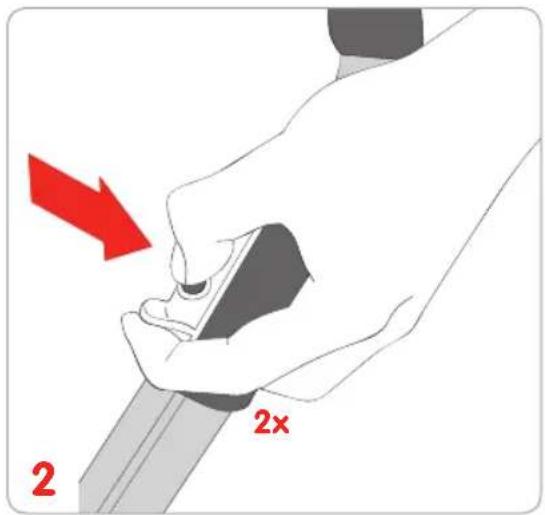

adjusting the handlebar 274

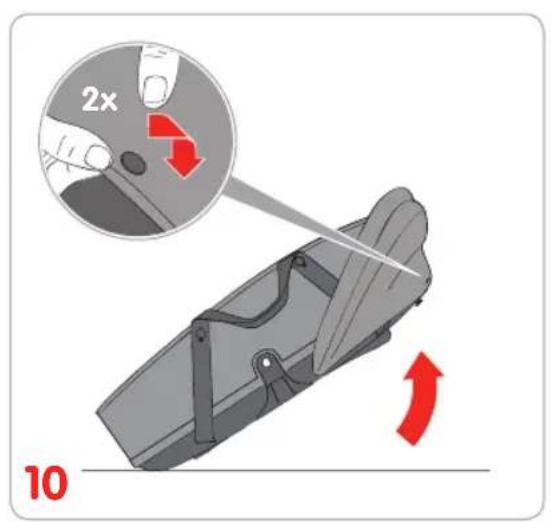

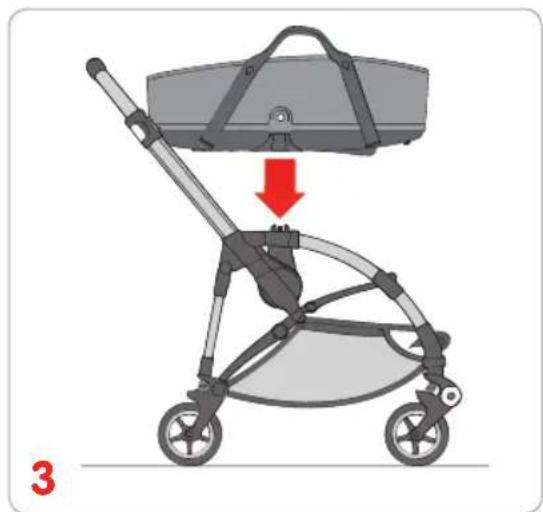

using the bassinet 275

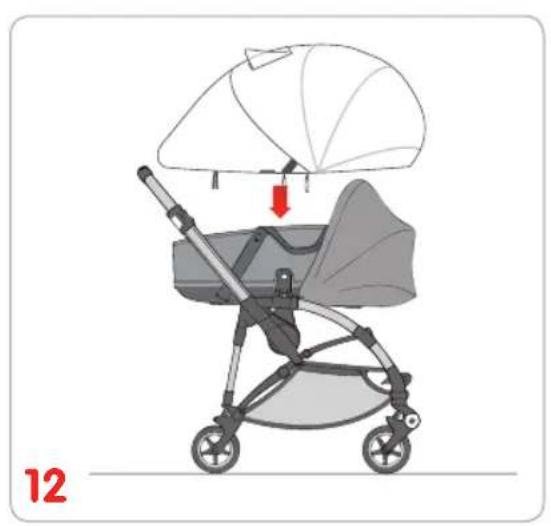

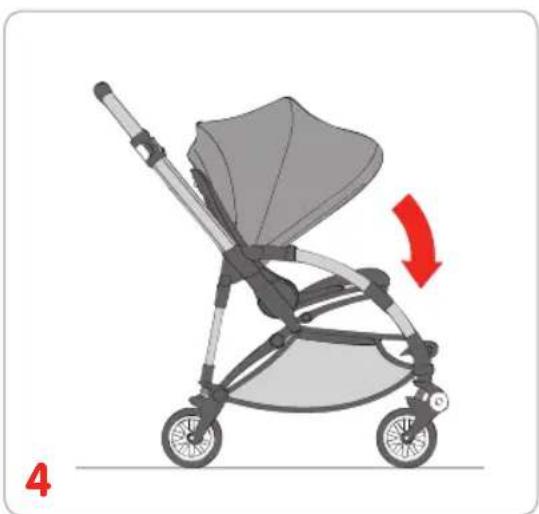

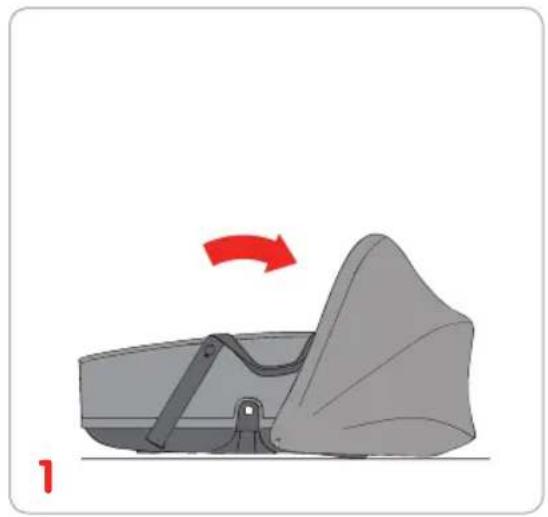

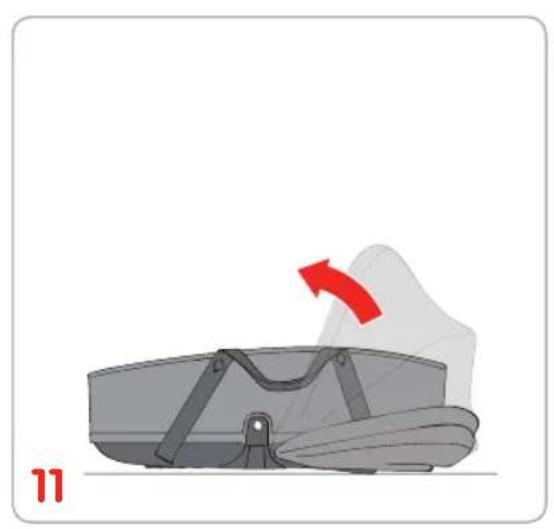

using the sun canopy 276

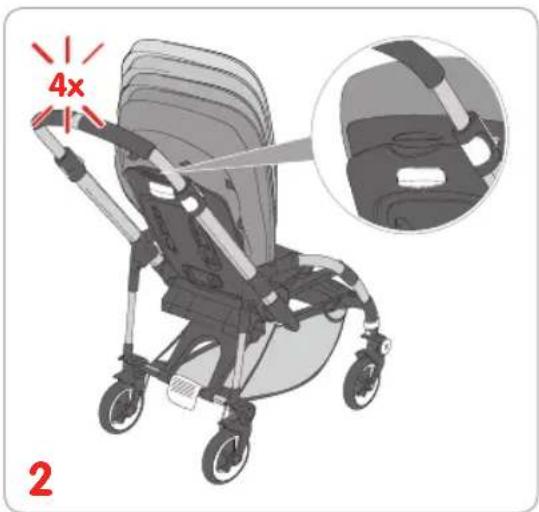

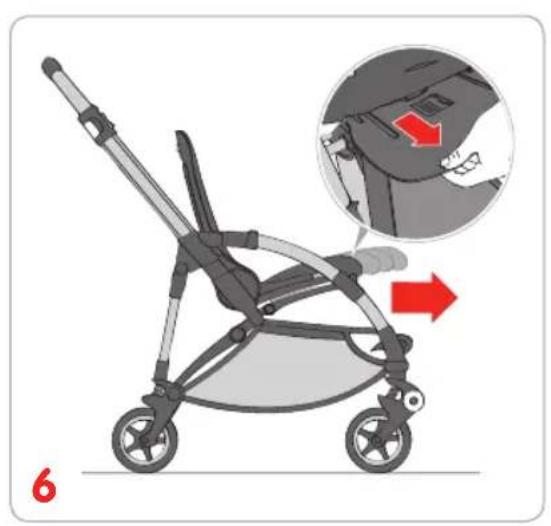

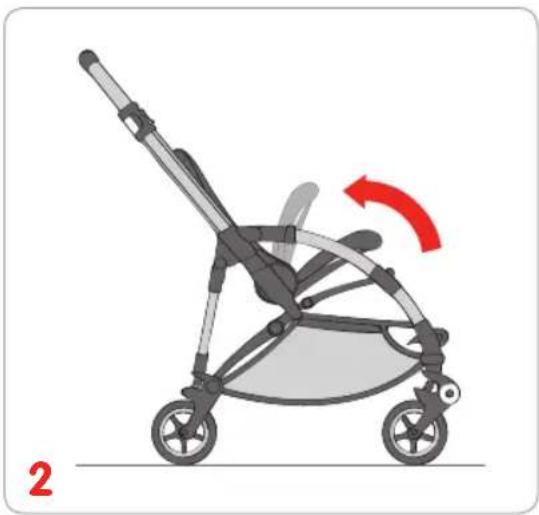

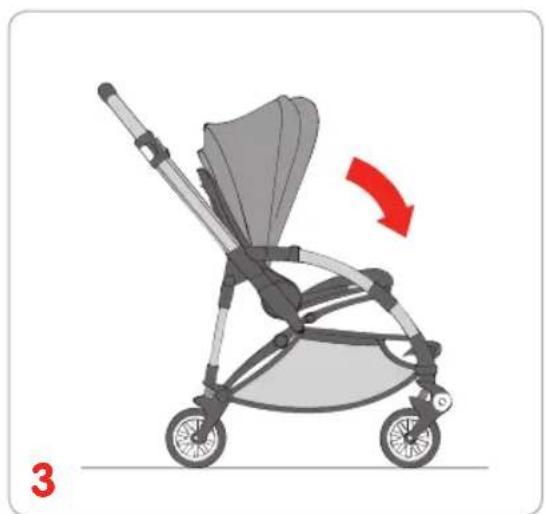

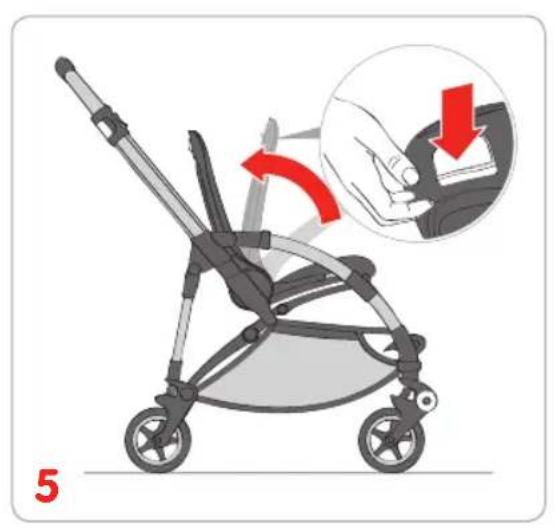

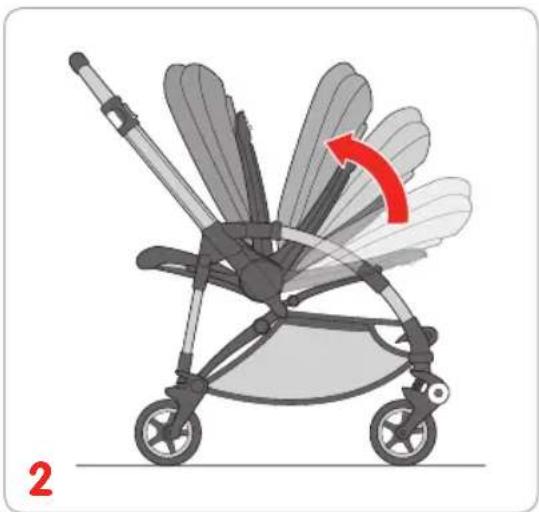

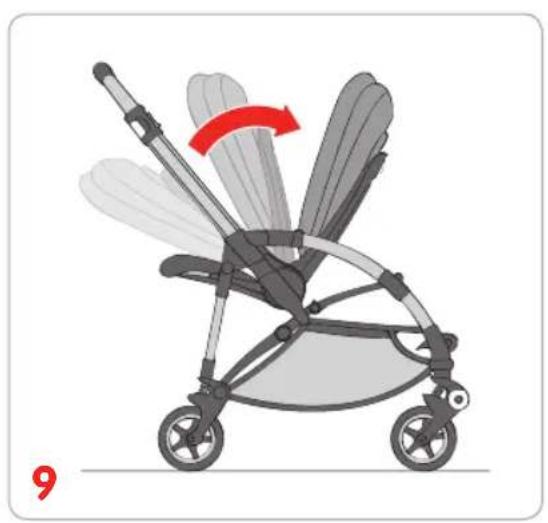

using the seat 281

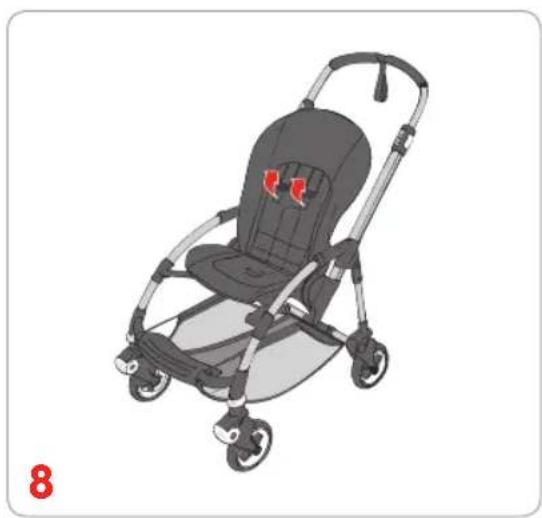

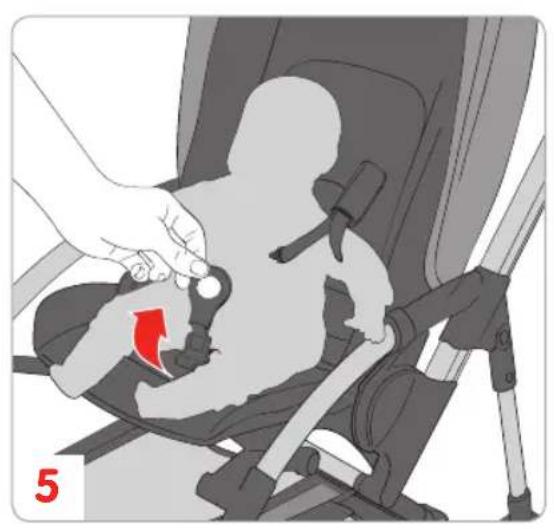

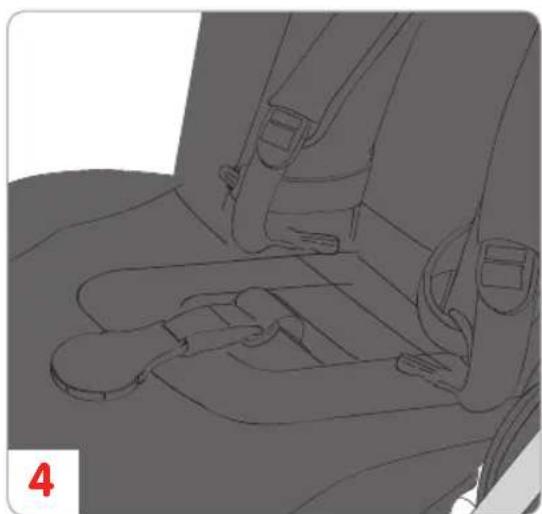

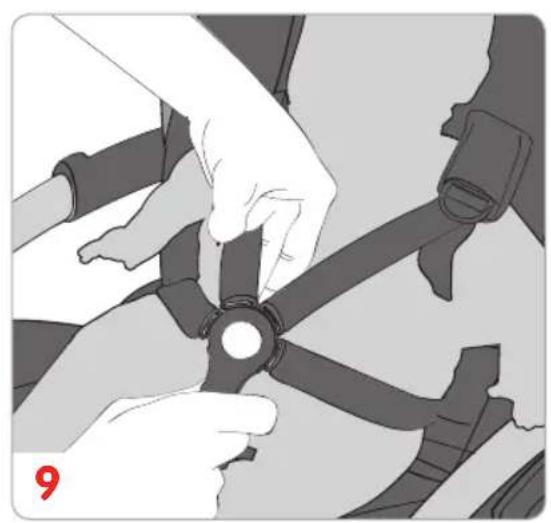

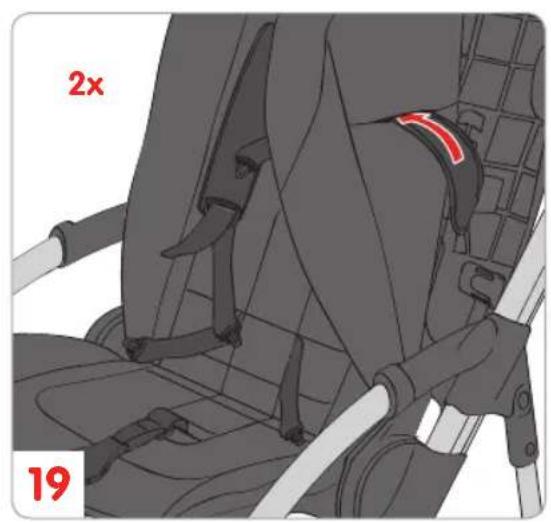

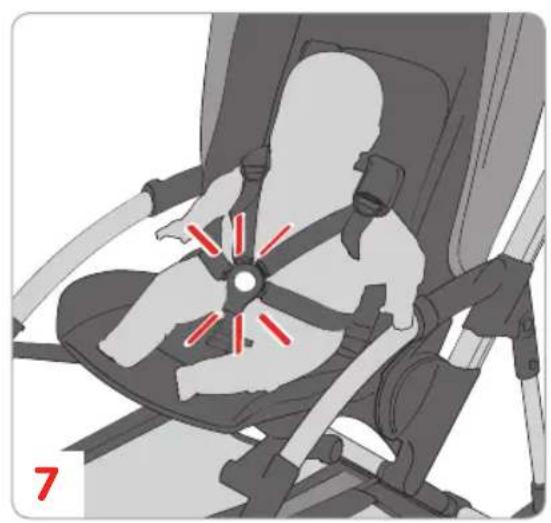

	using the harness 288

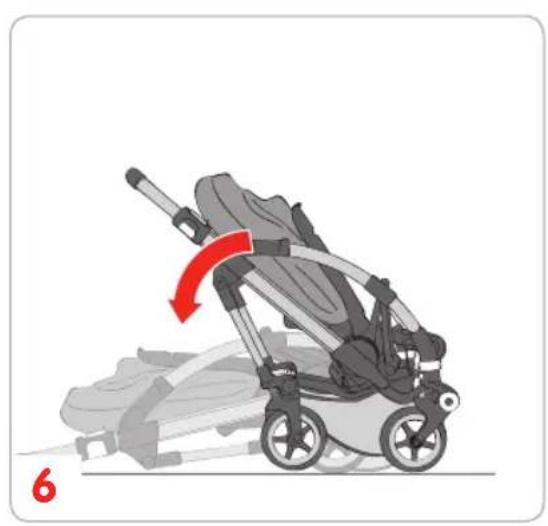

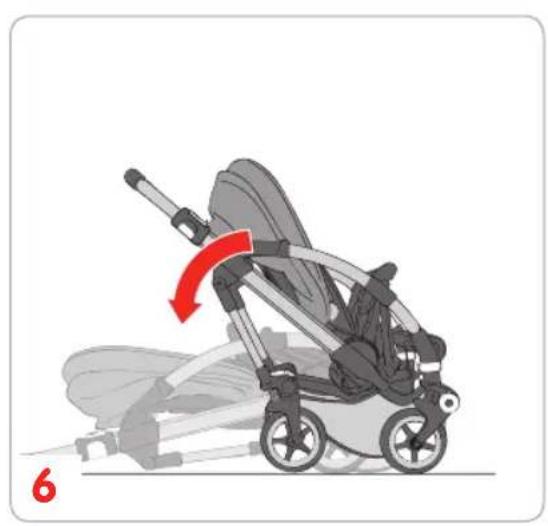

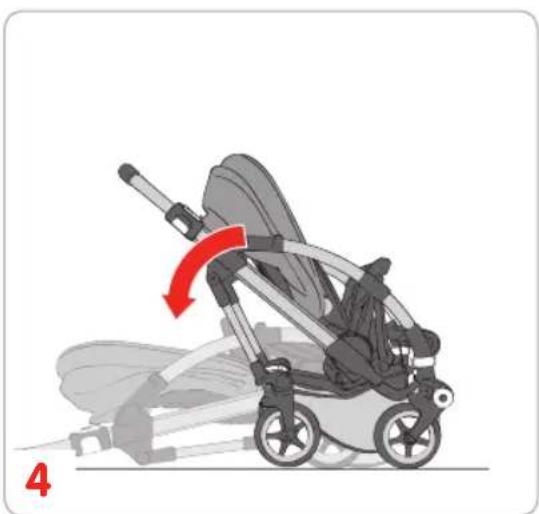

	one piece folding with seat facing the world 290
	one piece folding with seat facing the parent 292

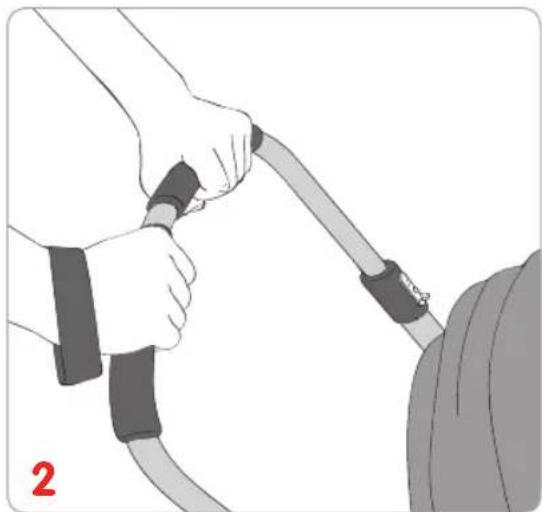

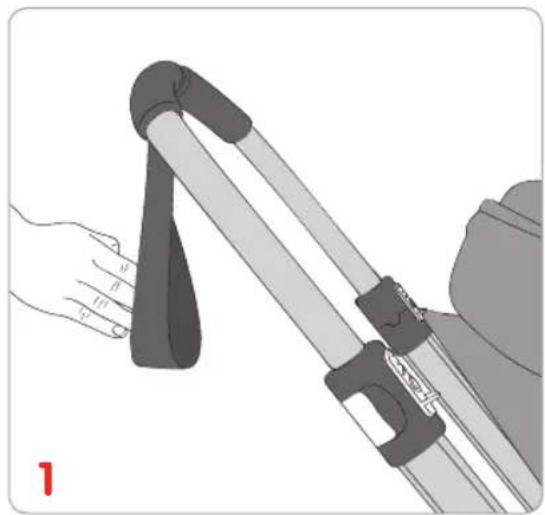

	using the wrist strap 294

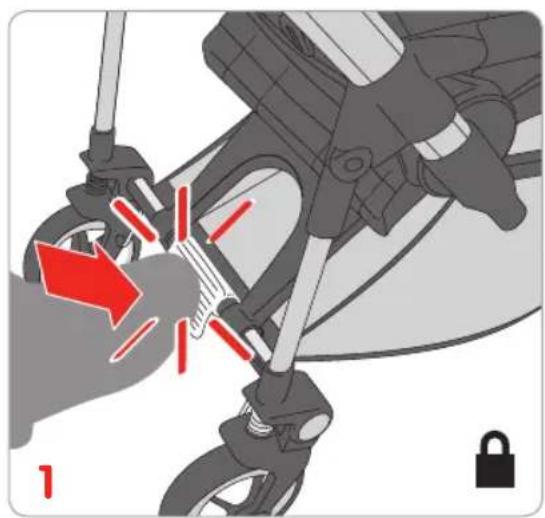

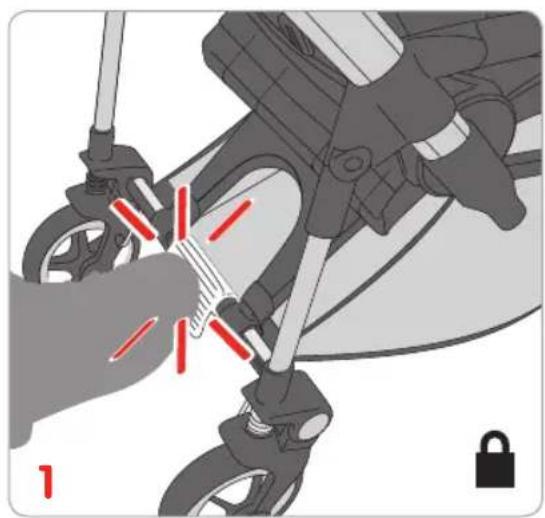

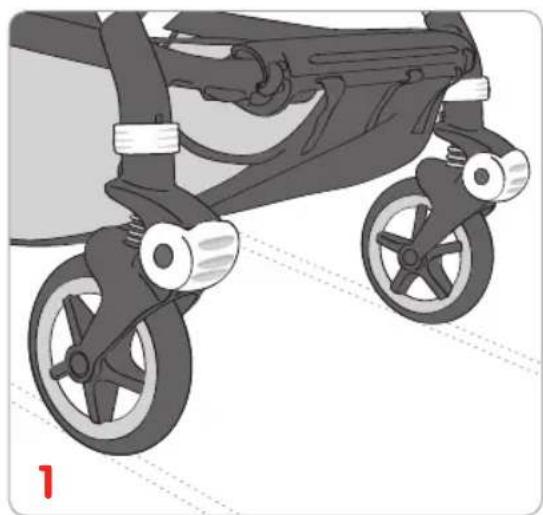

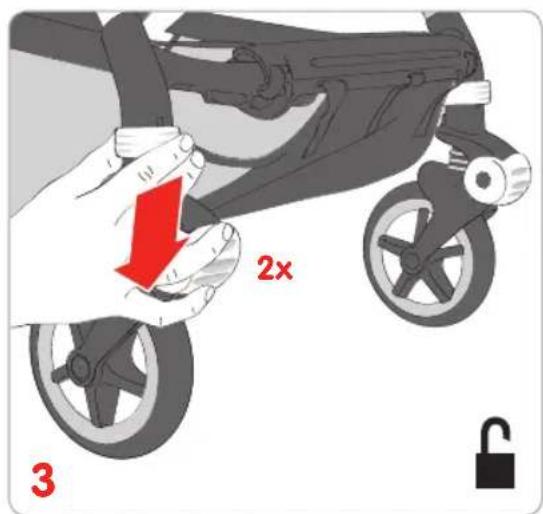

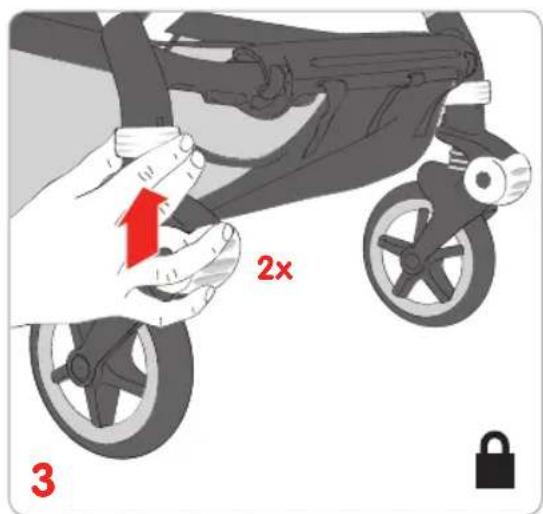

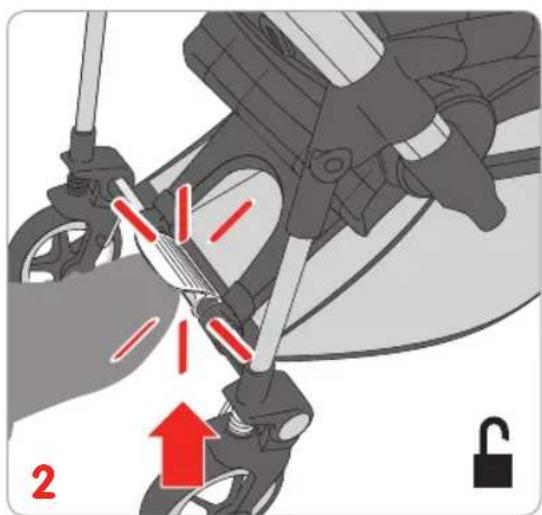

	locking/unlocking the swivel wheels 295

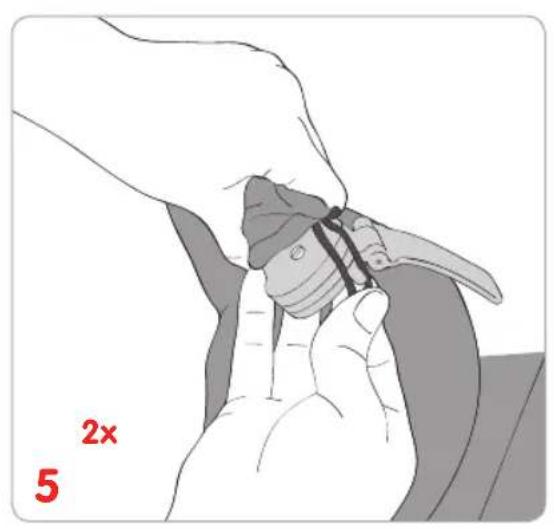

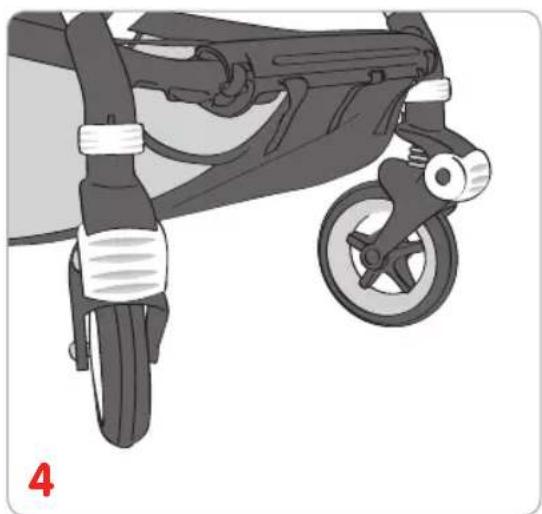

	removing the wheels 297

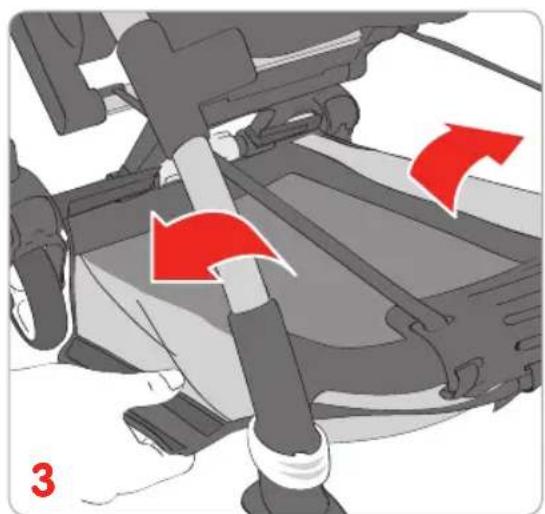

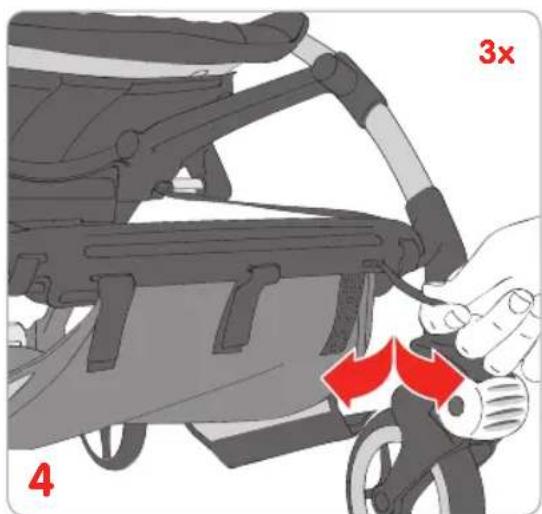

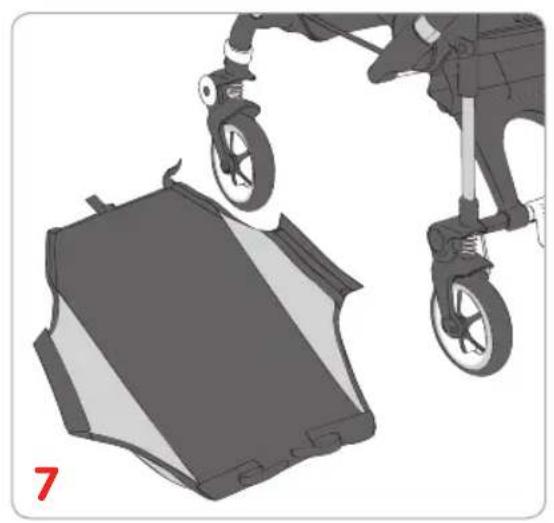

	removing the under seat basket 299

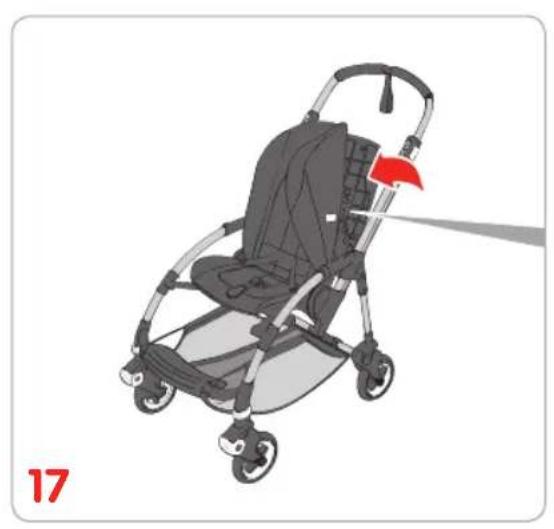

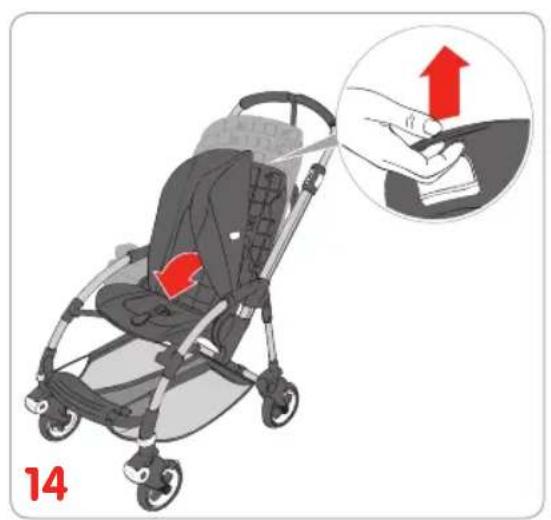

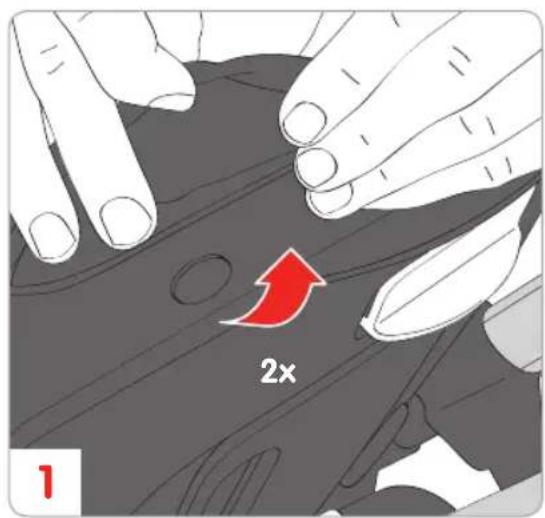

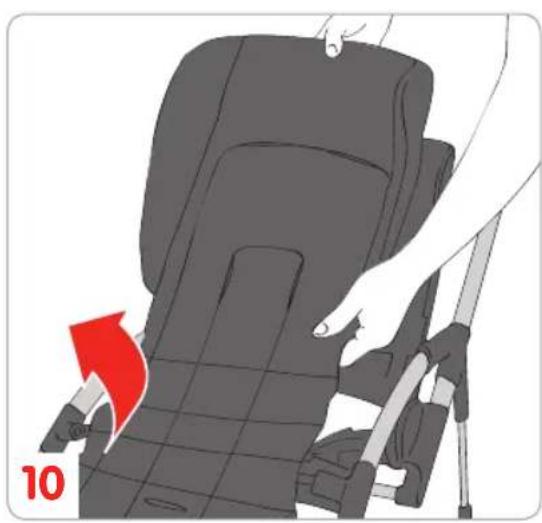

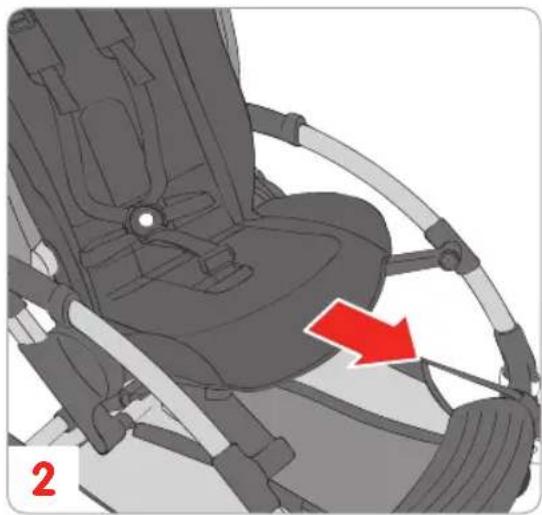

	removing the seat fabric 301

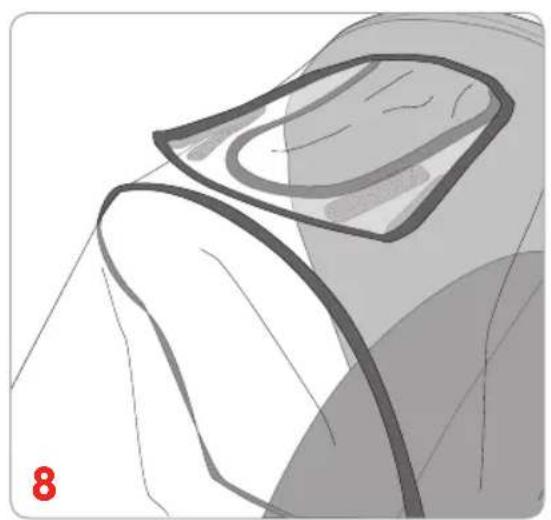

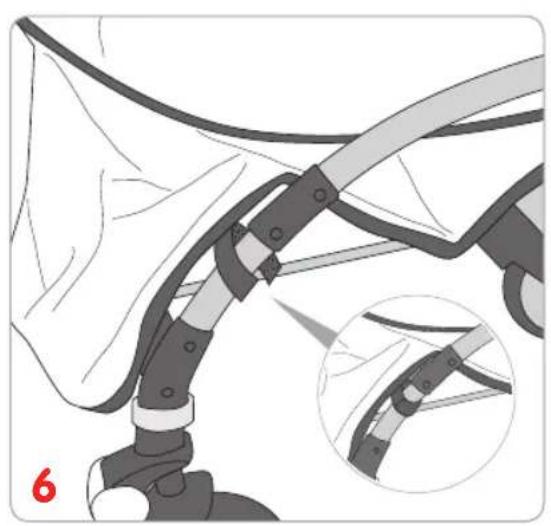

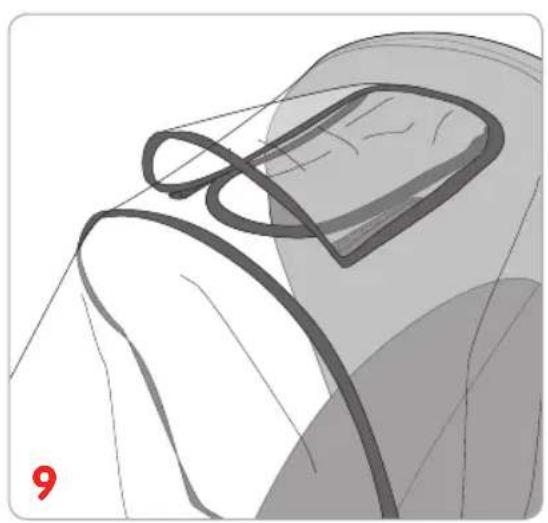

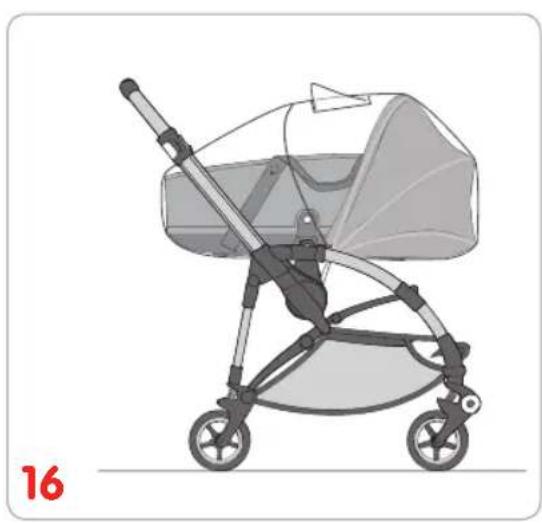

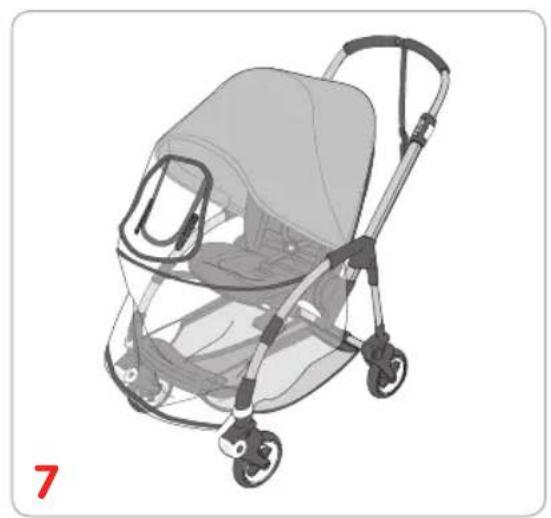

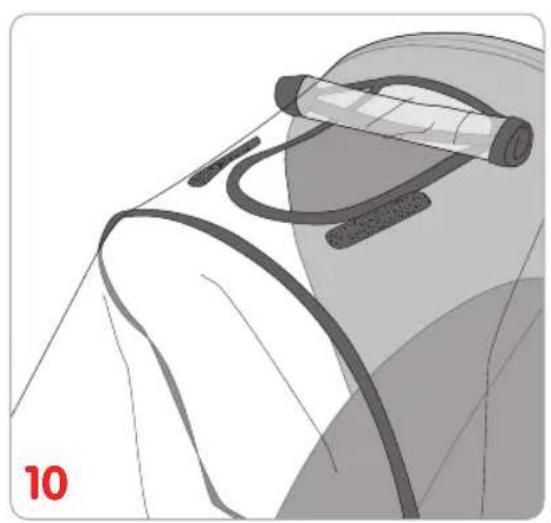

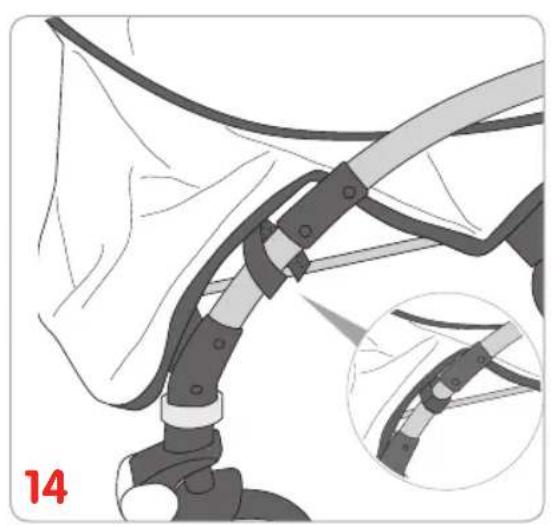

	using the rain cover 303

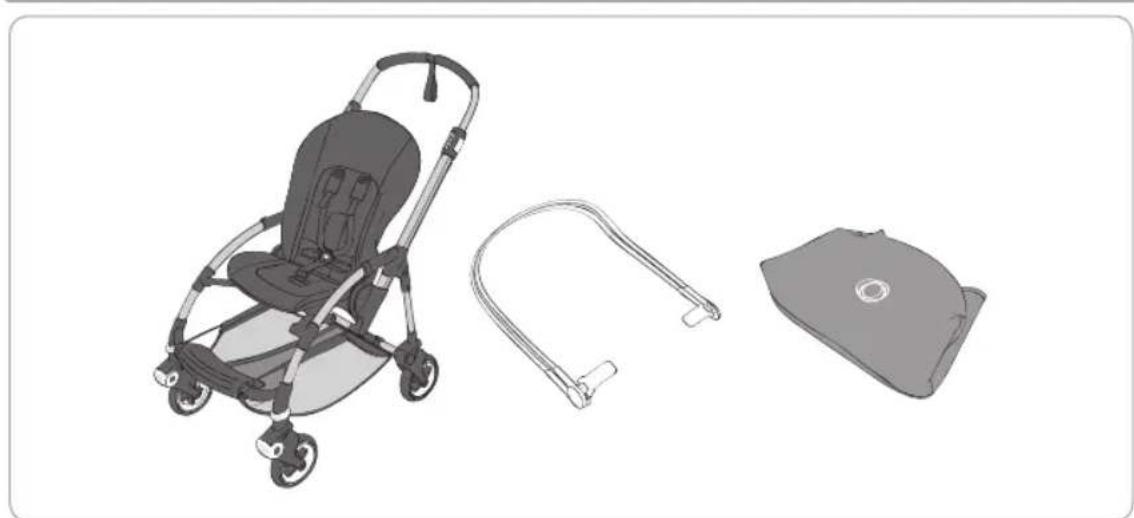

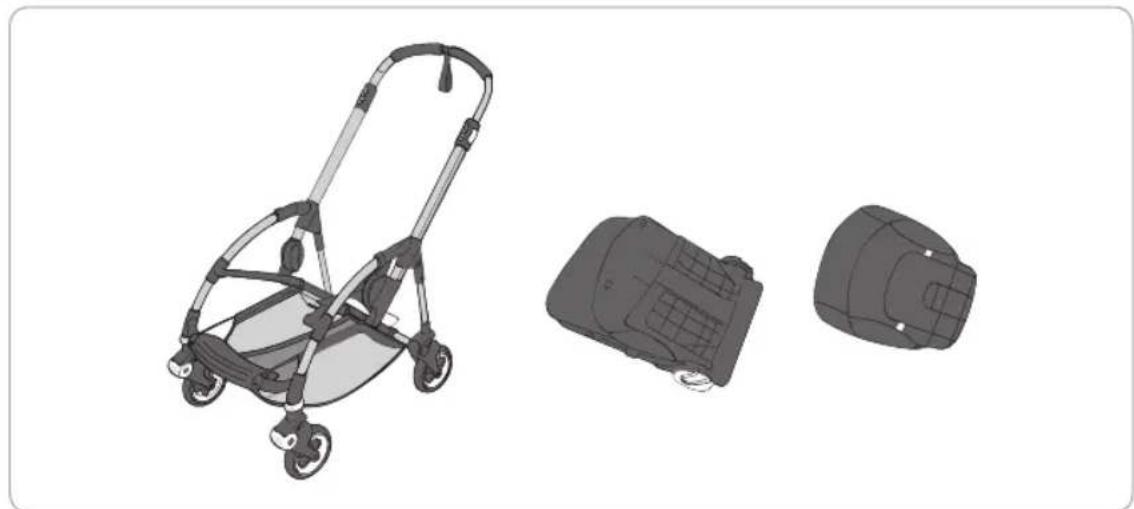

in the boxes

Take a minute to check the contents of your packages. If something is missing, please contact your retailer.

1

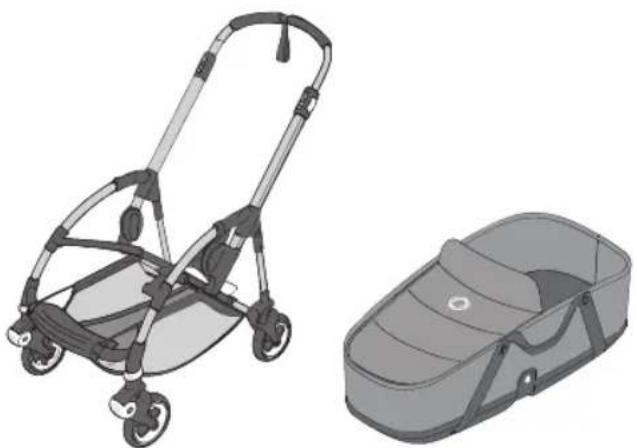

3D rendering of a small wheeled vehicle with segmented wheels and a black seat (no text or symbols visible)

chassis

3D rendered diagram of a car's front panel and side door (no text or symbols)

seat

Line drawing of a U-shaped metal clamp or clip (no text or symbols)

sun canopy wires & clamps

swivel wheels

Line drawing of a folded fabric or bag with visible stitching and pleats (no text or symbols)

rain cover

2

* The seat fabric is sold separately (excl. Special Editions)

seat fabric

3

* The canopy is sold separately (excl. Special Editions)

3D rendered image of a gray plastic or cushion with a circular hole on top (no text or symbols)

sun canopy

4

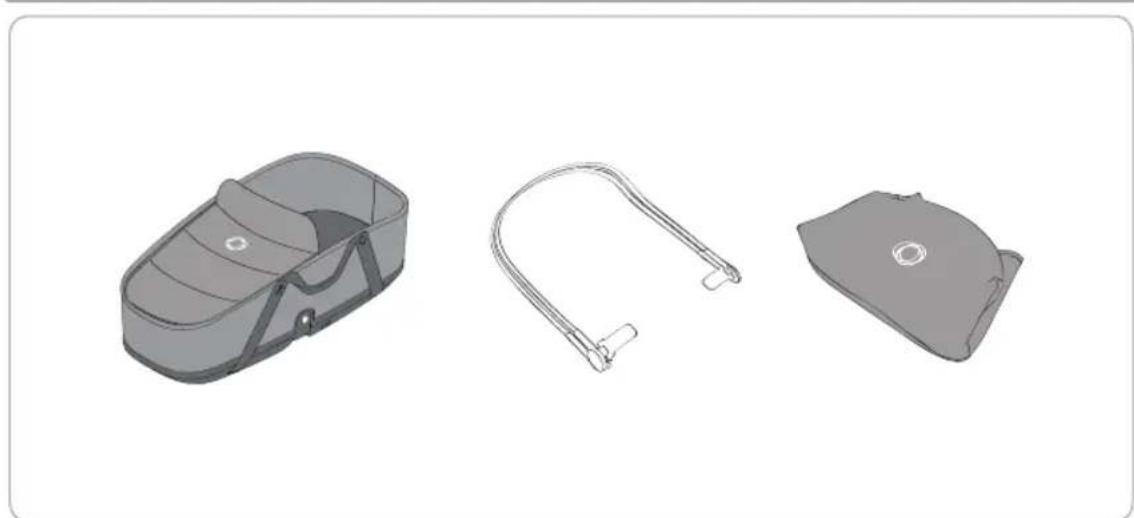

* The bassinet base and adapters are sold separately (excl. Special Editions)

bassinet base adapters

5

* The bassinet wall and apron are sold separately (excl. Special Editions)

apronbassinet wall

user guide visual language

In this user guide we make use of a visual language. Below you can find the meaning of all visuals used.

visual check OK

visual check wrong

audible click

movement in the indicated direction

instructions continue on next page

3x

repeat action on similar part(s)

Some instructions require special attention for ensuring the safe use of the Bugaboo Bee ^3 . When you see this symbol in the instructional part of the user guide, please refer to the warnings in the "WARNINGS" chapter.

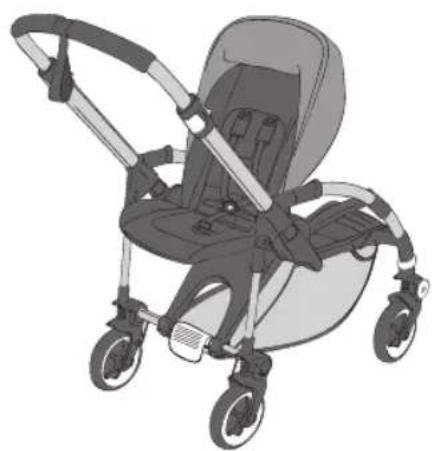

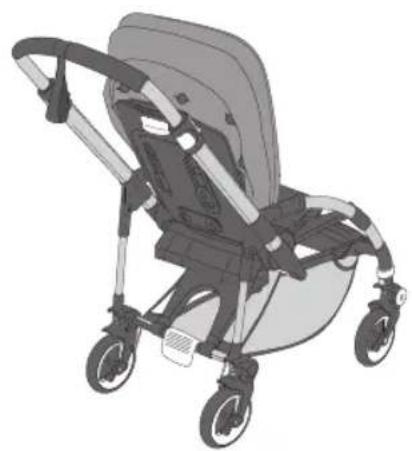

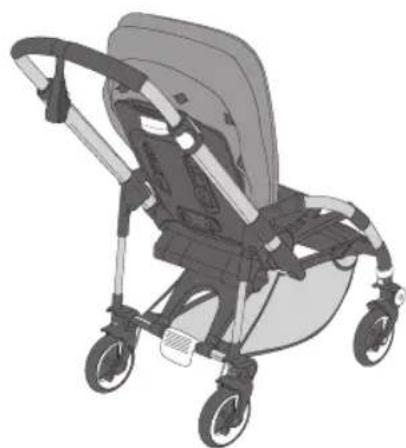

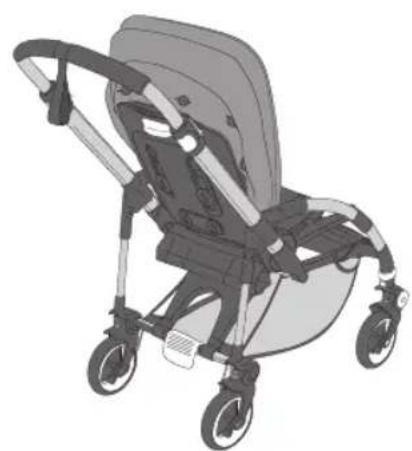

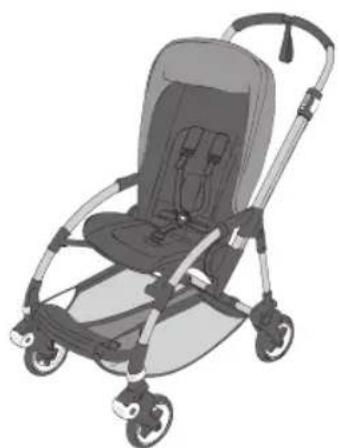

meet the bugaboo bee ^3

All the white parts of your Bugaboo Bee ^3 are functional. They're the parts that allow you to adapt and change your Bugaboo Bee ^3 .

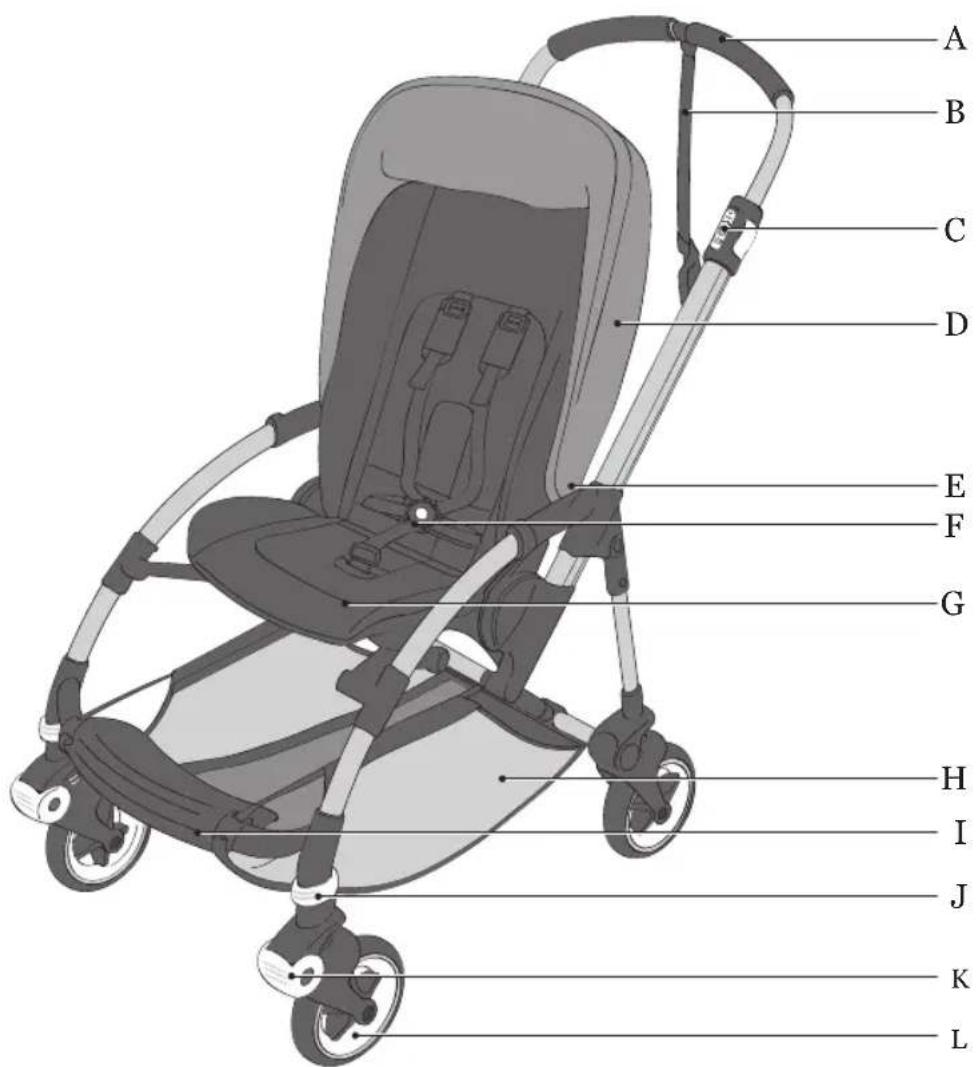

A B C D E F G H I J K L

A. handlebar

B. wrist strap

C. folding lock

D. sun canopy

E. sun canopy clamp holder

F. harness

G. seat

H. underseat basket

I. footrest

J. wheel lock

K. knee cap

L. swivel wheels

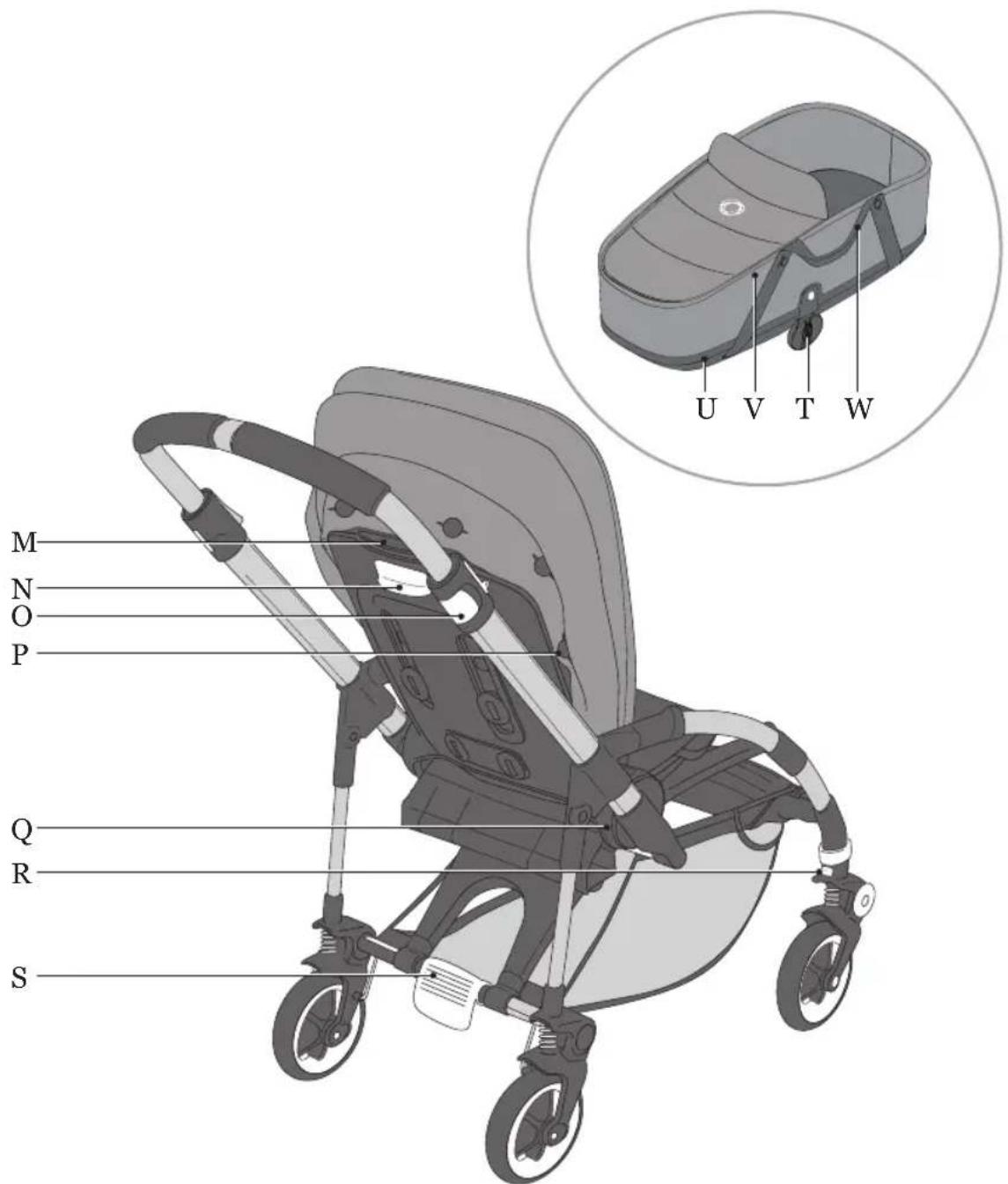

M N O P Q R S U V T W

M. extendable backrest handle

N. backrest adjustment lock

O. handlebar adjustment clip

P. sun canopy buttons

Q. seat disc

R. swivel wheel release button

S. brake

T. adapters

U. bassinet base

V. bassinet wall

W. bassinet straps

WARNING

I. GENERAL

1. IMPORTANT - Read the instructions carefully before use and keep for future reference.
2. Failure to follow these warnings and the instructions could result in serious injury or death.
3. NEVER leave child unattended.
4. Ensure that all the locking devices are engaged before use.
5. Do not use if any part of the product is broken, torn or missing.
6. Only use accessories and replacement parts supplied or recommended by the manufacturer/distributor.
7. To avoid injury ensure that your child is kept away when unfolding and folding this product.
8. Do not let your child play with this product.
9. Use a harness as soon as your child can sit unaided.
10. Always use the restraint system.
11. Check that the bassinet/carrycot or seat unit or car seat attachment devices are correctly engaged before use.
12. The handles and the bottom of the bassinet/carrycot should be inspected regularly for signs of damage and wear.
13. This product is not suitable for running or skating.
14. Always use the safety features of your Bugaboo Bee ^3 , including locking devices, brake, the harness (when child is in the seat) and the wrist strap attached to the handlebar. Check and maintain all safety features frequently.
15. Do not place bags or luggage on the handlebar and/or on the back of the backrest and/or on the sides of the stroller as the stroller may become unstable.
16. Use the wrist strap to stop the stroller rolling away.
17. The car seat does not replace a cot or a bed. Should you child need to sleep, then it should be placed in a suitable bassinet/carrycot, cot or bed.
18. For any child unable to maintain an unaided sitting position the backrest should only be used in the fully reclined position.

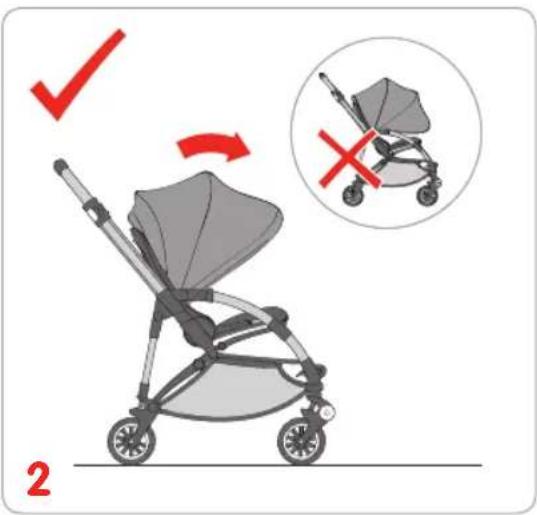

19. Do not use the sun canopy in the extended position in combination with the rain cover. Suffocation hazard.

20. The parking device shall be engaged when placing and removing the children.

21. Do not take your stroller on the escalator.
22. It is possible that on floors such as synthetic laminates, parquet, linoleum and carpet (organic surface floors), rubber black tires may leave permanent marks. Should you have a floor as mentioned above we recommend to be careful with indoor usage.
23. Do not place the bassinet/carrycot near an open fire or other source of strong heat.

1. Maximum weight for the child in the bassinet/carrycot is 9 kg (20lbs).
2. The Bugaboo Bee ^3 is suitable for children from 0 to 36 months (17 kg / 37.5 lbs).
3. Maximum weight of the under seat basket is 4 kg (8.8 lbs).
4. Use only manufacturer recommended weights in the under seat basket otherwise the stroller may become unstable.
5. Any load attached to the handlebar and/or on the back of the backrest and/or on the sides of the stroller will affect the stability of the stroller.
6. This vehicle is intended for use by only one child.

III. USING THE BASSINET/CARRYCOT ON THE CHASSIS

1. The bassinet/carrycot is not intended for use by children older than 6 months or children who can sit unaided.
2. The bassinet/carrycot is suitable only for a child who cannot sit up unaided, roll over and cannot push itself up on its hands and knees. Maximum weight of the child: 9 kg (20 lbs).
3. Never add a mattress, sheet, pillow, comforter or padding. Use only the pad and sheet provided by Bugaboo.
4. The carrying handles should be left out of the bassinet/carrycot during use.

IV. USING THE SEAT ON THE CHASSIS

1. Always use the harness.

2. Always use the crotch strap in combination with the waist belt.

3. Avoid serious injury from falling or sliding out. Always use the harness.

4. The Bugaboo Bee ^3 seat unit is suitable for children from 0 to 36 months (17 kg / 37.5 lbs). Use the most reclined position of the seat for new born babies.

v. USING THE BASSINET/CARRYCOT INDEPENDENTLY OF THE CHASSIS

1. Never use the bassinet/carrycot on a stand.
2. Only use on a firm, horizontal level and dry surface. Never use on soft surfaces.
3. Suffocation Hazard: Infant carrier can roll over on soft surfaces and suffocate child. NEVER place carrier on beds, sofas, or other soft surfaces.
4. Do not let other children play unattended near the bassinet/carrycot or seat.
5. Do not use the bassinet/carrycot off the chassis once your child can sit unaided.
6. Do not leave flexible carrying handles inside the bassinet/carrycot.
7. Do not use if any part of the bassinet/carrycot or seat is broken, torn or missing.
8. The head of the child in the bassinet/carrycot should never be lower than the body of the child.
9. SUFFOCATION HAZARD:

Infants can suffocate:

• In gaps between an extra pad and the side of the bassinet.
• On soft bedding. NEVER add a mattress, pillow, comforter, or padding.

Use ONLY the pad provided by manufacturer.

Some instructions require special attention for ensuring the safe use of the Bugaboo Bee ^3 . When you see this symbol in the instructional part of the user guide, please refer to the warnings in the "WARNINGS" chapter.

© Copyright 2016 Bugaboo International BV. The information contained herein is subject to change without notice. Bugaboo International BV shall not be liable for technical errors or omissions contained herein. The purchased product may differ from the product as described in this user guide. Our most recent user guides can be requested at our service departments or at www.bugaboo.com. BUGABOO, BUGABOO CAMELEON, BUGABOO BEE, BUGABOO DONKEY, BUGABOO BUFFALO, RUNNER and the Bugaboo logos are registered trademarks. The Bugaboo® strollers are patented and design protected.

important information

• Check the safety of the Bugaboo Bee ^3 before each use. Ensure that the seat fabric, the brake and the safety belts are all working properly, the handlebar is locked and that the seat is fitted correctly to the chassis.
• Check to see if the Bugaboo Bee ^3 is damaged. You should ensure that any damaged or worn parts are repaired immediately.
• To ensure completely safety for your child do not use the Bugaboo Bee ^3 until any damaged or worn parts have been repaired or replaced.
• The Bugaboo Bee ^3 seat unit (no. 500210) should only be used with the Bugaboo Bee ^3 chassis (no. 500100AL01 or 500100ZW01). Do not use Bugaboo Bee ^3 parts or components with any non-approved pushchair, other device or any other Bugaboo product.
• Do not use the Bugaboo Bee ^3 near open flames or other sources of heat. Avoid exposing the Bugaboo Bee ^3 to extreme temperatures.
• The Bugaboo Bee ^3 is not resistant to salt water.
• Avoid Velcro contact to the Bugaboo Bee ^3 fabrics.

maintenance tips

These tips will help you take care of your Bugaboo Bee ^3 and ensure a smooth ride.

• Periodically remove the swivel wheels and brush off any dirt or sand. Use a brush and water to clean dirt off the wheels. Do not submerge the wheel bearings in water.
• Use a soft brush to clean sand and dirt off the chassis. Take care to brush dirt away from rotating or sliding parts.
• Clean the chassis with a soft towel and lukewarm water and wipe off any remaining water with a dry cloth.
• Use a sponge, warm water and liquid soap to gently rub off any dirt on the handlebar foam. Wipe clean any soap residue left on the handlebar.
• Store your Bugaboo Bee ^3 and its accessories in a dry place and leave them unfolded when wet to prevent mould.

For more tips on how to maintain your Bugaboo Bee ^3 , visit bugaboo.com.

cleaning the fabrics

The Bugaboo Bee ^3 seat fabric and sun canopy are detachable and machine washable. The Bugaboo Bee ^3 harness can be cleaned with a damp cloth. The Bugaboo Bee ^3 bassinet/carrycot fabrics are recommended to wash by hand.

When washing, don't forget:

• maximum temperature 30^ C/ 85^ F (cold wash)
• do not use bleach or aggressive detergents
- do not tumble dry
- do not iron
- do not dry clean
• always wash separately

Always check the fabric label before washing.

The aerated inlay of the mattress can be washed at 30^ C. The aerated inlay is placed on top of the thicker foam mattress and can be taken off by removing the mattress cover. After washing, ensure that all mattress parts are replaced in their original positions, with the aerated inlay placed on top of the foam mattress. Do not use the mattress without the aerated inlay. The Bugaboo Bee ^3 under seat basket can be washed at 30^ C.

manufacturer's warranty (for Europe only)

As the manufacturer, Bugaboo International BV, which has its principal place of business in Amsterdam (hereinafter: “Bugaboo”), supplies the Bugaboo stroller (hereinafter: “product”) under warranty, subject to the following conditions:

1. The manufacturer's warranty period is 24 months, from the date of purchase as indicated on the sales receipt. The remaining guarantee for the original product will apply for a replacement part or product or a repaired product.
2. This manufacturer's warranty applies only in the region (USA and Canada or Europe or Russia or Australia and New Zealand or Asia) in which the product was purchased. Bugaboo guarantees that the product will be in compliance only with the statutory provisions and/or government regulations that apply in the region in which the product was sold. Bugaboo reserves the right to apply a divergent manufacturer's guarantee for those specific regions.

3. The manufacturer's warranty provides a right to repair unless Bugaboo is of the opinion that replacement or return of the product is necessary. Bugaboo will bear the expense and risk of transport from and to the retailer (hereinafter: “the retailer”) where you purchased the product, provided the repair is covered by manufacturer's warranty.

4. To claim under this manufacturer's warranty you must provide Bugaboo with the following:

5. a copy of the dated receipt of purchase,

6. a clear description of the complaint and

7. the defective product and/or photographs of the defective part or product.

8. The manufacturer's warranty is not transferable and may therefore only be invoked by the first owner.

9. The manufacturer's warranty does not affect any statutory rights you may have, for example the right to hold the retailer accountable for defects.

what is covered by the manufacturer's guarantee?

The manufacturer's guarantee applies in respect of the product and covers the following:

-all manufacturing defects in the chassis, frame and the wheels;

- all manufacturing defects in the adapters (frame and car seat adapters);

-zippers;

-all parts of the harness of your Bugaboo stroller;

-seams in the covering;

-Velcro ^® ; and

-colourfastness.

the manufacturer's warranty will void in the following circumstances:

• If you have made or arranged for modifications or repairs to be made without first having received written permission from Bugaboo or the retailer.
• Defects resulting from neglect or an accident and/or from any use or maintenance other than that indicated in the user guide.

-If the serial number has been damaged or removed.

-Damage to the product caused by normal wear and tear.

• Incorrect mounting or installation of third-party parts that are incompatible with the product.
• Inadvertent or unintentional damage, abnormal use or insufficient care.

-Improper storage / product care.

- Damage to push bars or upholstery due to normal daily use of the product.

-Holes or tears in the tires.

-Damage due to improper use or due to failure to follow user guide.

- Damage due to repairs carried out by unauthorized persons or due to improper disassembly of the product.

• Transport damage (during air transport or other modes of transport): carefully inspect your Bugaboo product after it was shipped by the airline (or other carrier) and in case of any damage immediately file a claim with the carrier.
• Customer dissatisfaction with the product in terms of fit, weight, functionality, colour or design.

manufacturer's warranty conditions for Bugaboo special edition

If you have purchased a Bugaboo special edition, go to www.bugaboo.com/ customer-service/special-editions for a complete overview of Bugaboo's manufacturer's warranty conditions. Your Bugaboo special edition may fall within the scope of other manufacturer's warranty conditions than the conditions described in this user manual. Bugaboo reserves the right to stop manufacturing a particular model, colour, fabric or accessory, and therefore it will replace a part with a similar product, colour or fabric during the manufacturer's warranty period.

important

The manufacturer's warranty period for this product is 24 months from the purchase date indicated on the sales receipt. Save the sales receipt in a safe place and make a copy of it. It is even easier if you register your product at bugaboo.com and/or by using the warranty card enclosed. If you submit a claim under this manufacturer's warranty you must first contact your retailer. If your retailer is unable to repair the defect or if Bugaboo was your retailer you can contact Bugaboo by sending an e-mail to [e-mail] or dial [phone]. For complaints that arise outside the manufacturer's warranty period you must also contact your seller or you can contact one of our service centres. You can find an up-to-date list of service centres at bugaboo.com.

Bugaboo reserves the right to amend these manufacturer's warranty provisions. You can find the most up-to-date manufacturer's warranty provisions on our website: www.bugaboo.com.

replaceable parts

We pride ourselves on creating products based on high quality and standards. That's why only genuine Bugaboo parts or parts which have been approved by Bugaboo should ever be used in conjunction with the Bugaboo stroller. If you need to replace a part of your Bugaboo stroller, please contact your retailer, or visit bugaboo.com for an extensive list of retailers near you.

contact

Before you start using your Bugaboo Bee ^3 , make sure you fill out the product registration form on line at bugaboo.com.

We are always interested in your feedback and would like to hear your comments on the Bugaboo Bee ^3 or any other Bugaboo product. Please send us an email at [e-mail], (North American residents, please use [e-mail]) or visit our website at bugaboo.com/register to create your personal account and sign up to participate in Bugaboo consumer research and receive the Bugaboo online newsletter.

Inhalt

Einführung

In den Boxen 36

3D rendering of a small wheeled vehicle with segmented wheels and a black seat (no text or symbols visible)

Gestell

3D rendered diagram of a car's front panel and side door (no text or symbols)

Sitz

Line drawing of a U-shaped metal clamp or clip (no text or symbols)

Line drawing of a folded garment with pleats and straps (no text or symbols)

Regenabdeckung

2

3D rendered image of a gray plastic or cushion with a circular hole on top (no text or symbols)

Sonnendach

4

A B C D E F G H I J K L

A. Schiebebügel

M N O P Q R S U V T W

3D rendering of a small wheeled vehicle with segmented wheels and a black seat (no text or symbols visible)

châssis

3D rendered diagram of a car's front panel and side door (no text or symbols)

Line drawing of a U-shaped metal clamp or connector (no text or symbols)

Line drawing of a folded fabric or bag with visible stitching and pleats (no text or symbols)

protection pluie

2

3D rendered image of a gray plastic or cushion with a circular hole on top (no text or symbols)

capote

4

A B C D E F G H I J K L

A. guidon

M N O P Q R S U V T W

3D rendering of a baby stroller with metal frame and wheels (no text or symbols)

chasis

3D rendered diagram of a car's front panel and side door (no text or symbols)

silla

Line drawing of a U-shaped metal clamp or clip (no text or symbols)

Line drawing of a folded fabric or towel with visible seams and stitching (no text or symbols)

3D rendered image of a gray plastic or cushion with a circular hole on top (no text or symbols)

capota

4

A B C D E F G H I J K L

M N O P Q R S U V T W

M. respaldo extensible

3D rendering of a baby stroller with metal frame and wheels (no text or symbols)

chassis

3D rendered diagram of a car's front panel and side door (no text or symbols)

seggiolino

Line drawing of a U-shaped metal clamp or clip (no text or symbols)

Line drawing of a folded fabric or bag with visible stitching and pleats (no text or symbols)

parapioggia

2

3D rendered image of a gray, curved object with a circular hole on top (no text or symbols)

capottina

4

A B C D E F G H I J K L

A. manubrio

B. cinghia da polso

M N O P Q R S U V T W

montar o chassis – fixar as rodas

3D rendering of a baby stroller with metal frame and wheels (no text or symbols)

chassis

3D rendered diagram of a car's front panel and side door (no text or symbols)

cadeira

Line drawing of a U-shaped metal clamp or connector (no text or symbols)

Line drawing of a folded fabric or bag with pleats and straps (no text or symbols)

3D rendered image of a gray plastic or cushion with a circular hole on top (no text or symbols)

capota

4

A B C D E F G H I J K L

A. manípulo

M N O P Q R S U V T W

3D rendering of a baby stroller with metal frame and wheels (no text or symbols)

βάση

3D rendered diagram of a car's front panel and side door (no text or symbols)

κάθισμα

Line drawing of a U-shaped metal clamp or clip (no text or symbols)

Line drawing of a folded fabric or bag with visible stitching and pleats (no text or symbols)

κάλυμμα βροχής

2

3D rendered image of a gray plastic or cushion with a circular hole on top (no text or symbols)

Τέντα ηλίου

4

All the white parts of your Bugaboo Bee ^3 are functional. They're the parts that allow you to adapt and change your Bugaboo Bee ^3 .

A B C D E F G H I J K L

M N O P Q R S U V T W

3D rendering of a baby stroller with metal frame and wheels (no text or symbols)

chassi

Top-down view of a car's front bumper and side panel (no text or symbols visible)

sittdel

Line drawing of a U-shaped metal clamp or clip (no text or symbols)

Line drawing of a folded fabric or bag with visible stitching and pleats (no text or symbols)

regnskydd

2

3D rendered image of a gray plastic or cushion with a circular hole on top (no text or symbols)

sufflett

4

A B C D E F G H I J K L

A. styre

B. handledsband

C. fällningsspärr

D. sufflett

M N O P Q R S U V T W

3D rendering of a baby stroller with metal frame and wheels (no text or symbols)

understell

3D rendered diagram of a car's front panel and side door (no text or symbols)

sete

Line drawing of a U-shaped metal clamp or clip (no text or symbols)

Line drawing of a folded fabric or bag with visible stitching and draw (no text or symbols)

regndekke

2

* Stetrekk selge separate (bortsett fra Special Editions)

setetrekk

3

* Kalesje selge separate (bortsett fra Special Editions)

3D rendered image of a gray plastic or cushion with a circular hole on top (no text or symbols)

kalesje

4

A B C D E F G H I J K L

A. styre

B. håndleddsbånd

C. klapplås

D. kalesje

M N O P Q R S U V T W

3D rendering of a baby stroller with metal frame and wheels (no text or symbols)

chassis

3D rendered diagram of a car's front panel and side door (no text or symbols)

Line drawing of a U-shaped metal clamp or clip (no text or symbols)

solparasol wire og klamper

svirvel hjul

Line drawing of a folded fabric or bag with visible stitching and pleats (no text or symbols)

regn dækken

2

3D rendered image of a gray plastic or cushion with a circular hole on top (no text or symbols)

solparasol

4

* Liftens bund og adaptere sælges særskilt (undtagen Special Editions).

liftens bund adaptere

5

A B C D E F G H I J K L

A. håndtag
B. håndledsstrop
C. foldelås
D. solparasol
E. klemmeholder til kaleche
F. sele

M N O P Q R S U V T W

3D rendering of a stylized car with segmented wheels and a black body (no text or symbols)

runko

3D rendered diagram of a car's front panel and side door (no text or symbols)

istuin

Line drawing of a U-shaped metal clamp or clip (no text or symbols)

Line drawing of a folded fabric or bag with visible stitching and draw (no text or symbols)

sateensuoja

2

3D rendered image of a gray plastic or cushion with a circular hole on top (no text or symbols)

suojakuomu

4

A B C D E F G H I J K L

A. työntöaisa

B. rannehihna

M N O P Q R S U V T W

3D rendering of a small wheeled vehicle with segmented wheels and a black seat (no text or symbols visible)

podvozek

3D rendered diagram of a car's front panel and side door (no text or symbols)

sedačka

Line drawing of a U-shaped metal clamp or clip (no text or symbols)

Line drawing of a folded garment with pleats and straps (no text or symbols)

kočárku a příchytky

2

3D rendered image of a gray plastic or cushion with a circular hole on top (no text or symbols)

stříšky kočárku

4

A B C D E F G H I J K L

M N O P Q R S U V T W

3D rendering of a small wheeled vehicle with segmented wheels and a black seat (no text or symbols visible)

podwozie

3D rendered diagram of a car's front panel and side door (no text or symbols)

siedzenie

Line drawing of a U-shaped metal clamp or clip (no text or symbols)

Line drawing of a folded garment with pleats and straps (no text or symbols)

3D rendered image of a gray plastic or cushion with a circular hole on top (no text or symbols)

A B C D E F G H I J K L

A. rączka

B. pasek na nadgarstek

M N O P Q R S U V T W

v. GONDOLA POWINNY BYĆ UŻYWANE NIEZALEŻNIE OD PODWOZIA

3D rendering of a small wheeled vehicle with segmented wheels and a black seat (no text or symbols visible)

podvozje

3D rendered diagram of a car's front panel and side door (no text or symbols)

sedež

Line drawing of a U-shaped metal clamp or clip (no text or symbols)

ogrodja in sponke za strešico

vrtljivi kolesa

Line drawing of a folded garment with pleats and straps (no text or symbols)

prevleka za dež

2

* tkanina sedeža na prodajo ločeno (razen v Special Editions)

tkanina sedeža

3

* strešica na prodajo ločeno (razen v Special Editions)

3D rendered image of a gray plastic or cushion with a circular hole on top (no text or symbols)

strešica

4

* osnovni del košare in vmesniki so na prodajo ločeno (razen v Special Editions)

A B C D E F G H I J K L

A. ročaj

B. zapestni trak

C. zložljivi zaklep

D. strešica

E. držalo pritrdilne sponke strešice

F. jermen

G. sedež

M N O P Q R S U V T W

3D rendering of a small wheeled vehicle with segmented wheels and a black seat (no text or symbols visible)

şasi

3D rendered diagram of a car's front panel and side door (no text or symbols)

koltuk

Line drawing of a U-shaped metal clamp or clip (no text or symbols)

Line drawing of a folded fabric or bag with pleats and straps (no text or symbols)

yağmur örtüsü

2

3D rendered image of a gray plastic or cushion with a circular hole on top (no text or symbols)

güneş gölgeliği

4

A B C D E F G H I J K L

A. gidon

B. bileklik

C. katlama kilidi

D. güneşlik

U V T W M N O P Q R S

Illustration of a person pushing a stroller with two views of the handle and cable, showing red directional arrows indicating movement (no text or symbols)

2x 3

2x 4

Illustration of various electronic devices including a 2x zoom and internal compartments (no text or symbols)

3D diagram of a mechanical component with a red arrow indicating a step, no text or symbols present

2x 2

2x 3

3D illustration of a mechanical device with a red arrow indicating a component or operation (no text or symbols)

Diagram of a vehicle's rearview seat with two red arrows indicating clockwise motion (no text or symbols)

4x 6

3D illustration of a gray plastic bag with a red arrow indicating a process or transformation (no text or symbols)

1x 8

3D rendered image of a gray car casing with visible seat and side brackets (no text or symbols)

Illustration of an open box with a red arrow pointing to it and a stroller with wheels (no text or symbols)

Illustration of a stroller with three different internal compartments (no text or symbols)

Illustration of a hand adjusting a bicycle seatbelt mechanism (no text or symbols visible)

Illustration of a baby stroller with a red downward arrow indicating motion (no text or symbols)

Illustration of a baby stroller with red motion arrows indicating movement (no text or symbols)

Illustration of a hand pressing down on a car seatbelt with a red upward arrow indicating the motion (no text or symbols)

Illustration of a baby stroller with hand positioning and red arrow indicating rotation (no text or symbols)

Illustration of a baby stroller with a hand inserting a device into the seat area, showing a red arrow indicating motion (no text or symbols present)

Illustration of a person in a seatbelt using a tool to lift a vehicle, with a red arrow indicating the motion direction (no text or symbols present)

Illustration of a hand adjusting a black object with a red arrow indicating direction (no text or symbols)

Close-up of a hand pressing a button on a car seat, with a red upward arrow indicating motion (no text or symbols)

2x 10

Mechanical assembly diagram showing a chair with a mesh seat and arm, no text or symbols present

2x 12

Illustration of a hand pressing down on a car's seat (no text or symbols visible)

Illustration of a stroller with a hand inserting a red arrow to the seat, showing a magnified view of the seat (no text or symbols present)

2x 15

2x 16

Illustration of a stroller with a red flag tag and wheels, no text or symbols present

2x 18

Interior view of a car seatbelt with visible seatbelt and seatbelt (no text or symbols)

Illustration of a baby stroller with wheels and seat, labeled '20' (no text or symbols on the device itself)

2x 21

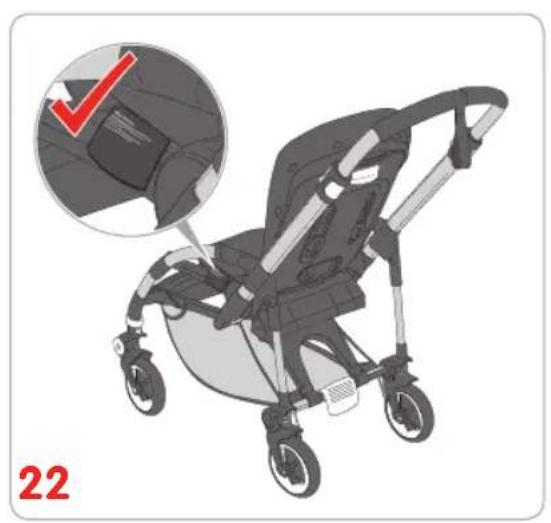

Illustration of a baby stroller with a checkmark highlighting the seat area (no text or symbols on the device itself)

Illustration of an open box with a red arrow and a stylized shuttlecock, symbolizing delivery or shipment (no text or symbols present)

Illustration of a stroller with three different accessories (no text or symbols)

Diagram of a mechanical linkage with two red arrows indicating direction, no text or symbols present

Illustration of a hand pressing down on a mechanical component with a red arrow indicating the process (no text or symbols present)

Illustration of a hand holding a cable with a red arrow pointing to a component, no text or symbols present

4 2×

Illustration of a hand holding a small object with a black string, labeled '5 2x' (no text or symbols on the object itself)

Illustration of a person in a stroller with a red arrow pointing to the seat area, no text or symbols present.

Mechanical assembly diagram showing a person adjusting a belt buckle with a red arrow indicating the motion (no text or symbols present)

2x 8

6x 9

Illustration of a baby stroller with wheels and a backrest seat (no text or symbols)

Three technical illustrations of car seat components: front view, side arm, and rear view (no text or symbols)

Diagram of a mechanical linkage or clamp mechanism with two red arrows indicating direction (no text or symbols present)

Illustration of a hand holding a tool interacting with a mechanical component, marked with a red arrow and number 2 (no text or symbols on the diagram itself)

Illustration of a hand holding a cable with a red arrow pointing to a damaged component (no text or symbols present)

2x 4

Illustration of a hand holding a small object with a black outline, labeled '5 2x' and number '5' (no text or symbols on the object itself)

Illustration of a car seatbelt with red arrows indicating clockwise motion (no text or symbols)

7

8 2x

9 2x

2x 10

Illustration of a seatbelt device with a red arrow indicating motion direction (no text or symbols)

12

13

14

15

Illustration of a gray car seatbelt with a red checkmark and number 16, no text or symbols present.

Illustration of a baby stroller with four wheels and adjustable seat (no text or symbols)

Illustration of a bicycle steering wheel with red directional arrows indicating movement, no text or symbols present

2 ↑

Illustration of a baby stroller with four wheels and adjustable arms (no text or symbols)

Illustration of a bicycle steering wheel with red arrows indicating motion direction (no text or symbols)

Diagram showing two mechanical components with red directional arrows indicating movement or force (no text or symbols)

Illustration of a baby stroller with a red directional arrow indicating motion (no text or symbols)

2x 4

Illustration of a stroller and a box device (no text or symbols)

Mechanical assembly diagram showing a hand adjusting a component with red arrows and a lock icon (no text or symbols)

2x 2

Illustration of a baby stroller with a load device and red arrow indicating force or movement (no text or symbols)

2x 4

Illustration of a baby stroller with adjustable arms and wheels (no text or symbols)

1

Illustration of a stroller with a red arrow indicating motion (no text or symbols)

Illustration of a baby stroller with a red arrow indicating motion (no text or symbols)

Illustration of a baby stroller with a red arrow indicating motion (no text or symbols)

Illustration of a baby stroller with a close-up inset showing the cable being inserted (no text or symbols)

Illustration of a baby stroller with a red arrow indicating motion, no text or symbols present

Illustration of a baby stroller with wheels and adjustable arm (no text or symbols)

Illustration of a bicycle steering wheel with red arrows indicating joint movement, no text or symbols present

Mechanical assembly diagram showing a device with attached components and a tool, no visible text or symbols

Close-up of hands adjusting a car seatbelt with a red arrow indicating the angle (no text or symbols present)

Illustration of a stroller with a close-up inset showing the seatbelt mechanism (no text or symbols)

2×2× 5

Illustration of a person adjusting a car seatbelt with a red arrow indicating the adjustment (no text or symbols present)

Illustration of a stroller with red motion arrows indicating rotation or movement (no text or symbols)

Illustration of a gray ergonomic seat with a red arrow indicating rotation (no text or symbols)

Illustration of a car seatbelt with a magnified inset showing the interior detail (no text or symbols)

2x 3

3D diagram of a car body with attached cable, showing red directional arrows indicating motion (no text or symbols)

Illustration of a baby stroller with wheels and adjustable arm (no text or symbols)

Illustration of a bicycle steering wheel with red arrows indicating motion direction (no text or symbols)

Mechanical seat assembly diagram showing a red arrow indicating a specific component (no text or symbols present)

Illustration of a person seated in a chair with red arrows indicating motion or pressure points (no text or symbols present)

3

Illustration of a baby stroller with four wheels and adjustable arms (no text or symbols)

1

Close-up of a car seatbelt with a red upward arrow indicating a specific component (no text or symbols present)

Close-up of a car seatbelt with red arrows indicating force or movement (no text or symbols)

3

Illustration of a baby stroller with adjustable arms and wheels (no text or symbols)

Illustration of a bicycle steering wheel with red arrows indicating motion direction (no text or symbols)

Illustration of a hand pressing down on a car wheel, with a red arrow indicating the motion direction (no text or symbols present)

Illustration of a stroller with red directional arrows indicating motion (no text or symbols)

Illustration of a hand pressing down on a car seatbelt with a red arrow indicating the downward motion (no text or symbols present)

Illustration of a baby stroller with four wheels and adjustable arms (no text or symbols)

1

Illustration of a hand pressing down on a car wheel, with a red arrow indicating the action point (no text or symbols present)

Illustration of a baby stroller with a red arrow indicating rotation (no text or symbols)

Close-up of a hand pressing a white plastic component on a car seat, with a red arrow indicating the downward motion (no text or symbols present)

Illustration of a baby stroller with wings and a red upward arrow indicating motion (no text or symbols)

Illustration of a baby stroller with a red downward arrow indicating motion (no text or symbols)

Illustration of a baby stroller with red light rays indicating motion or pressure (no text or symbols)

Illustration of a hand pressing down on a car seatbelt, with a red arrow indicating the motion direction (no text or symbols present)

Illustration of a baby stroller with a red arrow indicating rotation (no text or symbols)

Hand pressing down on a car seatbelt with a red arrow indicating the action (no text or symbols)

Illustration of a baby stroller with four wheels and adjustable arms (no text or symbols)

Illustration of a bicycle steering wheel with red arrows indicating motion direction (no text or symbols)

Illustration of a hand pressing down on a car seatbelt, with a red arrow indicating the pressure point (no text or symbols present)

Illustration of a baby stroller with fan blades and a red curved arrow indicating rotation (no text or symbols)

Illustration of a hand pressing down on a car seatbelt with a red arrow indicating the downward motion (no text or symbols)

Illustration of a baby stroller with a red upward arrow indicating motion (no text or symbols)

Illustration of a baby stroller with a red arrow indicating motion or change, no text or symbols present.

Illustration of a baby stroller with red directional arrows indicating movement or force (no text or symbols)

Illustration of a hand pressing down on a car wheel, with a red arrow indicating the action point (no text or symbols present)

Illustration of a baby stroller with a red curved arrow indicating motion (no text or symbols)

Illustration of a hand pressing down on a car seatbelt with a white seatbelt and a red arrow indicating the direction (no text or symbols)

Illustration of a baby stroller with adjustable arms and wheels (no text or symbols)

Mechanical assembly diagram showing a hand adjusting a component with red arrows indicating motion direction (no text or symbols)

4x 2

Illustration of a car seatbelt with red arrows indicating seatbelt direction (no text or symbols)

Line drawing of a car seatbelt with hands fastening the seat (no text or symbols)

Illustration of a baby seatbelt being adjusted for a person's seatbelt, showing the red arrow indicating the adjustment (no text or symbols present)

4x 6

Illustration of a person seated in a car seatbelt with red warning symbols on the seat (no text or labels)

2x 8

Illustration of hands adjusting a seatbelt with a central hub (no text or symbols)

Illustration of a baby stroller with wheels and adjustable arm (no text or symbols)

Illustration of a hand pressing down on a car wheel, with a red arrow indicating the press direction (no text or symbols present)

Illustration of a baby stroller with a red arrow indicating motion, no text or symbols present

Illustration of a hand pressing down on a car seatbelt with a red arrow indicating the downward motion (no text or symbols present)

4 2x

Illustration of two hands holding a curved object with red arrows indicating upward motion (no text or symbols)

Illustration of a baby stroller with a red arrow indicating motion, no text or symbols present

Illustration of a baby stroller with four wheels and adjustable arms (no text or symbols)

Illustration of a hand pressing down on a car wheel, with a red arrow indicating the motion direction (no text or symbols present)

Illustration of a baby stroller with fan blades and a red curved arrow indicating rotation (no text or symbols)

Hand pressing a button on a car seat, with a red arrow indicating the action (no text or symbols present)

4 2x

Illustration of two hands holding a curved object with red arrows indicating upward motion (no text or symbols)

Illustration of a stroller with a red arrow indicating motion, no text or symbols present

Illustration of a baby stroller with adjustable arms and wheels (no text or symbols)

Illustration of a hand holding a black strap attached to a mechanical device, with no visible text or symbols.

Illustration of a person using a cable to lift a vehicle (no text or symbols visible)

Illustration of a baby stroller with adjustable arms and wheels (no text or symbols)

Illustration of a stroller with wheels and straps (no text or symbols)

2x 2

2x 3

Illustration of a two-wheeled stroller with wheels and buttons (no text or symbols)

Illustration of a baby stroller with adjustable arms and wheels (no text or symbols)

Illustration of a two-wheeled stroller with wheels and control buttons (no text or symbols)

2x 2

2x 3

Illustration of a stroller with wheels and straps (no text or symbols)

Illustration of a baby stroller with adjustable arms and wheels (no text or symbols)

Illustration of a baby stroller with a red arrow indicating motion, no text or symbols present

2 2×

Illustration of two hands holding a grip with red upward arrows indicating movement or pressure points (no text or symbols)

Illustration of a stroller with a red arrow indicating motion, no text or symbols present

2x 5

2x 6

Illustration of a baby stroller with adjustable arms and wheels (no text or symbols)

Illustration of a hand adjusting a bicycle seatbelt with red alignment marks (no text or symbols)

Illustration of a hand adjusting a car seatbelt with a red arrow indicating direction (no text or symbols)

Mechanical assembly diagram showing a lever mechanism with red arrows indicating motion direction (no text or symbols)

3x 4

Illustration of a helicopter's head and wing with red arrows indicating motion direction (no text or symbols)

Illustration of a stroller with red arrows indicating motion or movement, no text or symbols present

Illustration of a stroller with wheels and a vehicle chassis (no text or symbols)

Illustration of a baby stroller with wheels and a backrest (no text or symbols)

Illustration of a baby stroller with adjustable arms and wheels (no text or symbols)

2x 1

Illustration of a baby stroller with a red curved arrow indicating rotation (no text or symbols)

2x 3

2x 4

Close-up of a hand pressing down on a car seatbelt, with a red arrow indicating the motion direction (no text or symbols present)

2x 6

2x 7

Illustration of a baby stroller with wheels and seat, no text or symbols present

2x 9

Illustration of a car seatbelt with a hand adjusting the seatbelt, showing a red arrow indicating rotation (no text or symbols)

Illustration of a baby stroller with wheels and adjustable arm (no text or symbols)

Illustration of a bicycle steering wheel assembly with red alignment marks and a lock icon (no text or symbols)

2

Illustration of a baby stroller with a curved canopy and arrow indicating motion (no text or symbols)

Sugabat New 4

Illustration of a person using a medical or safety device to adjust the knee joint, with an inset showing the same joint detail (no text or symbols present)

Illustration of a bicycle steering wheel with a close-up inset showing the mechanism (no text or symbols)

Illustration of a baby stroller with transparent body and wheels (no text or symbols)

Illustration of a stylized hat with a curved handle and a circular patch, no text or symbols present

Illustration of a person wearing glasses and a hat, with no visible text or symbols

Illustration of a medical device with a coiled tube and tubing, no text or symbols present

11

Illustration of a baby stroller with a parachute and red arrow indicating motion (no text or symbols)

Illustration of a person using a medical or rehabilitation device to adjust the knee joint, with an inset magnified view showing the joint detail (no text or symbols present)

Illustration of a robotic arm with attached grippers and a close-up inset showing the handle (no text or symbols)

Illustration of a baby stroller with a magnified inset showing the handle and seat area (no text or symbols)

Illustration of a baby stroller with a handle and seat, no text or symbols present

bugaboo europe & asia

bugaboo international bv

paasheuvelweg 9 a-b

bugaboo north america inc

2150 park place suite 150
