CK7000 - Multi-cooker Concept - Free user manual and instructions

Product type	2-in-1 multi-cooker: pressure cooker and air fryer
Brand	Concept
Model	CK7000
Voltage	220-240 V ~ 50/60 Hz
Total power	2500 W (1000 W multifunction cooker + 1500 W air fryer)
Basket capacity	6 liters
Adjustable temperature range	80 °C to 200 °C
Timer	1 minute to 24 hours
Display	LED with touch controls
Cooking functions	Rice, legumes, soup, meat stew, slow cook, yogurt, sous-vide, porridge, chicken, steak, fish, dessert, wings, fries, dehydration, manual
Preset programs	16 automatic programs
Delayed start function	Yes, up to 24 hours (not available with air fryer lid)
Automatic keep warm	Yes (max 1 hour recommended)
Inner pot material	Metal with non-stick coating
Included accessories	Inner pot, frying basket, removable base, pressure lid, air fryer lid, rice spoon, measuring cup, condensation collector
Safety	Pressure valve, float valve, safety lock, automatic shut-off in case of overheating
Maintenance	Inner pot dishwasher safe; other parts washable with soapy water; do not immerse body or lid
Warranty	24 months
Country of origin	Czech Republic (manufacturer Jindřich Valenta – Concept)

Frequently Asked Questions - CK7000 Concept

Can I open the pressure cooker during pressure cooking?

No, the lid is locked until the pressure is released. Never try to force it open. Wait for the cycle to end or release pressure manually via the valve.

How do I release pressure after cooking?

Two methods: 1) Natural release: wait 15 to 30 minutes for the pressure to decrease. 2) Quick release: turn the pressure valve to 'Steam Release' with an oven mitt. Beware of steam burns.

Can I use the cooker without the pressure lid?

Yes, for the 'Slow Cook' program, you can cook with or without the lid. For other programs, use the appropriate lid.

How do I adjust temperature and time manually?

Select a program, then press 'Time/Temp' to adjust time or temperature using the + and - buttons. To switch from °C to °F, press and hold 'Time/Temp'.

Can the air fryer lid be used with oil?

No, the air fryer works with hot air only. Never fill the pot with oil or fat.

What foods can I prepare with the dehydration program?

The 'De-Hydrate' program is designed to dry fruits, vegetables, herbs, or meats at 55 °C for 0.5 to 24 hours.

How do I clean the inner pot and accessories?

Wash the inner pot in the dishwasher or with hot soapy water. Other accessories (basket, spoon, etc.) can be washed with soapy water. Never immerse the appliance body or lid in water.

What should I do if black smoke comes out of the appliance?

Immediately stop the appliance and contact an authorized service center. Let it cool for at least 30 minutes before handling.

Does the delayed start function work with all programs?

The delayed start function is only available for pressure cooker programs. It cannot be used with the air fryer lid.

What is the maximum filling capacity for pressure cooking?

Do not exceed 2/3 of the inner pot volume for food and water. This prevents overflow and ensures safe cooking.

USER MANUAL CK7000 Concept

Multifunction pressure cooker 2-in-1

CK7000

CZ

HU LV DE FRENSK PL

IT ES

RO

concept

CZ

PODĚKOVÁNÍ

POUŽITÍ HRNCE S TLAKOVOU POKLICÍ (3)

WSTĘPNIE USTAWIONE PROGRAMY

8 Mertrauks
9 Kondensāta tvertne
10. Eritēšanas groz
11 Nonemama narmatne
12 leksëia bvertne
13. lerices kornuss
14 Vadības panelis

VADIBAS PANELA APRAKSTS

Thank you for purchasing a Concept product. We wish you much joy with your new appliance every day you use it. Please read the instruction manual carefully before initial use. To refer to this manual any time you need to, we recommend you to keep it in a safe place. And please pass it to any future owner of the appliance.

Technical specifications
Voltage 220-240 V~50-60 Hz
Input	1000 W multifunction cooker1500 W air fryer
Basket capacity 6 l
Adjustable temperature 80-200 °C
Timer	1 min - 24 hours

IMPORTANT

Before connecting to the mains, make a visual check to ensure that the unit is intact and that no damage occurred during transport.

IMPORTANT SAFETY PRECAUTIONS

• Do not use the appliance in any other way than as described in this manual.
• Remove all the covering and marketing materials from the appliance before the first use.
• Make sure the mains voltage corresponds to the values on the rating plate of the product.
• Place the appliance on a stable, flat surface away from other heat sources.
• When disconnecting the appliance from the wall outlet, never pull the power cord, grasp the plug end and disconnect it by removing it from the receptacle.
• Do not allow children or unauthorized people to handle the appliance, use it out of their reach.
• Persons with reduced mobility, reduced sensory perception, mental disadvantage or persons not familiar with the operation must use the appliance only under the supervision of responsible person, who is familiar with the instructions.
• Pay extra attention if the appliance is used near children.
• Do not use the appliance as a toy.
• Do not cover the appliance.

CK7000

43

EN

concept

concept

EN

• Before assembly and disassembly, disconnect the power cord from the wall outlet.
• Before cleaning and after use of the appliance, switch the appliance off and disconnect it from the mains.
• Keep the appliance clean, do not allow foreign objects to into the grid openings. It could cause serious injury, short circuit, damage to the appliance or cause fire.
• Do not use the appliance with a damaged cord or plug and have it repaired immediately by an authorized service centre.
• Do not use the appliance if it is not working properly, has been dropped, damaged or immersed in liquid. Have it checked and repaired by an authorized service centre.
• The appliance is only suitable for home use and is not intended for commercial use.
• Do not touch the appliance with wet hands.
• Do not immerse the power cord, plug or appliance in water or any other liquid.
• Do not repair the appliance yourself. Contact an authorized service centre.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved. Cleaning and maintenance performed by the user must not be carried out by children unless they are at least 8 years old and under supervision. Children aged under 8 years of age must be kept away from the appliance and its power cord. Do not let children play with the appliance.
• Do not touch hot surfaces
• Do not let the power cord hang freely over the edge of a table or kitchen unit. Do not let the power cord touch hot surfaces.
• Do not place the appliance near a gas or electric burner.
• NOTICE: The surfaces of the appliance may be very hot. Hold the appliance by the handle only and wear protective equipment such as a kitchen glove.
• Pay special attention to prevent water or other liquid from entering the appliance. This could cause an electric shock.
  • Always place the ingredients in the appliance basket to prevent them

from coming into contact with the heater.

• Never touch the inner surfaces of the appliance during operation or immediately after switching off. Allow the appliance to cool down sufficiently.
• Do not plug in or operate the appliance with wet hands.
• During frying with hot air, hot steam is released through the air outlets, keep your hands and face at a safe distance from the water vapour coming from the air outlets.
• If you see dark smoke coming out of the appliance during operation, switch it off immediately and contact an authorized service centre.
• Before cleaning the appliance allow it to cool down for at least 30 minutes.

Damages from failure to follow the manufacturer's instructions (see safety precautions) are not covered by the warranty.

EN

concept

concept

EN

PRODUCT DESCRIPTION

1 Air outlet
2 Hot-air lid
3 Pressure lid
4 Pressure valve
5 Float valve
6 Sealing
7 Rice spoon

8 Measuring cup
9 Condensate container
10 Frying basket
11 Removable base
12 Inner container
13 Appliance body
14 Control panel

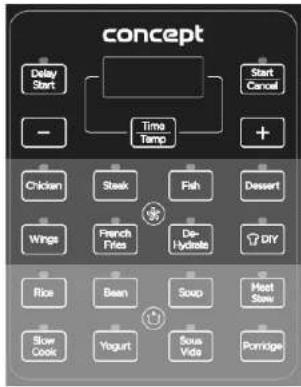

CONTROL PANEL LAYOUT

A Control part of the panel
B Menu for the cooker with a hot-air lid
C Menu for the pressure cooker
Delay Start Set the time by which to delay the start of cooking. (This function cannot be used when cooking using a hot-air lid.)
Start/Cancel Start or cancel the cooking after selecting the appropriate program
Time/Temp Adjust the set time/temperature. (Long press changes °C to F and vice versa.)

A

B

C

The following notifications may appear on the LED display:

a. The cooker is ready for use
b. The cooker is heating to the required temperature
c. The "Keep Warm" function – the cooker maintains the temperature
d. The lid is in incorrect position or use a second lid
e. There is not an inner container in the cooker

BEFORE FIRST USE

• Remove all packaging materials from the appliance.
• Remove all labels and stickers from the appliance.
• Wash the inner container (12) with hot water.
• Wipe the appliance thoroughly from the inside and outside with a cloth.

46

EN

concept

concept

EN

OPERATING INSTRUCTIONS

USING THE COOKER WITH PRESSURE LID (3)

1. Place the appliance in a dry, level place.

2. Place the condensate container (9) in the appliance as shown in the Fig. 1.

3. Prepare the pressure lid (3) as shown in the Fig. 2.

- Pull the metal protrusion on the underside of the lid to remove the protective cover on which the sealing (6) is fitted. The sealing (6) can be removed and cleaned. Make sure that the sealing (6) is not damaged or torn. If so, it needs to be replaced. Make sure that the float valve (5) is clean and can move freely.

1. Place the appliance in a dry, level place.

2. Grab the pressure lid (3), turn the handle clockwise and lift the lid vertically upwards.

3. Take out the inner container (12). The total volume of foods and water should not exceed 2/3 of the volume of the inner container.

4. Make sure that the inner surface of the appliance (13) is dry and place the inner container (12) in the body of the appliance (13).

5. Place the pressure cover (3) on the appliance and turn it couterclockwise until you hear a click. The lid is now in the correct position.

6. Please bear in mind that the pressure valve (4) must be freely movable for the cooker to function properly.

7. Set the pressure valve to the "Sealed" position, the cooker is now ready for use.

8. For the "Slow Cook" program, set the pressure valve to the "Steam release" position.

9. Plug the power cord into a power outlet.

10. Press the button with name of the required program to select the program from the menu for pressure cooker (C). Press the Start/Cancel button to confirm. The cooker will start to heat to the required temperature (b) and the float valve will start to rise. Once the cooker reaches the required temperature, it will start to count down the set time. At this point the appliance is already cooking under pressure, the lid is locked and the cooker cannot be opened. NEVER TRY TO OPEN THE COOKER BY FORCEI

11. When cooking is complete, you will hear a sound signal and the cooker will automatically switch to the "Keep Warm" mode to keep the food warm.

12. You can cancel the setting of the cooker at any time by pressing the Start/Cancel button.

When cooking is complete, the pressure can be released in two ways:

1. When cooking is complete, the pressure will gradually decrease. Depending on the amount of liquid, this may take 15-30 minutes. The float valve gradually drops, the lid unlocks and can be opened easily. If it cannot be opened, wait for a bit longer. NEVER OPEN THE COOKER BY FORCE!

2. When cooking is complete, press the Start/Cancel button, wear a pot holder and turn the float valve to the "Steam release" position, the float valve will drop, the lid will unlock and can be opened easily. BE VERY CAREFUL AND USE PROTECTIVE EQUIPMENT, RISK OF STEAM SCALDINGI

Delay Start function:

1. Using the Delay Start function, you can delay the start of cooking by up to 24 hours.

2. Follow the operating instructions, press the button with the name of the selected program, then press the Delay Start button and use the “+” and “-” buttons to set the time by which you want to delay the start of cooking. The default setting for delayed start is 30 minutes.

3. Then press the Start/Cancel button. After the set time has elapsed, the selected program starts.

Tips

1. If you select the "Slow Cook" program, you can use the cooker with or without a lid.

2. We recommend using the "Keep Warm" function for a maximum of 1 hour, after that the food will start to lose its

Sealed

Fig. 2

Steam release

quality.

1. The programs are pre-set to prepare food weighing less than 1200 g. If you want to prepare larger portions, use your own custom setting.
2. Use the Delay Start function only for foods that cannot spoil during this time.

USING THE COOKER WITH THE HOT-AIR LID (2)

• Programs from the menu for the hot-air lid can only be started when using the hot-air lid, and programs from the menu for the pressure lid can only be started when using the pressure lid.
• The cooker with a hot-air lid uses hot air, never fill the cooker with oil or other frying medium.
• Plug the power cord into a power outlet.
• Make sure that the inner surface of the appliance (13) is dry and place the inner container (12) in the body of the appliance (13).
• Place the frying basket (10) with removable base (11) in the inner container. Insert the foods. Place the hot-air lid (2) on the appliance.
• Press the button with name of the required program to select the program from the menu for the cooker with the hot-air lid (B). The pre-set time of the program will flash on the display. Use the "+" and "-" buttons to adjust the cooking time.
• If you press the Time/Temp button after selecting a program, you can also use the "+" and "-" buttons to adjust the cooking temperature.
• Press the Start/Cancel button to confirm.
• During cooking, you can open the hot-air lid (2) at any time to check the food. The selected program will be paused. After placing the lid back on the cooker, the program will resume where it was interrupted.

Tips

During cooking, we recommend turning the foods so they cook evenly.

PRE-SET PROGRAMS

Programs for cooking using the pressure lid
Programs Time Cooking time
Rice 12 mln 8-15 mln
Bean	40 min	30-60 min
Soup	25 min	20-60 min
Meat Stew	35 min	20-45 min
Slow Cook	4 hours	2-10 hours
Yogurt 12 hours	8-24 hours
Sous Vide	2 hours	2-6 hours
Porridge	12 min 5-20 min

Programs for cooking using the hot-air lid
Programs	Time	Cooking time	Temperature
Chicken	25 min	1-60 min	200°C
Steak	7 min	1-60 min	200°C
Fish	20 min	1-60 min	200°C

EN

concept

concept

DE

Dessert 35 min	1-60 min 160 °C
Wings 15 min	1-60 min 200 °C
French Fries 18 min	1-60 min 200 °C
Dehydrate 10 hours	0.5-24 hours 55 °C
DIY 30 min	1-60 min 180 °C

CLEANING AND MAINTENANCE

Clean the appliance after each use.

Do not use coarse and chemically aggressive substances such as: sharp objects, scrapers, chemical solvents, thinners, etc.

• Before cleaning always disconnect the appliance from the mains. Never immerse the appliance, hot-air lid or heater in water or any other liquid!
  • Before cleaning the appliance allow it to cool down.
• Wipe the outside of the appliance with a damp cloth.
• Fill the inner container with hot water and leave to stand for a while. Then it can be washed with a soft cloth in water with a detergent or in a dishwasher.
• Other parts of the appliance can be washed in water with a detergent.

SERVICE

Extensive maintenance or repair, which requires access to internal parts of the product, has to be performed by a qualified service centre.

ENVIRONMENTAL CONCERNS

• Packaging materials and old appliances should be recycled.
  • Packaging materials may be disposed of as sorted waste.
• Dispose the plastic bags made of polyethylene (PE) of as sorted waste.

Recycling of the appliance at the end of its lifespan

This appliance is labelled in accordance with European Directive 2012/19/EU concerning used electrical and electronic appliances (Waste Electrical and Electronic Equipment - WEEE). The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead, it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. The disposal of such material has to be done according to the recycling regulations. For more detailed information about recycling of this appliance see the authorized local office or service for household waste disposal or the shop, where you purchased the appliance.

The product meets all the necessary requirements of the EU directives applicable to the specific product.

Changes in text, design, and technical specifications are subject to change without notice and we reserve the right to change them.

CK7000

DANKSAGUNG

Attention! Surface chaude

IMPORTANT

8 Vaso medidor
9 Colector de condensado
10 Cesta
11 Base desmontable
12 Recipiente interno
13 Cuerpo del artefacto 14

1. Funeral control


The manufacturer (or Importer) is responsible for ensuring the product complies with the requirements of applicable legal regulations as well as those of the relevant technical standards. Moreover, they are responsible for ensuring the product has the properties the manufacturer described in documents related to the goods or those reasonably expected by the customer with regard to the nature of the goods or based on advertising produced by the manufacturer, and further they are responsible for ensuring the product is fit for the purpose proposed by the manufacturer or that a product of the same type is normally used for.

The quality warranty term is 24 months from product takeover by the customer.

The warranty does not apply to wear and tear caused by regular use. The customer shall not be entitled to any warranty claims if, prior to taking the product over, they knew the product contained a defect or if the defect is attributable to the customer.

The warranty specifically does not apply:

• if the product installation, operation and service conditions stipulated in the product operating manual have not been adhered to,
  • to malfunctions caused due to mechanical, heat or chemical damage, short circuit, over voltage or incorrect installation,
  • to malfunctions caused by an inexpert third-party intervention,
  • to malfunctions caused by natural disaster,
  • to malfunctions caused by insufficient or inappropriate maintenance in violation of the operating manual, including malfunctions caused by water and other sediments.
  • to changes in colour of the heating surface or to scratching of the surface caused as a result of using the products in an unusual manner,
  • to appearance and functional changes caused by exposure to sunlight, thermal radiation of water and other sediments,
• if the service life of certain product parts expires, e.g. for accumulators, bulbs, etc.

The warranty does not apply to any products and services provided along with the product (gifts, promotional articles, etc.).

Filing a complaint

A complaint against a product defect must be filed as soon as identified, yet no later than before the end of the warranty term.

The customer must file a product complaint with the dealer from which they have purchased the product, or with any authorised service centre, a list of which is included in the product package, or available at www.my-concept.com.

While filing a product complaint, the product must be duly cleaned and securely packed so as to prevent any damage during its transport to an authorised service centre, where relevant, unless the product is delivered in person.

The customer must submit proof of having concluded a purchase contract for the product by producing the receipt.

While filing their complaint, the customer must indicate the noted defect and identify the preferred complaint application method.

Complaints processing

As long as the noted defect may be removed, the user has the right to have the defect duly removed free of charge on a timely basis.

Where such a procedure is not reasonable with regard to the nature of the defect, the user may require to be supplied a new defect-free product (replacement), or, where the defect applies to a part of the product only, replacement of the part concerned. However, if replacement of the product or any part thereof is not proportionate with regard to the nature of the defect, especially if the defect can be removed without undue delay, the customer has the right to have the defect removed free of charge.

If the noted defect is not removable, or if the customer becomes entitled to replacement of the product or a part thereof, yet the replacement is not possible, for example due to the product having been sold out, the customer has the right to return the product (withdrawal from the contract).

The customer shall have the right to a new product (replacement) or to replacement of a part of the product even if the defect can be removed, provided they cannot properly use the product due to repeated occurrence of the defect or due to a high number of such defects. In such a case, the customer also has the right to return the product (by withdrawing from the contract).

If the product is not returned (the customer does not withdraw from the contract), or if the customer does not apply the right to a new defect-free product (replacement), to replacement of a part thereof or to repair of the product, they may request a reasonable discount. The customer also has a right to a reasonable discount if a new defect-free product cannot be supplied to them, or if a product part cannot be replaced or the product repaired unless the situation is remedied within a reasonable time limit, or if remedying the situation would create major discomfort on the part of the customer.

The seller, authorised service centre or a staff member authorised by them must decide about each complaint immediately or within three business days in complicated cases. This term does not include a reasonable period of time, depending on the type of product concerned,

required for the defect to be assessed by an expert. A complaint, including defect removal, must be dealt with without any undue delay, yet no later than within 30 calendar days of the complaint filing date, unless the seller and the customer agree on a later deadline.

On returning the product (withdrawing from the contract) the customer must return any accessories and documents supplied along with the product.

The customer does not have the right to keep the defective parts and components of the product replaced as part of a repair of the product.

This shall be without prejudice to any other rights the customer may have in relation to the purchase of the product.

Remark: Complaints against products damaged in transport are governed by the carrier's complaints procedure.

Manufacturer

Jindrich Valenta - Concept

Company ID No. 13216660

email: [e-mail]

www: www.my-concept.com

Product data

Model:
Production number:
Date of purchase: Seal and signature of vendor:

concept concept

DEGARANTIEBEDINGUNGEN

Garantie

FR CONDITIONS DE GARANTIE

Garantie

PI CONCEPT POLSKA sp. z o.o.
