FR1200 - Deep fryer Concept - Free user manual and instructions

Product Type	Air Fryer
Brand	Concept
Model	FR1200
Power	1600 W
Voltage	220-240 V~50/60 Hz
Basket Capacity	12 L
Adjustable Temperature	50 to 220 °C
Timer	0 to 8 hours
Preset Programs	15 programs (Fries, Defrost, Wings, Drying, Steak, Chips, Fish, Vegetables, Popcorn, Chicken, Cake, Manual, Pizza, Keep Warm, Toast, Biscuits)
Rotisserie Function	Yes, for chicken up to 1.2 kg
Interior Light	Yes
Included Accessories	Basket, rack, drip tray, baking sheet, handling tongs, rotisserie fork
Material	Stainless steel and plastic
Accessory Cleaning	Dishwasher safe
Warranty	24 months

Frequently Asked Questions - FR1200 Concept

Can I use oil in this air fryer?

No, this is an air fryer. Never use oil or other frying agents, as this could damage the appliance and cause a fire hazard.

How to clean the accessories?

Wash the accessories (basket, rack, drip tray, baking sheet, tongs, fork) with hot water and mild detergent or in the dishwasher. Ensure the appliance is unplugged and completely cooled before cleaning.

What is the maximum basket capacity?

The basket has a capacity of 12 liters. For the rotisserie, the maximum chicken weight is 1.2 kg.

How many preset programs are available?

The appliance offers 15 preset programs: Fries, Defrost, Wings, Drying, Steak, Chips, Fish, Vegetables, Popcorn, Chicken, Cake, Manual, Pizza, Keep Warm, Toast, and Biscuits.

How to manually adjust the temperature or time?

Press the temperature (C) or time (D) selection button, then use the + (E) or - (F) buttons to adjust the desired value.

What to do if black smoke comes out of the appliance?

Immediately stop the appliance by pressing the on/off button (A) and unplug it. Let it cool for at least 30 minutes, then contact an authorized service center.

Can I open the door during cooking?

Yes, you can open the door at any time to check cooking. After closing the door, the program resumes automatically.

How to use the rotisserie function?

Spike a prepared chicken (max 1.2 kg) onto the rotisserie shaft and secure the prongs. Place the fork in the side holes, select the Chicken program with button (B), press the rotation button (H), then start with switch (A). Use the tongs to remove the rotisserie after cooking.

What is the warranty period?

The product quality warranty is 24 months from the date of purchase. It does not cover normal wear and tear or damage caused by improper use.

Are the accessories dishwasher safe?

Yes, all accessories (tongs, rotisserie fork, rack, basket, drip tray, baking sheet) are dishwasher safe. Dry them thoroughly before storing.

USER MANUAL FR1200 Concept

Black concept air fryer with digital display and control buttons (no visible text or symbols on device body)

FR1200

CZ

HU LV DE FRENSK PL

IT ES

RO

concept

CZ

Poděkování

POPIS OVLÁDACÍHO PANELU

A Vypínač

B Volba programů

H Rotace pro program chicken

I Svetlo

FR1200FR1200

PŘED PRVNÍM POUŽITÍM

Diagram showing a mechanical device with a rotating arm and a separate open device (no text or symbols)

CZ

concept

concept

CZ

TIPY

POPIS OVLÁDACIEHO PANELU

A Vypínač

B Volba programov

Diagram showing a mechanical device with a rotating arm and a separate open device (no text or symbols)

SK

concept

concept

SK

TIPY

OPIS PANELU STEROWANIA

Diagram showing a mechanical assembly with a gear and a closed device (no text or symbols)

PL

concept

concept

PL

WSKAZÓWKI

WSTĘPNIE USTAWIONE PROGRAMY

A KEZELÓPANEL LEÍRÁSA

30

FR1200FR1200

AZ ELSÖ HASZNÁLAT ELÖTT

Diagram showing a mechanical device with a shaft and a separate open device (no text or symbols)

HU

concept

concept

HU

ÖTLETEK

VADİBAS PANELA APRAKSTS

FR1200FR1200

PIRMS PIRMAS IZMANTOŠANAS

Line drawings of a mechanical device with a rotating shaft and a transparent housing (no text or symbols)

LV

concept

concept

LV

PADOMI

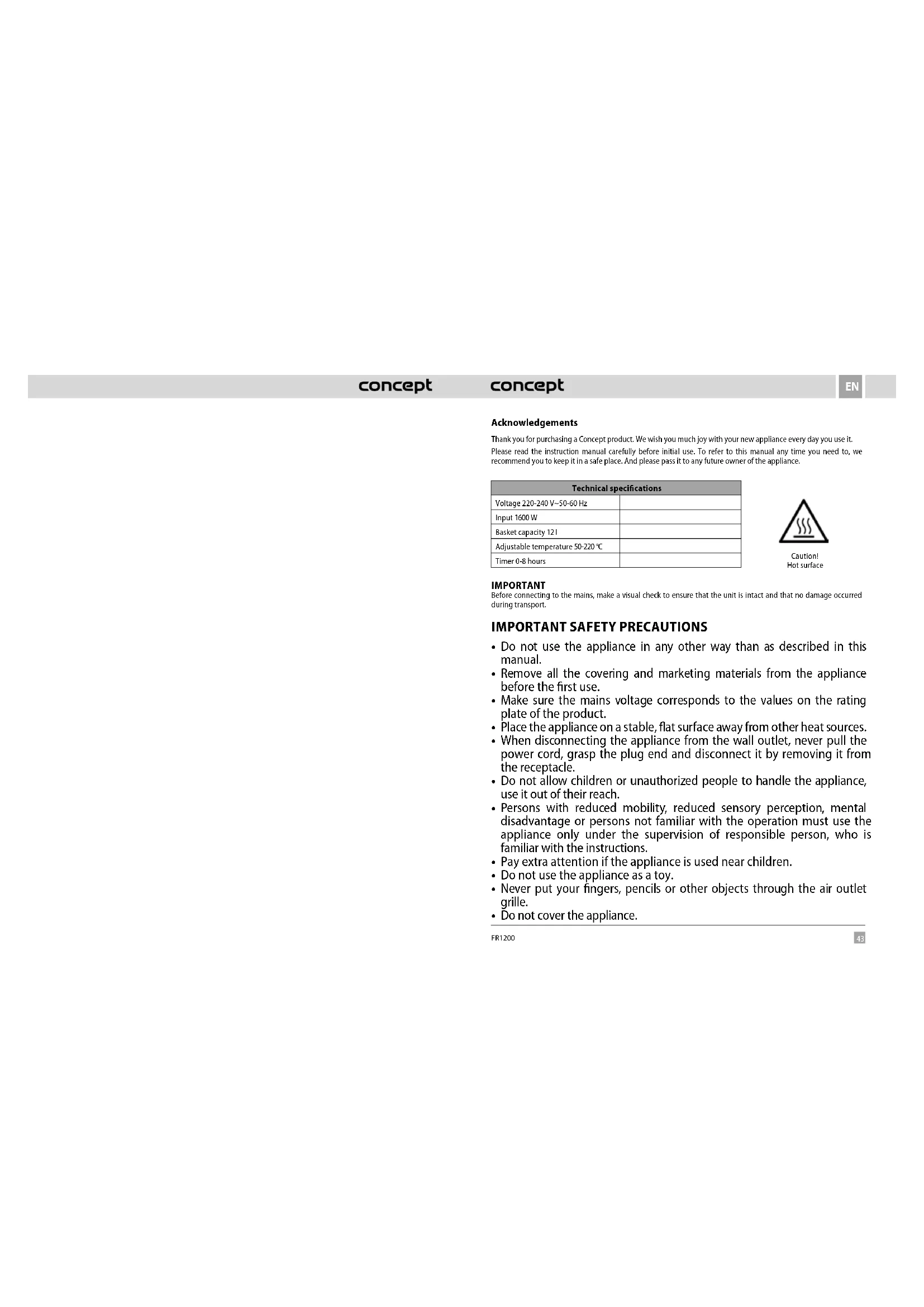

Thank you for purchasing a Concept product. We wish you much joy with your new appliance every day you use it. Please read the instruction manual carefully before initial use. To refer to this manual any time you need to, we recommend you to keep it in a safe place. And please pass it to any future owner of the appliance.

Technical specifications
Voltage 220-240 V–50-60 Hz
Input 1600 W
Basket capacity 12 l
Adjustable temperature 50-220 °C
Timer 0-8 hours

Caution! Hot surface

IMPORTANT

Before connecting to the mains, make a visual check to ensure that the unit is intact and that no damage occurred during transport.

IMPORTANT SAFETY PRECAUTIONS

• Do not use the appliance in any other way than as described in this manual.
• Remove all the covering and marketing materials from the appliance before the first use.
• Make sure the mains voltage corresponds to the values on the rating plate of the product.
• Place the appliance on a stable, flat surface away from other heat sources.
• When disconnecting the appliance from the wall outlet, never pull the power cord, grasp the plug end and disconnect it by removing it from the receptacle.
• Do not allow children or unauthorized people to handle the appliance, use it out of their reach.
• Persons with reduced mobility, reduced sensory perception, mental disadvantage or persons not familiar with the operation must use the appliance only under the supervision of responsible person, who is familiar with the instructions.
• Pay extra attention if the appliance is used near children.
• Do not use the appliance as a toy.
• Never put your fingers, pencils or other objects through the air outlet grille.
• Do not cover the appliance.

EN

concept

concept

EN

• Before assembly and disassembly, disconnect the power cord from the wall outlet.
• Before cleaning and after use of the appliance, switch the appliance off and disconnect it from the mains.
• Keep the appliance clean, do not allow foreign objects to into the grid openings. It could cause serious injury, short circuit, damage to the appliance or cause fire.
• Do not use the appliance with a damaged cord or plug and have it repaired immediately by an authorized service centre.
• Do not use the appliance if it is not working properly, has been dropped, damaged or immersed in liquid. Have it checked and repaired by an authorized service centre.
• The appliance is only suitable for home use and is not intended for commercial use.
• Do not touch the appliance with wet hands.
• Do not immerse the power cord, plug or appliance in water or any other liquid.
• Do not repair the appliance yourself. Contact an authorized service centre.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved. Cleaning and maintenance performed by the user must not be carried out by children unless they are 8 years old and under supervision. Children aged under 8 years of age must be kept away from the appliance and its power cord. Do not let children play with the appliance.
• Do not touch hot surfaces
• Do not let the power cord hang freely over the edge of a table or kitchen unit. Do not let the power cord touch hot surfaces.
• Do not place the appliance near a gas or electric burner.
• CAUTION: The surfaces of the appliance may be very hot. Hold the appliance by the handle only and wear protective equipment such as a kitchen glove.
• Pay special attention to prevent water or other liquid from entering the appliance. This could cause an electric shock.
  • Always place the ingredients in the appliance basket to prevent them

from coming into contact with the heater.

• Never touch the inner surfaces of the appliance during operation or immediately after switching off. Allow the appliance to cool down sufficiently.
• Do not plug in or operate the appliance with wet hands.
• During frying with hot air, hot steam is released through the air outlets, keep your hands and face at a safe distance from the water vapour coming from the air outlets.
• If you see dark smoke coming out of the appliance during operation, switch it off immediately and contact an authorized service centre.
• Before cleaning the appliance allow it to cool down for at least 30 minutes.

Damages from failure to follow the manufacturer's instructions are not covered by the warranty.

EN

concept

concept

EN

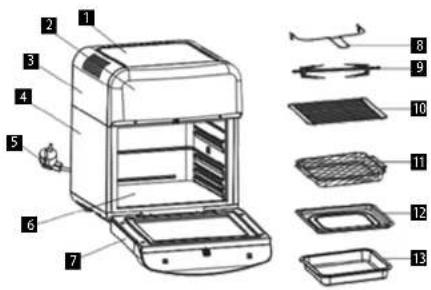

PRODUCT DESCRIPTION

1 Upper cover
2 Display
3 Side cover
4 Appliance body
5. Power cord
6. The interior
7. Door
9. Handling pliers
- Handling pie:
9 Rottisseine York
10 Grid
11 Basket
12 Drip tray
13 Baking tray

CONTROL PANEL LAYOUT

A On/Off switch
B Program selection
C Buttons for setting the temperature
D Buttons for setting the time
E Increasing temperature / time +
F Decreasing temperature / time -
G Set program
H Rotation for chicken program
I Light

46

FR1200FR1200

BEFORE FIRST USE

• Remove all packaging materials from the appliance.
• Remove all labels and stickers from the appliance.
• The appliance accessories: handling pliers (8), rotisserie fork (9), grid (10), basket (11), drip tray (12) and baking tray (13) should be washed with hot water and detergent. All accessories of this appliance are dishwasher safe.
• Wipe the appliance thoroughly from the inside and outside with a cloth.

Warning: This fryer operates using hot air. Never use oil or other frying liquids.

PREPARATION FOR USE

- Place the appliance on a flat and stable surface (do not place the appliance on a flammable surface).

OPERATING INSTRUCTIONS

• Place the appliance in a dry, level place.
• Plug the power cord into a power outlet. You will hear a sound signal, all the indicators will flash briefly and the switch button (A) lights up.
• Open the door of the appliance (7) and place the drip tray (12) on the bottom of the appliance.
• Use the accessories depending on the selected program. Place the food in the appliance and carefully close the appliance door.
  • To switch on the appliance, press the On/Off button (A).
• Use the program selection button (B) to set the desired program (G). According to the set program, the display shows the pre-set time and temperature.
• Briefly press the On/Off button (A) to confirm the program. The appliance will start working.

Note: Press the temperature selection button (C) or time selection button (D) and then press the "+" (E) or "-" (F) buttons to change the pre-set frying time or temperature.

• At the end of the program, you will hear a beep.
• To switch the appliance off, press the On/Off button (A).
- Check if the food is ready. Remove the accessories with ready-to-eat food and place them on a heat-resistant surface.

Note: The appliance surfaces are hot. Always use kitchen gloves when manipulating with appliance accessories!

ROTISSERIE

• Skewer the chicken you prepared (of max 1.2 kg) on the rotisserie axis and secure the tips on both sides. Secure all parts of the chicken with kitchen twine.
• Place the rotisserie fork with the chicken prepared in this way in the holes in the sides of the appliance.
• Use the program selection button (B) to select the chicken program, press the rotation button (H) and switch on the program with the switch (A).
• As the program starts, the rotisserie begins to rotate slowly 360^ to achieve perfectly even baking.
  • Use the handling pliers (8) to remove the baked chicken rotisserie from the appliance.

Line drawings of a kitchen appliance with a handle, blade, and oven (no text or symbols)

EN

concept

concept

EN

TIPS

• The larger the chicken or the amount of food you prepare, the longer the roasting/cooking time. Adjust the temperature and cooking time according to your needs.
• You can open the appliance door and check the food at any time during cooking. After closing the door, the program will automatically continue.
• When using the appliance for baking, it is necessary to use a baking form.
• You can easily check the condition of the food without opening the appliance by pressing the light (I) button.

PRE-SET PROGRAMS

Program Temperature (°C) Time (min.)
Fries 220 25
Ice out 80 10
Wings 200 15
Dehydrate 70 8 hrs.
Steak	180	12
Chips 220 20
Fish	180	15
Vegetables	180	12
Popcorn	220	10 (+ 2 min for pre-heating)
Chicken	220 40
Cake	180 30
Manual	200 15
Pizza	180 15
Keep Warm	80 30
Toast	200 4
Cookie	180	12

CLEANING AND MAINTENANCE

Clean the appliance after each use.

Do not use coarse and chemically aggressive substances such as: sharp objects, scrapers, chemical solvents, thinners, etc.

• Before cleaning always disconnect the appliance from the mains. Never immerse the appliance or heater in water or any other liquid!
  • Before cleaning the appliance allow it to cool down.
• Wipe the outside of the appliance with a damp cloth.
• You can wash all accessories in water with detergent or in the dishwasher.

SERVICE CENTRE

Extensive maintenance or repair, which requires access to internal parts of the product, has to be performed by a qualified specialist or the service centre.

ENVIRONMENTAL CONCERNS

• Packaging materials and old appliances should be recycled.
• Packaging materials may be disposed of as sorted waste.
• Dispose the plastic bags made of polyethylene (PE) of as sorted waste.

Recycling of the appliance at the end of its lifespan:

This appliance is labelled in accordance with European Directive 2012/19/EU concerning used electrical and electronic appliances (Waste Electrical and Electronic Equipment - WEEE). The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. The disposal of such material has to be done according to the recycling regulations. For more detailed information about recycling of this product, please contact your local council, your household waste disposal service or the shop where you purchased the appliance.

The product meets all the necessary requirements of the EU directives applicable to the specific product.

Changes in text, design, and technical specifications are subject to change without prior notice and we reserve the right to change them.

concept concept

DE

Danksagung

54

FR1200FR1200

Line drawings of a mechanical device with a shaft, a gear-like component, and an open oven (no text or symbols)

DE

concept

concept

DE

TIPPS

Attention! Surface chaude

IMPORTANT

DESCRIPTION DU PANNEAU DE COMMANDE

Three technical illustrations: a mechanical component, a gear mechanism, and an open device (no text or symbols)

FR

concept

concept

FR

CONSEILS

Diagram showing a mechanical device with a rotating arm and a closed lid, alongside an open lid (no text or symbols present)

IT

concept

concept

IT

SUGGERIMENTI

Diagram showing a hand holding a device next to an open storage unit (no text or symbols present)

78

FR1200FR1200

ES

concept

concept

ES

CONSEJOS

DESCRIEREA PANOULUI DE CONTROL

Diagram showing a mechanical device with a rotating shaft and a closed lid, alongside an exploded view of its internal structure (no text or symbols present)

RO

concept

concept

RO

SUGESTII

The manufacturer (or Importer) is responsible for ensuring the product complies with the requirements of applicable legal regulations as well as those of the relevant technical standards. Moreover, they are responsible for ensuring the product has the properties the manufacturer described in documents related to the goods or those reasonably expected by the customer with regard to the nature of the goods or based on advertising produced by the manufacturer, and further they are responsible for ensuring the product is fit for the purpose proposed by the manufacturer or that a product of the same type is normally used for.

The quality warranty term is 24 months from product takeover by the customer.

The warranty does not apply to wear and tear caused by regular use. The customer shall not be entitled to any warranty claims if, prior to taking the product over, they knew the product contained a defect or if the defect is attributable to the customer.

The warranty specifically does not apply:

• if the product installation, operation and service conditions stipulated in the product operating manual have not been adhered to,
  • to malfunctions caused due to mechanical, heat or chemical damage, short circuit, over voltage or incorrect installation.
  • to malfunctions caused by an inexpert third-party intervention,
  • to malfunctions caused by natural disaster,
  • to malfunctions caused by insufficient or inappropriate maintenance in violation of the operating manual, including malfunctions caused by water and other sediments.
  • to changes in colour of the heating surface or to scratching of the surface caused as a result of using the products in an unusual manner,
  • to appearance and functional changes caused by exposure to sunlight, thermal radiation of water and other sediments,
• if the service life of certain product parts expires, e.g. for accumulators, bulbs, etc.

The warranty does not apply to any products and services provided along with the product (gifts, promotional articles, etc.).

Filing a complaint

A complaint against a product defect must be filed as soon as identified, yet no later than before the end of the warranty term.

The customer must file a product complaint with the dealer from which they have purchased the product, or with any authorised service centre, a list of which is included in the product package, or available at www.my-concept.com.

While filing a product complaint, the product must be duly cleaned and securely packed so as to prevent any damage during its transport to an authorised service centre, where relevant, unless the product is delivered in person.

The customer must submit proof of having concluded a purchase contract for the product by producing the receipt.

While filing their complaint, the customer must indicate the noted defect and identify the preferred complaint application method.

Complaints processing

As long as the noted defect may be removed, the user has the right to have the defect duly removed free of charge on a timely basis.

Where such a procedure is not reasonable with regard to the nature of the defect, the user may require to be supplied a new defect-free product (replacement), or, where the defect applies to a part of the product only, replacement of the part concerned. However, if replacement of the product or any part thereof is not proportionate with regard to the nature of the defect, especially if the defect can be removed without undue delay, the customer has the right to have the defect removed free of charge.

If the noted defect is not removable, or if the customer becomes entitled to replacement of the product or a part thereof, yet the replacement is not possible, for example due to the product having been sold out, the customer has the right to return the product (withdrawal from the contract).

The customer shall have the right to a new product (replacement) or to replacement of a part of the product even if the defect can be removed, provided they cannot properly use the product due to repeated occurrence of the defect or due to a high number of such defects. In such a case, the customer also has the right to return the product (by withdrawing from the contract).

If the product is not returned (the customer does not withdraw from the contract), or if the customer does not apply the right to a new defect-free product (replacement), to replacement of a part thereof or to repair of the product, they may request a reasonable discount. The customer also has a right to a reasonable discount if a new defect-free product cannot be supplied to them, or if a product part cannot be replaced or the product repaired unless the situation is remedied within a reasonable time limit, or if remedying the situation would create major discomfort on the part of the customer.

The seller, authorised service centre or a staff member authorised by them must decide about each complaint immediately or within three business days in complicated cases. This term does not include a reasonable period of time, depending on the type of product concerned,

required for the defect to be assessed by an expert. A complaint, including defect removal, must be dealt with without any undue delay, yet no later than within 30 calendar days of the complaint filing date, unless the seller and the customer agree on a later deadline.

On returning the product (withdrawing from the contract) the customer must return any accessories and documents supplied along with the product.

The customer does not have the right to keep the defective parts and components of the product replaced as part of a repair of the product.

This shall be without prejudice to any other rights the customer may have in relation to the purchase of the product.

Remark: Complaints against products damaged in transport are governed by the carrier's complaints procedure.

Manufacturer

Jindrich Valenta - Concept

Vysokomytská 1800, 565 01 Chocen

Czech Republic

tel.: [phone]

fax [phone]

Company ID No. 13216660

email: [e-mail]

www: www.my-concept.com

Product data

Model:
Production number:
Date of purchase: Seal and signature of vendor:

concept concept

DEGARANTIEBEDINGUNGEN

Garantie

FR CONDITIONS DE GARANTIE

Garantie

CONCEPT POLSKA sp. z o.o.

Ostrowskiego 30, 53-238 Wroclaw Tel.: [phone], Fax: [phone] www.my-concept.pl

ASPICO KFT
