FR1010 - Deep fryer Concept - Free user manual and instructions

Product type	Electric deep fryer
Brand	Concept
Model	FR1010
Power supply	220-240 V ~ 50-60 Hz
Power	1800 W
Oil capacity	2.5 L
Temperature range	130 - 190 °C
Timer	5 - 30 min with automatic shut-off and audible signal
Tank material	Coated metal
Basket material	Metal, dishwasher safe
Included accessories	Frying basket, drip tray, removable filter
Safety	Insulated handle, sliding flap, automatic timer shut-off, overheat protection (not specified)
Cleaning	Basket and filter dishwasher safe; wipe tank; do not immerse the body
Warranty	24 months
Country of manufacture	Czech Republic

Frequently Asked Questions - FR1010 Concept

What is the maximum oil capacity of the Concept FR1010 deep fryer?

The maximum oil capacity is 2.5 liters. Always fill between the MIN and MAX marks indicated in the tank.

How to adjust the temperature and timer?

Turn the rotary control (6) to set the temperature between 130 and 190 °C. Use the rotary control (8) to set the cooking time from 5 to 30 minutes; the appliance stops automatically at the end of the set time.

Can I wash the basket and the tank in the dishwasher?

Yes, the frying basket (3) is dishwasher safe. The drip tray (4) can be washed with hot water and dish soap, but it is not recommended to put it in the dishwasher.

How to clean the filter?

The filter (9) is removable. Remove it (see Fig. 3 in the manual) and wash it with hot water and dish soap, then rinse thoroughly.

Why does the indicator light turn on and off?

The indicator light (7) turns on when the appliance heats up and turns off when the set temperature is reached. It turns on again when the heating element restarts to maintain the temperature.

How much food can I put in the basket?

Do not overfill the basket to avoid oil temperature drop. The recommended quantities are indicated in the cooking table (e.g., thin fries: 600 g, thick fries: 700 g).

How to use the sliding flap on the handle?

The sliding flap on the handle (1) allows you to lower or raise the basket into the oil safely without opening the lid. Pull it up to lift the basket, push it down to submerge.

What to do if black smoke escapes from the appliance?

Immediately stop the appliance, unplug it, and contact an authorized service center. Allow to cool for at least 30 minutes before any handling.

Can I reuse the oil?

Yes, filter the cooled oil using a sieve or thick cloth to remove residues. Store it in a sealed container. It is recommended to change the oil after six uses or two weeks of storage.

What is the warranty period of the Concept FR1010 deep fryer?

The warranty is 24 months from the date of purchase, subject to compliance with the use and maintenance conditions described in the manual.

USER MANUAL FR1010 Concept

White concept toaster with black handle and control knobs, no visible text or symbols on main body

FR1010

CZ

HU LV DE FRENSK PL

IT ES

RO

Poděkování

PŘED PRVNÍM POUŽITÍM

PRED PRVÝM POUŽITÍM

PRZED PIERWSZYM UŻYCIEM

HASZNÁLATBA VÉTEL ELÖTT

PIRMS PIRMAS IZMANTOSANAS

Thank you for purchasing a Concept product. We wish you much joy with your new appliance every day you use it. Please read the instruction manual carefully before initial use. To refer to this manual any time you need to, we recommend you to keep it in a safe place. And please pass it to any future owner of the appliance.

Technical specifications
Voltage 220-240 V–50-60 Hz
Input 1800 W
Capacity 2.5 l
Adjustable temperature 130-190 °C
Timer 5-30 min.

Caution! Hot surface

IMPORTANT

Before connecting to the mains, make a visual check to ensure that the unit is intact and that no damage occurred during transport.

IMPORTANT SAFETY PRECAUTIONS

• Do not use the appliance in any other way than as described in this manual.
• Remove all the covering and marketing materials from the appliance before the first use.
• Make sure the mains voltage corresponds to the values on the rating plate of the product.
• Place the appliance on a stable, flat surface away from other heat sources.
• When disconnecting the appliance from the wall outlet, never pull the power cord, grasp the plug end and disconnect it by removing it from the receptacle.
• Do not allow children or unauthorized people to handle the appliance, use it out of their reach.
• Persons with reduced mobility, reduced sensory perception, mental disadvantage or persons not familiar with the operation must use the appliance only under the supervision of responsible person, who is familiar with the instructions.
• Pay extra attention if the appliance is used near children.
• Do not use the appliance as a toy.
• Never put your fingers, pencils or other objects through the air outlet grille.
• Do not cover the appliance.

EN

concept

concept

EN

• Before assembly and disassembly, disconnect the power cord from the wall outlet.
• Before cleaning and after use of the appliance, switch the appliance off and disconnect it from the mains.
• Keep the appliance clean, do not allow foreign objects to into the grid openings. It could cause serious injury, short circuit, damage to the appliance or cause fire.
• Do not use the appliance with a damaged cord or plug and have it repaired immediately by an authorized service centre.
• Do not use the appliance if it is not working properly, has been dropped, damaged or immersed in liquid. Have it checked and repaired by an authorized service centre.
• The appliance is only suitable for home use and is not intended for commercial use.
• Do not touch the appliance with wet hands.
• Do not immerse the power cord, plug or appliance in water or any other liquid.
• Do not repair the appliance yourself. Contact an authorized service centre.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved. Cleaning and maintenance performed by the user must not be carried out by children unless they are 8 years old and under supervision. Children aged under 8 years of age must be kept away from the appliance and its power cord. Do not let children play with the appliance.
• Do not touch hot surfaces
• Do not let the power cord hang freely over the edge of a table or kitchen unit. Do not let the power cord touch hot surfaces.
• Do not place the appliance near a gas or electric burner.
• NOTICE: The surfaces of the appliance may be very hot. Hold the appliance by the handle only and wear protective equipment such as a kitchen glove.
• Pay special attention to prevent water or other liquid from entering the appliance. This could cause an electric shock.

• Always place the ingredients in the appliance basket to prevent them from coming into contact with the heater.
- Never touch the inner surfaces of the appliance during operation or immediately after switching off. Allow the appliance to cool down sufficiently.
- Do not plug in or operate the appliance with wet hands.
- During frying with hot air, hot steam is released through the air outlets, keep your hands and face at a safe distance from the water vapour coming from the air outlets.
- If you see dark smoke coming out of the appliance during operation, switch it off immediately and contact an authorized service centre.
- Before cleaning the appliance allow it to cool down for at least 30 minutes.

Damages from failure to follow the manufacturer's instructions are not covered by the warranty.

EN

concept

concept

EN

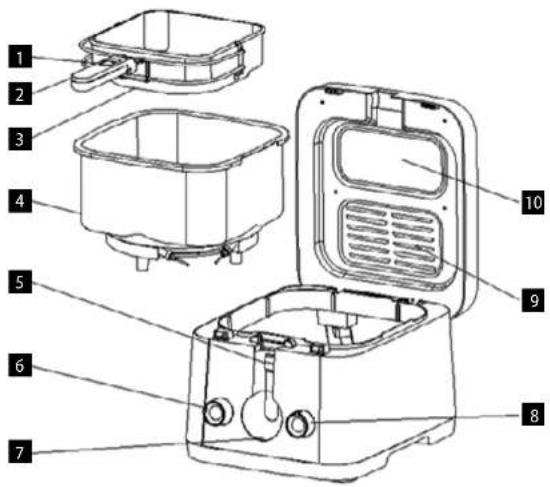

PRODUCT DESCRIPTION

1 Handle with sliding button
2 Basket support
3 Frying basket
4 Fry pot
5 Opening button
6 Rotary knob for setting the temperature
7 Indicator light
8 Rotary knob for selecting the time and switching on the appliance
9 Filter
10 Lid peephole

BEFORE FIRST USE

• Remove all packaging materials from the appliance.
• Remove all labels and stickers from the appliance.
• Wash the frying basket (3) and the fry pot (4) with hot water (note: the frying basket (3) can be washed in the dishwasher).
• Wipe the appliance thoroughly from the inside and outside with a cloth.

Warning: The amount of oil you use should always be between MINimum and MAXimum levels, otherwise the appliance could be damaged (Fig. 1).

Fig. 1

PREPARATION FOR USE

• Place the appliance on a flat and stable surface (do not place the appliance on a flammable surface).
• Place the frying basket (3) in the fry pot (4).

OPERATING INSTRUCTIONS

• Place the appliance in a dry, level place.
• Press the handle (1) at the bottom to open the lid of the appliance (Fig. 2).
• Remove the frying basket (3) out of the fry pot (4).
• Pour 2-2.5 l of oil into the fry pot (4) so that its level is between the MIN and MAX lines and close the appliance.
• Plug the power cord into the wall outlet.
• Select the desired temperature (6) and set the rotary control (8) to the ON position.
• The indicator light (7) lights up and the oil starts to heat. Once the oil is heated to the required temperature, the indicator light goes out.
• Insert an appropriate amount of dry food into the frying basket (3), carefully open the lid of the appliance and insert the frying basket. Close the appliance lid.
• Dip the frying basket in oil using the sliding button on the handle (1). And select the frying time by turning the time selection knob (8).
• When the frying is finished, you will hear a sound signal. Use the sliding button on the handle to remove the frying basket from the oil and only then open the lid of the appliance.

Note: When working with hot oil always proceed with extreme caution!

Fig. 2

TIPS

• If you are planning to fry more types of food, start with the food that needs the lowest temperature for frying.
- Do not overfill the frying basket as this may cause the temperature of the oil to drop significantly and the result of frying may not be optimal.
- Always use quality vegetable oils. We recommend changing the oil after the sixth use of the appliance at the latest (or after 2 weeks of storage).

46

FR1010FR1010

EN

concept

concept

EN

FOODSTUFF TO FRY

Foodstuff	Temperature	Weight (grams)	Approximate time (minutes)
Shrimp 130 300 3~5
Onion 140 200 3~4
Mushrooms 140 250 6~8
Fish 150 350 5~6
Fish in batter	150	350	6~8
Schnitzel	170	350	7~10
Chicken pieces	180	500	7~10
Thin fries	190	600	8~10
Steak fries	190	700	10~12

CLEANING AND MAINTENANCE

Do not use coarse and chemically aggressive substances such as: sharp objects, scrapers, chemical solvents, thinners, etc.

- Before cleaning always disconnect the appliance from the mains. Never immerse the appliance or heater in water or any other liquid!

• Before cleaning the appliance allow it to cool down.
- Wipe the outside of the appliance with a damp cloth.
• We recommend filtering the cooled oil through a thick sieve or a cloth to remove food residues after each use of the appliance.
- Keep the oil that you wish to reuse in a closed container.
- Wipe the fry pot with absorbent paper towels after pouring out the oil.
- Wash the fry pot and frying basket in warm water with detergent.
- Remove the filter (Fig. 3), wash it in warm water with detergent and finally rinse it with clean water.

SERVICE CENTRE

Extensive maintenance or repair, which requires access to internal parts of the product, has to be performed by a qualified specialist or the service centre.

ENVIRONMENTAL CONCERNS

• Packaging materials and old appliances should be recycled.
• Packaging materials may be disposed of as sorted waste.
- Dispose the plastic bags made of polyethylene (PE) of as sorted waste.

Recycling of the appliance at the end of its lifespan:

This appliance is labelled in accordance with European Directive 2012/19/EU concerning used electrical and electronic appliances (waste electrical and electronic equipment - WEEE). The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. The disposal of such material has to be done according to the recycling regulations. For more detailed information about recycling of this product, please contact your local council, your household waste disposal service or the shop where you purchased the appliance.

The product meets all the necessary requirements of the EU directives applicable to the specific product.

Changes in text, design, and technical specifications are subject to change without prior notice and we reserve the right to change them.

48

Danksagung

Attention! Surface chaude

IMPORTANT :

AVANT LA PREMIÈRE UTILISATION

COME PROCEDERE PRIMA DEL PRIMO USO

ÎNAINTE DE PRIMA UTILIZARE

The manufacturer (or Importer) is responsible for ensuring the product complies with the requirements of applicable legal regulations as well as those of the relevant technical standards. Moreover, they are responsible for ensuring the product has the properties the manufacturer described in documents related to the goods or those reasonably expected by the customer with regard to the nature of the goods or based on advertising produced by the manufacturer, and further they are responsible for ensuring the product is fit for the purpose proposed by the manufacturer or that a product of the same type is normally used for.

The quality warranty term is 24 months from product takeover by the customer.

The warranty does not apply to wear and tear caused by regular use. The customer shall not be entitled to any warranty claims if, prior to taking the product over, they knew the product contained a defect or if the defect is attributable to the customer.

The warranty specifically does not apply:

• if the product installation, operation and service conditions stipulated in the product operating manual have not been adhered to,
  • to malfunctions caused due to mechanical, heat or chemical damage, short circuit, over voltage or incorrect installation.
  • to malfunctions caused by an inexpert third-party intervention,
  • to malfunctions caused by natural disaster,
  • to malfunctions caused by insufficient or inappropriate maintenance in violation of the operating manual, including malfunctions caused by water and other sediments,
  • to changes in colour of the heating surface or to scratching of the surface caused as a result of using the products in an unusual manner,
  • to appearance and functional changes caused by exposure to sunlight, thermal radiation of water and other sediments,
• if the service life of certain product parts expires, e.g. for accumulators, bulbs, etc.

The warranty does not apply to any products and services provided along with the product (gifts, promotional articles, etc.).

Filing a complaint

A complaint against a product defect must be filed as soon as identified, yet no later than before the end of the warranty term.

The customer must file a product complaint with the dealer from which they have purchased the product, or with any authorised service centre, a list of which is included in the product package, or available at www.my-concept.com.

While filing a product complaint, the product must be duly cleaned and securely packed so as to prevent any damage during its transport to an authorised service centre, where relevant, unless the product is delivered in person.

The customer must submit proof of having concluded a purchase contract for the product by producing the receipt.

While filing their complaint, the customer must indicate the noted defect and identify the preferred complaint application method.

Complaints processing

As long as the noted defect may be removed, the user has the right to have the defect duly removed free of charge on a timely basis.

Where such a procedure is not reasonable with regard to the nature of the defect, the user may require to be supplied a new defect-free product (replacement), or, where the defect applies to a part of the product only, replacement of the part concerned. However, if replacement of the product or any part thereof is not proportionate with regard to the nature of the defect, especially if the defect can be removed without undue delay, the customer has the right to have the defect removed free of charge.

If the noted defect is not removable, or if the customer becomes entitled to replacement of the product or a part thereof, yet the replacement is not possible, for example due to the product having been sold out, the customer has the right to return the product (withdrawal from the contract).

The customer shall have the right to a new product (replacement) or to replacement of a part of the product even if the defect can be removed, provided they cannot properly use the product due to repeated occurrence of the defect or due to a high number of such defects. In such a case, the customer also has the right to return the product (by withdrawing from the contract).

If the product is not returned (the customer does not withdraw from the contract), or if the customer does not apply the right to a new defect-free product (replacement), to replacement of a part thereof or to repair of the product, they may request a reasonable discount. The customer also has a right to a reasonable discount if a new defect-free product cannot be supplied to them, or if a product part cannot be replaced or the product repaired unless the situation is remedied within a reasonable time limit, or if remedying the situation would create major discomfort on the part of the customer.

The seller, authorised service centre or a staff member authorised by them must decide about each complaint immediately or within three business days in complicated cases. This term does not include a reasonable period of time, depending on the type of product concerned,

required for the defect to be assessed by an expert. A complaint, including defect removal, must be dealt with without any undue delay, yet no later than within 30 calendar days of the complaint filing date, unless the seller and the customer agree on a later deadline.

On returning the product (withdrawing from the contract) the customer must return any accessories and documents supplied along with the product.

The customer does not have the right to keep the defective parts and components of the product replaced as part of a repair of the product.

This shall be without prejudice to any other rights the customer may have in relation to the purchase of the product.

Remark: Complaints against products damaged in transport are governed by the carrier's complaints procedure.

Manufacturer

Jindrich Valenta - Concept

Vysokomýtská 1800, 565 01 Choceň

Czech Republic

tel.: [phone]

fax [phone]

Company ID No. 13216660

email: [e-mail]

www: www.my-concept.com

Product data

Model:
Production number:
Date of purchase: Seal and signature of vendor:
