Brand	Crivit
Model	IAN 306977
Product type	Children's roller skates
Available sizes	29/30 and 31/32 (foot length up to 260 mm)
Wheel diameter	58 × 32 mm
Ball bearing	ABEC 5, chrome bearing
Manufacturing date	Month/Year 2019
Weight (approximate)	About 1.5 kg per pair
Recommended protective equipment	Helmet, wrist guards, elbow pads, knee pads
Brake	Front brake pad (removable)
Steering adjustment	Yes, via two nuts (9)
Intended use	Private use, recreational skating
Maintenance	Clean and dry after use; grease bearings externally
Wheel replacement	Possible, use wheels of same diameter
Warranty	3 years from date of purchase
After-sales service (Switzerland)	Tel: [phone], Email: [e-mail]

Frequently Asked Questions - IAN 306977 CRIVIT

What sizes are available for these skates?

The skates are available in sizes 29/30 and 31/32, corresponding to a foot length of up to 260 mm.

What type of ball bearing is used?

The bearings are of type ABEC 5 in chrome steel.

How to put on and adjust the skates?

Put on the skates like normal shoes. Use the laces (1) for a good fit by crossing them through the eyelets (fig. E) and tie a bow to fasten.

How to brake with these skates?

You can use the brake pad (7) by slightly lifting the heel and pressing the brake to the ground, or use the V-brake (fig. D) if the pad is removed.

How to replace the brake pad?

Unscrew the Phillips screw (8) at the top of the pad with an appropriate screwdriver, place the screw in a new pad and attach to the skate (fig. F).

How to replace worn wheels?

Unscrew the nut (6) in the middle of the wheel with a wrench, remove the wheel, place a new wheel on the axle and retighten the nut. The wheel should have no lateral play (fig. G).

How to adjust the steering of the skates?

Use the two nuts (9): tighten for a stiffer steering, loosen for a softer steering. The thread must protrude at least 3 mm from the self-locking nut.

What protective equipment is recommended?

Always wear a helmet, wrist guards, elbow pads, and knee pads to avoid injuries.

How to maintain the skates after use?

Clean and dry the skates after each use. Remove stones stuck in the wheels. Clean the bearings with a dry cloth and grease them externally to prevent rust.

What to do if the skates pull to the left or right?

This may be due to asymmetric wear of the wheels. Replace wheels that show wear on one side. Also check that the wheels are tight.

USER MANUAL IAN 306977 CRIVIT

Instructions for use

IAN 306977

DE AT CH

Scope of delivery/Part names 19

Technical Data 19

Correct Use 19

Safety Notes 19

Roller skating tips 19-20

Putting the skates on 20

Removing the skates 20

Maintenance 20-21

Care and storage 21

Trouble-shooting 21

Disposal 21

Notes on the guarantee and service handling 22

Freni con stopper (imm. C):

Congratulations! With your purchase you have decided on a high-quality product. Get to know the product before you start to use it.

Carefully read the following instructions for use.

Use the product only as described and only for the given areas of application. Keep these instructions safe. When passing the product on to a third party, always make sure that the documentation is included.

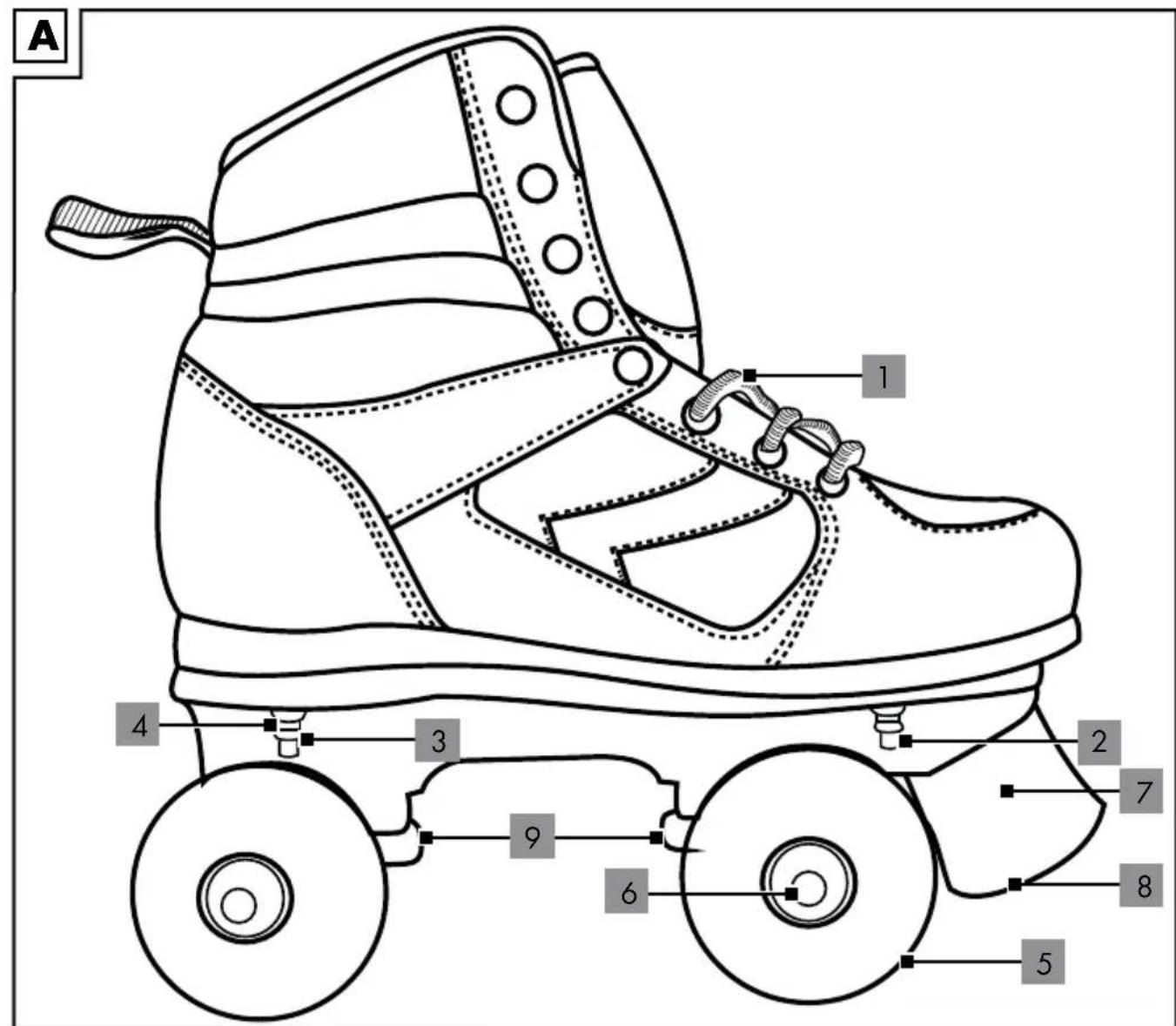

Scope of delivery/Part names (Figure A)

1 x Instructions for use
2 × Kids' Roller Skates
(1) Laces
(2) Screw, small
(3) Bolt, small
(4) Split lock washer
(5) Roller
(6) Bolt, large
(7) Brake stopper
(8) Phillips screw
(9) Nut for adjusting the steering characteristic

Technical Data

Sizes: 29/30 and 31/32

Class B, 20 - 60kg, foot size up to 260mm

Rollers: 58 × 32 ~mm

Ball bearings: ABEC 5 chrome bearings

Date of manufacture (month/year):

2019

Correct Use

These roller skates are intended for private use and not for other sports.

Safety Notes

Risk of Injury!

• Always pay attention to other road users and follow the road traffic regulations.
• Choose the correct surface for roller skating. Surfaces should be smooth, clean, and dry.
• Make sure that the screws and bolts are secure before roller skating.

• Ensure that screws and bolts retain their self-locking properties.

• Do not modify the roller skates in such a way that poses a risk to your safety.

• Remove objects with sharp edges, such as small stones, that you may skate into.
• Always wear appropriate protective equipment (helmet, protectors for palms, wrists, elbows, and knees).
• Avoid areas with heavy traffic.
• Remain vigilant at all times and be careful.
• Avoid excessive speeds. As a rule of thumb: never skate faster than you can run.
• Exchange the brake stoppers and rollers regularly if they are worn.
  Always wear reflective clothing so that you are more visible to others.
• Do not use this product barefoot.

Avoid property damage!

• Look after your roller skates.
• Avoid water, oil, potholes, and very rough surfaces.

Roller skating tips

Note: We recommend skating in skate parks and taking a skating course with an instructor.

First attempts

Initial position:

Keep your feet shoulder-width apart and bend your knees slightly to avoid falling backwards.

Accelerating:

As a beginner, start by taking small steps forwards with your toes pointing outwards at an angle.

Rolling:

If you take a few steps in succession you will then have enough momentum to place your skates next to one another and roll. Bend your knees slightly while doing this.

How to fall

Important! Practice falling initially onto a soft surface using protective equipment without your roller skates. Always try to fall forwards, and never backwards! Fall onto your protective knee pads. Then catch yourself using the elbow and wrist protectors. Spread your fingers in order to avoid injury.

Mastering curves

At low speeds:

Shift your weight as if riding a bicycle.
Move your weight onto your left foot for a left curve and onto your right foot for a right curve.

At high speeds:

Cross your feet as in ice-skating (Figure B).

Braking techniques

Note: Practise various braking techniques on a smooth surface without traffic or pedestrians. Avoid slopes until you are confident about braking.

Braking with your stopper (Figure C):

If your skates are fitted with brake stoppers, remember to use them. Lift the heel of your skate slightly and press the brake into the ground. Shift your weight forwards slightly and bend your knees. The braking effect can be intensified if you bend your knees more and shift your weight further forwards, while increasing at the same time the pressure on the skate you are braking with.

V-stopping (Figure D):

If you have removed the brake stopper from your skates, you should use the 'V-stop' technique. To do this, make a sharp "V" shape with your toes and roll so that your feet meet.

Setting the steering characteristic

The steering characteristic of the article depends on the weight of the user and the adjustment of the steering. The steering can be adjusted by both nuts (9). For harder steering, tighten the nuts. In order to achieve softer steering, loosen the nuts slightly.

ATTENTION! The thread must protrude at lease 3mm (approx. 2 threads) beyond the self-locking nut as the steering will be set too softly otherwise. The rollers may hit the shoe and block if the incline is steep (Figure H).

Note: Test and check the steering properties of the product before each use.

Testing the steering characteristic

1. Put on the roller skates and stand up.

2. Lean with your full body weight alternately to the left and to the right.

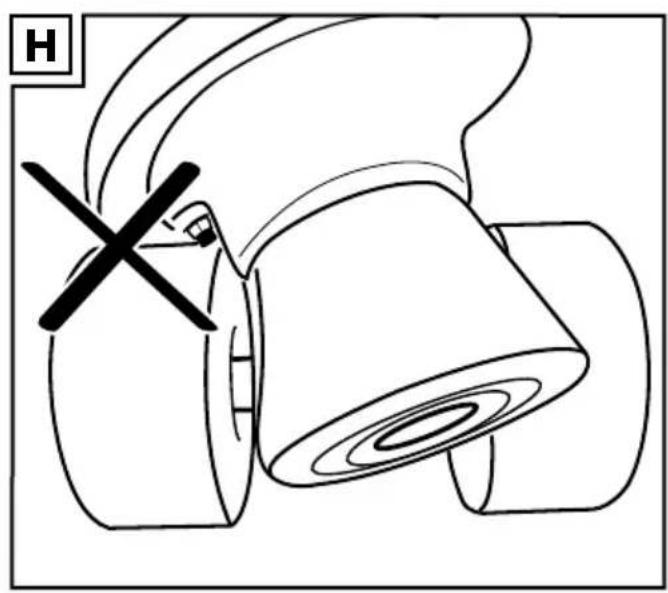

3. The underside of the roller skate must not rest on the wheels (Figure H).

4. If necessary, adjust the steering characteristic.

Putting the skates on

Preparation from unpacking to putting the skates on Important!

Ensure that your roller skates fit properly. Check all settings before each skating session, as they can alter over time and as a result of frequent use.

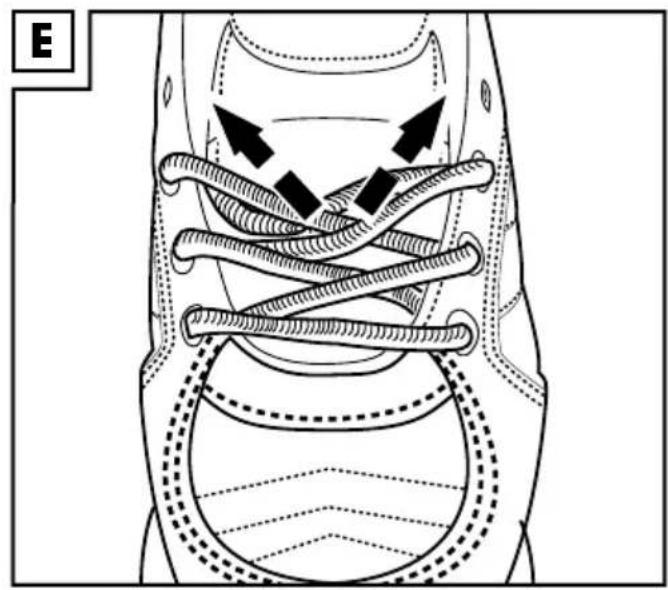

Put your roller skate on like a normal shoe. To do this, use the laces (1) to find a secure fit. Thread the laces (1) in a cross fashion into the corresponding eyelets (Figure E). Tie the laces (1) at the end with a bow.

Removing the skates

Open the laces (1) on the skates and take the skates off. If necessary, loosen the laces first.

Maintenance

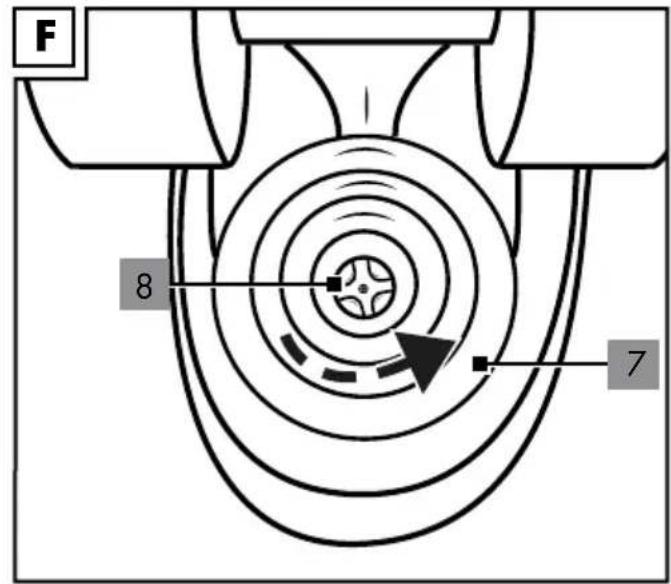

Changing the brake stopper (Figure F)

Note: Worn brakes do not function properly.

• Use appropriate tools to replace the brakes on the tip of the shoe.

• When changing the toe stoppers, ensure that they cannot rotate, and use new screws for the new stoppers.

• Turn the roller skate upside down with the rollers facing upwards and loosen the Phillips screw (8) on the brake stopper (7) from above with the appropriate Phillips screwdriver.

• Insert the screw into the new brake stopper and attach it to the bottom of the roller skate using the screw.

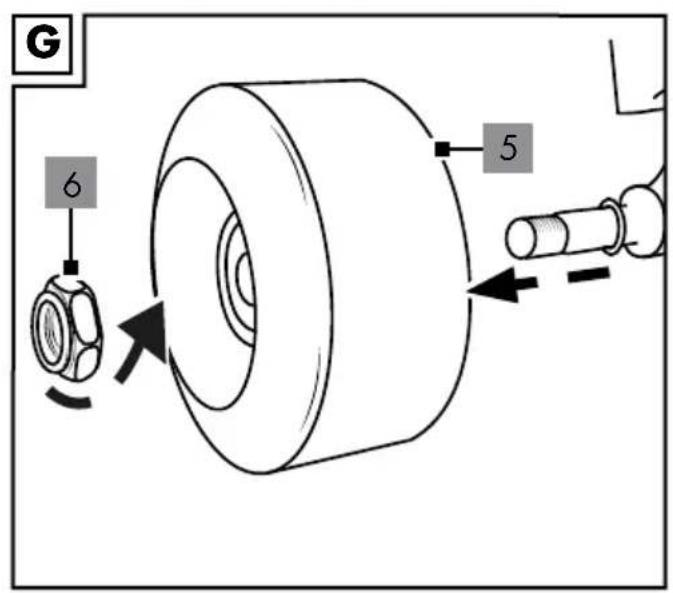

Changing the rollers (Figure G) Important!

• Please refer to the section on technical data: Rollers with a different diameter could change the handling characteristics and could mean a risk to the user in some circumstances.

You should therefore not use the skates if the rollers cannot be fitted perfectly. Never install larger rollers than those originally used on the roller skates.

Rollers become worn. The wear depends on many factors such as skating style, surfaces, the size and weight of the user, weather conditions, the roller material and its degree of hardness. It is therefore necessary to exchange them every so often.

1. Unscrew the bolts (6) on the centre of the rollers with a suitable spanner.
2. Remove the roller (5) from the skate and attach a new roller to the mount.
3. Screw the bolt (6) securely back onto the screw thread. The roller should not be able to move laterally.

Care and storage

Roller skates are pieces of technical sports and leisure equipment and they therefore become worn depending on the skill and style of each skater. We recommend that you clean and dry the roller skates thoroughly after use.

Remove any small stones and other objects that may have become trapped in your rollers.

Remove any sharp edges that may have formed during skating. Always keep the skates in a dry place.

• Clean the ball bearings with a dry cloth after skating. Wet or damp ball bearings must be dried using a clean cloth. Lubricate the bearings from the outside with a suitable bearing grease to prevent the formation of external rust.
• Bearings are usually closed and cannot be lubricated inside. Worn ball bearings must be replaced.

Trouble-shooting

• Rollers or ball bearings are noisy Dismantle the roller from the shoe, remove it, and clean the ball bearings with a clean cloth.

• Rollers wear out quickly

• Smooth surfaces extend the life of the rollers. Try harder rollers for harder surfaces and for use in difficult conditions.
• Roller skates pull to the left or right
• This can depend on the user. Exchange the rollers that show signs of one-sided wear.
• The brake is not working properly
• Change the brake if the angle between the brake and the ground is greater than 40 degrees, i.e. if the distance between the brake block and the ground becomes too great (more than 10mm ). Rounded brakes need to be exchanged for new blocks.
• Brake problems
• Always leave sufficient distance to brake. The faster you skate the longer your braking distance. Ensure that you understand the braking techniques and practise them on a level ground.
• Ankles get turned frequently Make sure that the laces are tight enough.
• Problems with the footbed
• You may not be accustomed to this kind of movement. Check the areas that are causing your problems and re-adjust the skates. Try wearing thick socks.

Disposal

Dispose of the article and the packaging materials in accordance with current local regulations. Packaging materials such as foil bags are not suitable to be given to children. Keep the packaging materials out of the reach of children.

Dispose of the products and the packaging in an environmentally friendly manner.

The recycling code is used to identify various materials for recycling. The code consists of the recycling symbol - which is

meant to reflect the recycling cycle - and a number which identifies the material.

Notes on the guarantee and service handling

The product was produced with great care and under constant supervision. You receive a three-year warranty for this product from the date of purchase. Please retain your receipt.

The warranty applies only to material and workmanship and does not apply to misuse or improper handling. Your statutory rights, especially the warranty rights, are not affected by this warranty.

With regard to complaints, please contact the following service hotline or contact us by e-mail.

Our service employees will advise as to the subsequent procedure as quickly as possible.

We will be personally available to discuss the situation with you.

Any repairs under the warranty, statutory guarantees or through goodwill do not extend the warranty period. This also applies to replaced and repaired parts. Repairs after the warranty are subject to a charge.

IAN:306977

Service Great Britain

Tel.: [phone]

E-Mail: [e-mail]

DELTA-SPORT HANDELSKONTOR GMBH

Wragekamp 6 • DE-22397 Hamburg

GERMANY

01/2019
