USER MANUAL LOOC IMOU

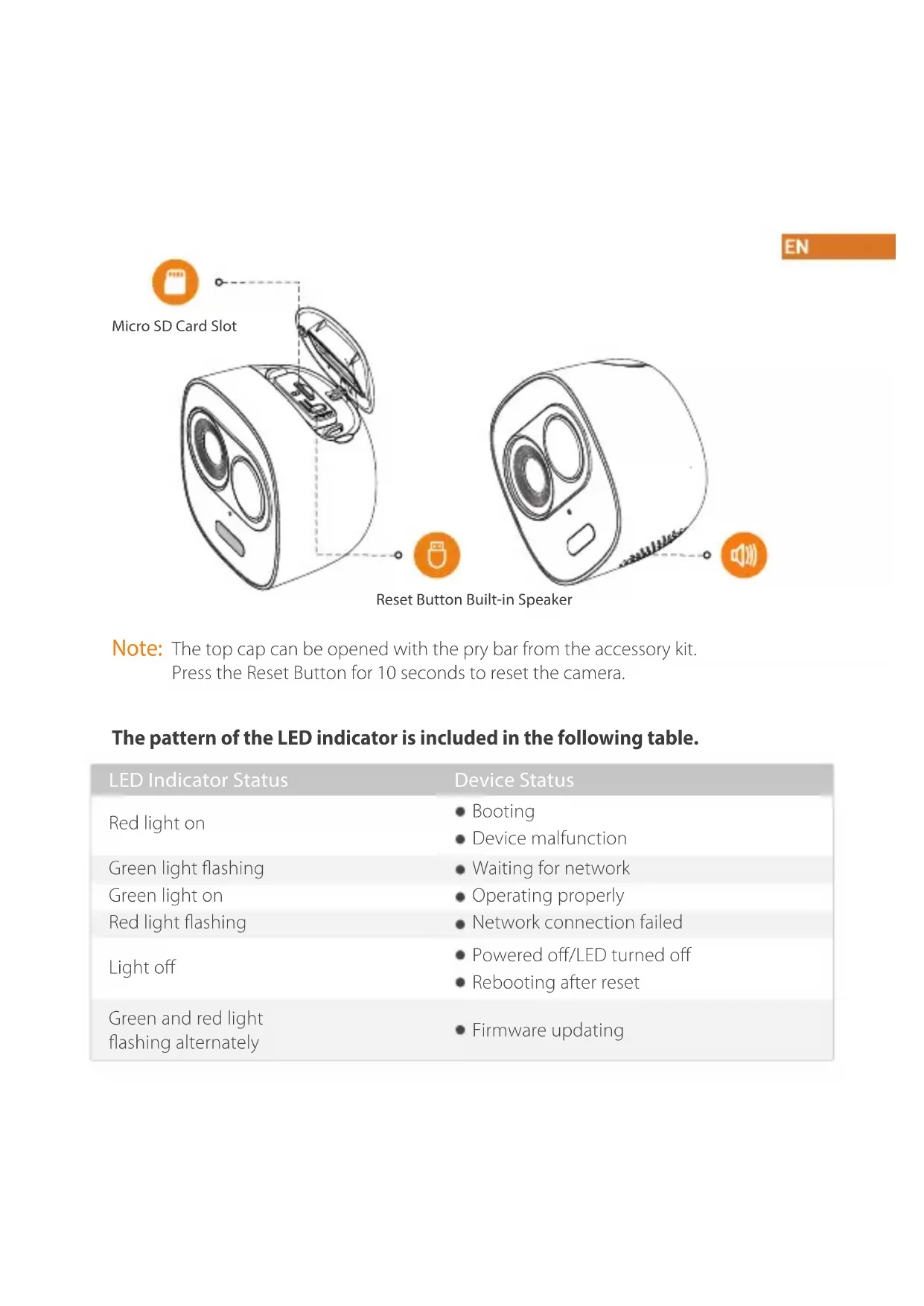

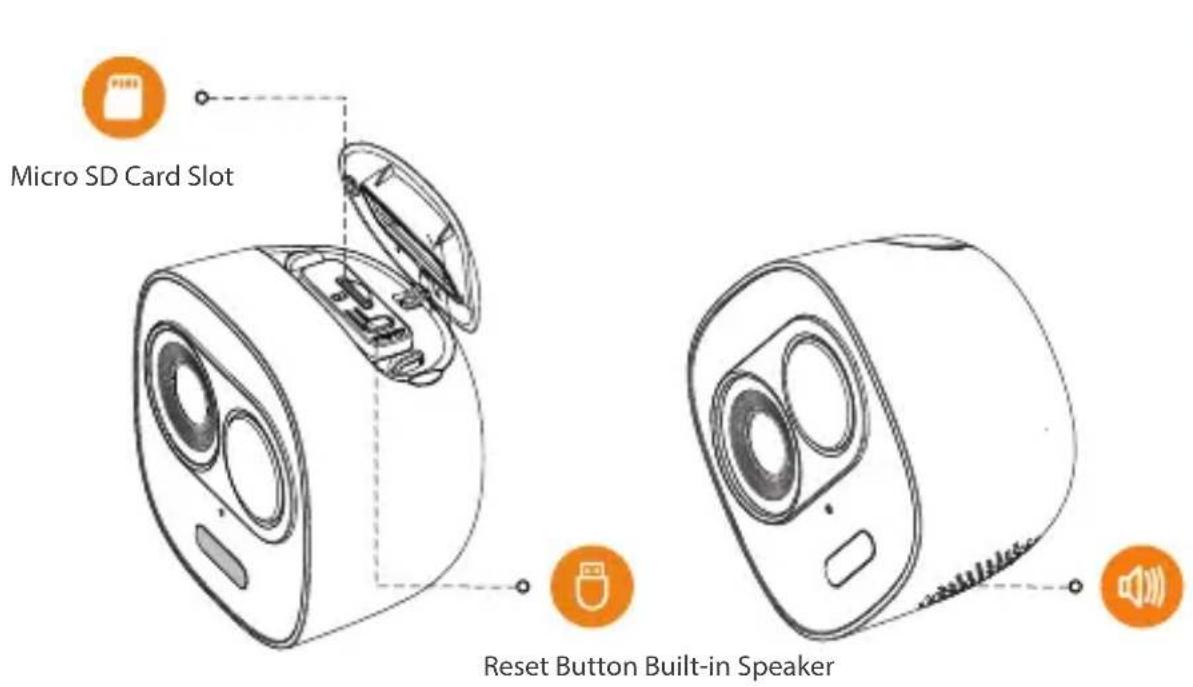

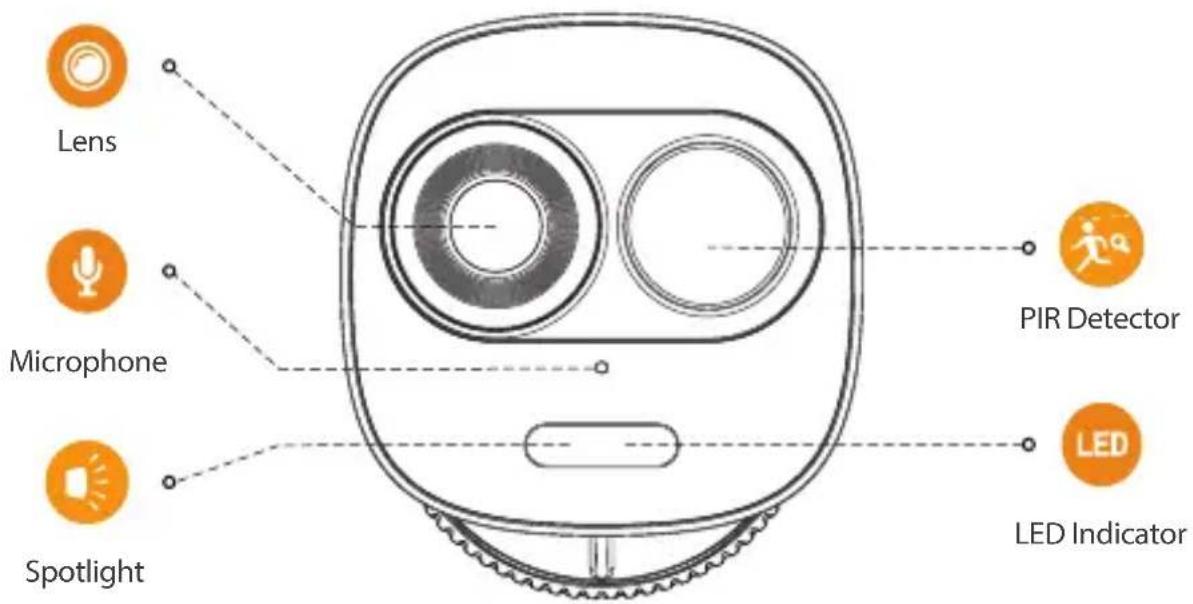

Quick Start Guide www.imoulife.com LOOCWelcome Thank you for choosing IMOU. We are devoted to providing you easy smart home products. If you have problems using the product, please contact our service team before returning your product. Our service mail: service.global@imoulife.com Frequently asked questions can be found at imoulife.com/support/helpPackage content Camera introduction Bracket ×1 Ins tallation Position Map ×1 Device ×1 Quick Start Guide ×1 Screw Package ×1 Cable Clip Package ×1 Power Adapter ×1 Pry Bar ×1 PIR Detector Microphone Lens Spotlight LED IndicatorNote: The pattern of the LED indicator is included in the following table. LED Indicator Status Device Status Operating properly Network connection failed Booting Device malfunction Micro SD Card SlotReset Button Built-in Speaker The top cap can be opened with the pry bar from the accessory kit. Press the Reset Button for 10 seconds to reset the camera. Red light on Green light flashing Green light on Red light flashing Light off Powered off/LED turned off Rebooting after reset Waiting for network Firmware updating Green and red light flashing alternatelyTips

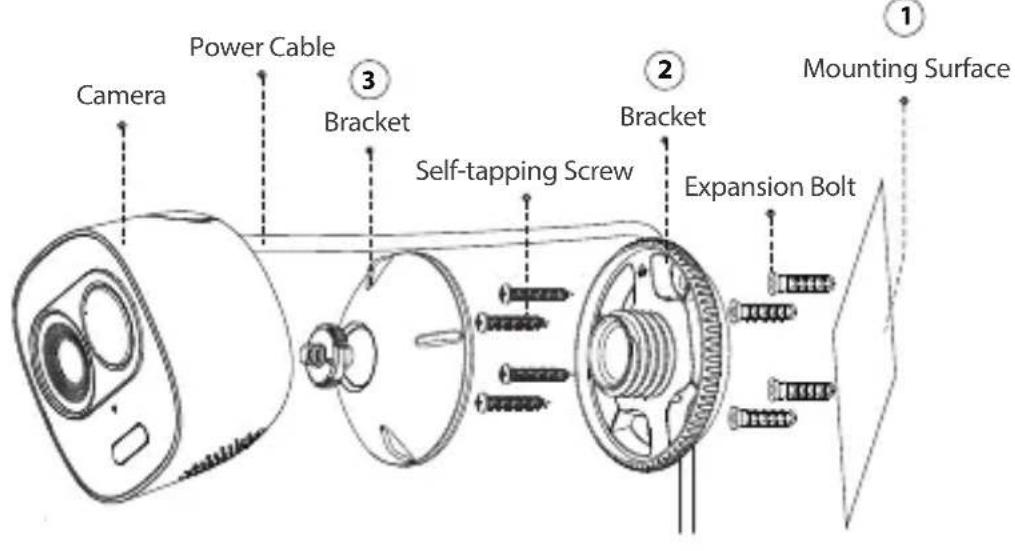

Windows Imou Life To ensure the best possible wireless performance, please make sure there are no obstacles and electromagnetic interference between the camera and router.Setup WIFI NamePassword Next Setup Done Ceiling Mounting (Optional) Mounting Surface Bracket Bracket Expansion Bolt Power Cable Camera

5V2A Self-tapping ScrewTroubleshooting The APP says "Failed to configure device network"

• Ensure your mobile device and the camera are within range of your Wi-Fi router.

• Ensure the LED indicator on the camera isflashing green before beginning setup.

• Check the camera lens for dirt, dust, spider webs. Clean the lens with a soft, clean cloth.

• Remove the vinyl cover on the camera lens.

• Ensure audio function on camera is turned on.

• Ensure audio is turned up on viewing device.

• Clean the camera lens of your Smartphone

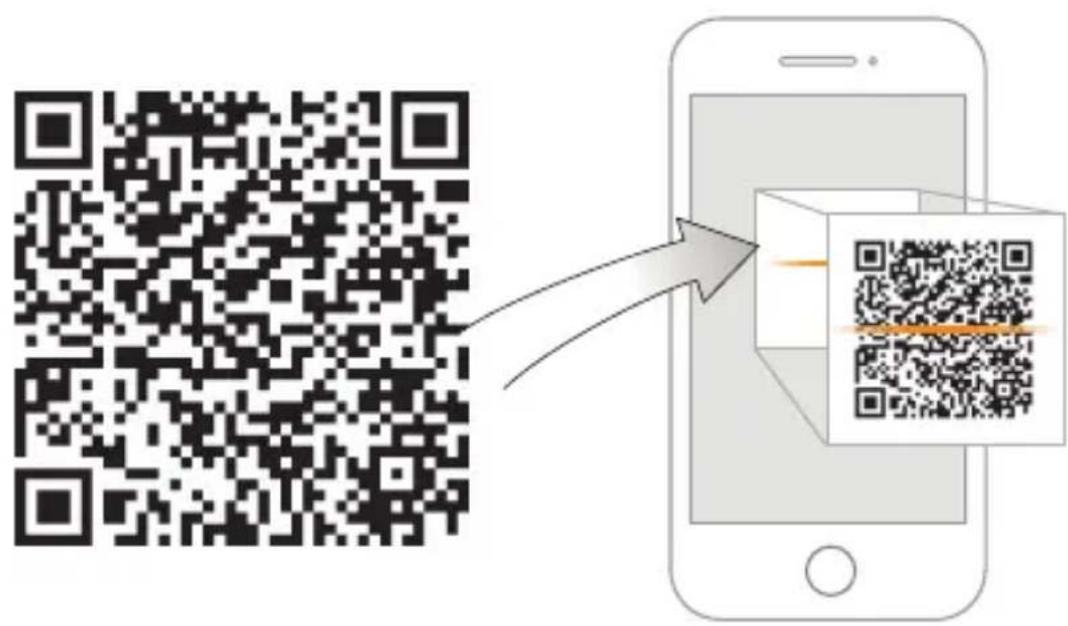

• Ensure that there is enough light on the QR code

• Don’t hold the QR code too close to the camera

• Ensure you have enabled “Human Detection” in the Device Settings screen of the Imou LifeApp.

• Turn off Camera Shielding in Device Settings on the Imou Life app.

• Reset your Camera and connect it again.

• Some cameras only support 2.4GHz, while some routers have dual band, 2.4G/5G. Make sure you are connecting 2.4GHz only. The camera is already connected to Wi-Fi, but the router is:

• Not connected to Interne

• The Wi-Fi signal is not stable due to obstacles or electronic interference

• Ensure the LED indicator on the camera is flashing steady green. See ‘LED Status’ section for details if otherwise.

• Ensure the camera is properly connected to power using the included USB power adapter.
